Thread: Over pressure signs ??

  1. #1
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807

    Over pressure signs ??

    Fired my first vmax 53 out of the 223 yesterday.

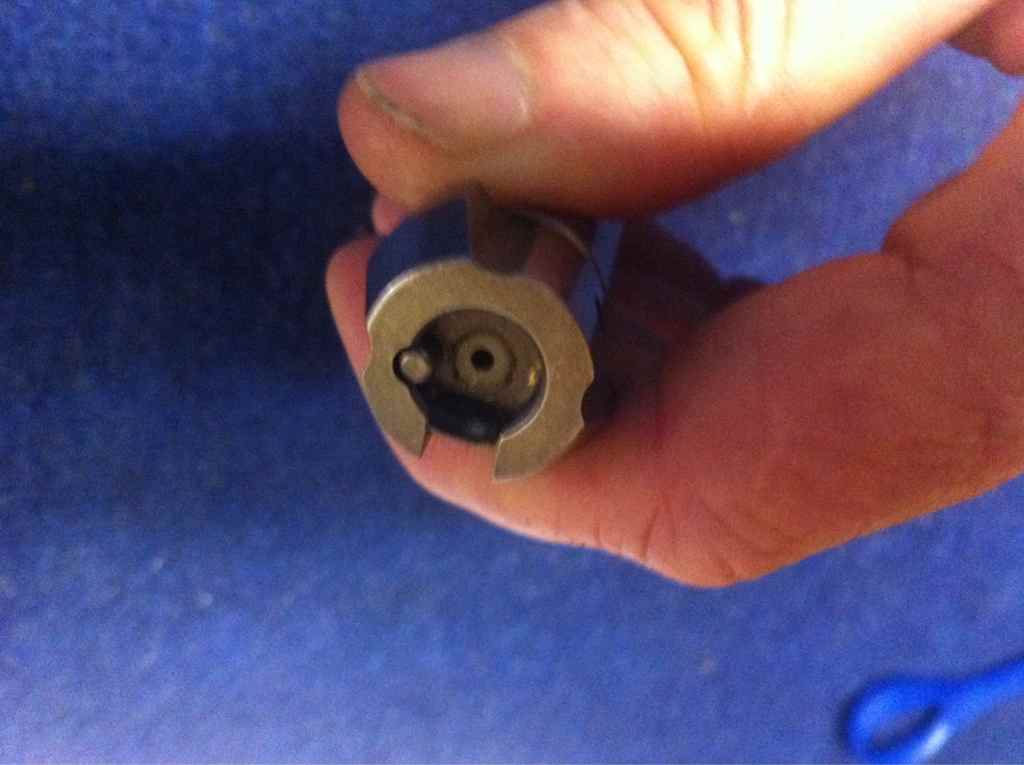

    Looked at the bolt face and it had a dirty ring around the firing pin Name:  ImageUploadedByTapatalk1388615855.460822.jpg
Views: 1366
Size:  36.9 KB

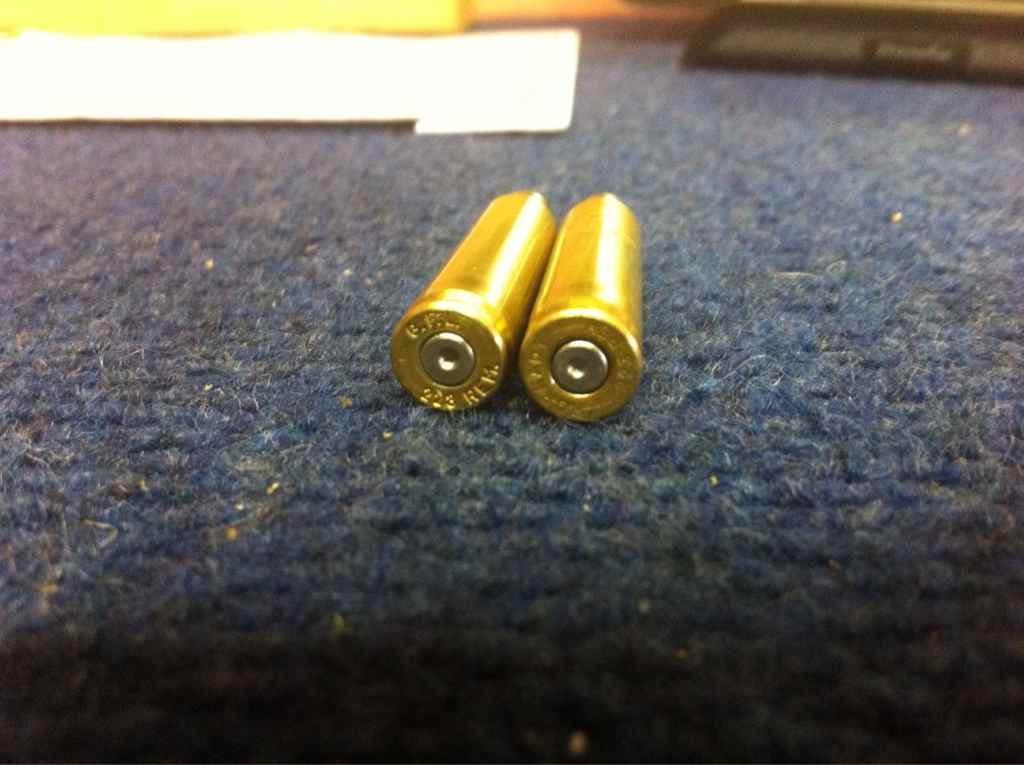

    Then I looked at the fired case (left in picture ) and compared to a fired case from a vmax 40 load (right in picture)
    Name:  ImageUploadedByTapatalk1388615963.962475.jpg
Views: 1458
Size:  51.0 KB
    The primer looks pretty flattened to me .. Definite signs of over pressure to me.

    Opinions ?

    Tim

  2. #2
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Naa Tim, that's not a flat primer.

    Also, cratered primer and/or extractor mark is IMHO a better indicator of pressure. Flat primers can often be a sign of headspace rather than hot load.

    Was bolt lift sticky or normal ?
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  3. #3
    P38
    P38 is offline
    Member P38's Avatar
    Join Date
    Dec 2011
    Location
    Hastings
    Posts
    5,692
    Tim

    Both primers look ok to me.

    I don't see any obvious signs of over pressure that would concern me at this stage.

    Primer on the left still has a visible radius and no sign of cratering around the firing pin strike.

    Was there any other signs of over pressure, like sticky bolt on opening or difficulty extracting the case from the chamber?

    I'll post some pics later with examples of flattened and cratered primers that while up in pressure were not causing problems otherwise.

    The darkened ring around your firing pin hole on the bolt face may be due to a loose primer leaking rather than over pressure.

    Cheers
    Pete

  4. #4
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Normal

  5. #5
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Sweet. I'll proceed on track with caution then.

    Thanks guys

  6. #6
    P38
    P38 is offline
    Member P38's Avatar
    Join Date
    Dec 2011
    Location
    Hastings
    Posts
    5,692
    Tim

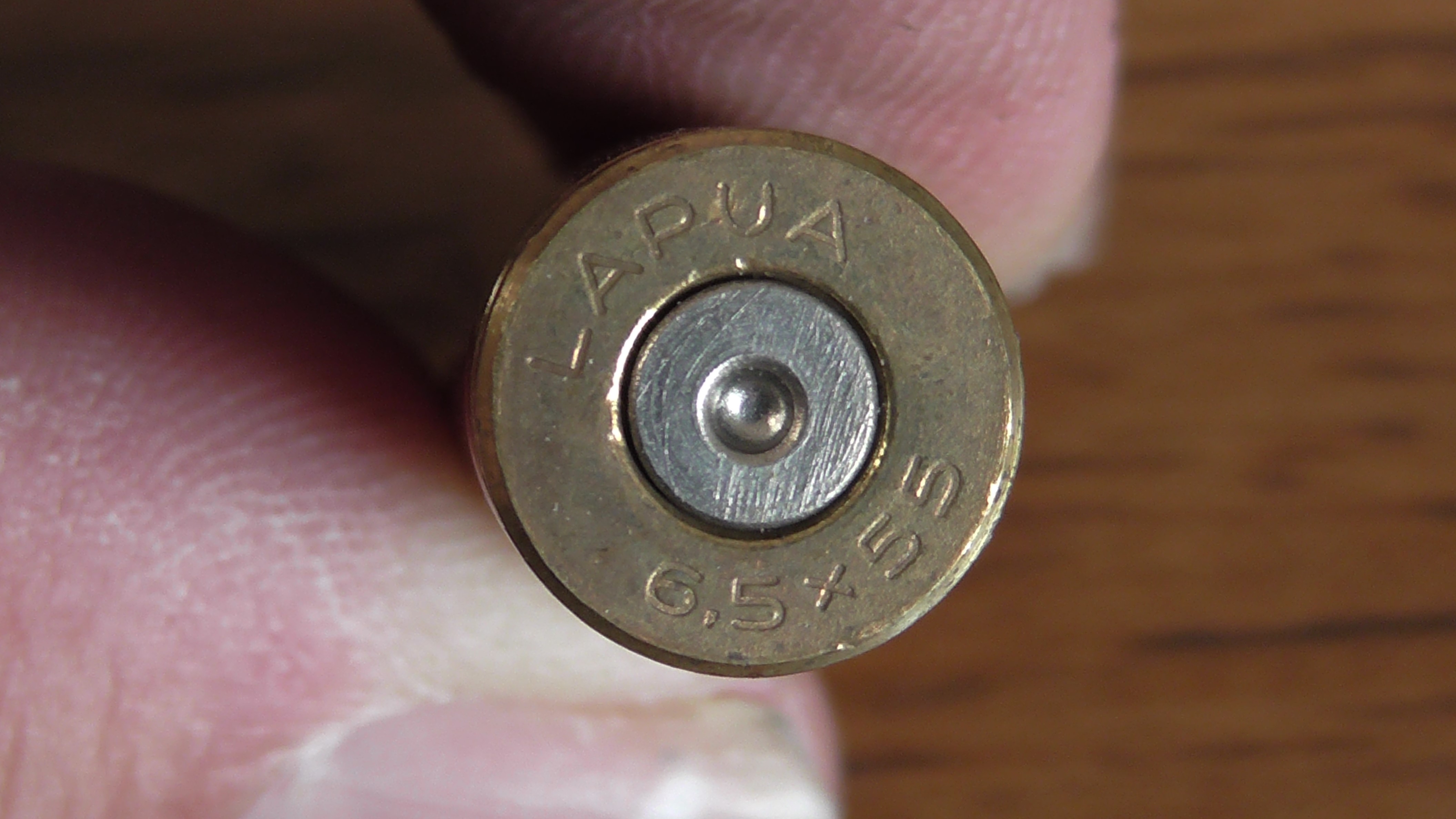

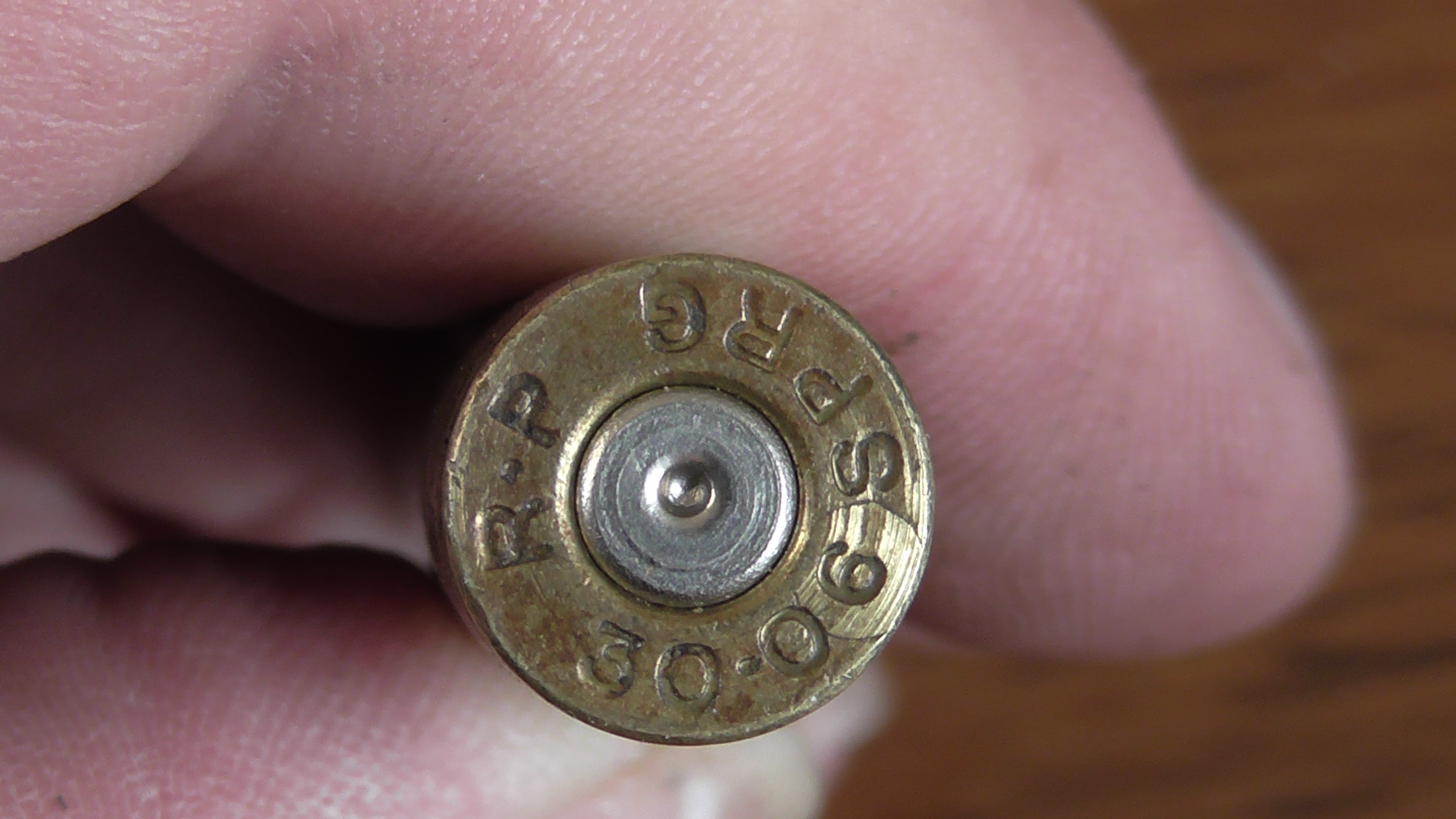

    Below are three rounds with various degrees of flattened primers, all are hot loads yet all perform well in the Rifles they were loaded for with no other signs of over pressure.
    Name:  Lapua 6.5x55.jpg
Views: 4885
Size:  806.0 KBName:  Norma .270w.jpg
Views: 3259
Size:  747.4 KBName:  R-P 30-06 Springfeild.jpg
Views: 4242
Size:  848.2 KB

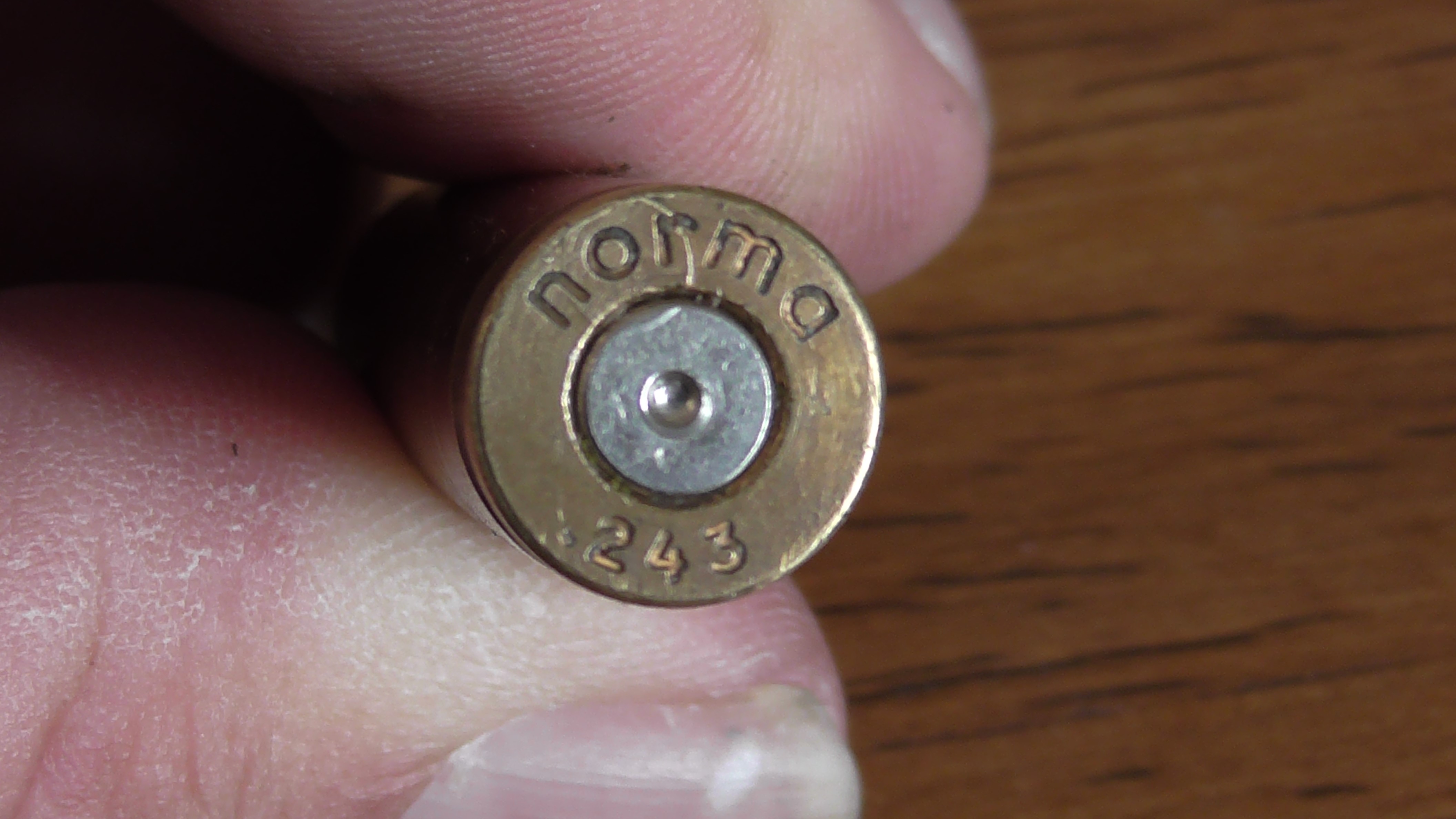

    This Norma .243 also has a very flattened and cratered primer and as can be seen from the profile view it also has a serious case of Head Separation.
    This was caused by a head space issue.
    Name:  Norma .243.jpg
Views: 1804
Size:  745.8 KBName:  Norma .243a.jpg
Views: 2386
Size:  883.4 KB

    Hope this helps.

    Cheers
    Pete
    veitnamcam, Toby and kiwi39 like this.

  7. #7
    Member BRADS's Avatar
    Join Date
    Oct 2012
    Location
    Central Hawkes Bay
    Posts
    9,228
    Wow P38 that 243 case would make the arse clinch up a bit

  8. #8
    P38
    P38 is offline
    Member P38's Avatar
    Join Date
    Dec 2011
    Location
    Hastings
    Posts
    5,692
    Quote Originally Posted by BRADS View Post
    Wow P38 that 243 case would make the arse clinch up a bit
    It did Brads

    Fortunately it wasn't mine and I was observing from a safe distance.

    Cheers
    Pete

  9. #9
    Member
    Join Date
    Sep 2013
    Location
    Paremoremo
    Posts
    66
    Case head separation is also (if not mainly) caused by too dry a chamber and case. The case needs to be able to 'creep' on the chamber walls to be able to spread the load evenly over the length of the case. That way nearly 10% of the thrust is carried by the case itself. If too dry/rough the case does not creep and the head starts to separate at which point the full thrust is transferred onto the bolt face. Without excess headspace this would take several firings to manifest if at all.

    Full length sizing is a major culprit too.

  10. #10
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,745
    Quote Originally Posted by 303Guy View Post
    Case head separation is also (if not mainly) caused by too dry a chamber and case. The case needs to be able to 'creep' on the chamber walls to be able to spread the load evenly over the length of the case. That way nearly 10% of the thrust is carried by the case itself. If too dry/rough the case does not creep and the head starts to separate at which point the full thrust is transferred onto the bolt face. Without excess headspace this would take several firings to manifest if at all.

    Full length sizing is a major culprit too.
    If done incorrectly, if done properly there is no reason for it to cause case head separation at all.
    bully and BRADS like this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  11. #11
    Member
    Join Date
    Sep 2013
    Location
    Paremoremo
    Posts
    66
    Yup. I should have said 'over sizing'.

  12. #12
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,725
    Those primers look ok to me.

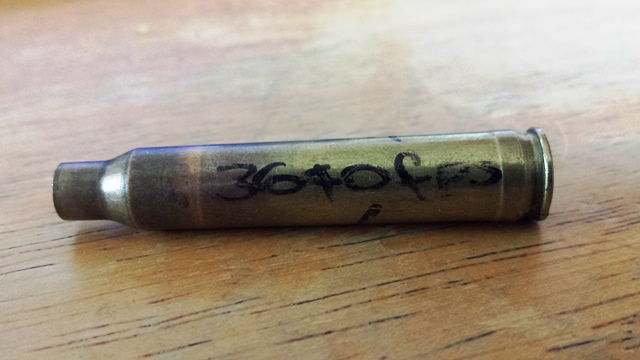

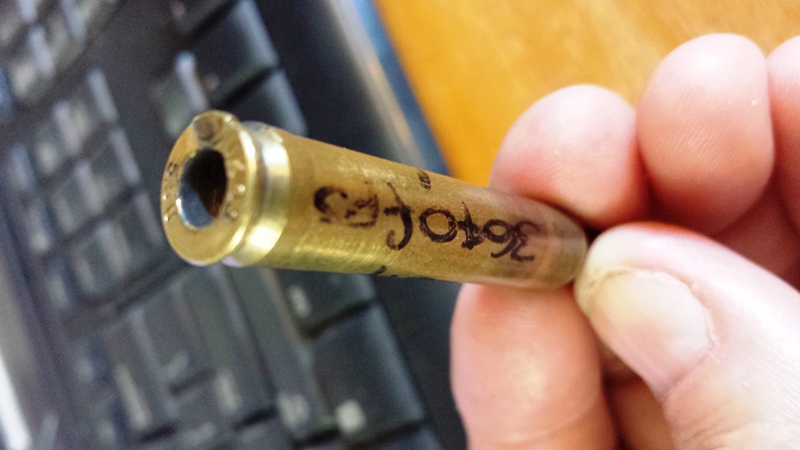

    Below are the worst I got in developing the 223Maximus. This was a 60gr bullet doing 3640fps, it felt fast when firing and I went home after that and took the rest apart.

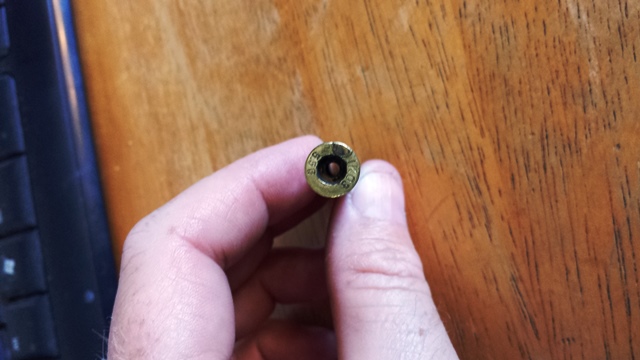

    Also, I didn't need to decap this one, the primer fell out after removing the case from the bolt face. It is not meant to be a rimmed case either.

    Name:  20140103_184830.jpg
Views: 1417
Size:  115.5 KB
    Name:  20140103_184906.jpg
Views: 1170
Size:  81.9 KB
    Name:  20140103_184926.jpg
Views: 1100
Size:  82.8 KB
    veitnamcam and kiwi39 like this.

  13. #13
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    hehe, "not meant to be a rimmed case"
    Ohutumeats likes this.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  14. #14
    K95
    K95 is offline
    Member K95's Avatar
    Join Date
    Dec 2011
    Location
    Westland
    Posts
    889
    I had a case that looked the same, definitely puts the shits up you huh. Only one out of 60 that did it.

  15. #15
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,477
    Very good Pics there P38, thanks for posting those.
