Thread: Schmidt & Bender 4-16x50 precision hunter ##HELP##

  1. #1
    Member
    Join Date
    Apr 2015
    Location
    Christchurch
    Posts
    28

    Schmidt & Bender 4-16x50 precision hunter ##HELP##

    Hi everyone,
    Im really hoping someone can help me here!

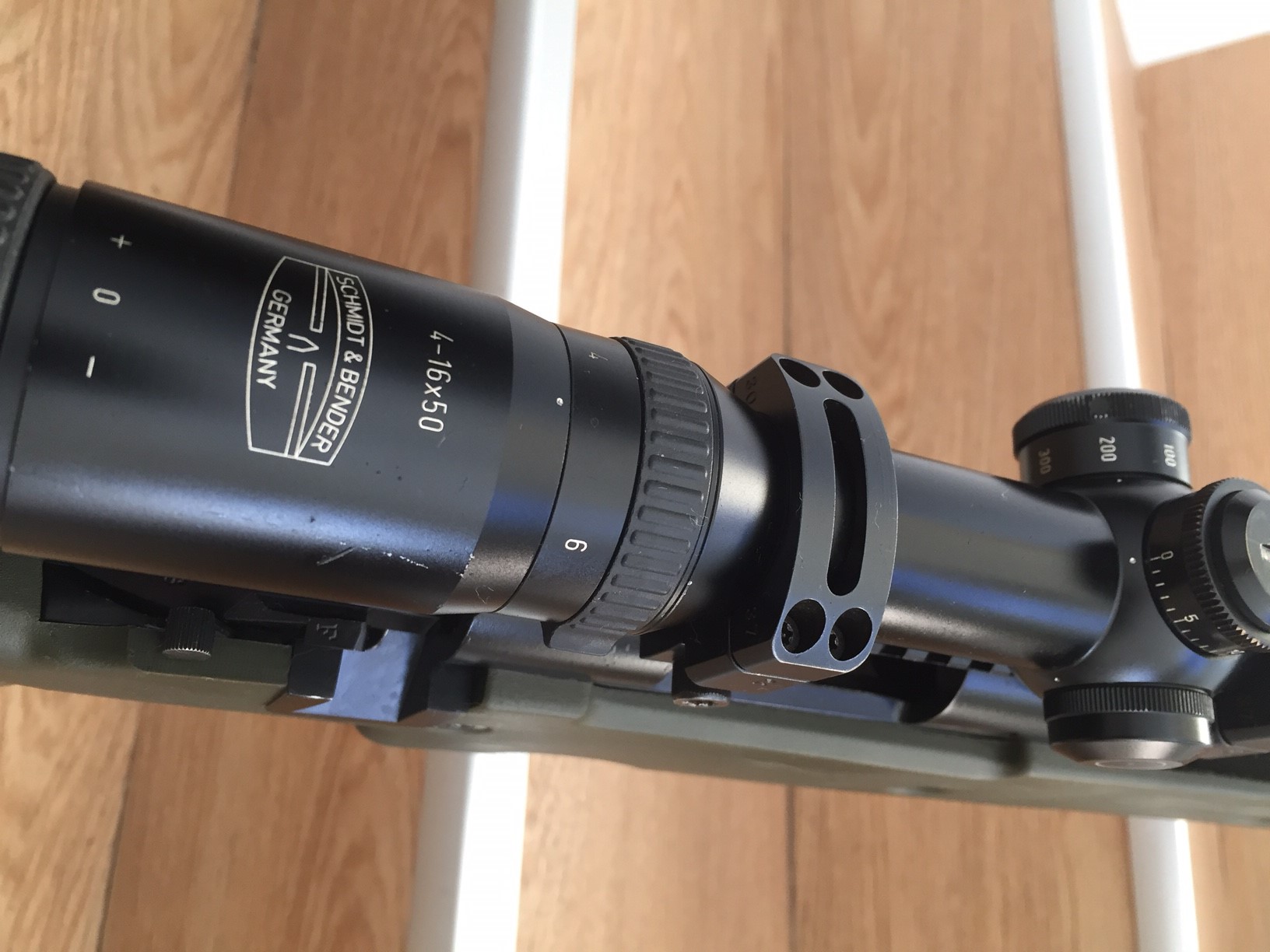

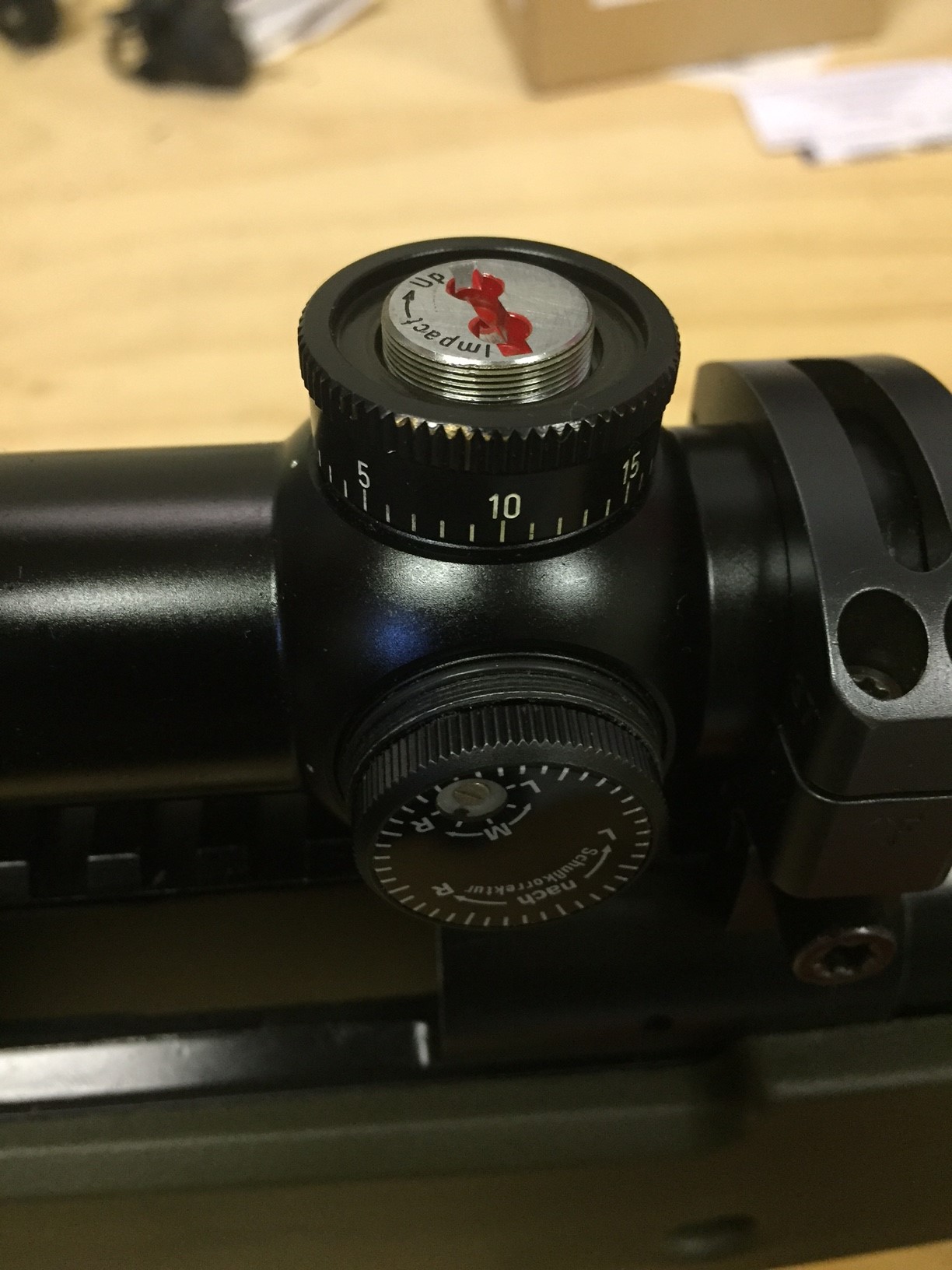

    Ive got an older Schmidt & Bender 4-16x50 scope (precision Hunter model). Ive added a cpl pics of the turrets. Its a Mil-dot reticle (has x4 mil-dots in each quadrant
    before the posts.

    The problem I have is I have forgotten what values each click on the evelvation turret is??? I've been using the "shooter app" for calculating elevation in past but lost all the input data so Im having to input this again. I have found all load and rifle data I need (from my notebook when sighted in) but Im unsure what each click on the elevation turret represents. There are 32 clicks range on the turret. I seem to THINK I was told this scope was 5mm per click BUT IM NOT POSITIVE so would like some reassurance please.

    My next question is: IF each click represents 5mm, then in my shooter app do I tick 1/5 in "turret elevation graduation" or 1/20, 1/10, 1/8 ........etc.

    Lastly, just to clarify, IF it is 5mm per click, AND I should tick 1/5 in the app turret elevation garduation, THEN does that mean each click on the turret equates to 0.2 Mil?

    For example, if say I calc based on a distance of 800m and the app states "6.0mils (30 clicks) would that mean I would need to hold over 4 mil dots on the reticle and wind the elevation turret 10 clicks?

    I hope this makes sense.

    Much appreciated

    Brad
    Attached Images Attached Images

  2. #2
    Member Tahr's Avatar
    Join Date
    Dec 2011
    Posts
    4,201
    Click values for S&B Precision Hunter - The Optics Talk Forums

    5mm

    "Schmidt and Bender's Precision Hunter 4-16x50 Rifle Scope is an outstanding long-range scope, equipped with a third turret parallax adjustment. At 4x, the Mil-Dot reticle with fine crosshairs and four posts allows quick target acquisition. At 16x, the Mil-Dots become visible and can be used for precise rangefinding, trajectory and windage calculations. The top-mounted BDC has 5mm (1/5" clicks) for quick adjustments to 500 yards. The windage adjustment also has 5mm clicks for precise sighting in".

  3. #3
    Member
    Join Date
    Feb 2012
    Posts
    314
    Each click is 5mm= .05mil


    So you need to select "mils" and "1/20" in shooter app.
    jakewire likes this.

  4. #4
    Member
    Join Date
    Apr 2015
    Location
    Christchurch
    Posts
    28
    Thanks heaps, that is what I originally thought but this confirms it - cheers.
    Forgive my extra question but given this, how many MIL does each click of the elevation turret then equal?
    Thanks in advanced

  5. #5
    Member
    Join Date
    Apr 2015
    Location
    Christchurch
    Posts
    28
    Thanks heaps for this reply

  6. #6
    Member
    Join Date
    Apr 2015
    Location
    Christchurch
    Posts
    28
    Sorry, just re-read your reply. So if each click is 0.05Mil then say a 800m shot that come out on the "shooter app" as 5.8mil (116 clicks) would mean using this scope I'd use the holdover of 4 mil-dots on the reticle @ dial 16 clicks on elevation turret????

  7. #7
    Member
    Join Date
    Apr 2015
    Location
    Christchurch
    Posts
    28
    Shit sorry, that would be 36 clicks on turret BUT Si ce this turret only has max of 32 clicks I'd need to hold over on the 5th MIL on reticle (bottom post) and then dial 16 clicks on turret???

  8. #8
    Member
    Join Date
    Feb 2012
    Posts
    314
    Quote Originally Posted by B.pope View Post
    Shit sorry, that would be 36 clicks on turret BUT Si ce this turret only has max of 32 clicks I'd need to hold over on the 5th MIL on reticle (bottom post) and then dial 16 clicks on turret???
    Correct. Unfortunately that is the downside to that model S&B as I have recently found out.

  9. #9
    Member
    Join Date
    Apr 2015
    Location
    Christchurch
    Posts
    28
    Thank you very much for your responses. So in your opinion does this mean that this scope is really designed to use the reticle MIL-dots as point of impact and use the elevation dial to account for fractions of a Mil (I.e at say 1.6 mil you would hold on the first mil-dot down on reticle and dial 12 clicks on the turret)?
    Another example at say 4.3 mil you would hold on the 4th mil-dot down on the reticle and dial 7 clicks on the turret)?

    If so this means that this scopes absolute maximum range would be 6.6 mil (I.e. Hold on the bottom post on the reticle (which would be 5 mil) and dial up the max 32 clicks on the turret (which would be an added 1.6 mil)?

    Any tips on then setup for this scope for long range hunting? What zero range would you use?
    Thanks in advance for your time in helping me

    Brad

  10. #10
    Member
    Join Date
    Feb 2012
    Posts
    314
    That's the way I'd use it Brad. If you need more elevation maybe zero on one of the dots above the horizontal line (assuming the scope is first focal plane)?

    For example if you zeroed at 100m on the the 2nd dot up then you would get 7 mil hold over + what ever is on the turret. Would take a bit of practice but should work.

    My 4-16x50 just arrived today. It's the varmint model with dots at .3, .8, 1.4 and 2.2mil. Elevation dial is not the exposed type like yours.

  11. #11
    Member
    Join Date
    Apr 2015
    Location
    Christchurch
    Posts
    28
    Thanks nzhunter. You have been really helpful & I appreciate the effort you have given me in setting my mind at ease with the use of this scope.
    Btw, I tried getting this info via SR-marston (nz providers of Schmidt & bender), Gun city (who distribute this brand), & both could not help at all - they knew "diddly squat" about this model & gave me wat false info.
    It's guys like you (and on this site) that know their stuff!
    Kindest regards

  12. #12
    Member
    Join Date
    Feb 2012
    Posts
    314
    No worries happy to help. You can also contact Schmidt and Bender Germany direct via their website with the serial number and they can give you a date of manufacture and if its been returned for service. I contacted them this week regarding changing the elevation turret to an exposed type. They passed my inquiry onto Klaus Pommer at KP Agencies in Auckland who was most helpful and gave me some of the info I posted here.
