    Target Camera

    Finally got all the pieces I needed to make a target camera. Range is out to 5km so will be suitable for all range and gong work. Have tried to list all the instructions so people can have a go themselves.

    All products are from Aliexpress apart from the batteries as they don't air freight them so got them off trademe $25 each. I will be using an existing GoPro Hero 3 camera but you could use any form of Handy Cam etc as long as you get the appropriate connectors.

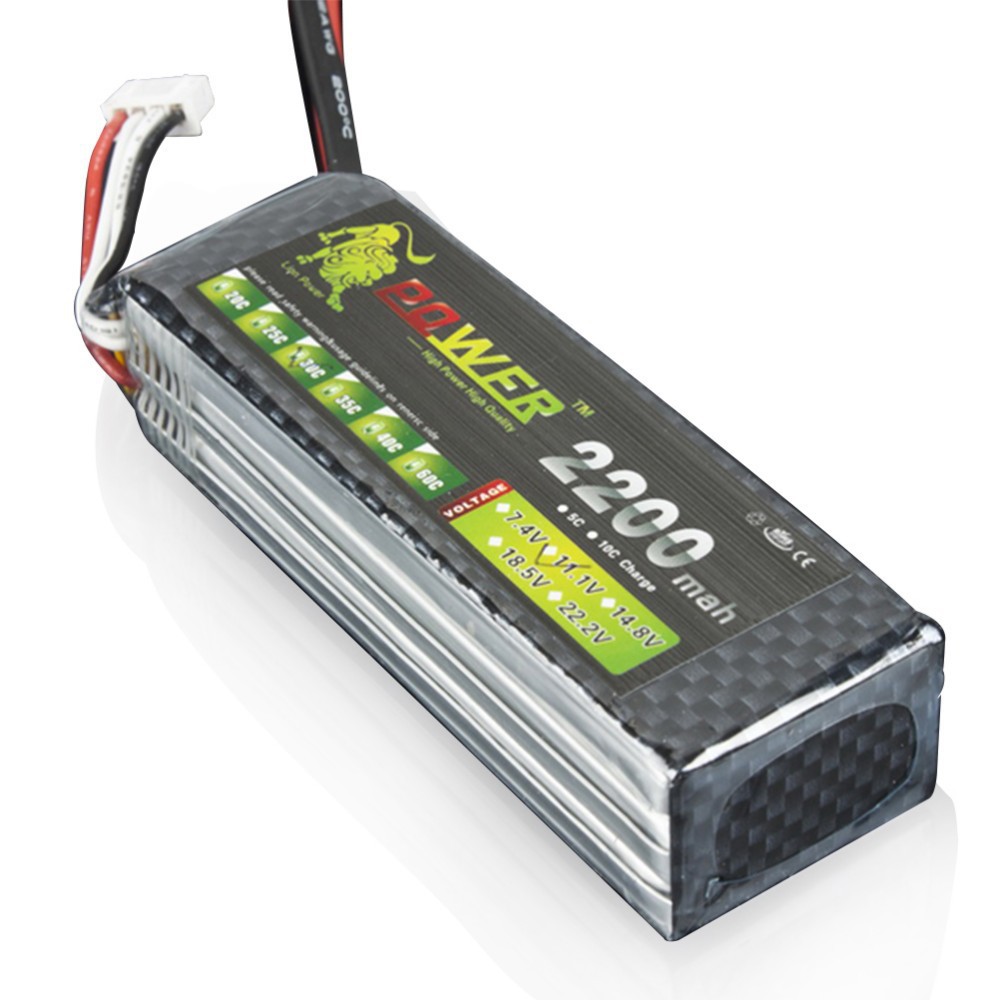

    Power source x 3 (One for Camera and Transmitter, one for Receiver and one for Mini DVR)

    Name:  LION-POWER-3S-lipo-battery-11-1v-2200mAh-30C-rc-helicopter-rc-car-rc-boat-quadcopter.jpg
Views: 313
Size:  117.3 KB

    http://www.aliexpress.com/item/LION-...999.333.VQyOz1

    Charger for the Lipo batteries (Remember to leave comment requesting an AU plug type)

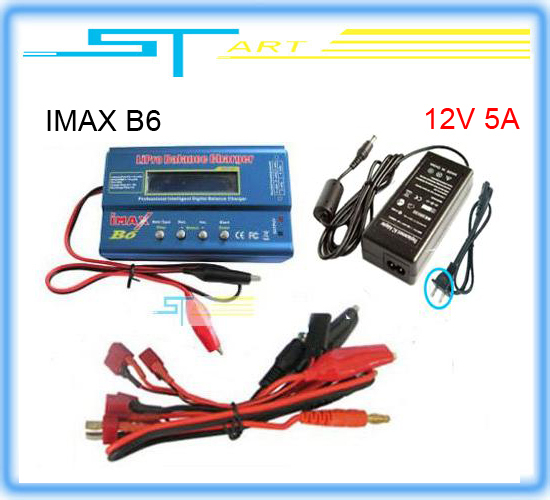

    Name:  IMAX-B6-Digital-RC-Lipo-NiMh-Battery-Balance-Charger-AC-POWER-12V-5A-Adapter-2S-6S.jpg
Views: 277
Size:  170.8 KB

    http://www.aliexpress.com/item/Sale-...999.339.VQyOz1 $27.00

    Get a Lipo charging bag as itís a much safer to charge them in the bag. They have on very rare occasions exploded.

    Name:  RC-font-b-LiPo-b-font-Battery-Safety-Protect-font-b-Bag-b-font-Pouch-Safe.jpg
Views: 287
Size:  80.4 KB

    http://www.aliexpress.com/item/F1639...999.345.VQyOz1 $7.13

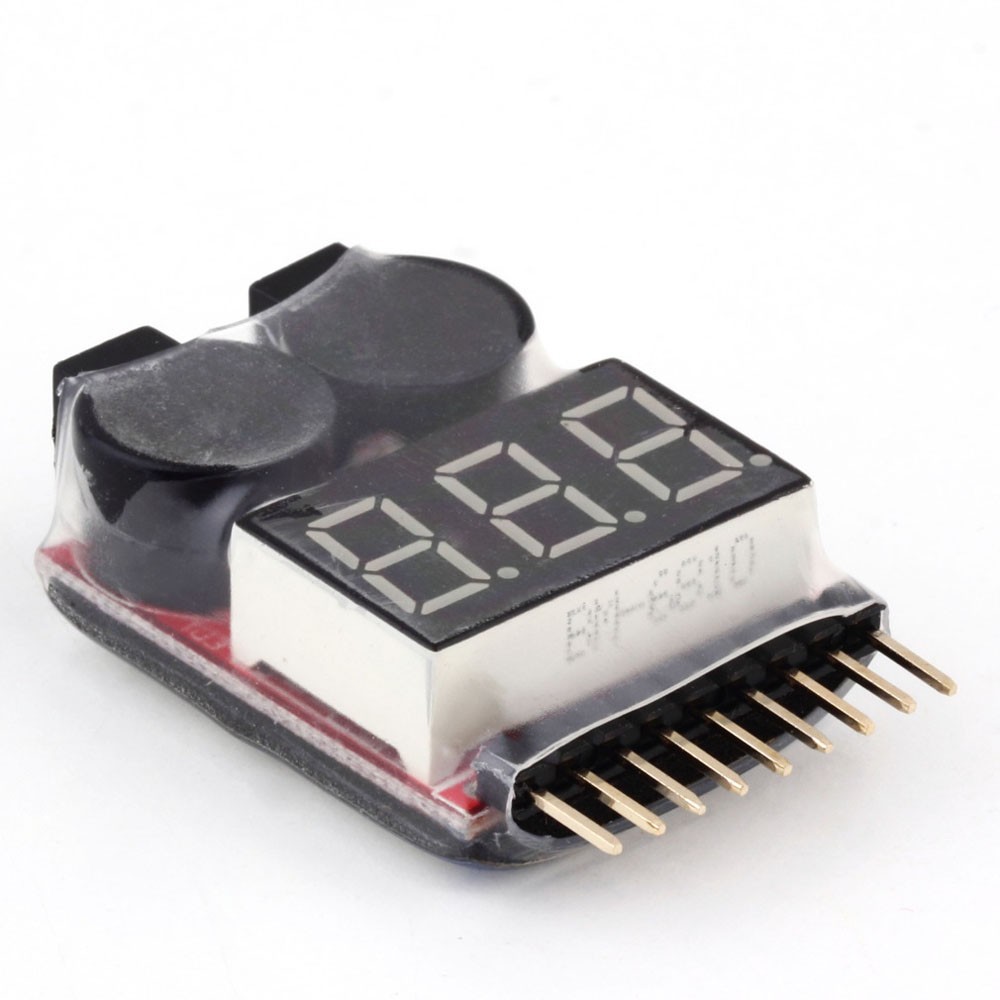

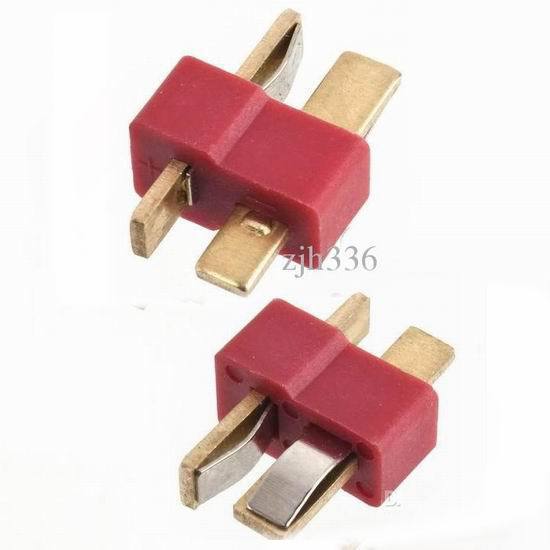

    Associated cables, Wire and battery meters. Only required if you want them / donít have items available

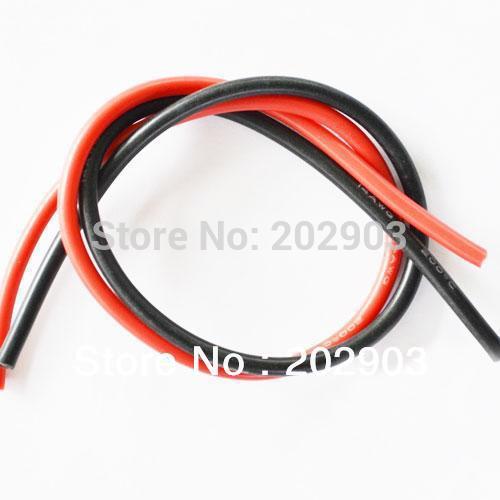

    Name:  1meter-Red-1meter-Black-16-16-AWG-16AWG-Heatproof-Soft-Silicone-Silica-Gel-Wire-Connect-Cable.jpg
Views: 287
Size:  21.6 KBName:  2015-Hot-Sell1-8S-LED-Low-Voltage-Buzzer-Alarm-Lipo-Voltage-Indicator-Checker-Tester-H1E1.jpg
Views: 265
Size:  97.0 KBName:  Free-Shipping-Dropship-10-Pairs-Deans-Style-T-Plug-Nylon-T-Connector-Golden-T-Plug-T.jpg
Views: 283

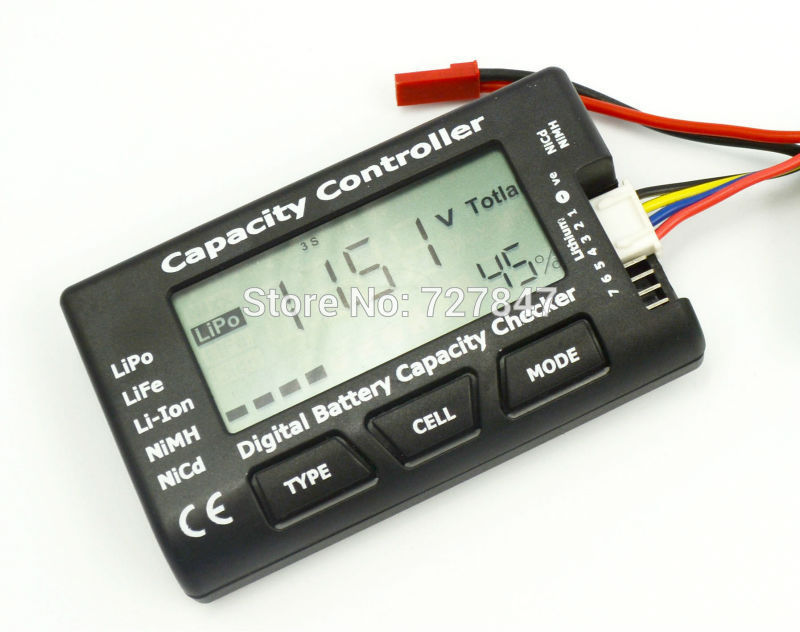

Size:  22.2 KBName:  HTB1FdLTHVXXXXcuXXXXq6xXFXXX9.jpg
Views: 254

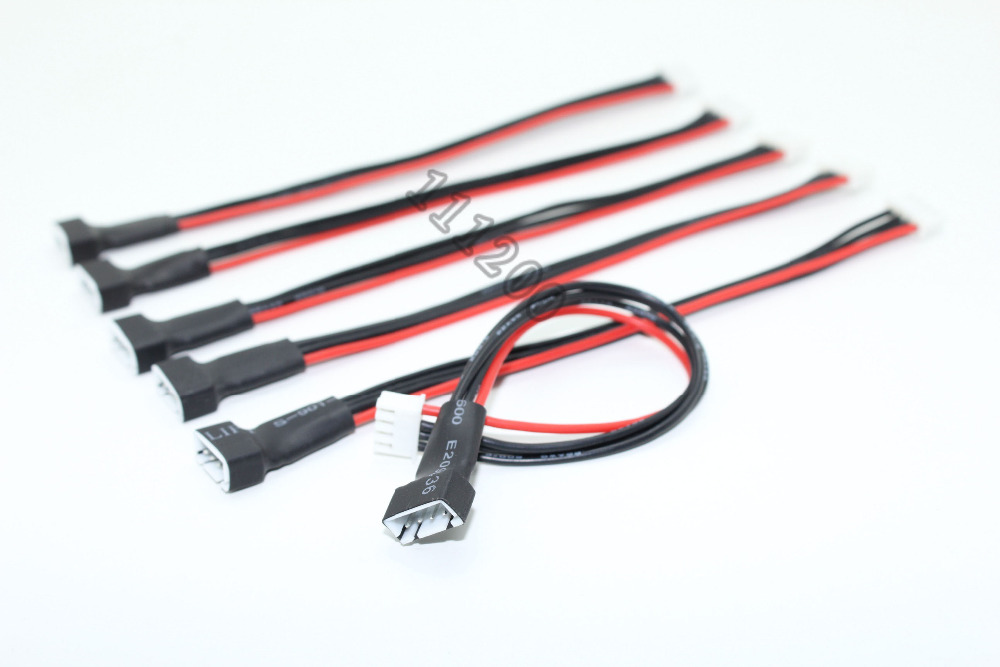

Size:  61.9 KBName:  RC-2S-7-4v-4S-14-8v-3S-11-1v-6S-22-2v-Lipo-Battery-font.jpg
Views: 264
Size:  95.4 KB

    http://www.aliexpress.com/item/Whole...999.357.VQyOz1 $2.95
    http://www.aliexpress.com/item/1mete...999.351.VQyOz1 $3.59
    http://www.aliexpress.com/item/Free-...999.326.VQyOz1 $5.12
    http://www.aliexpress.com/item/2015-...999.319.VQyOz1 $3.64 (2)
    http://www.aliexpress.com/item/Free-...999.273.VQyOz1 $13.88 (2)

    The Camera Receiver, Transmitter and Screen are all in one kit, makes things much easier.

    Name:  FPV-Combo-System-5-8Ghz-600mw-5km-Transmitter-and-Receiver-for-Gopro-xiao-yi-xiao-mi.jpg
Views: 381
Size:  163.9 KB

    FPV Combo System 5.8Ghz 600mw 5km Transmitter and Receiver for Gopro xiao yi xiao mi SJ4000 SJCAM QAV250 DJI Phantom Quadcopter-in Parts & Accessories from Toys & Hobbies on Aliexpress.com | Alibaba Group $62.50

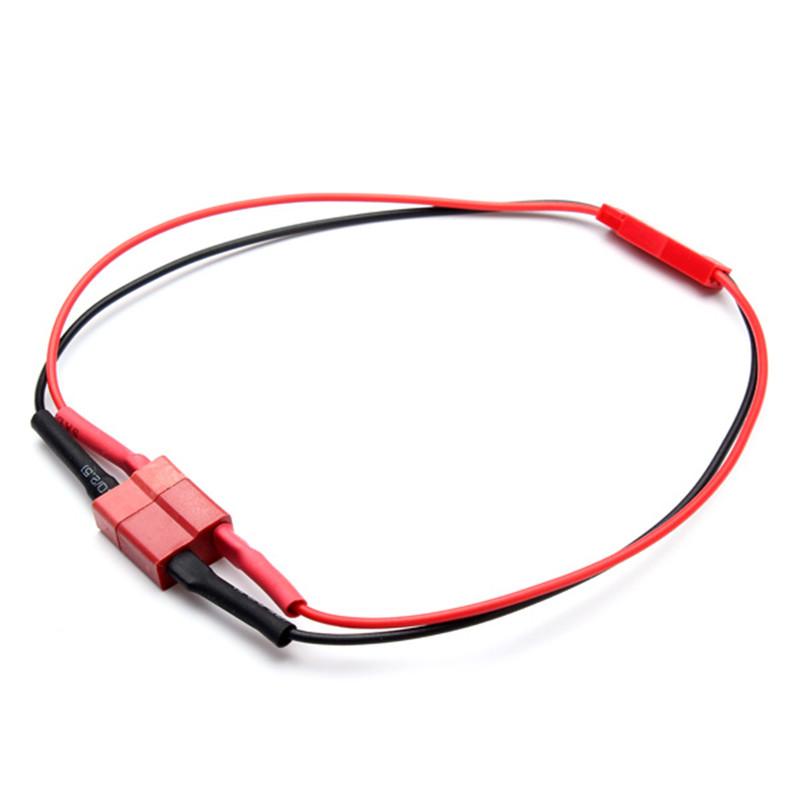

    Get a couple of these by looking at the wiring and plugs you might need them

    Name:  t-plug-to-jst-soft-silicone-wire-switch-cable.jpg
Views: 267
Size:  24.5 KB

    http://www.aliexpress.com/item/T-Plu...999.305.VQyOz1 $3.60 (3)

    The Mini DVR is again optional but I thought it would be good to record the Range / Gong shooting. It sits in between the Receiver and the Screen. Donít worry about what plug comes with it as later on you will cut it and replace with a T-Plug so a Lipo battery can power. You will need a TF memory card (mini Ė SD common for other electronics)

    Name:  mini-c-dvr-video-audio-recorder-motion-detection.jpg
Views: 263
Size:  62.8 KB

    http://www.aliexpress.com/item/Mini-...999.267.VQyOz1 $21.92

    Last few items are for strapping in the lipos, a cheap tripod and a go-pro tripod mount all not essential but might as well for the project.

    Name:  download (1).jpg
Views: 297
Size:  4.3 KBName:  download.jpg
Views: 265

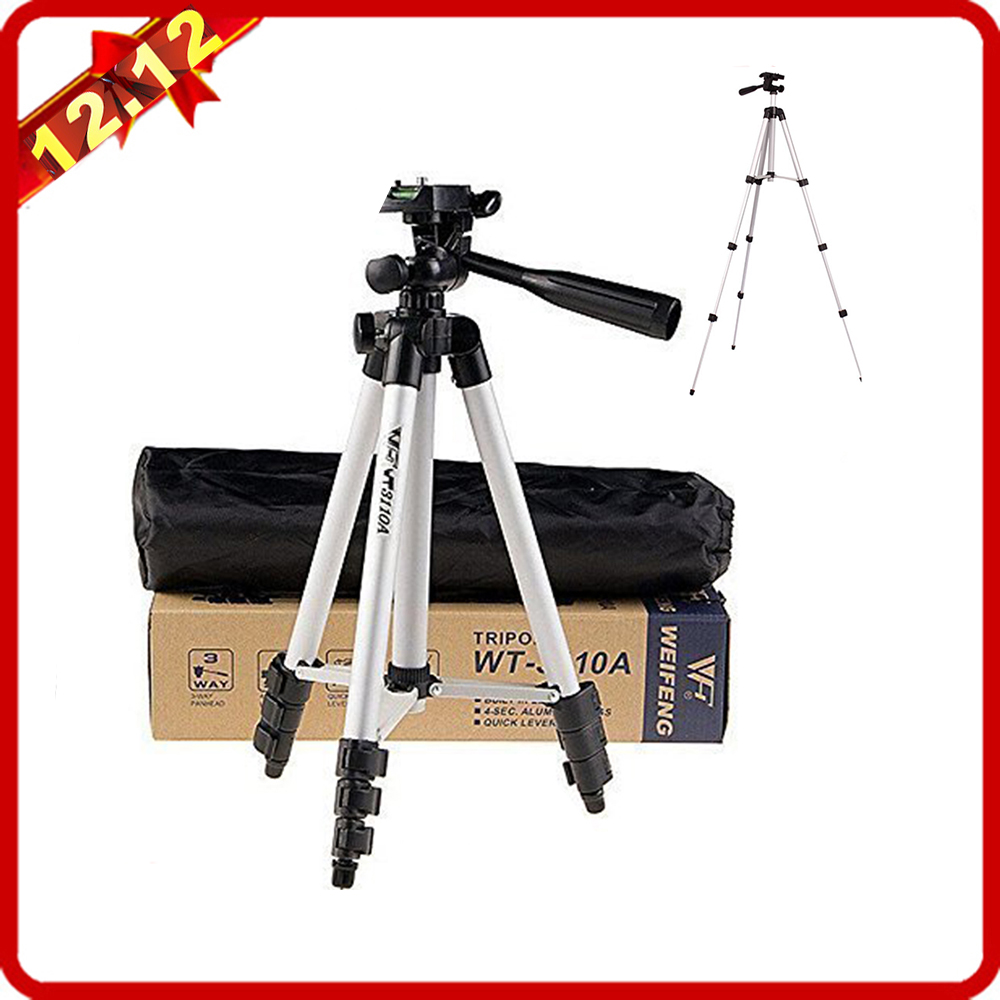

Size:  6.4 KBName:  Weifeng-WT3110A-Tripod-Aluminum-With-3-Way-Universal-Digital-Camera-Tripod-for-Canon-Nikon-Sony-.jpg
Views: 275
Size:  332.0 KB

    Weifeng WT3110A Tripod Aluminum With 3 Way Universal Digital Camera Tripod for Canon Nikon Sony Pentax DSLR WT 3110A-in Tripods from Consumer Electronics on Aliexpress.com | Alibaba Group $10.69
    http://www.aliexpress.com/item/Free-...999.286.VQyOz1 $1.86
    http://www.aliexpress.com/item/Gopro...999.293.VQyOz1
    $4.27

    All up was approx $220 US landed.

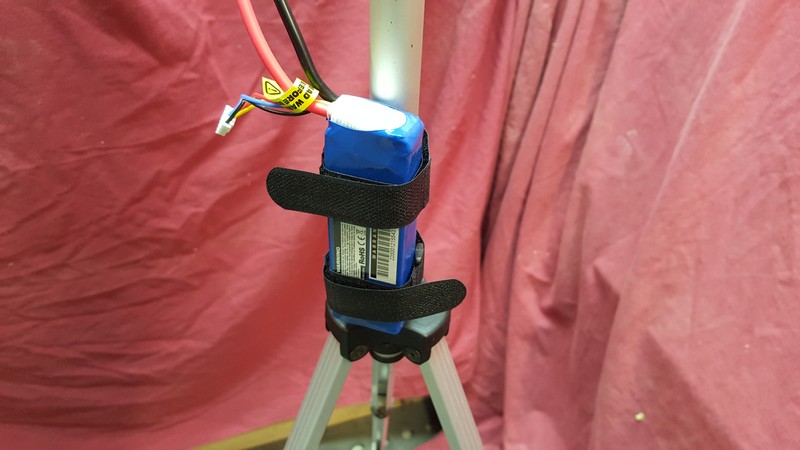

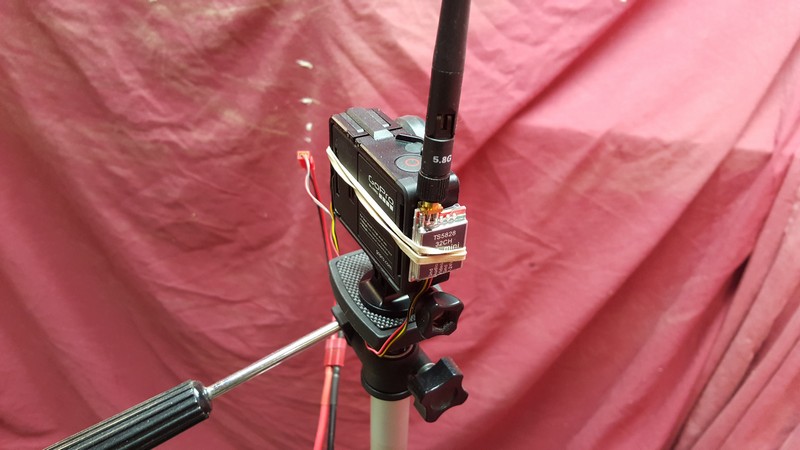

    Really happy with how it turned out, kept it all tidy in a cheap imitation Pelican case.

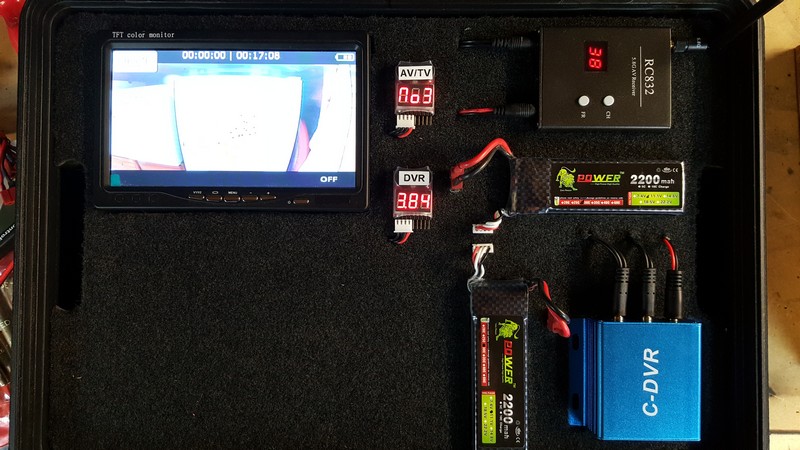

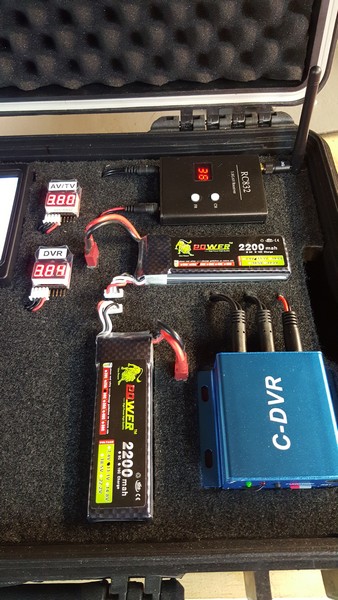

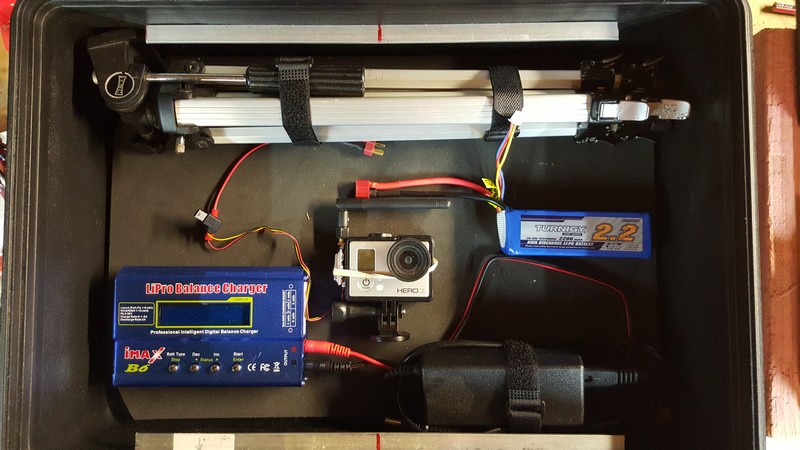

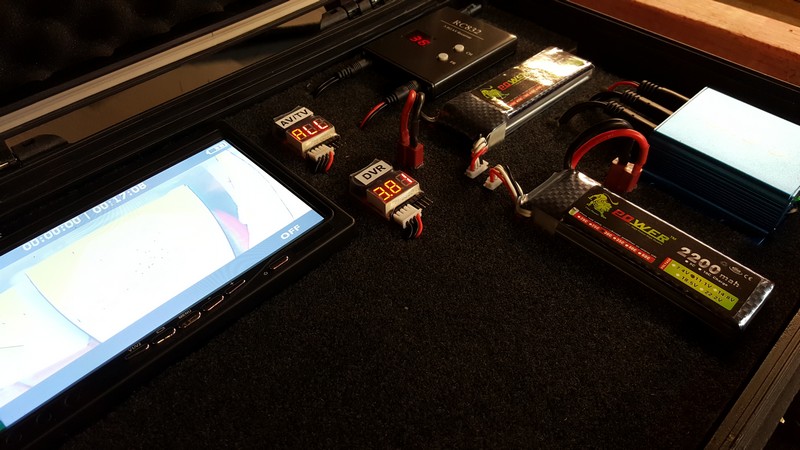

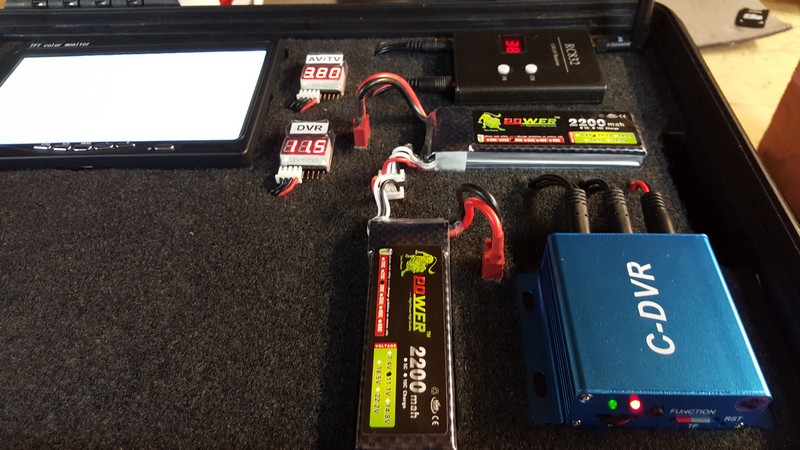

    Name:  20160414_200554.jpg
Views: 253
Size:  93.7 KBName:  20160414_200604.jpg
Views: 251
Size:  81.8 KBName:  20160414_200608.jpg
Views: 255
Size:  74.3 KBName:  20160414_200751.jpg
Views: 257
Size:  119.5 KBName:  20160414_200758.jpg
Views: 262
Size:  122.1 KBName:  20160414_200804.jpg
Views: 258
Size:  109.9 KBName:  20160414_203606.jpg
Views: 288
Size:  107.5 KB

    Few little things to do such as an adjustable angle so the LCD screen can sit up on an angle or at 90 degrees for better viewing, foam in the bottom section to keep all the other bits together, more secure way of fitting the transmitter and Lipo on tripod oh and some time to actually shoot and use it Thanks for looking and I'm happy to try and answer any questions.
