Thread: Fixing E-Cat safe question

  1. #1
    Member mcdeee's Avatar
    Join Date
    Jan 2017
    Location
    North Island
    Posts
    91

    Fixing E-Cat safe question

    Dumb question, but I've recently shifted into a new house and no longer have a concrete wall to go into. So it'll now be two dynabolts going into the concrete floor and two fixtures going through the wall gib and into a stud. Is this ok for my B/C/E safe?

  2. #2
    Member
    Join Date
    Feb 2014
    Location
    tauranga
    Posts
    6
    Just had mine (E) checked, Four 10 x 75mm dynabolts into concrete floor and fixed to 2 walls with 12x70mm coach screws into the gib and framing, He passed it but did say dynabolts were going out of favour with the coppers and they prefer chembolts or masonary anchors, Ring your local A.O and ask ,I have lived in several different districts and there seems to be different requirements from different A,O,s. Latest check was in Tauranga

  3. #3
    Member Savage1's Avatar
    Join Date
    Dec 2011
    Posts
    2,309
    Use concrete screw bolts, much easier to install and are easily removed if needed. Also are stronger than dyna bolts, better in every way. Coach screws into a stud is fine with mine
    kiwijames likes this.

  4. #4
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    5,587
    Quote Originally Posted by Savage1 View Post
    Use concrete screw bolts, much easier to install and are easily removed if needed. Also are stronger than dyna bolts, better in every way. Coach screws into a stud is fine with mine
    +1. Fuck I hate dynabolts.
    Steve123 likes this.
    The Universe is a cruel, uncaring void. The key to being happy isn't a search for meaning. It's to just keep yourself busy with unimportant nonsense, and eventually, you'll be dead. -Mr Peanutbutter

  5. #5
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    Auckland
    Posts
    3,320
    Getting the safe off the dynabolts if you don't leave a bit of room to knock them further in can be a right bastard
    Identify your target beyond all doubt

  6. #6
    Member mcdeee's Avatar
    Join Date
    Jan 2017
    Location
    North Island
    Posts
    91
    Quote Originally Posted by kiwijames View Post
    +1. Fuck I hate dynabolts.
    Haha. Yes indeed. They're wiggly things and a real prick (as Tommy also says) when you remove the safe if you haven't quite drilled enough to bang them down - as I recently discovered.

    Ok, thanks all for the info. It'll now be concrete screw bolts and coach screws for the stud. Now I'm just wondering if my safe is predrilled vertically or horizontally on the back (picking it up tomorrow). If it's horizontally and I can't find a stud going across at the right height, should I just drill new holes where I need them?

  7. #7
    Member Jexla's Avatar
    Join Date
    Jan 2015
    Location
    Napier
    Posts
    780
    Yeah, after moving house 2 times and only using dynabolts.... Never again. Biggest pain in the ass.

  8. #8
    Member mcdeee's Avatar
    Join Date
    Jan 2017
    Location
    North Island
    Posts
    91
    So for the concrete floor screws - these??

    Ramset New Zealand

  9. #9
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    5,587
    Quote Originally Posted by mcdeee View Post
    So for the concrete floor screws - these??

    Ramset New Zealand
    Yes. Or the Dyna-set anchor
    The Universe is a cruel, uncaring void. The key to being happy isn't a search for meaning. It's to just keep yourself busy with unimportant nonsense, and eventually, you'll be dead. -Mr Peanutbutter

  10. #10
    Member dogmatix's Avatar
    Join Date
    Dec 2011
    Location
    Northern Gaul
    Posts
    2,202
    I have 10mm chemset bolts and the mixture spare if anyone wants them cheap. Gave up on fitting to the garage floor and put the safe upstairs fitting to a 10mm steel plate.
    Welcome to Sako club.

  11. #11
    P38
    P38 is offline
    Member P38's Avatar
    Join Date
    Dec 2011
    Location
    Hastings
    Posts
    5,717
    @mcdeee

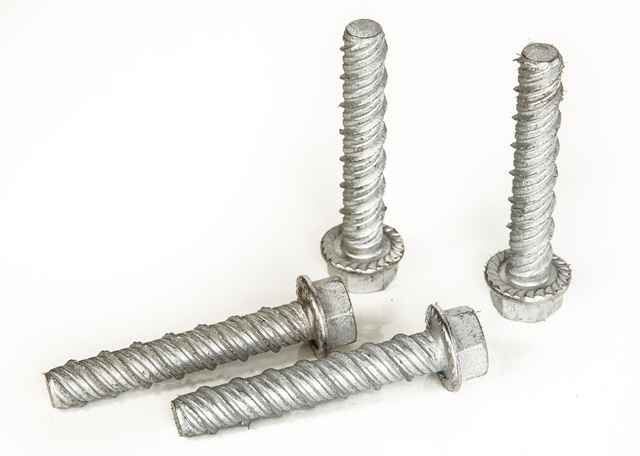

    Use concrete screws into the floor
    Name:  image.jpeg
Views: 164
Size:  32.0 KB

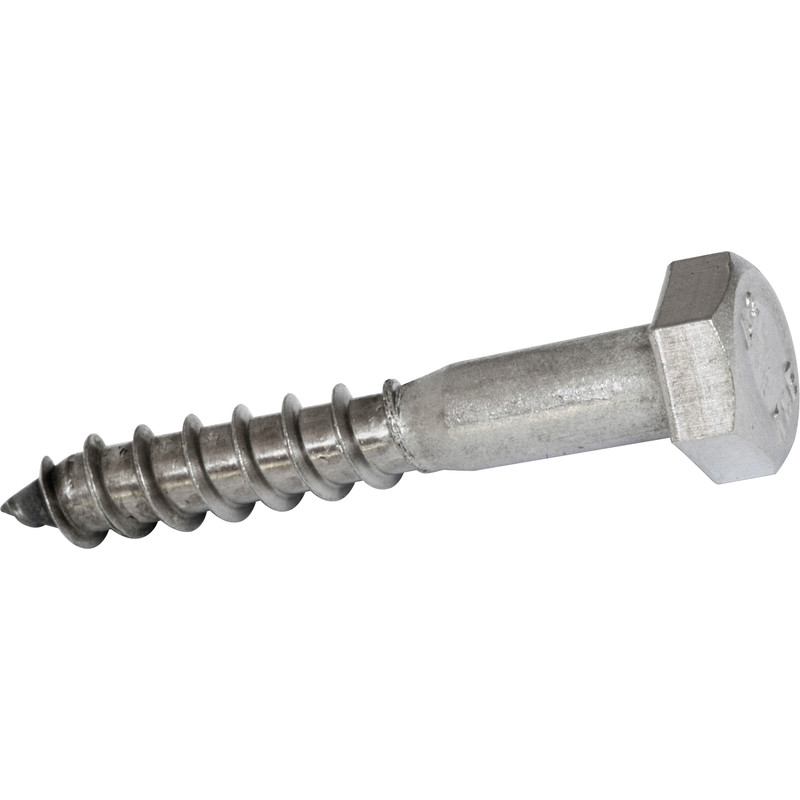

    And coach screws into the wall studs
    Name:  image.jpeg
Views: 170
Size:  47.8 KB

    Both must be at least 10mm in diameter

    Two into the floor and two into the wall stud

    Cheers
    Pete
    308 likes this.
    Arguing with an Engineer is like Wrestling a Pig in Mud.

    After awhile you realise the Pig loves it.

  12. #12
    Member
    Join Date
    Oct 2013
    Location
    Western BoP
    Posts
    1,213
    Those concrete screws are a prick of an idea, if you have a hard bit half way down like the edge of a rebar which gives you a slightly bent hole (to the limit of the shank of the drill) they can jam up half way down and you can't go forwards, backwards, up, down or sideways. In other words, you sir are now f**ked.

    Also, they can be wiggled and spall a hole out especially in older slightly dodgy concrete. Best thing I've found is one of the chemset or hilti cement chemical anchor systems, you really have to clean the hole out properly to get them to bond correctly though.

  13. #13
    Member 10-Ring's Avatar
    Join Date
    Feb 2014
    Posts
    649
    Quote Originally Posted by mcdeee View Post
    .... If it's horizontally and I can't find a stud going across at the right height, should I just drill new holes where I need them?
    If you mean, drill in the gun cabinet, then yes.

    It's good idea to use good size washers with the coach bolts as well.
    Never try to teach a pig to sing...
    ...it wastes your time and annoys the pig!

  14. #14
    Member Jexla's Avatar
    Join Date
    Jan 2015
    Location
    Napier
    Posts
    780
    Quote Originally Posted by 10-Ring View Post
    If you mean, drill in the gun cabinet, then yes.

    It's good idea to use good size washers with the coach bolts as well.
    Yeah unfortunately this is the only way. I've been lucky and my places have not had boards over the inside of my garage walls, so I just screw in some 2x4 where needed, put a board over the lot and fix the safe to it.

    Also BIG fuck off washers are a MUST like 10-Ring has said!
