Chamber Casting With Sulphur And Graphite
Hey Folks,
I thought this could be useful and might interest a few here.
I read about this technique on another forum and decided to give it a go. I wanted to make a chamber cast of my No1mk3 Enfield chamber to double check the groove diameter and neck diameter.
I can't find cerrosafe in NZ and didn't want to import some, so was looking for an alternative.

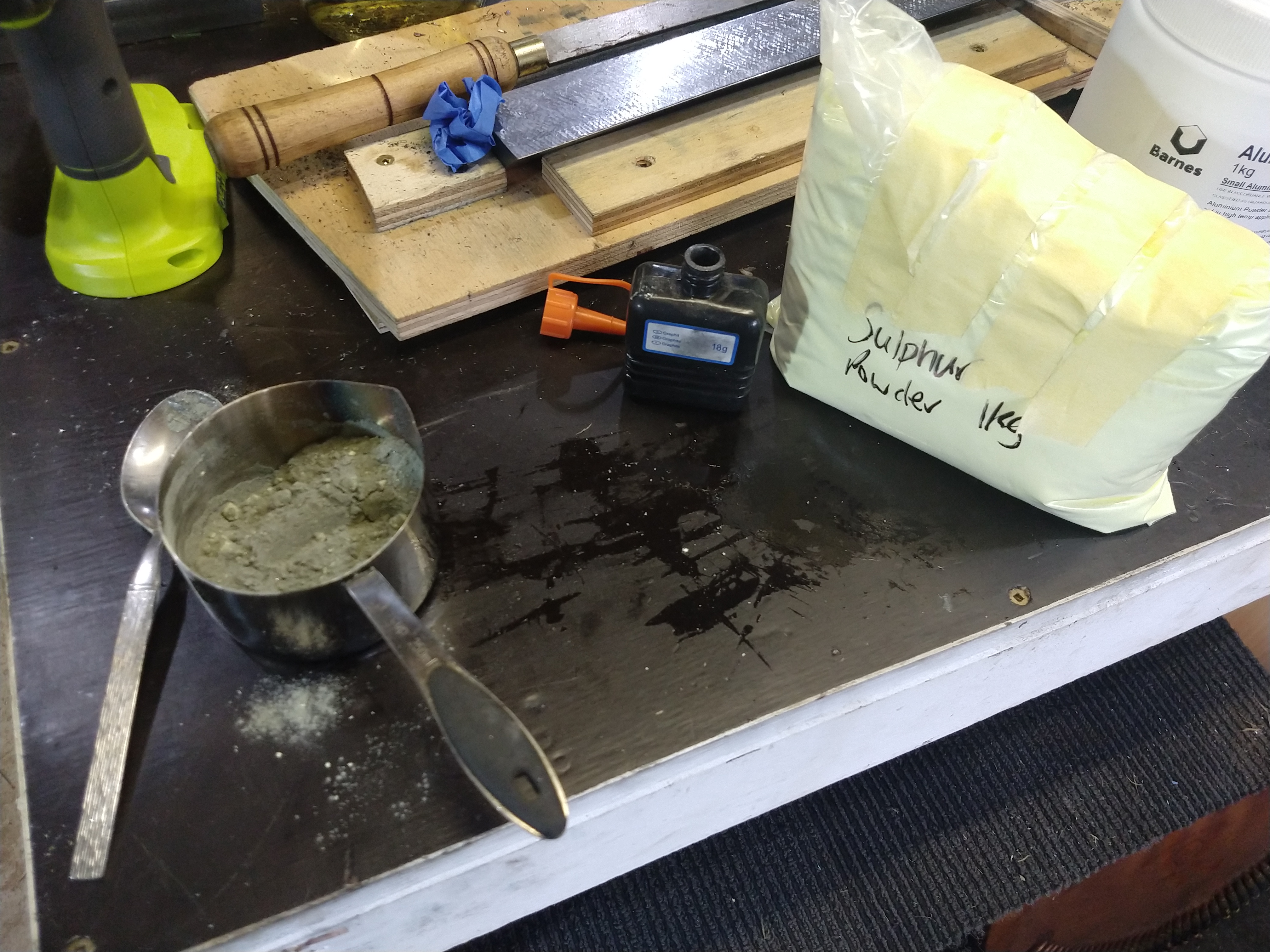

The process is pretty simple. First you combine the sulphur and graphite powder, I used about 4 tablespoons of sulphur to 1 tablespoon of graphite powder. You then slowly heat it on an element (no flames, sulphur catches very easily on an open flame.)

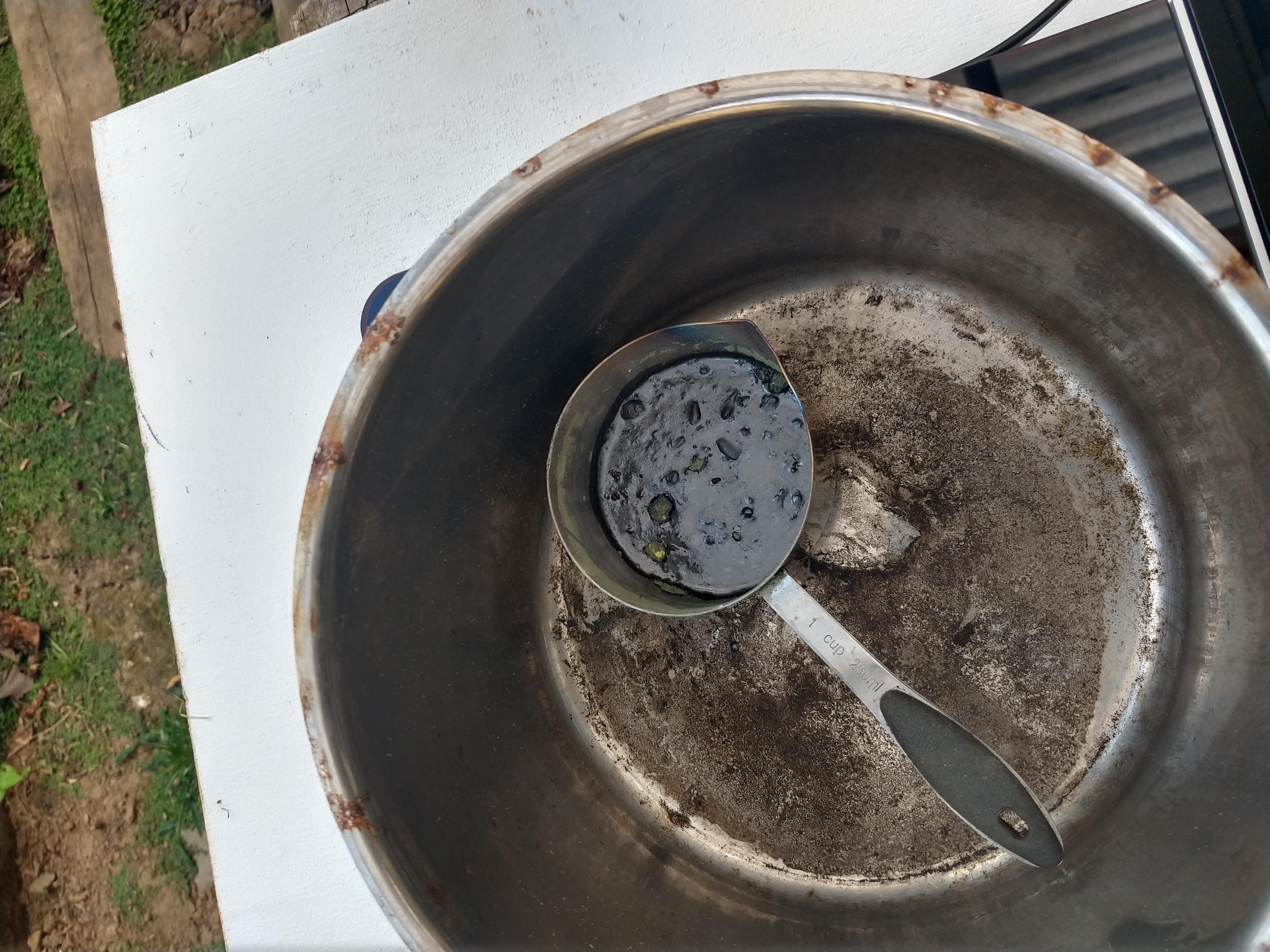

The melting temp of sulphur is about 125c, so I used a laser thermometer to set the element to about 150-160c. I had to sit my little pot of sulphur in the larger pot as I was using an induction element and the sensor wouldn't pick up the small one by itself. This actually worked quite well as it was a decent wind barrier. I left this to slowly heat up and melt, which took about 15min.
Attachment 186987
Attachment 186988
While that was heating I pushed a plug of cotton rag from the muzzle to about 30mm from the end of the chamber and made a small funnel from a beer can to direct the liquid into the chamber. I should have made it a tight fit to the rear end of the chamber or sealed it somehow as I ended up with some overflow into the extractor groove and pressure relief hole, which is easy enough to deal with in an enfield, but on a standard bolt action would be a nightmare to clean up.
Once the mixture was well melted I gave it a quick stir and then poured it into the chamber. I didn't preheat the chamber at all and didn't even clean it properly beforehand. I got a couple of very small wrinkles that looked to be oil contamination, but the casting filled out completely, so pre heating the chamber doesn't seem to be that necessary. I have read that you can wipe the chamber/throat area with a graphite covered patch before casting to make it release a little easier. I had no trouble gently tapping it out with a cleaning rod.

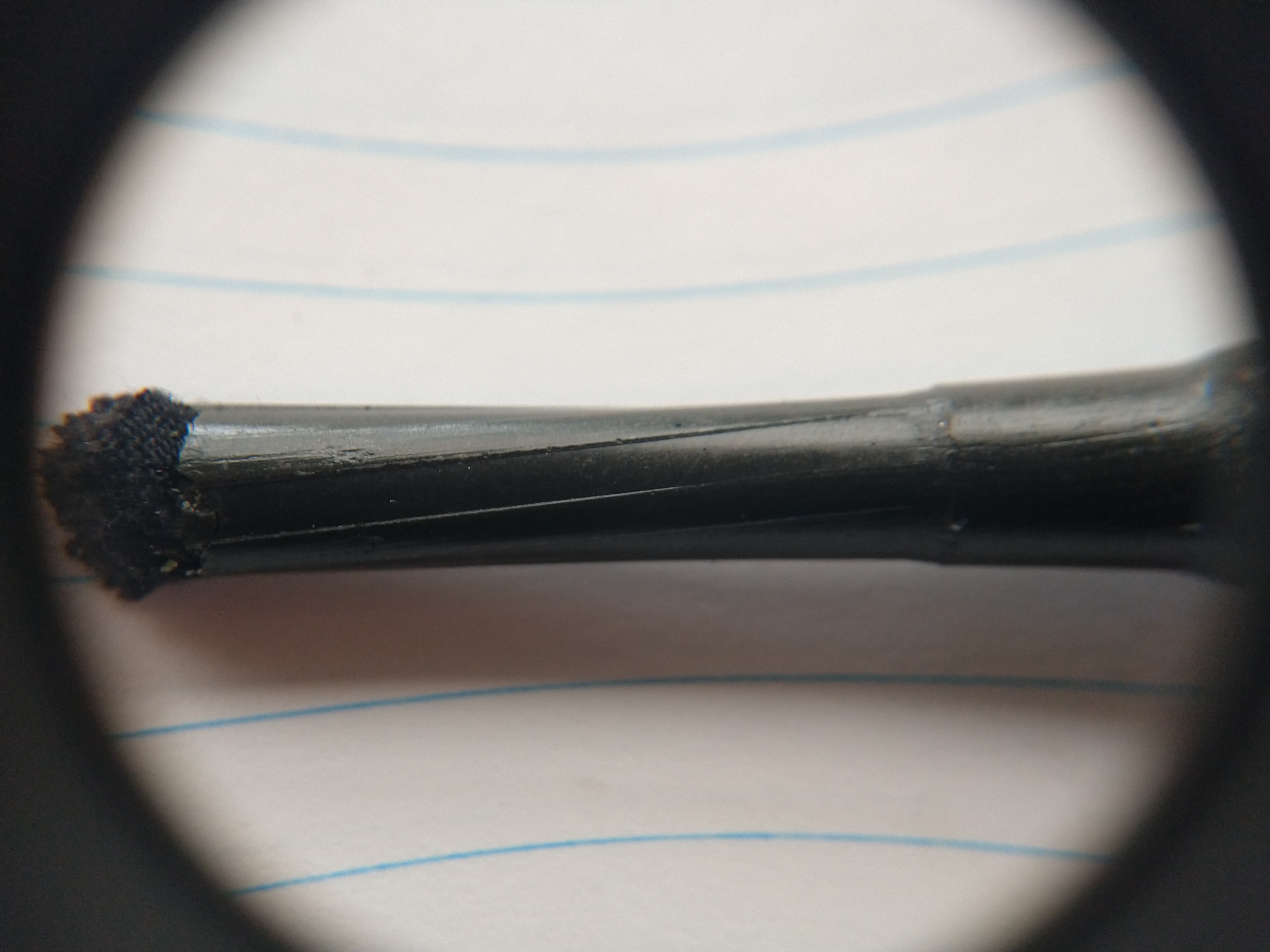

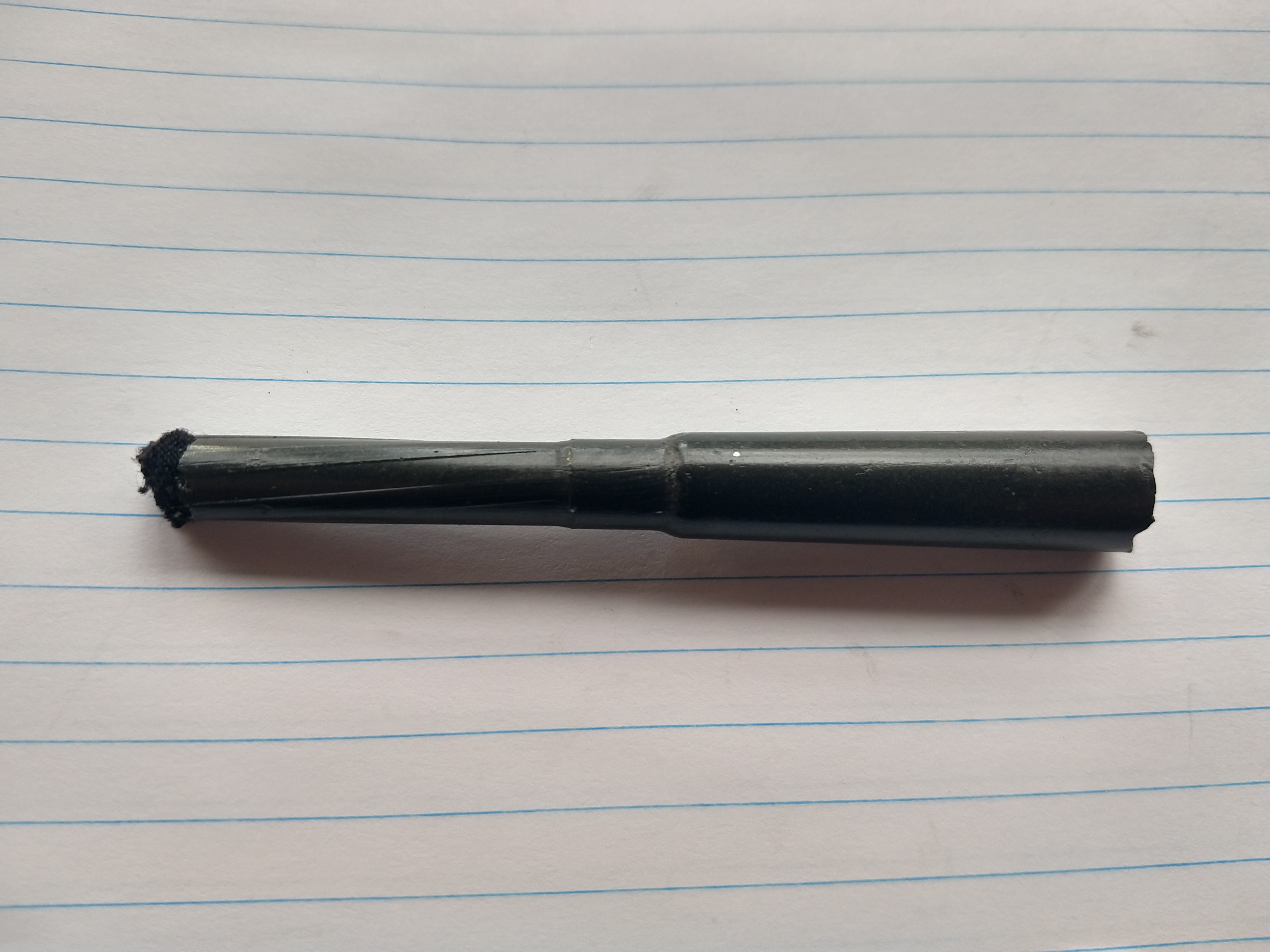

This is what it came out like on the first attempt. I'm pretty happy with the result.
Attachment 186989
Attachment 186990
The cast material is very hard, but very brittle. I could get consistent measurements with a micrometer, but it was quite easy to snap in half, if you dropped it on the floor it would certainly shatter.
The sulphur powder I used was from Hortpet and was about $15incl delivery for 1kg, which is way more than I will ever need. The graphite powder was just from Mitre 10 or somewhere like that.
I should warn to do this outside or somewhere well ventilated as if the sulphur catches fire the fumes are apparently quite toxic.
