Magnetodspeed "sporter" suppressor mod

Well after getting completely different velocity readings with the same load a couple days apart using my mates Caldwell chrono I decided to mod my magnetospeed sporter so I can use it with a suppressor.
I've found the magnetospeed to be very consistent across different lighting (cloudy vs clear and sunny).
I also figured no point in having it sitting in the draw and using something I don't trust,
I was going to sell and upgrade to the v3 magnetospeed but I would've probably lost a fair whack of $$$ plus had to outlay on the v3.
First up apologies I didn't take any before pics.
But basically followed a video tutorial on YouTube which I'll link in this thread too.

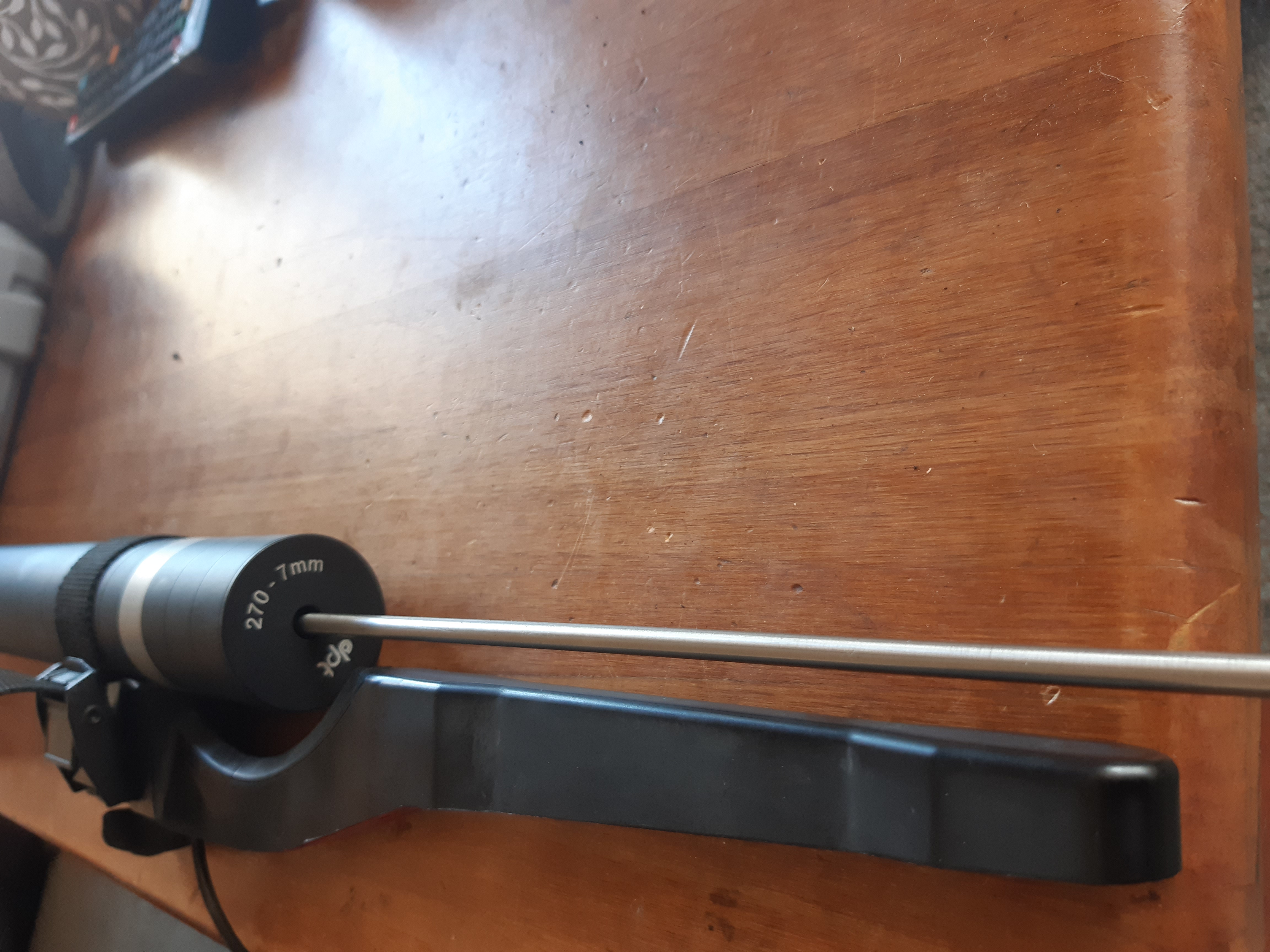

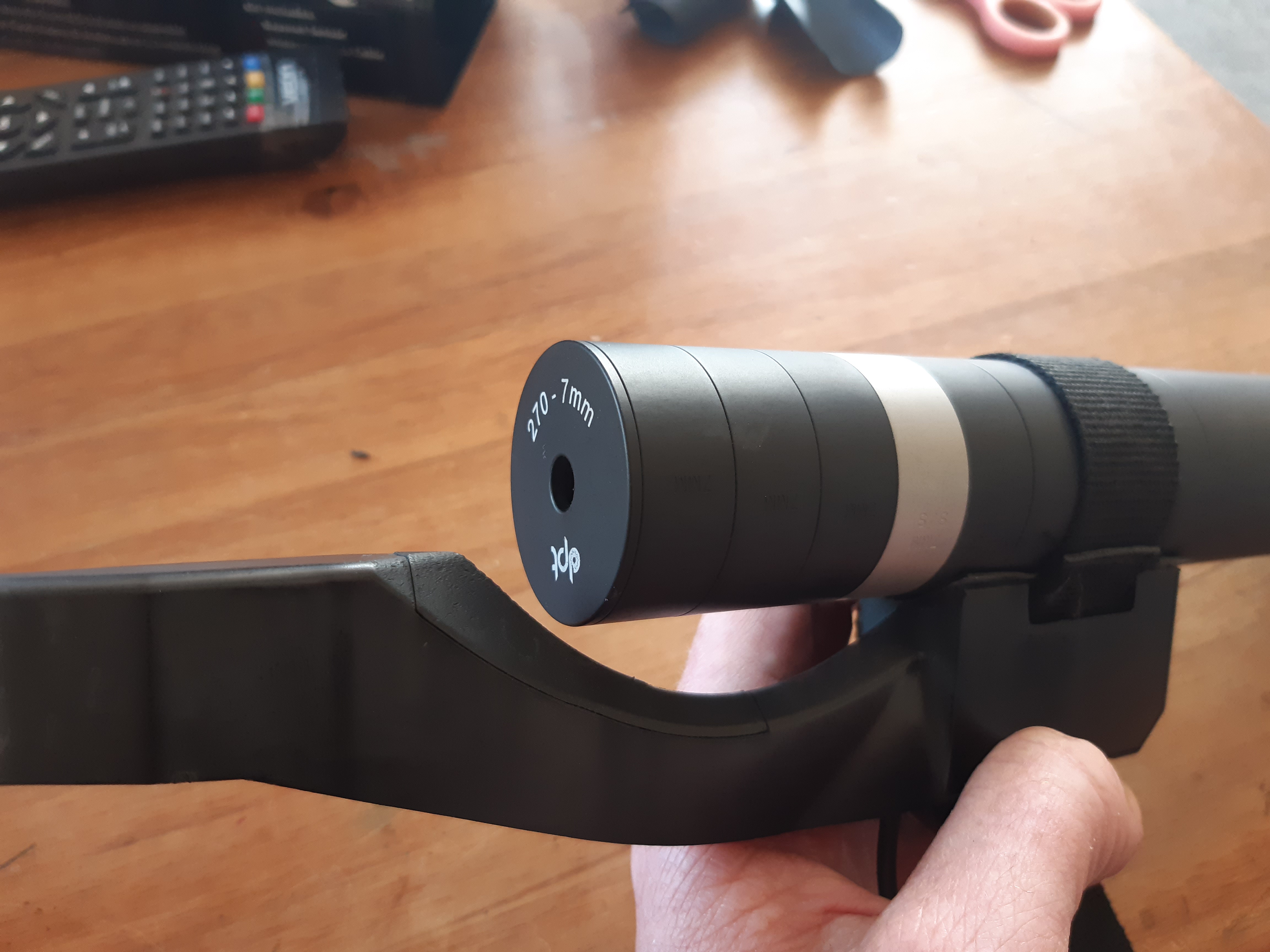

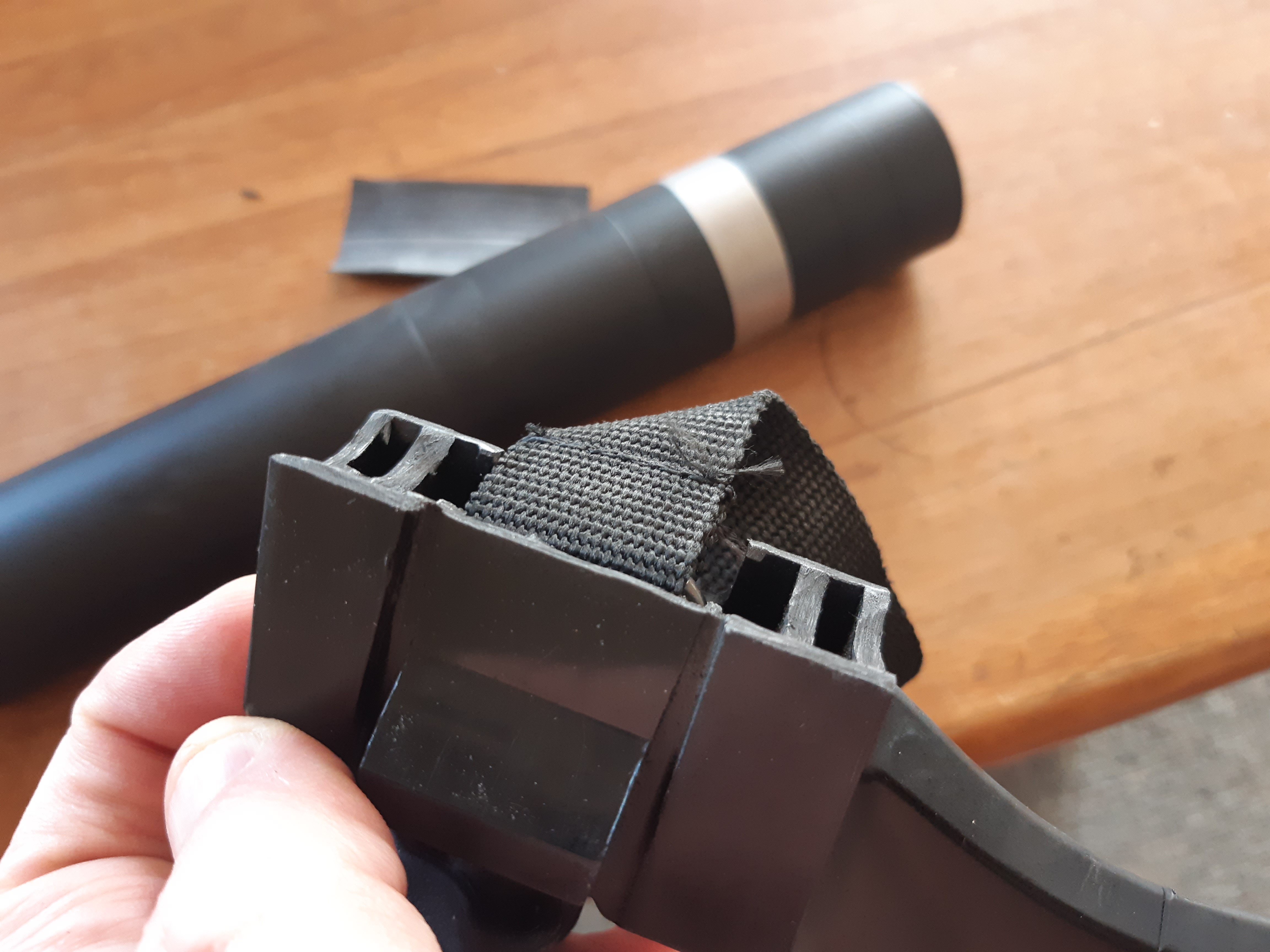

After scribing a line .6" around the top of the base I then used a cut off wheel on my dremel to trim the base down so the whole unit will sit closer to the muzzle line when strapped to the suppressor.

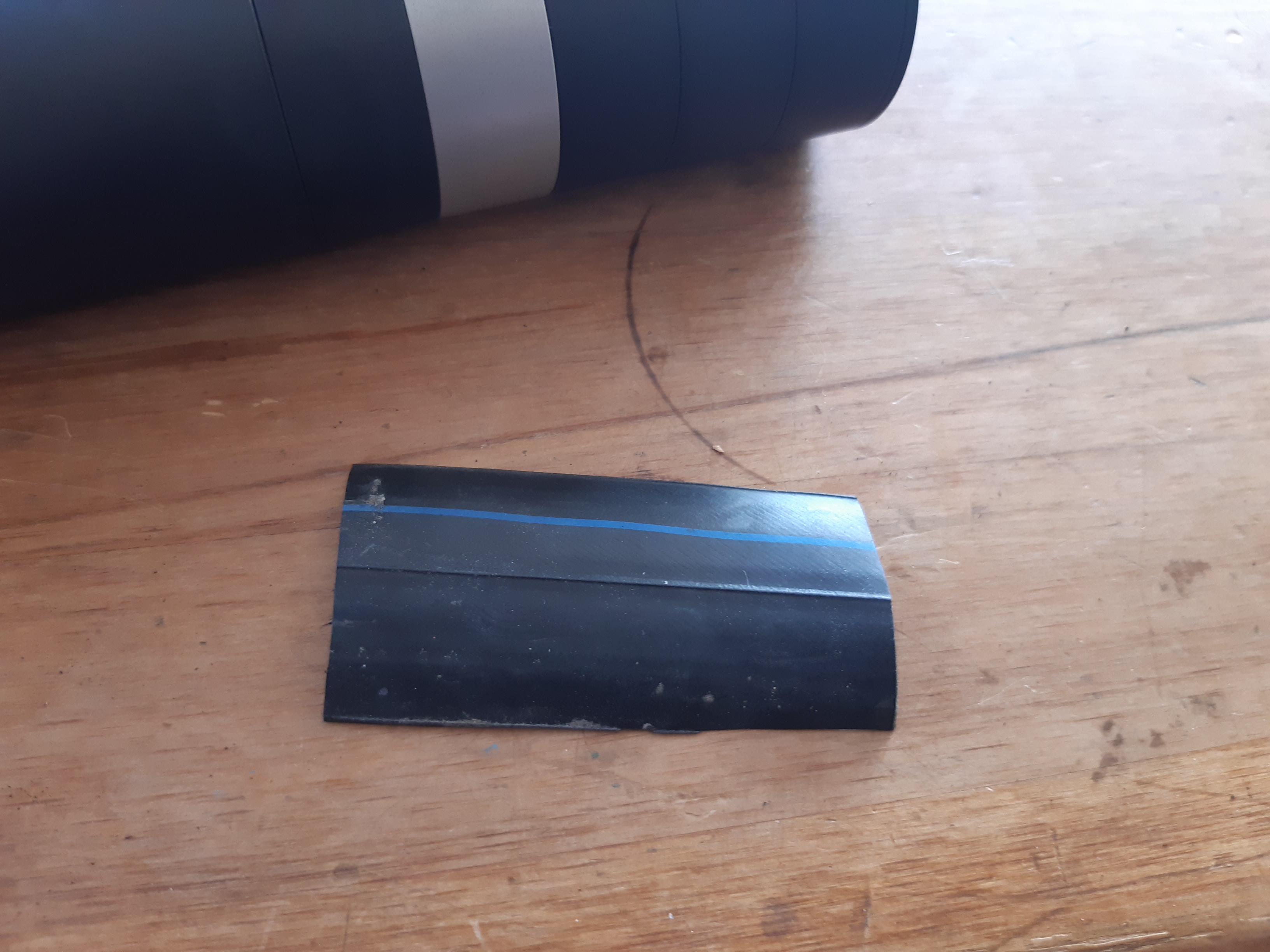

I also cut a piece of bike tube to go between the base and the suppressor as even cut down with the smaller rubber shim they come with I think the muzzle line would still be too high from the magneto ramp.
Anyway here are some pics hope it all makes sense.

Attachment 150513

Attachment 150512

Attachment 150514

Attachment 150515

Attachment 150516

Attachment 150517

Here's the link
https://youtu.be/RlAzOBv-fh0

I might have to do that with the extra blade I think I still have lying around.

Quote:

---

Originally Posted by gadgetman

I might have to do that with the extra blade I think I still have lying around.

---

I have always found the magnetospeed to be pretty consistent, hopefully I can use it again now

Quote:

---

Originally Posted by dannyb

I've found the magnetospeed to be very consistent across different lighting (cloudy vs clear and sunny).

---

Not very surprising since the magnetospeed doesn't use light to get it's readings.

I have a v3 but used my old Prochrono yesterday at the range. It was a cloudy day so I didn't put the overhead screens on, most of the readings seemed bang on except for one when the sun came out, 9147fps for a 308 seemed a little bit off...

Quote:

---

Originally Posted by dannyb

I have always found the magnetospeed to be pretty consistent, hopefully I can use it again now

---

Yeah, it's a good bit of kit, without the hassle of having to recheck alignment so much between shots.

@Micky Duck

Quote:

---

Originally Posted by gadgetman

Yeah, it's a good bit of kit, without the hassle of having to recheck alignment so much between shots.

---

Not alignment but I used to check the strap tightness on mine for the first 3 or 4 shots. This after having mine come loose after maybe 10 shots. At least it drooped down and wasn't at risk of a hit.

aha...all is clear as mud now thankyou...

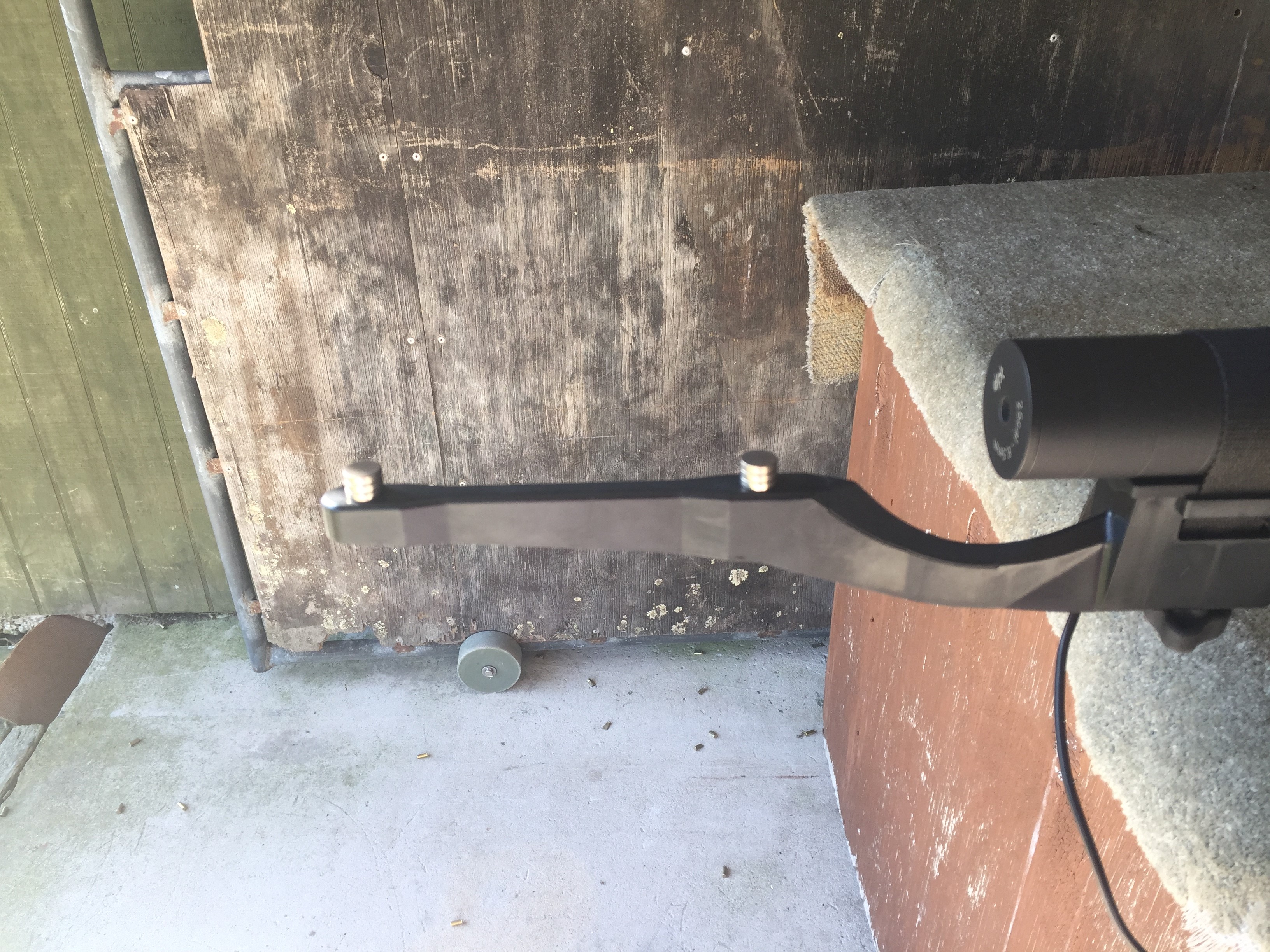

If you're not keen on altering the bayonet, adding a couple of neodymium magnets seems to increase the magnetic fields enough that it picks up the projectile passing through. Tried it yesterday and it worked fine for the first 6 or 7 shots until the bayonet moved too far forward under recoil. Repositioned it and nipped the strap up tighter and it was registering fine again.
Attachment 150701
