3 Attachment(s)

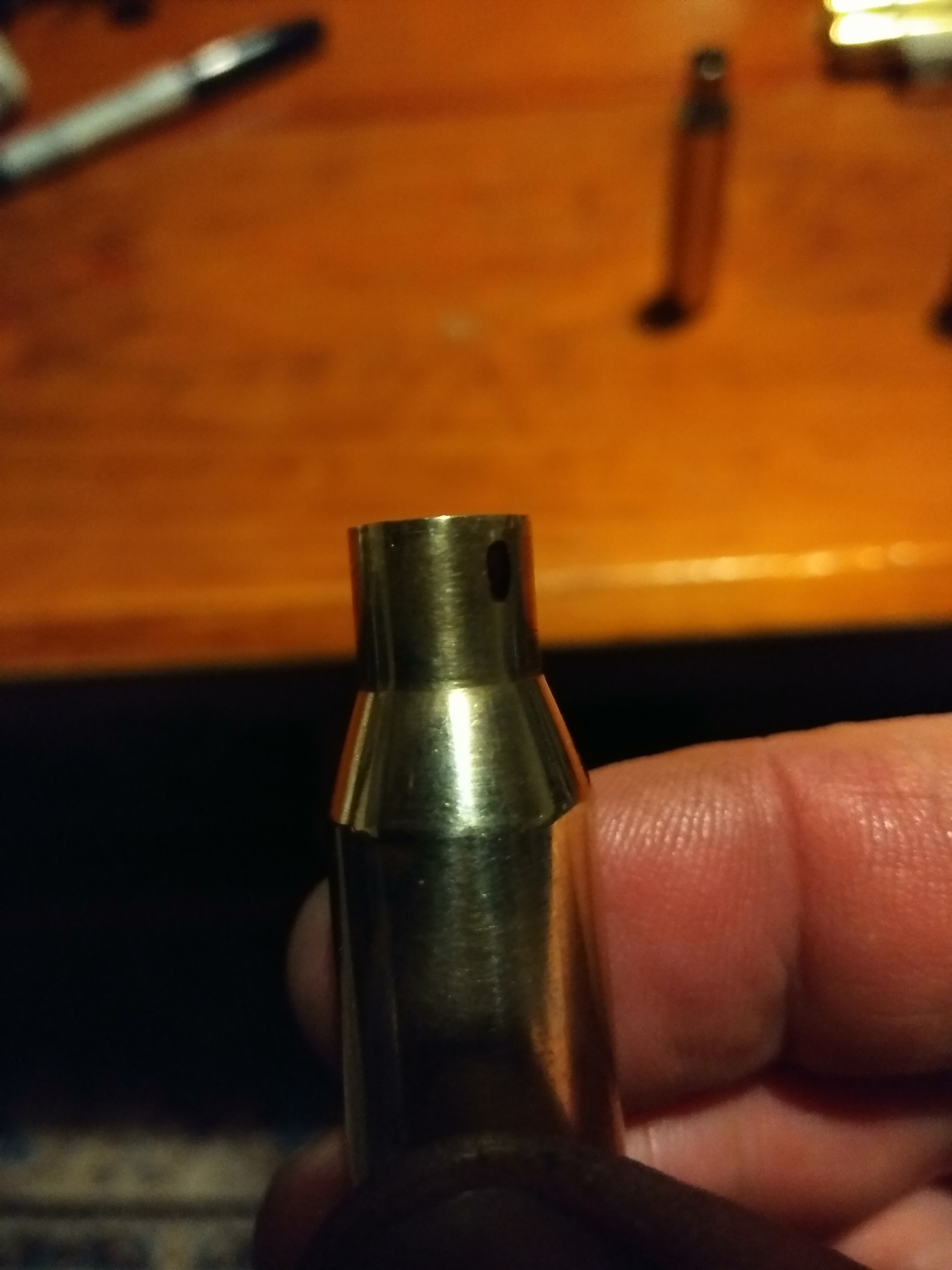

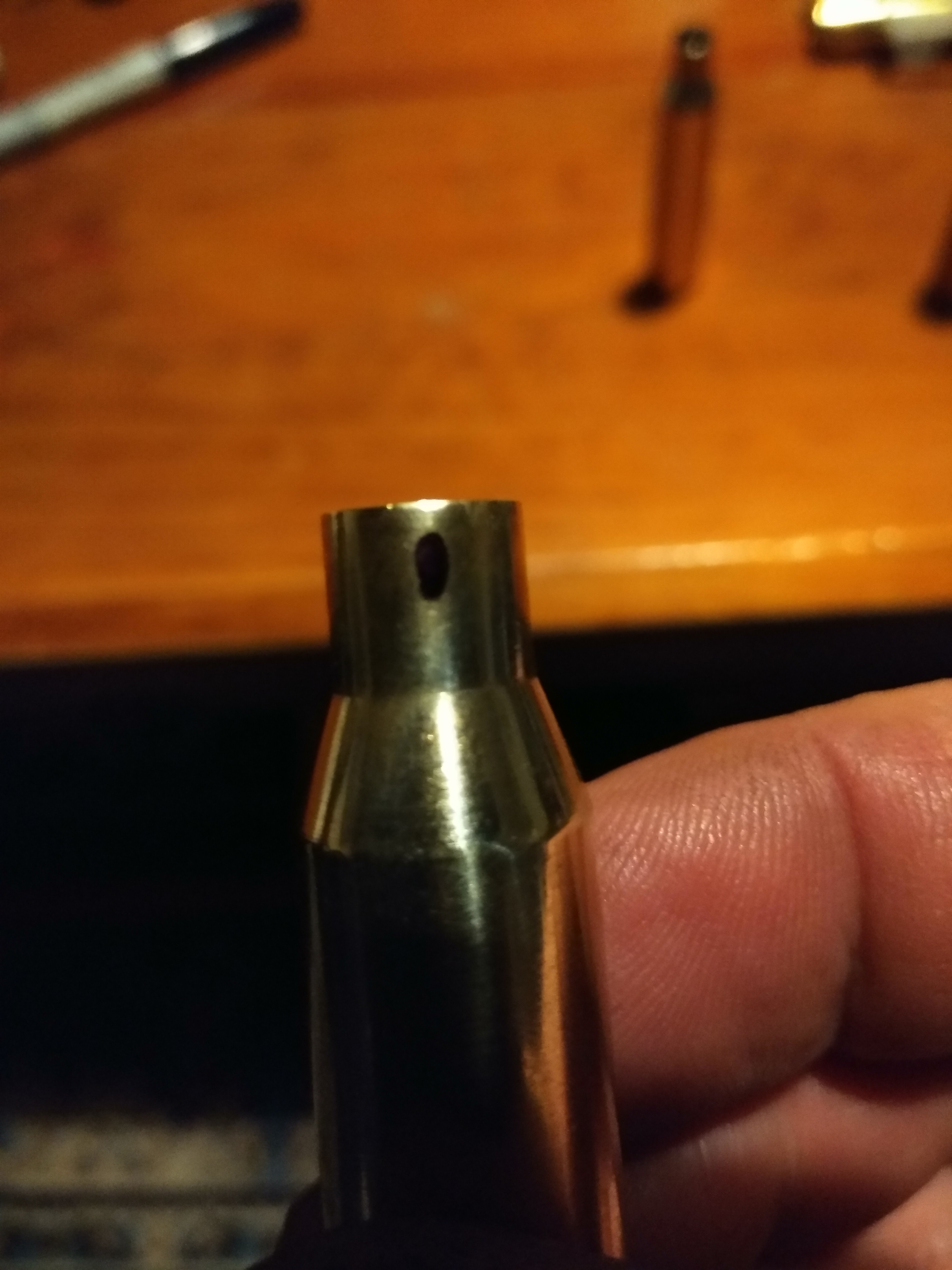

So I ran both through the action. I closely checked both mouths for marks etc and both fine. Short one came out as it went in....but the longer one came out with two flatish spots again pretty much opposite each other. Not as bad as the one yesterday and hasn't squared off the mouth as much. Very hard to photo but 1st pic is unmarked edge and second pic is slightly flattened edge. Note the difference in the size of the shine on the edge of the mouth on edge towards camera. The wide shine is from the mouth starting to flatten and the edge has slightly squashed...
Attachment 156100
Attachment 156101
Attachment 156102
The last pic it's hard to see but the closest edge has started to go out of round.
But wait !!..... The plot thickens.......
-
1 Attachment(s)
I have fished through the fired cases and found that they all seem to vary in size exactly like the resized ones so obviously not very good quality to begin with.... and I guess explains why every fifth or so round fired is very tight unlocking the bolt , and I mean really tight some of them. So found a long fired round the same measurements as the resized one and that also has a flat side as it came from the rifle... probably one I had found tight to eject after fired I would guess...
Attachment 156103
Crap photo I know but I am thinking maybe being a custom rifle it may be chambered a tiny bit short as the brass so far hasn't actually exceeded claimed max case length...... thoughts anyone ???
-
Sounds like some stubborn shit in the chamber or possibly a poorly finished one.
I guess you'd want to trim your brass to a uniform length. I use those lee tools for this
-
Hope trimming solves your issue. Unmarked short case indicates it will.
Odd crimp on the cases though aye? I thought it may have crimped around the whole case mouth if driven into chamber mouth. Any wise heads to comment?
-
I would have thought the same . Surprised how much variation there is in the as yet unsized brass too . All same factory Federal rounds .All fired through this rifle . As you said hopefully trimming all to same length will solve the issue and the binding bolt on ejection I have been experiencing . Should be more accurate and consistent to I guess .
I will have as close look at the chamber when I can and see if I can find any obvious reason as to why it is doing that to the longer cases . But will trim all to the specified trim length 2.714
-
Thanks for the advice @mimms2. The rifle isn't mag fed , has the internal 2 roung box mag and floor plate so was just sitting the rounds on top and there's no resistance sliding them into the chamber like they are not feeding or catching on the way in. And fed them in and out nice and slow and controlled .Tried my best to have a look into the chamber last night but can't really see much. Need a bore scope tool I guess. Tried a 30 cal copper chamber brush , don't have a 338 one , but no obvious crap came out.
-
Oh , and have plenty of engineering experience so not to shabby with calipers. Used to machine high performance motor cycle gearboxes that were sold on the international market. Have made gearboxes for some very famous classic bikes and world famous riders.
-
I like the stripping the bolt idea too. Remove the firing pin and take the tension off the bolt handle as it closes might give a hint as to what is going on as well.
Thanks @mimms2.
