Any one doing it? Got some to try (thanks @Wingman) looking at the 143eldx and130 vlds
Printable View
Any one doing it? Got some to try (thanks @Wingman) looking at the 143eldx and130 vlds
Be the first...get on with & let us know [emoji106]Quote:
Originally Posted by Gibo
Sent from my SM-A530F using Tapatalk
I’d start with the Alliant website.
Alliant Powder - Reloader's Guide
Hornady don’t list RL-16 for the ELD-X in the book I’ve got.
142 gk close enough?
I’ll start there or there abouts
Attachment 94801
@Gibo maybe start at 41gr and work up to be safe.
That would be a good bet. What’s your max COAL in your .260 Rem?
About 2.830-50
All rolled up ready to smoke
COAL ended up at 2.826 ( just a slight crunch) ;)
I'm keen to hear how you get on with it. The yanks seem to like it.
Actually im talking shit. Zero compression, thats my 2209 load.
42 RL16 seems real light compared to the 2209 brew. Start safe anyway;)
Sounds great...read an article that showed it to be more temp. stable than 2209.
I think ill use it for 260 and 284 when I run out of w760
Well still havnt tested the RL16 yet but bought a bottle so am committed :D
Bring them down south with you Gibo. We can watch.... ;)Quote:
Originally Posted by Gibo
Did you ever get to try this GiboQuote:
Originally Posted by Gibo
Sent from my SM-G920I using Tapatalk
Be careful with the Alliant data I found the creedmoor stuff to be super hot
With the 142gn data I couldn’t fit a max charge in the case with room to seat the bullet
The Lapua brass is quite a bit thicker than the Hornady brass - Alliant used Hornady brass in their load data.
I haven’t measured Hornady brass case capacity but all the info on the interweb says it has a fair bit more capacity than Lapua.
I would imagine 43.9gr in a Lapua case would be compressed, but the Alliant data does not state it as a compressed load.
So @rambo-6mmrem is 100% correct: tread carefully.
Funny thing though i fit the max charge for the other bullet Weights in my lapua brass (they use hornady) so I could be worng but if it was a case Capacity lapua vs hornady thing wouldn’t all the data be hotter with lapua brass?
interesting as they seam to have similar burn rate bro, looks like you could use your 2209 dataQuote:
Originally Posted by Gibo
Well Gibo.....whats the bully on this now? Been to the range yet?? ;)Quote:
Originally Posted by Gibo
:cave:
Ran a ladder through my 6.5SLR 16.5" barrel last night... RL16 - 130 ELD Match - Lapua brass - CCI250 Primers - COAL 2.88"
41.5g - 2580
42.5g - 2604
43g - 2649
43.3g - 2667
43.5g - 2653
44g - 2722
44.3g - 2708
44.5g - 2763
looks compressed from 43.5, but no real pressure indications up to 44.5..... gunna play with a drop tube to see what it maxes at. The ladder shot into 0.83 MOA which looks promising for accuracy.
Max in the Alliant table is 42.9g so this is well over a standard 260 Rem.. as always start well below reliable reloading manual maxs. The space may end up being the issue...
Comparatively, I have been running 2208 behind the 130ELDs and get pressure just before 2800. Accuracy is mobile but have a working load sorted that shoots .80 MOA or thereabouts at 2758.
@Mathias Ok - next installment... 3 shot group loads
44g 2720
44.2g 2737
44.5g 2763
44.8g 2781
45g 2780
45.5g 2836 - Some brass shined up start pressure signs big jump in speed as well.. max probably 45g for my rifle. Accuracy doesn't look great at that end anyway... looked better at 44g and less... but speeds aren't higher useably that 2208 and accuracy doesn't appear significantly better..
Wanting to play with some Berger 130 hybrids so will keep for that..
I picked up some new Peterson SRP match brass for the .260rem today.

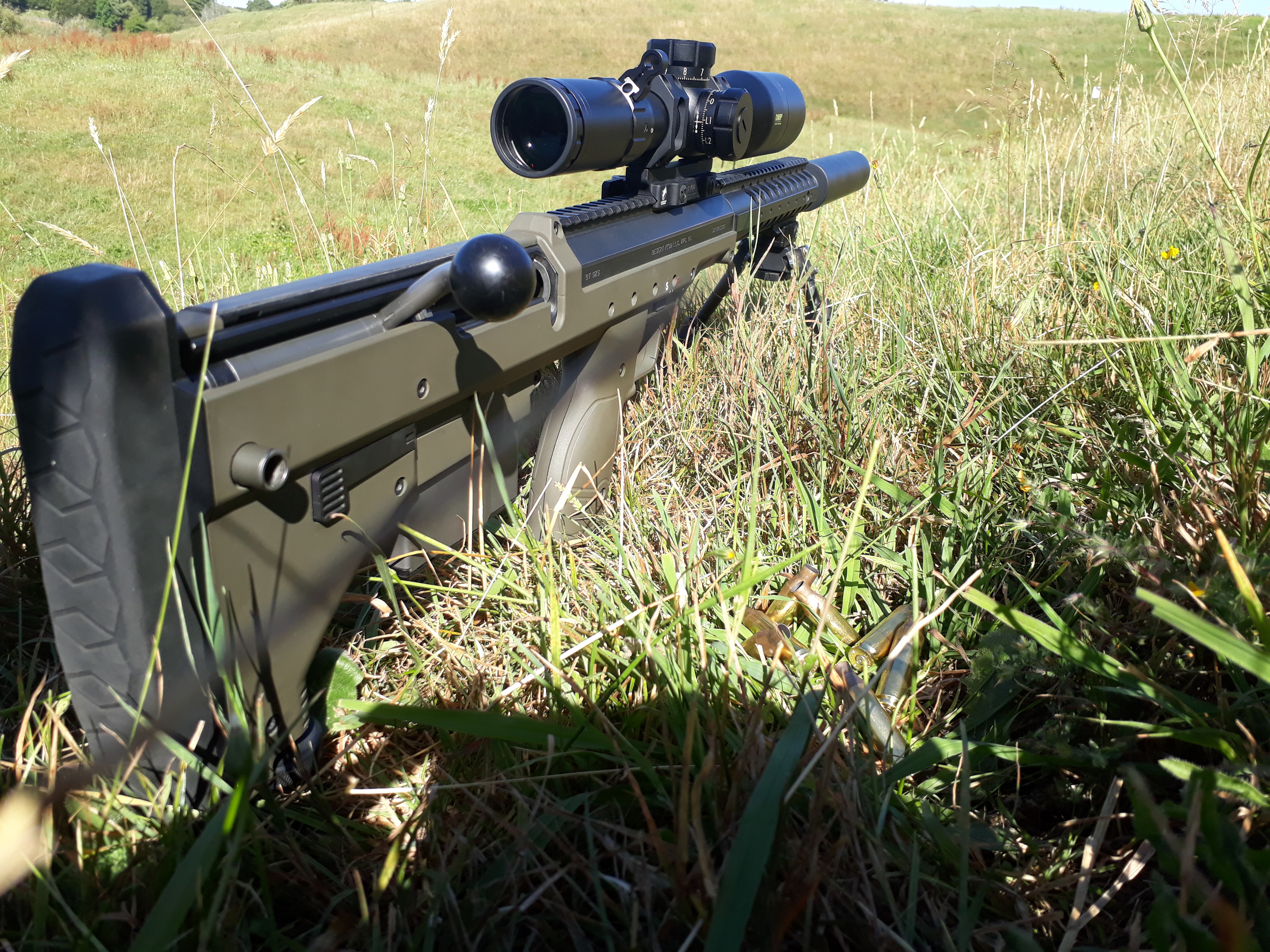

The test platform is a desert tech SRS A1 with a light profiled 20" trueflite 1-8" twist barrel and dpt suppressor.
I have a factory 26" Lothar Walther 1-8.5" twist heavy fluted barrel with a match chamber for it too but I wanted to run the little 20" to directly compare it to my 20" Creedmore using the RL16 and 136gr Lapua Scenar L match bullets.

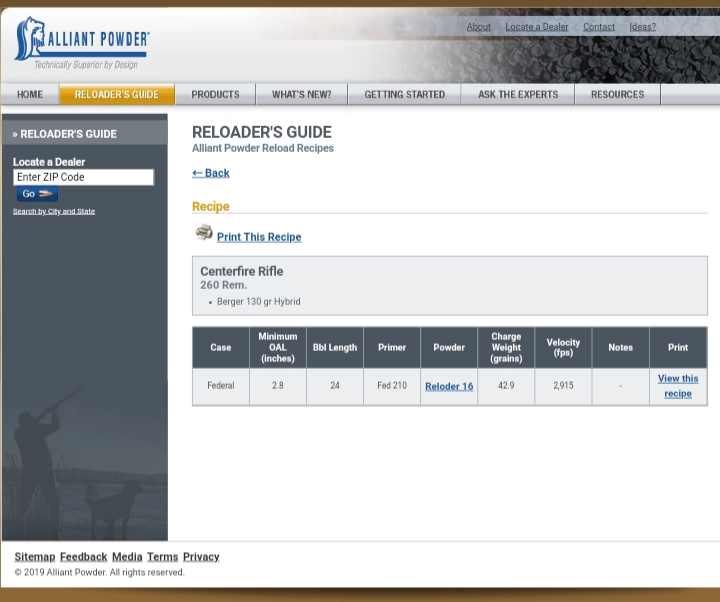

I had a quick look at the Aliant website data for a load with a lapua projectiles but there was no info. I decided they were closest to the 130gr Berger VLD they had listed with a max load of 42.9gr of RL16.
Attachment 103487

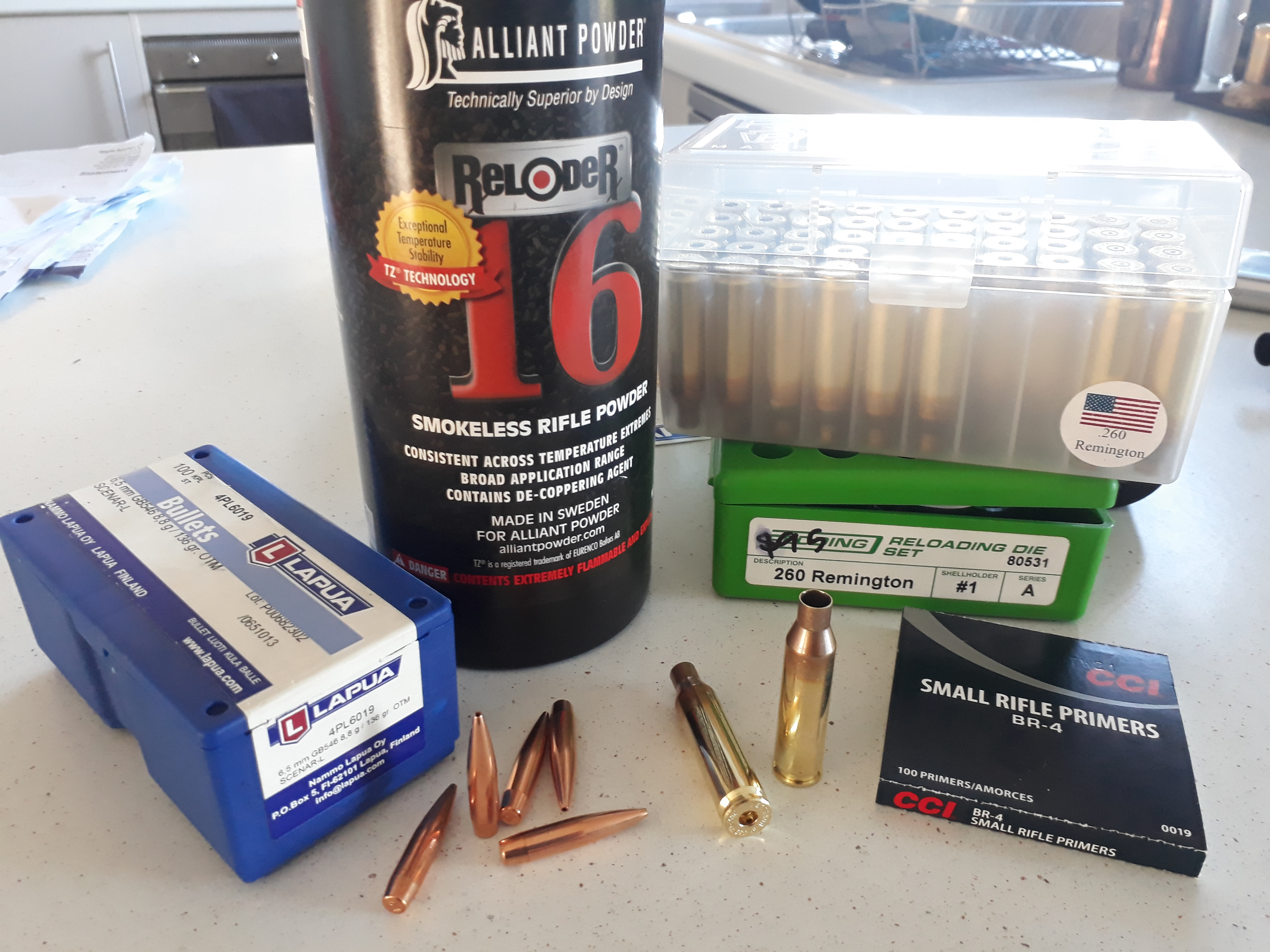

The 136gr lapua bullet is 6gr heavier but has a very simalar length bearing surface and hybrid ogive so I took a educated guess at a hearty charge weight of 42.5gr and dropped it in the new un prepped Peterson small rifle primer match brass.
The primers were CCI BR-4 and COAL 2.900" which puts me approx 10 thou off my lands.
Attachment 103476

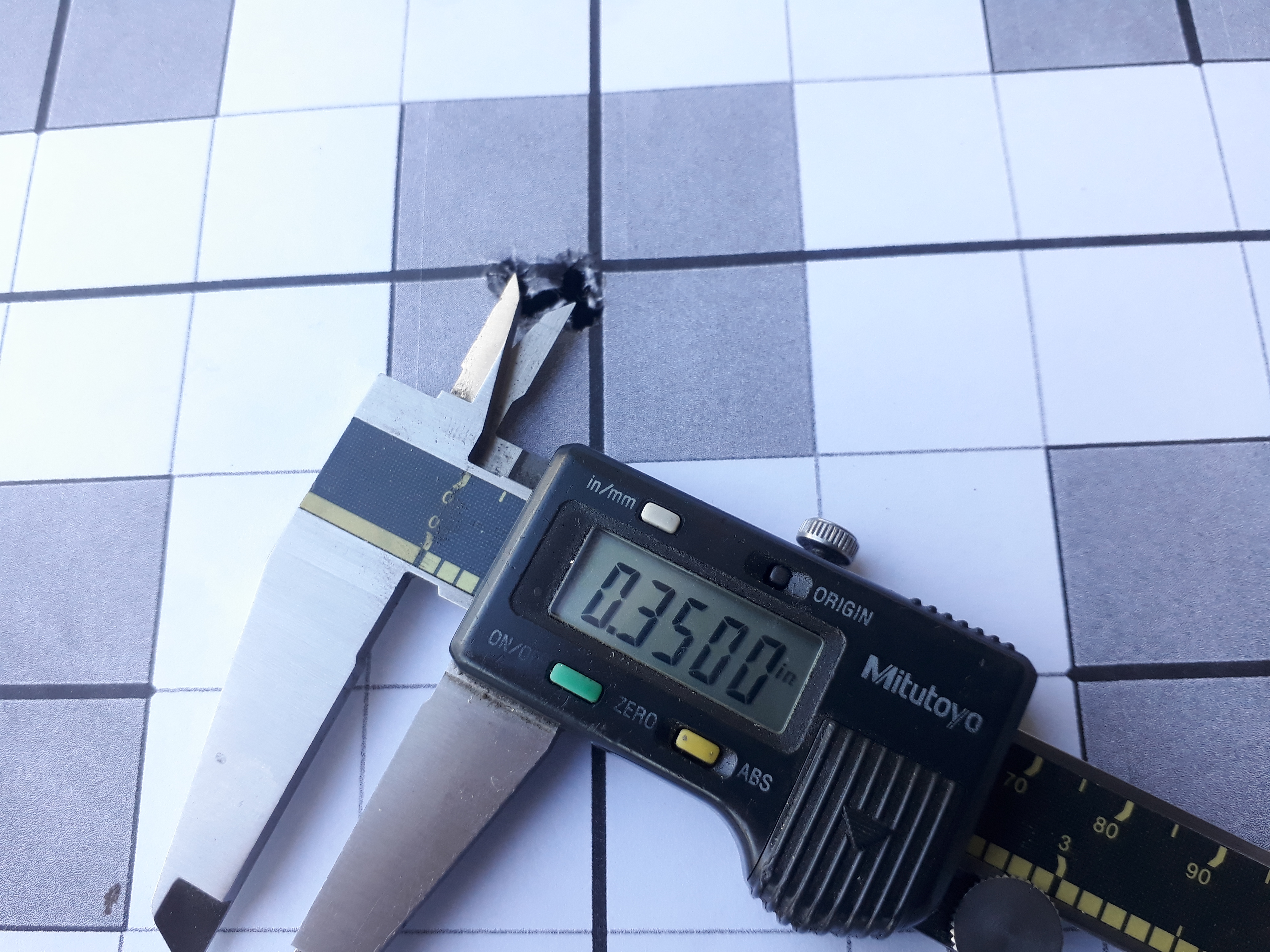

I shot 3 rounds over the chrono with an average speed of 2700fps, after quick visual bore sight I shot 2 more to sight in at 100 yards and 5 on paper punched a 0.350" group.. light wind right to left, shot off bipod in a crappy position in long grass and hot sun.. sweat dripping off my nose and bugs crawling in my ears.. The two shots that went left a touch were all me..:XD:
Attachment 103477
Attachment 103478
Attachment 103479
Accuracy is good enough but in comparison to my 20" barreled Creedmore the .260 was about 210fps slower.

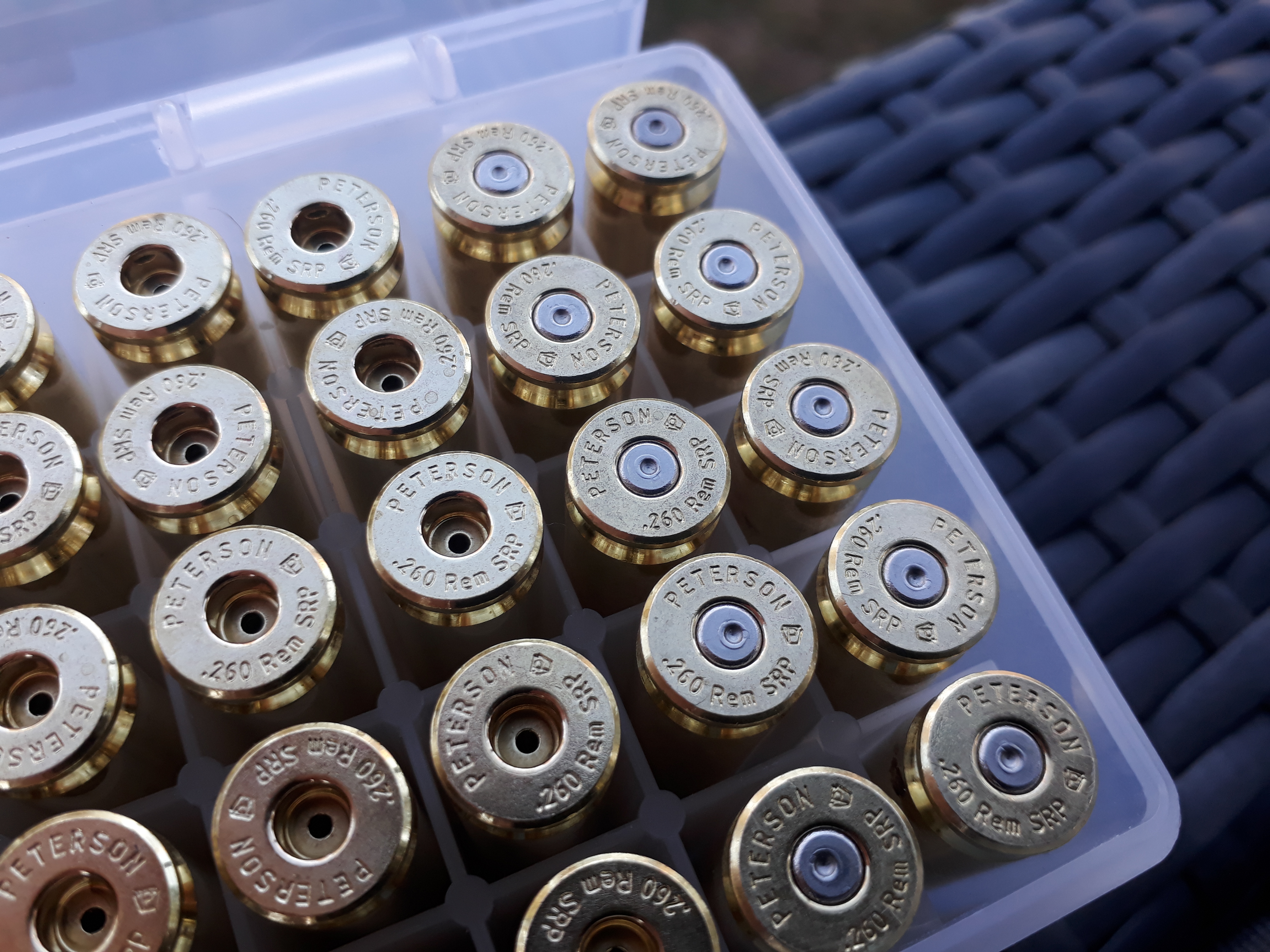

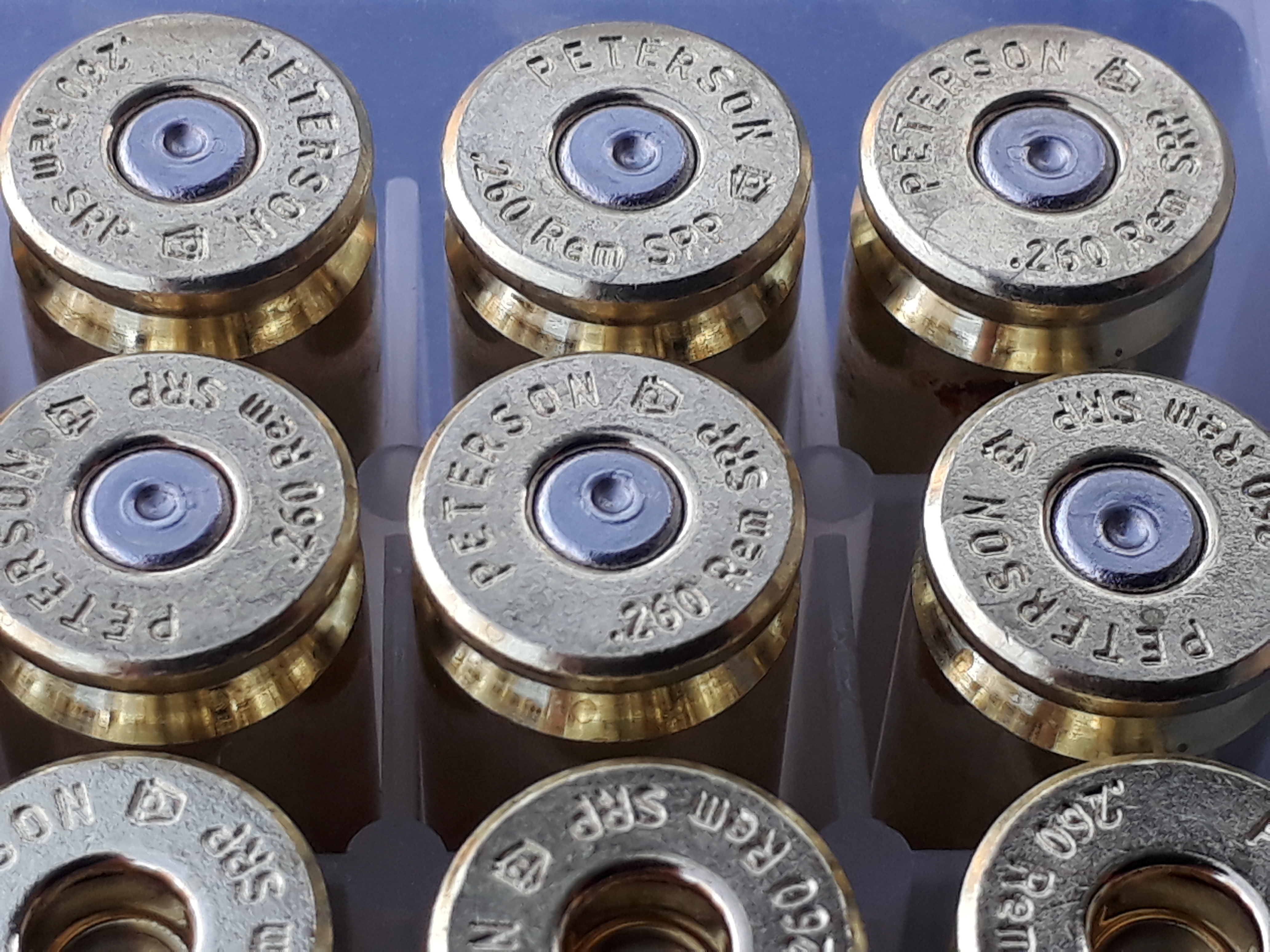

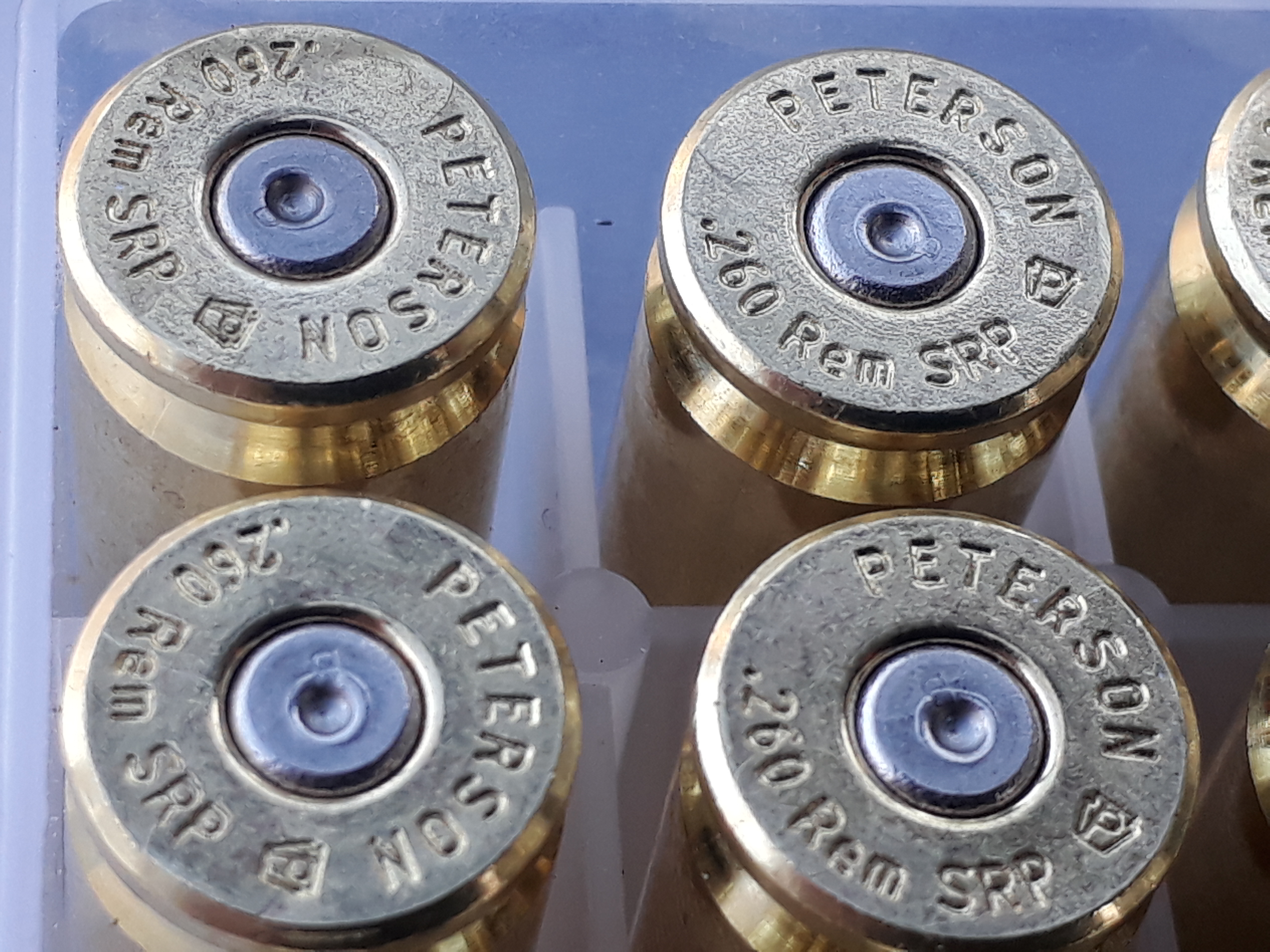

I shot this same bullet with 43gr of RL16 and got the same mild pressure signs that are showing on this .260 brass. Only the lightest ejector marks and small firing pin craters but still rounded edge primers.
Attachment 103480
Attachment 103481
Attachment 103482
Now this brass is fire formed it may respond better to another .5 gr but I think thats about as hot as Id go with it in this barrel.
I found the Hodgdon superproformance powder worked better in my .260 than RL16 it gave less pressure and more speed with SD. of 7 with 143ELDX doing 2860fps in my 20" Tikka seated 20 thou off.Quote:
Originally Posted by Wingman
Sent from my SM-G920I using Tapatalk
Cheap ol Win 760 might be worth a shot as well.
Every powder I tried in my improved. 260 was slower than expected in my barrel with pressure signs also reached reasonably early. Superperformance was the worst for some reason. Everyone else I knew that used it had success with it.
Can't remember who, but someone on here suggested 760 and everything was sorted.
Sent from my SM-G965F using Tapatalk
With accuracy like that found in the matter of 10 mins of hand loading ( I cant even claim it was load development) I personally wont be looking for any other powders or chasing any more velocity in this hunting barrel.
Ill give the same load a run through the 26" match barrel in the next few days to see what velocity another 6" gives it and report back.
Im using the RL16 in 6.5x47 Lapua, 6.5 Creedmore and now two .260rem's so it would be nice to just have one "go to" powder
I may even give it a try in my .308 barrel with 175gr bullets (currently use 2208/Varget) as the data seems to line up quite closely with 2209(H4350).
I have no personal experience with Super performance powder but the guys I know who have tried it got a little more speed but groups opened up.
ADI 2213SC used to be the go to powder for .260rem to get the best speeds but Im not sure at what barrel length that would cross over with 2209. If I had to guess Id say about 23 to 24''. The shorter hunting barrels seem to like a faster powder.
This is my 18" Tikka my 20" shoots just as good but .6grns lighter load.https://uploads.tapatalk-cdn.com/201...f240dc2b08.jpgQuote:
Originally Posted by Wingman
Sent from my SM-G920I using Tapatalk
Ya cant argue with that.. What is the velocity from the 18" tube?
2811fps with the 143ELDXQuote:
Originally Posted by Wingman
Sent from my SM-G920I using Tapatalk
Who in NZ sells Peterson brass? I've been looking for some recently without success.
@redrover, give Rob a call, see what he's carrying at the moment.
https://www.workshopinnovation.co.nz...p?cat=169&pg=2
Yip workshop innovation, he had plenty in stock in many cals. They make both small and large rifle versions of their brass and its good stuff..
Flyblown and Wingman: Thanks for the info. Should have thought of Workshop Innovation - I have bought stuff from them before. The prices are not cheap for 260 brass though. Is Peterson it really sufficiently better than Lapua to be worth the higher price? Of course if you must really have SRP stuff then there is not much choice, but opinions seem to be seriously divided about the benefit of it. Unless you really MUST load to pressure only just short of the where things start breaking ....
Its not that much dearer than .260Rem Lapua brass and in some cases its cheaper. I see it for $215 per 100 on trademe right now and the peterson is $94 per 50.
Im a Lapua snob through and through but they dont make .260 brass in the small primer option. They do have .308 palma brass with the small primer but I didnt want to mess around with necking it down and turning neck donuts etc I also shoot a .308 Palma and didnt ever want to have a bad day and accidently mix up ammo with the same head stamp etc.
Small rifle primers can give you slightly higher velocities without pressure signs that the large rifle primers would give at the same load and some claim tighter extreme spreads using SP brass. However, their biggest advantage is the life of the primer pocket compared to the LP brass. They stay tighter for longer especially if you load on the hotter side.
My loads are by no means hot but I load a lot of different cals and like to be able to share as many components as possible between them. I dont load/shoot any cals with
large rifle primers so didnt really want to have to have those as another component in the cupboard.
If you already load for cals that have large primers then that's no something you really have to consider.
Just recently Ive set out to simplify things and reduce the components I use.
I like to use the same powders and projectiles or as few as possible components across all cals that I load for.
Currently I load:
.22 hornet and .22 TCM both with CCI small pistol primers, Aliant 300MP and 40 Z-Max.
.223 Rem with 69gr TMKs, 6.5 Grendel, 6.5x47 Lapua both with 123gr Lapua Scenars and 123gr Amax, .308 Palma with 175gr TMKs, all these are with CCI BR-4 primers and BM8208 powder.
Both 6.5x47 Lapua and 6.5 Creedmoor with 130gr TMKs and 143gr ELDX, .260rem with 136gr lapua Scenar L and 143gr ELDX all using CCI BR-4 primers and Alliant RL16 powder
This means I have two different primers, three powders and 8 different projectiles (soon to be 7 once the 136gr Lapua's run out I will just shoot the 143gr ELDX in the .260s)
This allows me to buy bulk of less components rather that a heap of different stuff. Keeps it all simple and without too much compromise of accuracy or velocity.
I shot a 5 round group of the same .260rem loads I tested in the 20" barrel through the 26" barrel yesterday.
42.5gr of RL16 with the 136gr Lapua Scenar L.
Unfortunately I left my chrono behind so will confirm the velocity asap but that load grouped great in the longer 26" Lothar Walther barrel too. Another very hot day and I had some heavy mirage off the ground and suppressor but still an easy 5 shot 0.3" group at 120yds. (The grass was too long to shoot from my 100y mark)
Attachment 104140
