Thread: Sierra & Hornady bullet sections

  1. #1
    Member Flyblown's Avatar
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    1,652

    Sierra & Hornady bullet sections

    Following on from some recent threads with Q&A on some of the common bullets we use, I thought I'd have another look at the comparative construction using sections, some we've done ourselves (thanks @Wingman and others), some I've downloaded off the interweb. There's a fair bit of ongoing confusion about what's what, primarily because both Sierra and Hornady have use terminology you'd think was designed to confuse... Tipped, King, GameChanger, Xs and Ms, ELD, and so on.


    First up, how does the Tipped GameKing (TGK) relate to the traditional GameKing? Putting sections side-by-side demonstrates very clearly the step change in bullet design with the TGK.


    Name:  Traditional GameKing vs Tipped GameKing.jpg
Views: 199
Size:  56.1 KB


    The traditional GameKing has a much thinner jacket than the new TGK. The traditional GameKing is a partially frangible bullet that will fragment and lose weight upon expansion, and depending on the velocity, weight and calibre of the bullet, and size and weight of animal and where it is hit, the degree of through-and-through penetration will vary. Generally, the bigger the GameKing, the tougher the bullet. From .223 to .30 cal and 165gr, the GameKing is an excellent medium game bullet, from .30 cal 180gr and up, it's better suited to the largest of deer and proper big game.


    The TGK is designed to be much tougher, to retain more weight as it passes through the animal. It is designed with aerodynamic efficiency as a priority, as are almost all new bullets in today's "BC" battle. The size of the cavity behind the TGK tip is really something, that's as striking as the thickness of the jacket.


    Putting the traditional GameKing next to the TMK and TGK is interesting. You can see how the traditional GameKing's jacket thickness is only slightly thicker than the TMK, and both are a lot thinner the TGK.


    Name:  Traditional GameKing vs TMK vs TGK.jpg
Views: 202
Size:  80.1 KB


    The two Hornady bullets side-by-side are more similar to one another than the Sierras. The ELD-X has a slightly thicker jacket than the ELD-M, especially at the base, and a nominal interlock ring. I say nominal because when I've cut sections of this bullet, it's hardly visible. Plus, I've recovered a few jackets minus their lead cores, so it's not like it's a bankable mechanical lock. The biggest difference is in the size of the tip and void, the ELD-X is designed to initiate expansion more readily, in a more controlled manner through the thicker jacket. That's the idea anyway.


    Name:  ELD-X vs ELD-M.jpg
Views: 207
Size:  54.3 KB


    Of real interest to me is the side-by-side comparisons of the two brands. I've got them here in order of apparent jacket thickness.


    Name:  All together.jpg
Views: 202
Size:  89.3 KB


    To my eyes, there's very little in it between the TMK, ELD-M and traditional GameKing. There's a small step up in toughness to the ELD-X, then a much bigger step up to the TGK. This is really interesting, because the GameKing must be one of the most successful hunting bullets every produced - it's been around for over 40 years? So history and stats would suggest that there's something to be said for the thinner jacket design, with no apparent need for the cavity behind the tip.


    So how does this all translate to preferred field performance? One thing for sure - New Zealand hunters are more inclined to use supposed "match" bullets on deer than elsewhere in the world, particularly America. Lots of threads on here including the current one, and elsewhere, have experienced users favouring the "match" variants. We all know that the ELD-M is a simple like-for-like replacement of the A-Max, and the A-Max was a highly successful and popular medium game bullet from the get go.


    Sierra on the other hand have put clear distance between the TMK and the TGK. They say "While they are recognized around the world for record-setting accuracy, MatchKing® and Tipped MatchKing® bullets are not recommended for most hunting applications." I think most users of the TMK here would regard the bullet as perfectly fine for typical NZ open country hunting.


    The ELD-X has had a lot more reviews posted than the TGK. It's actually quite hard to find objective field assessment of the TGK. I've used the ELD-X in .30 cal and a great deal in 6.5mm, and I've never used a better bullet. It does exactly what it says on the box, extremely accurate and reliable expansion at all ranges, it's done the business for me from 30-700m+ on hundreds of goats and deer, with an exceptionally low fail rate.


    The TGK seems to have had a lot less take-up in NZ, possibly as a function of price. Some reports suggest that the bullet is too hard for our game, though that will be in the eye of the beholder. The huge cavity behind the tip should cause instant and impressive expansion and a potentially massive wound channel, assuming impact velocity is high enough. But I'm not sure the bullet will slow up enough in our small to medium deer as some of the exit holes I've seen with the larger calibre TGKs are enormous. The few reviews I've found suggest that the 6mm and 6.5mm versions are too small a calibre and over-penetrated in whitetail with narrow wounding, but that the .30 cal 165gr is a whole different proposition.


    One key requirement is that I want a bullet to exit as slow as possible, not carry heaps of its energy into the backstop. The bullet must expand and partially fragment and rapidly pull up, creating a halo of damage. So whilst I was stone cold on the TGK design initially, I've come round to thinking that in certain applications it would be a good choice, particularly in .30 cal. But maybe not for the kind of 6mm and 6.5mm shooting I mostly do. The only scenario in which I'd choose a harder bullet than I currently use is close range bush hunting. But I don't need super expensive high BC options for that, there's plenty of traditional bullets at less than half the price that will achieve excellent results.


    I think the sections speak for themselves, there's a reason the GameKing and "match" variants from Hornady and Sierra are so popular here, and you can say the same for some of the Bergers too. It will be interesting to see which direction the market moves in, and whether the uptake of the harder high BC bullets ever competes with the direction Hornady has gone in.
    Last edited by Flyblown; 06-05-2020 at 01:32 PM.

  2. #2
    Member Flyblown's Avatar
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    1,652
    @Spanners

    The editing, preview, delete functions etc still don't work properly mate.
    Puffin likes this.
    Britain's Favourite Dog 2019!

  3. #3
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    2,112
    Thanks, very useful analysis. I'm about to set up a 308 (a new to me takedown type rifle) for Tahr expeditions, and based on your work, it looks like the TGK's are well worth a look. I wonder if they are "related" in some way to the Federal TLR's, which look as if they have a similar jacket profile.

  4. #4
    Member chainsaw's Avatar
    Join Date
    Jul 2014
    Location
    Silverdale
    Posts
    3,163
    Thanks for sharing - excellent pics, analysis and write up.

  5. #5
    Member stagstalker's Avatar
    Join Date
    Jul 2018
    Location
    North Island, New Zealand
    Posts
    599
    Good read and cool being able to see those sectioned projectiles side by side like that. I think you nailed it around why the TGK hasn't taken off here. We kiwis favour the softer match type high BC projectiles as they fit our game nicely. They also expand well at range and have the high BC benefits. When talking a projectile like the TGK, extended ranges are not its forte for our medium sized game. So in the application of short range where BC, wind and energy are not near as important, Joe Bloggs will choose the tried and proven soft nose cupncore at half the price.

  6. #6
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    1,018
    Good write up mate, makes it totally worth sanding my finger tips off yesterday

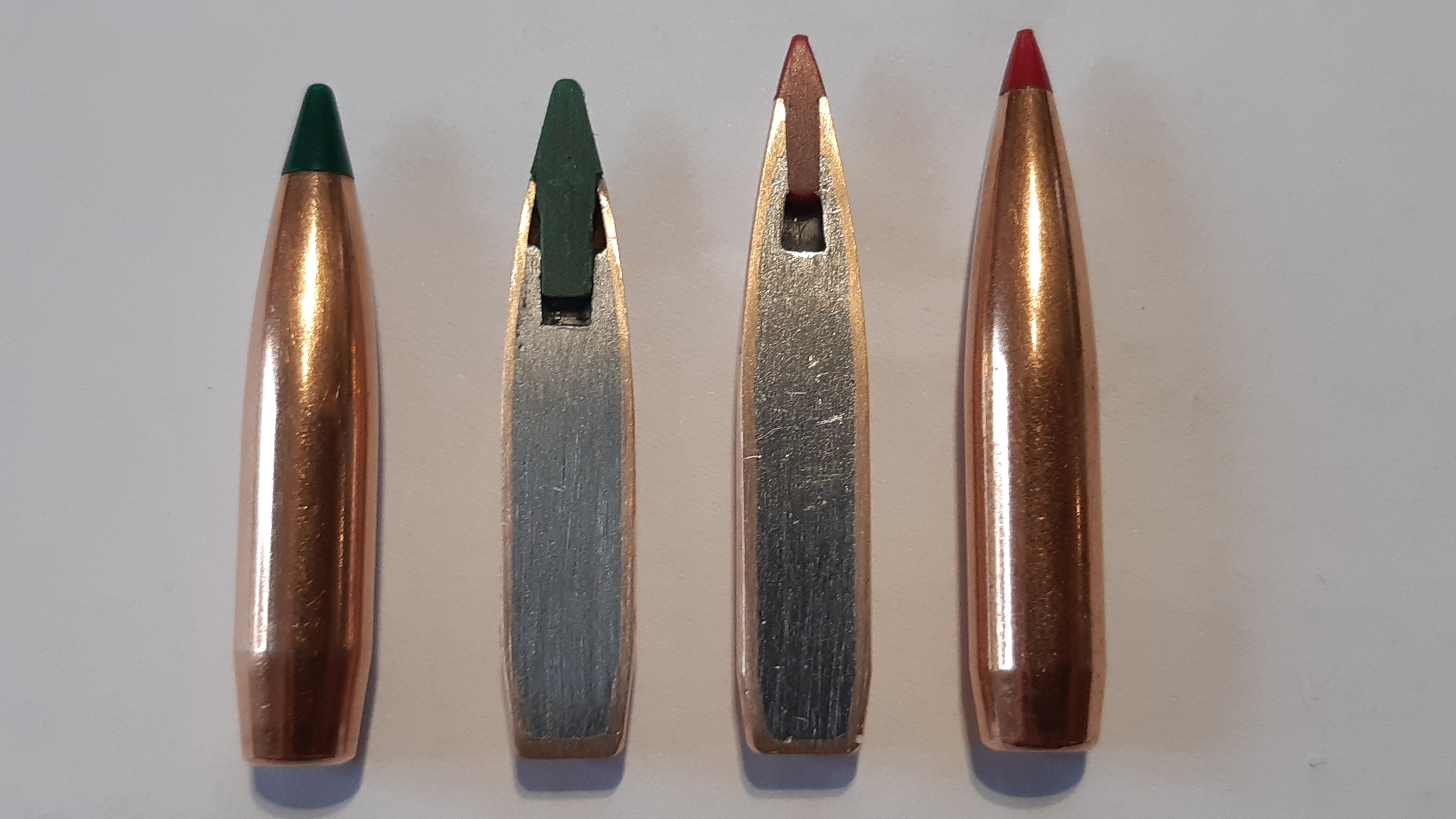

    The 130gr TMK and 147gr ELDM in 6.5 cal are easily my fav bullets on game.

    Name:  20200505_162750.jpg
Views: 190
Size:  1.39 MB
    Tommy, Moa Hunter, Mathias and 2 others like this.

  7. #7
    Member
    Join Date
    May 2017
    Location
    southland
    Posts
    3,859
    how does a hornady sst compare looking for comparison for a 6.5 grendel ? interesting being able to see them cut open to compare are these 30 cal ?

  8. #8
    Member outdoorlad's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    2,051
    Interesting, cheers.

    I used to use the 6.5mm nosler 129gn LRAB as they were good from 5m to further out, I imagine they are similar to the TGK, except the TGK was very easy to sort a load unlike the nosler.
    @Wingman let me know if you want me to send you some other 6.5mm pills to section, think I have nosler LRAB, Partition, Berger & SST?

    As I do bush & tops hunting I like a do it all bullet.
    Shut up, get out & start pushing!

  9. #9
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    1,018

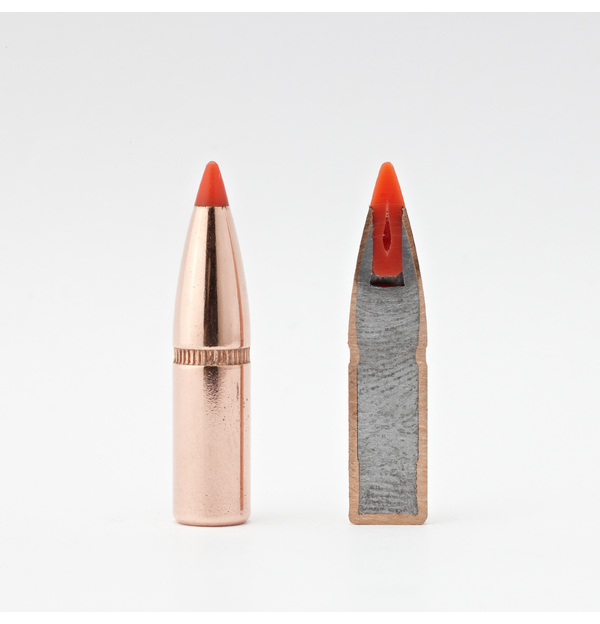

    123gr 6.5mm Hornady SST

    Name:  Hornady_Bullets_6_MM__SST_24532_2.jpg
Views: 162
Size:  85.5 KB

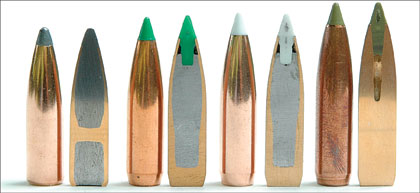

    Noslers range
    Left-to-right Partition, Ballistic Tip, AccuBond, E-Tip

    Name:  st_nosler_200802a.jpg
Views: 157
Size:  20.1 KB
    Last edited by Wingman; 06-05-2020 at 03:11 PM.

  10. #10
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    7,089
    Have a look at this about the match projectiles in .223

    (blood and guts warning)

    https://www.24hourcampfire.com/ubbth...-deer-antelope

  11. #11
    Member
    Join Date
    Nov 2012
    Posts
    783
    Quote Originally Posted by Tahr View Post
    Have a look at this about the match projectiles in .223

    (blood and guts warning)

    https://www.24hourcampfire.com/ubbth...-deer-antelope
    Shit what a mess

    Sent from my CPH1903 using Tapatalk

  12. #12
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    207
    @Wingman - are you sure that's 6.5mm? The 123 SST is a boattail design. This could well be the 117g 0.257 calibre? I only know this as one found its way into a 6.5 sample back I got a while back.

  13. #13
    Member Flyblown's Avatar
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    1,652
    Quote Originally Posted by outdoorlad View Post
    Interesting, cheers.

    I used to use the 6.5mm nosler 129gn LRAB as they were good from 5m to further out, I imagine they are similar to the TGK, except the TGK was very easy to sort a load unlike the nosler.
    @Wingman let me know if you want me to send you some other 6.5mm pills to section, think I have nosler LRAB, Partition, Berger & SST?

    As I do bush & tops hunting I like a do it all bullet.

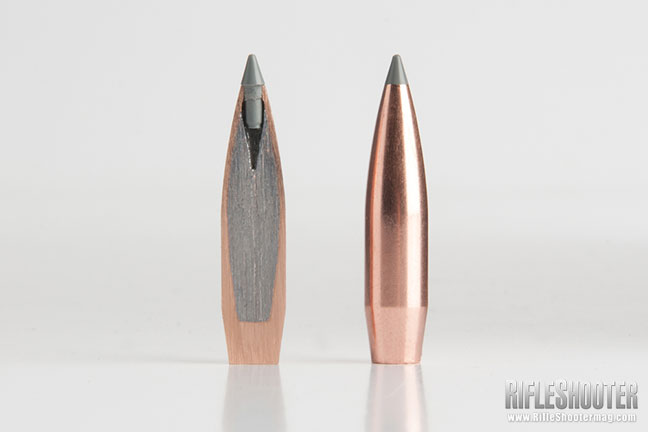

    The Accubond Bond Range has a much thinner jacket on the ogive than the TGK, @outdoorlad. Nosler tried really hard to make a bonded bullet that genuinely will expand at very low impact velocities. They quote 1,300fps for the ABLR. There are some interesting videos at very long range with this bullet.

    Name:  Nosler LRAB.jpg
Views: 139
Size:  18.8 KB

    I only know one person who uses them a lot, and he's fanatical about them. General use, not just long range. He prefers them to unbonded bullets as he says he gets very little fragmentation, which is important to him as most of his animals are sold into the game dealer network (UK).

    But they do have a reputation for being fussy bullets. And they're silly expensive!
    outdoorlad and Woody like this.
    Britain's Favourite Dog 2019!

  14. #14
    Member
    Join Date
    May 2017
    Location
    southland
    Posts
    3,859
    Quote Originally Posted by Tahr View Post
    Have a look at this about the match projectiles in .223

    (blood and guts warning)

    https://www.24hourcampfire.com/ubbth...-deer-antelope
    impressive damage for a bullet that is not suppossed to be used on game as not reccomended by maker.

  15. #15
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Waikato
    Posts
    1,018
    Quote Originally Posted by Steelisreal View Post
    @Wingman - are you sure that's 6.5mm? The 123 SST is a boattail design. This could well be the 117g 0.257 calibre? I only know this as one found its way into a 6.5 sample back I got a while back.
    Not sure.. it was just the first one that popped up when I searched 6.5 123gr sst
    Its probably just the generic pic Hornady used for advertising
    Heres the link:

    https://shopdunns.com/product/hornad...t-100pk-26173/
