    Wilson seating die

    Anybody got one of the non micrometer top models ?

    Could you pls measure the total height, including base etc and let me know.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute
    Reply With Quote Reply With Quote
  2. Register to remove these Ads!
  3. 02-12-2015, 07:58 AM #2
    zimmer
    zimmer is offline
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    I will measure this arvo - off to the to the range this morning :-)
    I presume you are talking about just the plug and its collar?

    In the meantime someone else may oblige.
    Reply With Quote Reply With Quote
  4. 02-12-2015, 08:26 AM #3
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Tx Zimmer, the entire unit, chamber seater, seating plug, base etc.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute
    Reply With Quote Reply With Quote
  5. 02-12-2015, 10:34 AM #4
    outdoorlad
    outdoorlad is offline
    Member outdoorlad's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    2,941
    My 223 one is 100mm
    Shut up, get out & start pushing!
    Reply With Quote Reply With Quote
  6. 02-12-2015, 10:47 AM #5
    TonyT
    TonyT is offline
    Member
    Join Date
    Dec 2011
    Location
    Christchurch, NZ
    Posts
    46
    I have a number of Wilson type straight-line seaters and have measured the overall length of the following.

    .222 Rem = 96.9mm, Std Wilson
    222½ Shilen = 98.0mm, Std Wilson
    22 PPC = 92.1mm, Std Wilson
    6mm PPC = 96.5mm, Std Wilson
    30 BR = 95.9mm, Std Wilson
    .257 Roberts = 113.4mm, Std Wilson

    6.5x47mm Lapua = 104.3mm, Wilson body with a Sinclair Micro top.

    These are all small to medium length cartridges and I would think that longer cartridges, 270 Win, 280 Rem & 30-06 Sprg would have a die length of 115 to 118mm.
    "Only Accurate Rifles are Interesting"
    Reply With Quote Reply With Quote
  7. 02-12-2015, 10:58 AM #6
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Ah good point, this will be for 308...
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute
    Reply With Quote Reply With Quote
  8. 02-12-2015, 05:17 PM #7
    zimmer
    zimmer is offline
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986

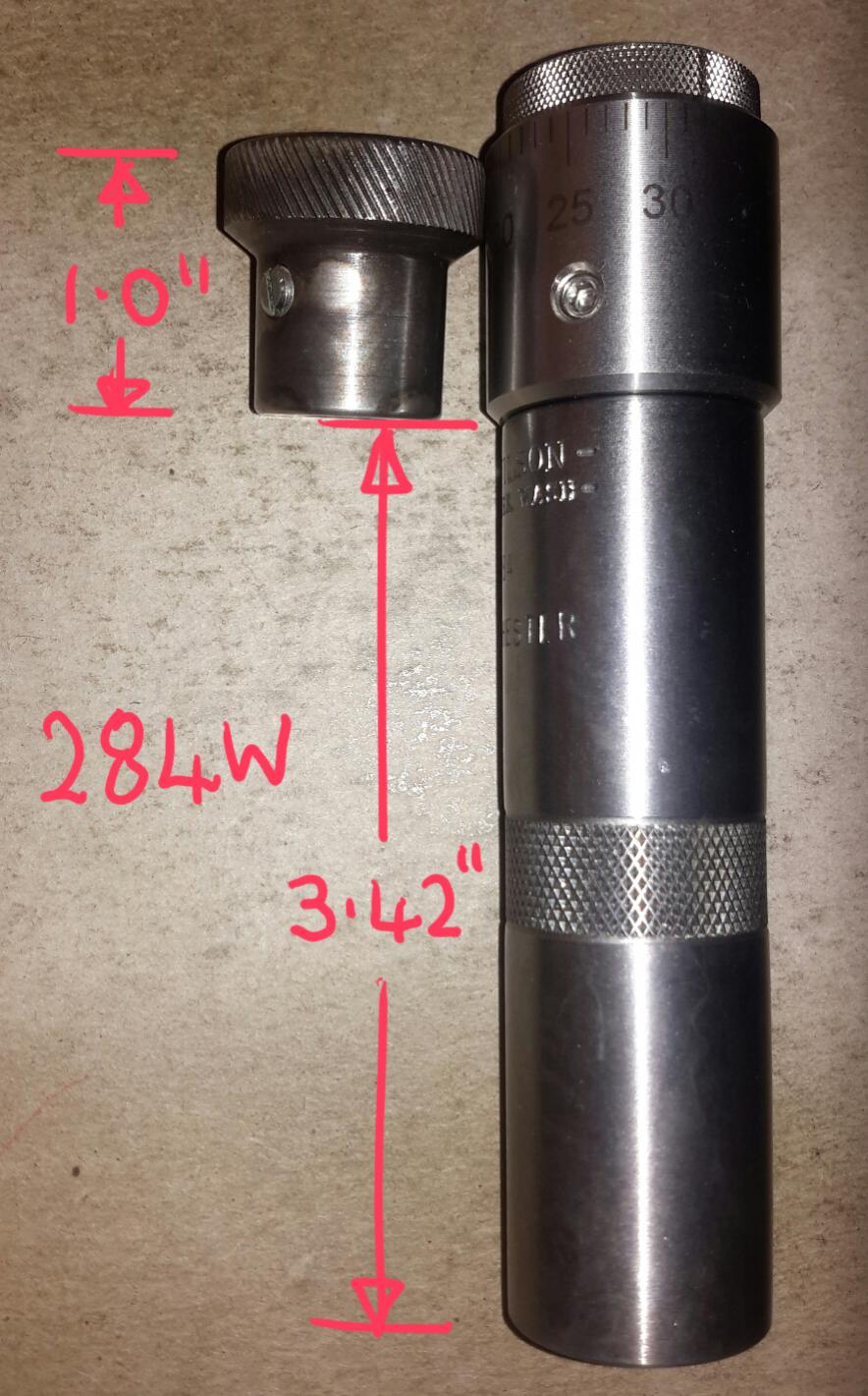

    Sorry EBF not much help to you. I have 223R, 6x47L, 6.5x47L, 6mmBR but all with Wilson micrometer tops. The only one with standard top I have is 284W. No 308W.
    Name: 2015-12-02 17.06.46.jpg Views: 115 Size: 167.2 KB
