    Alpine Butterfly Knot

    As recommended by Gibo

    Very elegant, the alpine butterfly knot puts a loop in the middle of a rope when you don't have access to the ends, without weakening the rope too much. It can be used to pull on the rope, to attach as person or pack in the middle or as hand / foot loops for climbing the rope. If you load it with body weight, it can go a bit tight to undo. It's not used all that much, not really an essential knot for hunters, but very nice to have.

    Rope without ends. Normally you wouldn't put an "in use" climbing rope down on as greasy old bench like this but this rope had been retired for many years.
    Name:  Alp BFLY kt 0 rope only.jpg
Views: 610
Size:  171.9 KB

    Make a double twist.
    Name:  Alp BFLY kt 1.jpg
Views: 612
Size:  612.0 KB

    Take the bight down behind the twist.
    Name:  Alp BFLY kt 2.jpg
Views: 615
Size:  727.2 KB

    Feed the loop up through the space in the twist.
    Name:  Alp BFLY kt 3.jpg
Views: 635
Size:  728.1 KB

    Here is the form of the knot displayed but not tightened.
    Name:  Alp BFLY kt 4.jpg
Views: 647
Size:  700.2 KB

    Here it is tight showing the front, with the loop upwards. Each end of the rope forms a turn around the loop.
    Name:  Alp BFLY kt 5 up.jpg
Views: 602
Size:  365.9 KB

    Here is the back side of it, showing small turns on each side.
    Name:  Alp BFLY kt 6 dwn.jpg
Views: 567
Size:  359.5 KB

    You can load it from the right ...
    Name:  Alp BFLY kt 7 R.jpg
Views: 749
Size:  634.5 KB
    or the left.
    Name:  Alp BFLY kt 8 L.jpg
Views: 593
Size:  358.2 KB

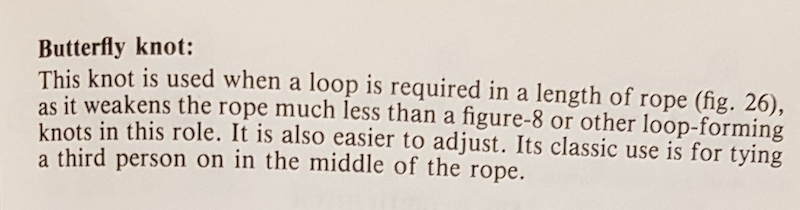

    Here are some clearer sketches showing the key stages. This one from the 1987 NZMSC Mountaincraft manual 20
    Name:  MSC Mountaincraft 20.jpg
Views: 548
Size:  512.8 KB
    Name:  MSC caption.jpg
Views: 508
Size:  127.2 KB

    and from Mountaineering The Freedom of the Hills 2003
    Name:  Freedom of the Hills.jpg
Views: 662
Size:  465.3 KB
