Thread: 30mm Torch/IR Illuminator mount adjustable for windage and elavation

  1. #1
    GWH
    GWH is offline
    Member
    Join Date
    Jul 2012
    Location
    Napier, Hawkes Bay
    Posts
    4,456

    30mm Torch/IR Illuminator mount adjustable for windage and elavation

    Does anyone know where I can get a 30mm version of these in NZ, want it in days, don't have time to get it from Aliexpress.

    Need one to mount an external IR illuminator for a night vision culling operation

    https://www.elks.com.au/product/z-vi...windage-clamp/
    Attached Images Attached Images

  2. #2
    Member
    Join Date
    Jun 2018
    Location
    Christchurch
    Posts
    548
    Could try Fraser at owl optics
    GWH likes this.

  3. #3
    Member hotbarrels's Avatar
    Join Date
    Aug 2012
    Location
    Auck
    Posts
    1,780
    What are you wanting to achieve?

    Personally, I have found the best way to mount torches is to fit a section of rail under the fore end, parallel to the barrel channel. If you have a wooden stock, find someone with a spindle molder who can set the guide fence up to the appropriate distance from a straight sided cutter and machine a flat section on the bottom of the fore end using the top of the barrel channel as the reference on the guide fence (hope that makes sense?). With the rail fitted parallel to the barrel channel, and using a standard 1" ring, the center of your torch spot will always be in the center of your scope.

    Here's an example on my 10/22 with a Boyds stock. I have done the same to my CZ bolt actions. Makes the torch super easy to access, its light and compact, and you are not hanging everything off your scope.

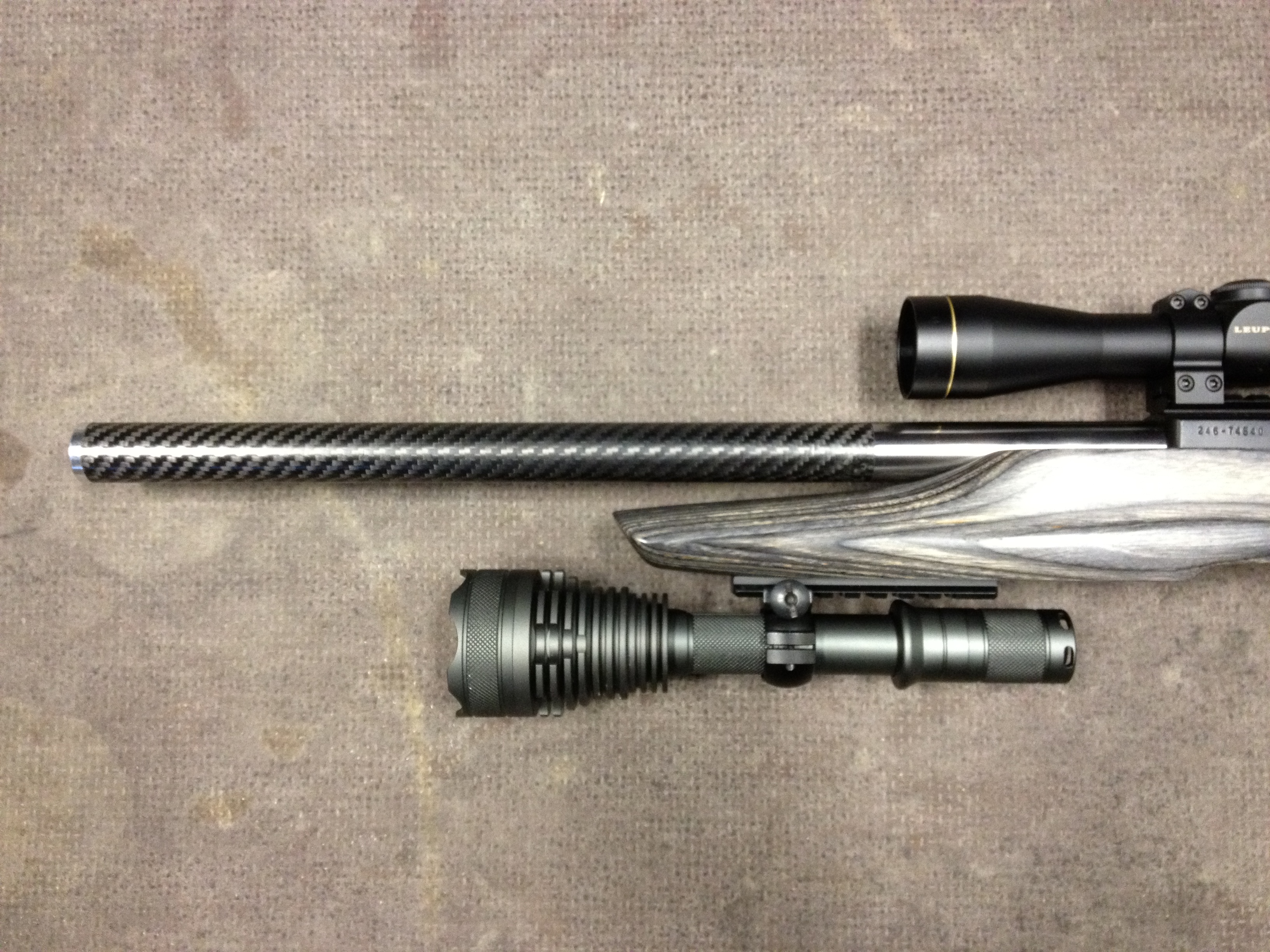

    Name:  IMG_0209.JPG
Views: 435
Size:  2.91 MB

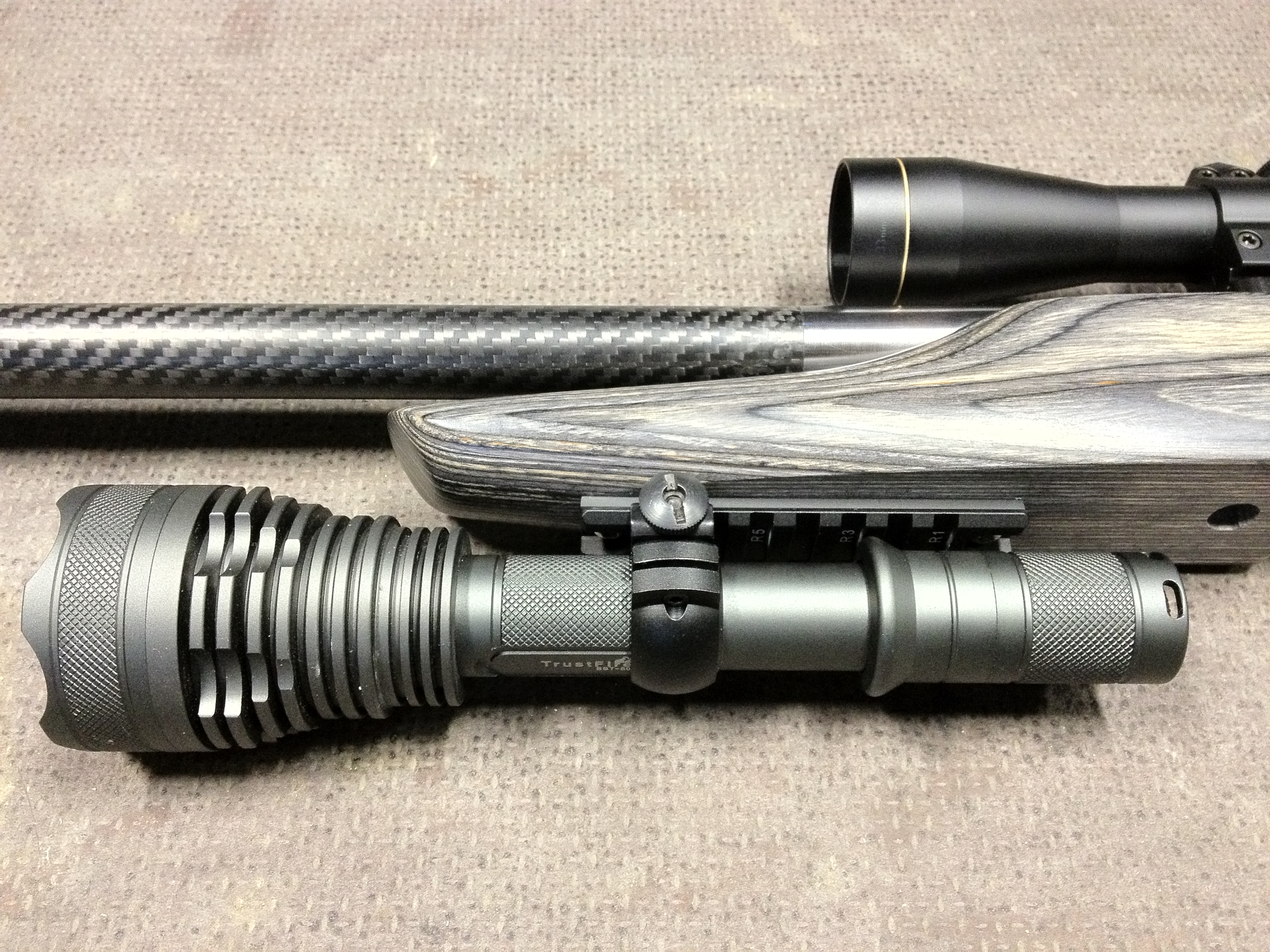

    Name:  IMG_0212.JPG
Views: 437
Size:  3.55 MB

  4. #4
    GWH
    GWH is offline
    Member
    Join Date
    Jul 2012
    Location
    Napier, Hawkes Bay
    Posts
    4,456
    Quote Originally Posted by hotbarrels View Post
    What are you wanting to achieve?

    Personally, I have found the best way to mount torches is to fit a section of rail under the fore end, parallel to the barrel channel. If you have a wooden stock, find someone with a spindle molder who can set the guide fence up to the appropriate distance from a straight sided cutter and machine a flat section on the bottom of the fore end using the top of the barrel channel as the reference on the guide fence (hope that makes sense?). With the rail fitted parallel to the barrel channel, and using a standard 1" ring, the center of your torch spot will always be in the center of your scope.

    Here's an example on my 10/22 with a Boyds stock. I have done the same to my CZ bolt actions. Makes the torch super easy to access, its light and compact, and you are not hanging everything off your scope.

    Attachment 194613

    Attachment 194614
    Ive currently got an external IR illuminator mounted to the pic rail on the side of Pard NV008 scope, but was looking for an adjustable mount to align the zoomed IR spot with sight picture. Sighting in to make best use of PBR of 300-350 yards.

  5. #5
    Member zeropak's Avatar
    Join Date
    Aug 2015
    Location
    Mangonui
    Posts
    697
    Quote Originally Posted by GWH View Post
    Does anyone know where I can get a 30mm version of these in NZ, want it in days, don't have time to get it from Aliexpress.

    Need one to mount an external IR illuminator for a night vision culling operation

    https://www.elks.com.au/product/z-vi...windage-clamp/
    I do have exactly that mount in 25mm I'm no longer using if its of any interest to you. I guess it would be possible to modify to 30mm by cutting off the scope mount part of it and screwing on a 30mm mount.
    ZeroPak Vacuum Sealers, Zero air Zero waste

  6. #6
    Member Mintie's Avatar
    Join Date
    Mar 2015
    Location
    Hawkes Bay
    Posts
    1,881
    Just shim it using some beer cans mate
    GWH likes this.

  7. #7
    TLB
    TLB is offline
    Member
    Join Date
    Dec 2014
    Location
    Napier
    Posts
    426
    Quote Originally Posted by Mintie View Post
    Just shim it using some beer cans mate
    Plus one for that. I just used some thin cardboard off a muesli bar or beer box last time and it has been in the quick release mount now for over 6 months no worries.
    GWH likes this.

  8. #8
    Member zeropak's Avatar
    Join Date
    Aug 2015
    Location
    Mangonui
    Posts
    697
    Quote Originally Posted by TLB View Post
    Plus one for that. I just used some thin cardboard off a muesli bar or beer box last time and it has been in the quick release mount now for over 6 months no worries.
    Yep I did exactly that which made the adjustable mount redundant. Stronger and simpler, just a little bit of mucking about in the first instance to get the right amount of shim.
    ZeroPak Vacuum Sealers, Zero air Zero waste
