Thread: 6.5 bullet test results.

  1. #1
    Member
    Join Date
    Mar 2013
    Location
    Bell Block NZ/Northern Alberta Canada
    Posts
    857

    6.5 bullet test results.

    I have shifted this 6.5 bullet test info over from, Canadian gun nuts,
    more to follow, in next few days,
    test medium wet newspaper.





    **Huge CGN .264 Bullet Test Result** (lots of pics!)



    There it is!!

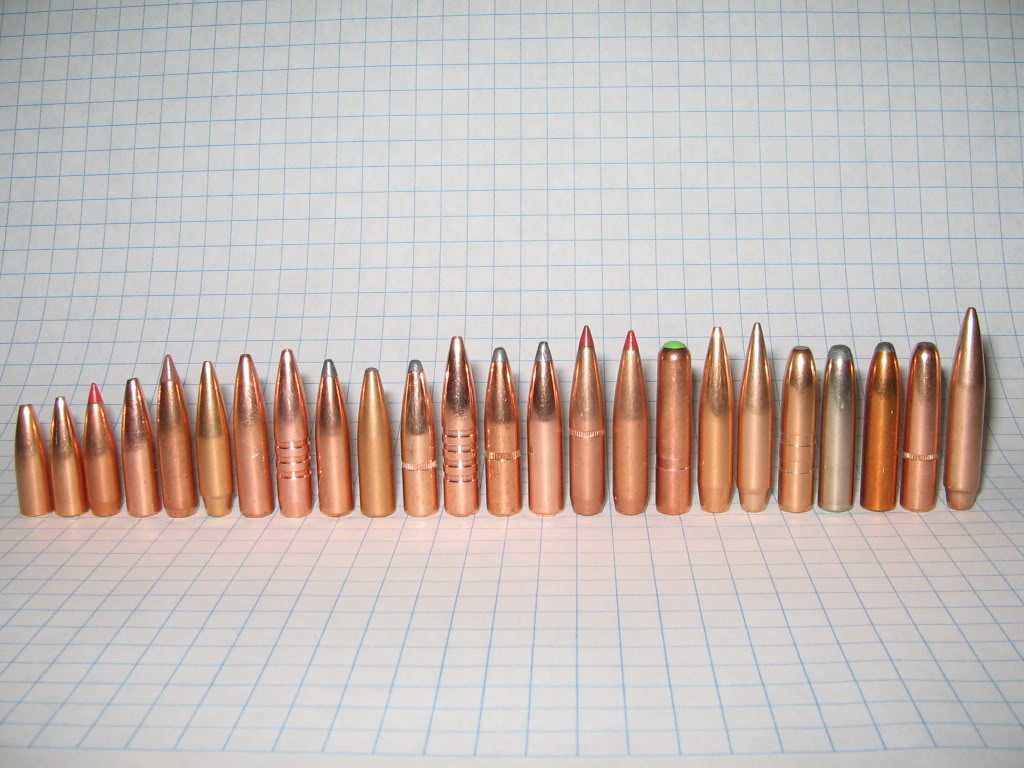

    The line up:
    Name:  65bullettest.jpg
Views: 2999
Size:  115.7 KB

    - The impact velocity was made to duplicate modern 6.5X55 loads at 100 yds.
    - Expansion was measured at the widest part of the bullet. Take a look at the pictures when comparing the expansion of different bullets, sometime a sliver of lead or copper at an odd angle can give deceptive results.
    - Test rifle: Winchester Model 70 Featherweight 6.5X55 Swed
    - Test media: Wet newspaper....lots of wet newspaper!!
    - Disclaimer: I know wet newspaper does not give identical result to flesh and bones, blah, blah, blah....

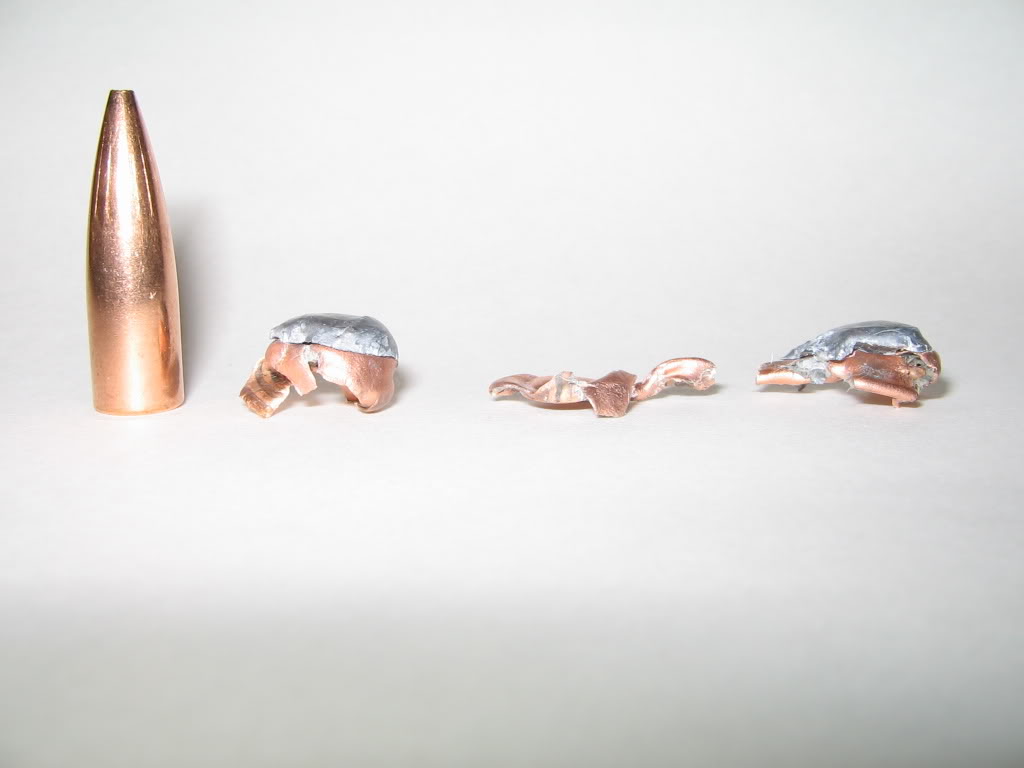

    Speer 90gr TNT
    Average Penetration (inches): 10.17
    Average Weight Retained (grain): 28.3
    Average Weight Retained (%): 31
    Average Expansion (inches): 0.549
    Name:  90grTNT.jpg
Views: 2613

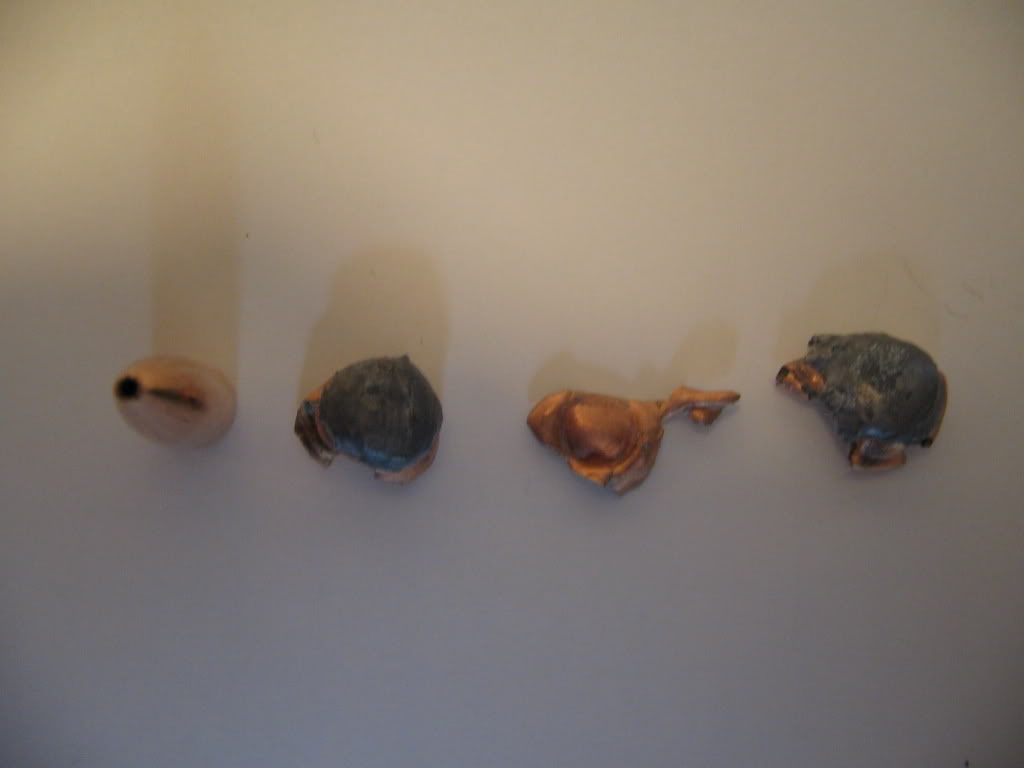

Size:  40.4 KBName:  TNT2.jpg
Views: 2540
Size:  29.8 KB

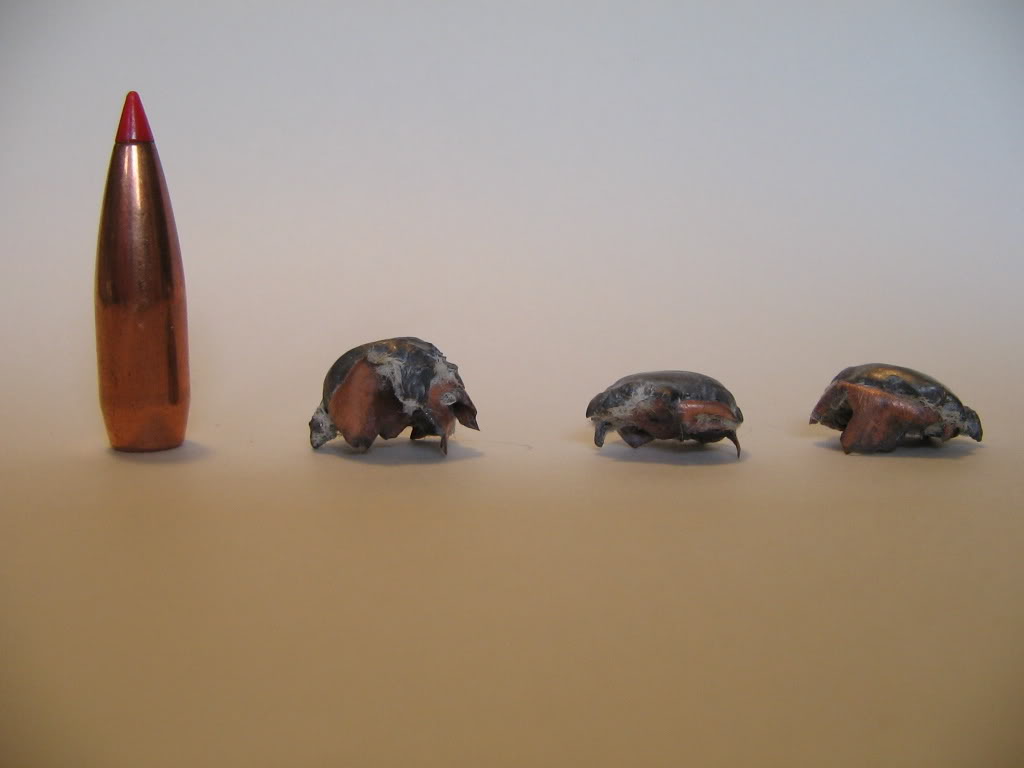

    Hornady 95gr V-MAX
    Average Penetration (inches): 6.25
    Average Weight Retained (grain): 34.1
    Average Weight Retained (%): 36
    Average Expansion (inches): 0.470

    Name:  95grHornadyVMAX.jpg
Views: 3409
Size:  35.6 KBName:  95grVmax.jpg
Views: 2556
Size:  33.9 KB

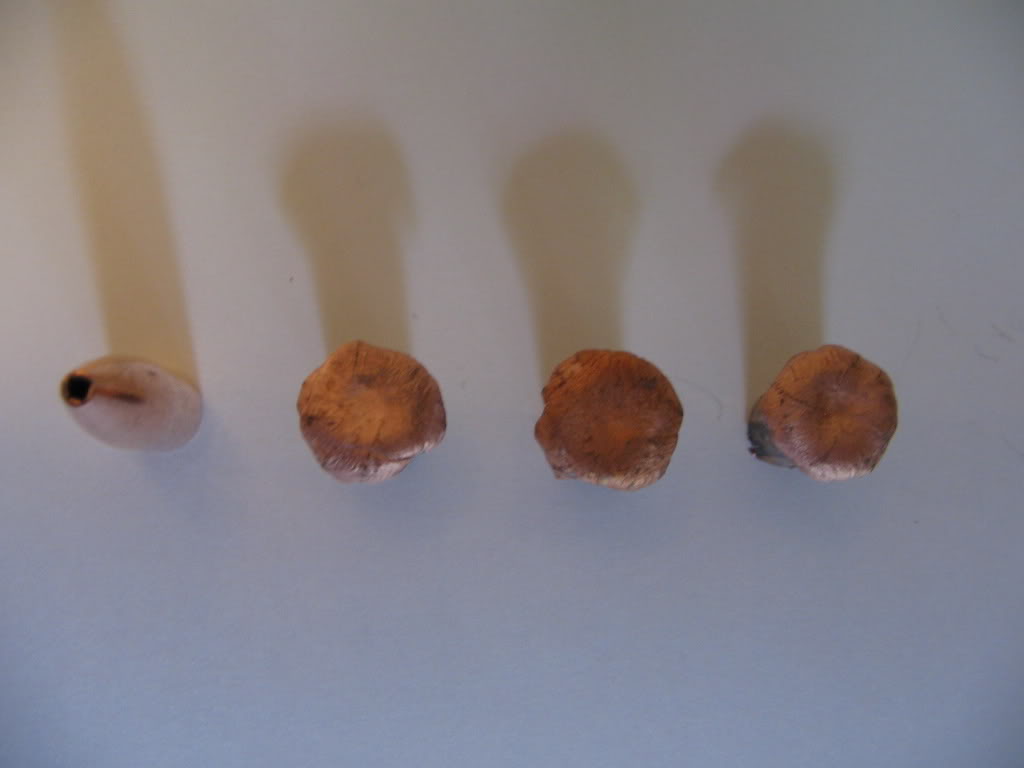

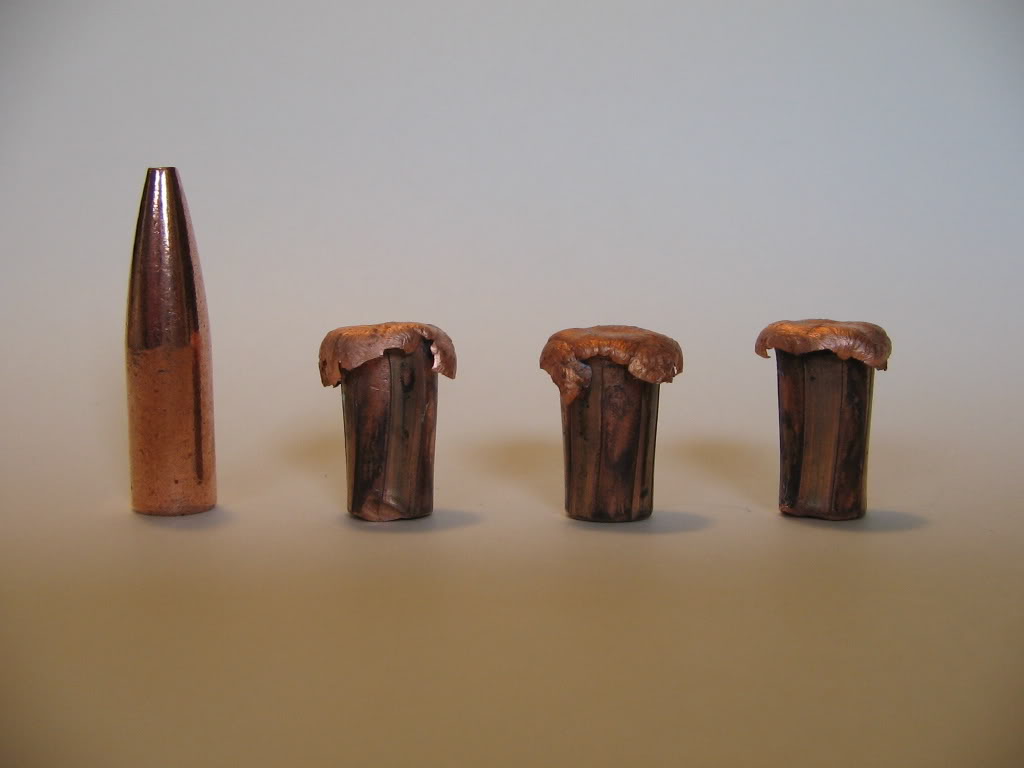

    Barnes 100gr X
    Average Penetration (inches): 16.67
    Average Weight Retained (grain): 83
    Average Weight Retained (%): 83
    Average Expansion (inches): 0.423

    Name:  100grX.jpg
Views: 2535
Size:  40.1 KBName:  Barnes100grX.jpg
Views: 2533
Size:  33.7 KB

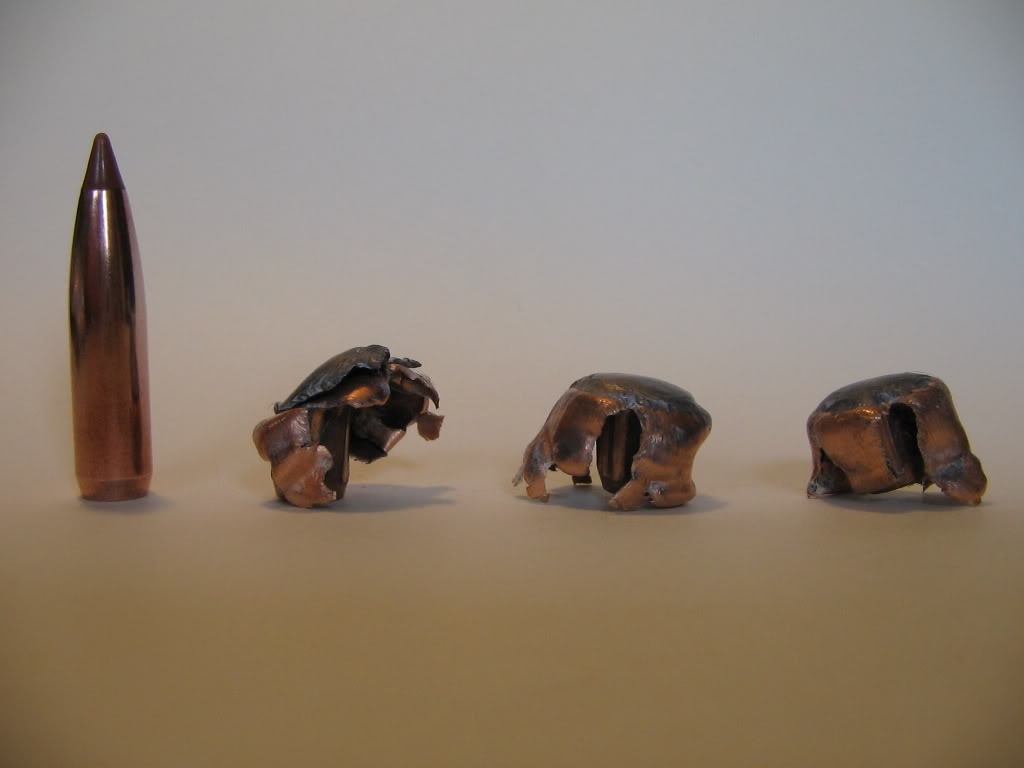

    Nosler 120gr Ballistic Tip
    Average Penetration (inches): 10.30
    Average Weight Retained (grain): 74.4
    Average Weight Retained (%): 62
    Average Expansion (inches): 0.643

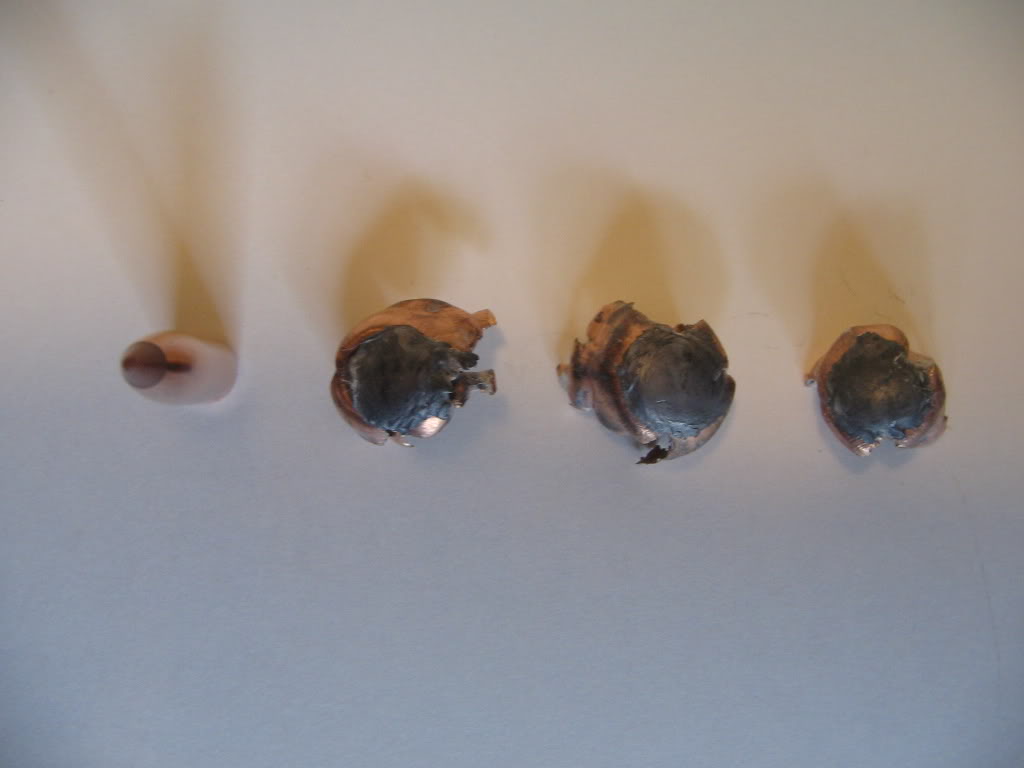

    Name:  120grBtip.jpg
Views: 2763
Size:  39.3 KBName:  120grNoslerBTip.jpg
Views: 2890
Size:  37.8 KB

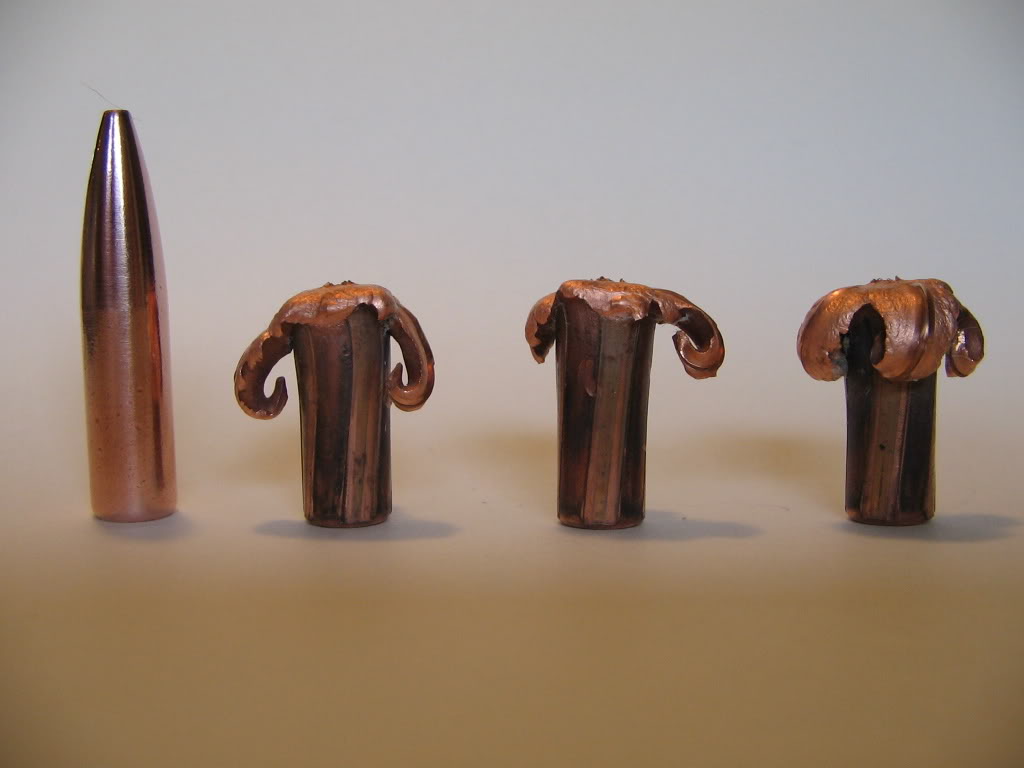

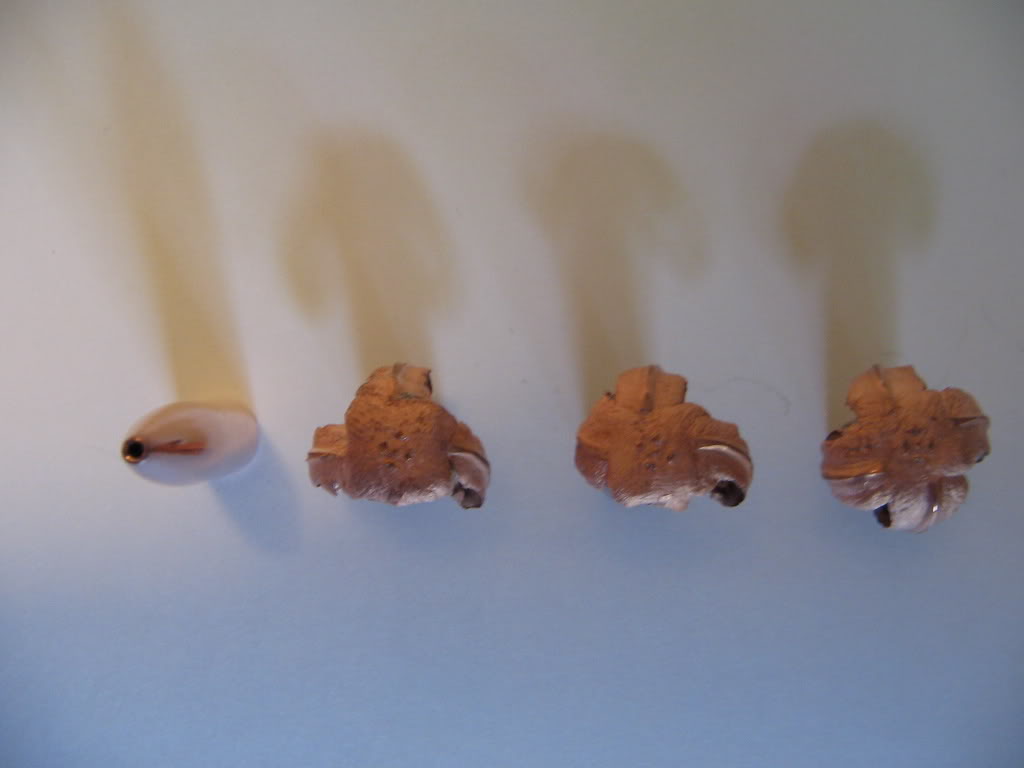

    Barnes 120gr X
    Average Penetration (inches): 14.42
    Average Weight Retained (grain): 114.5
    Average Weight Retained (%): 95
    Average Expansion (inches): 0.586
    Name:  Barnes120grX.jpg
Views: 2624
Size:  49.1 KBName:  120grX.jpg
Views: 2480
Size:  36.7 KB

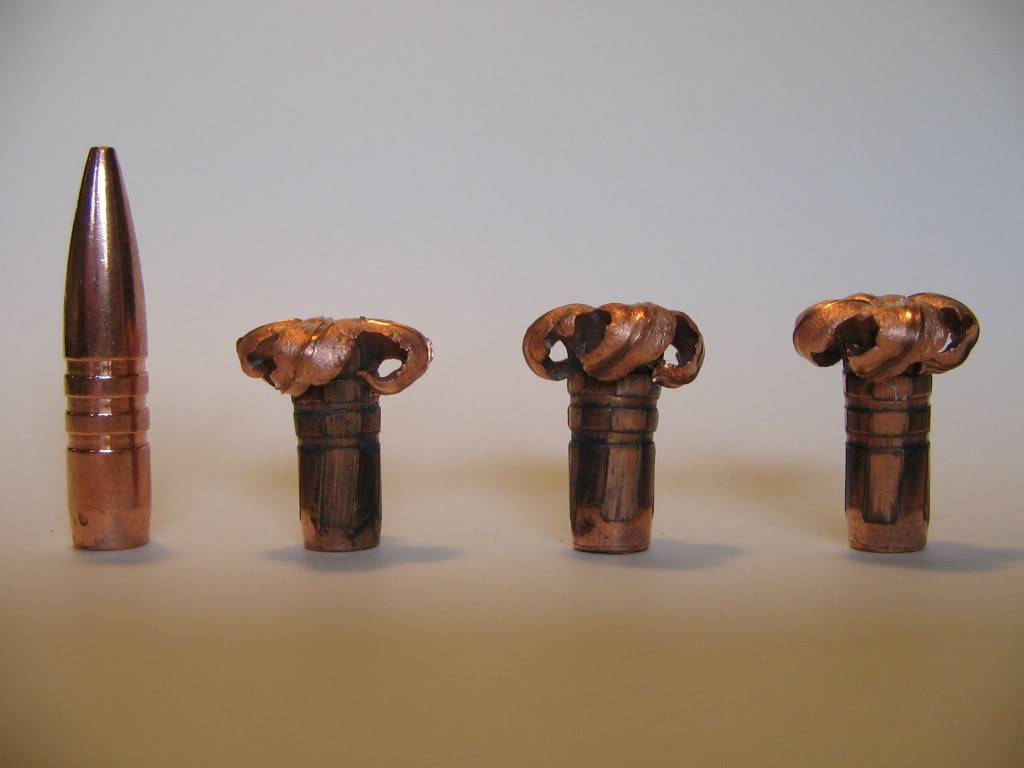

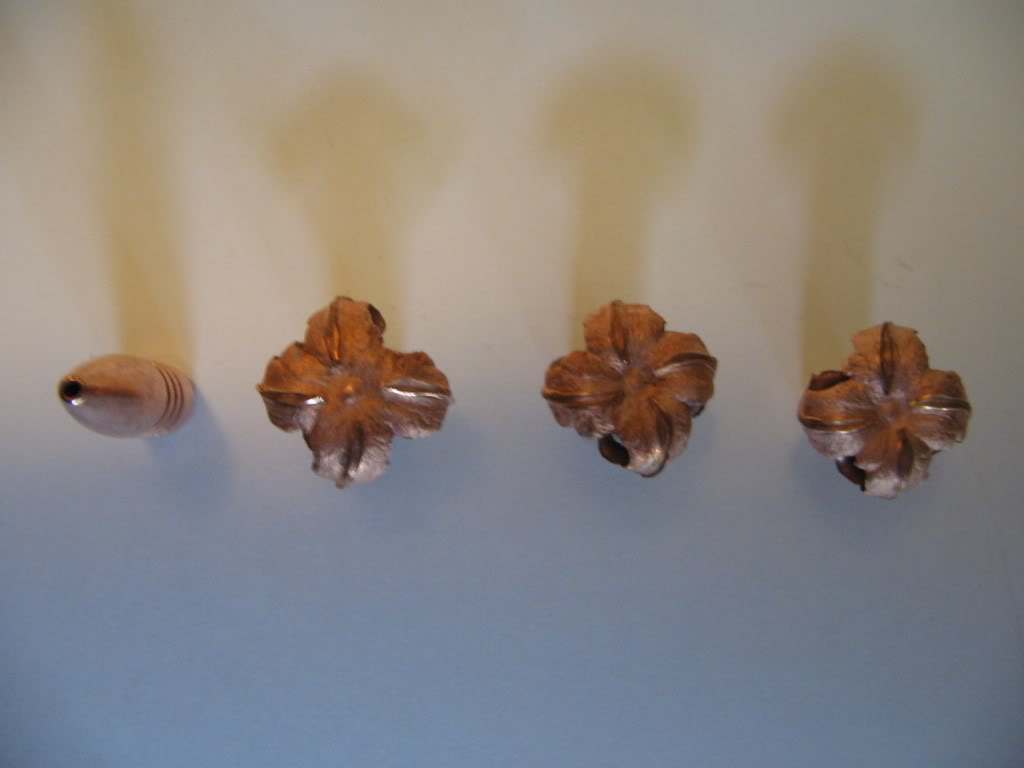

    Barnes 120gr TSX
    Average Penetration (inches): 13.67
    Average Weight Retained (grain): 120.1
    Average Weight Retained (%): 100
    Average Expansion (inches): 0.592

    Name:  Barnes120grTSX.jpg
Views: 2602
Size:  49.8 KBName:  120grTSX.jpg
Views: 2545
Size:  38.0 KB

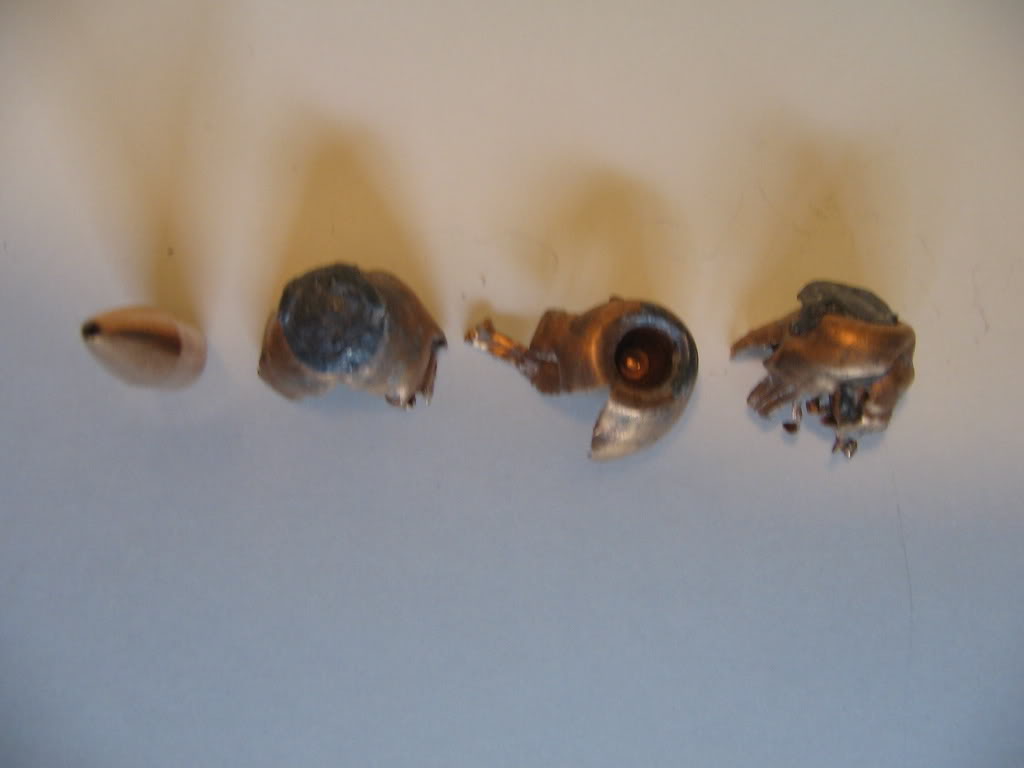

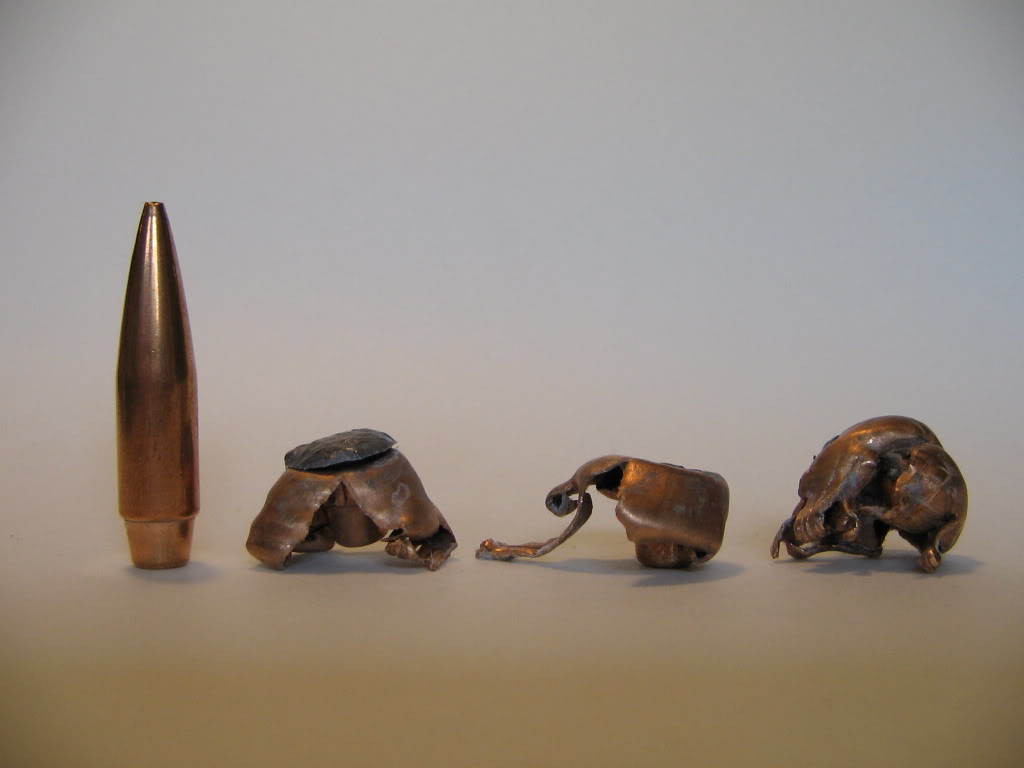

    Alberta Wildcat 120gr HP
    Average Penetration (inches): 11.17
    Average Weight Retained (grain): 49.2
    Average Weight Retained (%): 41
    Average Expansion (inches): 0.704

    Name:  AWC120gr.jpg
Views: 2483
Size:  36.1 KBName:  AWC120grHP.jpg
Views: 2482
Size:  39.5 KB

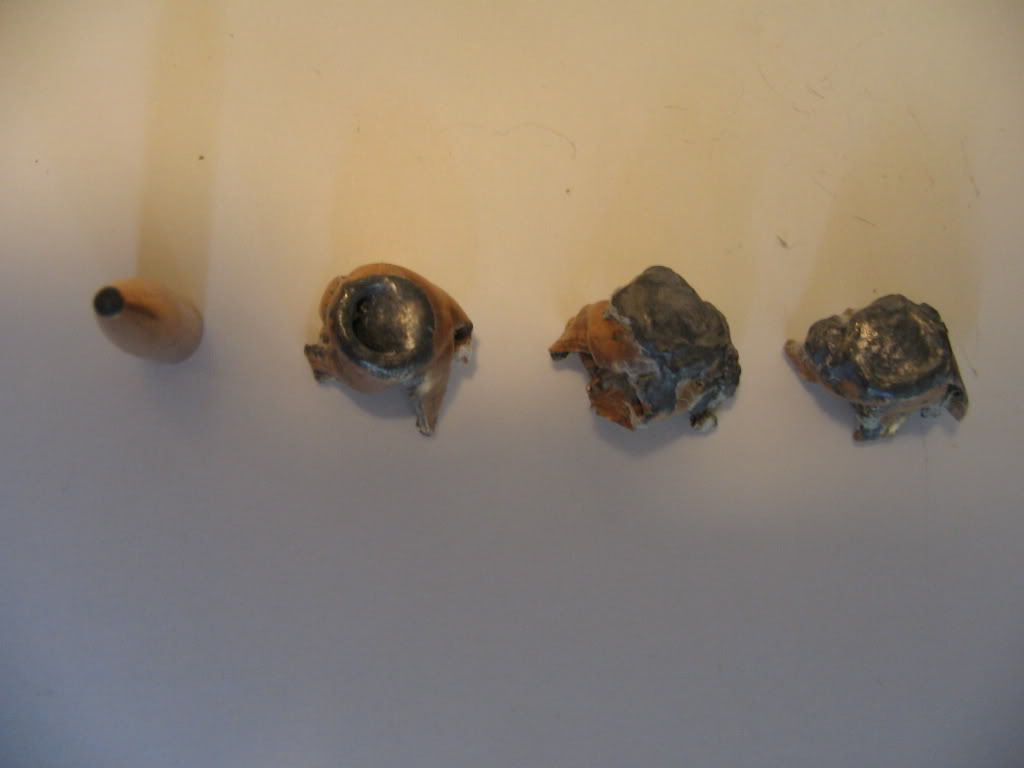

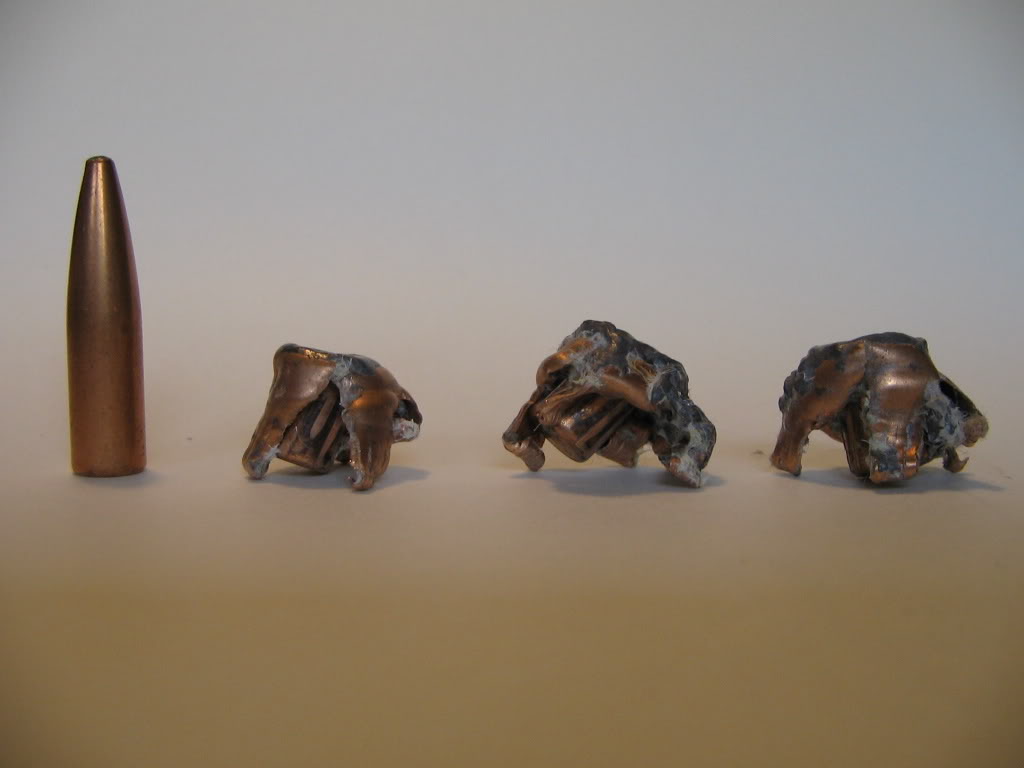

    Alberta Wildcat 125gr SP
    Average Penetration (inches): 10.17
    Average Weight Retained (grain): 73.3
    Average Weight Retained (%): 59
    Average Expansion (inches): 0.712
    Name:  AWC125gr.jpg
Views: 2443
Size:  34.9 KBName:  AWC125grSP.jpg
Views: 2490
Size:  40.4 KB

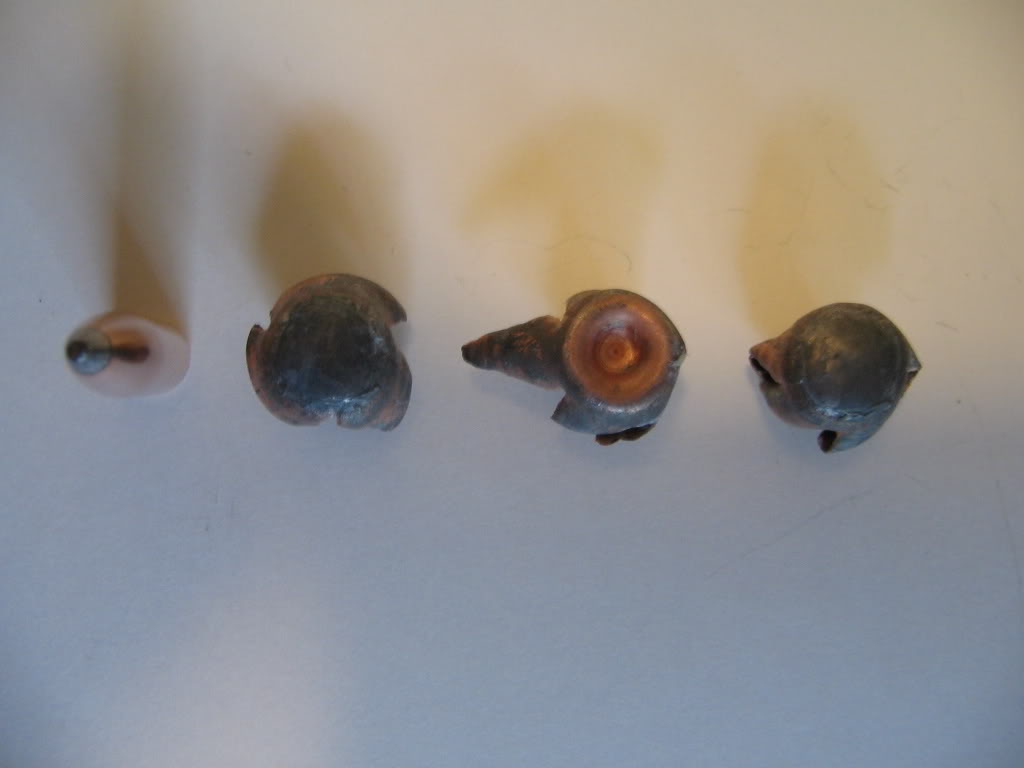

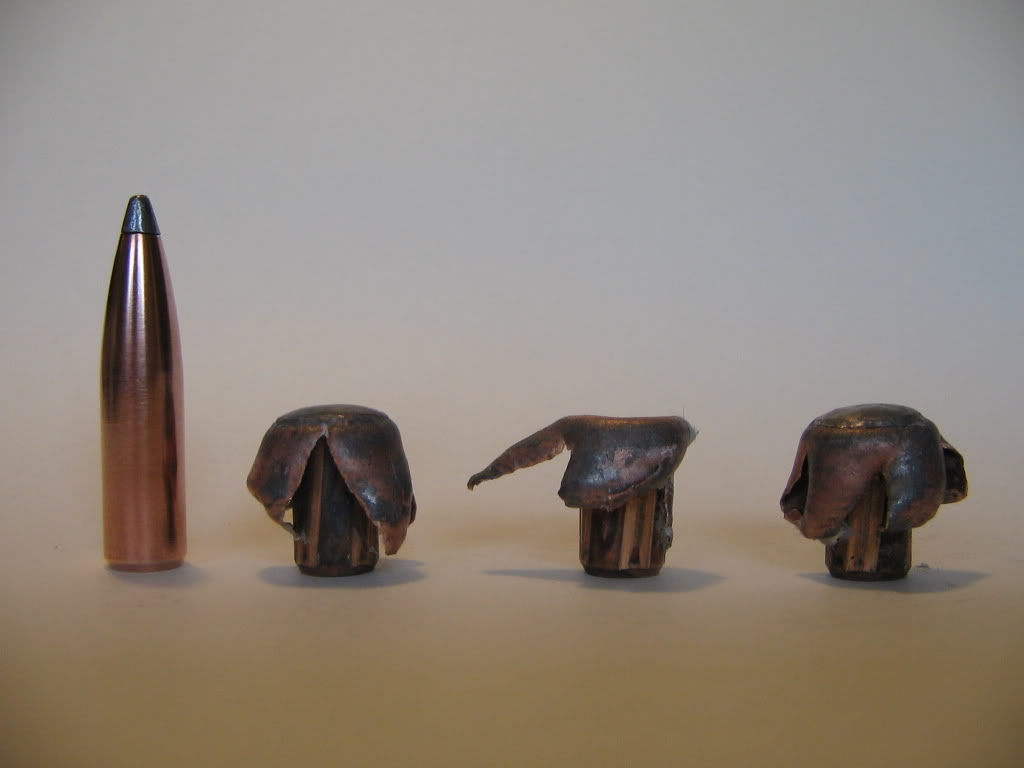

    Nosler 125gr Partition
    Average Penetration (inches): 15
    Average Weight Retained (grain): 88.5
    Average Weight Retained (%): 71
    Average Expansion (inches): 0.614
    Name:  Nosler125grPT.jpg
Views: 2691
Size:  38.1 KBName:  Nolser125PT.jpg
Views: 2510
Size:  38.6 KB

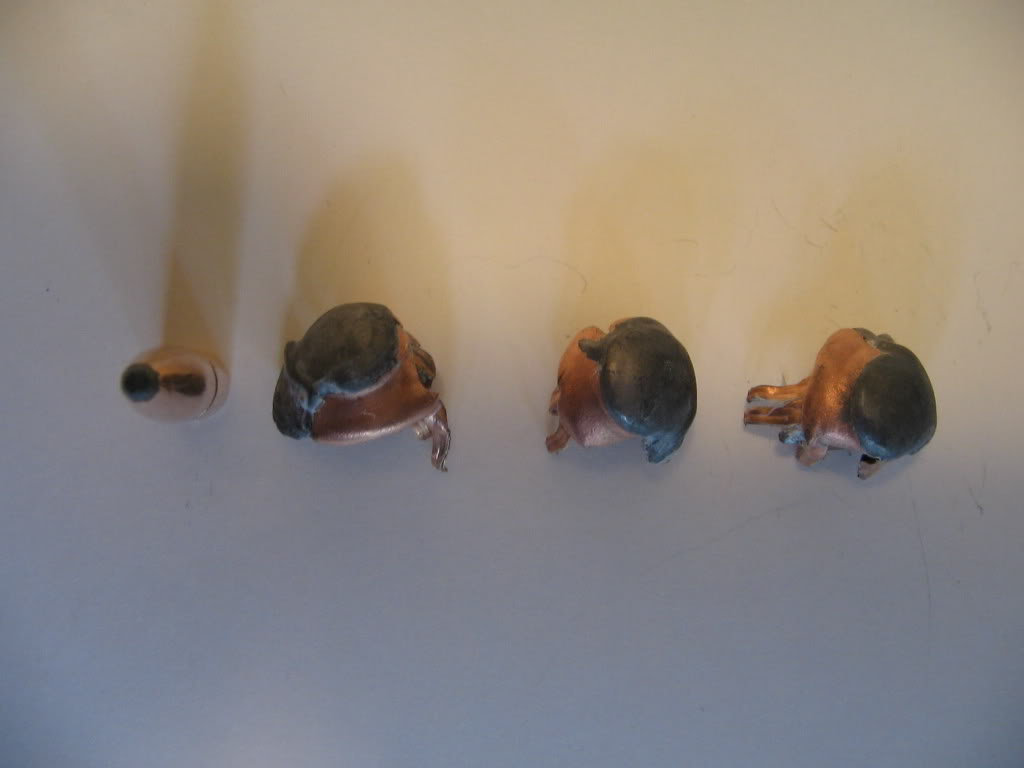

    Hornady 129gr SP IL
    Average Penetration (inches): 13.08
    Average Weight Retained (grain): 90.5
    Average Weight Retained (%): 70
    Average Expansion (inches): 0.626

    Name:  Honady129grSP.jpg
Views: 2551
Size:  42.2 KBName:  Hornady129gr.jpg
Views: 2493
Size:  36.1 KB

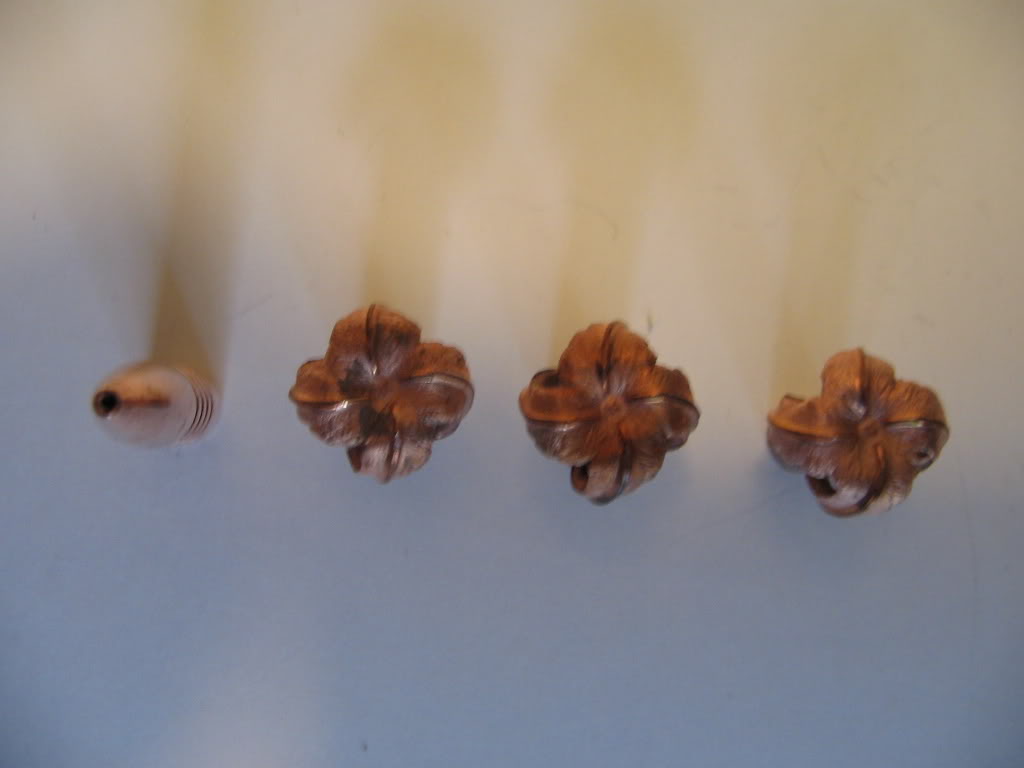

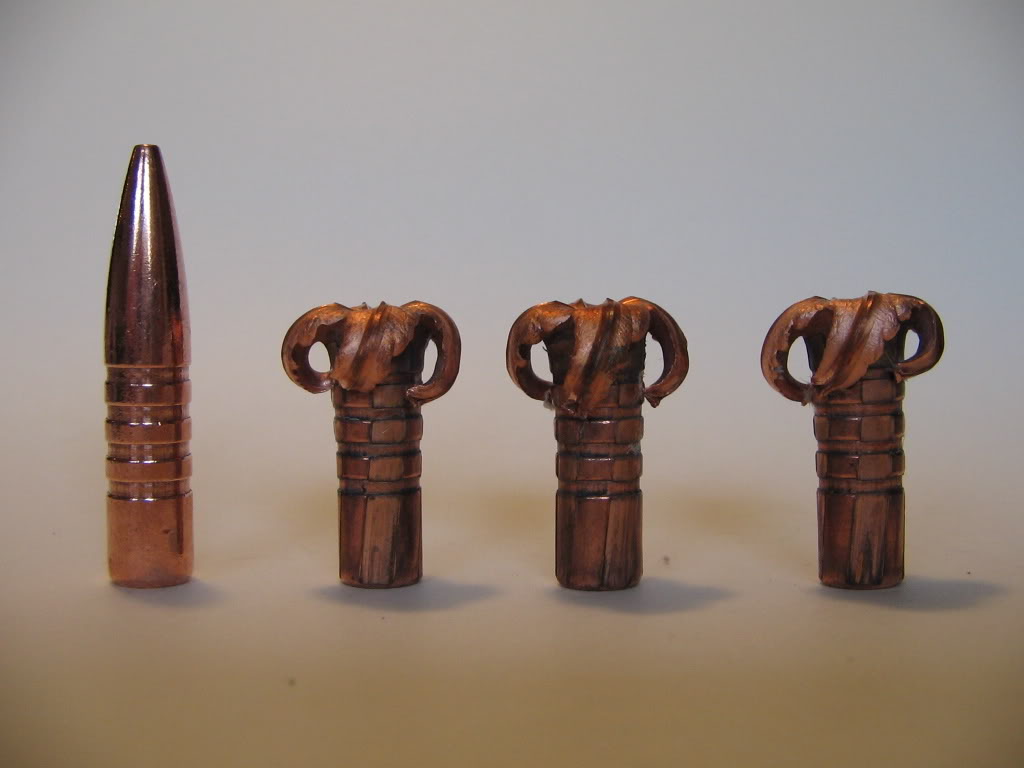

    Barnes 130gr TSX
    Average Penetration (inches): 18
    Average Weight Retained (grain): 129.9
    Average Weight Retained (%): 100
    Average Expansion (inches): 0.552
    Name:  Barnes130grTSX.jpg
Views: 3669
Size:  53.3 KBName:  130grTSX.jpg
Views: 2608
Size:  37.0 KB

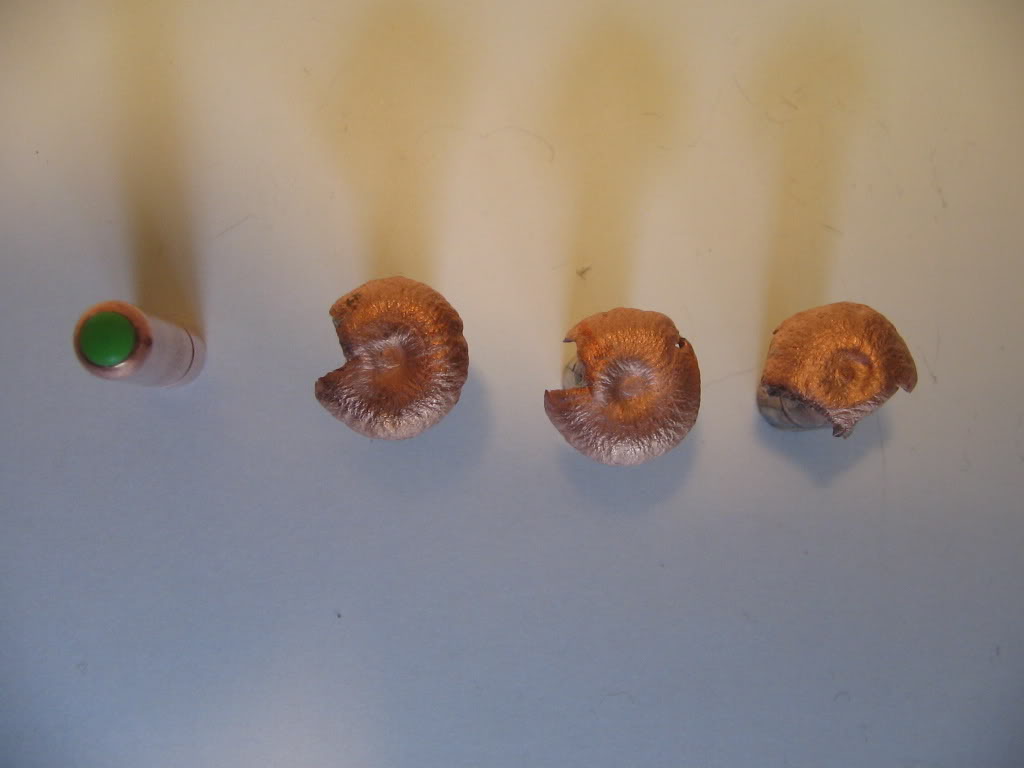

    Lapua 140gr Naturalist
    Average Penetration (inches): 16.5
    Average Weight Retained (grain): 136.6
    Average Weight Retained (%): 98
    Average Expansion (inches): 0.556

    Name:  Lapua140grNaturalist.jpg
Views: 3463
Size:  44.9 KBName:  Lapua140grNaturo.jpg
Views: 2921
Size:  44.4 KB

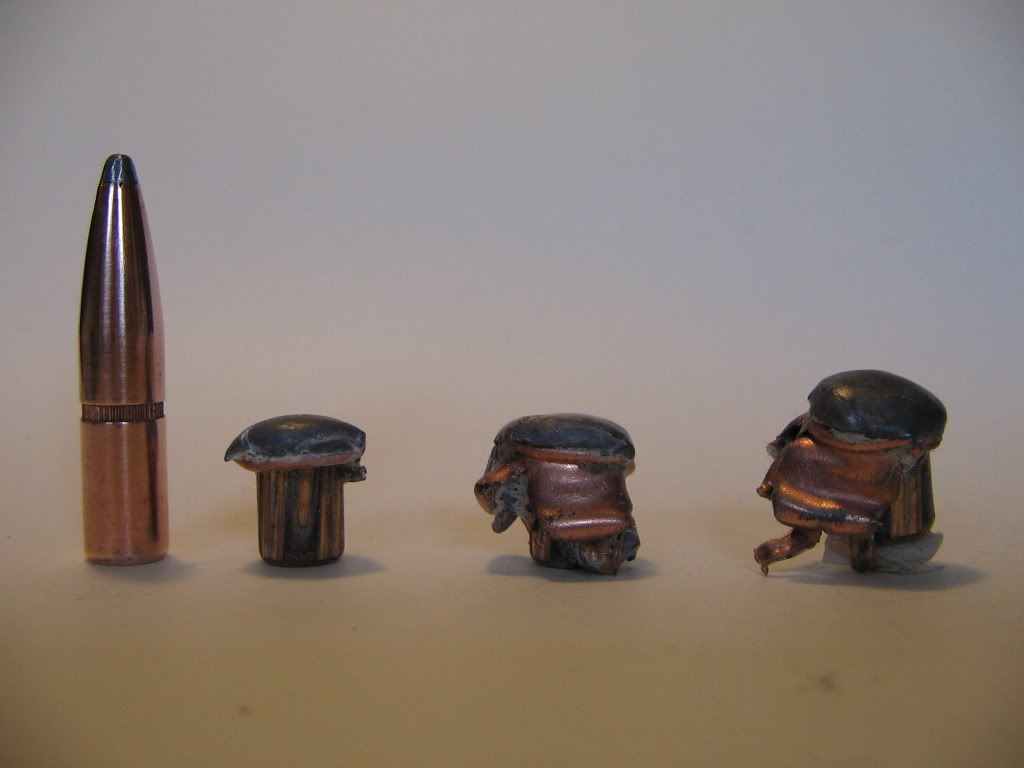

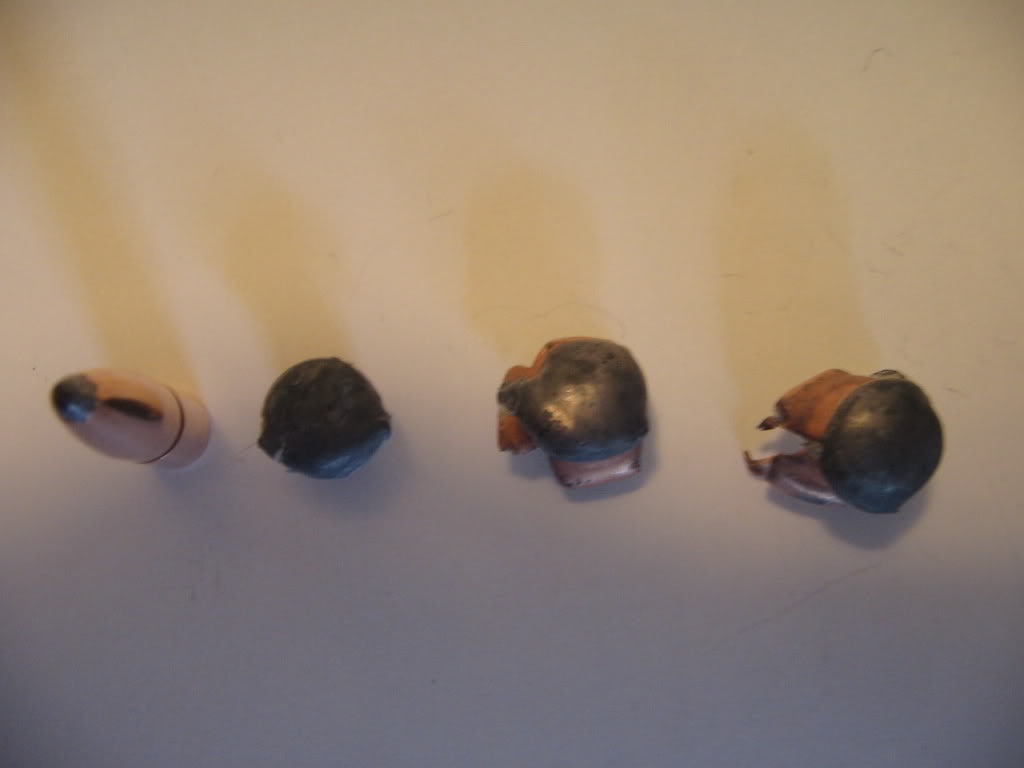

    Hornady 140gr SP IL
    Average Penetration (inches): 13.75
    Average Weight Retained (grain): 78.7
    Average Weight Retained (%): 56
    Average Expansion (inches): 0.524

    Name:  Hornady140grSP.jpg
Views: 2777
Size:  41.9 KBName:  Hornady140SP.jpg
Views: 2494
Size:  32.6 KB

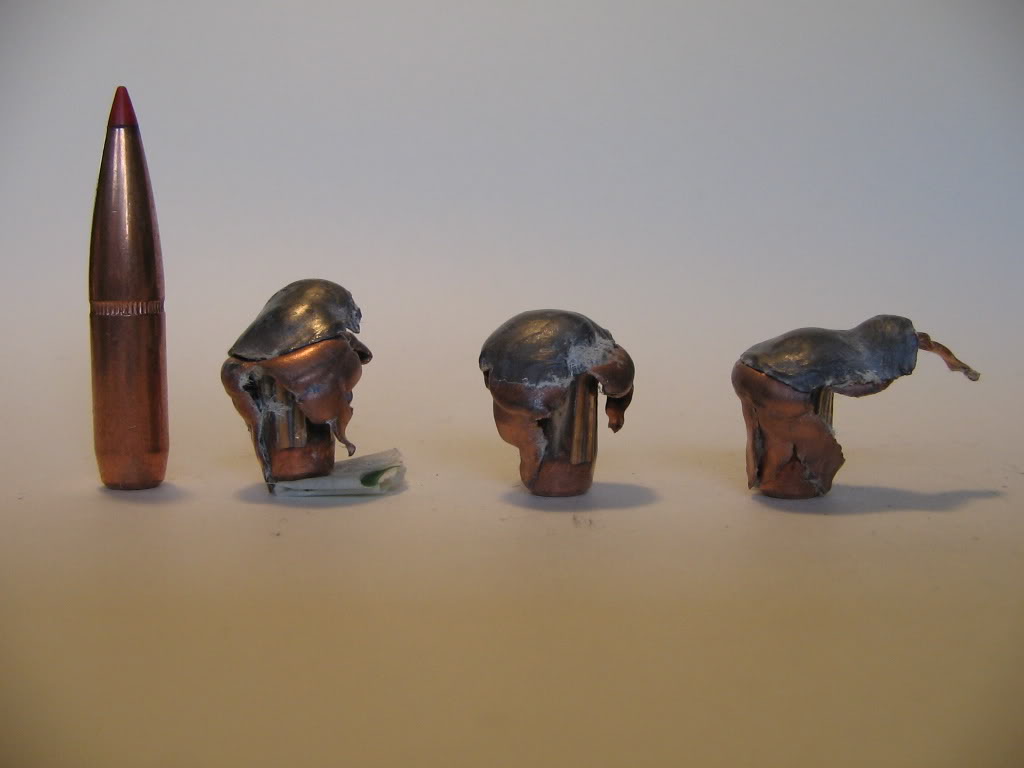

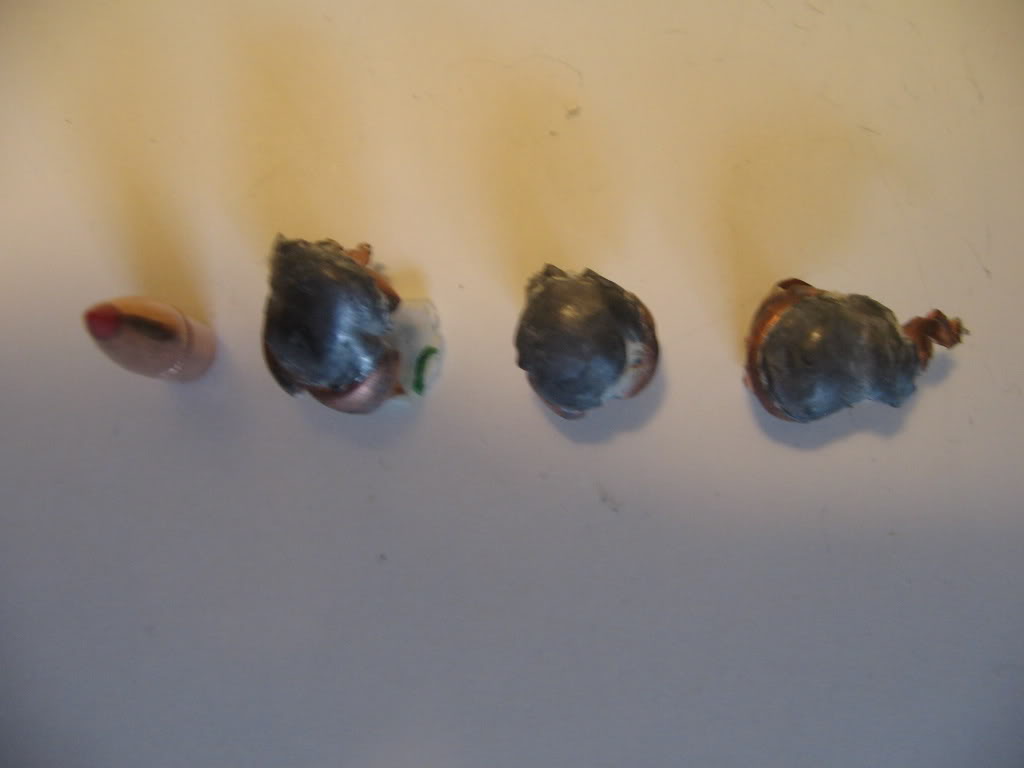

    Hornady 140gr SST
    Average Penetration (inches): 13.25
    Average Weight Retained (grain): 95.5
    Average Weight Retained (%): 68
    Average Expansion (inches): 0.695

    Name:  Hornady140grTSS.jpg
Views: 3196
Size:  42.5 KBName:  Hornady140TSS.jpg
Views: 2493
Size:  34.5 KB

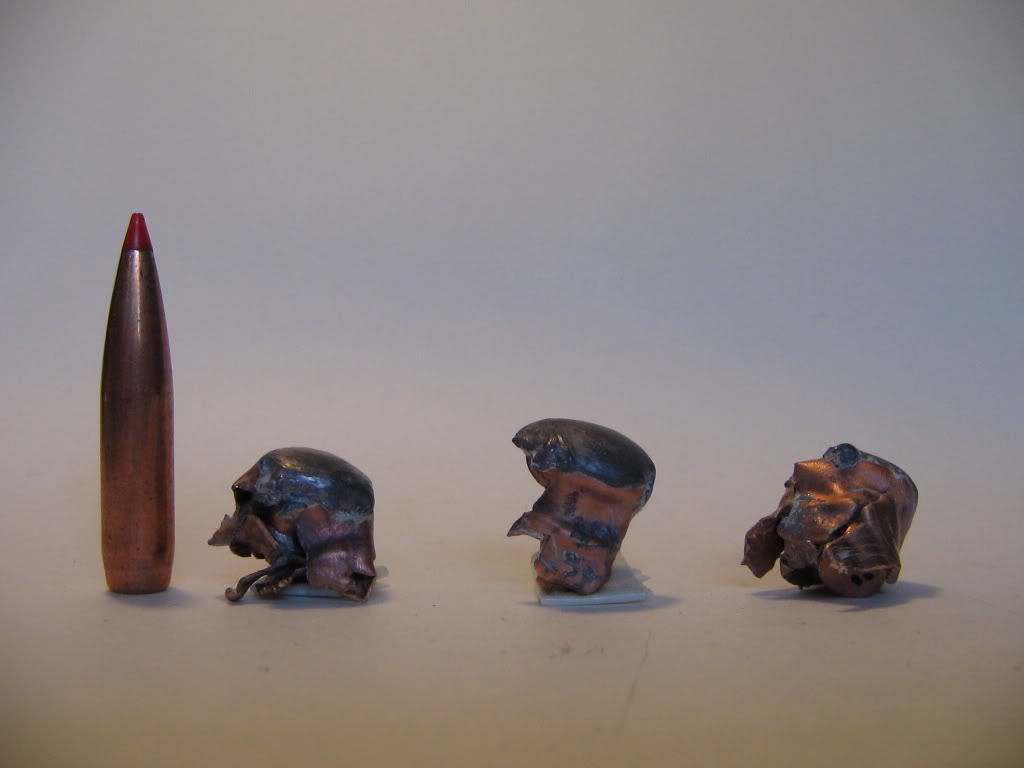

    Hornady 140gr A-MAX
    Average Penetration (inches): 12.17
    Average Weight Retained (grain): 75.9
    Average Weight Retained (%): 54
    Average Expansion (inches): 0.597

    Name:  Hornady140grA-Max.jpg
Views: 2721
Size:  39.5 KBName:  Hornady140A-Max.jpg
Views: 2499
Size:  32.4 KB

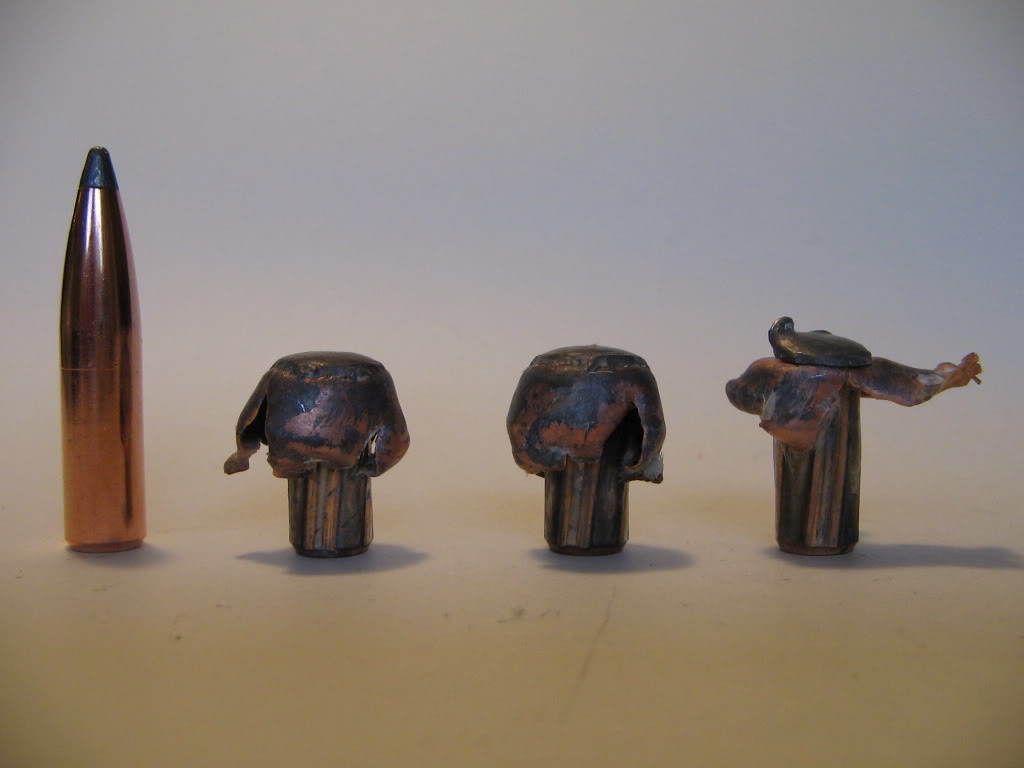

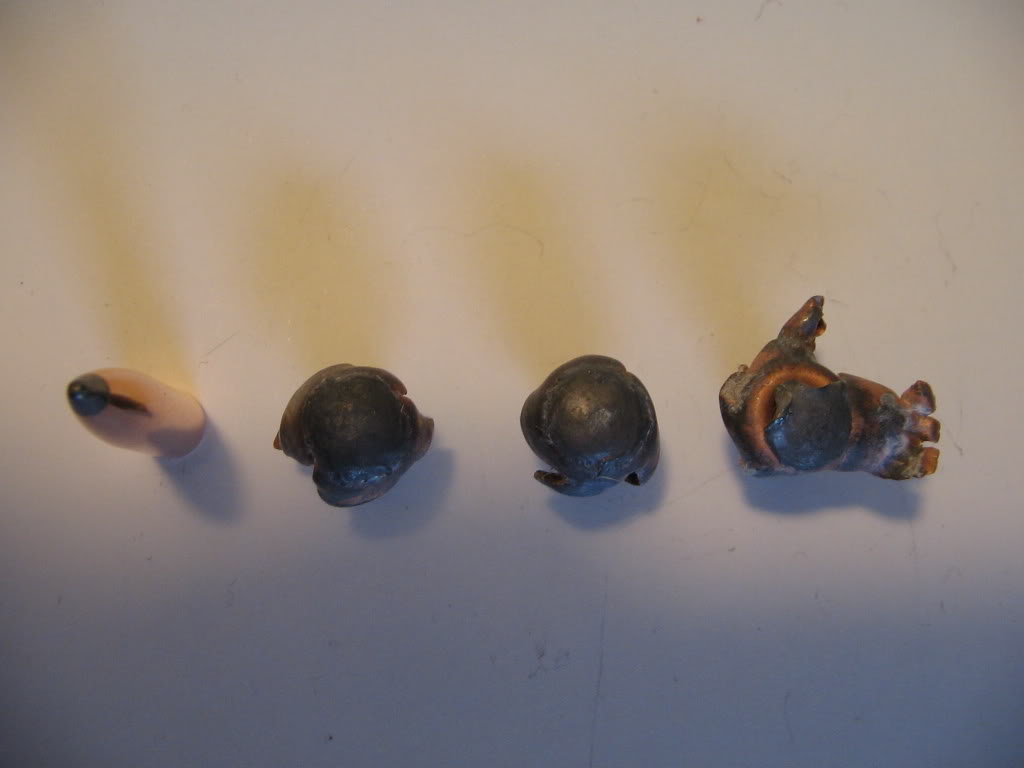

    Nosler 140gr Partition
    Average Penetration (inches): 15.17
    Average Weight Retained (grain): 108.6
    Average Weight Retained (%): 78
    Average Expansion (inches): 0.629

    Name:  Nosler140grPT.jpg
Views: 2588
Size:  43.4 KBName:  Nosler140PT.jpg
Views: 2475
Size:  38.9 KB

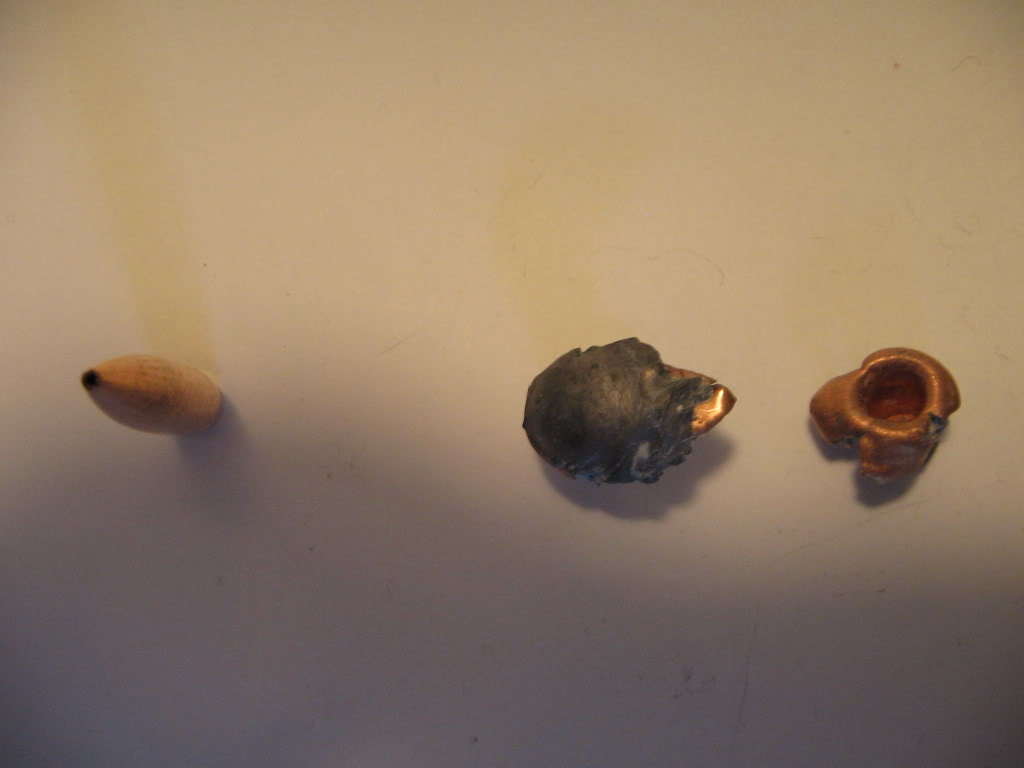

    Sierra 142gr Match King
    Average Penetration (inches): 14.25
    Average Weight Retained (grain): 40.7
    Average Weight Retained (%): 29
    Average Expansion (inches): 0.445
    ** First bullet disintegrated and not significant pieces were recovered.

    Name:  Sierra142grMK.jpg
Views: 2707
Size:  34.6 KBName:  Sierra142MK.jpg
Views: 2443
Size:  32.3 KB

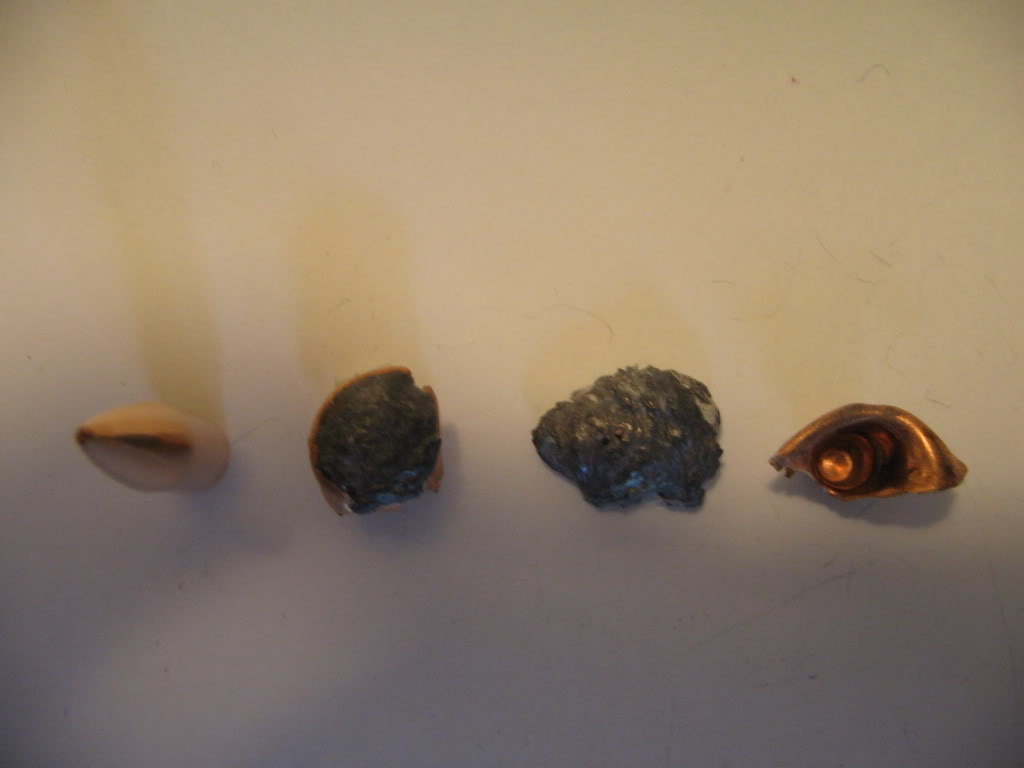

    Alberta Wildcat 142.5 VLD
    Average Penetration (inches): 12.17
    Average Weight Retained (grain): 45.2
    Average Weight Retained (%): 32
    Average Expansion (inches): 0.598

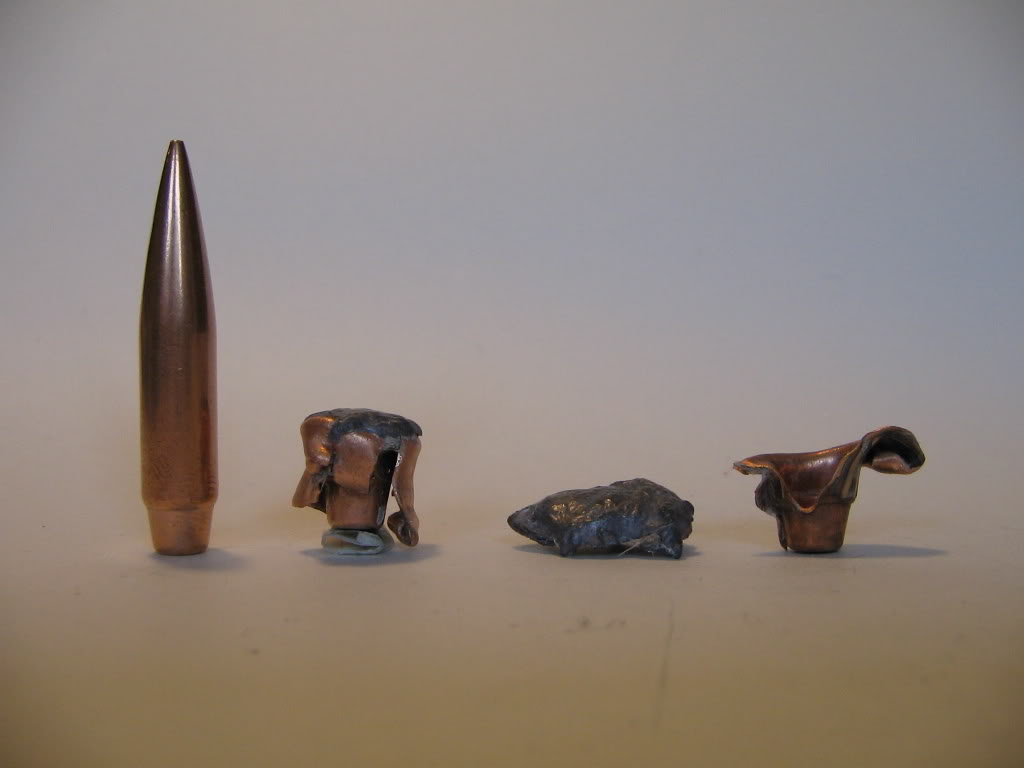

    Name:  AWC1425grVLD.jpg
Views: 2993
Size:  36.3 KBName:  AWC1425VLD.jpg
Views: 2446
Size:  34.1 KB

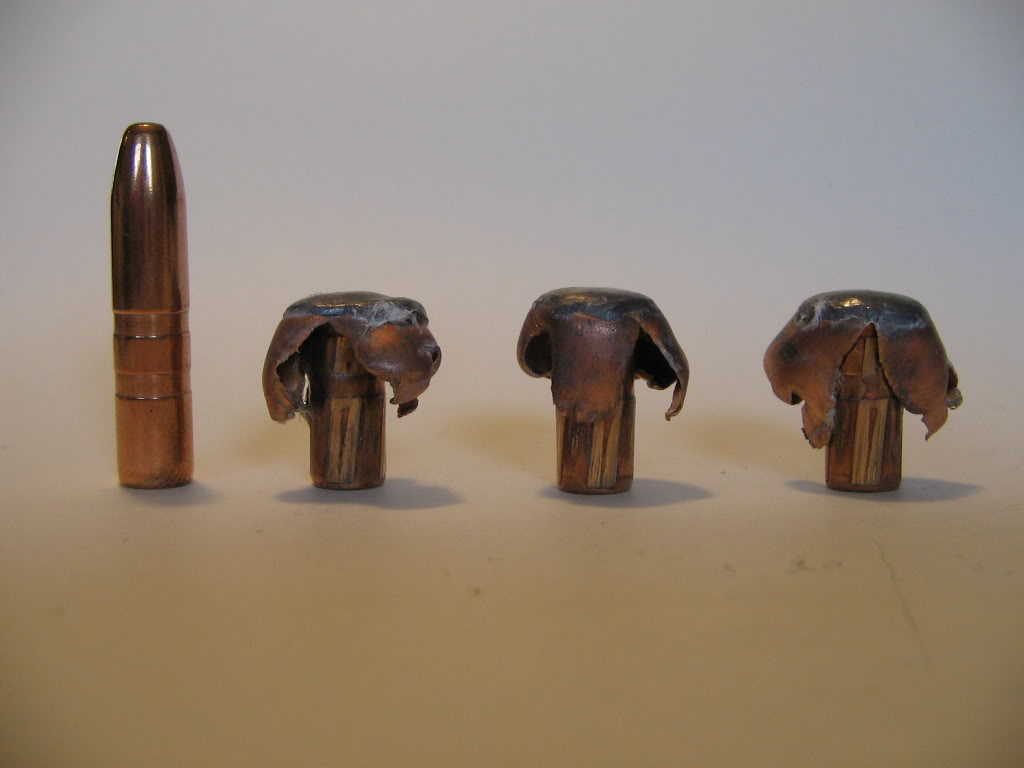

    Lapua 156gr Mega
    Average Penetration (inches): 14.92
    Average Weight Retained (grain): 120.9
    Average Weight Retained (%): 78
    Average Expansion (inches): 0.629

    Name:  Lapua156grMega.jpg
Views: 3875
Size:  42.9 KB

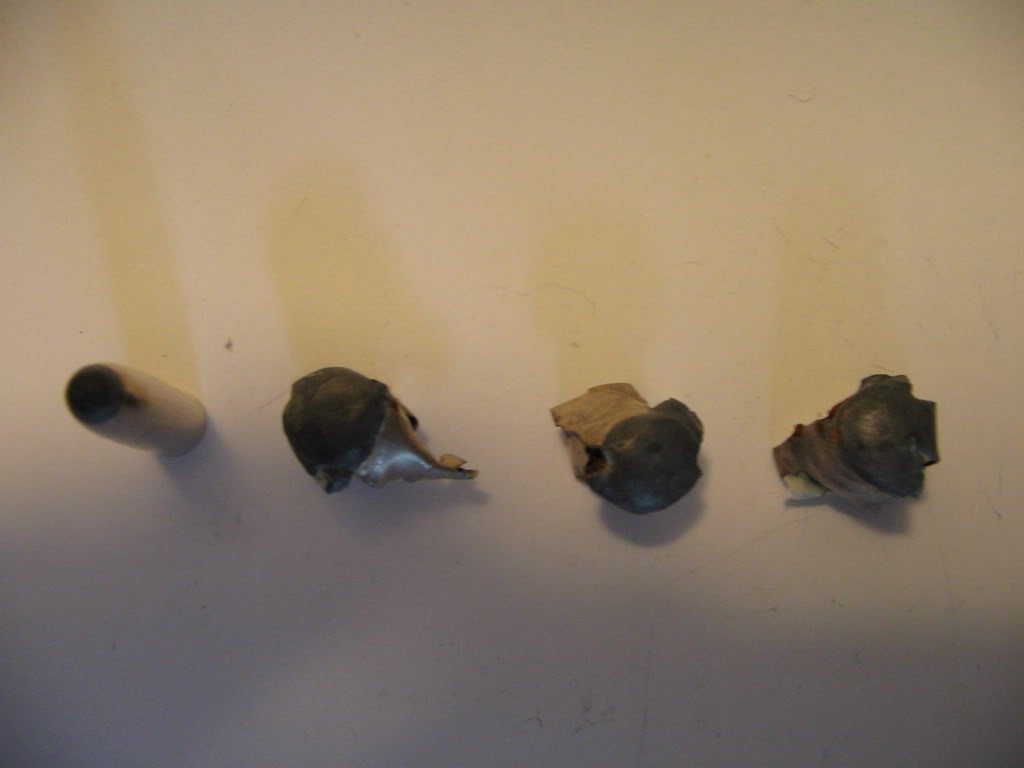

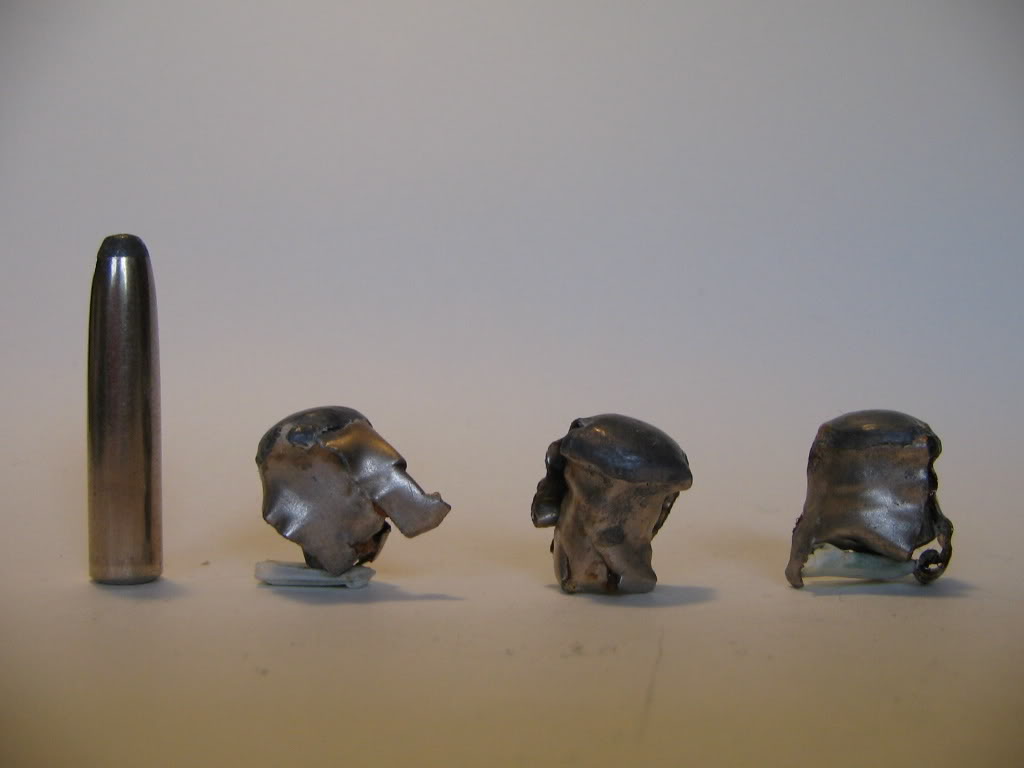

    Norma 156gr RN
    Average Penetration (inches): 14.67
    Average Weight Retained (grain): 89.6
    Average Weight Retained (%): 57
    Average Expansion (inches): 0.592


    Name:  Norma156grRN.jpg
Views: 2870
Size:  38.7 KBName:  Norma156RN-1.jpg
Views: 2477
Size:  32.2 KB

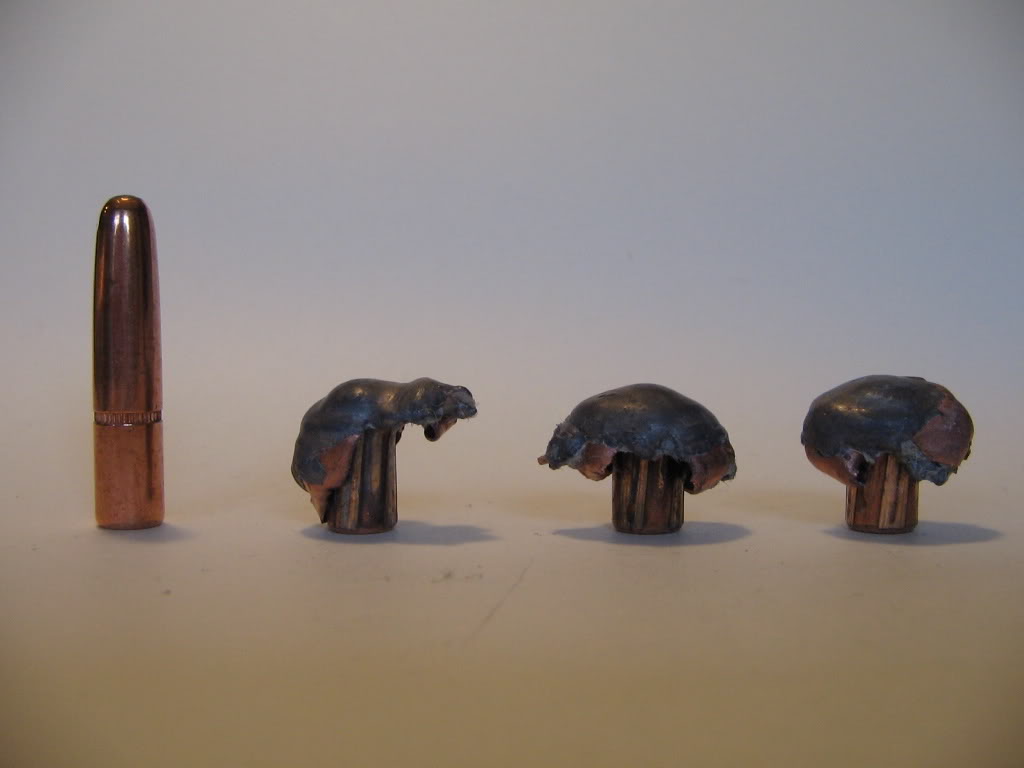

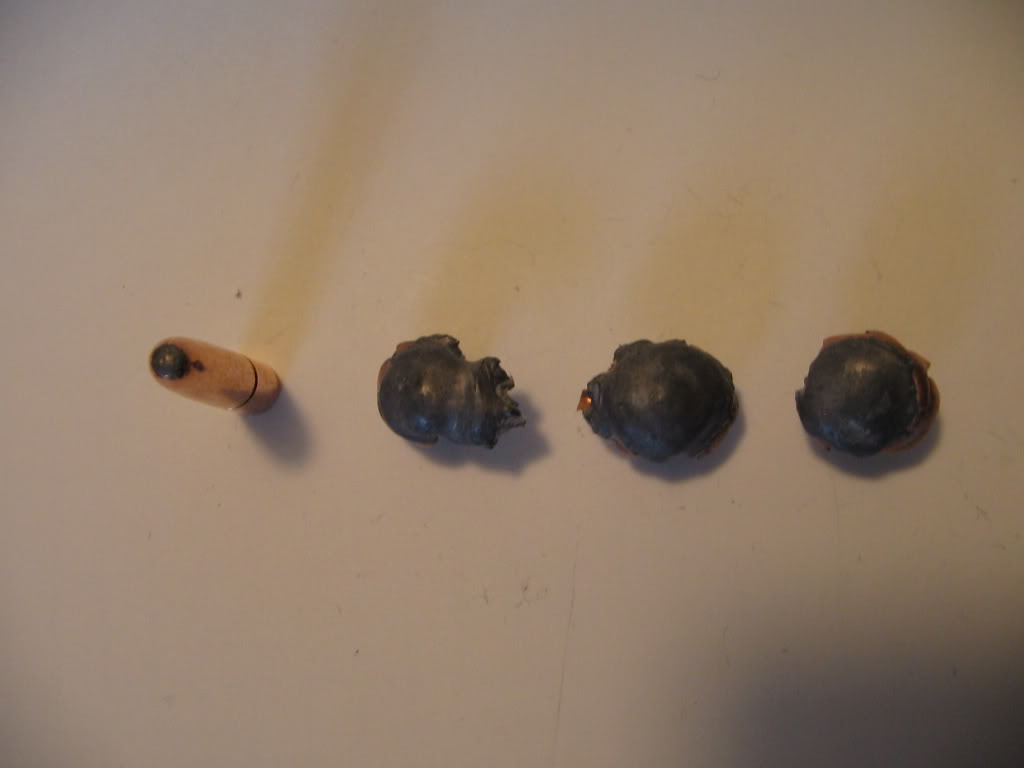

    Hornady 160gr RN IL
    Average Penetration (inches): 13.92
    Average Weight Retained (grain): 117.6
    Average Weight Retained (%): 74
    Average Expansion (inches): 0.694

    Name:  Hornady160grRNSP.jpg
Views: 3108
Size:  37.6 KBName:  Hornady160RNSP.jpg
Views: 2548
Size:  31.6 KB

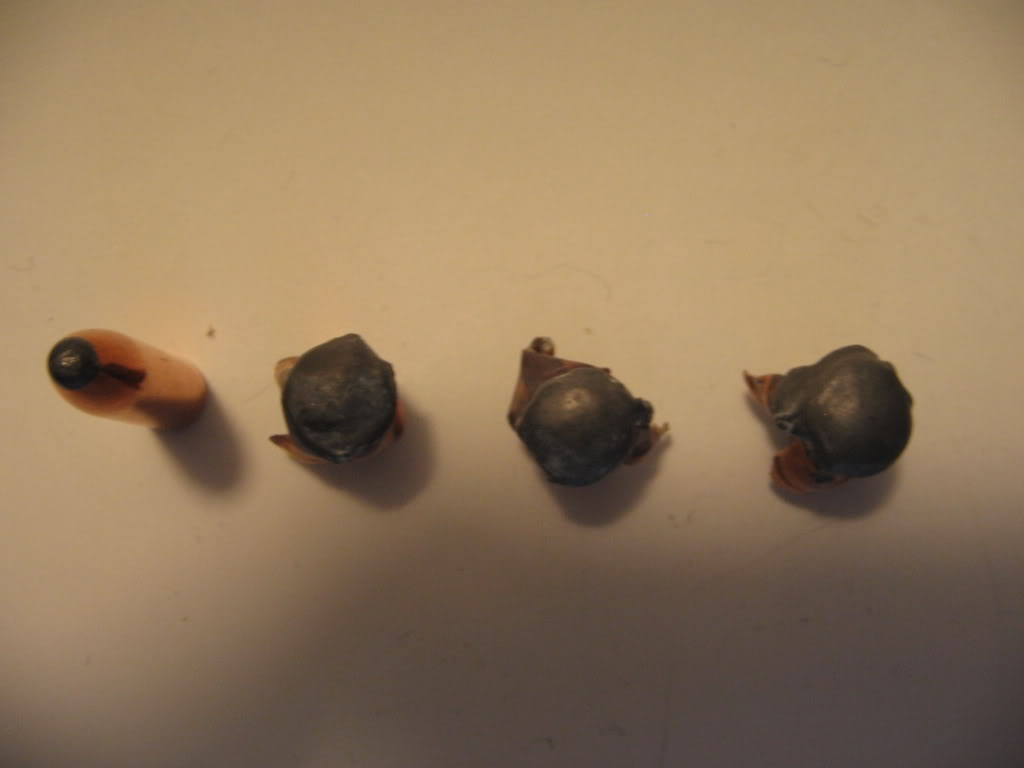

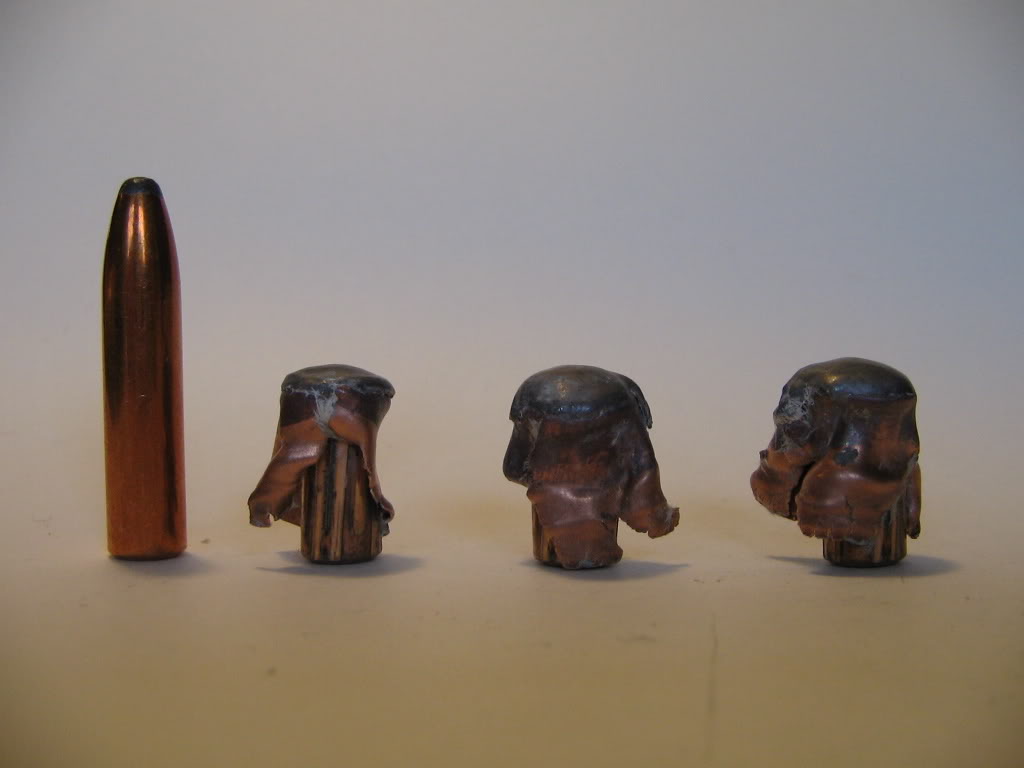

    Sierra 160gr SMP
    Average Penetration (inches): 13.17
    Average Weight Retained (grain): 76.4
    Average Weight Retained (%): 48
    Average Expansion (inches): 0.539
    Name:  Sierra160grSMP.jpg
Views: 2522
Size:  40.6 KBName:  Sierra160SMP.jpg
Views: 2455
Size:  31.4 KB

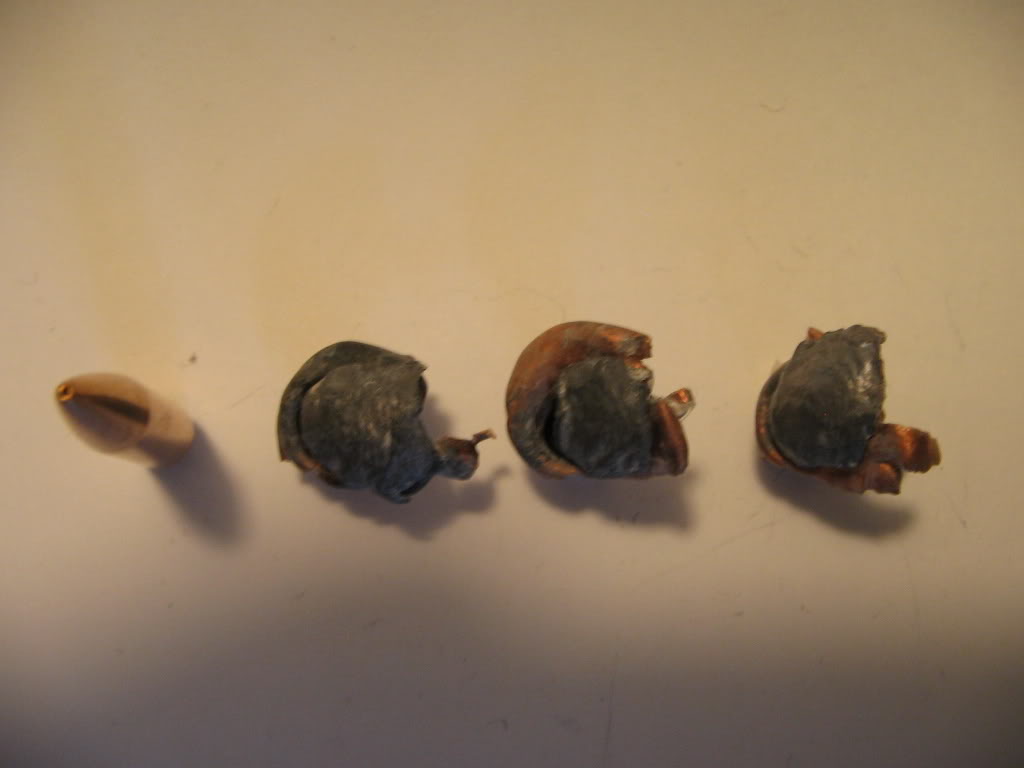

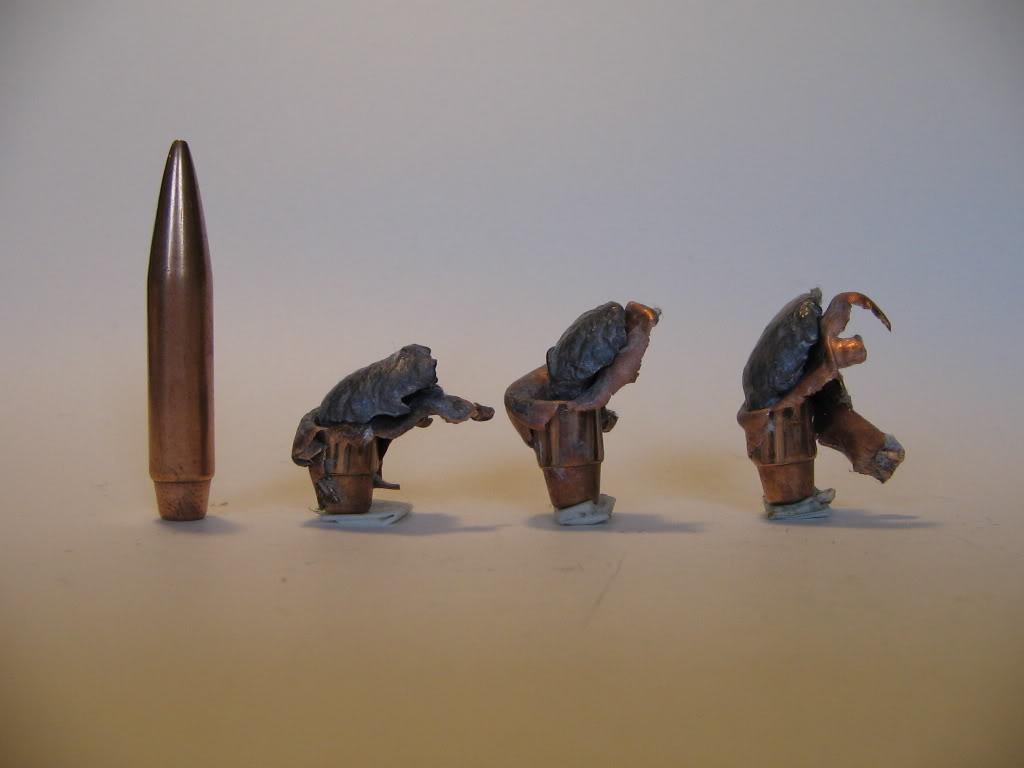

    Alberta Wildcat 168gr VLD
    Average Penetration (inches): 13.17
    Average Weight Retained (grain): 76.4
    Average Weight Retained (%): 48
    Average Expansion (inches): 0.539
    Name:  AWC168grVLD.jpg
Views: 2463
Size:  42.0 KBName:  AWC168VLD.jpg
Views: 2429
Size:  36.9 KB


    Approximate impact velocity:
    90-100gr.............2850-2900fps
    120gr..................2750-2800fps
    125gr..................2600-2700fps
    129-130gr............2550-2600fps
    140gr-142.5gr.......2500-2550fps
    156-160gr............2400-2500fps
    168gr..................2300-2400fps





    **A special thanks to all the members who contributed by providing bullets and brass. Thank you all for you patience.**
    Last edited by southernman; 29-06-2016 at 01:35 AM.

  2. #2
    Member Bugbait's Avatar
    Join Date
    Jul 2014
    Location
    Buller
    Posts
    92
    Cheers for posting that, I knew I liked partitions
    kiwijames likes this.

  3. #3
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    647
    Barnes TSX appear to be backing up their claims of great weight retention. Will explain why I have never found a single piece of one in an animal.
    veitnamcam and Beaker like this.

  4. #4
    Member
    Join Date
    Mar 2013
    Location
    Bell Block NZ/Northern Alberta Canada
    Posts
    857

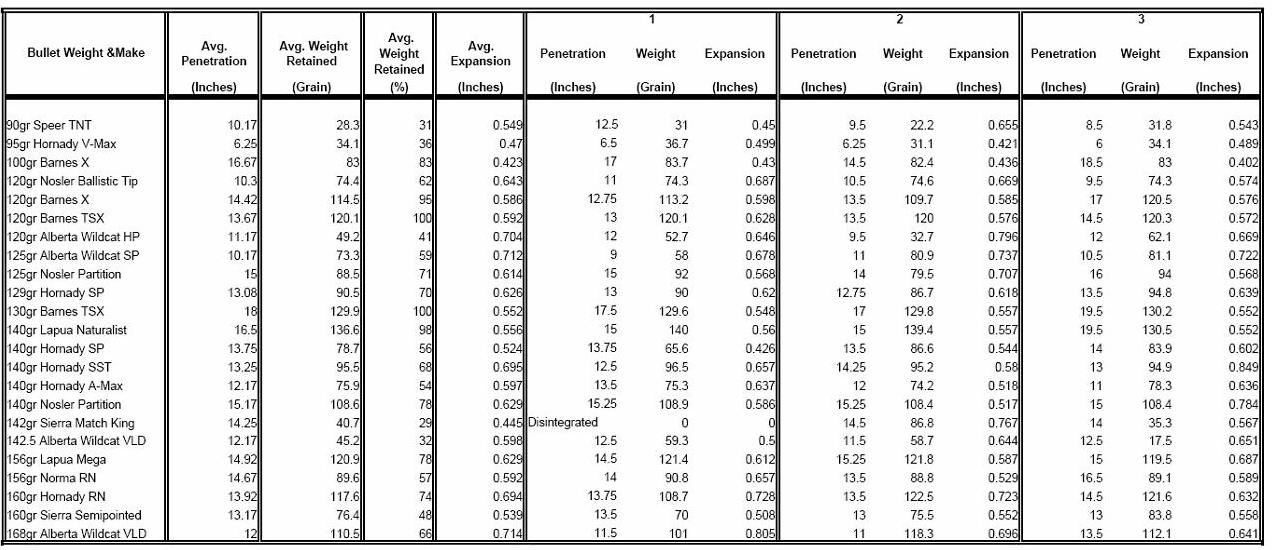

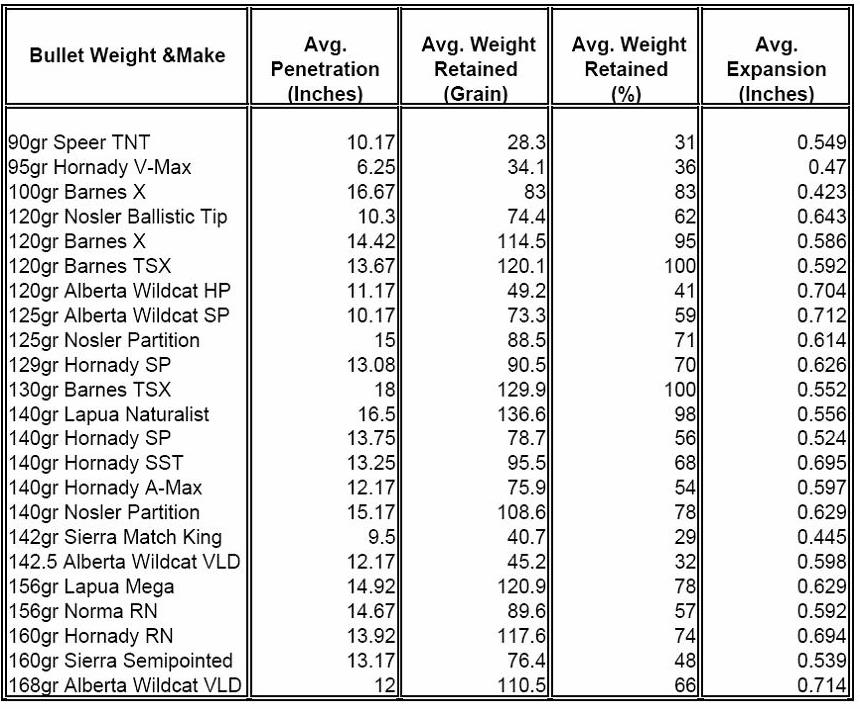

    Above bullet charts.
    Name:  6_5BulletTesta.jpg
Views: 2731
Size:  105.2 KBName:  6_5BulletTest.jpg
Views: 3035
Size:  122.9 KB

  5. #5
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    21,313
    Quote Originally Posted by quentin View Post
    Barnes TSX appear to be backing up their claims of great weight retention. Will explain why I have never found a single piece of one in an animal.
    I found the blue tip once!.
    Off the ttsx tho of course.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  6. #6
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    2,789
    Those SST's stacked up well

  7. #7
    Member 199p's Avatar
    Join Date
    Dec 2011
    Location
    Palmerston North
    Posts
    3,156
    Thanks for posting mate
    that would have taken some time

  8. #8
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    660
    I looked at this test a few years ago (on gun nuts I think) and I thought it was the best bullet test I've ever seen.

  9. #9
    Member
    Join Date
    Mar 2013
    Location
    Bell Block NZ/Northern Alberta Canada
    Posts
    857
    More 6.5 cal bullets, tested into wet newspaper,
    info from Canada gun nuts forum.
    I now present you with Part Deux

    The test was perform exactly like the first one to make the results as comparable as possible. The only difference is I don't have my Winchester anymore so I used my Mauser M38.

    I'll keep the latest results seperated for now so it's easier to see. After a couple weeks I'll insert the results in the older test so they are all in weight order. Enjoy!

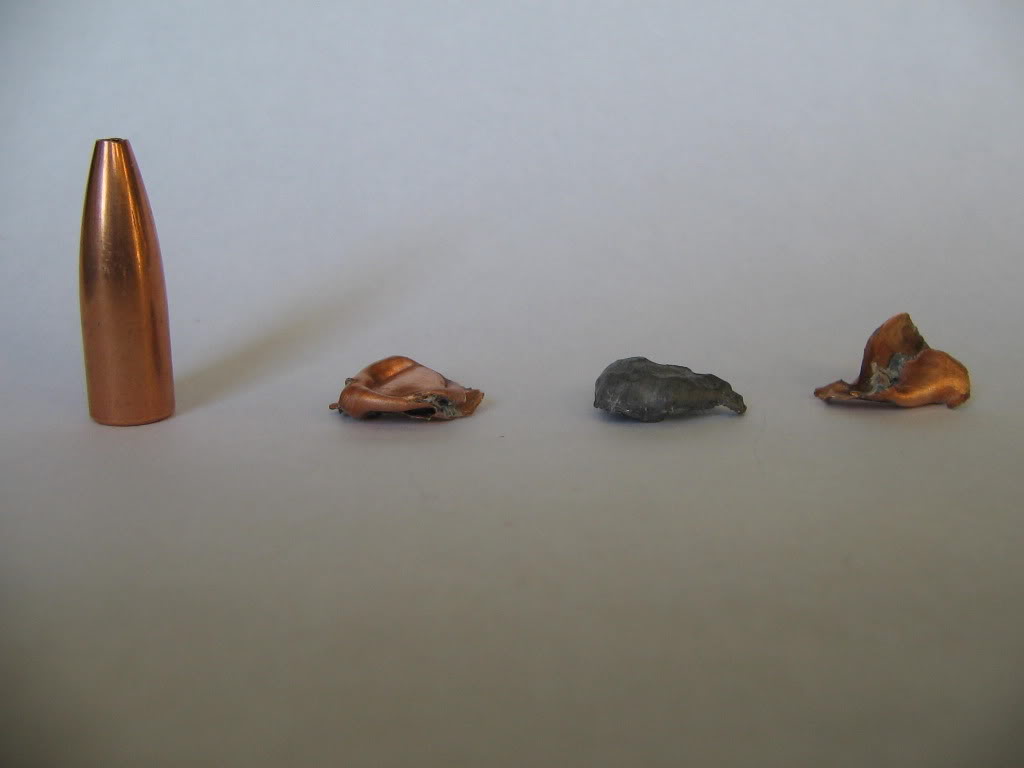

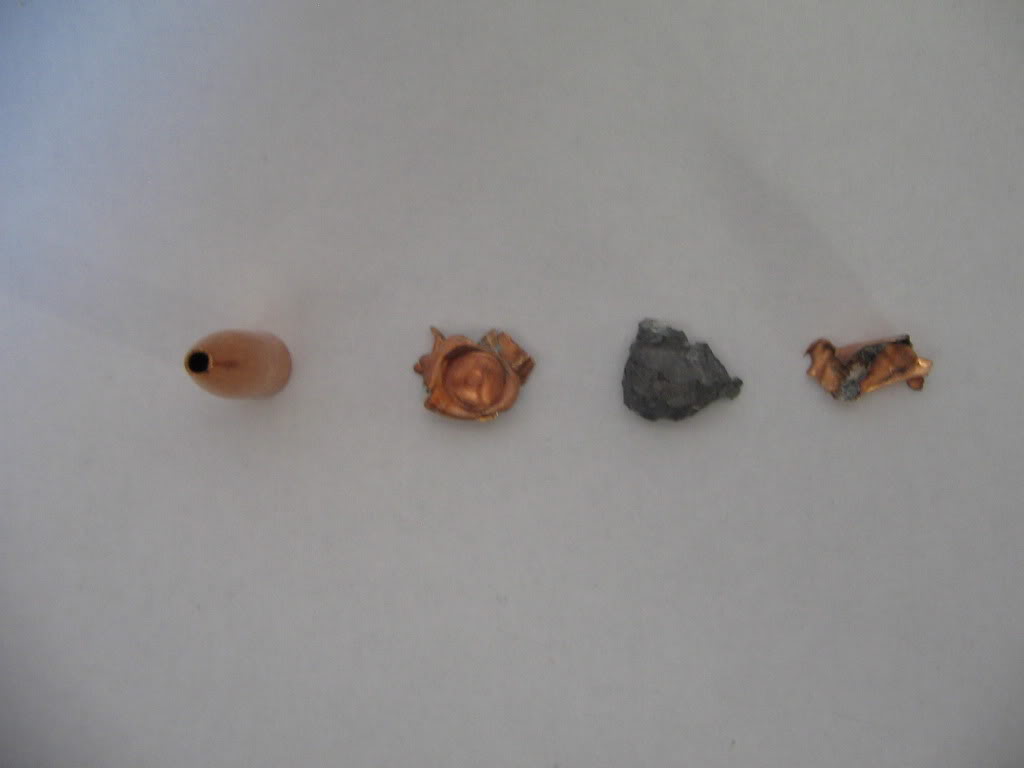

    Sierra 85gr HP
    Average Penetration (inches): 9.0
    Average Weight Retained (grain): 13.6
    Average Weight Retained (%): 16
    Average Expansion (inches): 0.476
    Name:  IMG_0717.jpg
Views: 2256
Size:  30.3 KBName:  IMG_0718.jpg
Views: 2441
Size:  29.5 KB

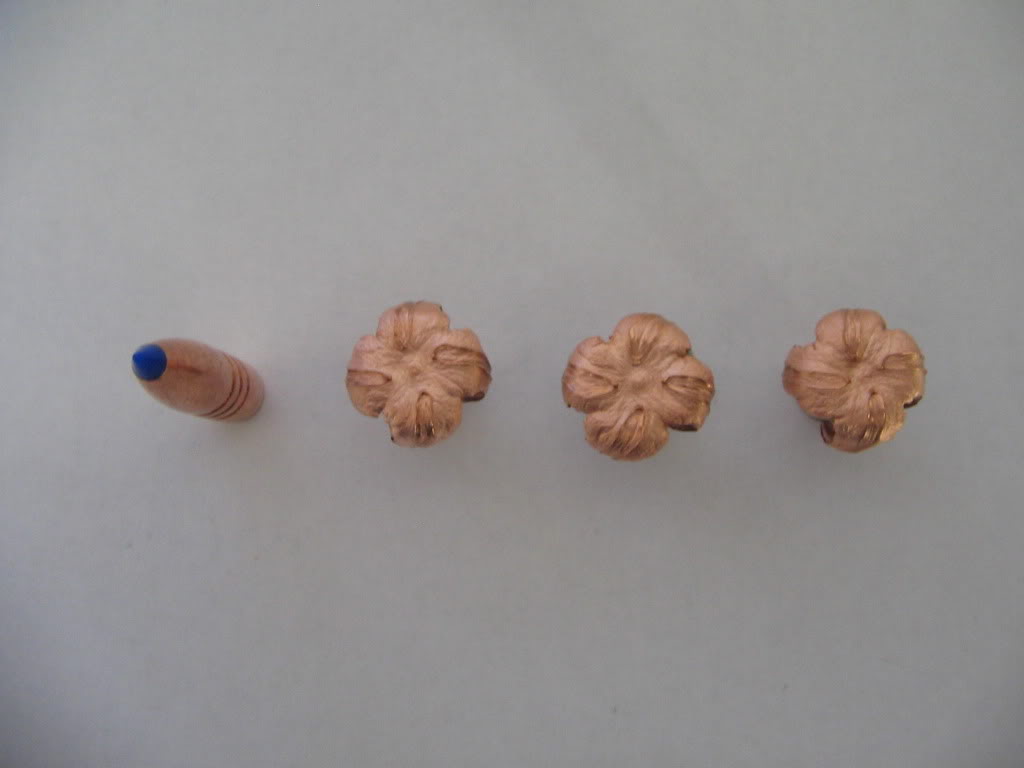

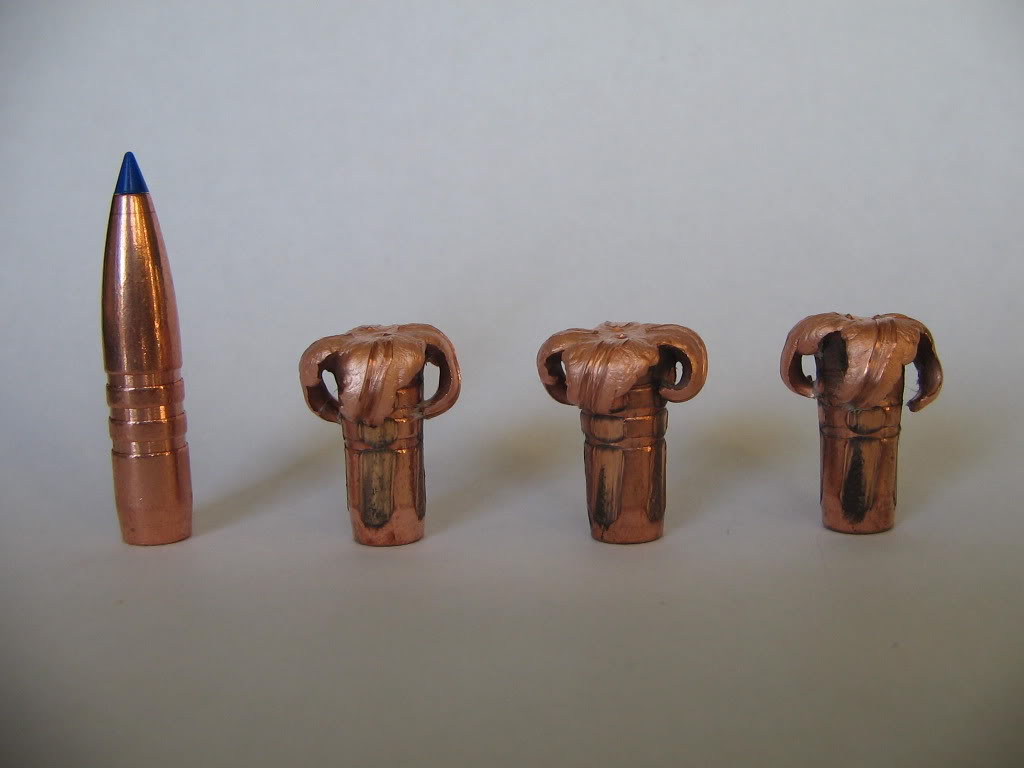

    Barnes 120gr TTSX
    Average Penetration (inches): 17.2
    Average Weight Retained (grain): 119.2
    Average Weight Retained (%): 99.3
    Average Expansion (inches): 0.547

    Name:  IMG_0719.jpg
Views: 2949
Size:  49.5 KBName:  IMG_0721.jpg
Views: 2294
Size:  32.4 KB

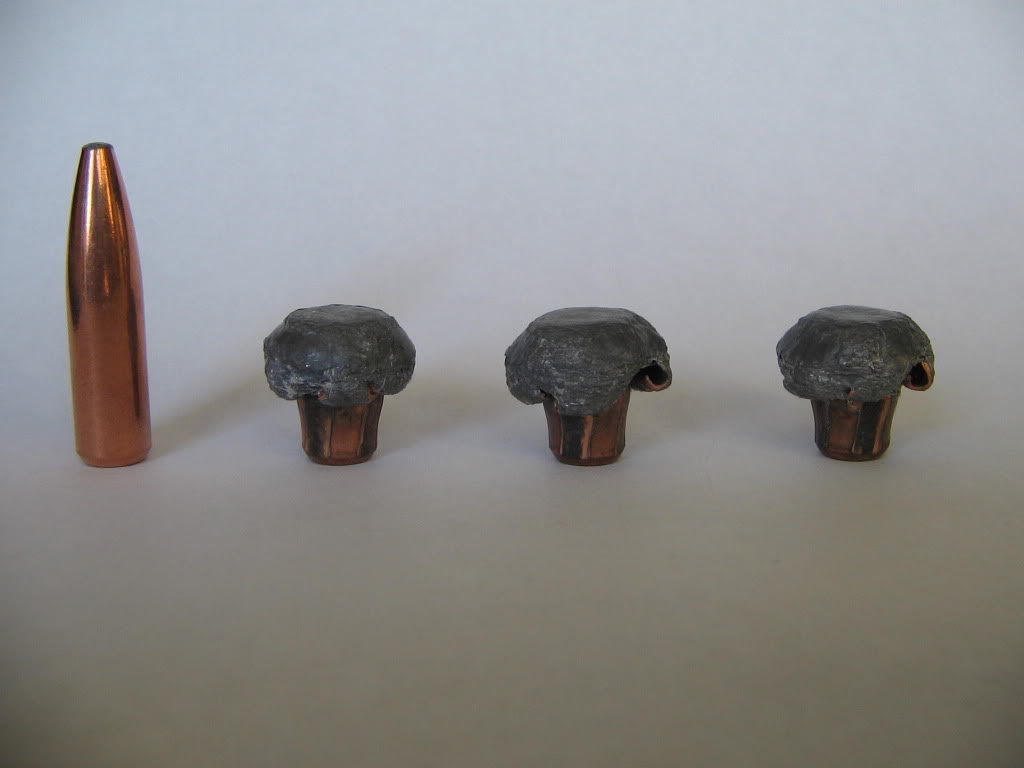

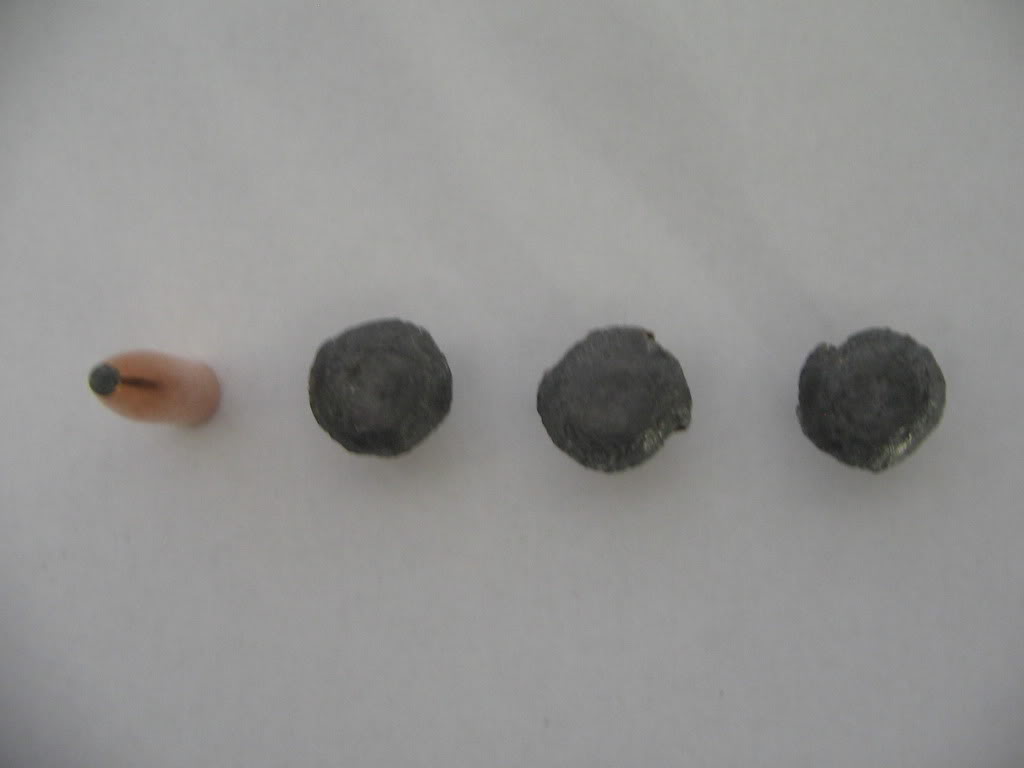

    Swift 120gr A-Frame
    Average Penetration (inches): 15.17
    Average Weight Retained (grain): 114.53
    Average Weight Retained (%): 95.4
    Average Expansion (inches): 0.552
    Name:  IMG_0722.jpg
Views: 2578
Size:  38.0 KBName:  IMG_0723.jpg
Views: 2301
Size:  27.8 KB

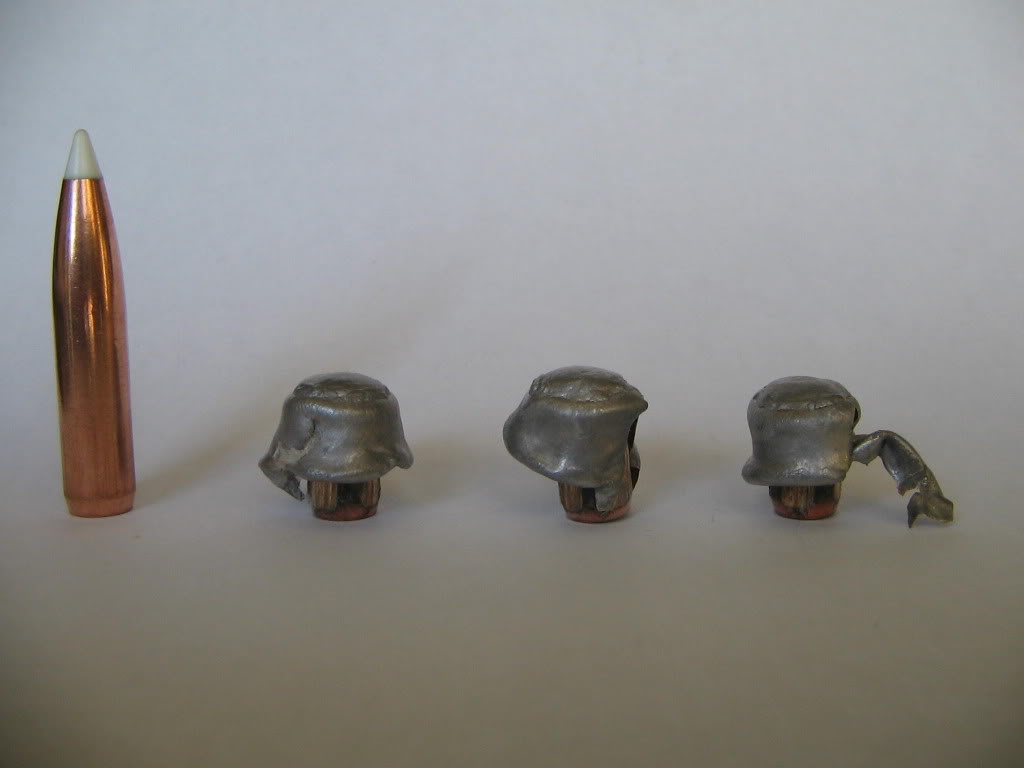

    Swift 130gr Scirocco II
    Average Penetration (inches): 13.3
    Average Weight Retained (grain): 124.7
    Average Weight Retained (%): 98.2
    Average Expansion (inches): 0.685
    Name:  IMG_0724.jpg
Views: 3016

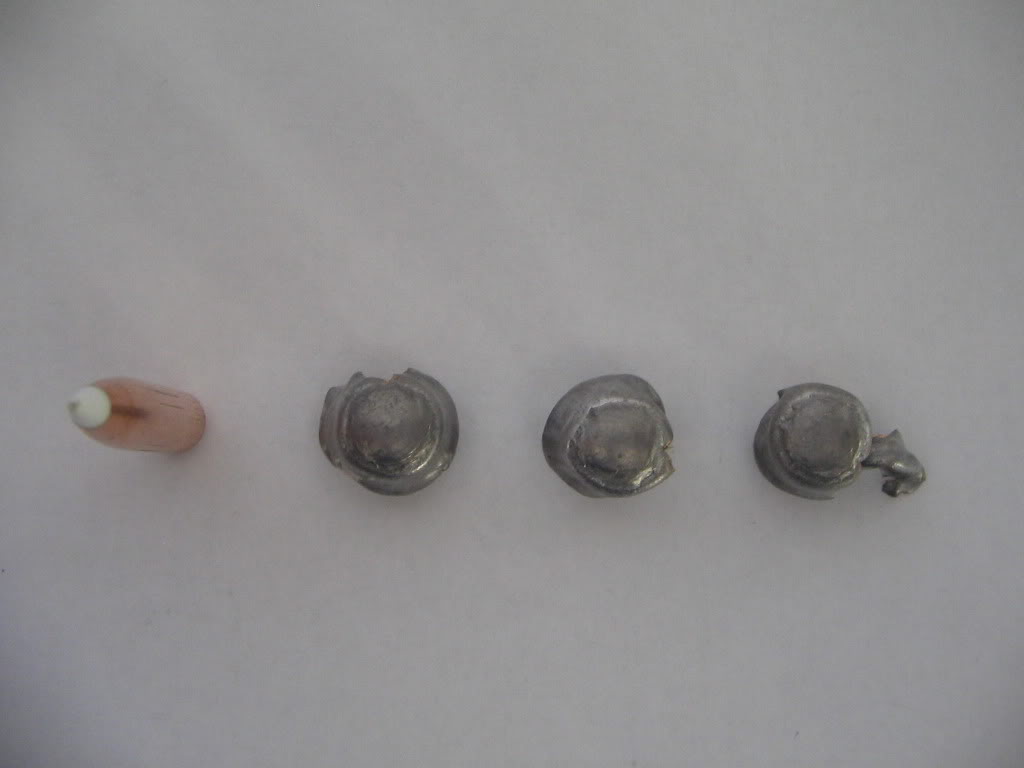

Size:  36.2 KBName:  IMG_0725.jpg
Views: 2183
Size:  32.4 KB

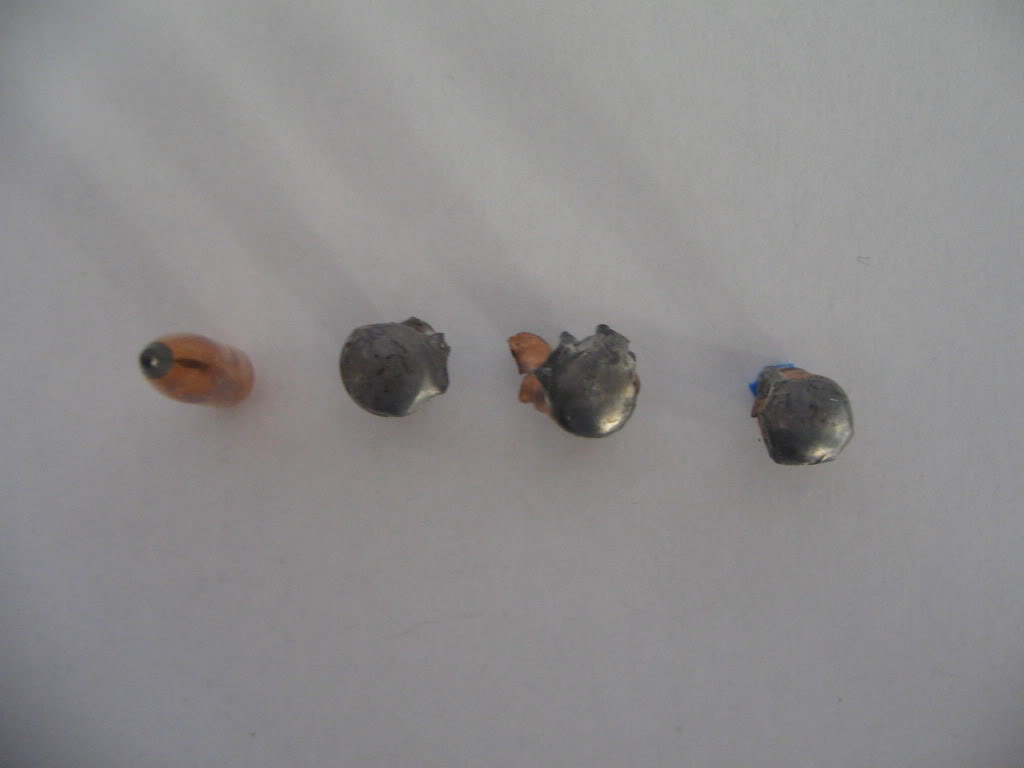

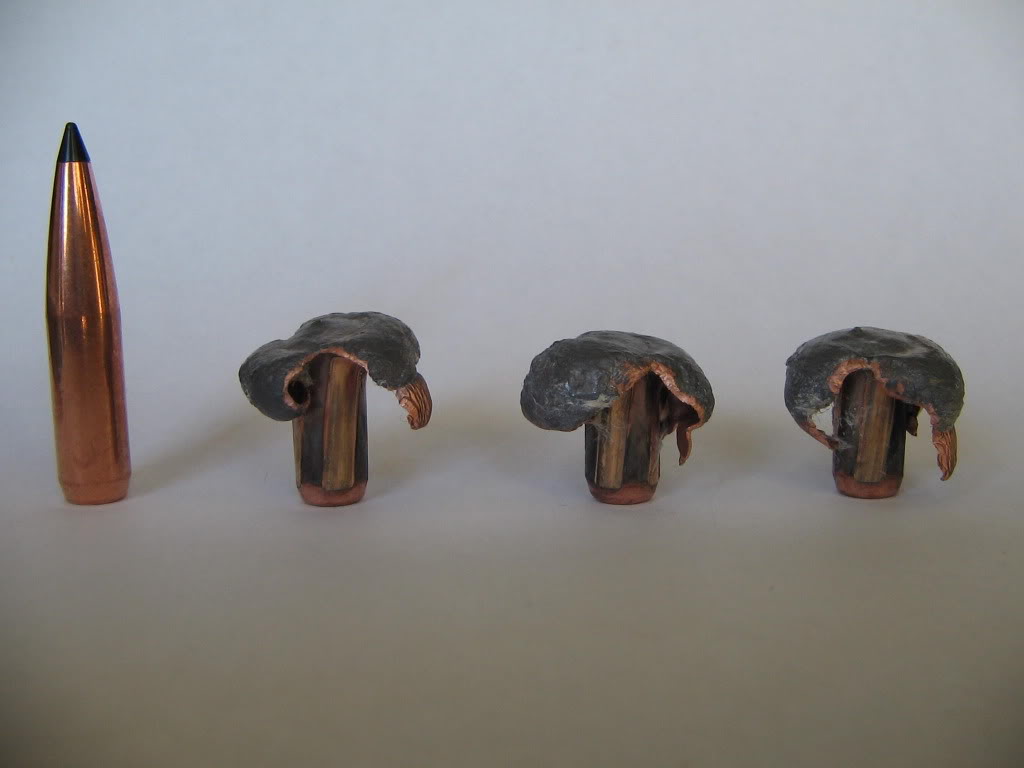

    Nosler 140gr Accubond
    Average Penetration (inches): 14.17
    Average Weight Retained (grain): 89.9
    Average Weight Retained (%): 64.2
    Average Expansion (inches): 0.621

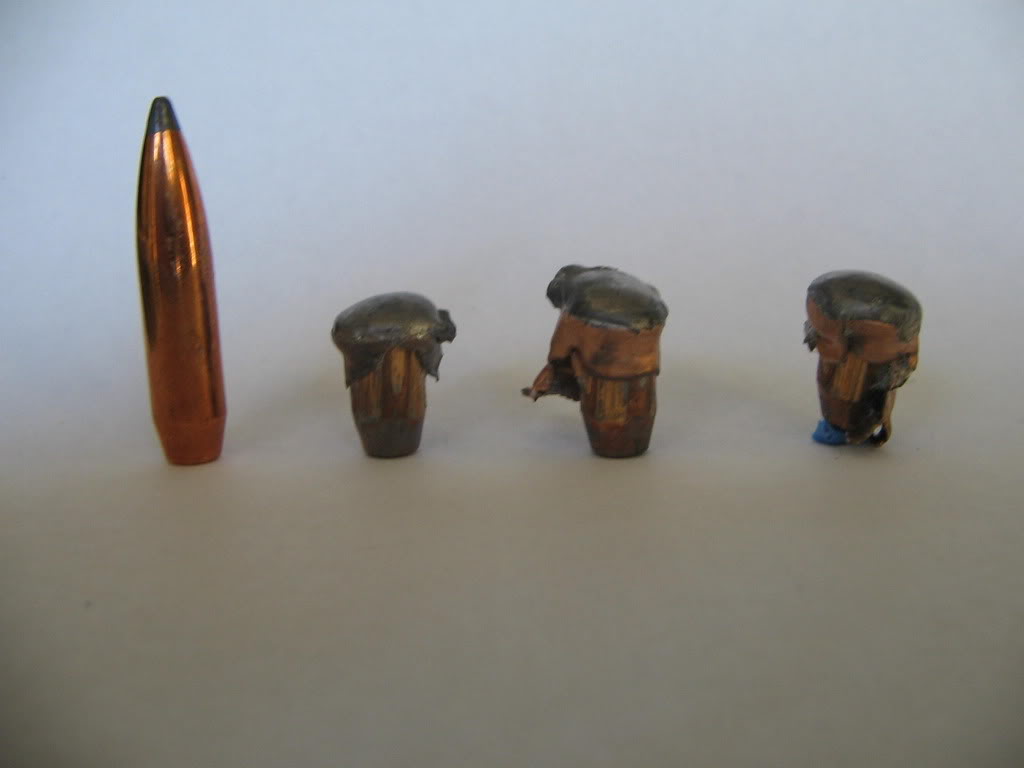

    Name:  IMG_0728.jpg
Views: 2747
Size:  32.6 KBName:  IMG_0729.jpg
Views: 2281
Size:  29.2 KB


    Sierra 140gr GameKing
    Average Penetration (inches): 13
    Average Weight Retained (grain): 64.3
    Average Weight Retained (%): 46
    Average Expansion (inches): 0.467

    Name:  IMG_0730.jpg
Views: 2309
Size:  38.5 KBName:  IMG_0731.jpg
Views: 2273
Size:  28.3 KB

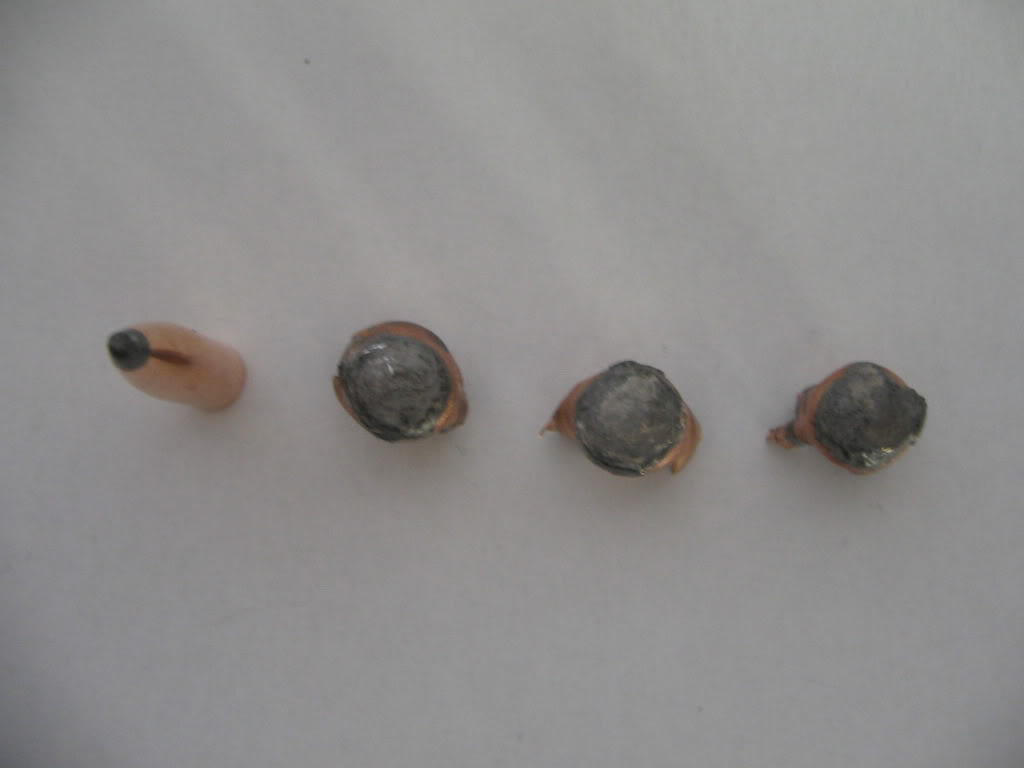

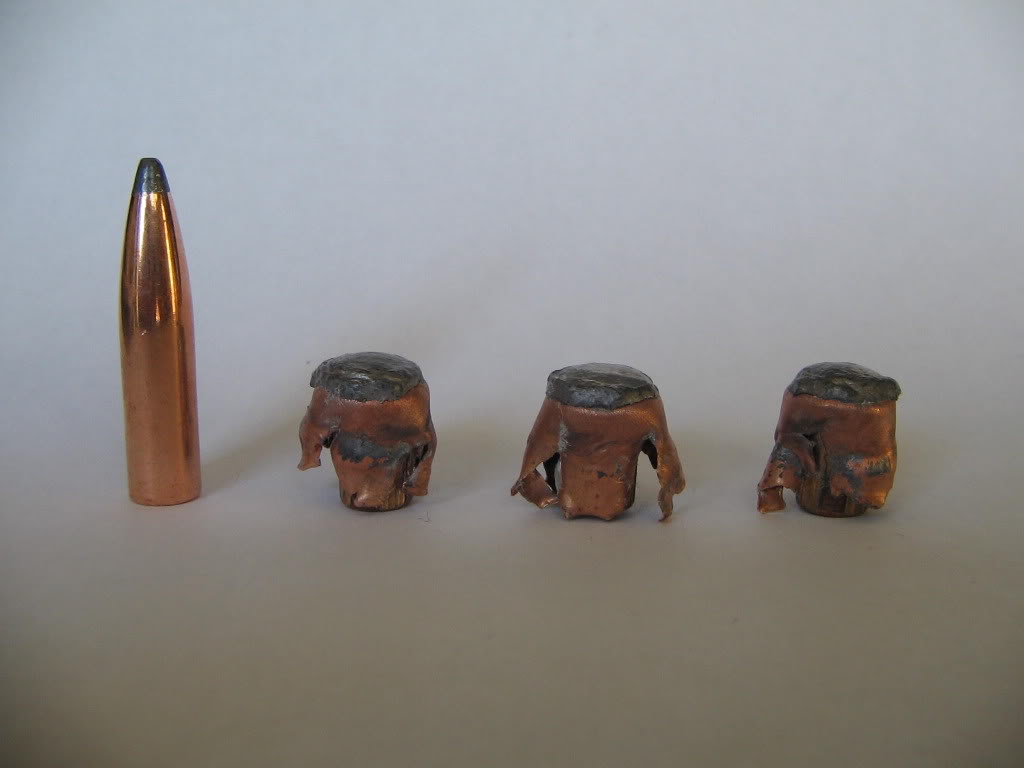

    Speer 140gr HotCor
    Average Penetration (inches): 13.8
    Average Weight Retained (grain): 76.6
    Average Weight Retained (%): 54.7
    Average Expansion (inches): 0.513
    Name:  IMG_0730.jpg
Views: 2309
Size:  38.5 KBName:  IMG_0731.jpg
Views: 2273
Size:  28.3 KB

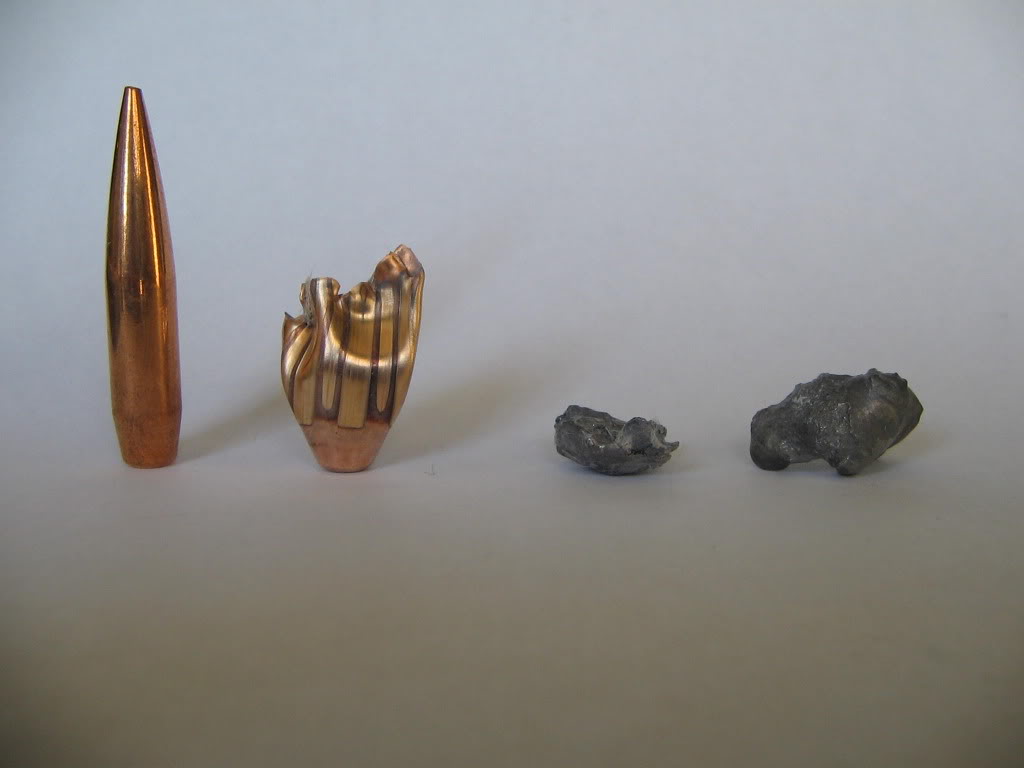

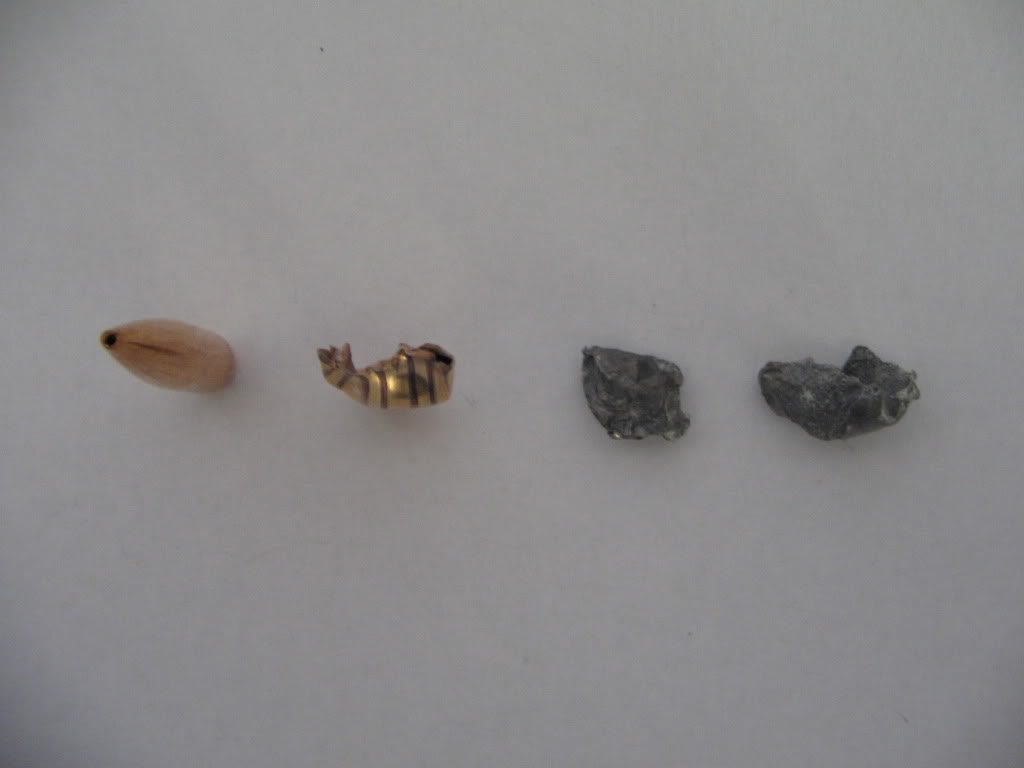

    Berger 140gr VLD Hunting
    Average Penetration (inches): 12.17
    Average Weight Retained (grain): 50.1
    Average Weight Retained (%): 36.4
    Average Expansion (inches): 0.576

    Name:  IMG_0732.jpg
Views: 2432
Size:  38.0 KBName:  IMG_0733.jpg
Views: 2219
Size:  28.0 KB

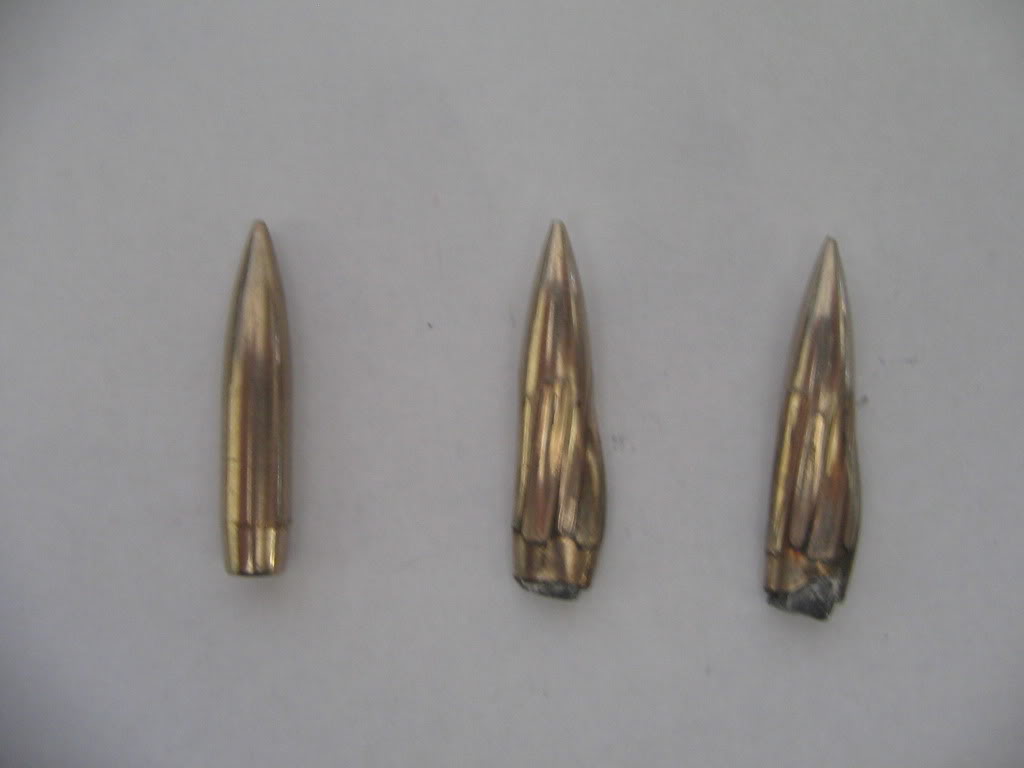

    Military 142gr FMJ
    Average Penetration (inches): 14.3
    Average Weight Retained (grain): 134.5
    Average Weight Retained (%): 94.7
    Average Expansion (inches): 0.338
    * One veared off course and exited
    Name:  IMG_0734.jpg
Views: 2506
Size:  35.0 KB

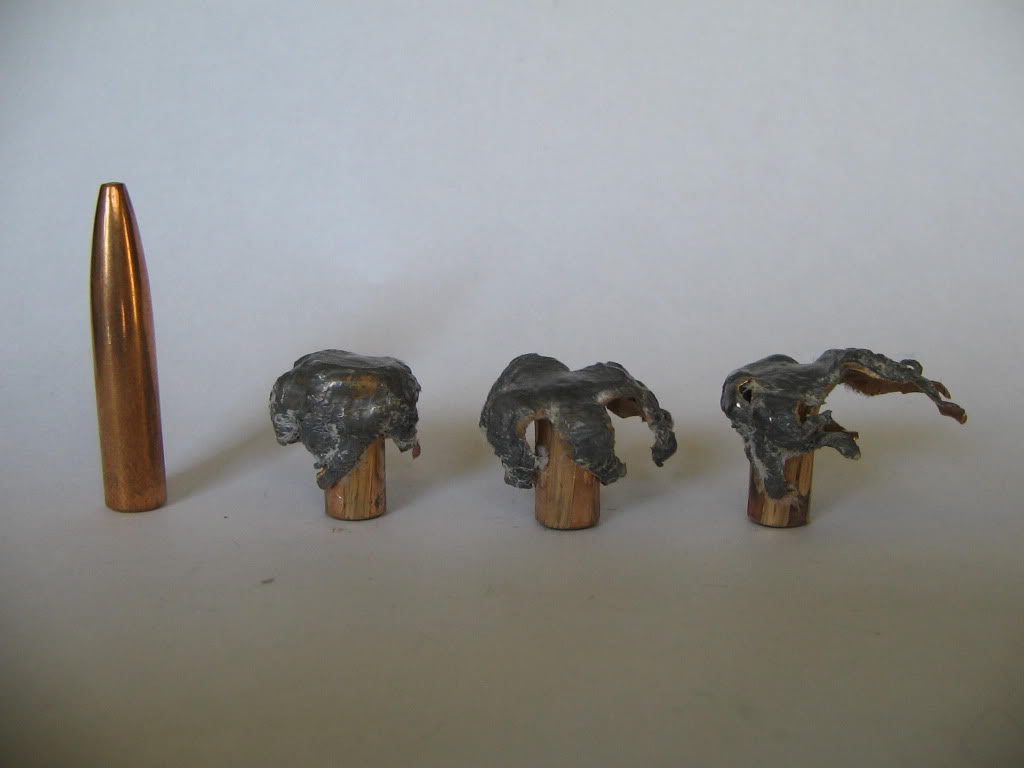

    Woodleigh 160gr Weldcore
    Average Penetration (inches): 12.8
    Average Weight Retained (grain): 148.9
    Average Weight Retained (%): 93.1
    Average Expansion (inches): 0.915

    Name:  IMG_0735.jpg
Views: 2622
Size:  42.7 KBName:  IMG_0736.jpg
Views: 2347
Size:  29.3 KB

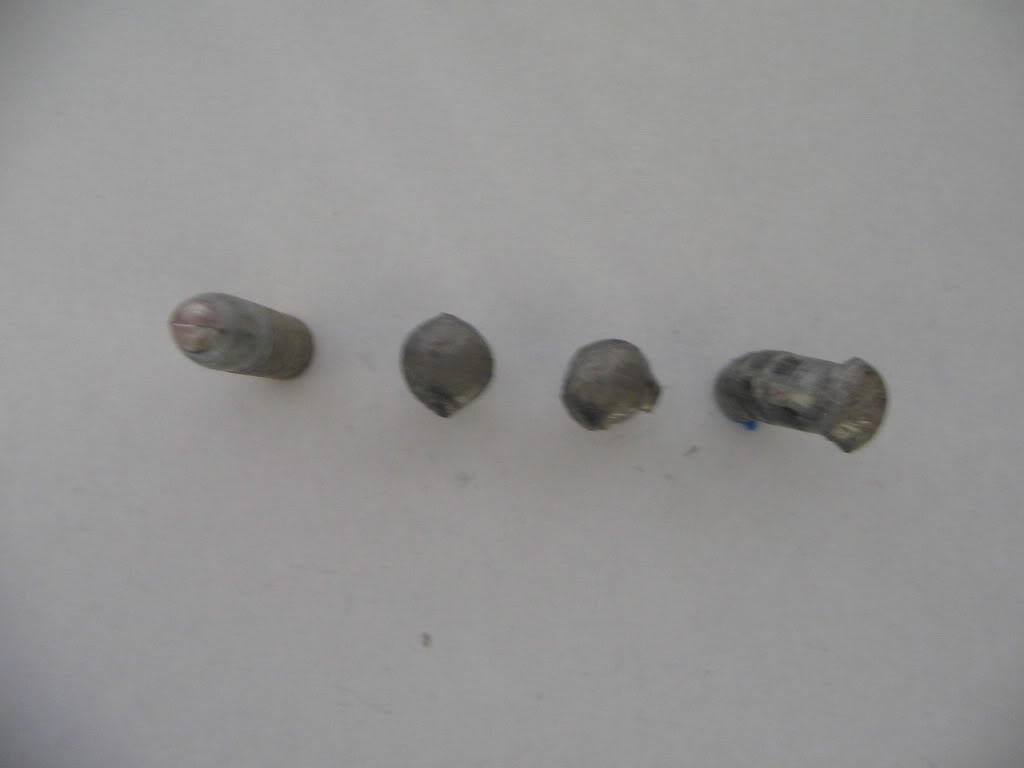

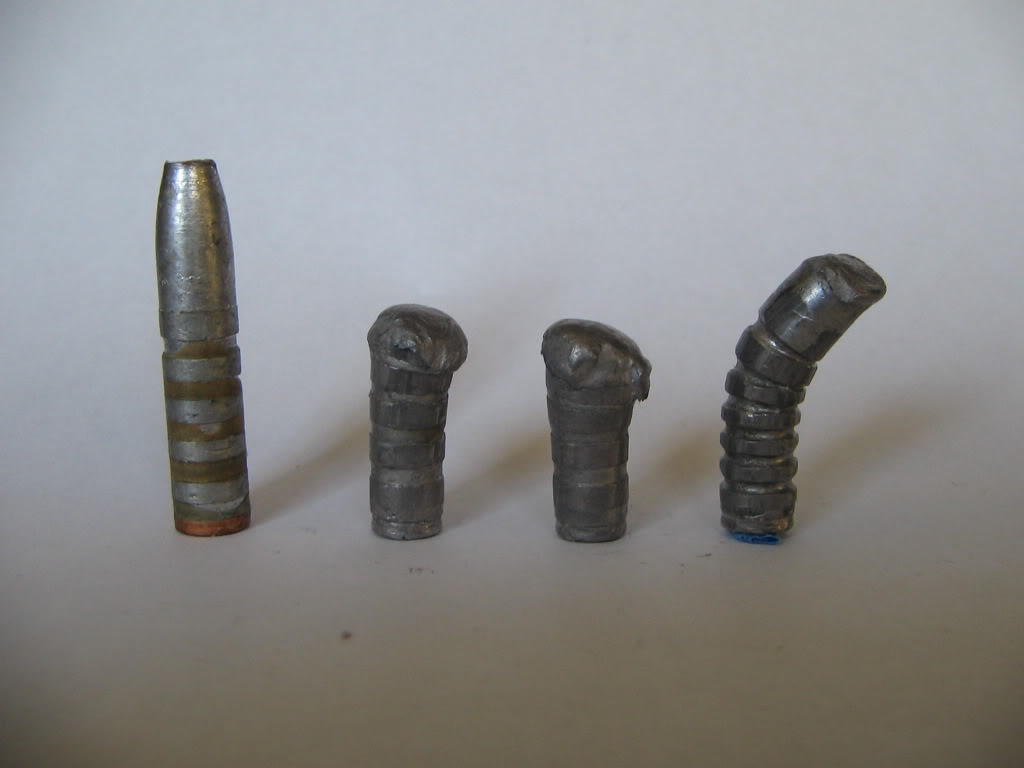

    Cast 174 gr (as dropped)
    Average Penetration (inches): 24
    Average Weight Retained (grain): 122.7
    Average Weight Retained (%): 70.5
    Average Expansion (inches): 0.360
    Name:  IMG_0737.jpg
Views: 2282
Size:  40.4 KBName:  IMG_0738.jpg
Views: 2247
Size:  26.1 KB

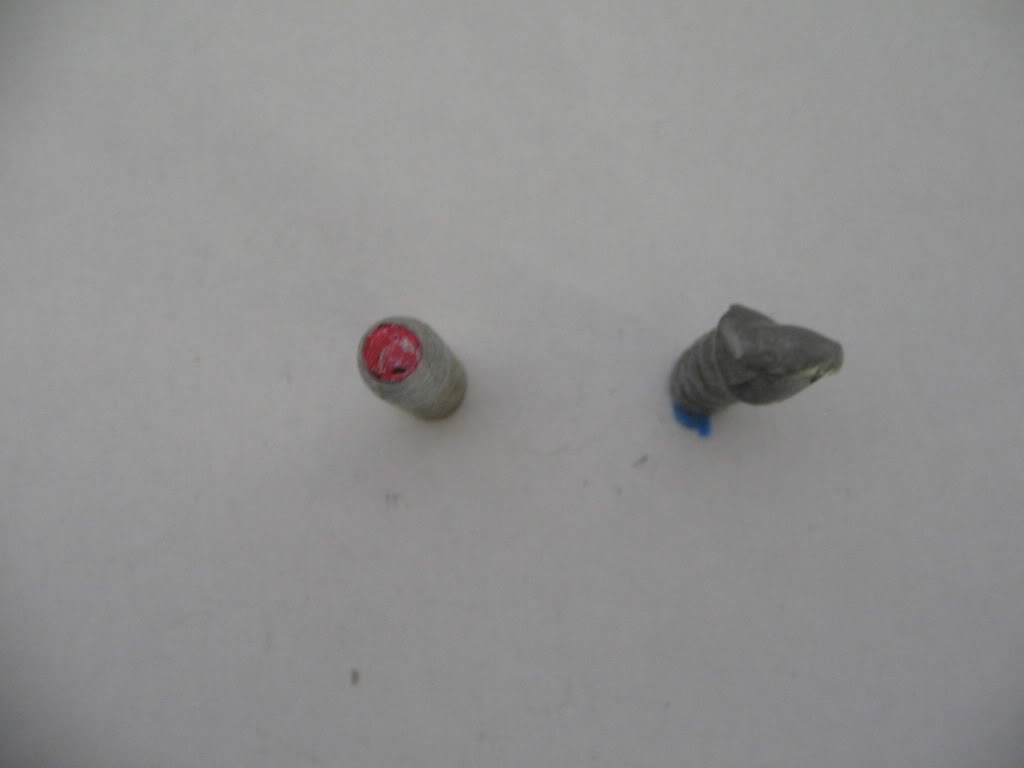

    Cast 174 gr (water quenched)
    Average Penetration (inches): 24+
    Average Weight Retained (grain): 128.8
    Average Weight Retained (%): 74
    Average Expansion (inches): 0.438
    *Under estimated their penetration, only recovered one.
    Name:  IMG_0739.jpg
Views: 2257
Size:  32.1 KBName:  IMG_0740.jpg
Views: 2232
Size:  23.1 KB





    Last edited by bcsteve; 09-11-2011 at 06:03 AM.


    Thanks to BC Steve for the Test results.

  10. #10
    Member
    Join Date
    Mar 2013
    Location
    Bell Block NZ/Northern Alberta Canada
    Posts
    857
    Above thread, dropped a set of photos, (130 swifts) so this update is correct for the 130 swift, 140 accubonds and 140 gameking.

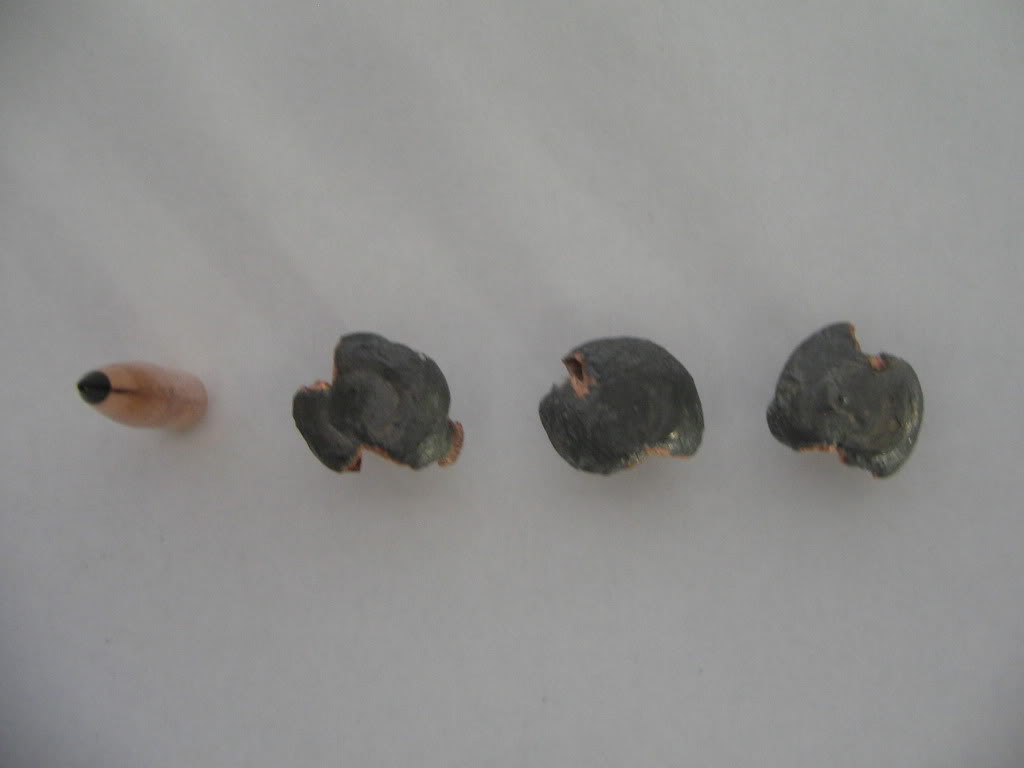

    Swift 130gr Scirocco II
    Average Penetration (inches): 13.3
    Average Weight Retained (grain): 124.7
    Average Weight Retained (%): 98.2
    Average Expansion (inches): 0.685


    Name:  IMG_0726.jpg
Views: 3456
Size:  42.7 KBName:  IMG_0727.jpg
Views: 2326
Size:  29.4 KB


    Nosler 140gr Accubond
    Average Penetration (inches): 14.17
    Average Weight Retained (grain): 89.9
    Average Weight Retained (%): 64.2
    Average Expansion (inches): 0.621

    Name:  IMG_0724.jpg
Views: 2224
Size:  36.2 KBName:  IMG_0725.jpg
Views: 2187
Size:  32.4 KB


    Sierra 140gr GameKing
    Average Penetration (inches): 13
    Average Weight Retained (grain): 64.3
    Average Weight Retained (%): 46
    Average Expansion (inches): 0.467
    Name:  IMG_0728.jpg
Views: 2360
Size:  32.6 KBName:  IMG_0729.jpg
Views: 2189
Size:  29.2 KB

  11. #11
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    21,085
    Those a frames look good

  12. #12
    Member Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    7,190
    Scirocco's look pretty good too, nice expansion and good weight retention
    Gibo likes this.





Similar Threads

  1. The Results are in
    By 6mm ackley in forum Off topic
    Replies: 4
    Last Post: 21-01-2016, 06:06 PM
  2. The results are in
    By Mike H in forum Game Bird Hunting
    Replies: 58
    Last Post: 23-10-2015, 12:37 PM
  3. Competition results
    By HNTMAD in forum Hunting
    Replies: 9
    Last Post: 18-12-2014, 09:08 AM
  4. Field Trial Results
    By el borracho in forum Game Bird Hunting
    Replies: 13
    Last Post: 05-11-2012, 08:13 PM

Tags for this Thread

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
Welcome to NZ Hunting and Shooting Forums! We see you're new here, or arn't logged in. Create an account, and Login for full access including our FREE BUY and SELL section Register NOW!!
