Anyone have an AR15 bore guide, and willing to do some measurements for me ?
Looking for the diameter and length of the sections so I can turn one from some spare acetal rod I have lying around.
Printable View
Anyone have an AR15 bore guide, and willing to do some measurements for me ?
Looking for the diameter and length of the sections so I can turn one from some spare acetal rod I have lying around.

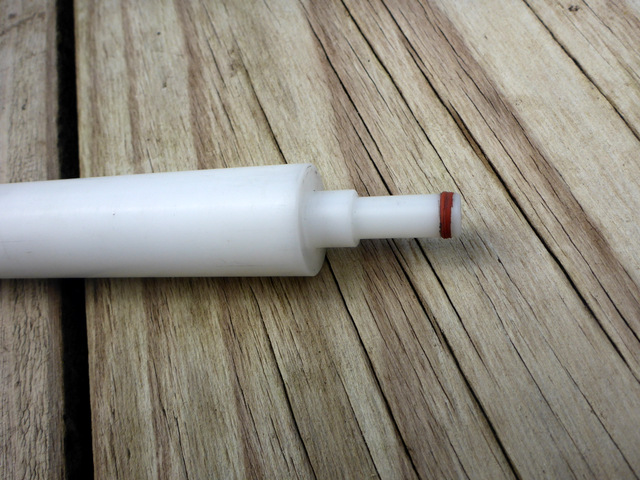

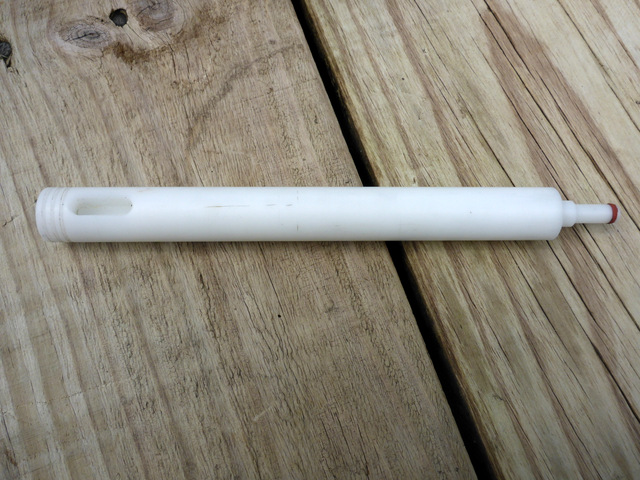

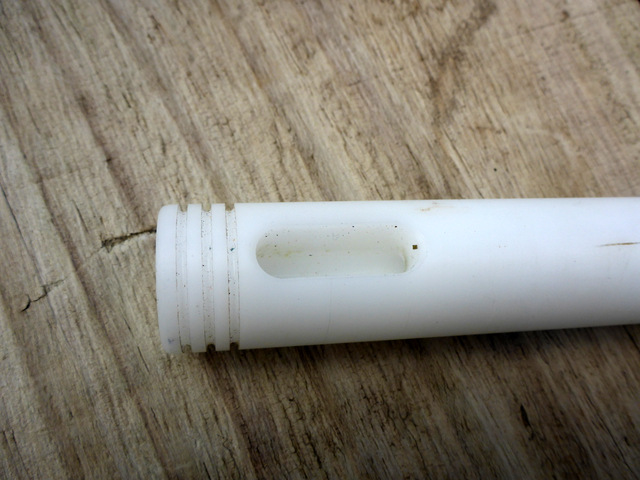

This one is a Sinclair Int. Model 250mm long 25.3mm diameter. Section with O-ring 9.2mm D x 22mm L shoulder section 12.5mm D x 9.4mm L
Attachment 76992
Attachment 76991
Attachment 76993
Thank you @Dermastor
