Thread: BSA 12 15 TO .22 HORNET CONVERSION

  1. #1
    Peter
    Join Date
    Sep 2021
    Location
    Chch
    Posts
    55

    BSA 12 15 TO .22 HORNET CONVERSION

    hi all,
    Is there any one doing this conversion?
    Anyone had it done recently?
    Cheers

  2. #2
    Member S.E.G's Avatar
    Join Date
    Sep 2015
    Location
    Waikato
    Posts
    197

    BSA 12 15 TO .22 HORNET CONVERSION

    @gundoc ; should be able to steer you in the right direction
    @gundoc

  3. #3
    Member
    Join Date
    Feb 2014
    Location
    Christchurch
    Posts
    277
    Gunworks re-chambered one to 22mag for me and my 22 hornet Vickers conversion is very accurate even after maybe 35 years and 100's of rounds.
    I think from memory it was done by Rod Woods but maybe Paul Manders.

  4. #4
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    1,795
    The breech block has to be converted to centrefire by annealing, boring out the face and fitting a hardened bushing and fitting an offset pin in the striker. The back of the action is bored to 3/8" to accept a long custom-made reamer, and the chamber and extractor are cut together. Easy enough for someone with skills.
    nor-west likes this.

  5. #5
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    1,795
    Quote Originally Posted by Tedz50 View Post
    Gunworks re-chambered one to 22mag for me and my 22 hornet Vickers conversion is very accurate even after maybe 35 years and 100's of rounds.
    I think from memory it was done by Rod Woods but maybe Paul Manders.
    If it was done by me it will have my name and date or WCG (Woods Custom Guns) and date.

  6. #6
    Peter
    Join Date
    Sep 2021
    Location
    Chch
    Posts
    55
    Nice, ill try them tomorrow.
    Somehow ive accumulated 2 vickers and at least 4 bsa's
    csmiffy likes this.

  7. #7
    Peter
    Join Date
    Sep 2021
    Location
    Chch
    Posts
    55
    Got a reply to my email to gunworks this afternoon,
    Not a job they will do, beyound there expertise according to amanda,
    So no go there

  8. #8
    Member
    Join Date
    Jul 2013
    Location
    Godzone, South Island
    Posts
    1,422
    Try Zac, out Rangiora way, he learnt his trade from the best.
    csmiffy likes this.

  9. #9
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    4,821
    Wouldnt mind something like this myself eventually. @Peteforskeet might have to hit you up for aone of your spares one day.
    Suggest gunworks want straight out production machining not old school one off gunsmithing

  10. #10
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    2,922
    Quote Originally Posted by gundoc View Post
    The breech block has to be converted to centrefire by annealing, boring out the face and fitting a hardened bushing and fitting an offset pin in the striker. The back of the action is bored to 3/8" to accept a long custom-made reamer, and the chamber and extractor are cut together. Easy enough for someone with skills.
    @gundoc by fitting the hardened bush you didn't need to re harden the whole block when finished ?

    I have a 1215 here and might drop the parts out and look at what's involved

    Or I could modify the block to CF and colour case harden it and get the same result

  11. #11
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    1,795
    Quote Originally Posted by akaroa1 View Post
    @gundoc by fitting the hardened bush you didn't need to re harden the whole block when finished ?
    Correct, the blocks were only case-hardened anyway. Once annealed, reassemble into the closed position and drop a hardened centre-pointed rod down the bore to mark the exact centre of the firing pin hole, then bore and thread it square to the breech face. The bushing should have a 1.5 - 1.8mm hole for the firing pin and two stub holes for a tightening key.
    csmiffy likes this.

  12. #12
    Peter
    Join Date
    Sep 2021
    Location
    Chch
    Posts
    55
    Hi rod,
    Is another option to alter the height of the fingers on the end of the cocking lever, that lift the breechblock to height?
    The downside being that the face of the breechblock wouldnt be dead square to the centreline of the bore anymore, i think by 1 degree?

  13. #13
    Peter
    Join Date
    Sep 2021
    Location
    Chch
    Posts
    55
    Quote Originally Posted by Husky1600 View Post
    Try Zac, out Rangiora way, he learnt his trade from the best.
    I will send zac an email

  14. #14
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    2,922
    Quote Originally Posted by Peteforskeet View Post
    Hi rod,
    Is another option to alter the height of the fingers on the end of the cocking lever, that lift the breechblock to height?
    The downside being that the face of the breechblock wouldnt be dead square to the centreline of the bore anymore, i think by 1 degree?
    The firing pin is at 12 o'clock
    So the block needs to be lowered and the breech block face will not be square to the breech

  15. #15
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    2,922

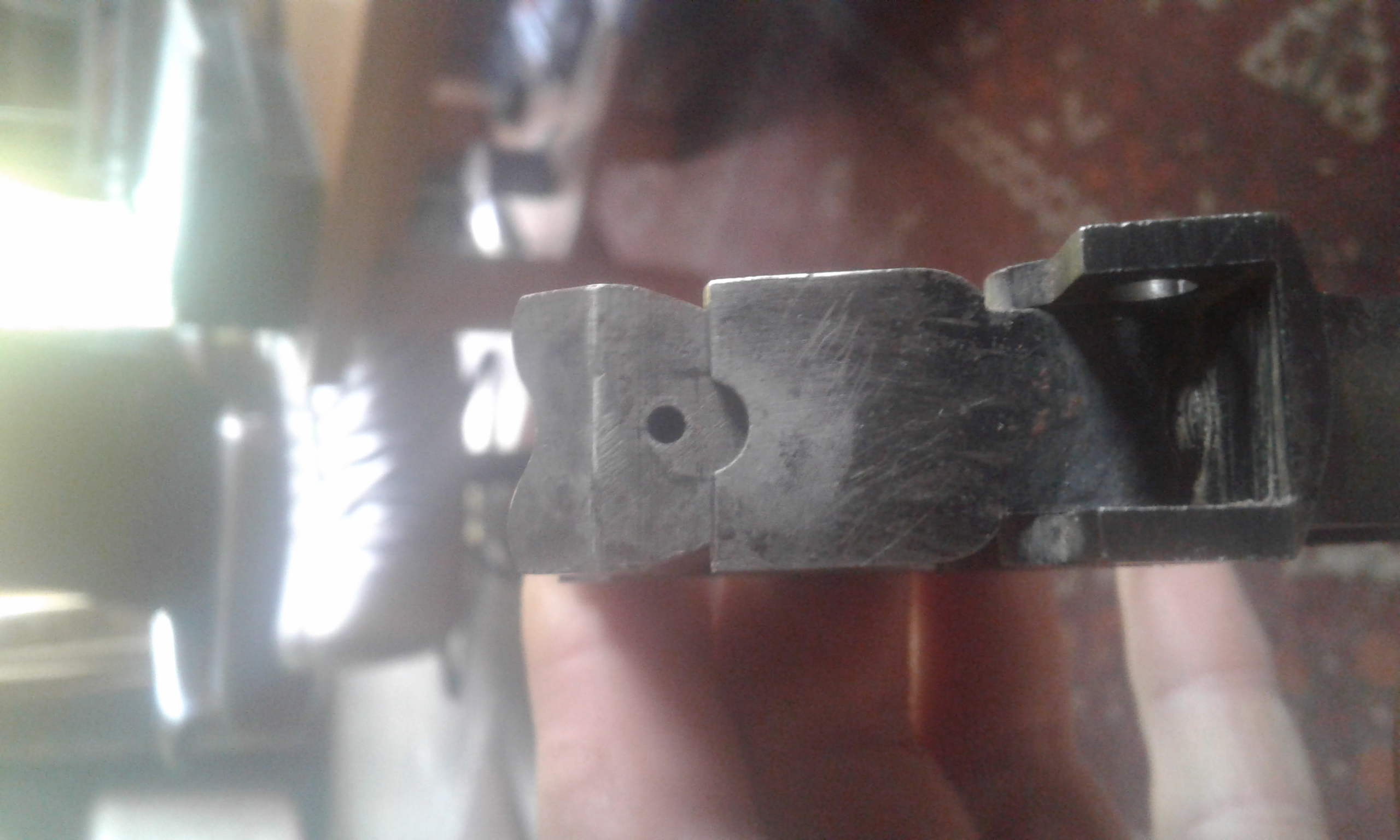

    Name:  20220329_082237.jpg
Views: 105
Size:  909.3 KB
