Thread: BSA DBL barrel disassembly

  1. #1
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    6,040

    BSA DBL barrel disassembly

    Got a BSA hammerless SBS can't see any model on it but haven't removed the fore wood any one got one or taken one apart I need to have a look at one of the triggers in it can put pics up when in home again cheers nd

  2. #2
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    3,318
    Photos of the sides, top lever on open,position and triger guard from below will have it sorted in short order.
    Gibo likes this.

  3. #3
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    6,040
    OK looks like it comes apart from underneath

  4. #4
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    6,040

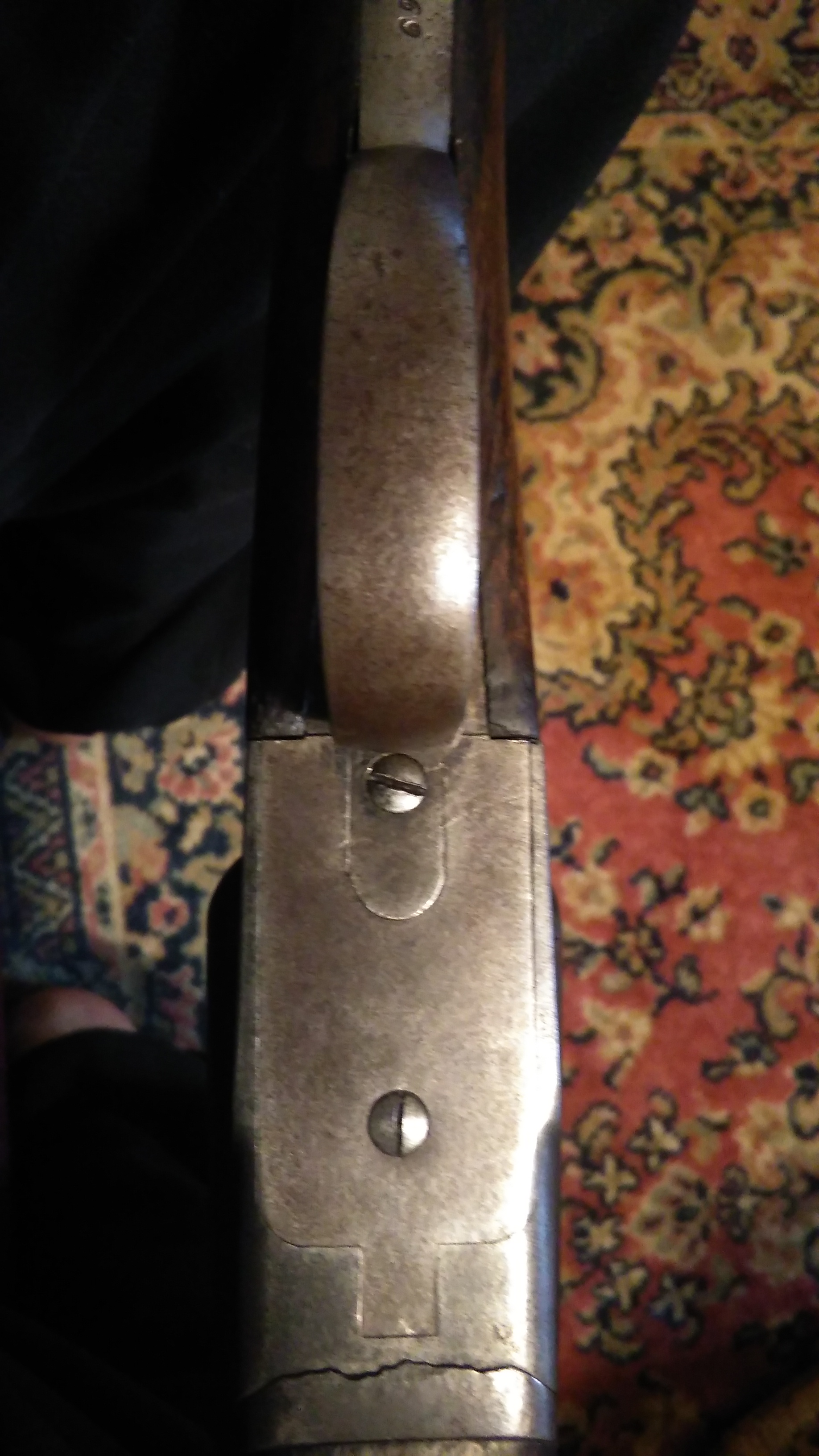

    Name:  IMG_20180523_191245.jpg
Views: 47

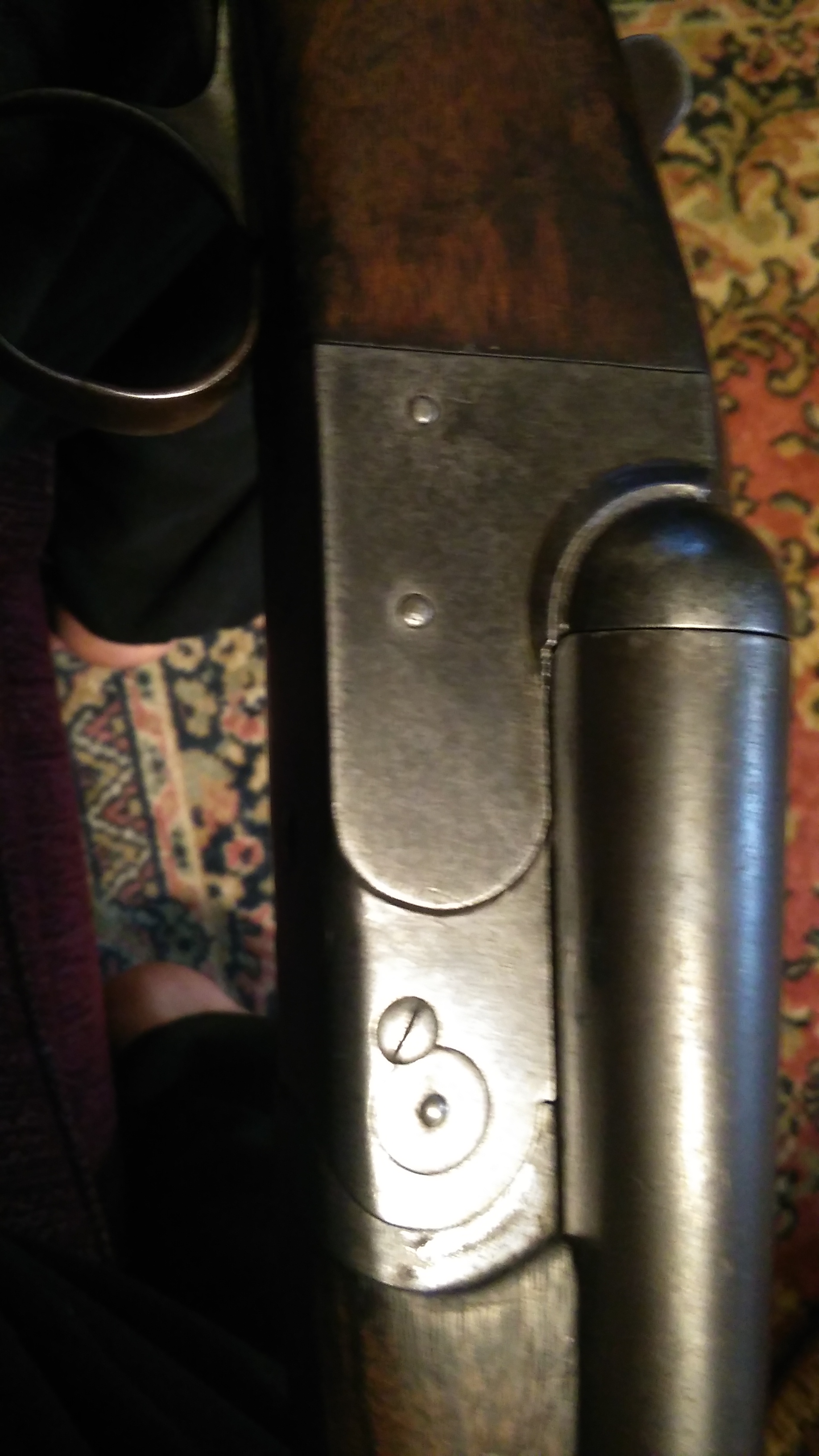

Size:  1.23 MBName:  IMG_20180523_191302.jpg
Views: 43

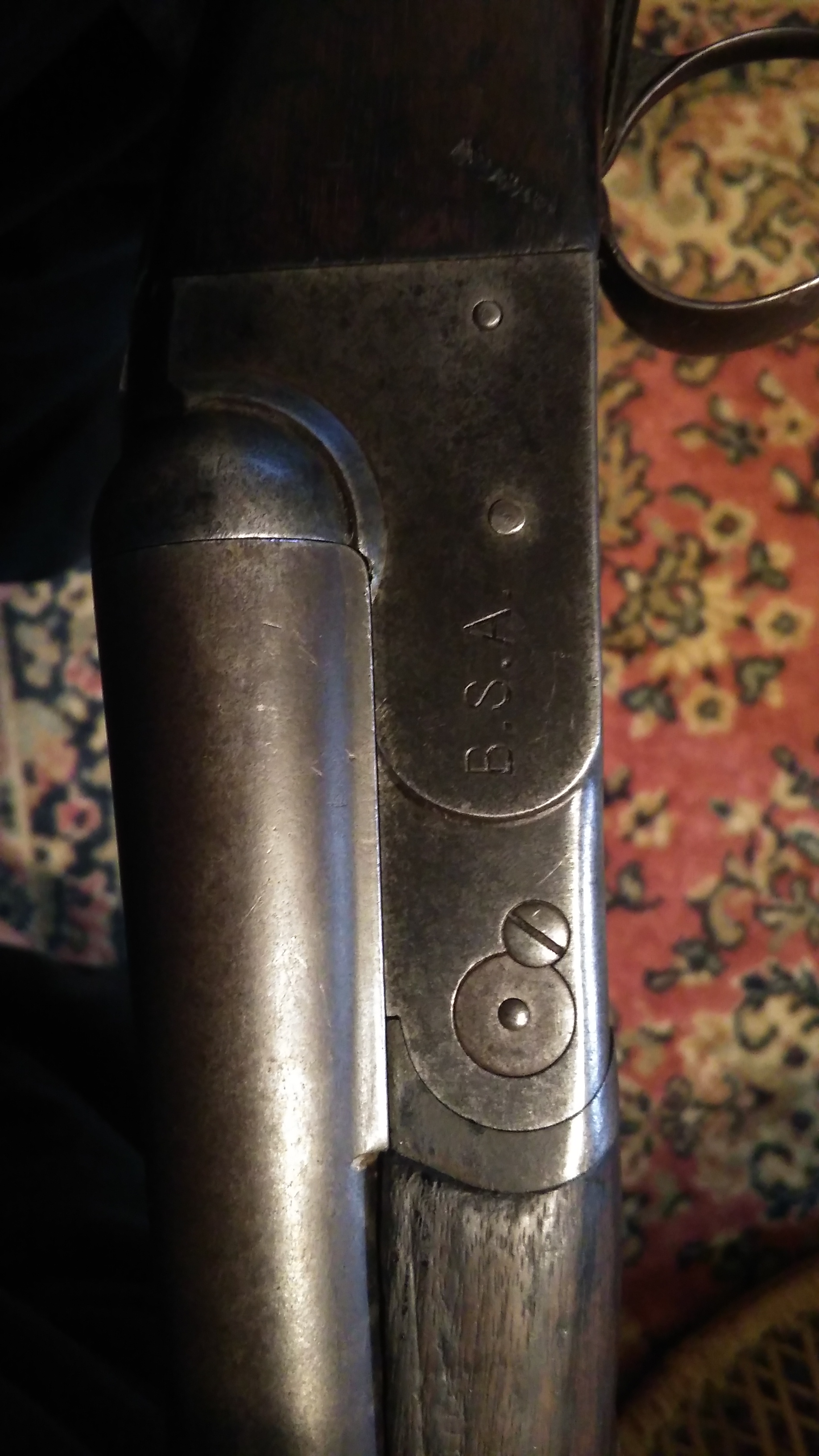

Size:  1.17 MBName:  IMG_20180523_191322.jpg
Views: 46
Size:  1.27 MBName:  IMG_20180523_191420.jpg
Views: 48
Size:  1.36 MB

  5. #5
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    3,318
    It should come apart like this. Take the forewood off, remove the barrels undo the screws holding the trigger guard and remove then undo the screw under the top lever remove it and you should be able to work the action out of the woodwork giving you access to the triggers and most of the other interesting bits.

  6. #6
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    6,040
    cool thanks for that ill give it a go soon
