DIY Zero Stop for Sightron SIII (#scope hack)
Decided to make a simple yet cheap zero stop for my SIII. This could also be used for any other turret style scope, you just have to know the diameter of your scopes turret. All items needed are available at a engineering or hardware store.
What you will need:
- x1 25mm copper washer
- x1 24mm rubber O-ring

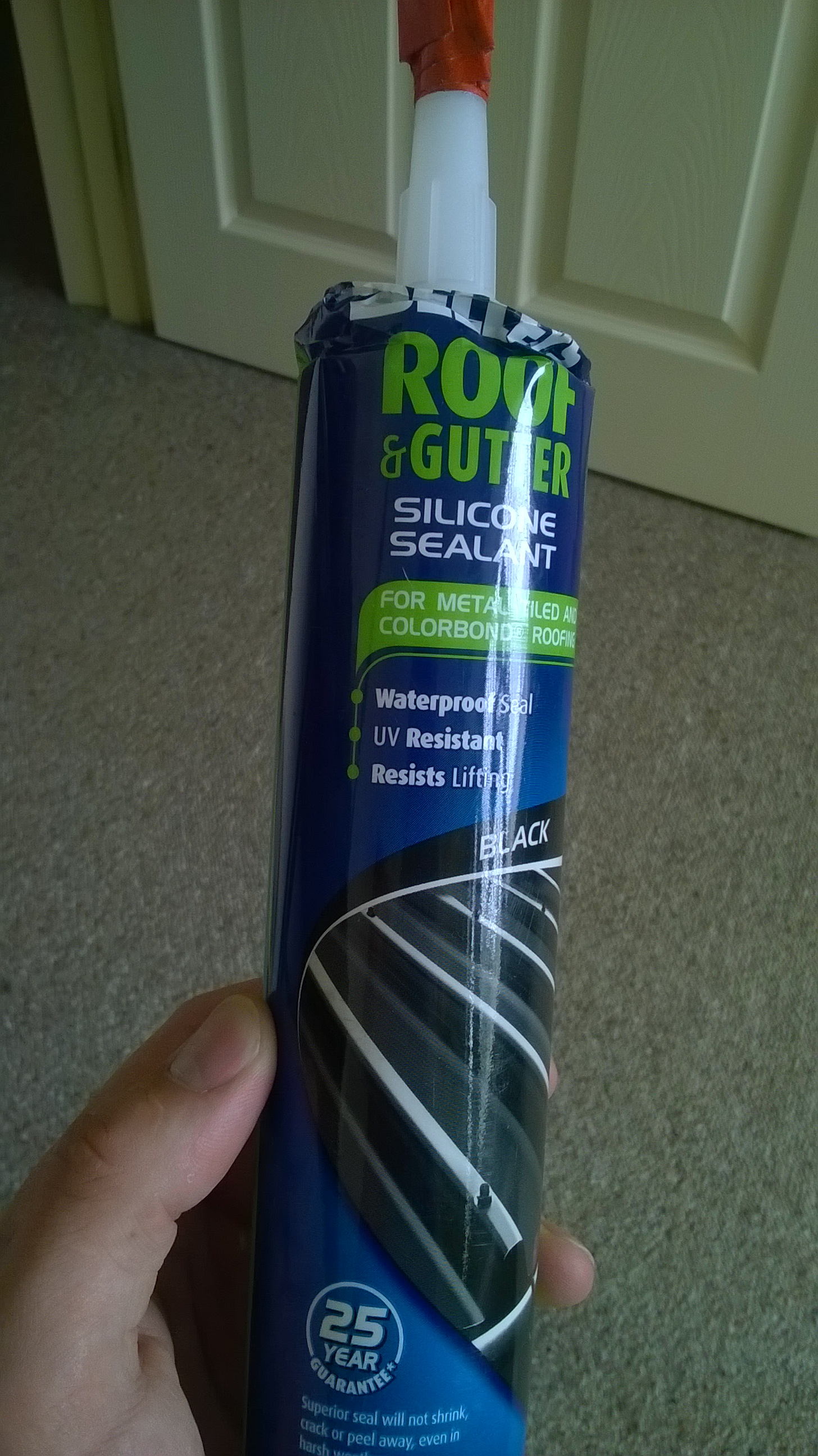

- Black roofing/plumbing silicone
- A small nail or rivet
- A cylinder file
- Some cotton buds
- A permanent marker
Total cost: $18
Attachment 103600

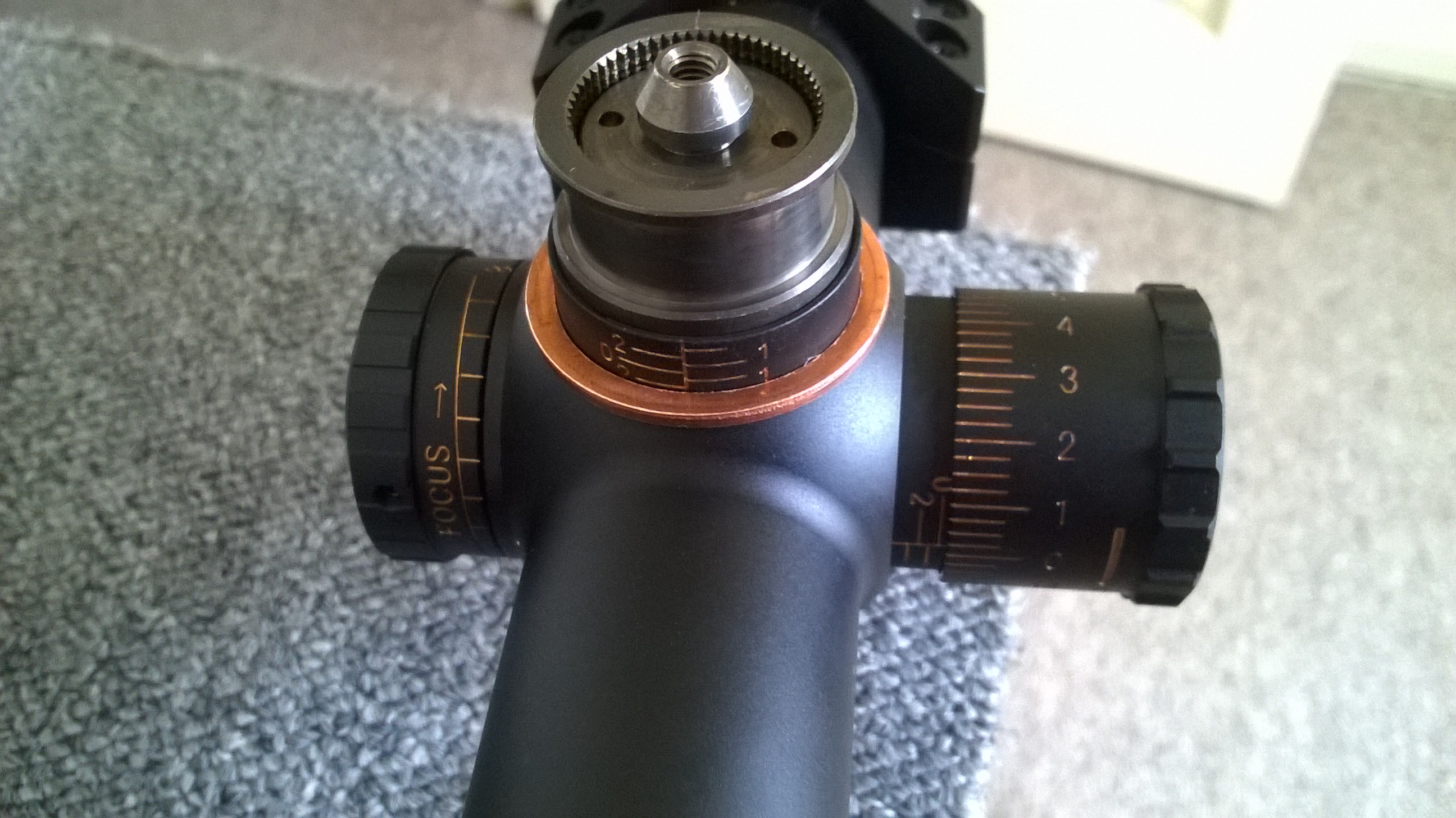

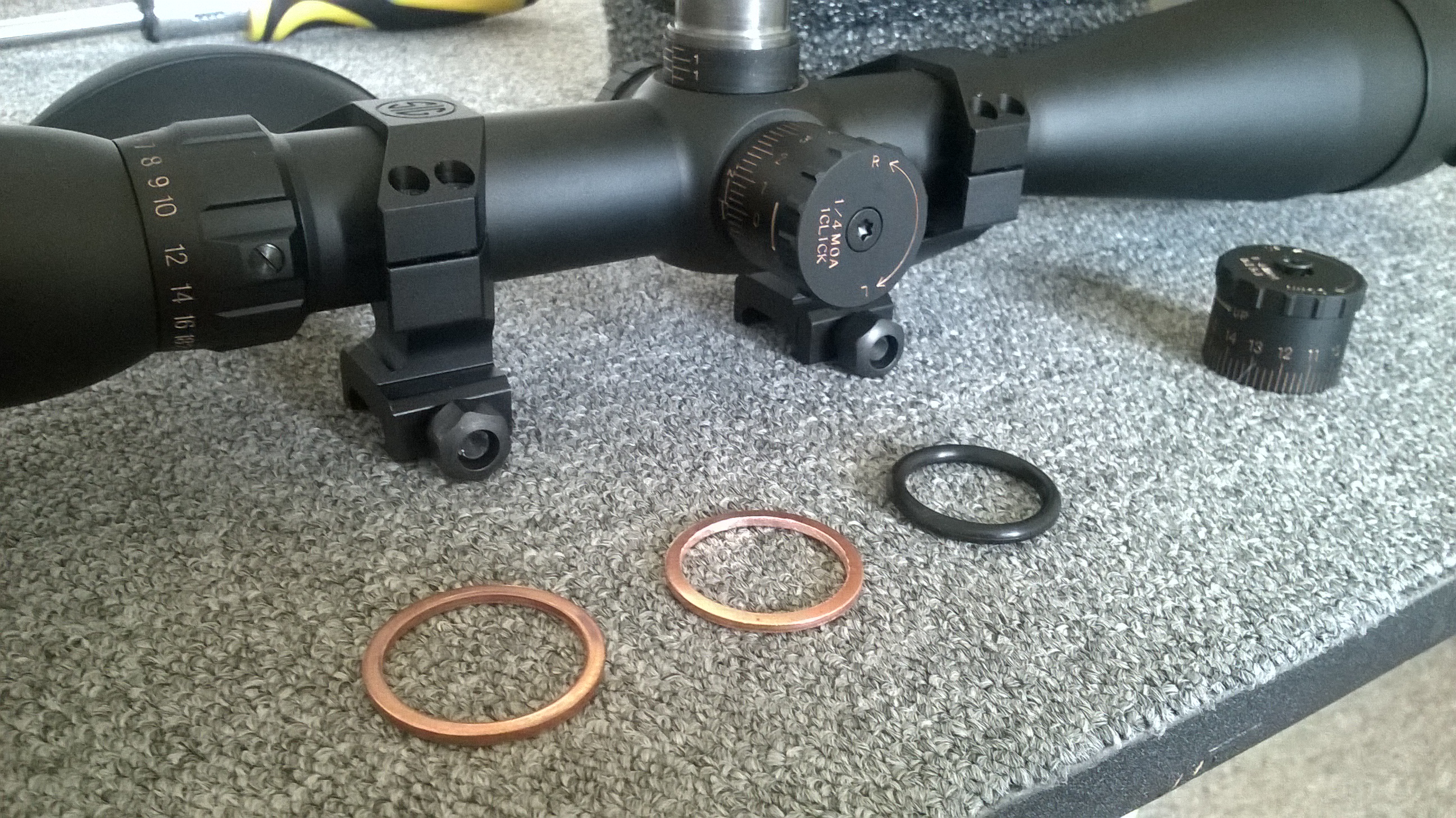

First remove exposed elevation turret cap and check to see if copper washer fits. Should bottom out on scope body. I ended up getting a couple of different size washers just to be sure. The 27mm was too loose and 25mm to small (only just...)
Attachment 103601

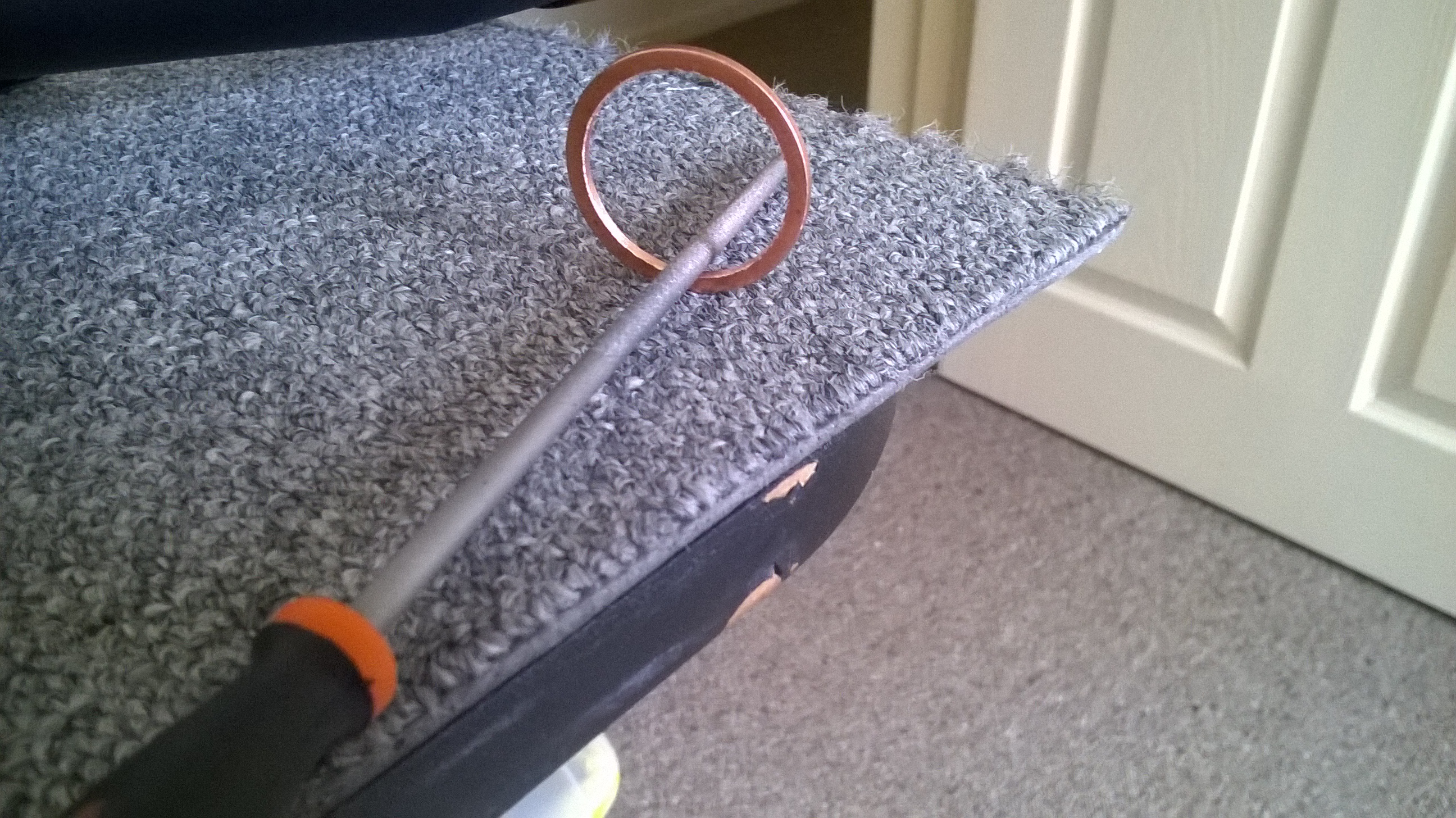

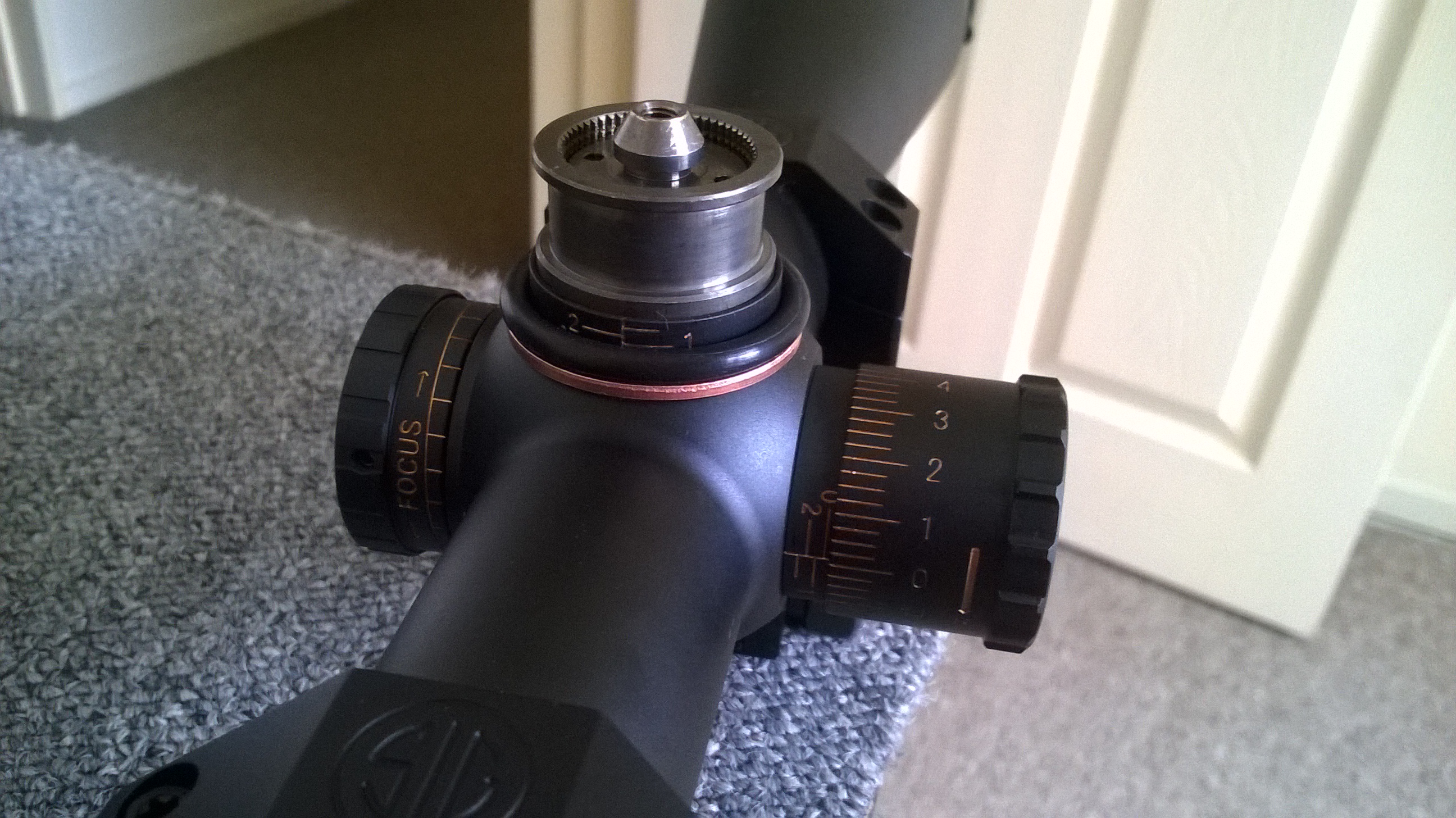

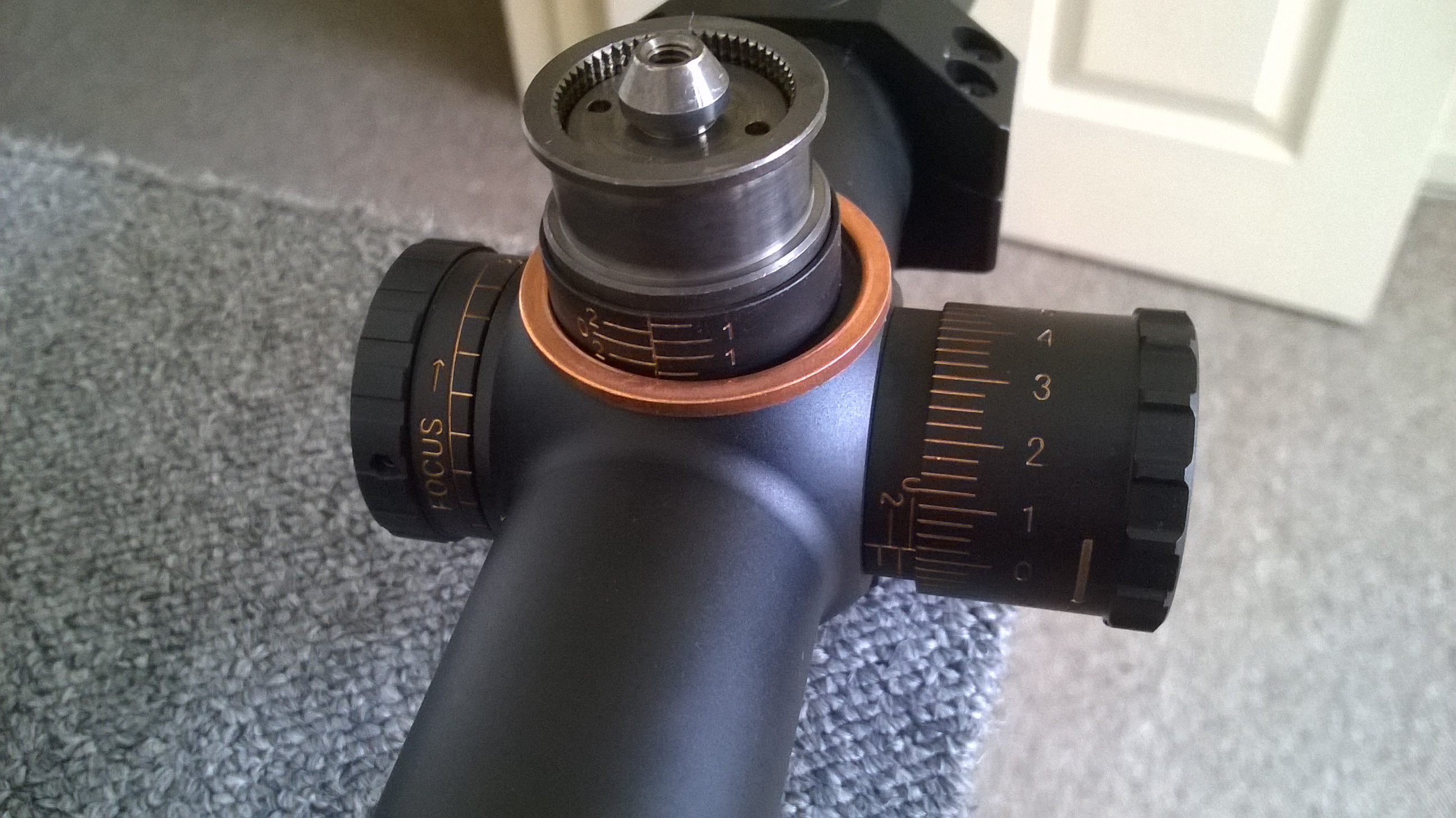

Opted to file the smaller one of the washers and after about 5mins of filing, it fit snug. Checked to see if O-ring fit and also installed turret cap to check fitment then removed both.
Attachment 103602
Attachment 103603
Attachment 103604

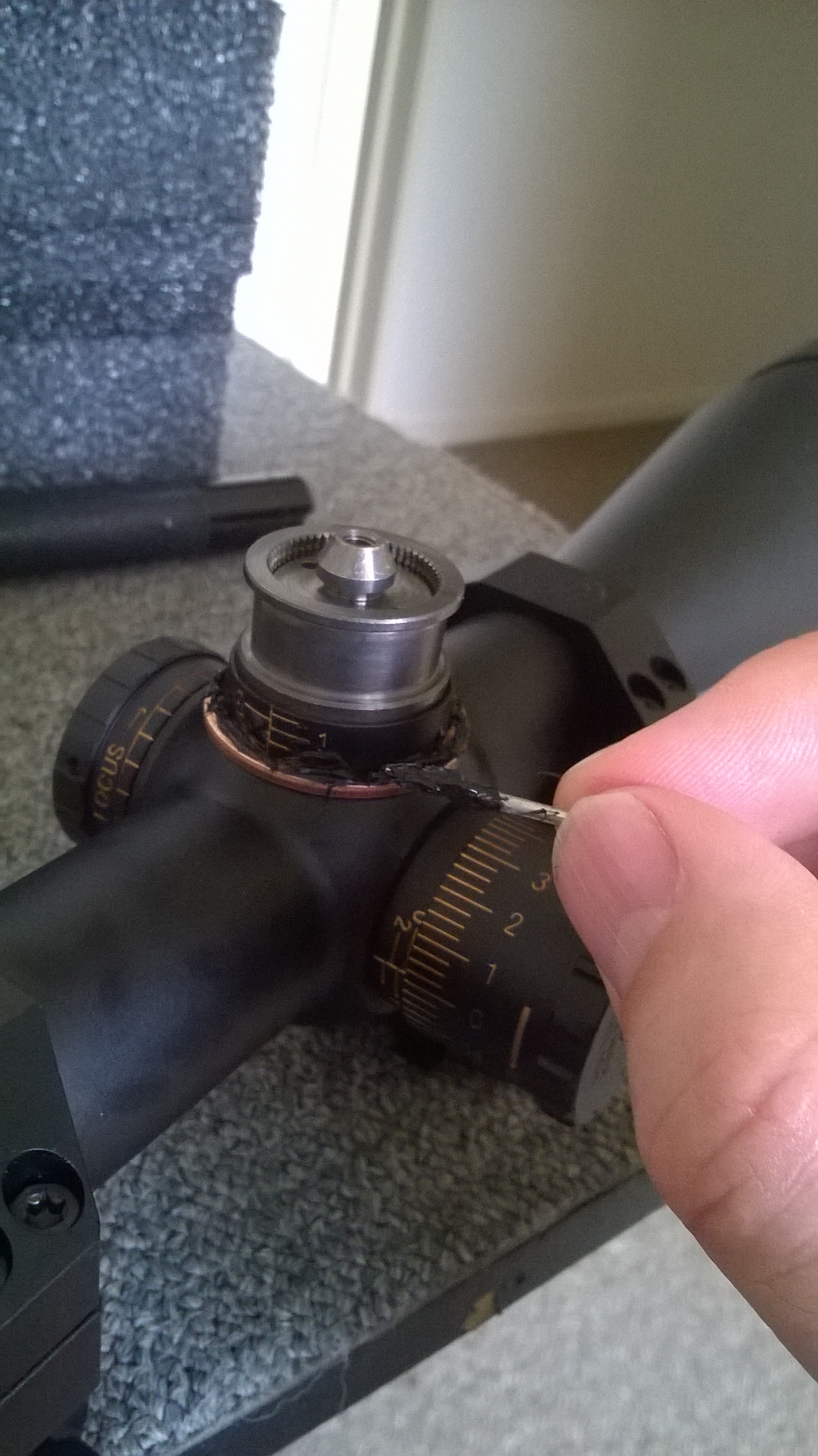

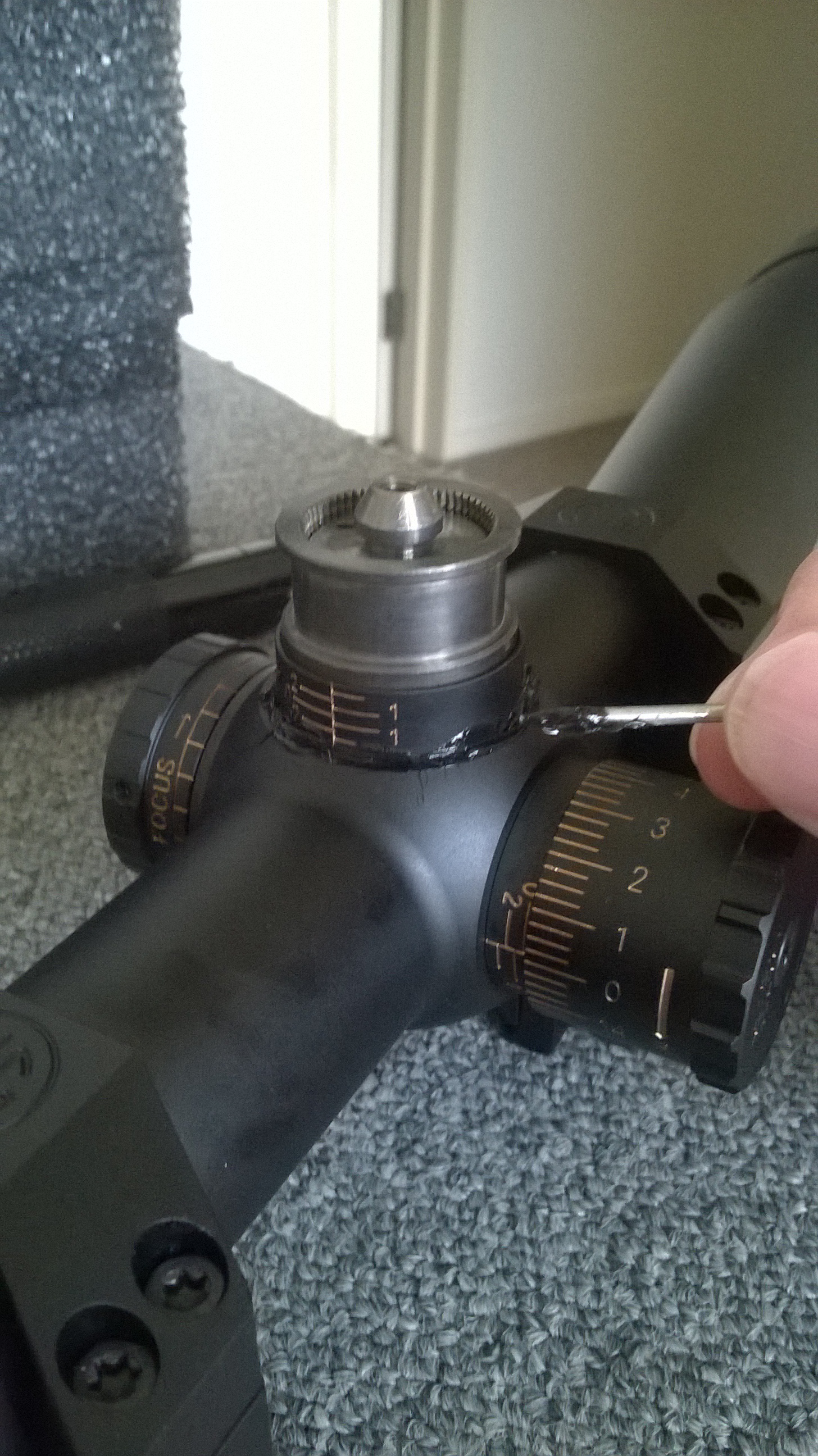

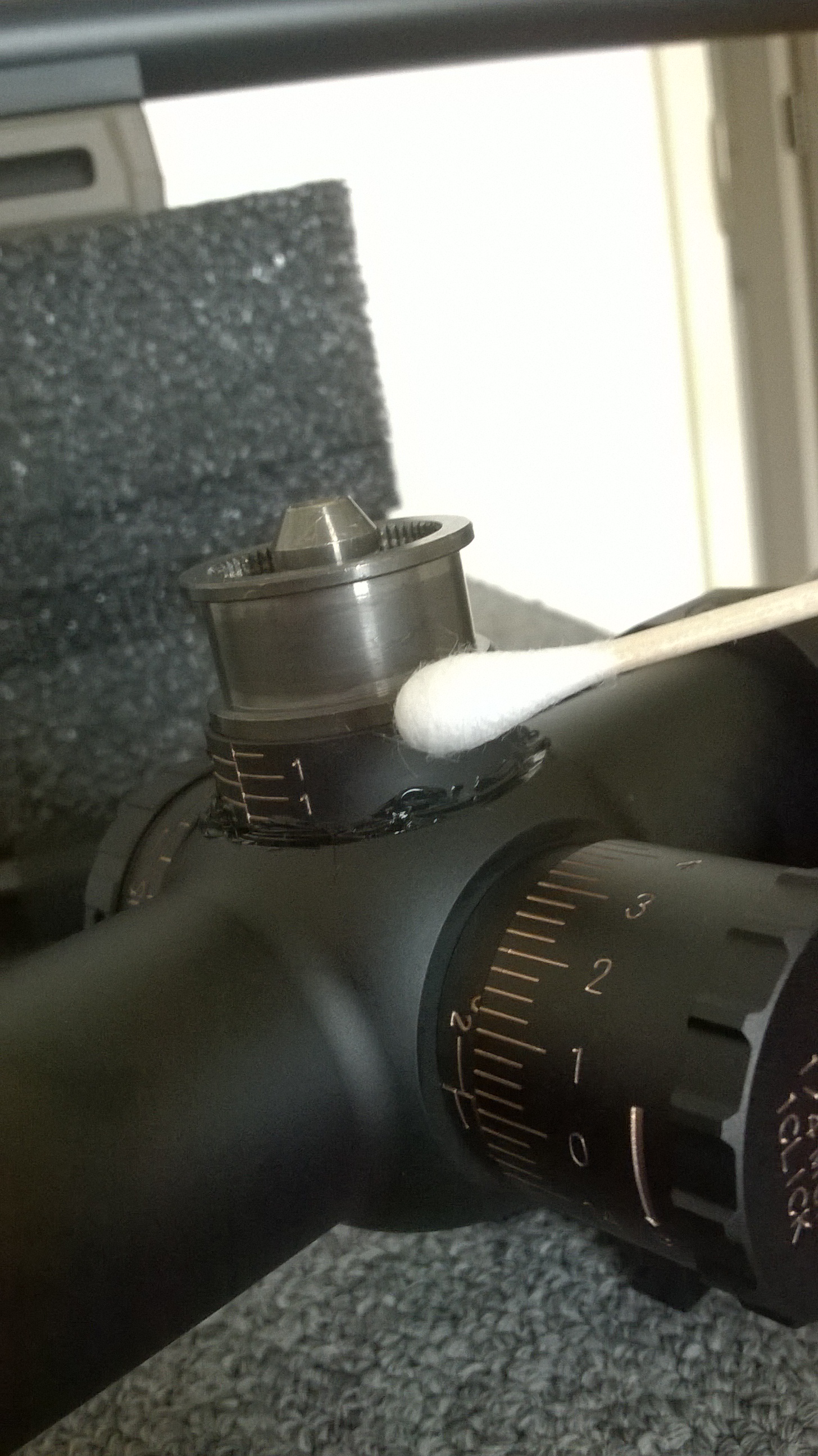

Next up I grabbed the small nail and applied a small amount of silicone to the end of it and applied evenly around the base where the copper washer will sit. After applying silicone, wiped up excess with cotton bud. This will stop washer from spinning although mine was tight anyway, it probably wouldn't of moved but I siliconed it anyway.
Attachment 103605
Attachment 103606
Attachment 103607

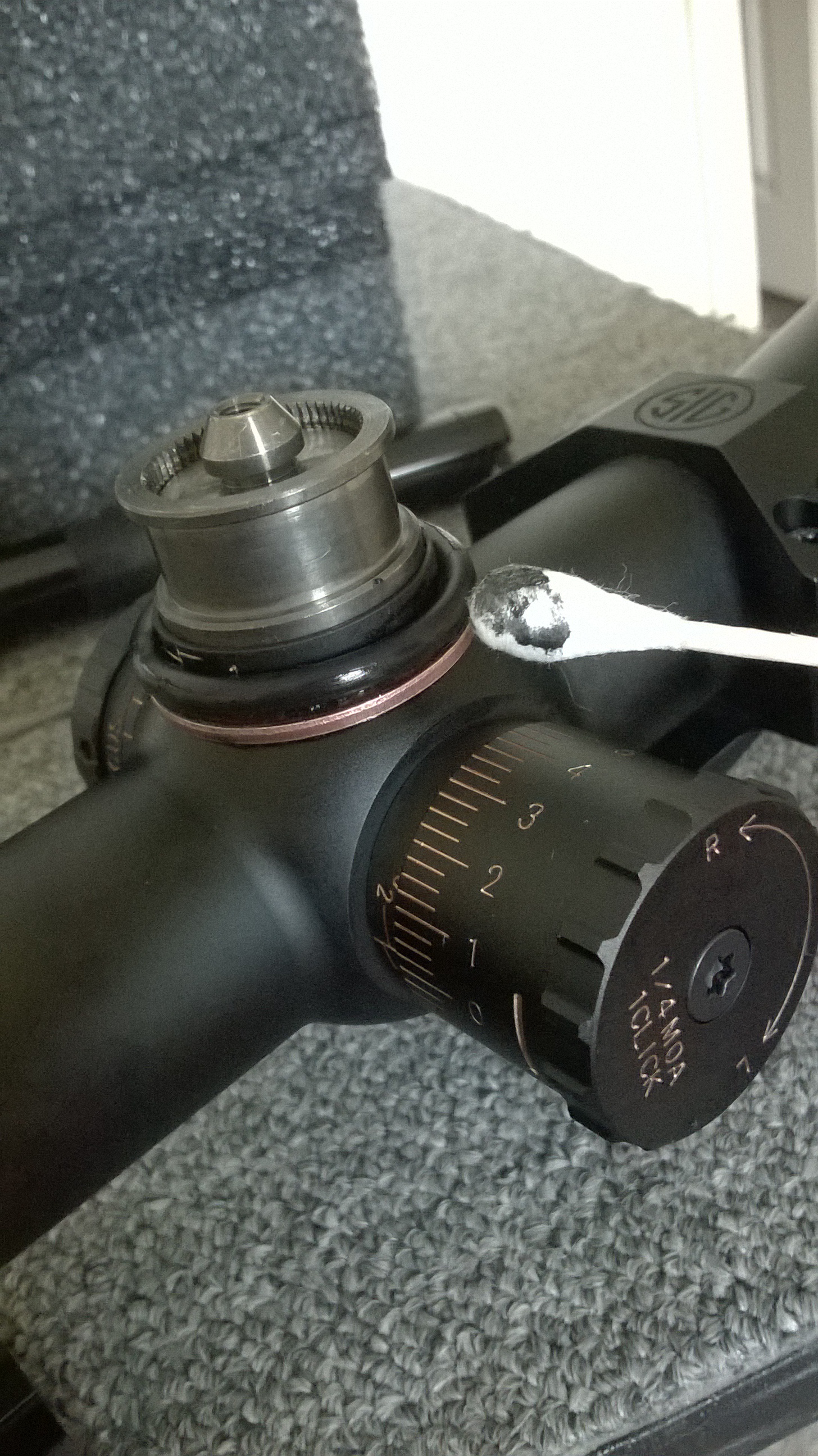

After that did the same thing again, only this time I applied silicone to the top off copper washer where O-ring will sit. Same deal, clean up excess.
Attachment 103608
Attachment 103609

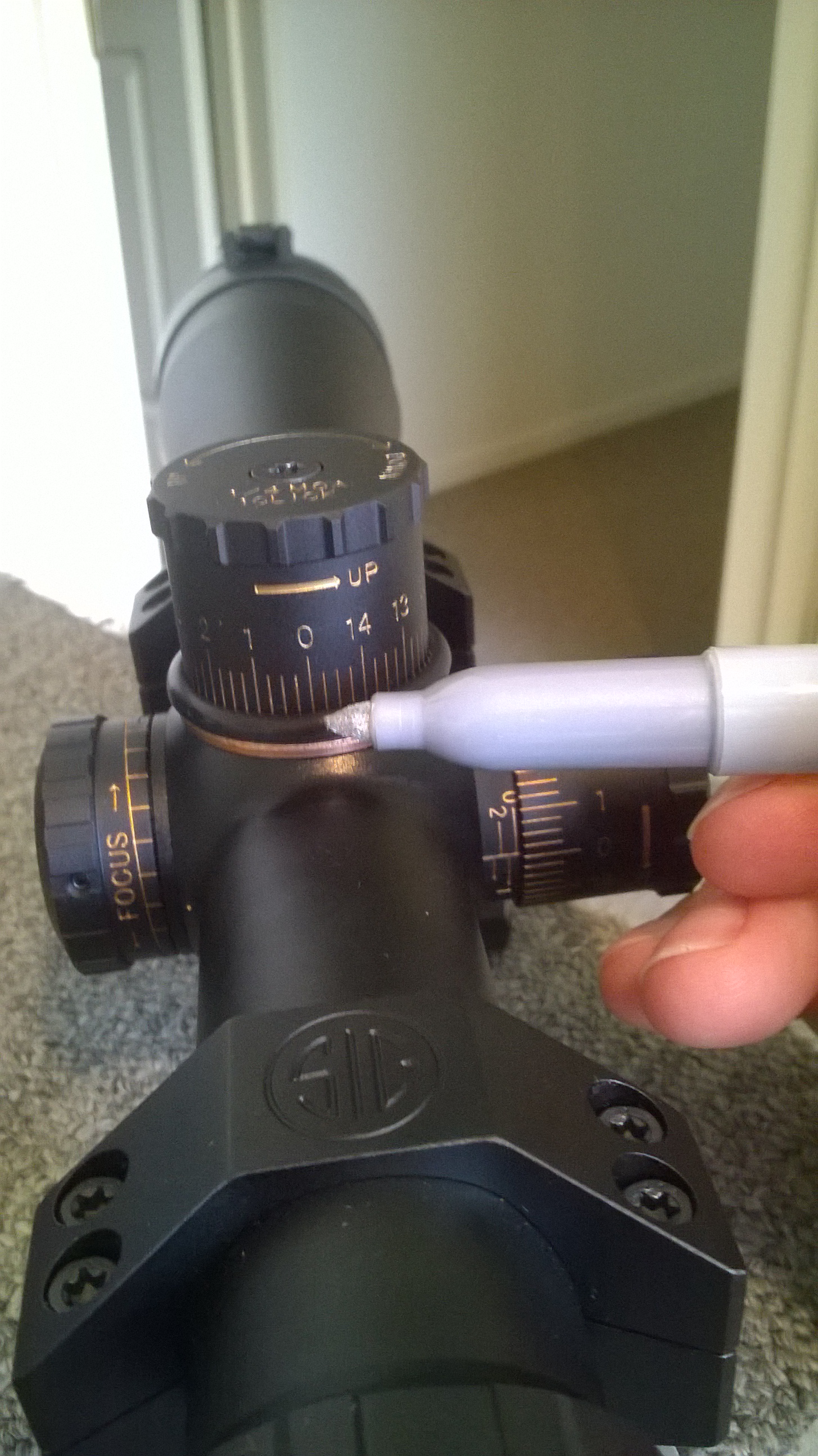

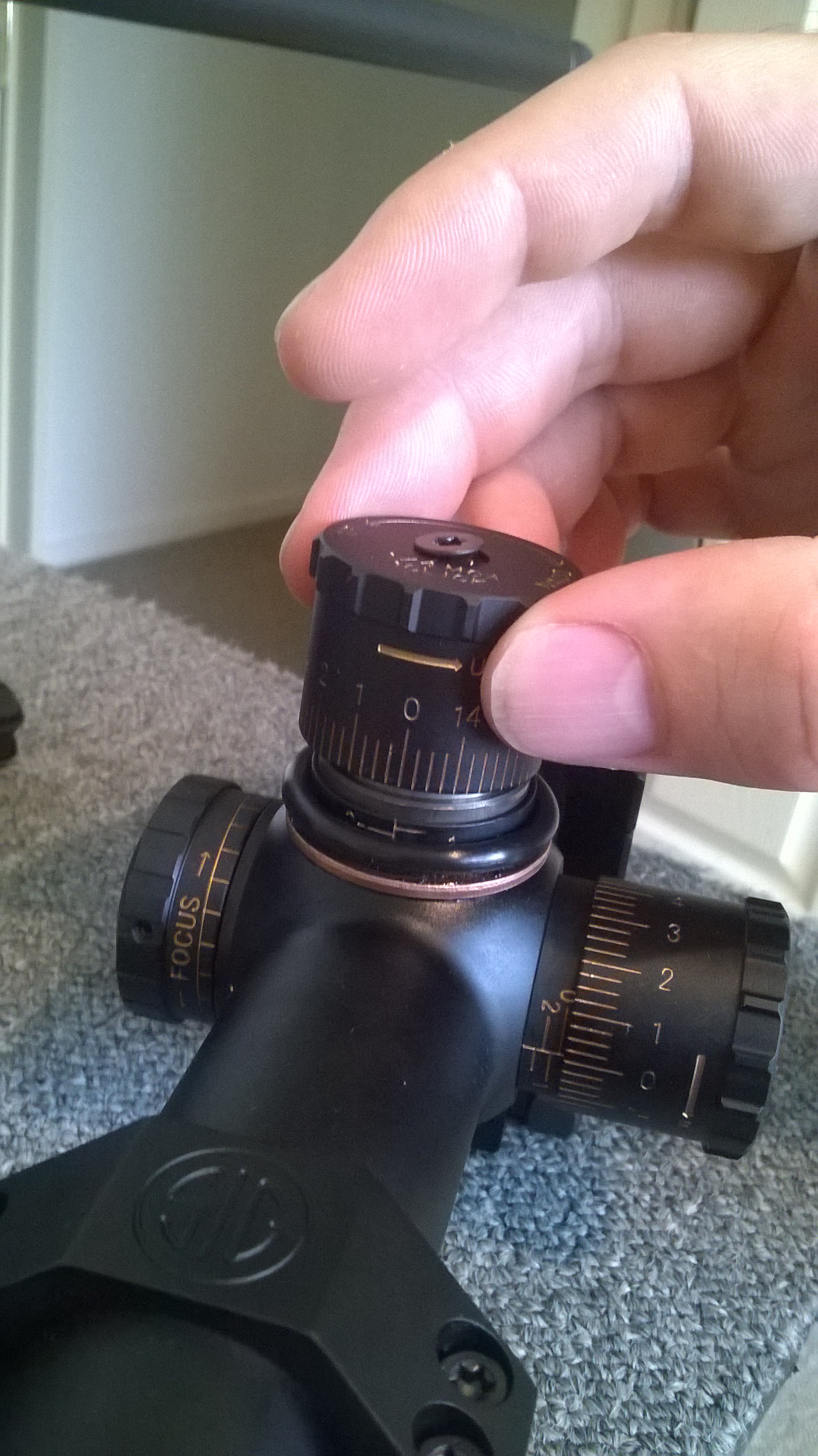

Carefully realign your turret cap to the zero mark and screw it down. Once in place you will no longer be able to see zero index so this is where the permanent marker will come in handy. I opted for a silver pen, visible to the eye and does not wash off easily.
Attachment 103610
Attachment 103611

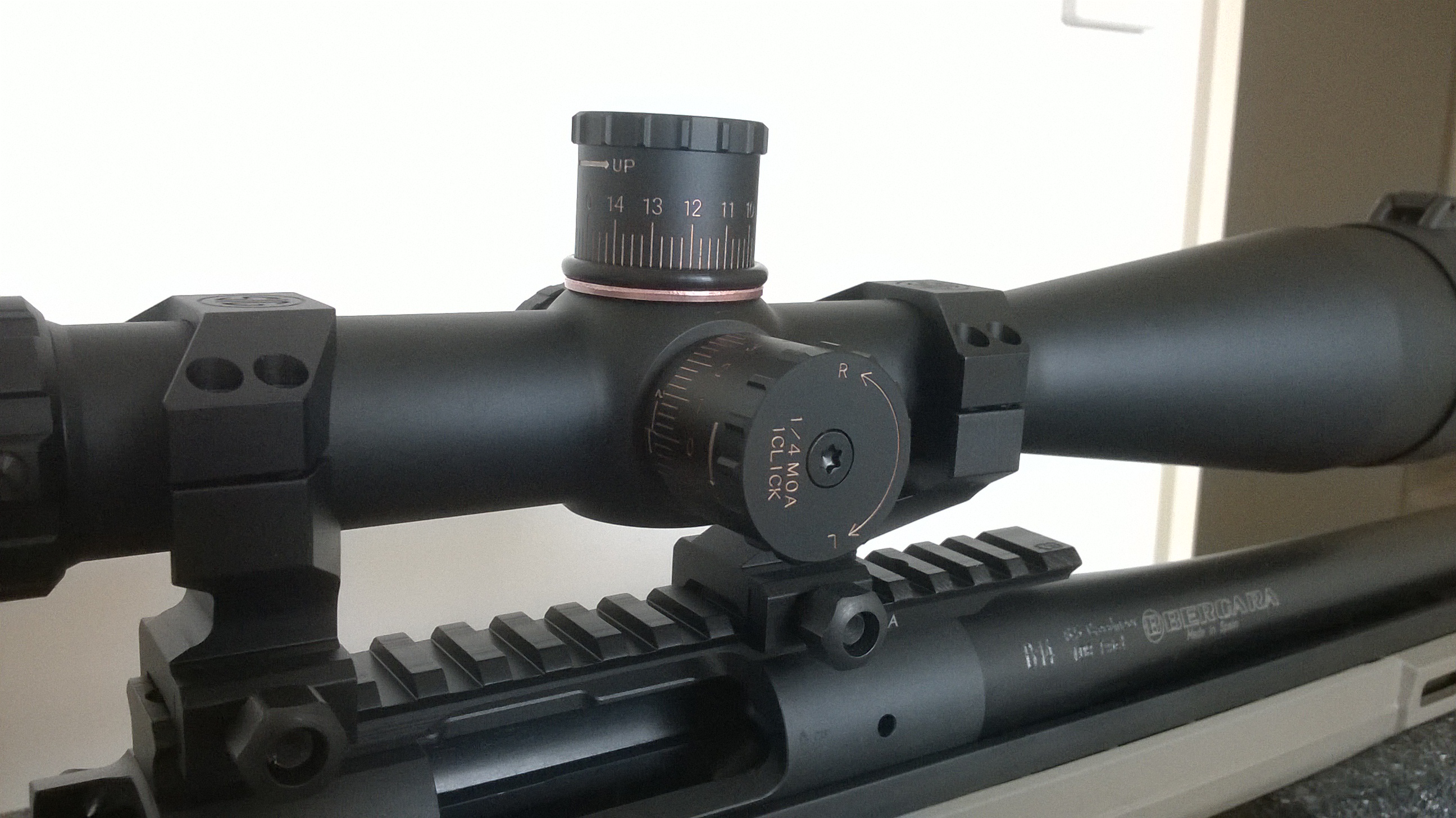

Wait 24hrs for silicone to cure and your're done.
Attachment 103612
This is an easy upgrade to you scope and it only took me about 20mins to do. Let me know if you try this and also if there are any improvements made.
