Thread: Dud Hornady Die?

  1. #1
    LOC
    LOC is offline
    Member LOC's Avatar
    Join Date
    Jun 2015
    Location
    Auckland
    Posts
    942

    Dud Hornady Die?

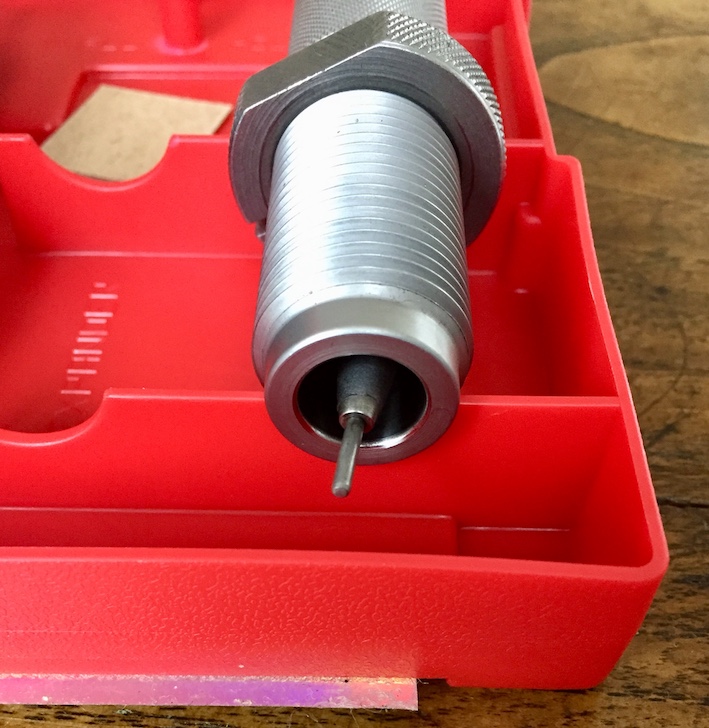

    wondering if anyone can help with this, i went to use a brand new set of hornady 6.5x55 dies and the full length body die was so tight that i had to use some serious force to size the case and then on removal i had to bang down the handle with a lot more force

    that was on a hornady case so then tried a norma case and had the same issue, except this time the removal of the die ended up bending the decapping pin on the way out. in both cases there was some damage to the neck of the case

    the force is required at the last stage of the press, which i think is the shoulder/body sizing stage. has anyone seen this before or could they suggest what the issue might be? i haven't tried the seating die that came with it but assuming that is ok.

    i doubt it is a case lube issue, my dies for other calibres work like they should with the same lube application

    and do i toss it out?

    Name:  IMG_0659.jpg
Views: 281
Size:  179.7 KB

  2. #2
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    3,098
    Can you take it back to the seller (retailer) under warranty? That would be my first suggestion.
    Micky Duck likes this.

  3. #3
    Member Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    6,550
    Yes, had same issue with 270wsm full length die, ended up definitely being the die, can't remember if it was an RCBS die or hornady but got a new RCBS one anyhow and works fine
    LOC likes this.

  4. #4
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    4,877
    Year it happens just had the same sort of issues with a lee quick trim die
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.

  5. #5
    Member
    Join Date
    Apr 2012
    Location
    Kingcountry
    Posts
    1,715
    Have you followed their instructions and cleaned with a solvent before use to remove the protective internal coating.
    LOC likes this.

  6. #6
    Member Beavis's Avatar
    Join Date
    Dec 2011
    Location
    The Cape
    Posts
    3,835
    Have had the same issues with 3x Hornady FL dies. I'm not sure if the make them to really squeeze the brass back down excessively or what, but I hate them, it feels like I'm gonna rip my press off the bench. Just horrid compared to Lee, Redding and RCBS that I've used.
    LOC likes this.

  7. #7
    LOC
    LOC is offline
    Member LOC's Avatar
    Join Date
    Jun 2015
    Location
    Auckland
    Posts
    942
    i will do as i get a fair bit of kit off the retailer, but i've goes and ordered a set of reddings from someone else as hear they are better quality

    Quote Originally Posted by timattalon View Post
    Can you take it back to the seller (retailer) under warranty? That would be my first suggestion.
    300AAC likes this.

  8. #8
    LOC
    LOC is offline
    Member LOC's Avatar
    Join Date
    Jun 2015
    Location
    Auckland
    Posts
    942
    interesting, the other 3 sets i have are firm and need a bit of leverage but nothing like this one. did yours sustain any damage?

    Quote Originally Posted by Beavis View Post
    Have had the same issues with 3x Hornady FL dies. I'm not sure if the make them to really squeeze the brass back down excessively or what, but I hate them, it feels like I'm gonna rip my press off the bench. Just horrid compared to Lee, Redding and RCBS that I've used.

  9. #9
    Member
    Join Date
    May 2015
    Location
    Nz
    Posts
    1,191
    my hornady does the same. Scared the press is going to come off the bench. I use a heap of lube now.
    LOC likes this.

  10. #10
    Member Beavis's Avatar
    Join Date
    Dec 2011
    Location
    The Cape
    Posts
    3,835
    Quote Originally Posted by LOC View Post
    interesting, the other 3 sets i have are firm and need a bit of leverage but nothing like this one. did yours sustain any damage?
    No damage. But there has been a few times I have been worried I am going to rip the case head off trying to get expander ball back through the neck. I took the expander ball out and found that it excessively resizes the neck. Seating a projectile in such a case was difficult and the projectile bulged the neck out. I think they size way to aggressively and the expander has to do alot of work to open the neck back up. With my redding dies I just screw the expander button off and run the case through without it with great results.
    LOC likes this.

  11. #11
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    3,337
    I had a .308 one which sized ok without excessive pressure but projectiles fell out. Finally I micked the expander button .311! Took it back we measured the 5 sets they had in stock and I ended up with a Lee set and some change.
    LOC likes this.

  12. #12
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    3,337
    Quote Originally Posted by LOC View Post
    wondering if anyone can help with this, i went to use a brand new set of hornady 6.5x55 dies and the full length body die was so tight that i had to use some serious force to size the case and then on removal i had to bang down the handle with a lot more force

    that was on a hornady case so then tried a norma case and had the same issue, except this time the removal of the die ended up bending the decapping pin on the way out. in both cases there was some damage to the neck of the case

    the force is required at the last stage of the press, which i think is the shoulder/body sizing stage. has anyone seen this before or could they suggest what the issue might be? i haven't tried the seating die that came with it but assuming that is ok.

    i doubt it is a case lube issue, my dies for other calibres work like they should with the same lube application

    and do i toss it out?

    Attachment 77662
    Silly question but the die is set correctly, the decapping pin base is not hitting the web before the end of the stroke or something?

  13. #13
    LOC
    LOC is offline
    Member LOC's Avatar
    Join Date
    Jun 2015
    Location
    Auckland
    Posts
    942
    yeah not that I could tell, i had it backed quite a long way out. same setup as the rest of the dies i use although i'm pretty inexperienced at knowing what goes on in there

  14. #14
    Member mikee's Avatar
    Join Date
    Aug 2012
    Location
    Nelson, New Zealand
    Posts
    7,187
    Polish the F$%k out of the expander both my Hornady dies had expander balls that were more grippy than slippery
    LOC likes this.

  15. #15
    LOC
    LOC is offline
    Member LOC's Avatar
    Join Date
    Jun 2015
    Location
    Auckland
    Posts
    942
    Quote Originally Posted by mikee View Post
    Polish the F$%k out of the expander both my Hornady dies had expander balls that were more grippy than slippery
    ok can try that. is it possible to straighten the pin or replace it?
