Thread: Factory Rifle Bedding jobs

  1. #1
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183

    Factory Rifle Bedding jobs

    G'Day Fella's,

    I recently had job to replace a Factory trigger with a new Timney replacement.
    This was on a Win Mod 70 Classic Stainless Synthetic (.270Win).
    When I removed the barreled action from the stock, it was obvious, things were not to good!

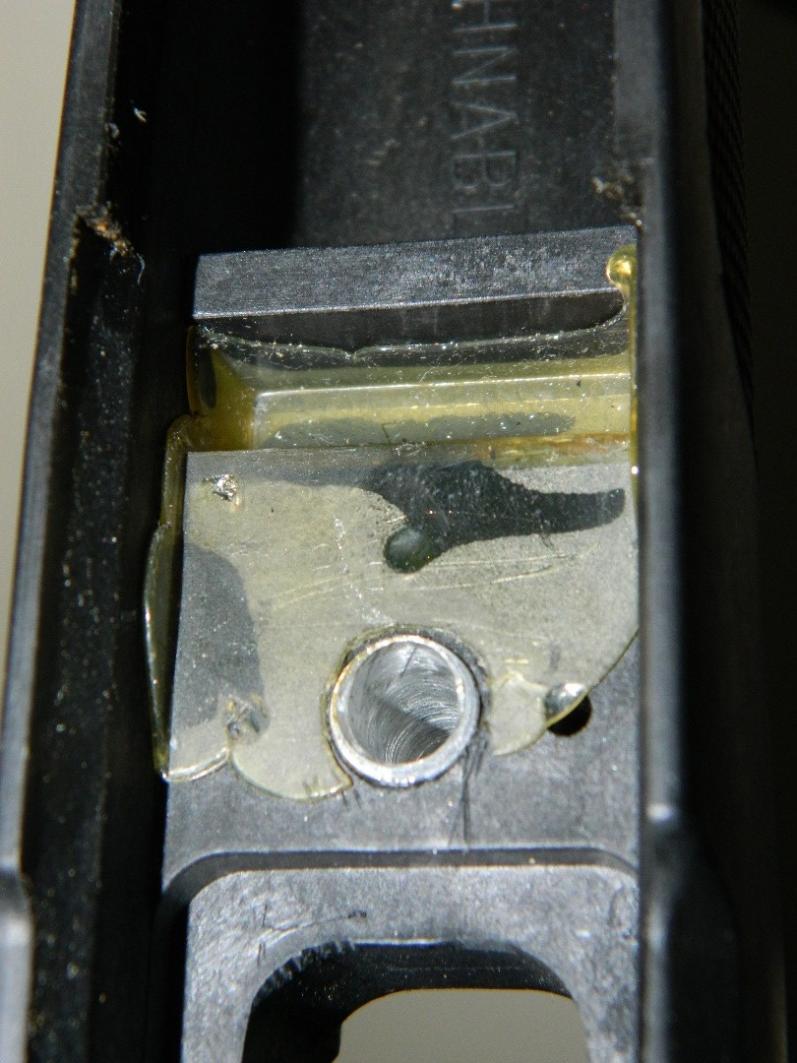

    This last image, is of my own identical rifle (but in 7mm Rem Mag) and with the Factory "Hot Glue Gun" type bedding method.
    The Pillar Bedding job, was my after market effort!
    [ATTACH=CONFIG]1846[/ATTACHED]

    Now, here is how the customers rifle came apart!

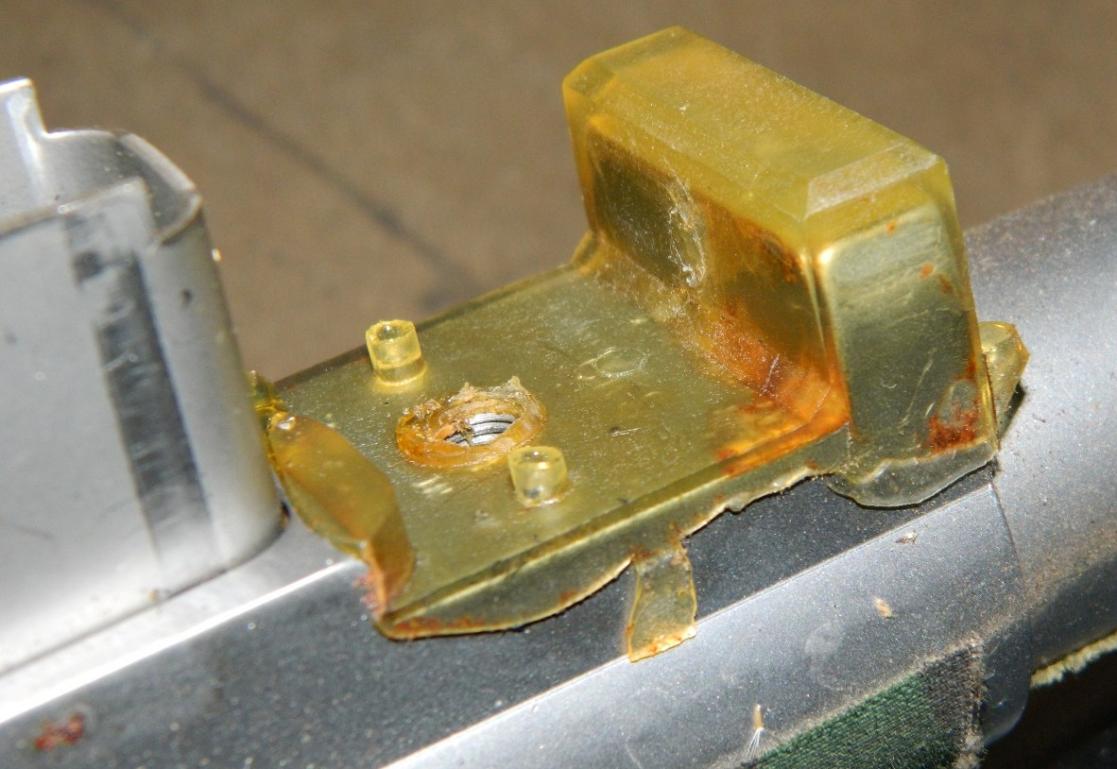

    Name:  How to Bed a Rifle 003.jpg
Views: 4694
Size:  92.5 KB

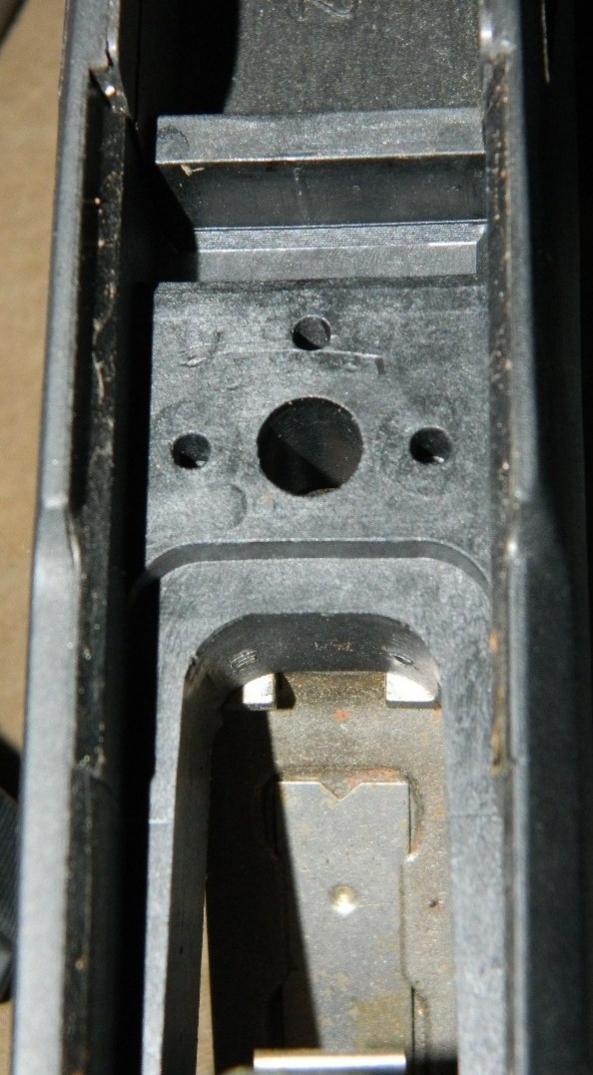

    Name:  How to Bed a Rifle 004.jpg
Views: 2171
Size:  82.0 KB

    As you can see, the Bedding Compound material, came out with the barreled action!
    Also, please note the amount of rust (the red, golden & brown coloured marks) between the bedding material and action and else where!!!

    Stainless Steel Yes, Rust Proof No!!!

    Doh!
    Homer
    Attached Images Attached Images

  2. #2
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    15,664
    Bloody hell! I do note a lot of people who show their bed jobs on here and elsewhere do not clear out the bottom of the recoil bar reccess? I always have as it has no intended bearing surface and found it can effect an otherwise good bedding job.

  3. #3
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day R93,

    Yes that is how you should bed any rifle action where the front action screw, threads into the action body!
    With actions like Mauser, Brno/CZ, older Sako and Howa type centerfire actions, where the front action screw threads into the bottom of the recoil lug.
    The bottom of the recoil lug needs the make full contact, with the bedding at the bottom of the recoil lug recess!

    Given this and the above images, my Win Mod 70 7mm Rem Mag rifle, consistently shoots 1/2" to 5/8" groups!!!
    R93, I wonder how much the rubbery like flexible nature of the Winchester (and Browning) bedding material, has to do with this???

    Doh!
    Homer

  4. #4
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    15,664
    Good point on anchored recoil bars. Not sure on the rubbery stuff. Just typical factory cost cutting IMHO, but if it usually works..........Some old 77 Poo-gurs are a pain to bed.
    I like simple two contact type actions with out having to worry about tang lift etc.

  5. #5
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day R93,
    You and me both, on All counts!!!

    When I get a chance, I will post a photographic "How To" bed a rifle on this forum.
    I have taken most of the images, just need to get a basic plan of approach in place.

    Further to bedding a Win Mod 70's.....
    Whilst I tighten the front and rear screw firmly, I actually place a small amount of Loctite 222 on the threaded portion of the middle screw, then tighten this screw until it is just barely tight, then back it off from 1/4 to 1/2 a turn!
    This keeps every thing in place but stops the middle screw from bending the action and effecting the bedding!
    Works for me!!!

    Doh!
    Homer
    Brennos likes this.

  6. #6
    Member craigc's Avatar
    Join Date
    Dec 2011
    Location
    Upper Hutt
    Posts
    1,517
    Sh*t; I better check mine...

  7. #7
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    5,876
    What has this got to do with a hunting story ?????

  8. #8
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day Fella's,

    Probably nothing KG.........other than the images are of Hunting Rifles.
    The words that accompany The Magazine title says: Stories, Articles and photo essays by members....no mention of it being an exclusive hunting stories area.

    Doh!
    Homer

  9. #9
    Member Normie's Avatar
    Join Date
    Dec 2011
    Location
    Tuakau
    Posts
    724
    It is under the heading of Hunting though. No biggie though. The moderators can move it if they want to.
    If you don't get Dirt, Blood or Grease under your nails it ain't a hobby

  10. #10
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day Fella's,

    Thank you to which ever moderator that relocated this!
    See what you mean Greg and Normie!

    Doh!
    Homer
    Last edited by Homer; 28-05-2012 at 10:47 PM.

  11. #11
    Member
    Join Date
    Apr 2012
    Location
    Gisborne NZ
    Posts
    8
    Ya could have started your thread with "Once upon a time"...........hehehehe
