Unknown thread on a 300 BLK
Not 5/8x24.
Attachment 90361

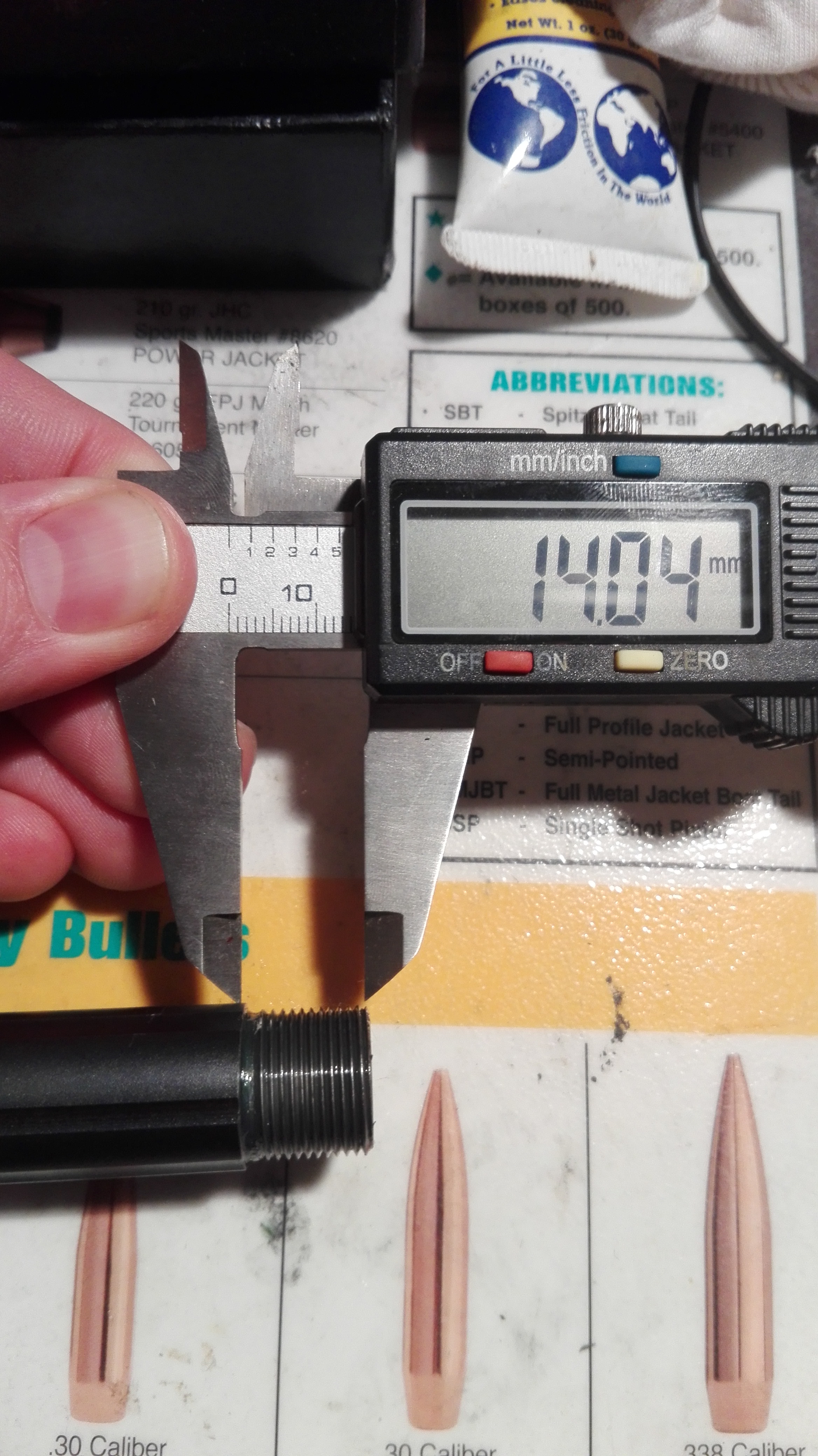

Attachment 90362
Printable View
Unknown thread on a 300 BLK
Not 5/8x24.
Attachment 90361
Attachment 90362
Measure the threads only, peak to peak, or trough to trough, not to the shoulder. Do it over the greatest span of threads you can.
who's the manufacturer ?
oversized 16x1 ?..........
Looking at the photo you'd be looking at a bit over 11mm over a bit over 11 threads which would be more like 1mm pitch. I'd guess as @scotty said above.
Thanks @veitnamcam & @gadgetman
Id find it interesting that the thread has been changed from 5/8-24 to 16x1, both threads are very very similar in diameter and pitch. It could possibly be an over sized 5/8-24. Who threaded it?
Not trying to complicate things but being in the hydraulic Hose game I find an M16 thread is typically .1 - .2mm under size. So smack on 5/8". and the differance between 24tpi and 1mm pitch is about bugger all, 24tpi would be 1.05mm.
So none of this helps explain a thread OD of 16.2mm
