Thread: How low are low optilocks

  1. #1
    Member
    Join Date
    May 2012
    Posts
    2,326

    How low are low optilocks

    I can't seem to sift thru the bullshit on this
    My steel rings on my sako 75 won't allow the zeiss terra 3-9x42
    It's not far off but it contacts the barrel
    The optilocks I like are the ones without the seperate base or one piece type

    Right enough background, how low are low optilocks
    The rings I have are 7mm from the flat of the action to the bottom of the scope tube
    I think I would need probably 9 for an easy fit with enough space

    Anyone able to shed some light?
    Also other ring ideas are fine not just optilocks but it seems like it's either leupold steel or optilocks in nz or full blown Gimp style rail

  2. #2
    Member
    Join Date
    Sep 2014
    Location
    Thames, Coromandel
    Posts
    387
    Rail. All of my sakos have them. Way better imo. 1 Near mfg rail and two waitaki engineering rails. Both work well.

    Sent from my SM-G935F using Tapatalk
    tikka likes this.

  3. #3
    Member
    Join Date
    May 2012
    Posts
    2,326
    @josh86 what cant do you reccomend mate? Mine 308
    It would be cool to have options.
    Part of me feels like it's sticking a roof racks on a Lamborghini but I see the benifits

  4. #4
    Member
    Join Date
    Sep 2014
    Location
    Thames, Coromandel
    Posts
    387
    Sako 85 260. 20moa waitaki

    Sako 75 338 edge. Near 20 moa


    Sako 75 7mm saum. 30moa waitaki


    I like to be able to change scopes with out any hassle. Also found optilok s take away alot of elevation.

    Sent from my SM-G935F using Tapatalk
    veitnamcam, 199p, Bill999 and 1 others like this.

  5. #5
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    19,550
    One piece only come in one size. Got to the Sako website and have a look at the specs

    Gun porn^^^^^^
    Bagheera, BRADS and ChrisW like this.

  6. #6
    Member
    Join Date
    Jan 2018
    Posts
    154

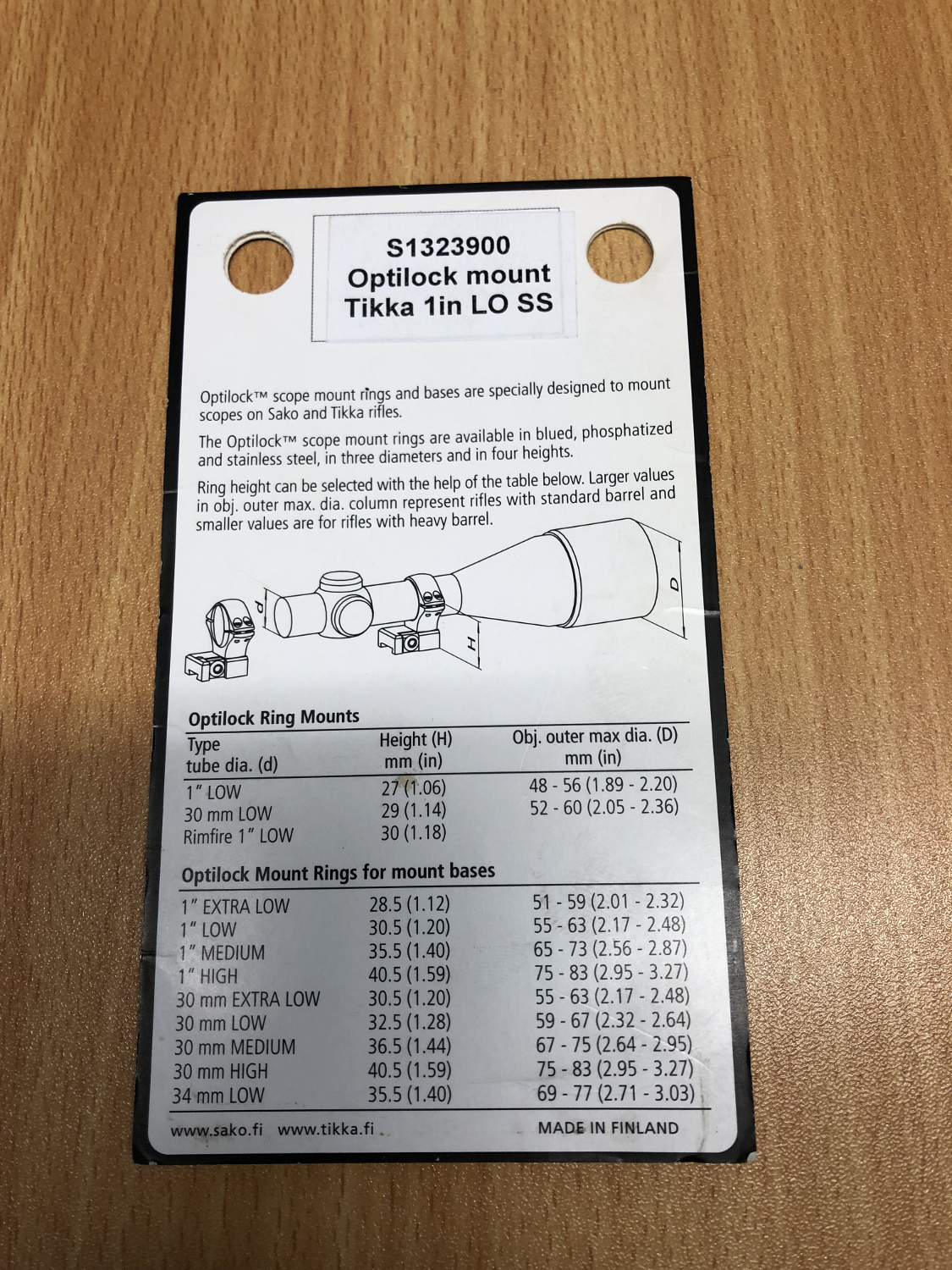

    Gibo is correct, the direct ring mounts only come as low. Image here shows the different sizes of both types.
    Beretta now stocks the Contessa range of rails etc which are very high quality but not cheap.
    You could consider that route if you end up going with a rail as opposed to the ring/base combo.

    Name:  IMG_4923.JPG
Views: 137
Size:  1.40 MB
    199p likes this.

  7. #7
    Member
    Join Date
    May 2012
    Posts
    2,326
    For some reason they measure the rings from the bottom of the part that goes into the v part of the action to the middle of the scope
    Makes no sence to my sick brain

    I just wanna know how much space the lows have between the round bit of the scope and the flat of the action

    O
    _

    I'm not planning a Dial at this stage but chances are eventually the zeiss will come off as it seems like a can't get a turret for that particular model

  8. #8
    Member
    Join Date
    Jun 2012
    Location
    Blenhiem
    Posts
    517
    Sorry can’t help you with the optilock rings but I’m a big fan of running rails and using Near stainless steel rail on my Sako 75, it a really nice bit of kit.

    Richard Near is really good to deal with too. He also makes stainless steel rings too.
    Near Manufacturing

  9. #9
    Member
    Join Date
    May 2012
    Posts
    2,326
    Is there a consensus on the rails to which is better? And do both require drilling and tapping?

  10. #10
    Member
    Join Date
    Jan 2018
    Posts
    154
    No drilling & tapping required with the Contessa Rails.

  11. #11
    Member Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    5,816
    Why bother with a rail, opti lows will be fine with a 42mm objective
    #27GANG

  12. #12
    Member
    Join Date
    May 2012
    Posts
    2,326
    The zeiss seems to have a really short tube which puts the bell right over the Knox chamber part of the barrel
    I'm thinking the unmarked steel rings I have are extra low, they worked fine with a leupold vx1 3-9x40
    That 42mm objective and short tube is the thing

    Anyway how low are low optilocks?

  13. #13
    Ex stick thrower madjon_'s Avatar
    Join Date
    Dec 2011
    Location
    Richmond. Tasman.and Oz
    Posts
    2,520

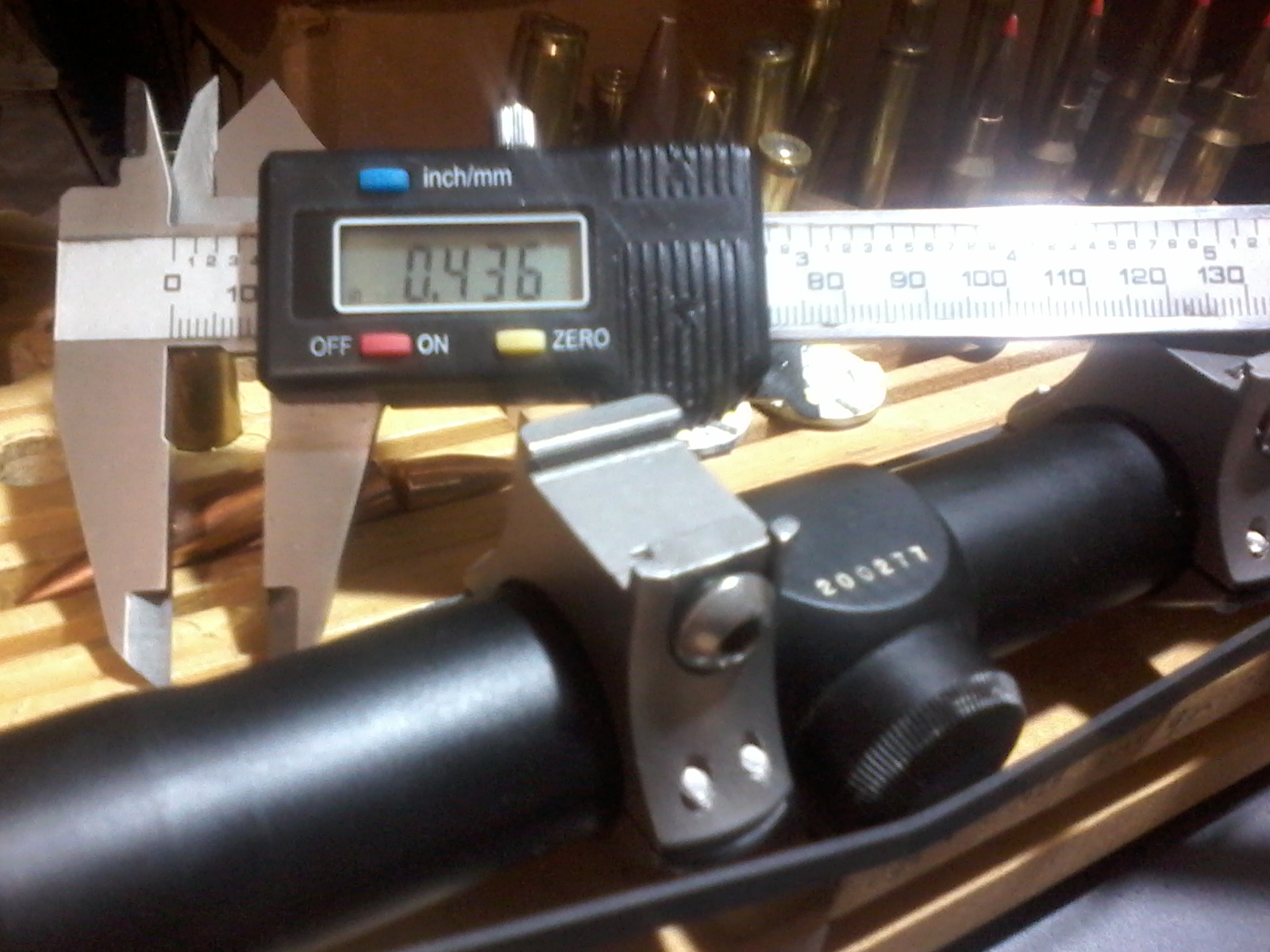

    Name:  1539908367644146064668.jpg
Views: 117
Size:  640.0 KB
    Tikka ss 1"
    Far as I know only one height
    Bill999 likes this.
    Real guns start with the number 3 or bigger and make two holes, one in and one out." -

  14. #14
    Member
    Join Date
    Jan 2012
    Location
    Wallacetown
    Posts
    279
    Quote Originally Posted by Bill999 View Post
    The zeiss seems to have a really short tube which puts the bell right over the Knox chamber part of the barrel
    I'm thinking the unmarked steel rings I have are extra low, they worked fine with a leupold vx1 3-9x40
    That 42mm objective and short tube is the thing

    Anyway how low are low optilocks?

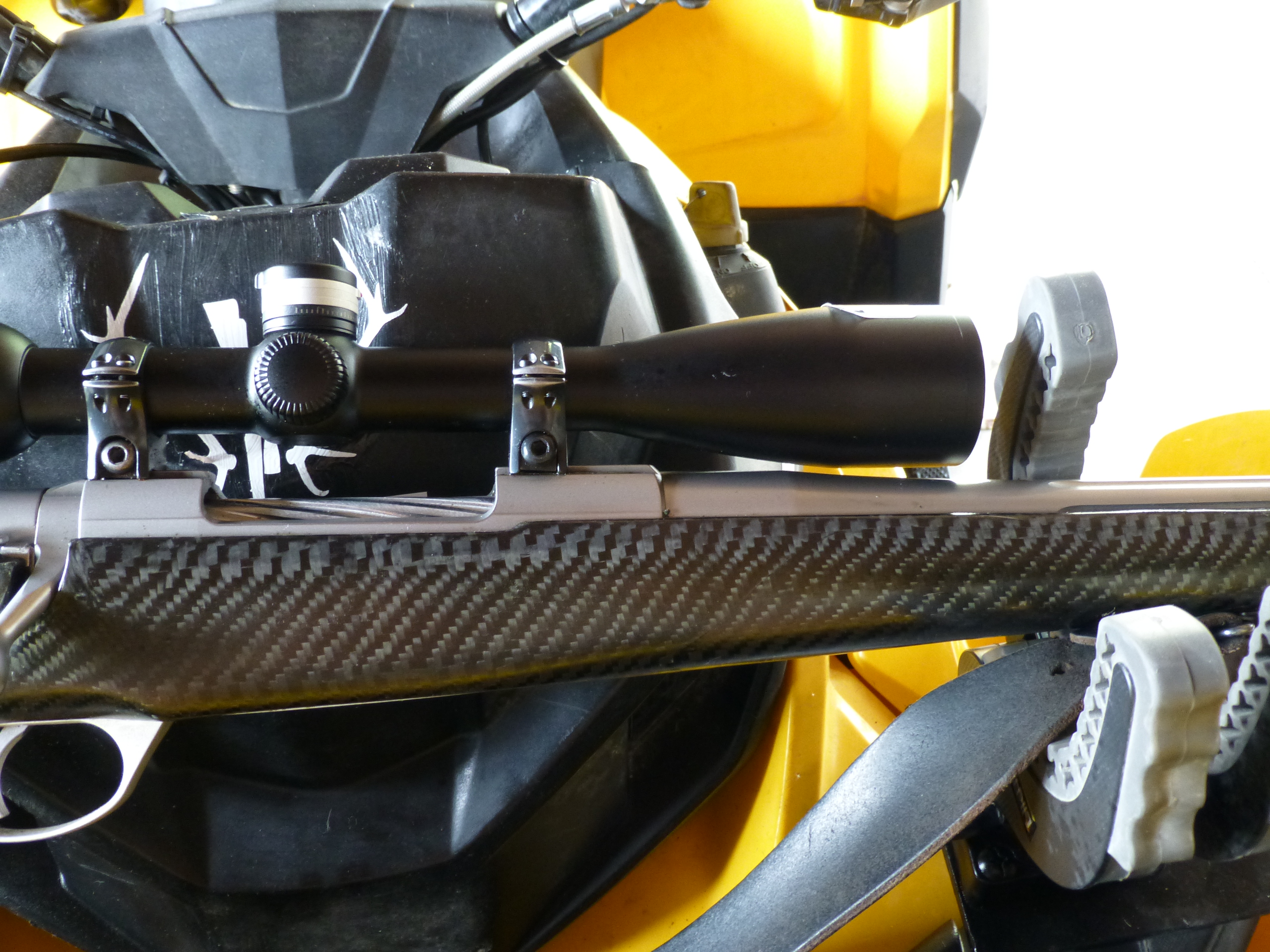

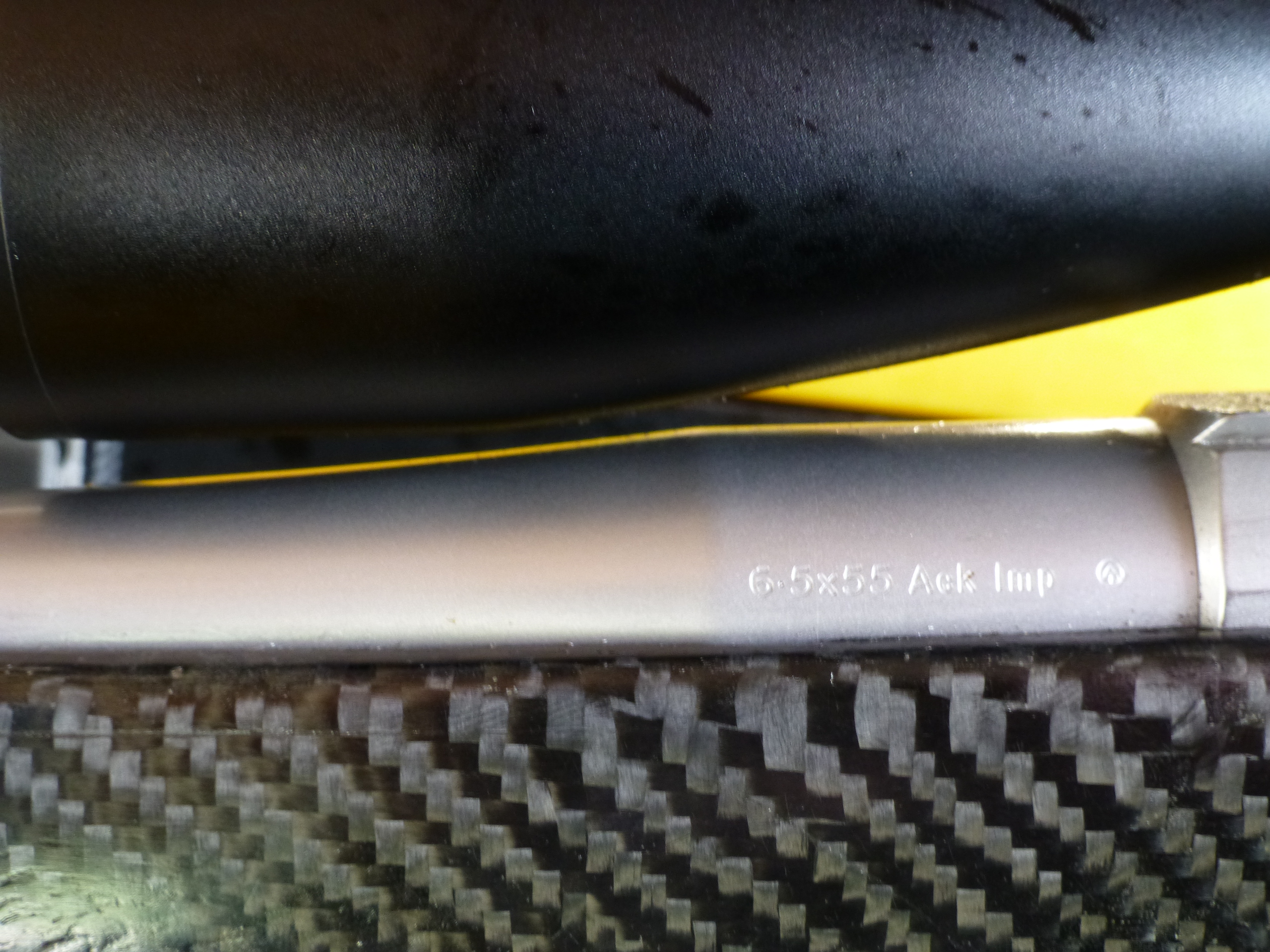

    i use low optilocks on my sako's, and i run z5 3x18x44 on both of them, on my old finnlight 75 i had a zeiss on for a while and it fitted alright,
    if you are looking for some lows i have some here than you can try first and if they work, buy off me, if they don't then send them back..
    Name:  P1020850.JPG
Views: 113
Size:  2.84 MB
    Name:  P1020852.JPG
Views: 117
Size:  2.79 MB
    Bill999 likes this.
    hunty
    6.5x55AI

  15. #15
    Member
    Join Date
    May 2012
    Posts
    2,326
    Those are the numbers I was after
    thanks for the help and the pics
