As the title suggests, I'm after some dimensions so I can knock up something similar for a project. Does anyone have one in the safe they could slap a ruler/calipers on and get me some numbers?
Attachment 41789

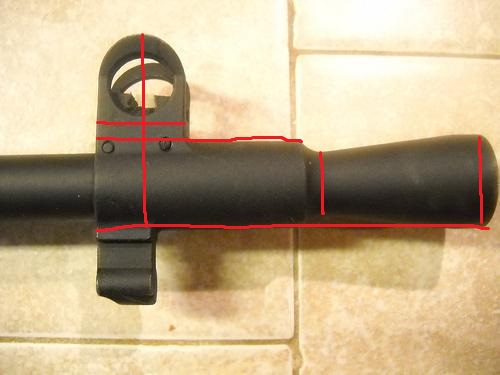

Measurements along the red lines would be ace.
Thanks in advance.
I'll get some for you today.

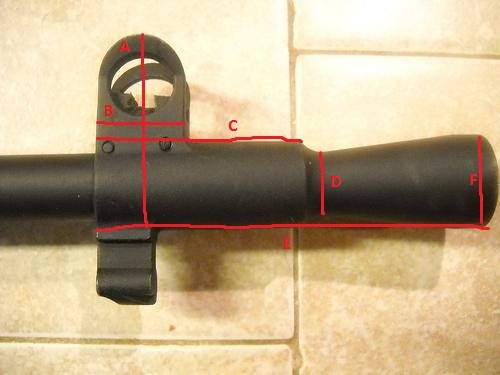

Attachment 41804
A 43.72mm
B 20.68mm
C 44.70mm
D 15.31mm
E 89.58mm
F 22.64mm
Absolute legend @NZShoota, thanks so much for that :thumbsup:
Purchased, thanks for the heads up guys (got a sneaky PM too). Saves me some time in Solidworks :D
Can ya tell us what ya making . [emoji1]
Sent from my GT-I9300 using Tapatalk
Have been taking photos, will make a thread in projects subforum once I'm all done, which will be a lot sooner now :)
