Hey, Anyone know what the size specs are for the set screws used on a VX3i CDS turret? There’s three of them which hold the turret on.
Cheers
Printable View
Hey, Anyone know what the size specs are for the set screws used on a VX3i CDS turret? There’s three of them which hold the turret on.
Cheers
Farken tiny and made of soft cheese :melt:
Yea they suck, stripped one today, I was real lucky to get it back out!!
There must be some better alternatives out there
Email Leupold and they can send you replacements.
Grub screw spec is 4-40, it is 1/4 (0.250) inch long.
You need a 3/64 hex allen key, in a pinch a 1.0mm metric allen key will work as well.
Awesome! Thanks heaps :)
Warning.... I have had two different sized grub screws on different VX3's, had the same with VX6 and VX5 also
Best be confirming with leupold then, thanks for the warning.
Both CDS @Ryan_Songhurst ?Quote:
Originally Posted by Ryan_Songhurst

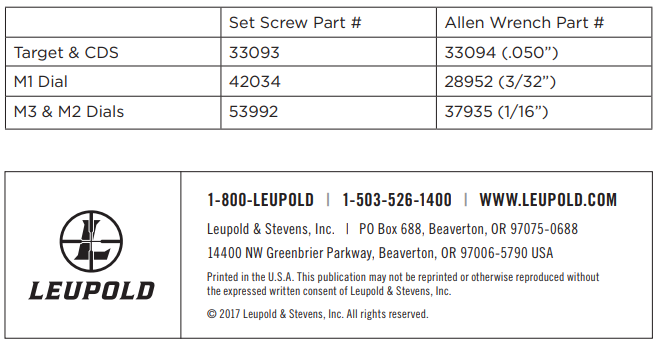

This was from my CDS turret.
Yes
Theres two different sizes, some scopes have one size, some have the other, seemingly at random
My vx6 non hd and vx5 hd have two different sizesQuote:
Originally Posted by Ryan_Songhurst
Sent from my SM-G975F using Tapatalk
If it’s about the Allen key it’s a 0.05” for the vx3i cds.Quote:
Originally Posted by BruntyHunt
They’re much smaller than the ones on the VX5-HD!
