Thread: m14 mounts

  1. #1
    Member Tertle's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch NZ
    Posts
    798

    m14 mounts

    Hey team,

    bought a scope mount for my M14 some time ago, finally got around to mounting it.

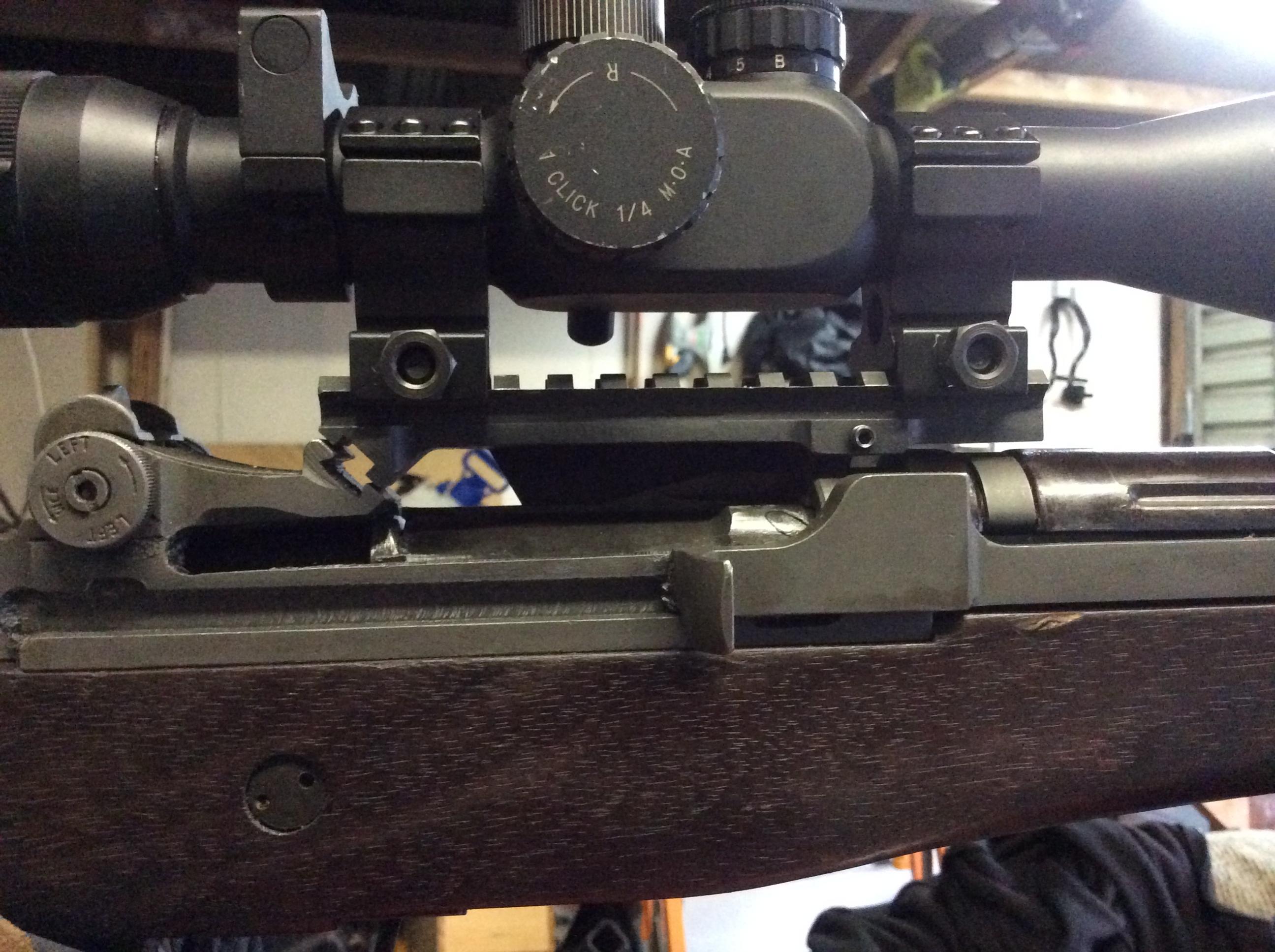

    Lines up reasonably ok but there is a slight issue. The elevation is "considerable". when i took it apart to investigate i think I've found the issue, the rear point of contact, where you drift out the stripper clip feeder, is off and when you put it together it pulls it considerably out off line, hopefully the photo below gives an idea.

    ANY sensible ideas.....

    was thinking of making a shim at the rear, somehow tapping into the rear aspect of where the stripper clip was and then screw through and into the shim????? OR do i epoxy it in somehow???

    Name:  IMG_0606.jpg
Views: 363
Size:  498.1 KB

  2. #2
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    4,392
    How is the front connected? Obviously there needs to be some tension/slight misalignment at the rear in order to hold the mount firmly. But that does look like too much.

  3. #3
    Member Tertle's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch NZ
    Posts
    798
    Quote Originally Posted by MSL View Post
    How is the front connected? Obviously there needs to be some tension/slight misalignment at the rear in order to hold the mount firmly. But that does look like too much.
    The front has a grub screw that makes contact with the front of the receiver, it almost is just there to only just touch so as to give support under recoil.

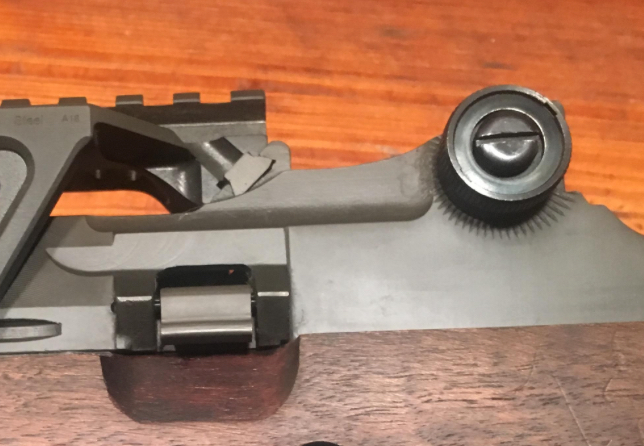

    the rear has a small wedge that fits into where the stripper clip is feed into, then the rear of the mount screws into that, sort of like in the attached image, however, in order to get the rear of the sight in place it cantilevers the mount "a lot" upwards
    Attached Images Attached Images

  4. #4
    Ejected
    Join Date
    Dec 2011
    Location
    Shaky City
    Posts
    1,446
    I had this exact same problem when I had my m14. My best advice is to buy some burris signature z rings and the offset insert it and try and compensate for the misalignment that way. I suspect the Chinese receivers have the stripper clip mount in a different place to the us receivers.

    I still have a rubber but pad and 7 round mag left over from owning my m14 if you are interested.

  5. #5
    Member Tertle's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch NZ
    Posts
    798
    Quote Originally Posted by MassiveAttack View Post
    I had this exact same problem when I had my m14. My best advice is to buy some burris signature z rings and the offset insert it and try and compensate for the misalignment that way. I suspect the Chinese receivers have the stripper clip mount in a different place to the us receivers.

    I still have a rubber but pad and 7 round mag left over from owning my m14 if you are interested.
    was considering M14.CA | M14/M1A CASM Scope Mount

    Had a set of Burris Z rings for my NRA FTR rifle but in different diameter....bugger it all! will try and shim the rear to force the front down but think I'm fighting a loosing battle!!!!

    Rubber butt pad hmmmm could be interested!

  6. #6
    Member Steve123's Avatar
    Join Date
    Jan 2015
    Location
    Rotorua
    Posts
    2,702
    More practice with iron sights? I gave up on aftermarket SKS mounts. If it's a Norinco M305 you'll probably have the same problems

    Sent from my SM-G388F using Tapatalk

  7. #7
    Ejected
    Join Date
    Dec 2011
    Location
    Shaky City
    Posts
    1,446
    Quote Originally Posted by Tertle View Post
    was considering M14.CA | M14/M1A CASM Scope Mount

    Had a set of Burris Z rings for my NRA FTR rifle but in different diameter....bugger it all! will try and shim the rear to force the front down but think I'm fighting a loosing battle!!!!

    Rubber butt pad hmmmm could be interested!
    You also need the offset insert kit. I have the kit and maybe a spare set of rings (1 inch) if you want try it out to see if it has enough adjustment to fix it before going out and buying anything. I am in Rolleston so PM if you are keen.

  8. #8
    Member p0stal b0b's Avatar
    Join Date
    Apr 2016
    Location
    Auckland
    Posts
    25
    Quote Originally Posted by Tertle View Post
    I had one of these on my M-305, & I can say they are absolutely top quality. Really nicely finished, & totally in-spec, with good tolerances. They are made in Canada, and actually designed primarily for the M-305 rather than the M-14, so they fit the Chinese receivers perfectly.
    Tertle likes this.

  9. #9
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    362
    Yeah still on my wishlist, will get one when funds permit. Wonder if it's cheaper to get it sent to a mate in the sates and then get him to send it to me?

  10. #10
    Member Tertle's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch NZ
    Posts
    798
    Thank you, thats exactly the info i needed!!!!

    Quote Originally Posted by p0stal b0b View Post
    I had one of these on my M-305, & I can say they are absolutely top quality. Really nicely finished, & totally in-spec, with good tolerances. They are made in Canada, and actually designed primarily for the M-305 rather than the M-14, so they fit the Chinese receivers perfectly.

  11. #11
    Ejected
    Join Date
    Dec 2011
    Location
    Shaky City
    Posts
    1,446
    Quote Originally Posted by AzumitH View Post
    Yeah still on my wishlist, will get one when funds permit. Wonder if it's cheaper to get it sent to a mate in the sates and then get him to send it to me?
    Exporting out of the US is much much harder than exporting out of Canada.

  12. #12
    Member p0stal b0b's Avatar
    Join Date
    Apr 2016
    Location
    Auckland
    Posts
    25
    Quote Originally Posted by MassiveAttack View Post
    Exporting out of the US is much much harder than exporting out of Canada.
    ^What MassiveAttack said. That's one of the reasons I first went looking for mounts from non-US websites.

  13. #13
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    362
    Yeah good point, guess I'll just have to choke down that shipping cost lol

  14. #14
    Member Snowgrass's Avatar
    Join Date
    Mar 2012
    Location
    Mosgiel
    Posts
    397
    Quote Originally Posted by AzumitH View Post
    Yeah good point, guess I'll just have to choke down that shipping cost lol
    What do they cost in NZD? I'm going to get one down the line but could split the freight with you if you're getting one soon. Save us both a little bit anyway.

  15. #15
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    362
    They actually seem to be a lot cheaper now, last time I checked the shipping was over $60NZD. At the moment it looks like you'd get one here for $180NZD all up which is a steal. Two in one order doesn't increase the shipping cost which is nice, but for what you'd save it's probably not worth it by the time one of us ships the other mount to the other guy lol
