Thread: not enough elevation in scope

  1. #31
    Member
    Join Date
    Sep 2014
    Location
    Dunedin
    Posts
    1,407
    Quote Originally Posted by zimmer View Post
    Will still need a picatinny rail if using Zee rings (I love Zee rings). Or Weaver 2 piece bases.

    I'm still concerned we are missing something here with this problem but I'm struggling to suggest anything different.

    Maybe a faulty scope. Was it brand new?
    Could rotate it 45 degrees anti clockwise and see if problem is the same. Windage becomes elevation.
    If access to a collimator check scope has full range of adjustment available windage and elevation. Start by optically zeroing the reticle.
    How much elevation adjustment was there left on the old scope when it was zeroed at 100 metres?

    OP shouldn't have to fit a 20 MOA rail/bushed rings/coke tin packers to get a centre hit at 100 metres. Despite the scope having limited internal elevation in its design.
    Not sure it'd necessarily need to be a full length rail, if you got a couple of rem 700 two piece bases that were the right distance apart, the zee rings ought to work, from memory the 10moa increments are afforded by a 5" spacing between rings, but slightly more or less will still mean you get elevation in whichever way you want. They are nice soft polymer after all, not going to hurt the scope by clamping down on slightly incorrect inserts.

  2. #32
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    285
    have bought some zero lok nikko rings and the difference is .5mm in height between them and the talleys.using my laser bore sighter i can now get it more or less zeroed with more adjustment to go . will hit the range in friday and have a play
    Trout and zimmer like this.

  3. #33
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Quote Originally Posted by sig4x4 View Post
    have bought some zero lok nikko rings and the difference is .5mm in height between them and the talleys.using my laser bore sighter i can now get it more or less zeroed with more adjustment to go . will hit the range in friday and have a play
    @sig4x4 Could you please post a closeup picture of your new setup.

  4. #34
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    285

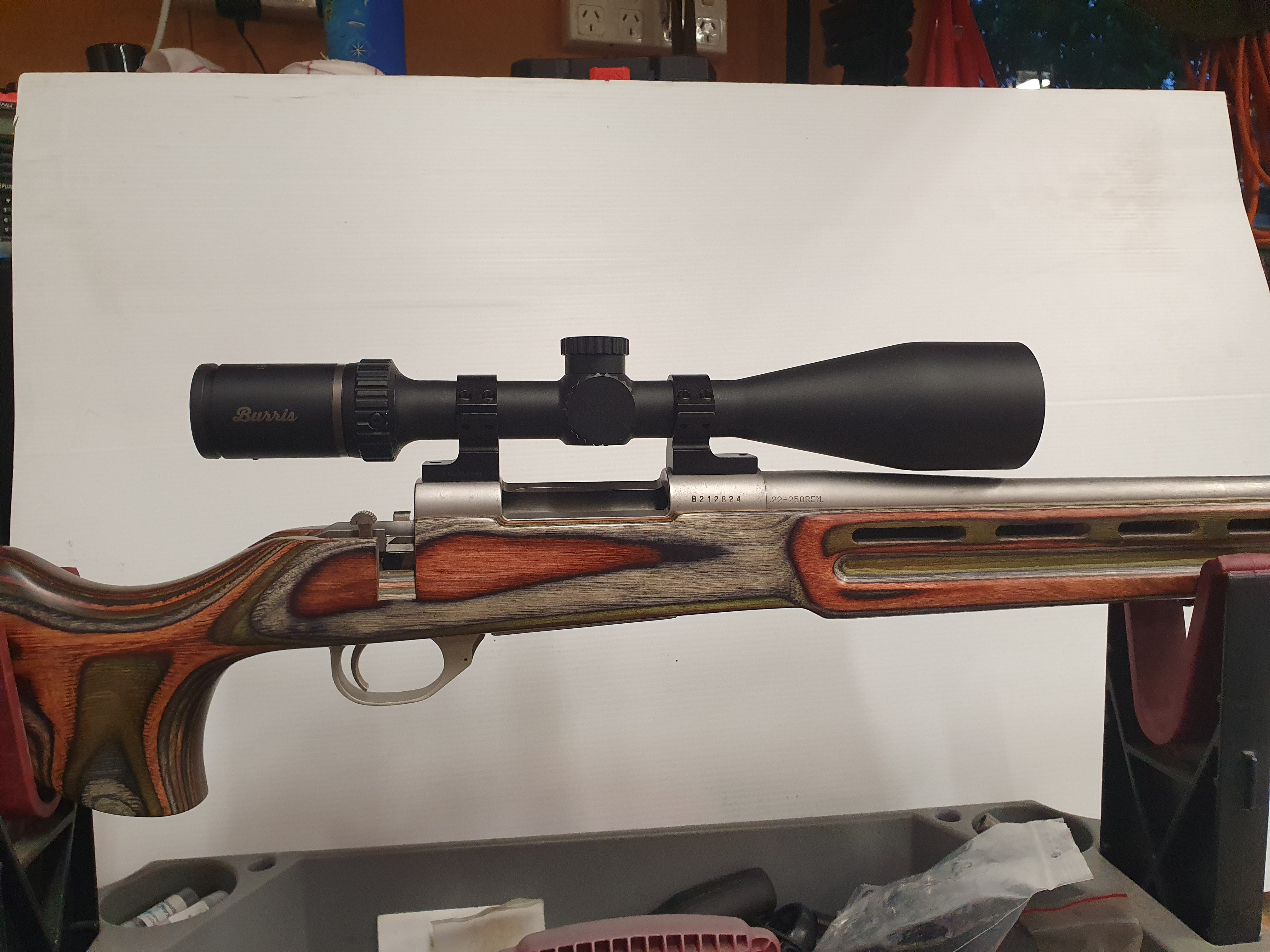

    Name:  20220125_204934.jpg
Views: 421
Size:  3.25 MB before and after . not a great noticeable difference until you bore site with laser then the difference is apparent. one bonus nikkos are medium height so a bit lower profile overall

  5. #35
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    285

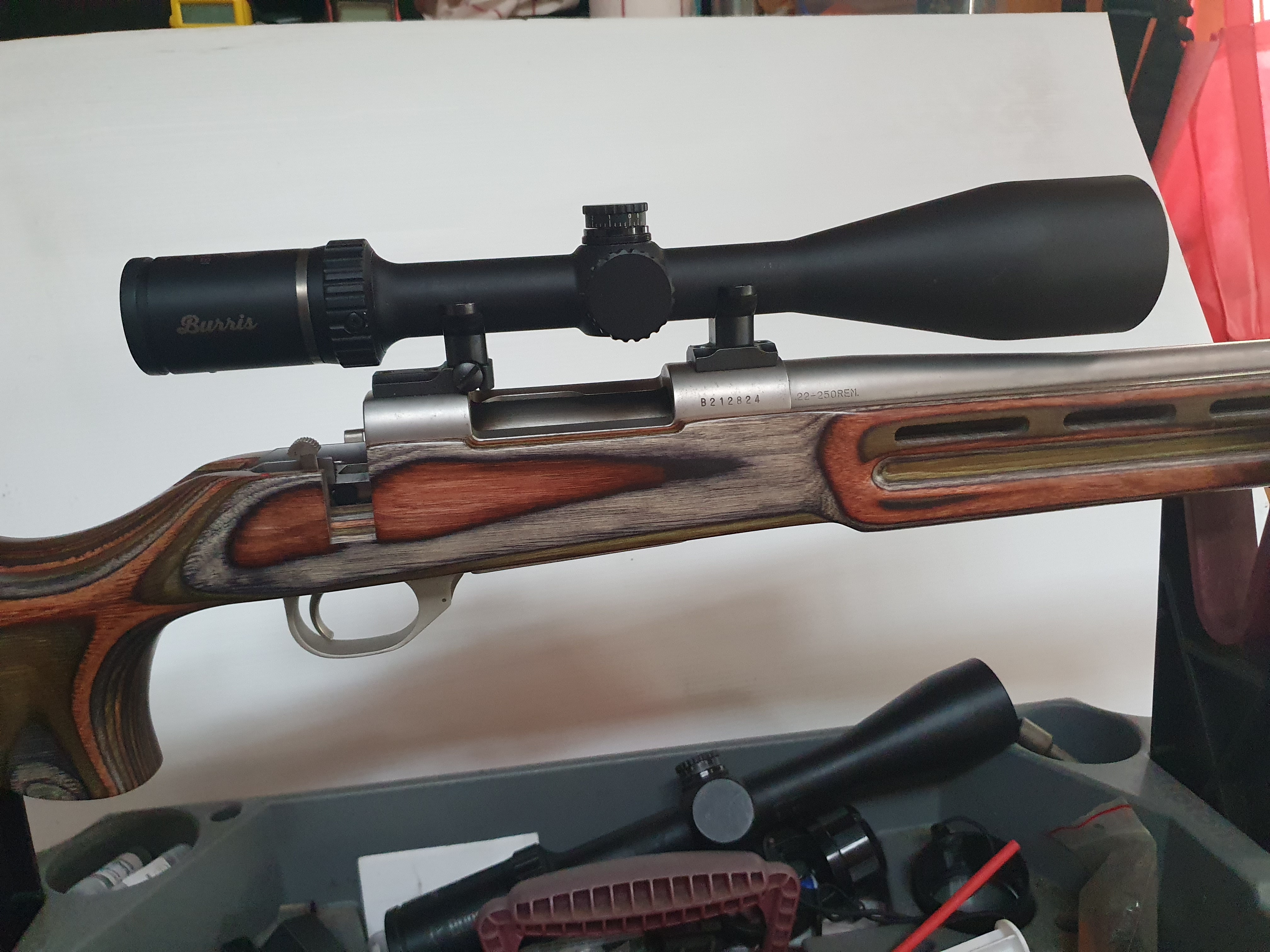

    Name:  20220124_201638.jpg
Views: 413
Size:  3.09 MB

  6. #36
    Member
    Join Date
    Aug 2016
    Location
    Manuwatu
    Posts
    750
    wonder if the old set up was canted the wrong way.

  7. #37
    Member
    Join Date
    Apr 2019
    Location
    Wanganui
    Posts
    3,280
    which photos the talleys? the top one that look like talleys?

  8. #38
    Member
    Join Date
    Nov 2016
    Location
    South Island
    Posts
    1,192
    Leave the higher profile mount at the back and put the old lower one at the front. This should lift your POI.

  9. #39
    A Better Lover Than A Shooter Ultimitsu's Avatar
    Join Date
    Dec 2015
    Location
    Less than 130 km from the sea
    Posts
    643
    Quote Originally Posted by Tahr View Post
    They only have 30 MOA of elevation which is the least I have ever heard of so that might be your problem. Once mounted you will have less than 15 minutes each way (up and down).

    https://www.burrisoptics.com/scopes/...pe-6.5-20x50mm
    Mind boggling. This is 2022. Others scopes regularly have ~80 MOA of adjustment.

  10. #40
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Quote Originally Posted by Ultimitsu View Post
    Mind boggling. This is 2022. Others scopes regularly have ~80 MOA of adjustment.
    Yeah Burris has always been a bit piss poor in that respect. The 3-9 the OP removed had 50 MOA.

    I have an old 6-24 Black Diamond rated at IIRC 39 MOA.
    I mounted mine on an Omark. I zeroed OK at 100 yds but didn't have much adjustment left so fitted a 20 MOA rail and used Zee rings for further improvement.
    I have no trouble now getting to 900 yards.

  11. #41
    Numzane Spudattack's Avatar
    Join Date
    Aug 2012
    Location
    Tauranga
    Posts
    2,990
    Quote Originally Posted by Allizdog View Post
    Leave the higher profile mount at the back and put the old lower one at the front. This should lift your POI.
    As long as you lap them (otherwise this will damage the scope), this would be a solution.


    Sent from my iPhone using Tapatalk
    zimmer, Moa Hunter and Finnwolf like this.
    "Here's the deal I'm the best there is. Plain and simple. I wake up in the morning and I piss excellence."

  12. #42
    Member Hermitage's Avatar
    Join Date
    Nov 2020
    Location
    Whakatane
    Posts
    979
    Quote Originally Posted by Tahr View Post
    They only have 30 MOA of elevation which is the least I have ever heard of so that might be your problem. Once mounted you will have less than 15 minutes each way (up and down). You might need to shim your mounts. Cut a coke tin into shims.
    [/url]
    Even worse than the Burris is the older Bushnell Elite 4200 in 3-9x40, 4-16x50, 6-24x - they only have 26 MOA of total elevation adjustment (13 up or down from mechanical center). So it would not be the scope to buy if you have any thoughts of long range shooting. I had mine (4-16x) mounted in Burris Signatures with +/- inserts.

    Bushnell Elite 4500 series (basically a re-furbish of the 4200) has 40 MOA of elevation adjustment. While for about the same money second hand, you could get a Bushnell 3200 5-15x40mm Tactical Mildot, and get 46 MOA of adjustment.
    A good job and a good wife has been the ruin of many a good hunter.

  13. #43
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    285
    Quote Originally Posted by Kelton View Post
    which photos the talleys? the top one that look like talleys?
    top photo is zero lok. talleys are 2.5mm diff front to back nikkos 2.0mm front to back. different action bolt pattern front o back as well so cant interchange

  14. #44
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,842
    @sig4x4 Whatever the reason (and you now have a zillion probabilities), please report here what the problem was when you do get it sorted.
    Micky Duck likes this.

  15. #45
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    285
    zero loks have sorted my issue ,and still have more adjustment to play with if needed
    Tahr likes this.
