Thread: Options for a swivel screw into a Synthetic stock?

  1. #1
    Member
    Join Date
    Mar 2016
    Location
    West Auckland
    Posts
    76

    Options for a swivel screw into a Synthetic stock?

    so i bought my first .243 in Jan which yes it was a budget rifle (Mossberg ATR100) as i wanted to make sure i get out and use it a lot before buying a rifle +$1k...
    anyhow the first time using it my FIL attached a bipod to sight it in, after approx 5 rounds through it the front little attachment where the bipod was on / where you put a sling ripped half off as it
    didnt like the recoil. now i want to attached a bipod & /or sling on it i cant trust the other half which is still attached so need to find a solution.
    i went into Gun City and asked for their opinion and my solution at the time was using an "uncle mikes" swivel wood screw as below pic but they said it wouldnt be good and i should just buy a new stock!

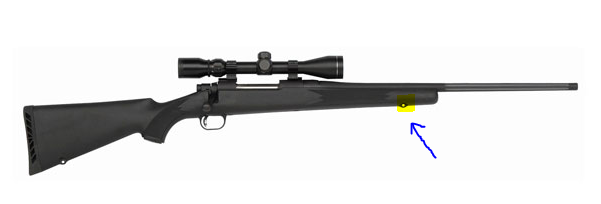

    obviously i dont want to buy a new stock, so any thoughts on another solutions or would the wood screw swivel be okay?Name:  ATR100.PNG
Views: 215
Size:  34.9 KBName:  swivel.PNG
Views: 208
Size:  30.6 KB

  2. #2
    Member Timmay's Avatar
    Join Date
    Dec 2011
    Location
    CNI
    Posts
    2,411
    2 pot epoxy glue it in?

  3. #3
    Member stug's Avatar
    Join Date
    May 2012
    Location
    Oxford, Canterbury
    Posts
    3,659
    Uncle mikes do a 3/4" machine screw, has a nut on the end. That would be the best bet. You would probably need to reinforce the inside of the stock somehow. A metal plate to spread the load would be good, if it is possible.

    Name:  machine screw.jpg
Views: 369
Size:  4.4 KB
    nevereadyfreddy and ROKTOY like this.

  4. #4
    Member
    Join Date
    Jan 2013
    Location
    Whangarei
    Posts
    547
    As stub says , I have fitted a few to plastic stocks, a washer bent to fit in the stock helps to spread the stress, you may need to shorten the bolt but should be no problem.

  5. #5
    Member
    Join Date
    Mar 2016
    Location
    West Auckland
    Posts
    76
    awesome thanks guys, ill get it a go this weekend
    sometimes likes this.

  6. #6
    Member
    Join Date
    Dec 2011
    Location
    Dunedin
    Posts
    164
    Blob of knead it epoxy putty inside of stock.

  7. #7
    Member
    Join Date
    Mar 2016
    Location
    West Auckland
    Posts
    76
    Quote Originally Posted by stug View Post
    Uncle mikes do a 3/4" machine screw, has a nut on the end. That would be the best bet. You would probably need to reinforce the inside of the stock somehow. A metal plate to spread the load would be good, if it is possible.

    Attachment 53622
    got a set of these and they worked perfectly ! thanks mate

  8. #8
    Member
    Join Date
    Jun 2012
    Location
    lower hutt
    Posts
    1,040
    Quote Originally Posted by stug View Post
    Uncle mikes do a 3/4" machine screw, has a nut on the end. That would be the best bet. You would probably need to reinforce the inside of the stock somehow. A metal plate to spread the load would be good, if it is possible.

    Attachment 53622
    i have done this a few times, its the best way. dab of loctite on the nut with as mentioned a large washer etc ( think its a nylock anyway..but)
    #BallisticFists

  9. #9
    Member ROKTOY's Avatar
    Join Date
    Jul 2016
    Location
    Nelson
    Posts
    1,476
    Quote Originally Posted by stug View Post
    Uncle mikes do a 3/4" machine screw, has a nut on the end. That would be the best bet. You would probably need to reinforce the inside of the stock somehow. A metal plate to spread the load would be good, if it is possible.

    Attachment 53622
    I have done this on two plastic stocks, working well so far. A dab of Loctite just to be sure
