Parker hale rings

Printable View

25-10-2019, 03:20 PM
Marty Henry

Parker hale rings

Looking for a set of parker hale rals3 rings for a period correct restoration, already have the bases so far anyone has some let me know please.
25-10-2019, 04:22 PM
Woody

Whats rals3? I have a set of 1" I think, somewhere.
25-10-2019, 05:45 PM
Marty Henry

I've seen a set that had that stamped on them. They have that round stud in the middle to lock into the cavity in the bases.
25-10-2019, 05:53 PM
DavidGunn

1 Attachment(s)

I have no idea what rals3 is but these rings came off a Parker Hale I bought many years ago...as you can see they have the total neglect of years of living in a box of junk...somewhere I have probably got the scope that came with them...the three boxes of ammo that came with the rifle were priced in pounds/shillings/pence
Attachment 122757
25-10-2019, 06:05 PM
DavidGunn

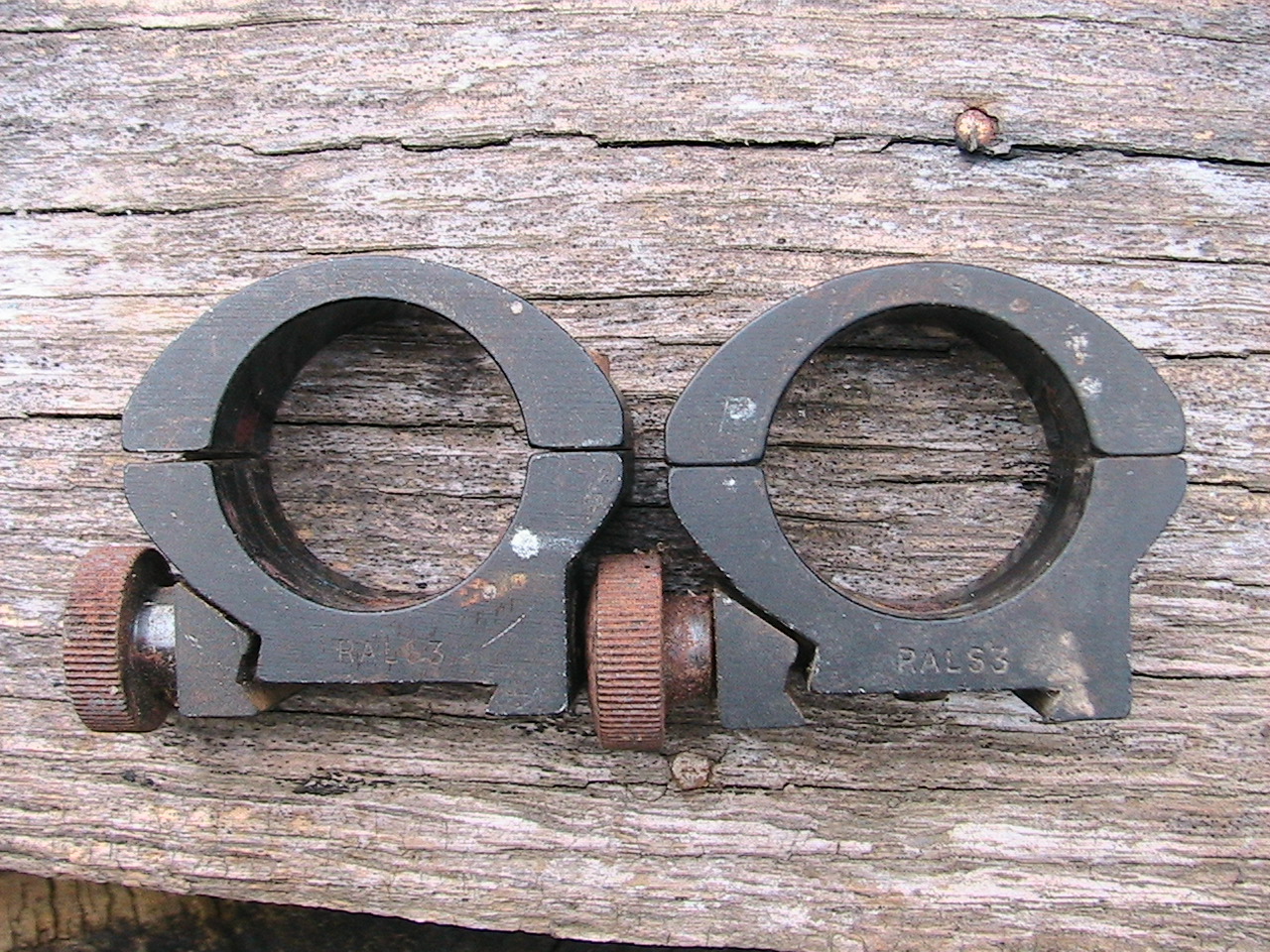

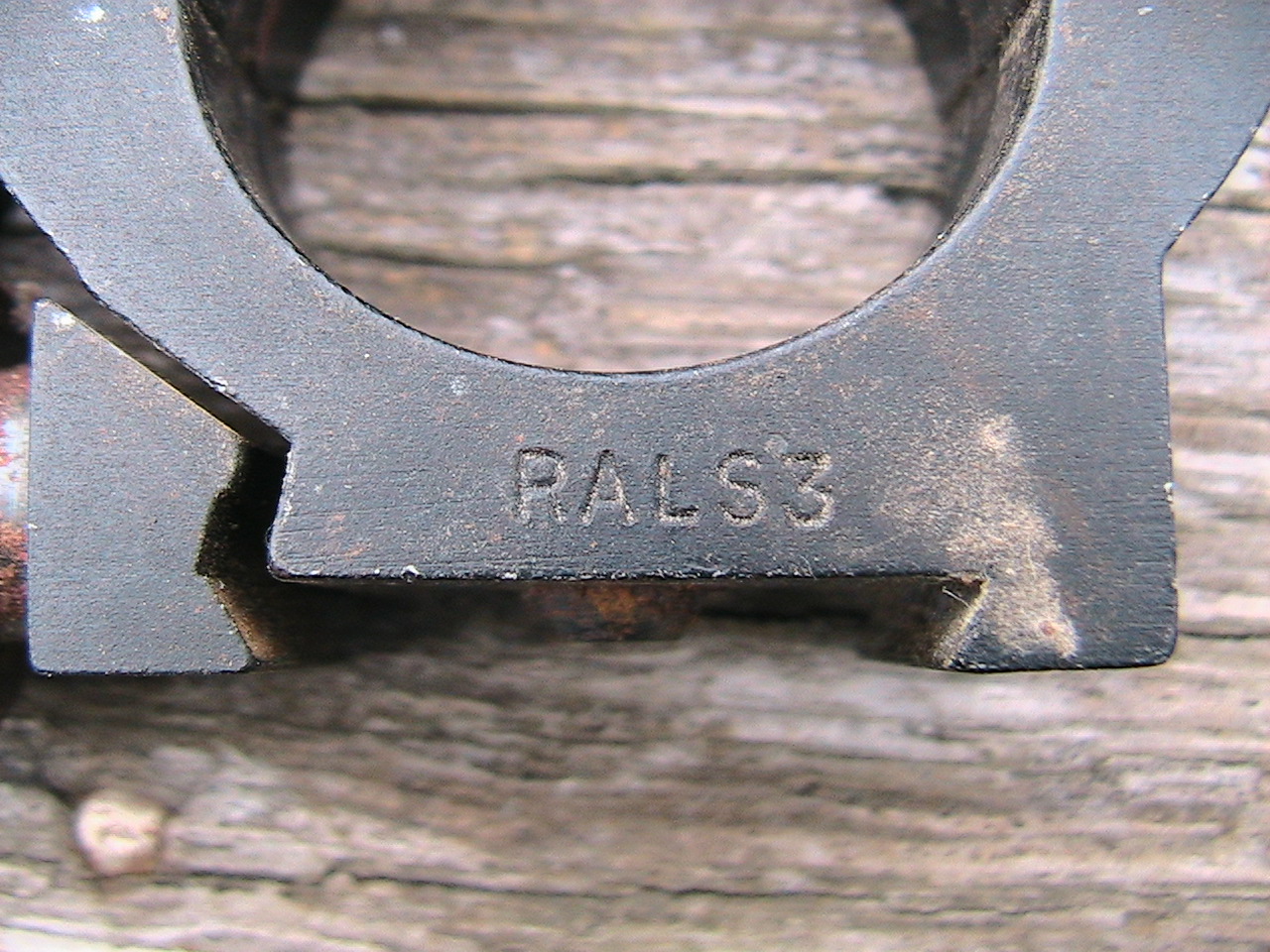

I now know what rals 3 is...I have a set...will put up photo just as soon as computer allows me too...stupid machine.
25-10-2019, 06:07 PM
DavidGunn

2 Attachment(s)

Attachment 122758
Attachment 122759
25-10-2019, 06:49 PM
Woody

Found my set. Theyre in reasonsbly good nick but stamped RALS 4. They apoear to be black coated aluminium.
25-10-2019, 07:04 PM
Ryan_Songhurst

1 Attachment(s)

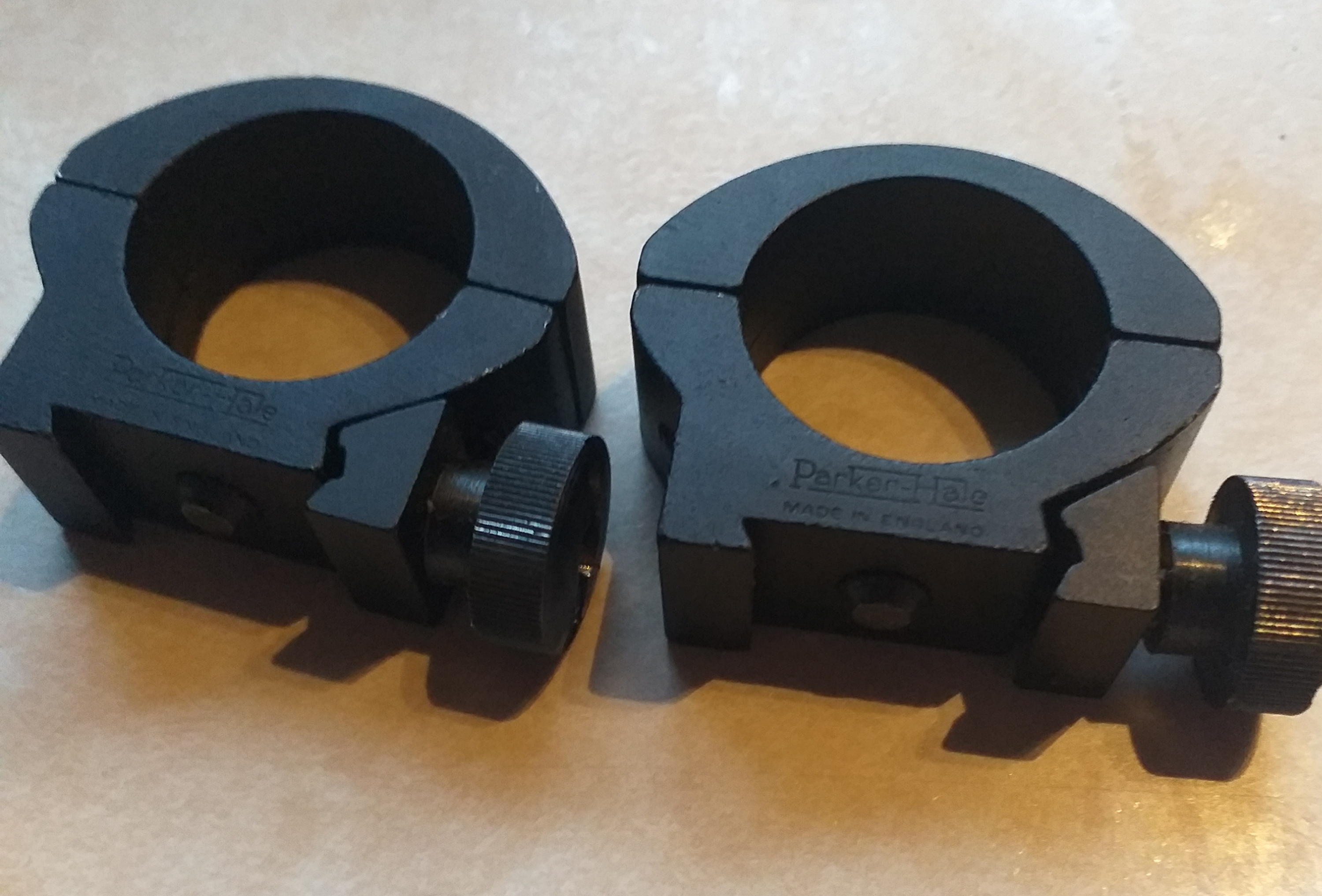

PM me your address if these suit?
Attachment 122785
25-10-2019, 07:43 PM
tetawa

Quote:

Originally Posted by Woody

Found my set. Theyre in reasonsbly good nick but stamped RALS 4. They apoear to be black coated aluminium.

Think that RALS4 is low 26mm.
25-10-2019, 08:04 PM
Ryan_Songhurst

1 Attachment(s)

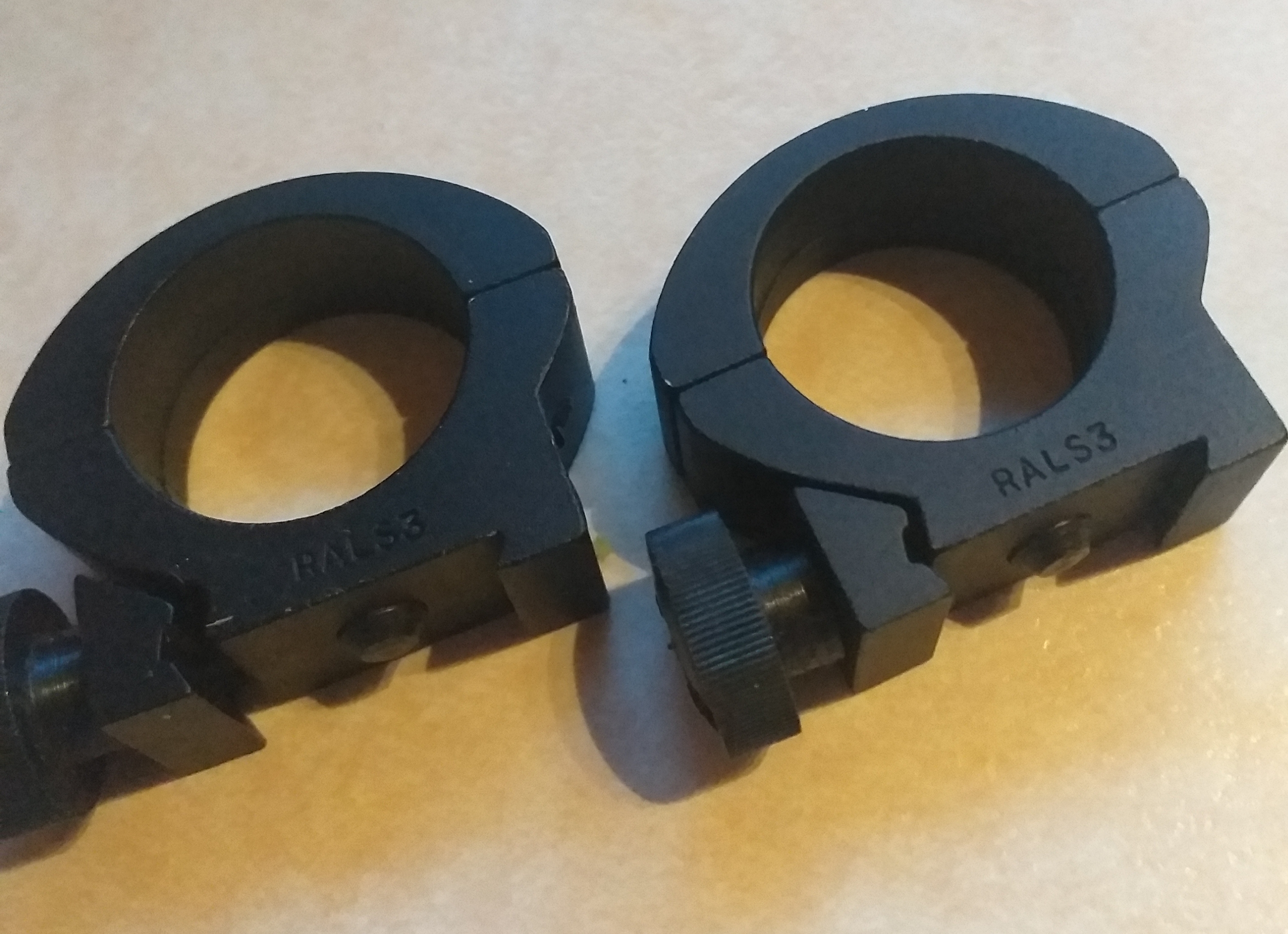

Just saw the RALS3 bit, the ones I have are those. Yours if you want them :)
Attachment 122787
25-10-2019, 08:32 PM
Woody

Quote:

Originally Posted by tetawa

Think that RALS4 is low 26mm.

Thats certainly possible. They were on an old rifle I bought a few years back; no scope on it, just rings and bases. However, when I retrieved them from storage tonight a thin shim came loose from inside one of the rings, so they very well may be 26mm as you suggest. ( I removed those rings and bases from the rifke at the time andcrepkacwd them eith steel weaver bases and rings for a leupold VXR illum tmr 3-9*40 scope.
26-10-2019, 12:51 AM
diana2

The RAL S3 is 24mm (.94") in diameter.
The RAL S4 is 25.5mm (1.00") in diameter
26-10-2019, 06:46 AM
tetawa

Quote:

Originally Posted by diana2

The RAL S3 is 24mm (.94") in diameter.
The RAL S4 is 25.5mm (1.00") in diameter

The RAL S3 is low 1". The RAL S4 is low 26mm. The RAH S3 is high 1". The RAH S4 is high 26mm. There is also a 7/8" models but don't know the codes.
26-10-2019, 07:56 AM
Marty Henry

Thanks everyone @Ryan_Songhurest has sorted it for me.
26-10-2019, 07:57 AM
Marty Henry

Thanks for that info @tetawa, i will file it away for later
