Thread: Rifle Thread

  1. #1
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Manawatu
    Posts
    590

    Rifle Thread

    Hey all,

    Sorry this is far out of my knowledge, this guy is selling a suppressor on trademe:

    https://www.trademe.co.nz/sports/hun...67af257953cf77

    He doesn't know what the thread type is, can any of your keen eyes tell?

    Thanks for your help!

    Edit: Thought I should mention I'm asking because I'm after a suppressor for my .308

  2. #2
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    548
    Pitch seems to be 24 threads per inch, so my guess is either 1/2x24 (standard on .22LR, and my old gunworks .308 suppressor) or 3/8x24 (standard on .308 AR10's etc).
    Get a photo taken of the crown of the barrel to determine which it is.
    Sako851 likes this.

  3. #3
    Member Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    6,531
    Quote Originally Posted by quentin View Post
    Pitch seems to be 24 threads per inch, so my guess is either 1/2x24 (standard on .22LR, and my old gunworks .308 suppressor) or 3/8x24 (standard on .308 AR10's etc).
    Get a photo taken of the crown of the barrel to determine which it is.
    looks like 1/2x20 to me, have never heard of 1/2x24 being standard 22lr thread, 1/2x20 yes, if it was threaded by gunworks then pretty likely it will be, they thread most sporter weight barrels 1/2x20 unless they have been shortened more than a couple inches
    Sako851 likes this.
    #27GANG

  4. #4
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    5,472
    Quote Originally Posted by quentin View Post
    Pitch seems to be 24 threads per inch, so my guess is either 1/2x24 (standard on .22LR, and my old gunworks .308 suppressor) or 3/8x24 (standard on .308 AR10's etc).
    Get a photo taken of the crown of the barrel to determine which it is.
    1/2 x 20 is the standard 22LR thread, 5/8 x 24 is the standard AR10 thread

    By the look of the pics it could well be 9/16 x 18, but its difficult without the diameter

    1/2 x 20 is a little average on a 308 muzzle to be fair

  5. #5
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Manawatu
    Posts
    590
    Thanks for all the replies guys. Appreciate you all!

    He's going to contact gunworkx I believe and I will update here so the "mystery" can be solved. My .308 came with a threaded barrel also but no information as to who done it.. I'll have to post a pic up tomorrow :p

    Kind of assumed my rifle would be 5/8x24.. Read somewhere that this was the most common for .308

  6. #6
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    548
    Quote Originally Posted by Ryan_Songhurst View Post
    looks like 1/2x20 to me, have never heard of 1/2x24 being standard 22lr thread, 1/2x20 yes, if it was threaded by gunworks then pretty likely it will be, they thread most sporter weight barrels 1/2x20 unless they have been shortened more than a couple inches
    Yep - what Ryan said.
    Got all my threads mixed up.

  7. #7
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    14,817
    Quote Originally Posted by Kiwi Greg View Post
    1/2 x 20 is a little average on a 308 muzzle to be fair
    It's what they put on mine. Wasn't a great deal of meat to go any bigger, but could have gone for a finer thread.
    Kiwi Greg likes this.
    There are only three types of people in this world. Those that can count, and those that can't!

  8. #8
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,349
    As kiwi Greg said, it looks like 9/16-18 , which is a common thread often seen on gun works threaded guns.
    Kiwi Greg likes this.

  9. #9
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Manawatu
    Posts
    590

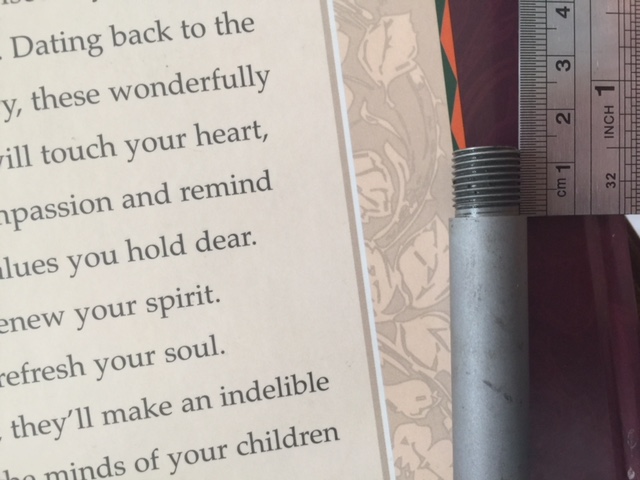

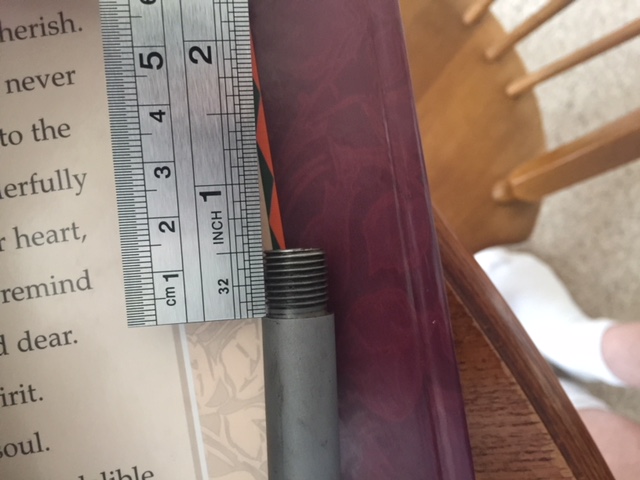

    Name:  Thread1.JPG
Views: 196
Size:  86.2 KBName:  Thread2.JPG
Views: 196
Size:  89.9 KB

    Hey again,

    I have attached a couple pics of the read on my Rem 7. Also in .308.

    What do you think?

    His thread looks to go out longer. No pun there typed it as best I could haha.

  10. #10
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    5,472
    Quote Originally Posted by Sako851 View Post
    Attachment 91775Attachment 91776

    Hey again,

    I have attached a couple pics of the read on my Rem 7. Also in .308.

    What do you think?

    His thread looks to go out longer. No pun there typed it as best I could haha.
    The diameter is whats required

  11. #11
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Manawatu
    Posts
    590
    Shall I take the photo facing down the barrel with the ruler measuring like the width?

  12. #12
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    5,472
    Quote Originally Posted by Sako851 View Post
    Shall I take the photo facing down the barrel with the ruler measuring like the width?
    Yep that would work, Verniers would be better

  13. #13
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    14,817
    Quote Originally Posted by Kiwi Greg View Post
    Yep that would work, Verniers would be better
    Digital callipers or micrometer even better.

    Looks a coarse thread. 7 threads over 9mm gives it a pitch of about 20tpi or 1.25mm.
    There are only three types of people in this world. Those that can count, and those that can't!

  14. #14
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Manawatu
    Posts
    590

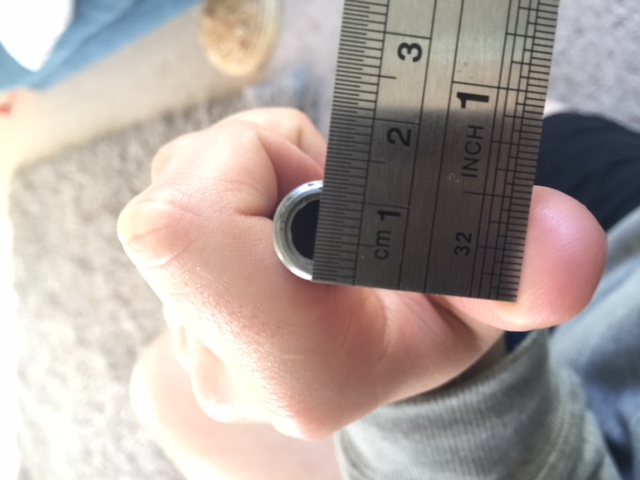

    Name:  Thread3.JPG
Views: 170
Size:  73.7 KB

    Sorry guys, although I think I did a pretty good job with the photo, I don't have any of those other more accurate means of measurement.
    Does this help?

    Edit: hm it looks quite dark once uploaded, I'll try alter the photo to make it brighter

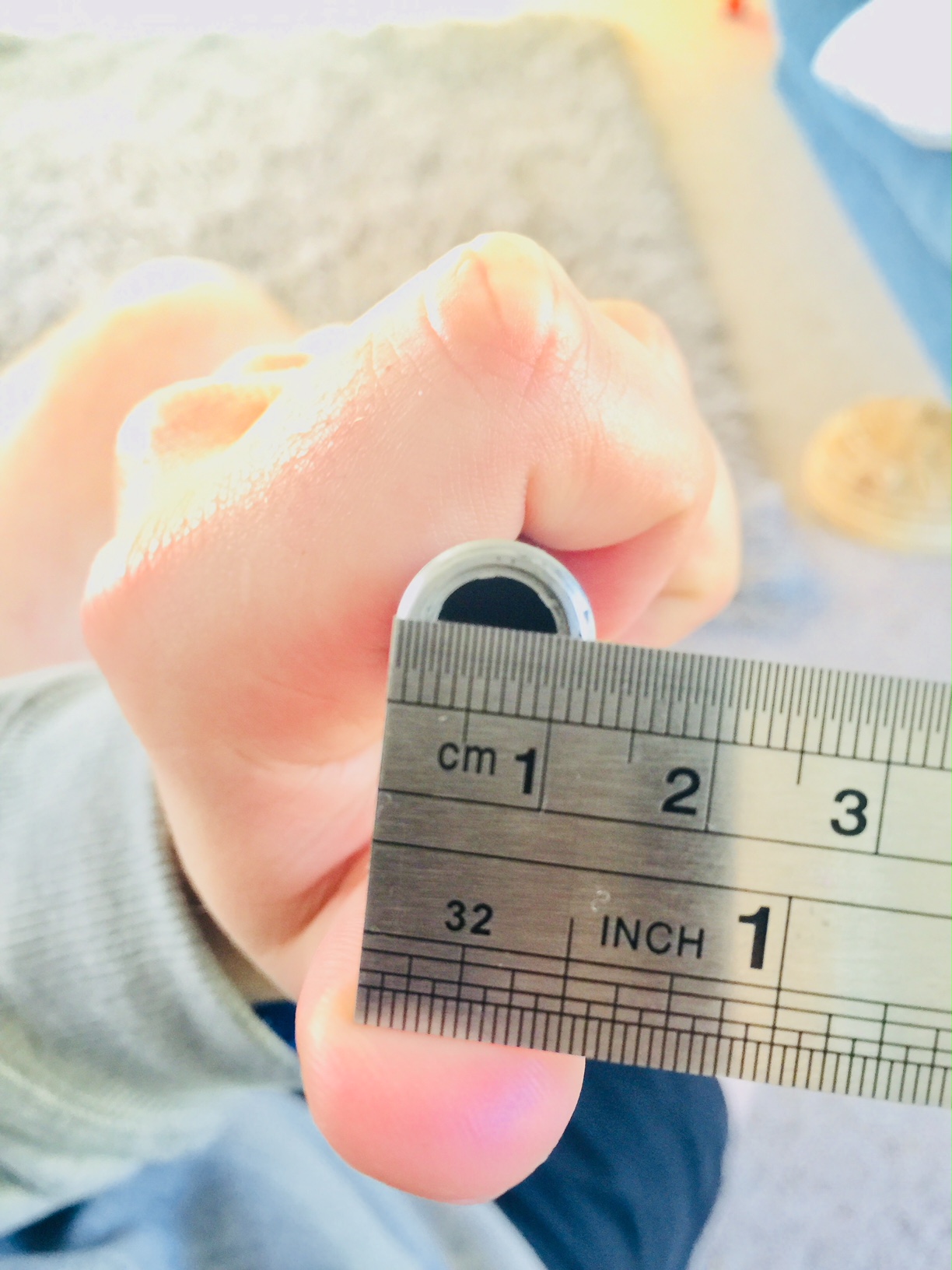

    Name:  Thread 4.jpg
Views: 167
Size:  398.4 KB

  15. #15
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    5,472
    Quote Originally Posted by Sako851 View Post
    Attachment 91784

    Sorry guys, although I think I did a pretty good job with the photo, I don't have any of those other more accurate means of measurement.
    Does this help?

    Edit: hm it looks quite dark once uploaded, I'll try alter the photo to make it brighter

    Attachment 91785
    Most likely/is 1/2 x 20
