    Ruger 10/22 Mainspring dimensions

    Hi folks - looking for some dimensions on ruger 10/22 mainsprings.

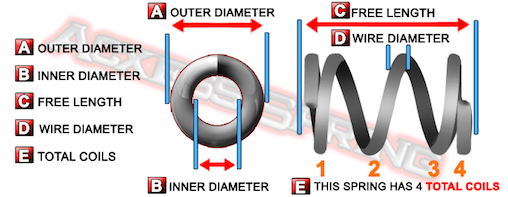

    Outer diameter of the springs (A)
    Inner diameter of the springs (B)
    Uncompressed overall length of the spring (C)

    If you're feeling charitable then also
    Wire diameter (D)
    Number of coils (E)


    Name:  compression-springs-measurements-and-dimensions.png
Views: 46
Size:  92.4 KB

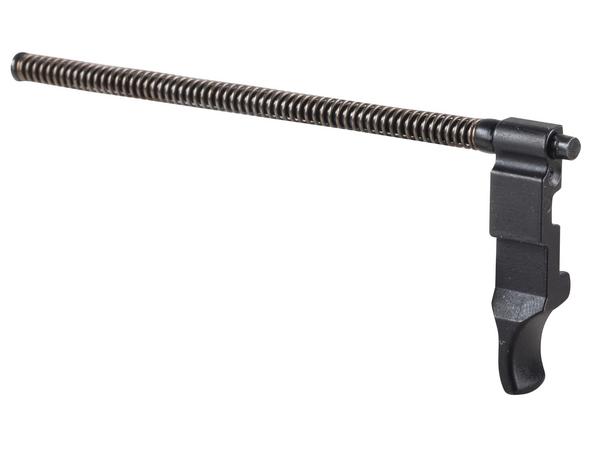

    This spring:
    Name:  WorQxRc.jpg
Views: 47
Size:  12.2 KB

  2. #2
    Member dogmatix's Avatar
    Join Date
    Dec 2011
    Location
    Northern Gaul (Pukekohe)
    Posts
    4,234
    Have you asked Darin at usaguns.nz if he has any springs in stock?
    Welcome to Sako club.

  3. #3
    Member viper's Avatar
    Join Date
    Feb 2015
    Location
    Rabbitvegas
    Posts
    1,535
    Would help but mines been altered( some coils snipped off )

  4. #4
    Just like Mimms the First
    Join Date
    Sep 2019
    Location
    Tai Tokerau
    Posts
    1,443
    Stand-by, OP
    Quote Originally Posted by viper View Post
    Would help but mines been altered( some coils snipped off )
    why?
    Diligentia Vis Celeritas
    Life Advice

  5. #5
    Just like Mimms the First
    Join Date
    Sep 2019
    Location
    Tai Tokerau
    Posts
    1,443
    Verniers. Millimeters

    OD 4.92
    Wire dia 0.6
    ID 3.64
    (Guide rod) 3.5
    Freelength 139
    Turns 63


    Yes I know those diameters don't work out. Take your pick.
    Also this came from a hack which has excessive round count and often left locked open.
    Diligentia Vis Celeritas
    Life Advice

  6. #6
    Member canross's Avatar
    Join Date
    Jan 2017
    Location
    Canterbury
    Posts
    293
    Quote Originally Posted by mimms2 View Post
    Verniers. Millimeters

    OD 4.92
    Wire dia 0.6
    ID 3.64
    (Guide rod) 3.5
    Freelength 139
    Turns 63


    Yes I know those diameters don't work out. Take your pick.
    Also this came from a hack which has excessive round count and often left locked open.
    Great, thank you for that!
    Helping a friend out trying to fix a marlin rifle that has a bent mainspring. Hard to get springs for them, so looking to see if there are springs on the market that could be used instead.

    Much appreciated guys!

  7. #7
    Member canross's Avatar
    Join Date
    Jan 2017
    Location
    Canterbury
    Posts
    293
    Quote Originally Posted by dogmatix View Post
    Have you asked Darin at usaguns.nz if he has any springs in stock?
    Thanks Dogmatix - didn't know about usaguns.nz, will take a look at them.
