Thread: Slipping scope

  1. #1
    Member misha2001's Avatar
    Join Date
    May 2015
    Location
    Upper Hutt
    Posts
    64

    Slipping scope

    hi guys and gals. I'm brand new here, but wanting some advice. I bought a 1952 sporterised 303 with a 4 x 32 tasco scope. When trying to zero in the scope, I discovered that after about 5 rounds, the scope had moved to the rear of the scope rail. Another 2 rounds saw it sliding right off. Put the darn thing back on, checked the tightness of the screws, but 5 rounds later, the scope was at the back of the rail again. Has anyone else experienced this, or has a suggestion on a fix, short of welding the scope to the rail? Cheers.

  2. #2
    Member jim160's Avatar
    Join Date
    Jun 2012
    Location
    Wellington
    Posts
    2,077
    Sounds like the rings are too wide for the base or they aren't tightened up enough.
    Are the rings and bases Parker hale. If not what are they. Photos explain a lot so maybe put one up which will help in figuring out what wrong.

  3. #3
    Member misha2001's Avatar
    Join Date
    May 2015
    Location
    Upper Hutt
    Posts
    64
    The rifle is still in Burnham after my trip up the Lees valley. Once I get it back I'll check. Thanks. However, they were as tight as I could get them without stripping a thread.

  4. #4
    Member
    Join Date
    Jun 2013
    Location
    Tauranga
    Posts
    121
    Quote Originally Posted by misha2001 View Post
    hi guys and gals. I'm brand new here, but wanting some advice. I bought a 1952 sporterised 303 with a 4 x 32 tasco scope. When trying to zero in the scope, I discovered that after about 5 rounds, the scope had moved to the rear of the scope rail. Another 2 rounds saw it sliding right off. Put the darn thing back on, checked the tightness of the screws, but 5 rounds later, the scope was at the back of the rail again. Has anyone else experienced this, or has a suggestion on a fix, short of welding the scope to the rail? Cheers.
    Yes, i see this often on customers guns, mainly older ones with dubiuous ring/mount-base combinations.

    The tension from the side clamps alone will not stop the scope from shifting forward on the rail, no matter how much you tighten them up. There must be a mechanical recoil stop-pin or stop-shoulder system to prevent the rings sliding on the bases. Depends on what rings/bases you have on there. If you can post a pic that would help, or you can email or pm me.

    Dean.
    Everyone has the right to their own opinion, but that doesn't mean that every opinion is right.

  5. #5
    Member 10-Ring's Avatar
    Join Date
    Feb 2014
    Location
    Middle Earth
    Posts
    1,183
    If you haven't a recoil stop pin on your rear mount you may have to drill and tap a reasonable sized hex head screw or even a grub screw, cut to the appropriate length, in the rail behind the rear mount.

    Better off getting the proper mounts if you can find some.
    "The 257 Roberts, some people like to call it the .257 Bob. I think these people should be hung in trees where crows can peck at them." - David Petzal

  6. #6
    Member misha2001's Avatar
    Join Date
    May 2015
    Location
    Upper Hutt
    Posts
    64
    Hiya. Thanks for the hints guys. Still waiting for the rifle to wend its way up from down south.

  7. #7
    Member misha2001's Avatar
    Join Date
    May 2015
    Location
    Upper Hutt
    Posts
    64

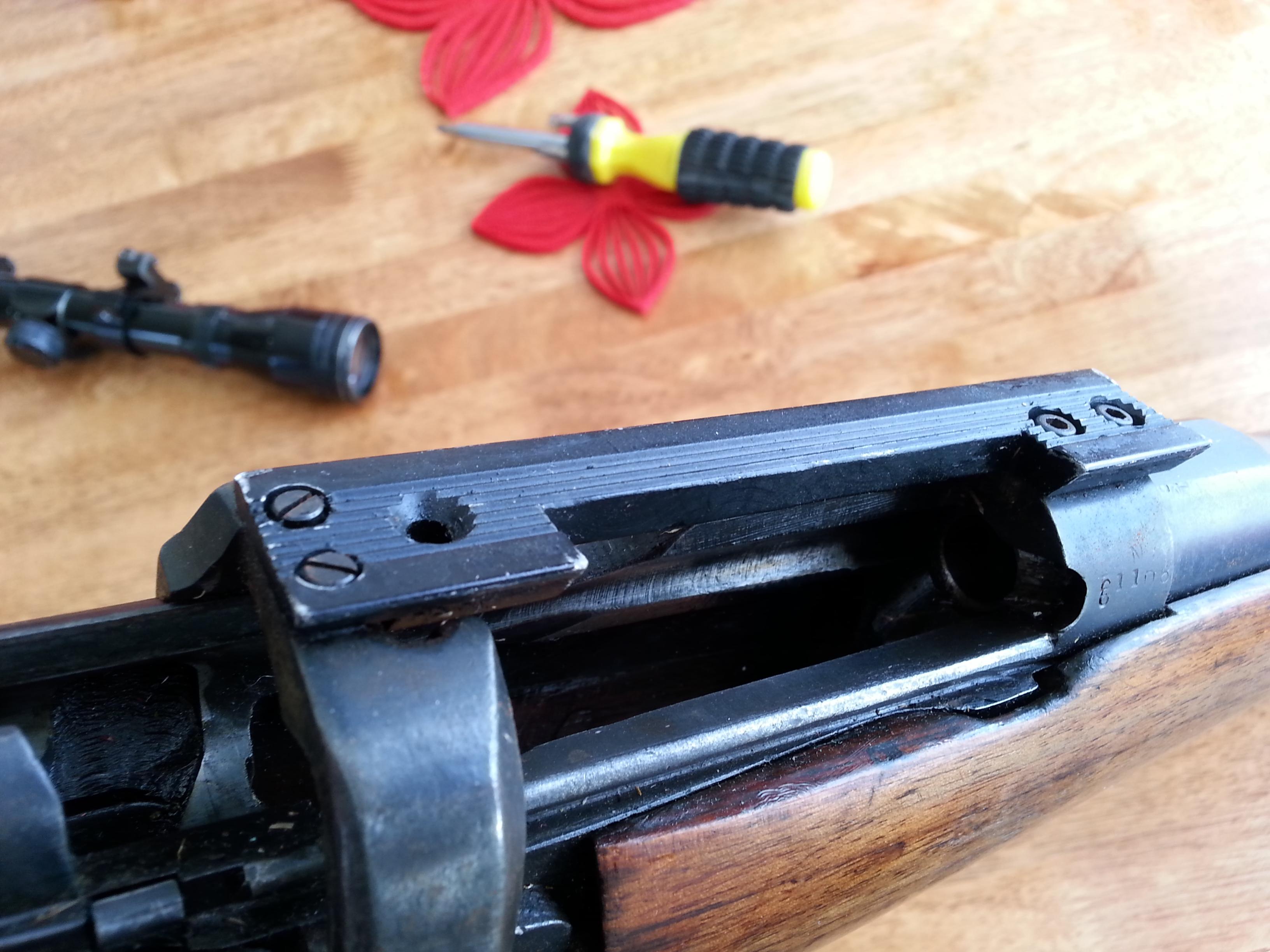

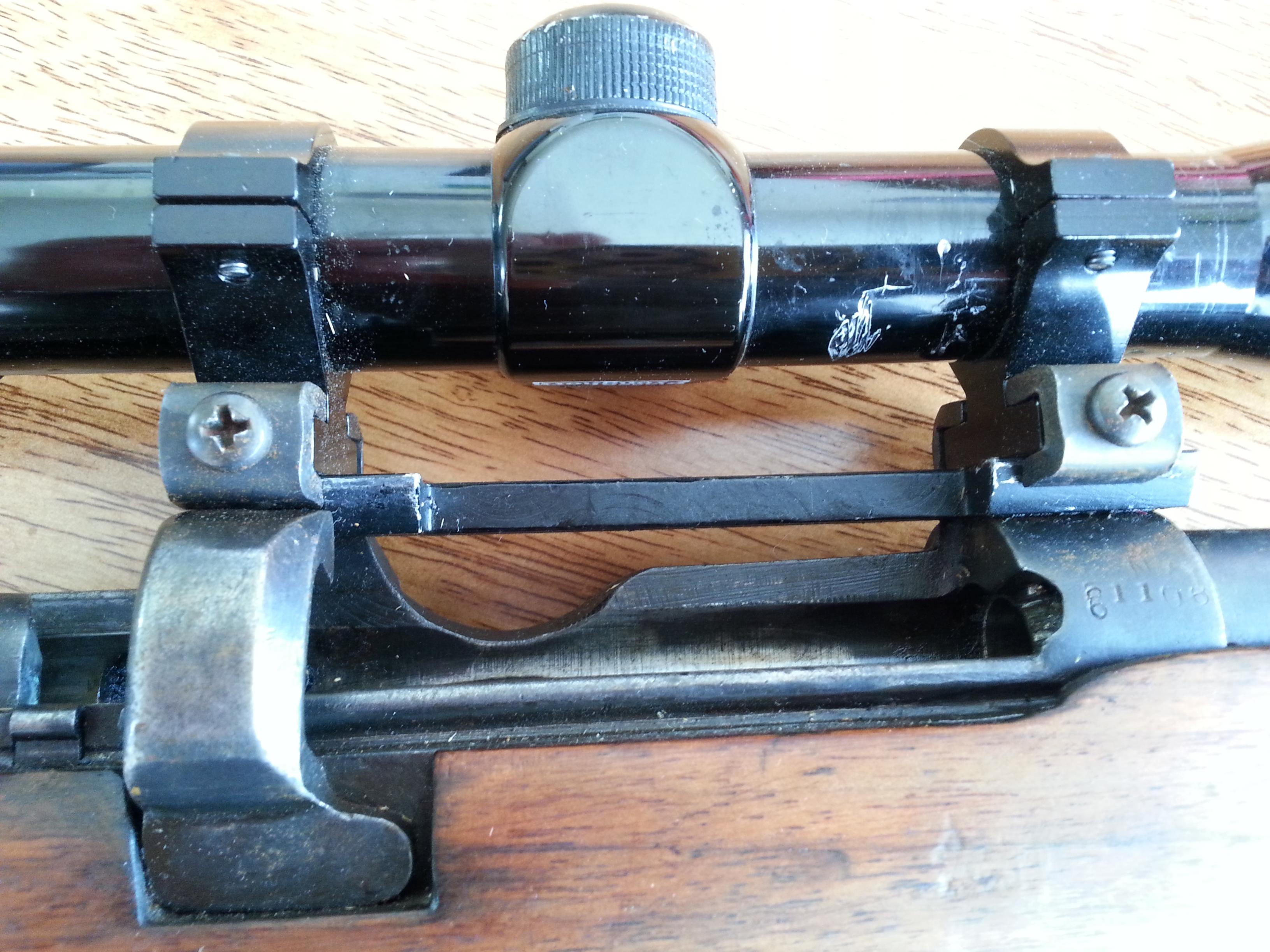

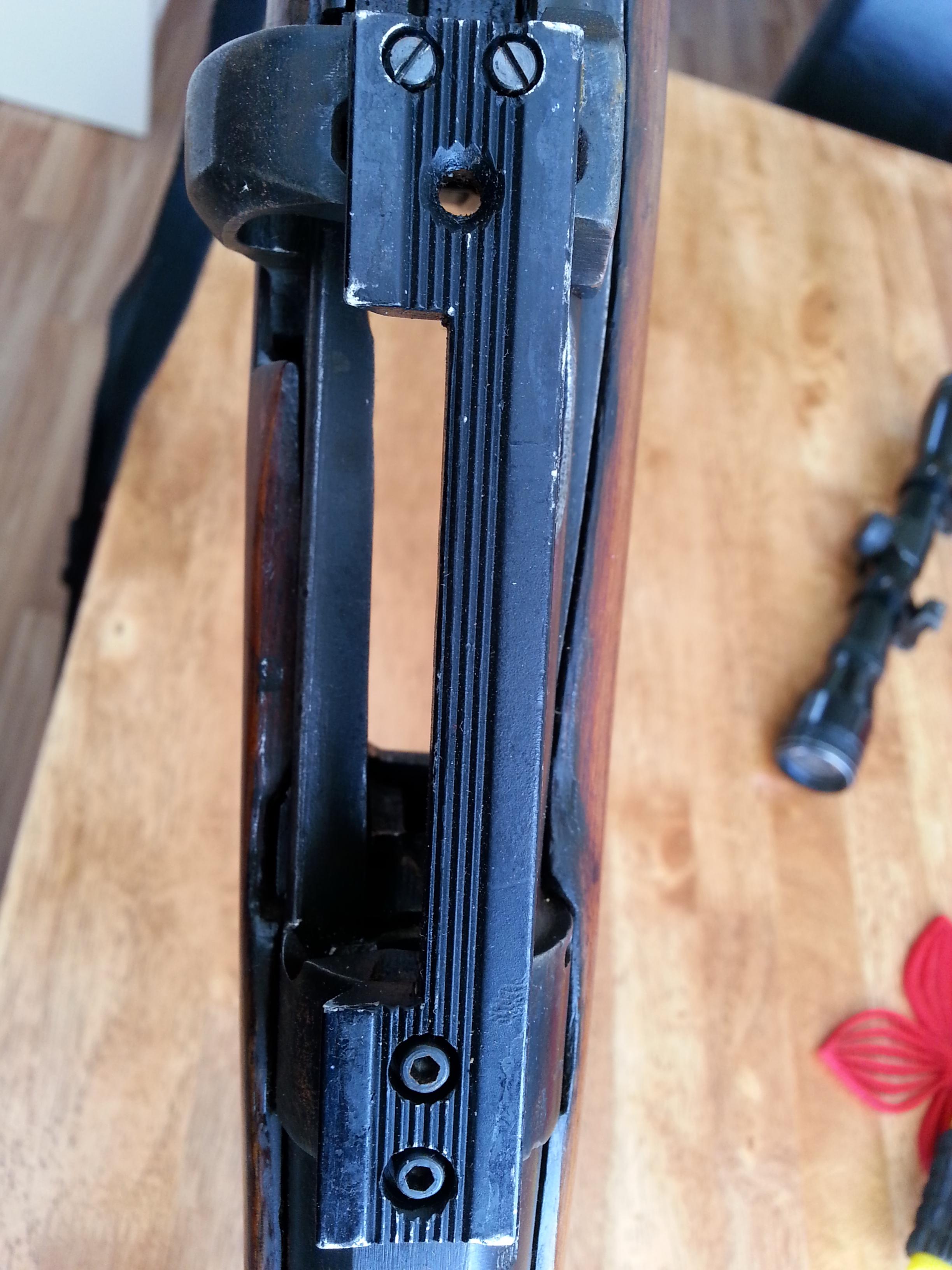

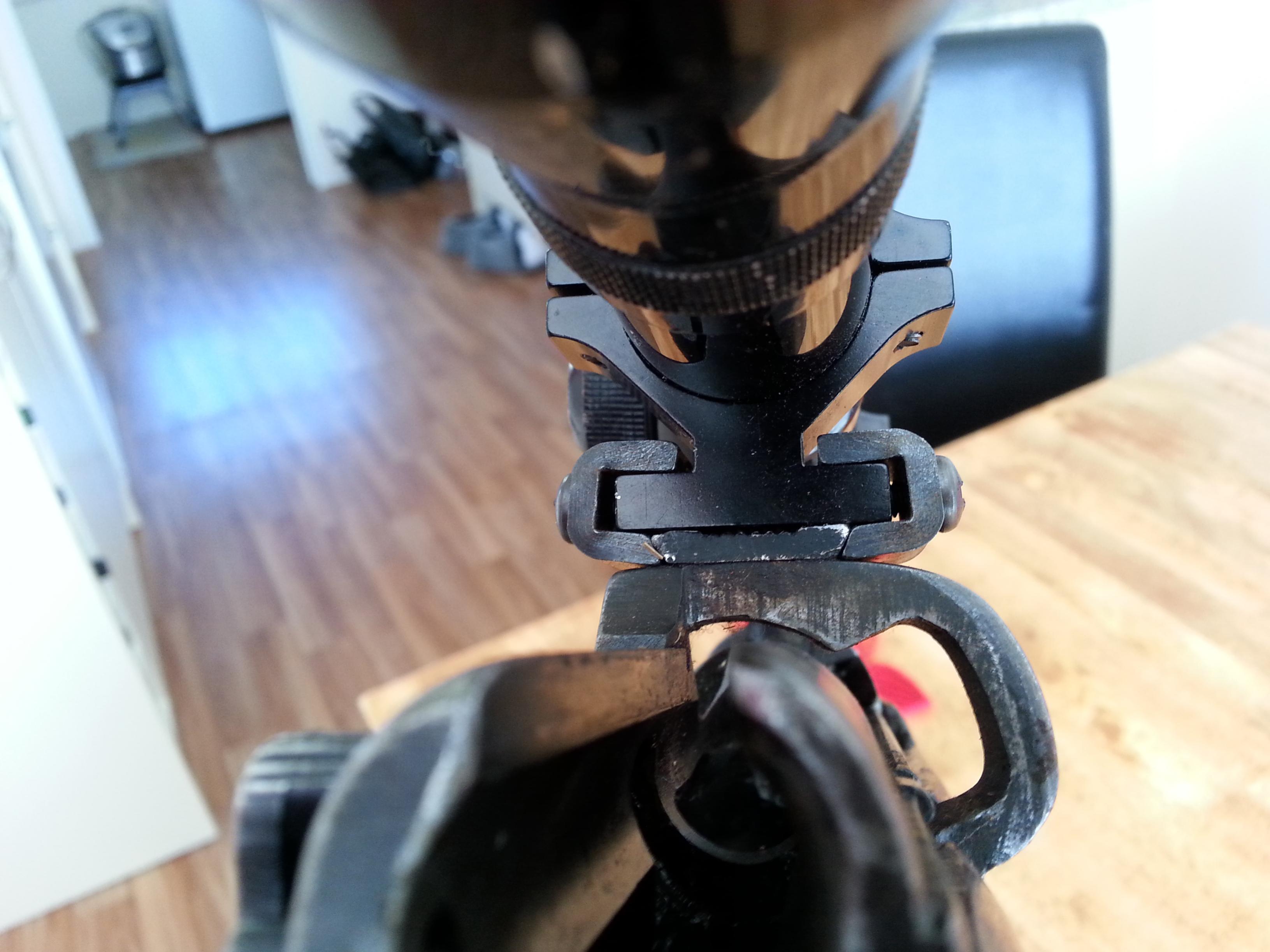

    Hi again. My poor old 1943 LE finally made its way home. Having looked at previous hints, I have taken some shots of the scope mounts and the rail. I cannot find any name on the mounts. There is no stop pin on the rail, so it looks like I have a bit of work to do. I think I will get some better mounts - are Weaver mounts OK? I am new at the whole scope thing, as I come from an iron sights background.Name:  2015-06-30 13.58.53.jpg
Views: 188
Size:  704.7 KBName:  2015-06-30 13.59.25.jpg
Views: 189
Size:  448.3 KBName:  2015-06-30 14.01.43.jpg
Views: 195
Size:  592.9 KBName:  2015-06-30 14.01.54.jpg
Views: 187
Size:  524.9 KB
    260rem likes this.

  8. #8
    Member
    Join Date
    Dec 2014
    Posts
    568
    Im no expert but that looks like a rimfire 3/4 dovetail mount with a home jobbie set up, I stand by to be corrected.
    puku likes this.

  9. #9
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    3,455
    +1

  10. #10
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    20,156
    As above I am no expert either but there is a problem there.
    There is no way for the mount to clamp the dovetail without bending the mounting screw....there must be a mismatch of parts even China is not this bad surely?
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  11. #11
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    1,802
    Quote Originally Posted by JRW87 View Post
    Im no expert but that looks like a rimfire 3/4 dovetail mount with a home jobbie set up, I stand by to be corrected.
    I had exactly the same rings arrive on a 2nd hand 22 I bought. They got removed and tossed in the rubbish. Replaced with Burris 22 rings. Couldn't see them hacking the pace on a CF.

  12. #12
    Member
    Join Date
    Dec 2014
    Posts
    568
    Quote Originally Posted by zimmer View Post
    I had exactly the same rings arrive on a 2nd hand 22 I bought. They got removed and tossed in the rubbish. Replaced with Burris 22 rings. Couldn't see them hacking the pace on a CF.
    Oh? Seems an illogical design, it looked like someone had chopped up some curtain rail but the bottom ring looked factory.

  13. #13
    Member jim160's Avatar
    Join Date
    Jun 2012
    Location
    Wellington
    Posts
    2,077
    You need some Parker hale rings to match the base.
    The base looks like a Parker hale base. I could be wrong.

  14. #14
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    911
    These rings were sold under the Zero brand in the '80's & 90's. They are very weak and I have seen several instances where the clamp screws have been over-tightened, stripping the threads and having the whole scope and ring set jump off the rifle with recoil. The smart move would be to have a weaver style base fitted and use far better, though still inexpensive weaver style aluminium rings. Warne make steel rings to fit the BRNO 19mm dovetails which would work very well on the existing base. The recoil projection on one ring would need to be ground off, and a screw fitted into the base of the ring to engage the recoil stop hole in the rear of the base plate. All this is assuming that the .303 has a decent barrel and is worth the effort!
    veitnamcam and JRW87 like this.

  15. #15
    Member
    Join Date
    Dec 2014
    Posts
    568
    Quote Originally Posted by gundoc View Post
    These rings were sold under the Zero brand in the '80's & 90's. They are very weak and I have seen several instances where the clamp screws have been over-tightened, stripping the threads and having the whole scope and ring set jump off the rifle with recoil. The smart move would be to have a weaver style base fitted and use far better, though still inexpensive weaver style aluminium rings. Warne make steel rings to fit the BRNO 19mm dovetails which would work very well on the existing base. The recoil projection on one ring would need to be ground off, and a screw fitted into the base of the ring to engage the recoil stop hole in the rear of the base plate. All this is assuming that the .303 has a decent barrel and is worth the effort!
    Just about to go to bed and hadnt learnt something new today, haha, cheers gundoc!
