Thread: Swarovski Z5 BT turret alignment issue

  1. #1
    Member
    Join Date
    Nov 2020
    Location
    Arrowtown
    Posts
    91

    Swarovski Z5 BT turret alignment issue

    Anyone out there with a Swarovski Z5 BT scope that can help me out.

    There seems to be a bit of movement in the ballistic turret. I have searched images online and it seems there is little to no gap between the base of the turret and the reference for on the scope. My scope BT seems to be set off from the bottom and at a slight angle which doesn't seem right and causes the BT to not be as upright and firm as i would expect for a scope of this quality.

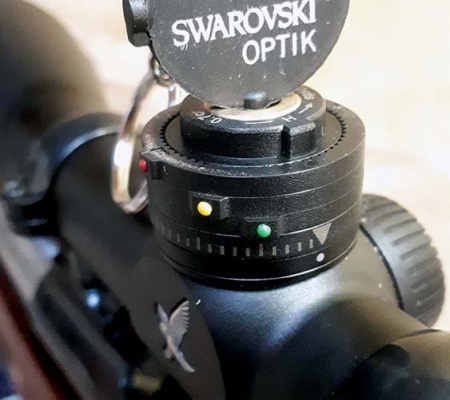

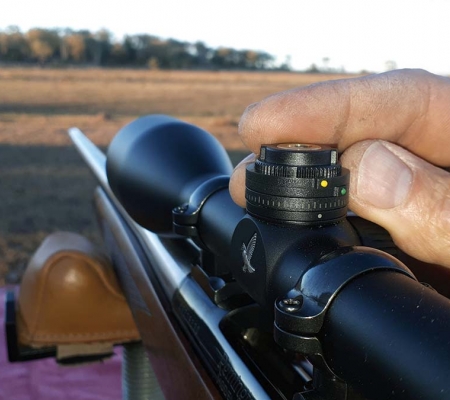

    Reference pics
    Name:  Pic_2_450_400_s_c1.jpg
Views: 156
Size:  115.2 KB
    Name:  Pic_4_450_400_s_c1.jpg
Views: 160
Size:  114.1 KB

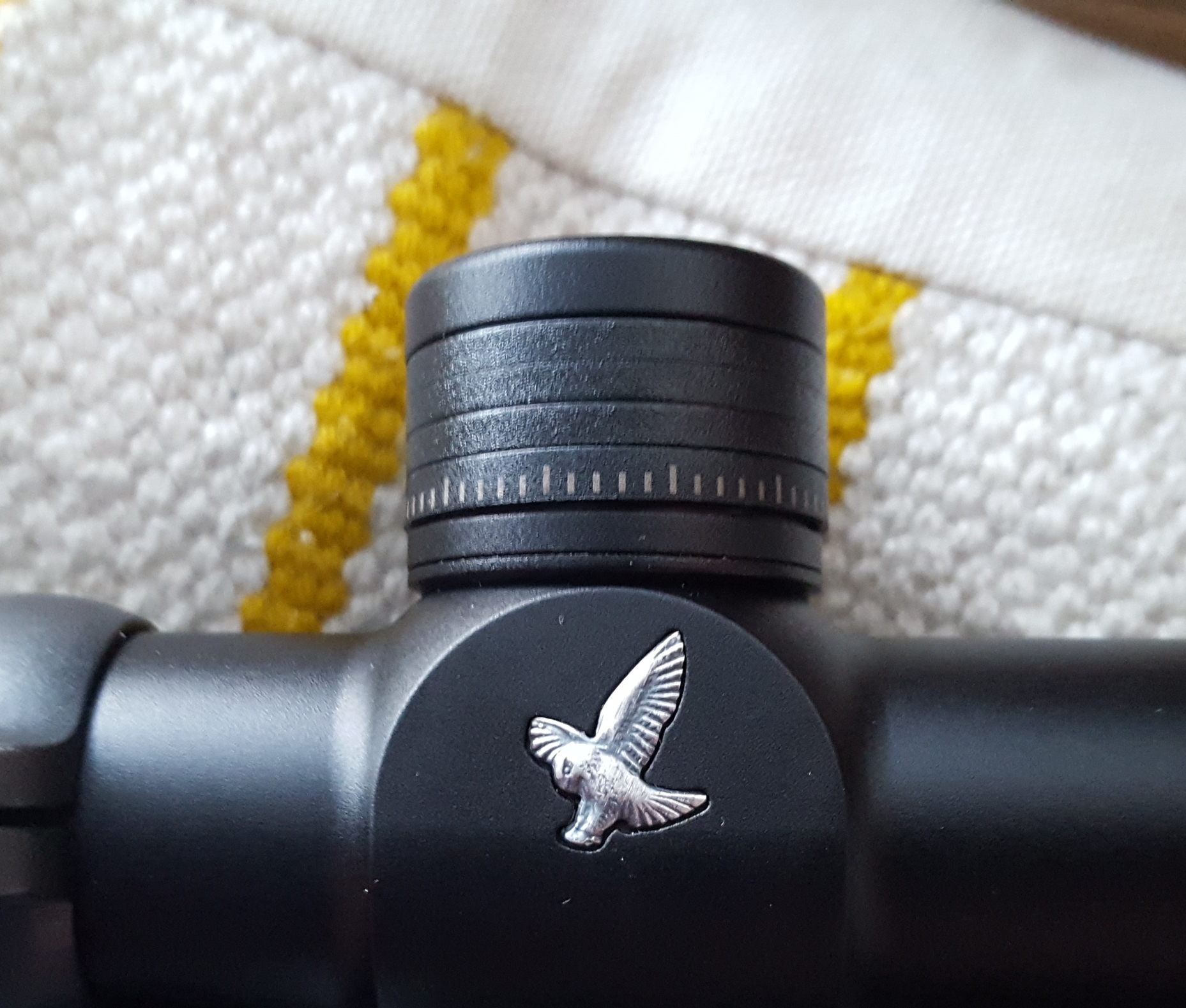

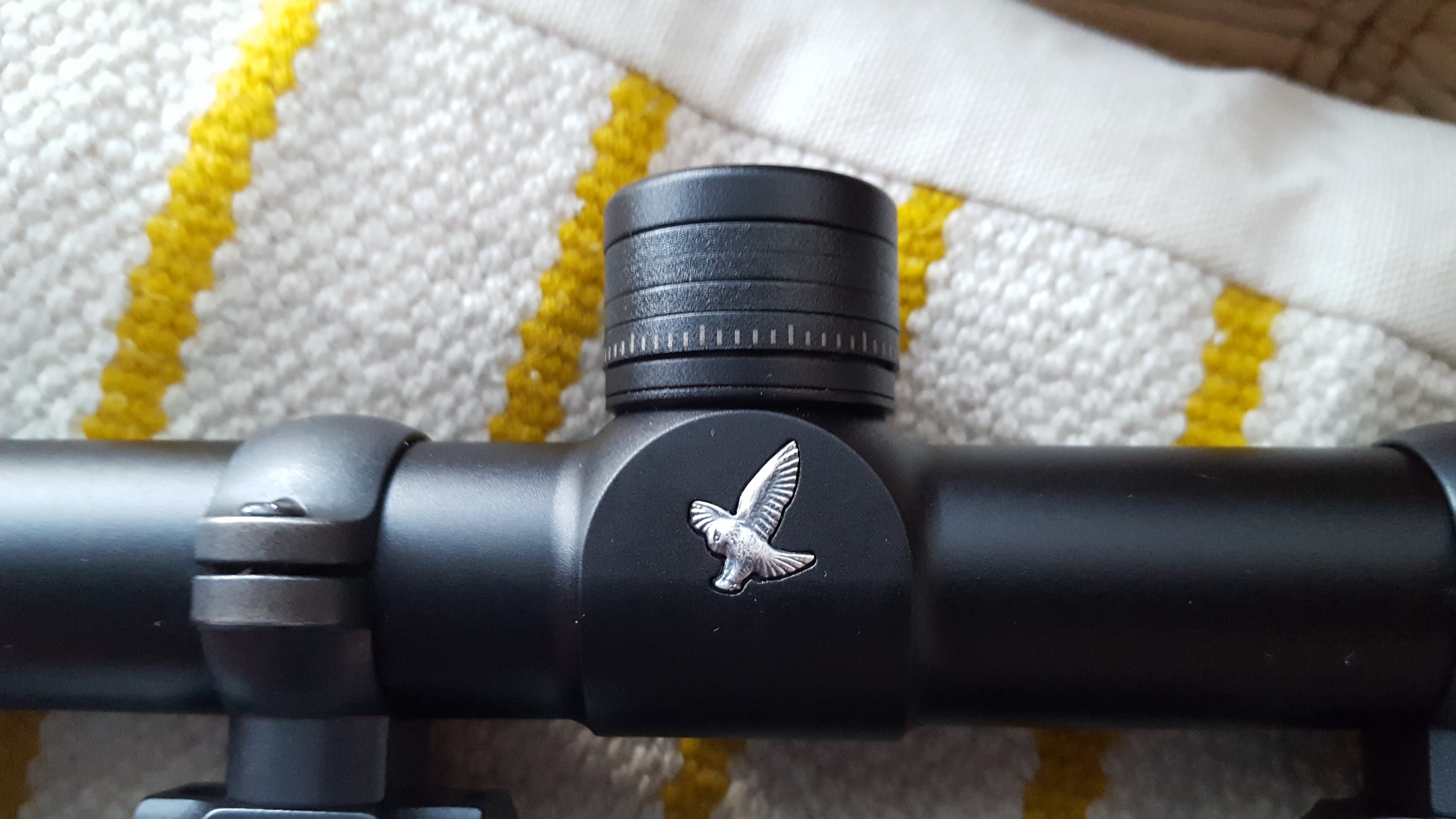

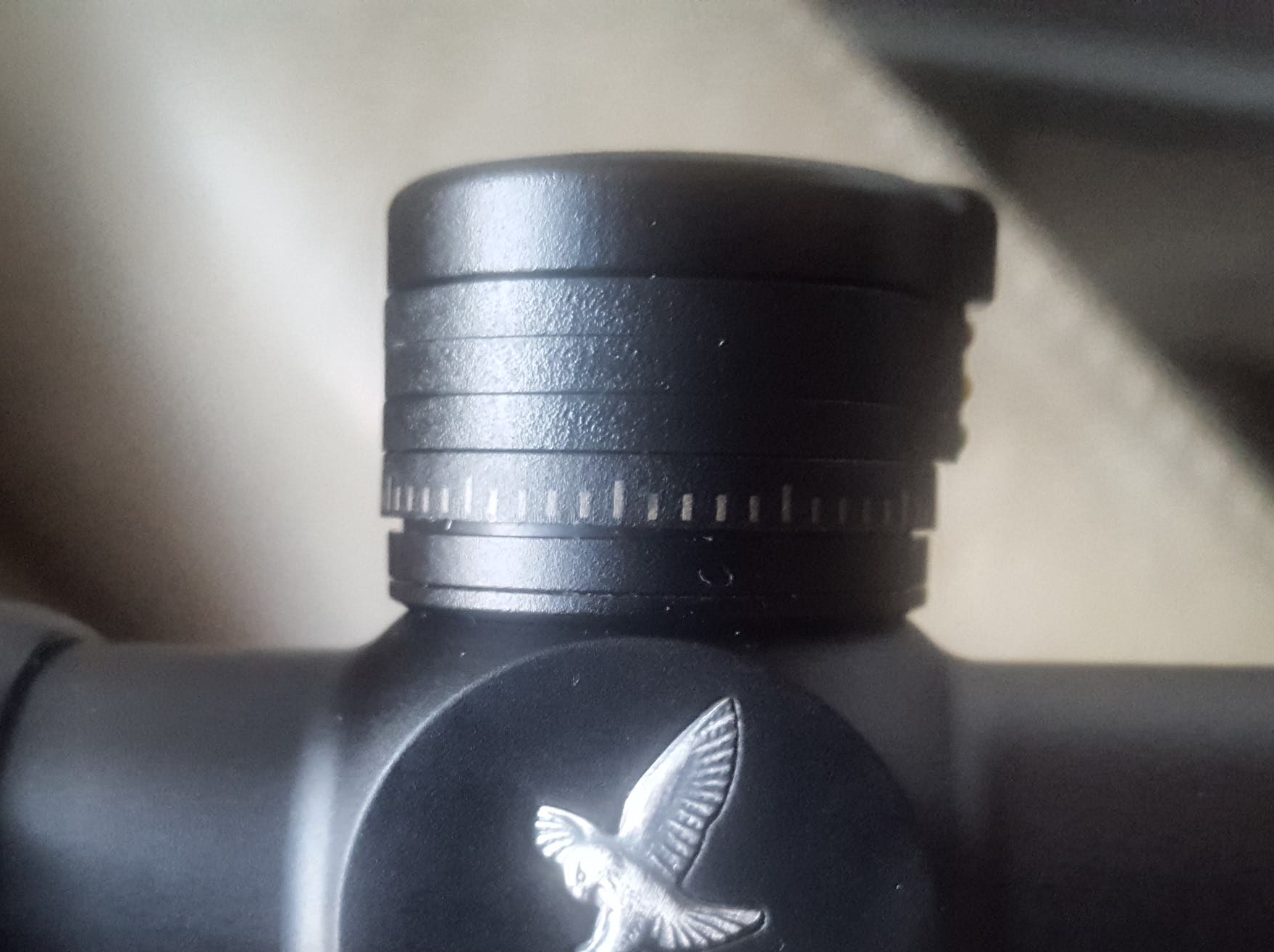

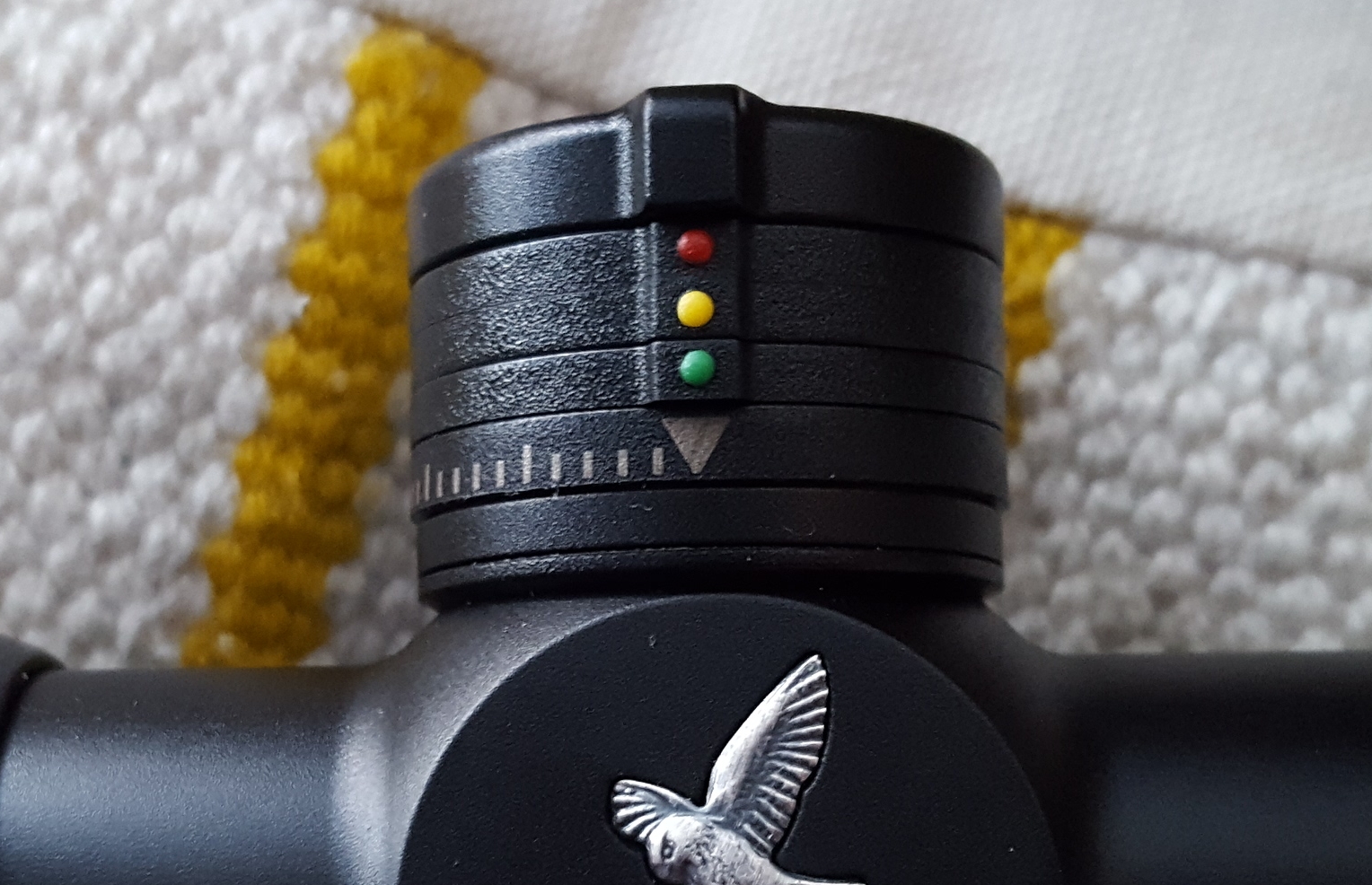

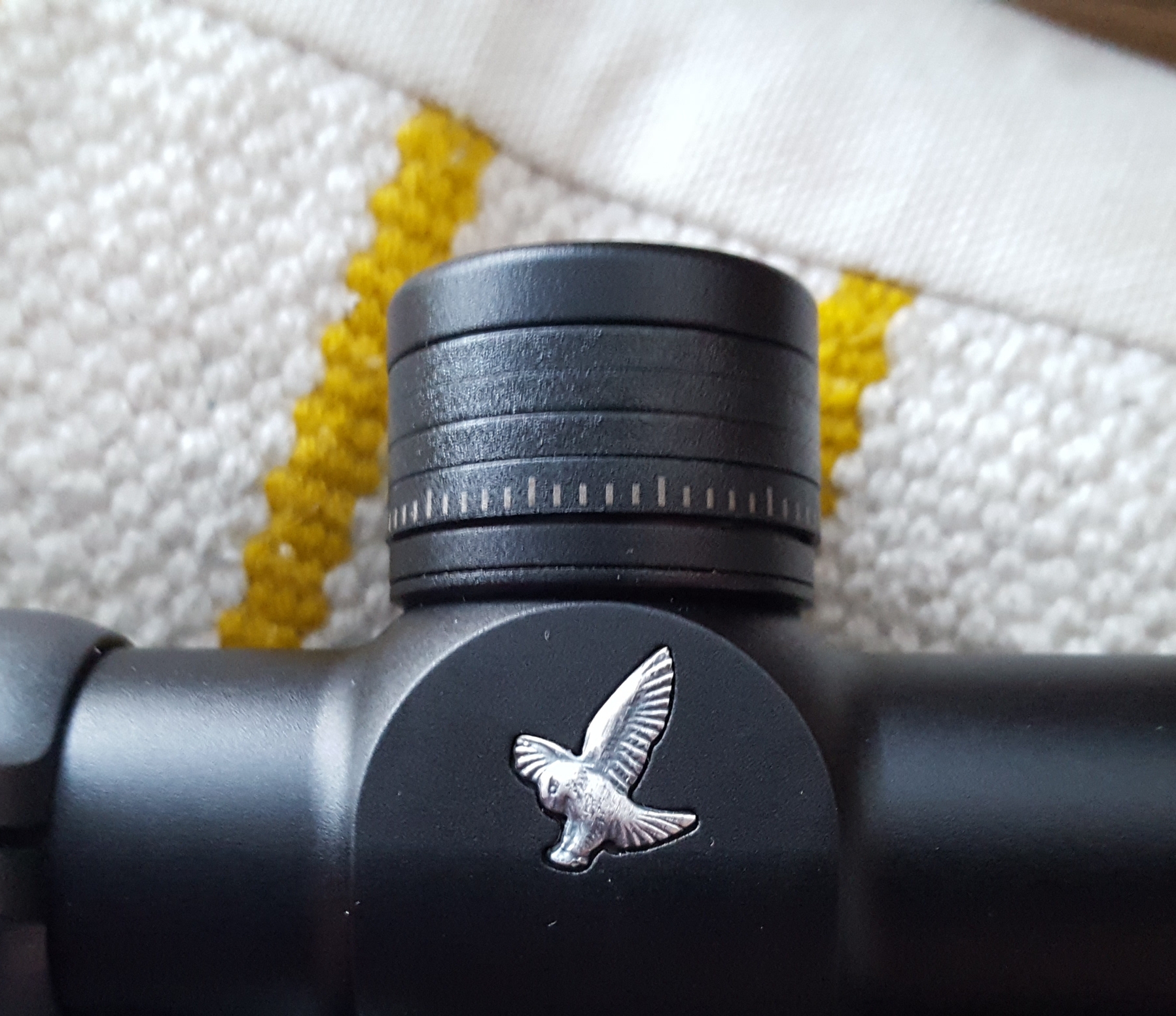

    My BT
    Name:  20201122_205827.jpg
Views: 166
Size:  1.37 MBName:  20201122_205754.jpg
Views: 159
Size:  768.8 KBName:  20201122_205720.jpg
Views: 164
Size:  1.37 MBName:  20201122_205656.jpg
Views: 156
Size:  829.8 KBName:  20201122_205617.jpg
Views: 180
Size:  2.22 MB

    What have I missed? I know that the coloured dots aren't set up yet, but i feel I've missed something.

  2. #2
    Member Gusto's Avatar
    Join Date
    Jun 2018
    Location
    Whangarei
    Posts
    179
    Iíve had this issue and canít remember 100% how I fixed it but try taking the colour rings off and making sure the turret cap thing that the rings fit on is pushed on tight. Itís the part you move back round to zero once youíve sighted in and is a push fit hope that makes sense


    Sent from my iPhone using Tapatalk

  3. #3
    Member
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    3,059
    There are some wee bits that dont show in an exploded diagram inside the main body piece that could be mis-aligned but most likely it will be the little tooth on the bottom ring out of position. Strip the rings and have a look
    'Bother' said Pooh, as he chambered another round ... Wong Far King Way

  4. #4
    Member
    Join Date
    Mar 2016
    Location
    Arrowtown
    Posts
    1,072
    I think it should look at little better than that, Kimber. I have a Z5 here if you want to take a look at it.

    I'm wondering whether you might have not got that first cap on correctly? When you take to the top plug off, then remove the the rings, there is another cap to remove so you can get to the initial adjustment. It that all square?

  5. #5
    Member
    Join Date
    Nov 2020
    Location
    Arrowtown
    Posts
    91
    Quote Originally Posted by planenutz View Post
    I think it should look at little better than that, Kimber. I have a Z5 here if you want to take a look at it.

    I'm wondering whether you might have not got that first cap on correctly? When you take to the top plug off, then remove the the rings, there is another cap to remove so you can get to the initial adjustment. It that all square?
    PM sent.

  6. #6
    Member stagstalker's Avatar
    Join Date
    Jul 2018
    Location
    North Island, New Zealand
    Posts
    919
    Perhaps it isn’t together properly on the inside? There are quite a few complicated little pieces that make it all go together.

  7. #7
    Member
    Join Date
    Nov 2020
    Location
    Arrowtown
    Posts
    91
    Quote Originally Posted by stagstalker View Post
    Perhaps it isn’t together properly on the inside? There are quite a few complicated little pieces that make it all go together.
    Will be looking at it this evening while there is daylight. Most likely something simple, just don't want to force the issue with the thing. Best to ask questions rather than damage something.
    Moa Hunter likes this.

  8. #8
    Member
    Join Date
    Nov 2020
    Location
    Arrowtown
    Posts
    91
    Ok, quick update. Think it maybe sorted. Been in contact with JP at Swarovski in Auckland and he's been very responsive and helpful with my BT alignment issue. Planenutz has also helped me with my problem.

    Seem to have it aligned now after the BT was stripped down following advice from JP.

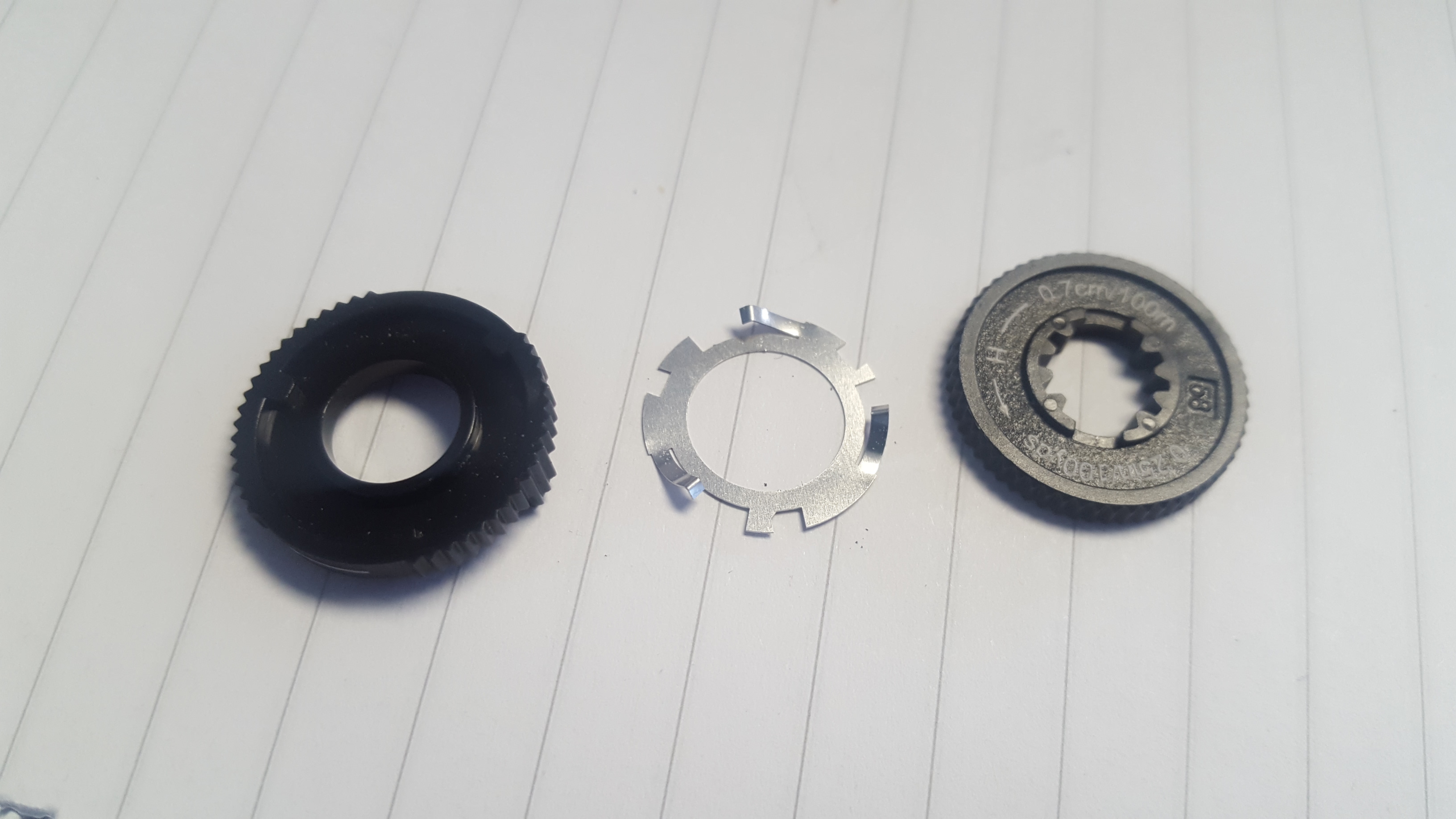

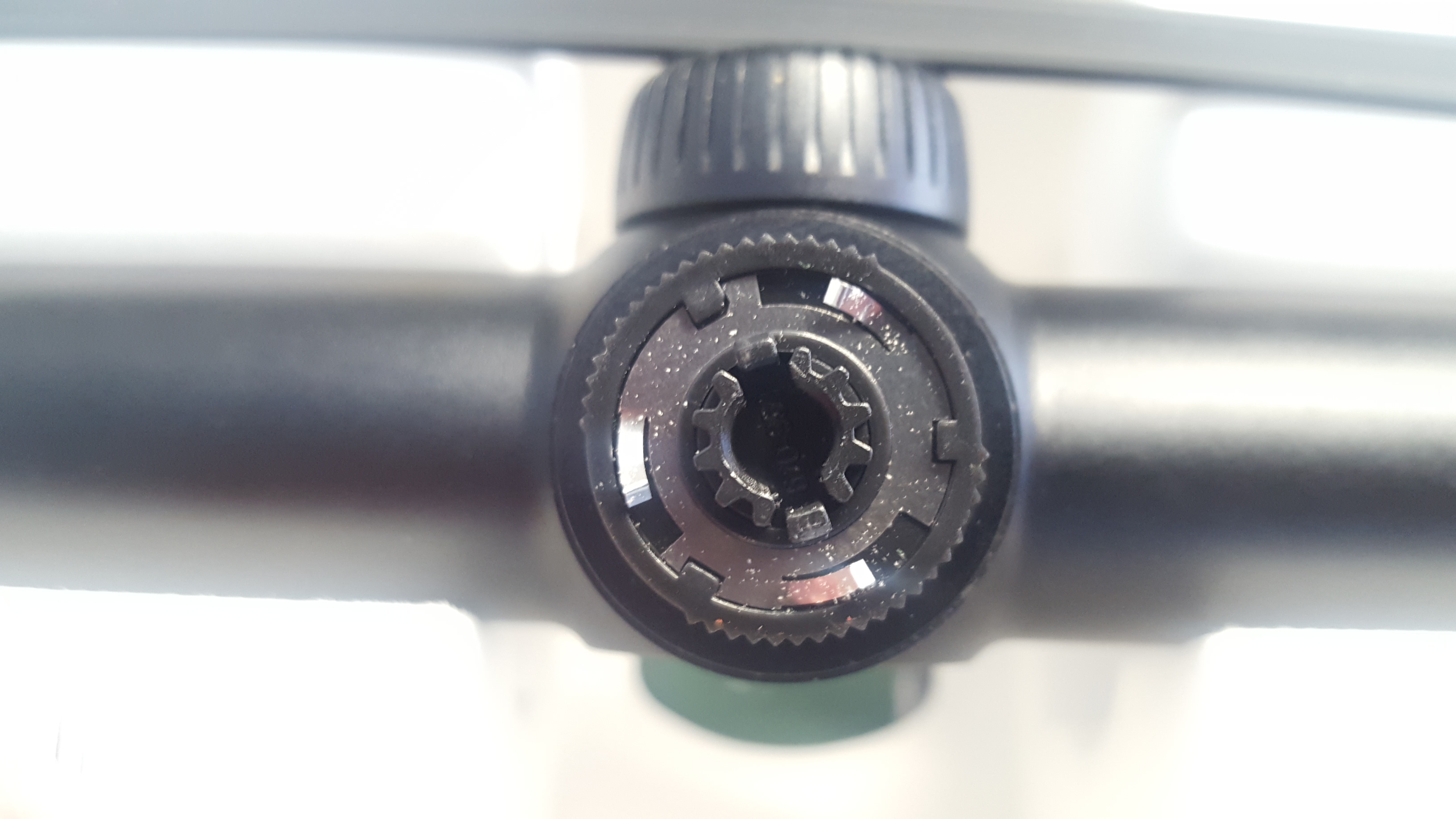

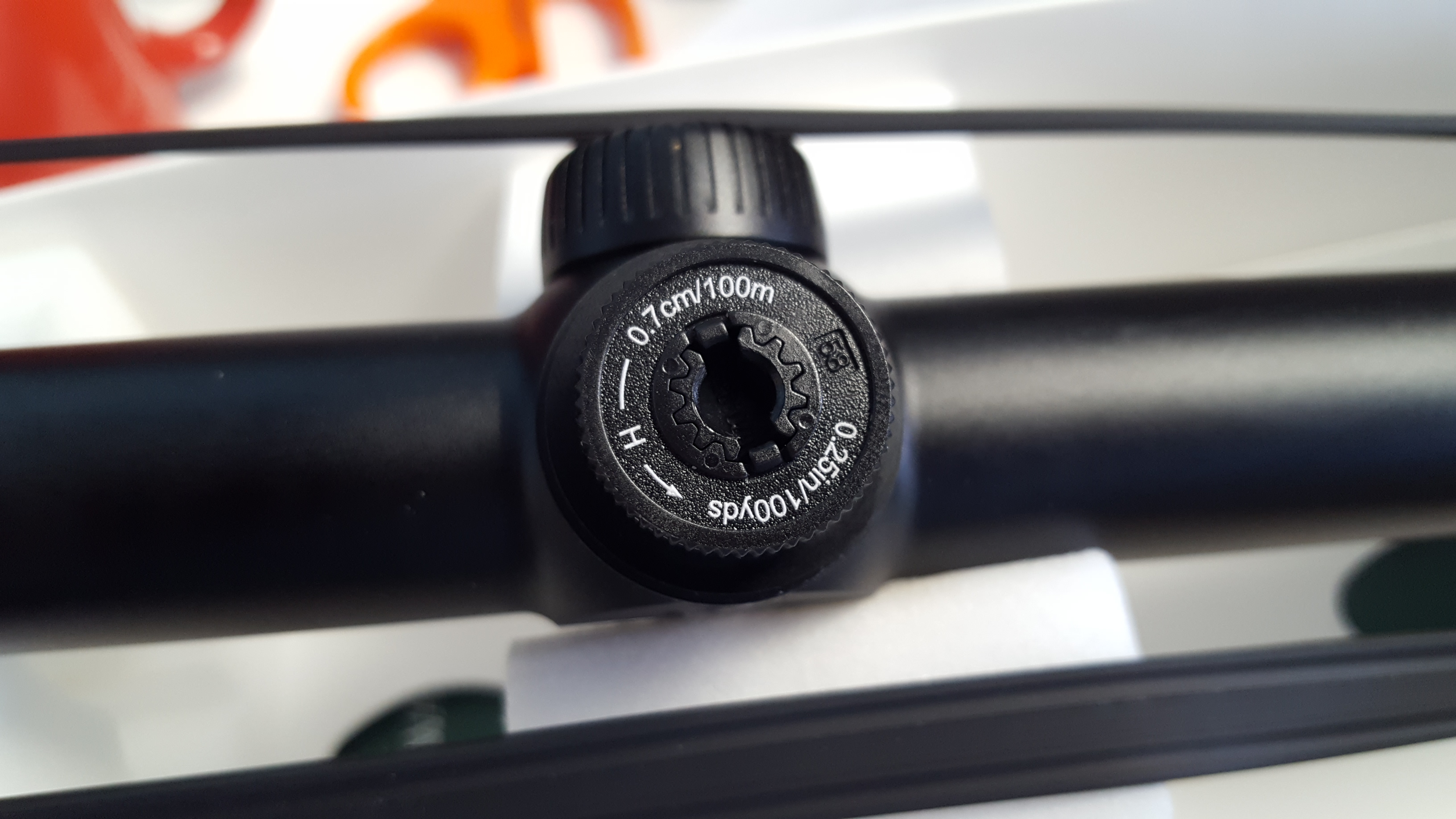

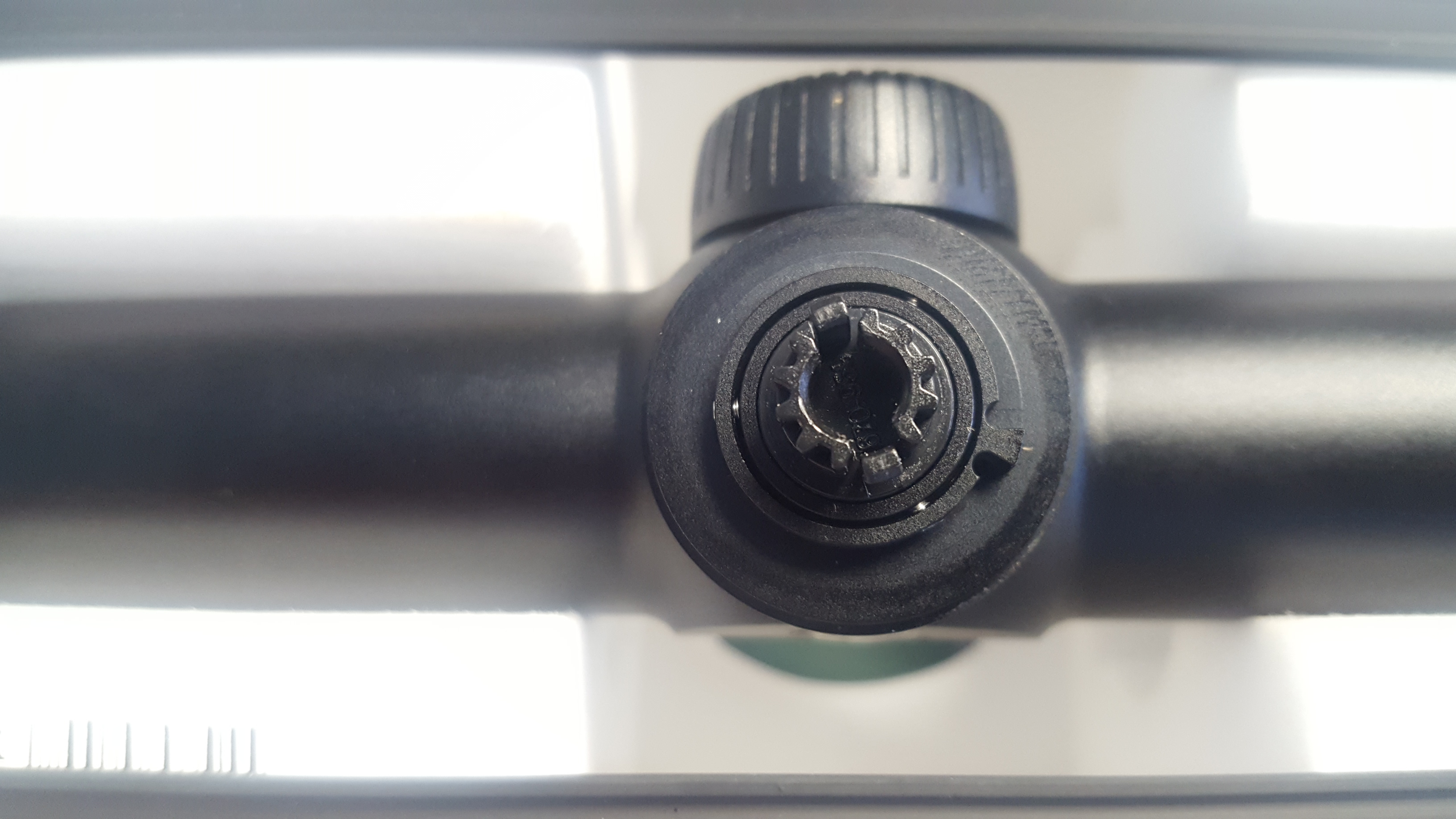

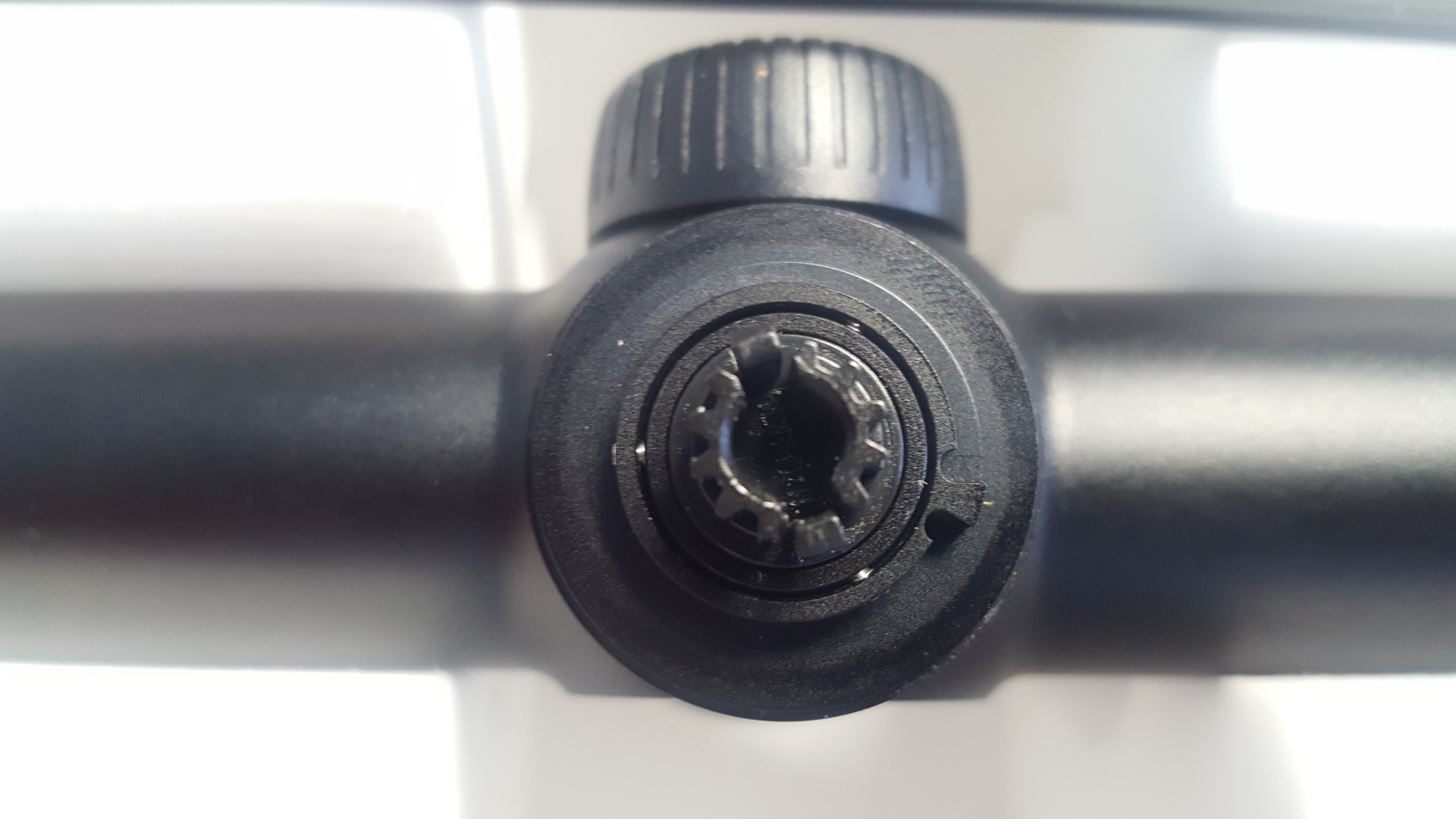

    Pictures of the stripped BT for those that are curious:
    Name:  20201124_093447.jpg
Views: 60
Size:  1.00 MBName:  20201124_101656.jpg
Views: 64
Size:  680.4 KBName:  20201124_101810.jpg
Views: 68
Size:  1.02 MBName:  20201124_102427.jpg
Views: 59
Size:  960.7 KBName:  20201124_102359.jpg
Views: 59
Size:  649.1 KB

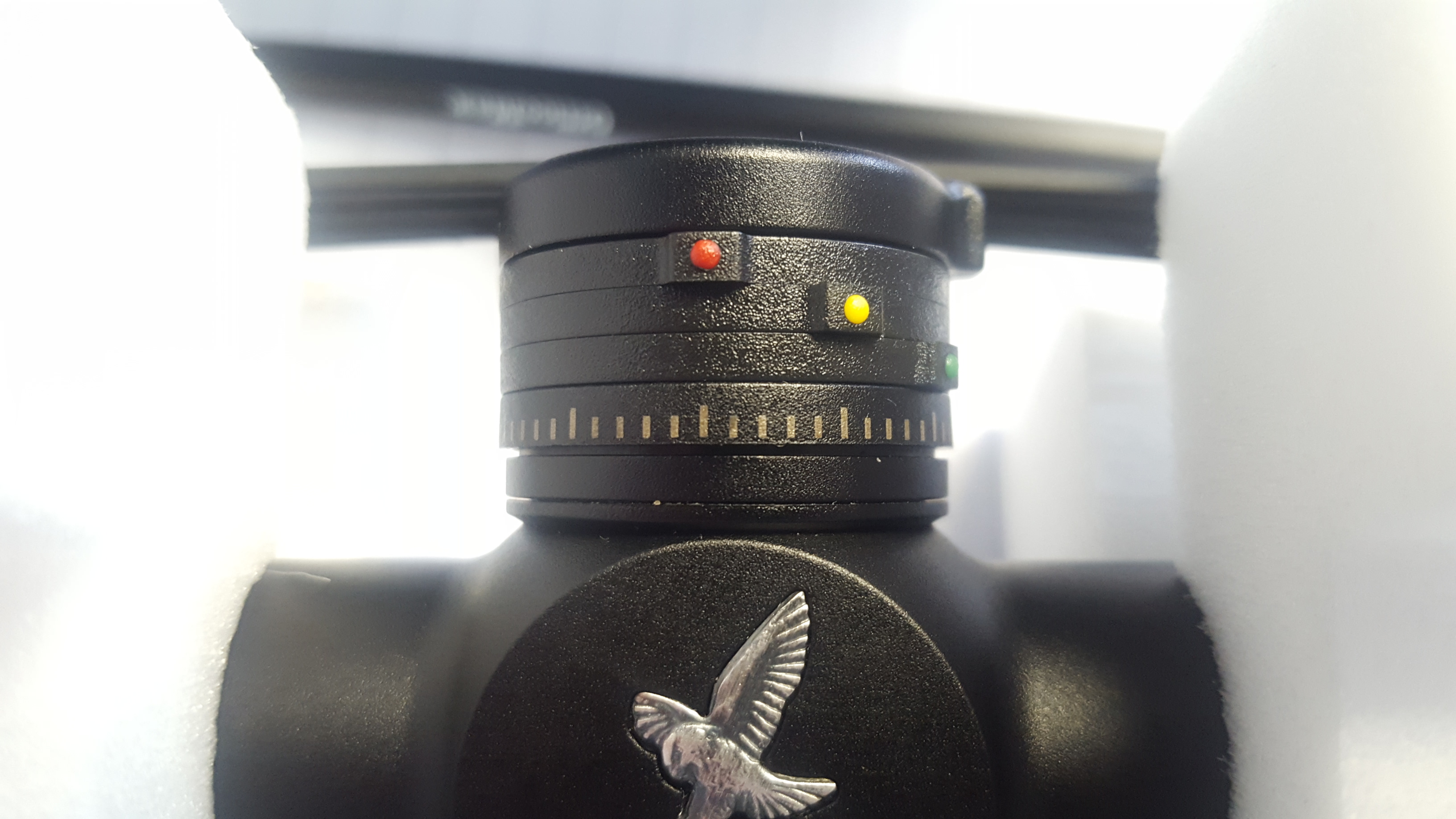

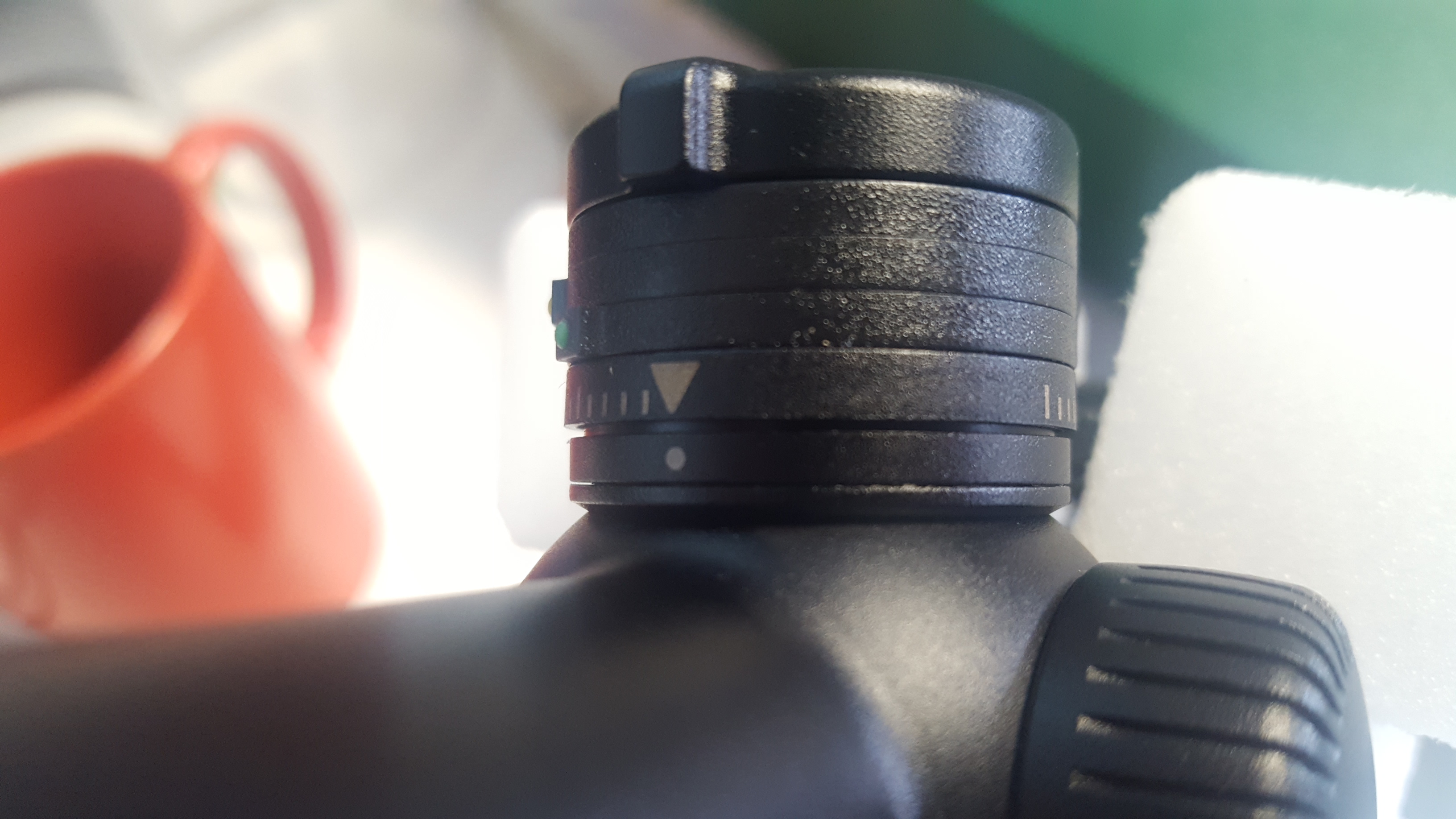

    Pictures of the reassembled BT:
    Name:  20201124_121130.jpg
Views: 60
Size:  971.6 KBName:  20201124_115608.jpg
Views: 64
Size:  877.9 KB
