Thread: tikka magazine modification question

  1. #1
    Member
    Join Date
    Aug 2016
    Location
    Manuwatu
    Posts
    335

    tikka magazine modification question

    I have seated my tikka 260rem to far to fit in the mag, does any one have any links or anything to a d.i.y fix. Spent to much lately any advice is appreciated.

  2. #2
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    3,348
    You can just cut out the inner web section. It will still feed fine with the now too short follower.

  3. #3
    If your not fast your last Shootm's Avatar
    Join Date
    Dec 2011
    Location
    Mighty Manawatu
    Posts
    2,735
    Quote Originally Posted by Tim Dicko View Post
    I have seated my tikka 260rem to far to fit in the mag, does any one have any links or anything to a d.i.y fix. Spent to much lately any advice is appreciated.
    See if someone will swap you in the buy, sell ,swap.
    You never know.
    Tim Dicko likes this.

    I Have Sexdaily. I mean Dyslexia! Fcuk!

  4. #4
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    3,336
    I guess you mean the projectile is seated too far out, you could reduce the oal to fit, try out a 6.5x55 mag it may give enough extra length, or bubba the follower as msl suggests

  5. #5
    Member stug's Avatar
    Join Date
    May 2012
    Location
    Oxford, Canterbury
    Posts
    3,473
    Pop off the bottom of the magazine. From memory you will see a couple, 4(?) small circles just above the base. Push the plugs in and take the bottom off. The. You will see the space in the rear of the magazine. Cut/dremel the spacer out and reassemble. If that sounds. Out hard then just buy a long one. Will need to get/change the bolt stop as well. I think Gunworks sell long ones.

  6. #6
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    2,439
    As above, long bolt stop & a 270, 6.5x55 size mag works best if you want to save the work.
    Tim Dicko likes this.

  7. #7
    Member Beetroot's Avatar
    Join Date
    Apr 2013
    Location
    Morrinsville
    Posts
    1,602
    I came up with a new follower and spacer to lengthen 223 magazines, works really well and has the benefit of being able to single load also.
    Only reason I spent the time and effort doing this is because you can use the medium magazine (308,243 etc) for 223.

    For a 260 I would just go buy a longer magazine, heaps easier and will look better.
    Buy a longer one cheap from this (below) website and sell the shorter one here or on Trademe, then modify your bolt stop.

    https://tikkaperformance.com/index.p...tikka-magazine
    Tim Dicko likes this.

  8. #8
    Member
    Join Date
    Apr 2014
    Location
    Timaru
    Posts
    435
    I have made one for my 260 out of a long action 5 shot mag. Cut the follower and fitted a spacer made from nylon in the back and it works great with the med action bolt throw.

  9. #9
    Member
    Join Date
    Apr 2014
    Location
    Timaru
    Posts
    435
    @Beetroot how did you modify the feed lips to hold the 223 rounds in the med length mag? The 223 mag has narrower feed lips.

  10. #10
    Member Beetroot's Avatar
    Join Date
    Apr 2013
    Location
    Morrinsville
    Posts
    1,602
    Quote Originally Posted by blair993 View Post
    @Beetroot how did you modify the feed lips to hold the 223 rounds in the med length mag? The 223 mag has narrower feed lips.
    @blair993 I modified the standard 223 magazine.
    Here's a thread I started with all the information about it, used it the other day without even realizing it was the modified magazine and if worked perfectly.

    https://www.nzhuntingandshooting.co....ine-mod-27848/

  11. #11
    Member
    Join Date
    Apr 2014
    Location
    Timaru
    Posts
    435
    ok you had said you can use the med length mag for 223 and couldn't see how.
    "Only reason I spent the time and effort doing this is because you can use the medium magazine (308,243 etc) for 223. "

  12. #12
    Member
    Join Date
    Aug 2016
    Location
    Manuwatu
    Posts
    335
    Quote Originally Posted by stug View Post
    Pop off the bottom of the magazine. From memory you will see a couple, 4(?) small circles just above the base. Push the plugs in and take the bottom off. The. You will see the space in the rear of the magazine. Cut/dremel the spacer out and reassemble. If that sounds. Out hard then just buy a long one. Will need to get/change the bolt stop as well. I think Gunworks sell long ones.
    cheers a, im a total tight arse that likes shiney things. i think i will give the dremel spacer a go . im a jack of all trades, master of one. worth a go i say.

  13. #13
    Member
    Join Date
    Aug 2016
    Location
    Manuwatu
    Posts
    335
    Quote Originally Posted by blair993 View Post
    I have made one for my 260 out of a long action 5 shot mag. Cut the follower and fitted a spacer made from nylon in the back and it works great with the med action bolt throw.
    i will try it cheers Blair. sick of single feeding already haha

  14. #14
    Member Beetroot's Avatar
    Join Date
    Apr 2013
    Location
    Morrinsville
    Posts
    1,602
    Quote Originally Posted by blair993 View Post
    ok you had said you can use the med length mag for 223 and couldn't see how.
    "Only reason I spent the time and effort doing this is because you can use the medium magazine (308,243 etc) for 223. "
    Sorry, was meant to be Can't not Can.

  15. #15
    Member
    Join Date
    Apr 2014
    Location
    Timaru
    Posts
    435

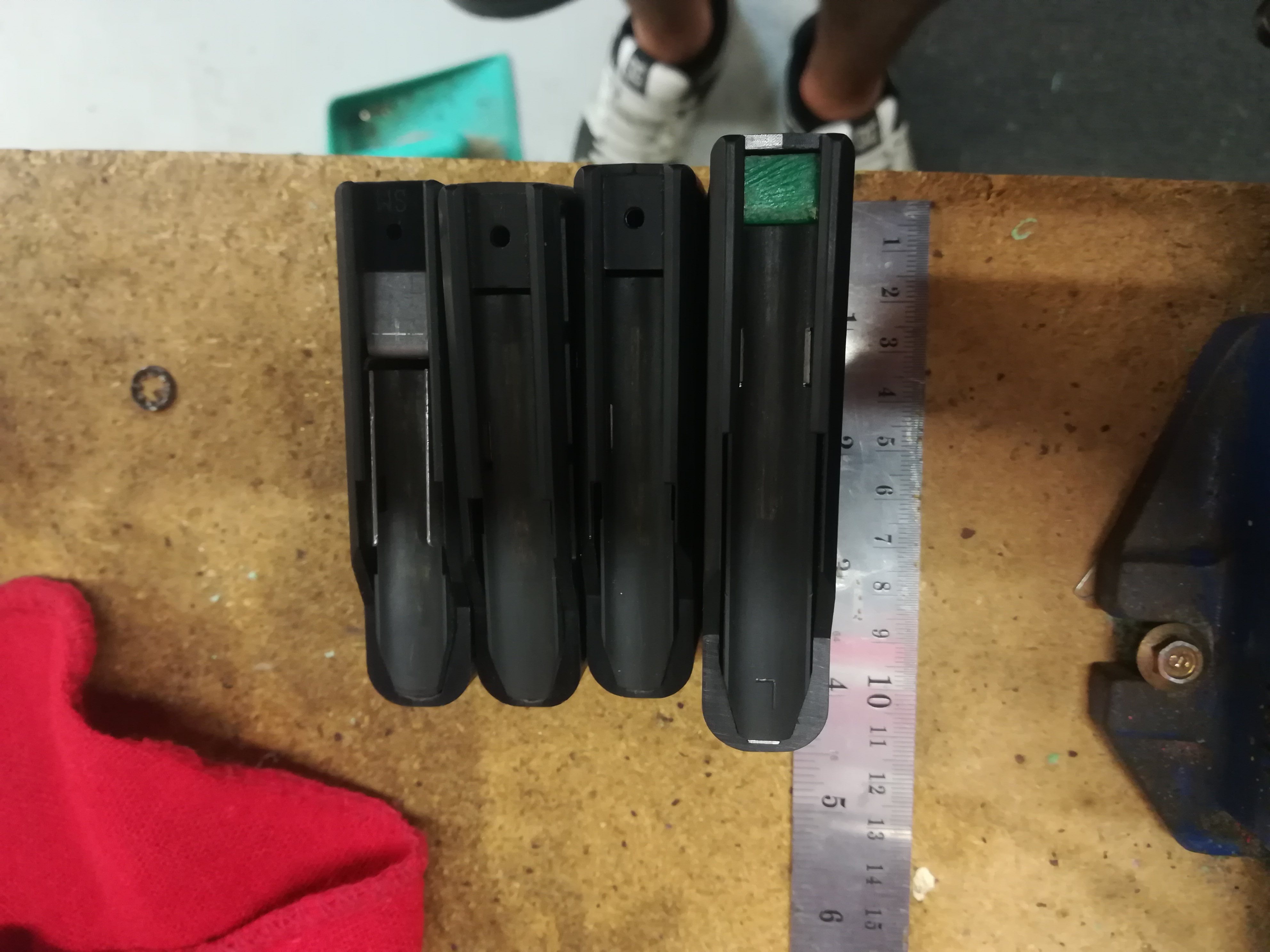

    @Beetroot lol. i was confused.Name:  IMG_20171030_210058.jpg
Views: 389
Size:  1.89 MB
    the long action on the rhs with the green nylon spacer is a 5 shot will still feed out of a med action and coal is longer than it needs to be. my 140eldms are about 71.58mm.
    Tim Dicko likes this.
