Thread: Unpleasant surprises when removing a scope

  1. #1
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    3,257

    Unpleasant surprises when removing a scope

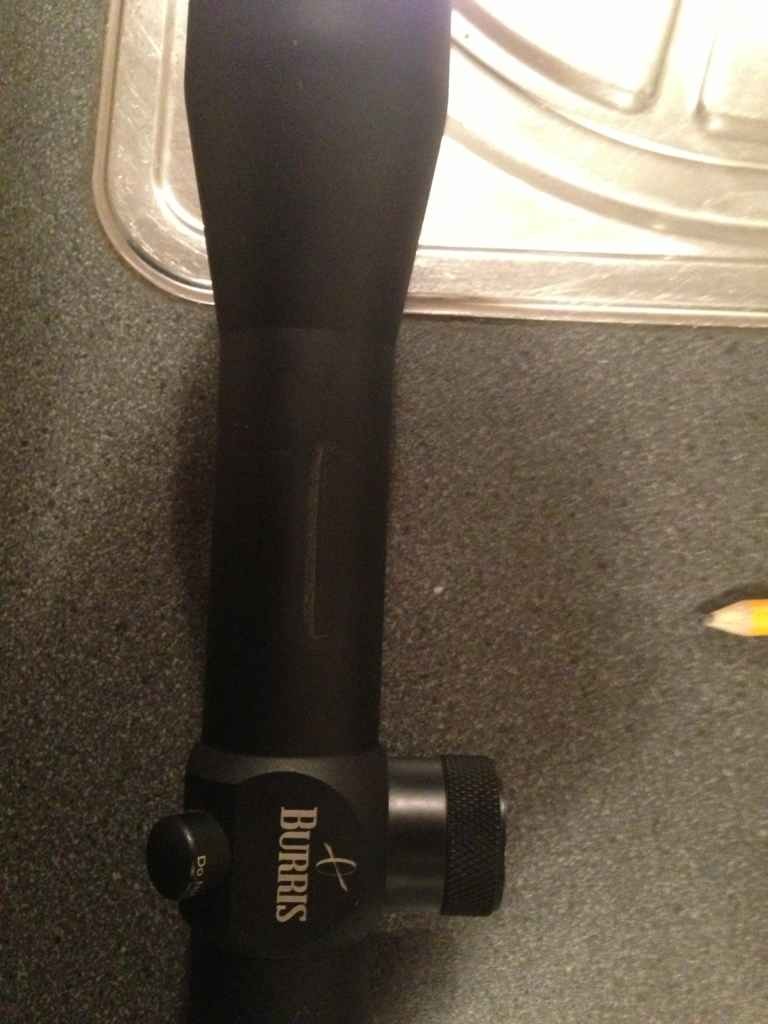

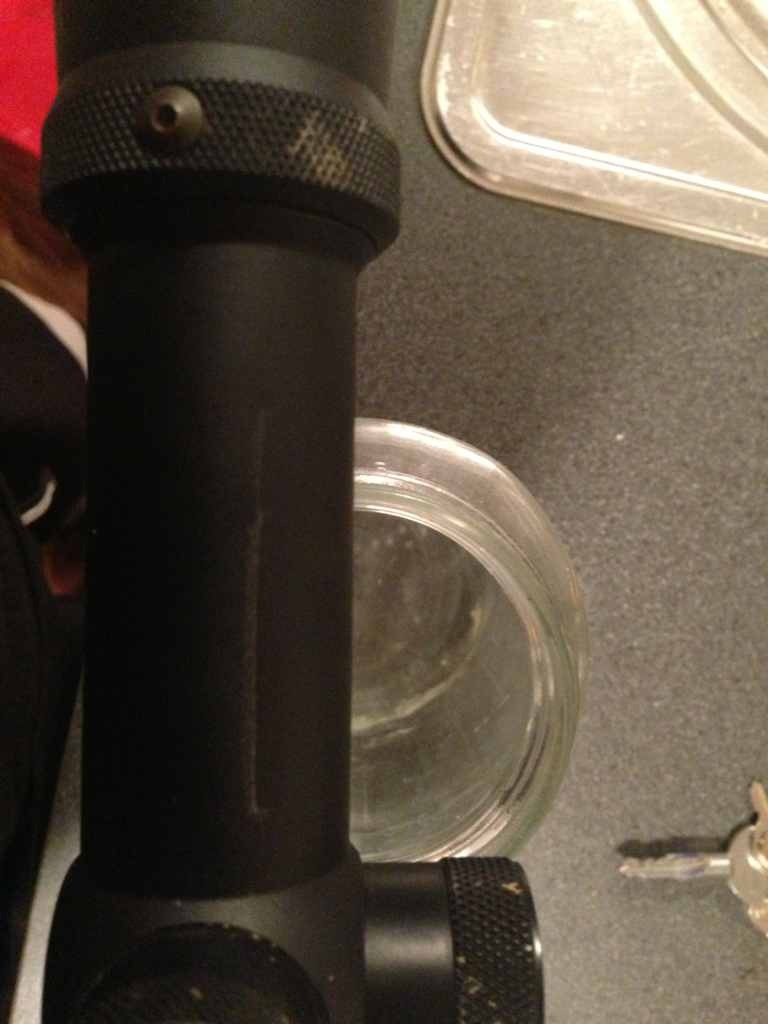

    Just removed a Burris tac 30 from a mount it was in an got abit of a surprise Name:  ImageUploadedByTapatalk1372713218.903620.jpg
Views: 480
Size:  102.1 KBName:  ImageUploadedByTapatalk1372713233.565369.jpg
Views: 485
Size:  73.9 KB
    A lot less than ideal

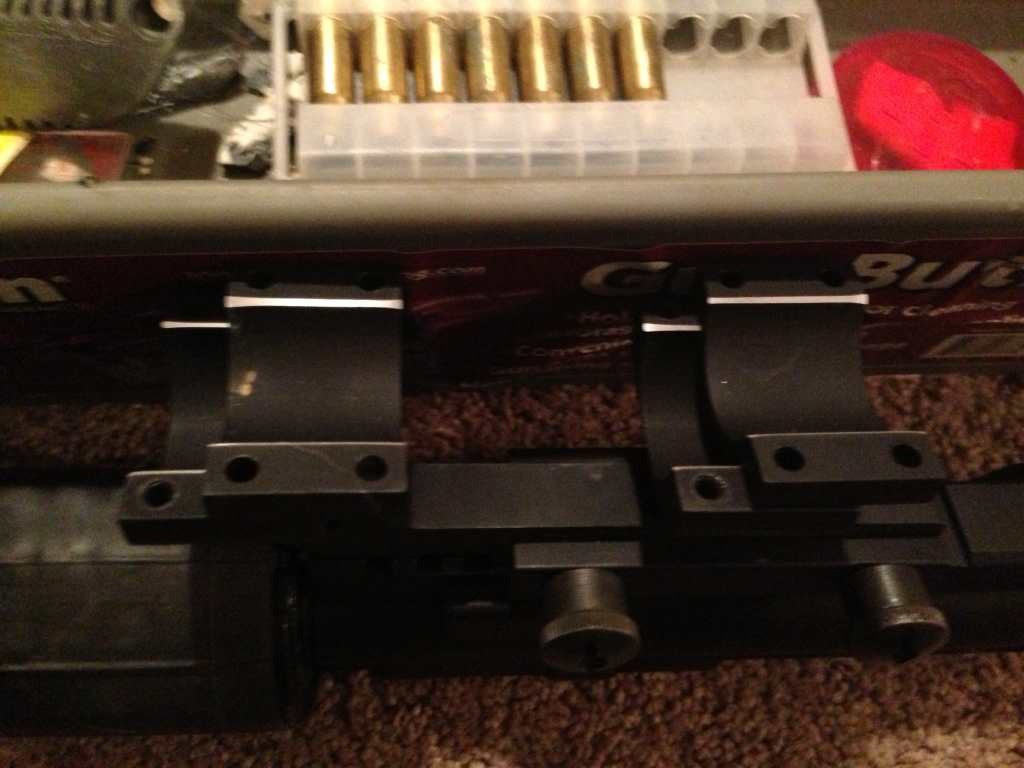

    Name:  ImageUploadedByTapatalk1372713264.399084.jpg
Views: 506
Size:  90.5 KB
    The culprit, I blame the mount but it was me who tightened it

  2. #2
    Member sako75's Avatar
    Join Date
    Dec 2011
    Location
    Supercity
    Posts
    4,945
    Ouch. Maybe a lapping bar for the next mount

  3. #3
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    3,257
    I think it is a combination of over tightening and soft scope tube,
    I think the cantilever mounts were tightened so much that the edges were pulled down and into the scope

    maybe its time for a torque wrench......

  4. #4
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    15,833
    Quote Originally Posted by Bill999 View Post
    I think it is a combination of over tightening and soft scope tube,
    I think the cantilever mounts were tightened so much that the edges were pulled down and into the scope

    maybe its time for a torque wrench......
    I have a torque (screwdriver) especially for that type of work. Got it off Sinclairs. Uses hex head fittings, simple bit of kit. Was around $150 US

    Unless you are using a big heavy recoiling rifle 14"lbs, per screw is all you need.
    Do what ya want! Ya will anyway.

  5. #5
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    3,257
    funnily its never happened with a leupold.....
    veitnamcam and JoshC like this.

  6. #6
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    21,818
    I do mine up till Im scared of snapping them off and never marked a tube.

    Sent from my GT-S5360T using Tapatalk 2
    Spanners, mucko, Bill999 and 2 others like this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  7. #7
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,563
    Quote Originally Posted by veitnamcam View Post
    I do mine up till Im scared of snapping them off and never marked a tube.

    Sent from my GT-S5360T using Tapatalk 2
    +1.....gets scary sometimes as well.......
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  8. #8
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    15,833
    Quote Originally Posted by veitnamcam View Post
    I do mine up till Im scared of snapping them off and never marked a tube.

    Sent from my GT-S5360T using Tapatalk 2

    Why do I get the impression you would only need a large hammer and communicate in single syllables, to be happy?
    Spanners and JoshC like this.
    Do what ya want! Ya will anyway.

  9. #9
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    21,818
    If you can't fix it with a hammer you have an electrical problem

    Sent from my GT-S5360T using Tapatalk 2
    Spanners, puku, Savage1 and 4 others like this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  10. #10
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,563
    Quote Originally Posted by veitnamcam View Post
    If you can't fix it with a hammer you have an electrical problem

    Sent from my GT-S5360T using Tapatalk 2
    'If you cant fix it with a hammer'....then your hammer wasn't big enough in the first place!!!!!!!
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  11. #11
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    3,257
    honestly if the scope gets squished it wasnt strong enough.

    this is why optilock rings rule, tigheten them up and no problems at all, rudimentary cantilever mount absolutly roots the scope tube

  12. #12
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    6,850
    honestly if the scope gets squished it wasnt strong enough
    My Premier got squished and they have mil contracts. I'd say operator error more likely. You can generate a fair bit of force once things start to get leverage.
    Savage1 likes this.

  13. #13
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    15,833
    Quote Originally Posted by kiwijames View Post
    My Premier got squished and they have mil contracts. I'd say operator error more likely. You can generate a fair bit of force once things start to get leverage.
    Thats coz the rock ape that had the scope before you, used a extention bar to tighten the ring screws
    Do what ya want! Ya will anyway.

  14. #14
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    3,257
    Quote Originally Posted by kiwijames View Post
    My Premier got squished and they have mil contracts. I'd say operator error more likely. You can generate a fair bit of force once things start to get leverage.
    absolutly my fault with wrenching it down.

    still think it should be stronger tho, I hate thinking my scopes might move

  15. #15
    Member sneeze's Avatar
    Join Date
    Dec 2011
    Location
    nelson/marlborough
    Posts
    3,083
    With a few exceptions scope tubes are alloy and if you tighten them up enough they will crush. Some mounts will let you get away with a bit of overtightning others will bite you in the arse. I use a W&B torque wrench and use 15 ish inch pounds max but got lazy a whie ago and crushed a vortex diamondback. Verticle split rings are the worst but still my fault. Best thing was I owned up and vortex just repalced the scope totally free, not even charging for freight.
    Rules are for the obedience of fools
    and the guidance of wise men” Sir Douglas Bader.
