Thread: what steel and what hardness for a 22lr firing pin

  1. #1
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    2,420

    what steel and what hardness for a 22lr firing pin

    have a 22 coming that has a broken firing pin its a simple one and I've already organized my mate whos a tool maker to make a couple so I have a spare
    he asked me to find out what steel and hardness as he is not a gunsmith and never made a firing pin before

  2. #2
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    6,338
    Use a Ramset nail as the parent metal donor
    A big fast bullet beats a little fast bullet every time

  3. #3
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    2,420
    its a flat firing pin similar to a ruger 10/22 sort of thing (as far as I understand) so a ramset nail would need to be flattened out?

  4. #4
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    6,338
    Quote Originally Posted by rambo-6mmrem View Post
    its a flat firing pin similar to a ruger 10/22 sort of thing (as far as I understand) so a ramset nail would need to be flattened out?
    Yes, grinding flat will do the trick, one of those jobs where a shearing comb sharpener comes in handy
    A big fast bullet beats a little fast bullet every time

  5. #5
    Member
    Join Date
    Feb 2014
    Location
    Taupo
    Posts
    325
    i have made them before out of silver steel i think its called, then hardened and tempered them, worked fine and didn't wear out.
    Maca49 likes this.

  6. #6
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    873
    Gauge plate (O1) or spring steel is fine. The pin needs to made so that it does not touch the end of the barrel when it is at its fullest forward extent, otherwise it will create a burr on the chamber if it is dry-fired. The finished pin needs to be tempered to full blue after hardening or it will be brittle and subject to fracture. What make and model is your rifle? I may be able to give you some useful tips if I know exactly which rifle it is for.
    P38, veitnamcam, Maca49 and 2 others like this.

  7. #7
    P38
    P38 is offline
    Member P38's Avatar
    Join Date
    Dec 2011
    Location
    Hastings
    Posts
    5,717
    Gauge plate is what I'd use.

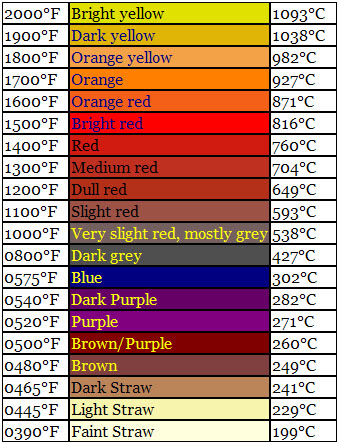

    Tell your mate to Harden then temper back to Blue 300c.
    Name:  image.jpeg
Views: 453
Size:  103.7 KB

    Cheers
    Pete
    7mmsaum likes this.
    Arguing with an Engineer is like Wrestling a Pig in Mud.

    After awhile you realise the Pig loves it.

  8. #8
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    2,420
    Quote Originally Posted by gundoc View Post
    Gauge plate (O1) or spring steel is fine. The pin needs to made so that it does not touch the end of the barrel when it is at its fullest forward extent, otherwise it will create a burr on the chamber if it is dry-fired. The finished pin needs to be tempered to full blue after hardening or it will be brittle and subject to fracture. What make and model is your rifle? I may be able to give you some useful tips if I know exactly which rifle it is for.
    @gundoc its a saurio model 700 leaver action made in Argentina I was looking for a project and put a post up on here a couple of months ago and got it of a fallow forum member
    never herd of saurio before looking them up them mostly make pistols
    thought it would be an interesting little piece

    heres a pic off the web
    Name:  sau 1.jpg
Views: 447
Size:  77.5 KB
    P38 likes this.

  9. #9
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    873
    Rambo, I have never come across one of this make in 45+ years of gunsmithing! It looks very much like a copy of the Marlin Model 57 .22. Hopefully there is enough of the broken pin to make a good copy. My only comments would be to make sure there are no right angled corners on the replacement pin. They should all be radiused to avoid stress cracking in the corners. The nose of the flat firing pin should be tapered at the contact area with the rim of the cartridge until is is about 1mm wide and the edges lightly radiused to ensure positive ignition. I assume it is a hammer-fired system and I would suggest that the back 1/4" of the pin is only drawn back to brown colour to make a harder surface for the hammer to strike. This will prevent the back of the pin from 'mushrooming' from extended use.
    nor-west and gadgetman like this.

  10. #10
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    2,420
    Quote Originally Posted by gundoc View Post
    Rambo, I have never come across one of this make in 45+ years of gunsmithing! It looks very much like a copy of the Marlin Model 57 .22. Hopefully there is enough of the broken pin to make a good copy. My only comments would be to make sure there are no right angled corners on the replacement pin. They should all be radiused to avoid stress cracking in the corners. The nose of the flat firing pin should be tapered at the contact area with the rim of the cartridge until is is about 1mm wide and the edges lightly radiused to ensure positive ignition. I assume it is a hammer-fired system and I would suggest that the back 1/4" of the pin is only drawn back to brown colour to make a harder surface for the hammer to strike. This will prevent the back of the pin from 'mushrooming' from extended use.
    Awsome information mate ive been arround gun shows and collectors alot and never seen one you've been a gunsmith a lot longer than ive even been alive so they are certainly not that common
    Both peices of the old pin are still there apparently so should be a a reasonably simple copy job

  11. #11
    Member specweapon's Avatar
    Join Date
    Apr 2013
    Location
    Tasman
    Posts
    1,032

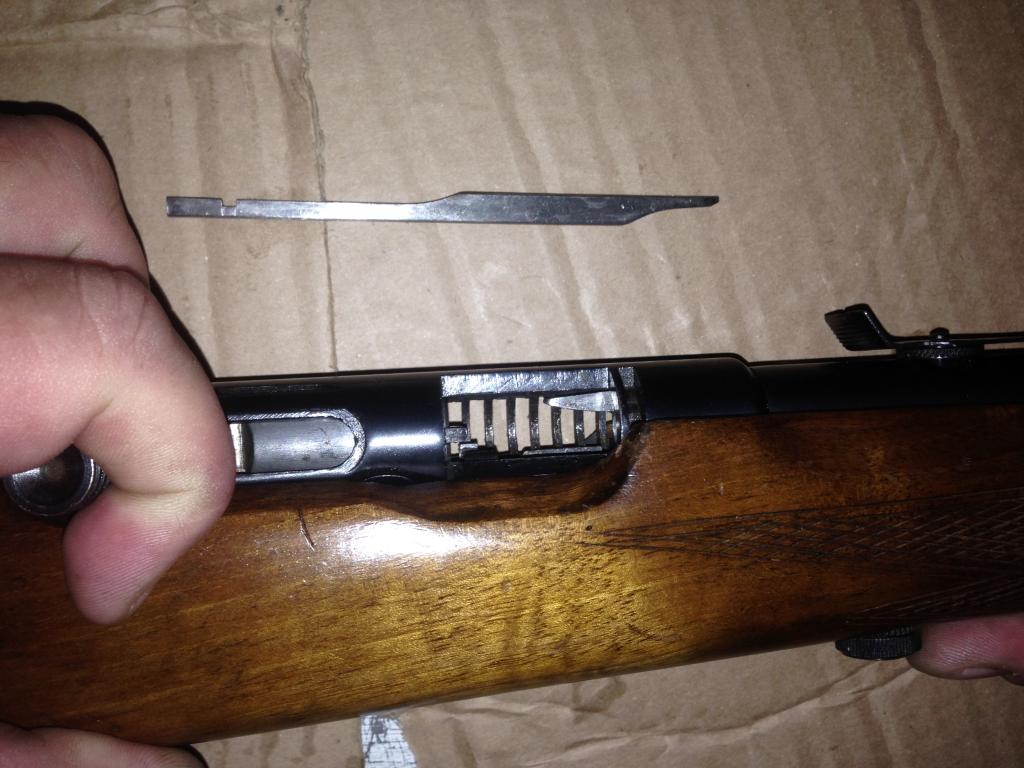

    The main part of the pin is there but not the striker piece. Action looks different from the Marlin 57. Have searched for ages to find a rifle that it could be a copy of but haven't been successful

    Photo from the web
    Name:  43542C7F-F990-46F1-A050-7175129C3E0C_zps7n4tq4ei.jpg
Views: 1277
Size:  97.0 KB

  12. #12
    Member Boar Freak's Avatar
    Join Date
    Jul 2012
    Location
    Above the Hutt
    Posts
    862
    Quote Originally Posted by specweapon View Post
    The main part of the pin is there but not the striker piece. Action looks different from the Marlin 57. Have searched for ages to find a rifle that it could be a copy of but haven't been successful

    Photo from the web
    Attachment 60674
    That looks a similar to stirling semi auto
    Last edited by Boar Freak; 14-12-2016 at 09:03 AM.
    Nothing is tough about having a 70 lb bow and looking like an uncoordinated praying mantis while trying to draw it back.

  13. #13
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    873
    Quote Originally Posted by specweapon View Post
    The main part of the pin is there but not the striker piece. Action looks different from the Marlin 57. Have searched for ages to find a rifle that it could be a copy of but haven't been successful

    Photo from the web
    Attachment 60674
    Your rifle is a Savage and was made for many years under various model numbers (6, 87, 187). Gun Parts Corp in the US will have parts available, and their website will show pictures of the pin.

  14. #14
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    2,420
    Quote Originally Posted by specweapon View Post
    The main part of the pin is there but not the striker piece. Action looks different from the Marlin 57. Have searched for ages to find a rifle that it could be a copy of but haven't been successful

    Photo from the web
    Attachment 60674
    all good mate didn't arrive today id say it should be here tomorrow...... should be easy enough to guess the striker piece @gundoc? as long as the main shaft of the pin is there to copy so it fits in the bolt properly the actual tip probably doesn't matter too much as long as it hits the rim of the case and ignites the powder

  15. #15
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    873
    I am now confused as we seem to be talking about two different firearms here. Where does Specweapon's Savage semi-auto fit into this discussion? The Savage firing pin attaches to a cylindrical hammer and the piece missing has a tab that extends sideways (so a vertical view of the pin is a T shape) which slots into the cylindrical hammer. The Savage firing pin also passes through a slot in the cocking handle to hold it in place. This pin is quite different to the Saurio lever action pin.
