So now that i dont need heaps of moa i was planning to put the zero stop screw in my hd5.
The thing is the screw hole is on the wrong side?
If i screw it in i cant dial anything as its anti clockwise for up and for obvious reasons it hits the pin.
Anyone point out my error? @R93

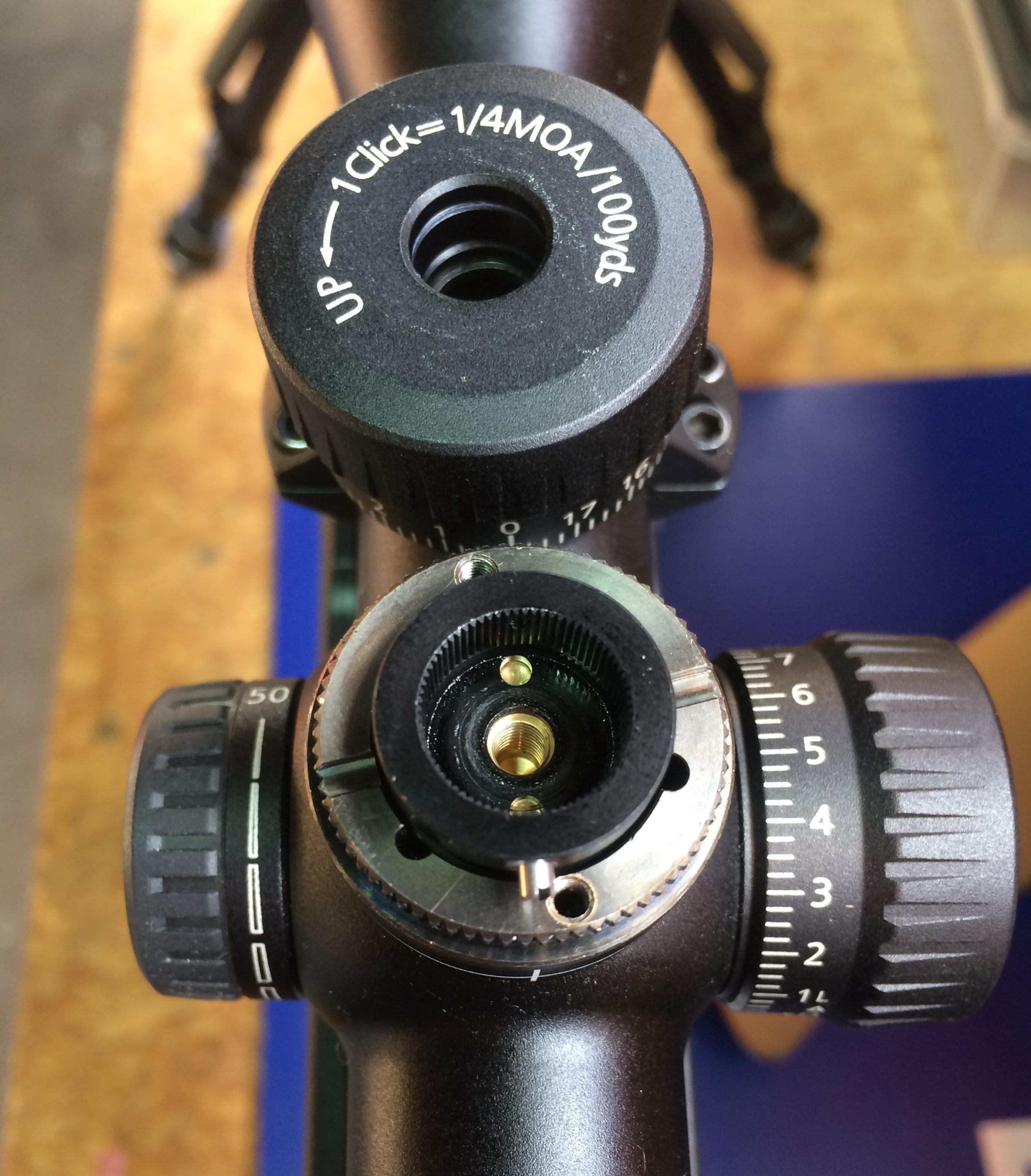

Attachment 67711
Pick up the turret and locate it so the pin is on the other side of the zero stop screw.
Place your turret so 0 is on the mark and you should have 16.2 MOA
Sent from my SM-G935F using Tapatalk
So moving that pin wont change my zero?
R93 is correct
Not unless you turn the turret to do so.Quote:
Originally Posted by Gibo
Lift it out and locate it on the right of the screw and you will not loose zero.
Sent from my SM-G935F using Tapatalk
I dont doubt that. Dave if i turn it like you said it wont adjust my zero?
I dont get it. Do i need to screw the cap back on or do you do it as shown in pic (cap off)?
No that piece/internal turret should lift out so you can locate it anywhere you want.Quote:
Originally Posted by Gibo
I do this on the range after zeroing.
Have only had to do it once since having the scope.
Sent from my SM-G935F using Tapatalk
Lift out the black bit of plastic with the horizontal pin.
Locate it with the horizontal pin next to hole of vertical pin
Replace numbered turret with the zero on the alignment mark
Replace screw.
Done
Champion! Thanks Dave all sorted after your call
16.5 even :D
Ha Ha. I couldn't explain it as good as Timmay so thought I better ring ya.Quote:
Originally Posted by Gibo
Mine only gets 16 or 16.2 as I lost the original pin and had to force fit a carpet nail to do the same job😆
Sent from my SM-G935F using Tapatalk
Ha ha. I put the windage screw in too, 8 ish moa each way is heaps
Anyone know where to track down these zero stop screws or what size they are?
