    @hillclima there's another party interested, but you have first refusal. I'm posting the pics here so I only have to do it once.

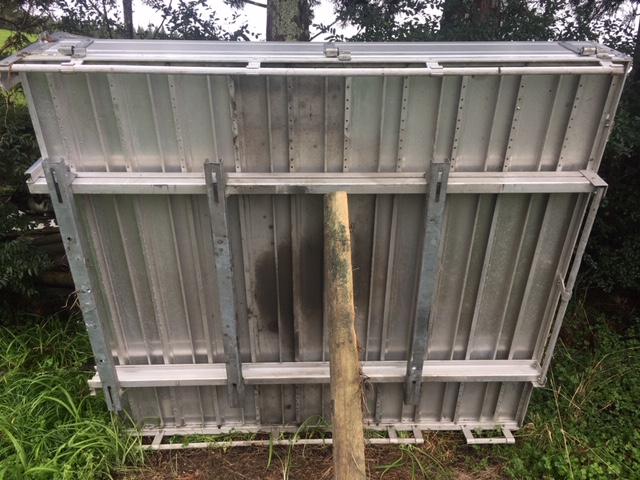

    Underside... 2 x 100x50 alloy longerons and 3 x 50x50 galv steel cross braces, all can be moved in channels.
    Name: IMG_3218.JPG Views: 3190 Size: 146.7 KB

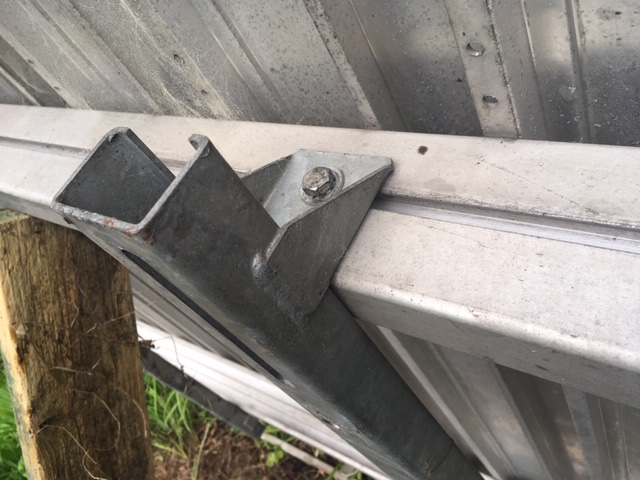

    Brace attachment detail...
    Name: IMG_3219.JPG Views: 3167 Size: 119.8 KB

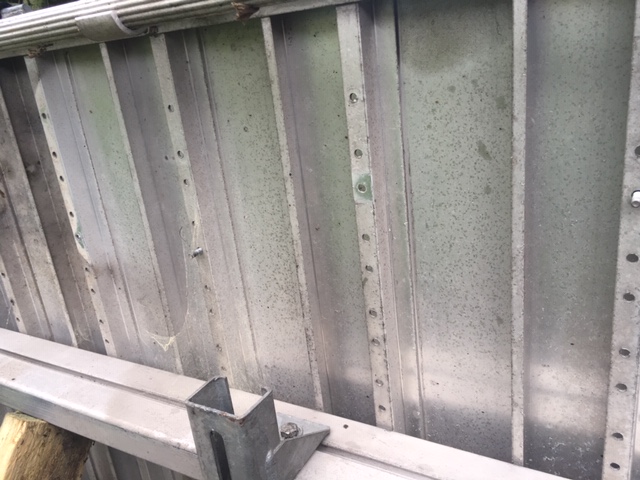

    All these little holes are guard mounting points, lots of options...
    Name: IMG_3220.JPG Views: 3148 Size: 119.1 KB

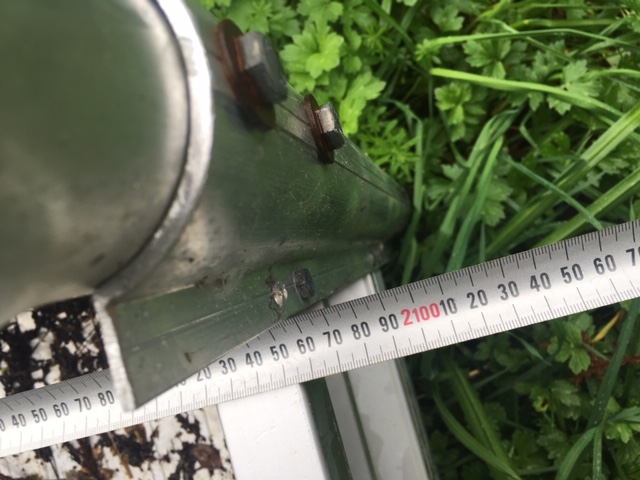

    Length...
    Name: IMG_3222.JPG Views: 3179 Size: 105.4 KB
    Width...
    Name: IMG_3221.JPG Views: 3159 Size: 112.4 KB

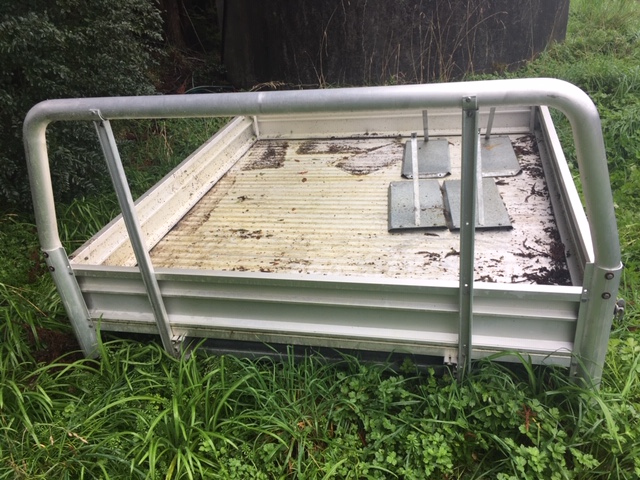

    Front...
    Name: IMG_3223.JPG Views: 3195 Size: 165.8 KB

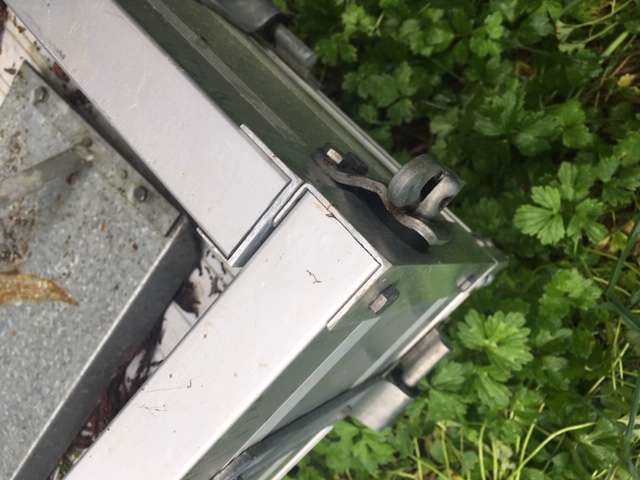

    Cap detail...
    Name: IMG_3224.JPG Views: 3110 Size: 114.1 KB

    The deck sections are 200mm wide so that's how much shorter it would be for each one removed. I still have the missing headboard panel, and the bolts and packers for chassis attachment but you'd probably have to cut some up yourself to mate up to the Ranger.

    $600.00 and a box of Panhead Supercharger APA.
    Gapped axe likes this.
    10MRT shooters do it 60 times, in two directions and at two speeds.
