Thread: Hilux wheel offset

  1. #1
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,209

    Hilux wheel offset

    Looking at purchasing some steel rims to put mid tyres on a hilux (KUN 2006-2011) can anyone recommend the correct offset to use? Seems like main options are 0 or -22
    Will be running 245-75-16 MTs

  2. #2
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,379
    I'd just stick with 0, unless you want a wider stance for some reason

  3. #3
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,209
    So more negative means more offset? Ie: -22 will stick out 22mm more than 0?
    Thanks, don't want a bogan truck, just a all rounder that drives well on the road and can access hunting spots etc without too much trouble so think I will stick with the 0 offset

  4. #4
    270 King of the Calibres oraki's Avatar
    Join Date
    Jun 2015
    Location
    CSI Flatlander
    Posts
    2,680
    I've got some carpet you can put on the bonnet and a 3 week old pig to throw on the back.....and lights, lotsa lights. Never have to much light

  5. #5
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,209
    Quote Originally Posted by oraki View Post
    I've got some carpet you can put on the bonnet and a 3 week old pig to throw on the back.....
    Have you got a dog box even though I don't have dogs, just so the pig can be up on display for all to see? Also I'm open to using some bald 33"s that have less traction than a set of factory sized AT's if there's any going?
    veitnamcam, gadgetman and oraki like this.

  6. #6
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,379
    -22 means the wheel hub is 22mm inside the centre line so yes it will push the rim outwards

  7. #7
    270 King of the Calibres oraki's Avatar
    Join Date
    Jun 2015
    Location
    CSI Flatlander
    Posts
    2,680
    Quote Originally Posted by Ryan_Songhurst View Post
    Have you got a dog box even though I don't have dogs, just so the pig can be up on display for all to see? Also I'm open to using some bald 33"s that have less traction than a set of factory sized AT's if there's any going?
    No box, but will have some bald 31's x15 MT soon. Repco got spray on mud in a can on special
    Ryan_Songhurst likes this.

  8. #8
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    4,254
    Are you putting on 16" ? -22 is the stanard offset for that size. If you use 0 on a wide rim like 8" then you may not clear the mudflap etc on the inner guard on full lock.

    Sent from my GT-I9192 using Tapatalk

  9. #9
    Ejected
    Join Date
    Dec 2012
    Location
    HBC, NORTH of Auckland
    Posts
    5,249
    Also having that 'wider stance' is good for a bit of extra bodywork protection in ruts etc as the tyres will take the hit and not the guards.

  10. #10
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,209
    Yes 16" rims as anything 15" won't clear the brakes.

  11. #11
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,209
    Quote Originally Posted by Nibblet View Post
    Also having that 'wider stance' is good for a bit of extra bodywork protection in ruts etc as the tyres will take the hit and not the guards.
    Also good for scoring small town single mums
    YosemiteSam likes this.

  12. #12
    Member hotbarrels's Avatar
    Join Date
    Aug 2012
    Location
    Auck
    Posts
    1,780
    Check out Toyota Hilux 2006 - Wheel & Tire Sizes, PCD, Offset and Rims specs - Wheel-Size.com

    Factory standard looks to be:
    6JJx15 ET45 fitted with 205/70R15
    or 7JJx15 ET10 fitted with 255/70R15
    or 6JJx16 ET45 fitted with 205R16

    Based on the above, and by measuring your current wheel to body work and suspension clearances you should be able to work out what a 0 or -22 offset will do.

    If you go to 4WDbits Toyota Hilux VIGO 2005 to 2015 they have +30mm in 16" which I think you will find to be a better solution with less risk of tyre rub, unless you have a suspension lift.

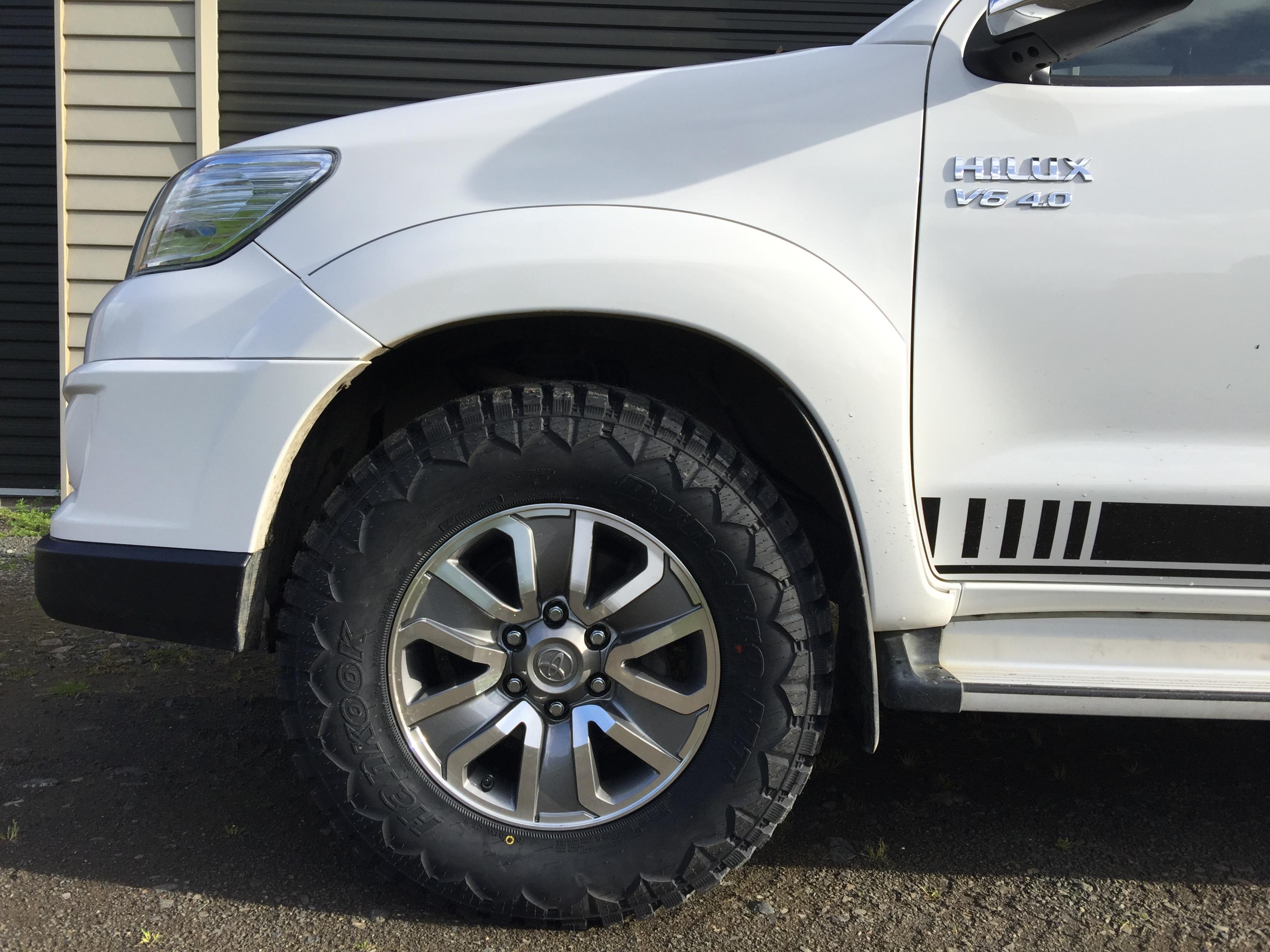

    I have just fitted 265x70x17" to my 2015 Hilux on +45mm factory TRD rims and they just rub on the bottom of the front bumper when turning.

    Name:  2016-10-06 17.51.10.jpg
Views: 3655
Size:  715.9 KB

  13. #13
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    17,845
    Quote Originally Posted by Ryan_Songhurst View Post
    Yes 16" rims as anything 15" won't clear the brakes.
    If you are going from alloy to steel you will find the metal is thinner in the steels and will probably clear the brakes if the tolerance is that close anyway. You're welcome to try on my feet if you are in town.
    There are only three types of people in this world. Those that can count, and those that can't!

  14. #14
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,209
    15s off my courier have no chance of clearing the calipers GM. Now I'm real confused because we have gone from -22 to +45....

  15. #15
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,379
    Just get wheels the same spec as existing/factory.
