Thread: Johnson 130 hp 1997 V4 last of the loopers

  1. #1
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    15,076

    Johnson 130 hp 1997 V4 last of the loopers

    Just had the bottom LH plug a bit clogged with grey oil, motor was missing while idling in the 5 knot zone, but cleared on take off. Water in the cylinder. Have owned the motor since 2000, has had nothing major done to it. Compression tests were fairly even on all 4 pots, had two opinions from two workshops, one said bottom crank shaft seals, other said head gasket, as water cannot get thru from the bottom end, they’re just air seals. Took the heads off, both right and left cylinder show a little water mixture. Here’s some photos, can anyone confirm it will only be head gaskets and anything else I should update while in doing them? Thanks
    Name:  30B1BAA5-AB0C-4220-8E11-DB99C6F6C4D0.jpeg
Views: 167
Size:  3.28 MB

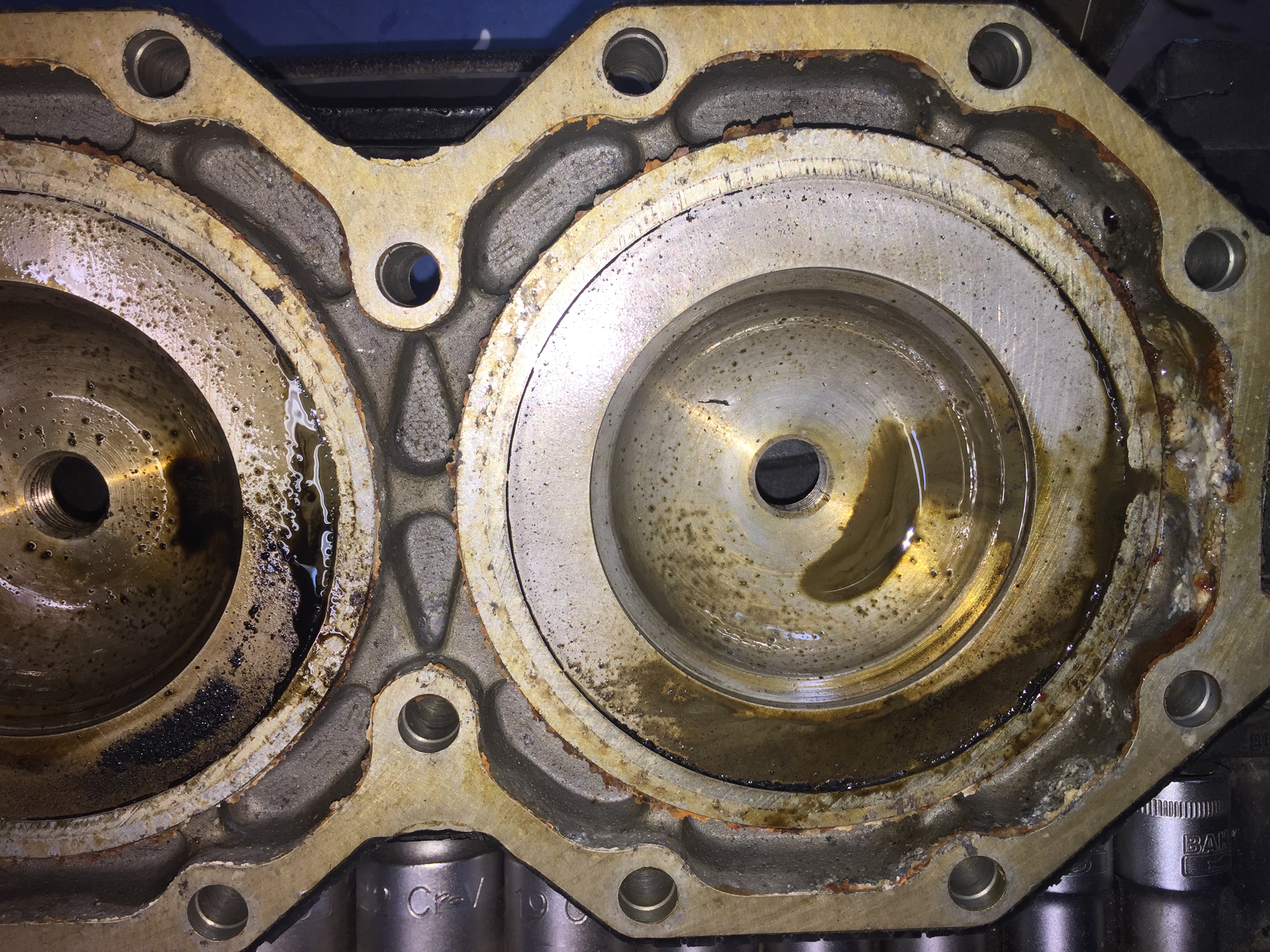

    Left bottom head
    Name:  B7CD37FB-CEDB-4FB4-BD18-A51A51FE6F10.jpeg
Views: 155
Size:  1.81 MB

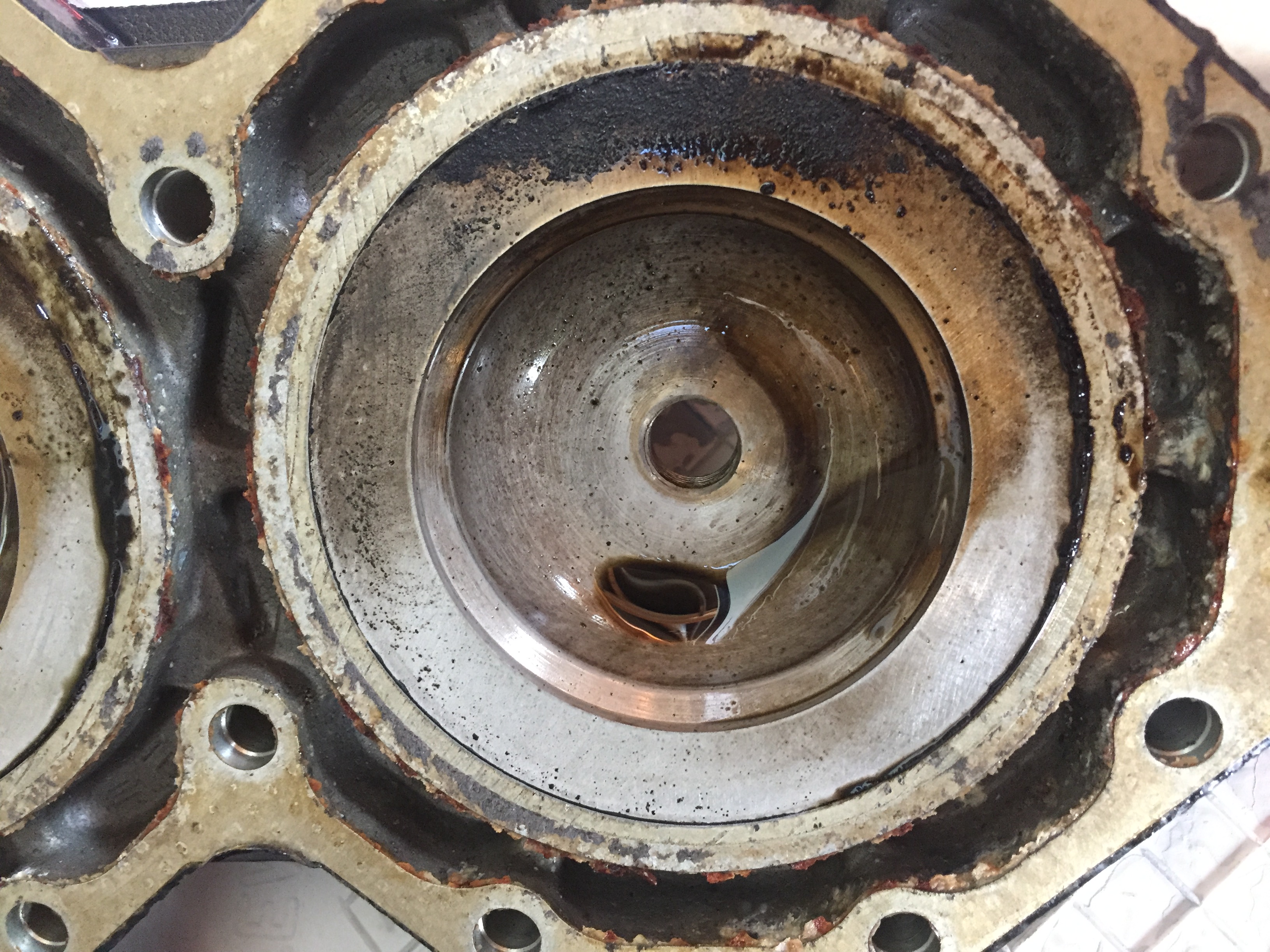

    Right bottom head
    Name:  3E519F8F-AD8E-4206-86D4-1043CC17CD8F.jpeg
Views: 161
Size:  2.83 MB

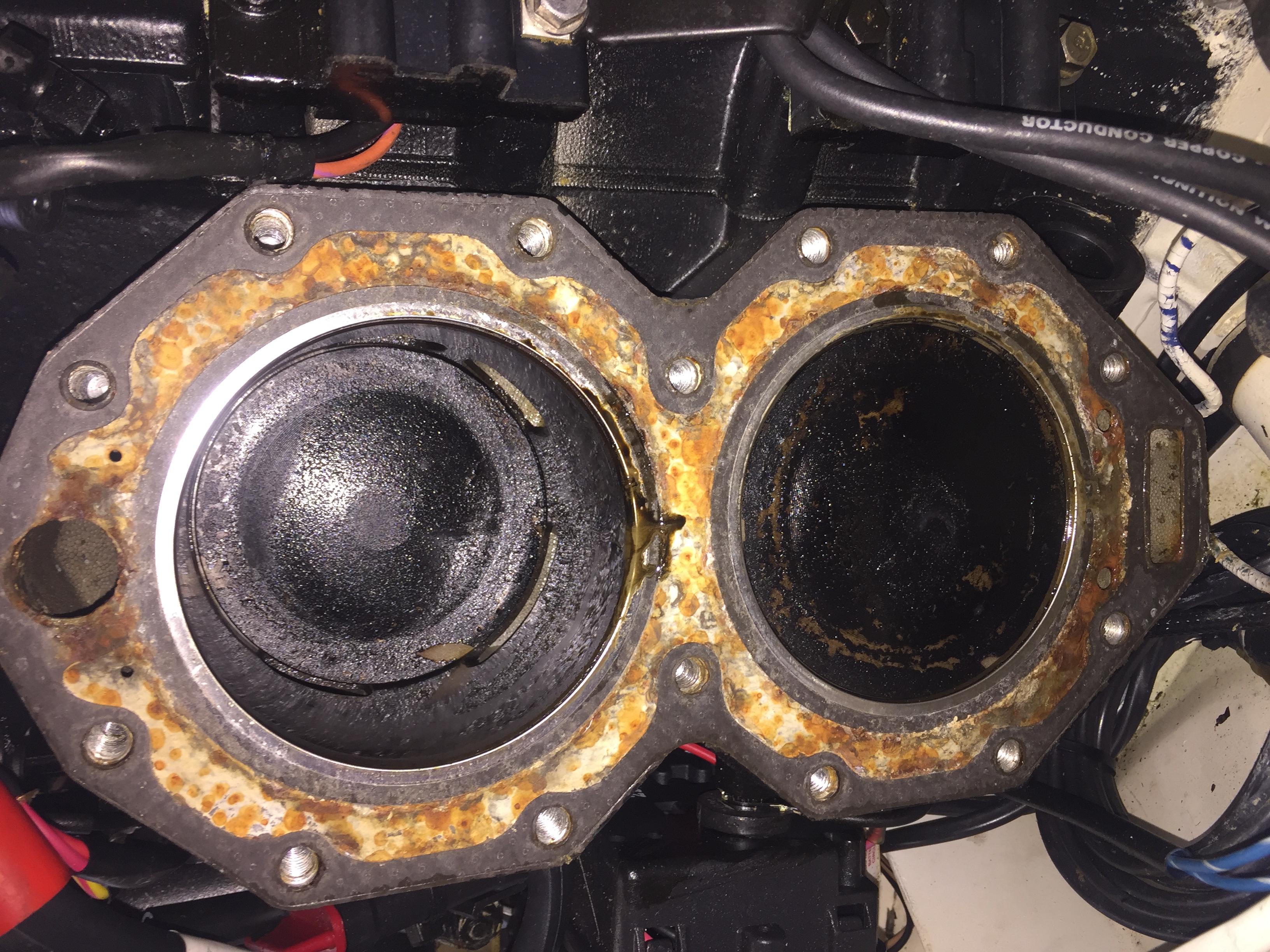

    Gasket condition
    Galleries are clean as down very little salt water
    Boom, cough,cough,cough

  2. #2
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    18,445
    For how easy and cheap it is to do it would be worth just doing the head gaskets and seeing if all good then?
    Maca49 likes this.
    Rule 3: Load a firearm only when ready to fire

    Chicken Intolerant.

  3. #3
    Member Savage1's Avatar
    Join Date
    Dec 2011
    Posts
    2,520
    Not right up with the workings of the marine two stroke engines, but is there a base gasket? The gasket which seals the base of the cylinder to the crankcase as the water galleries run through them too and could leak water into the crank then cylinder, they aren't a compression type gasket.

    I'm just going off of my knowledge of Motocross engines, may or may not cross over.
    Maca49 likes this.

  4. #4
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    15,076
    Quote Originally Posted by Savage1 View Post
    Not right up with the workings of the marine two stroke engines, but is there a base gasket? The gasket which seals the base of the cylinder to the crankcase as the water galleries run through them too and could leak water into the crank then cylinder, they aren't a compression type gasket.

    I'm just going off of my knowledge of Motocross engines, may or may not cross over.
    Thank Savage, that's what I have to find out, I have a sneaky suspicion your right and at 20 years old it's probably prudent to do them, the bottom cylinders having water, makes me think bottom crankshaft seals, which would also get to main bearings and the rollers.
    I'll do the head gaskets and thermostats VC.
    Boom, cough,cough,cough

  5. #5
    Member Gapped axe's Avatar
    Join Date
    Jun 2012
    Location
    Lake Tarawera
    Posts
    3,208
    Should of got a Yamaha
    "ars longa, vita brevis"

  6. #6
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    15,076
    Quote Originally Posted by Gapped axe View Post
    Should of got a Yamaha
    Just a bloody copy of the real one I own, bought it in 2000, I have no bitches, now get back to your Jap crap! I love flying in planes with American Engines, same with my boating, Hahahahahaha
    Boom, cough,cough,cough

  7. #7
    Member Gapped axe's Avatar
    Join Date
    Jun 2012
    Location
    Lake Tarawera
    Posts
    3,208
    shouldn't you be in bed at this time of nite. Just got home from the beach half an hour ago, good drive even thou I had a boat on the back.
    "ars longa, vita brevis"

  8. #8
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    18,445
    Quote Originally Posted by Savage1 View Post
    Not right up with the workings of the marine two stroke engines, but is there a base gasket? The gasket which seals the base of the cylinder to the crankcase as the water galleries run through them too and could leak water into the crank then cylinder, they aren't a compression type gasket.

    I'm just going off of my knowledge of Motocross engines, may or may not cross over.
    Pretty sure they are a cast block that splits in half at the crank not removable barrels like old 2stroke mx bikes.
    Maca49 likes this.
    Rule 3: Load a firearm only when ready to fire

    Chicken Intolerant.

  9. #9
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    15,076
    Quote Originally Posted by veitnamcam View Post
    Pretty sure they are a cast block that splits in half at the crank not removable barrels like old 2stroke mx bikes.
    Yep that would seem correct!
    veitnamcam likes this.
    Boom, cough,cough,cough

  10. #10
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    15,076
    Quote Originally Posted by veitnamcam View Post
    Pretty sure they are a cast block that splits in half at the crank not removable barrels like old 2stroke mx bikes.
    Yep that would seem correct!
    Boom, cough,cough,cough

  11. #11
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    15,076
    Quote Originally Posted by Gapped axe View Post
    shouldn't you be in bed at this time of nite. Just got home from the beach half an hour ago, good drive even thou I had a boat on the back.
    I towed my boat up from Taupo this avo, to work on this week. Just been to the local NZDA meeting tonight, Geeze I'll never waste anymore of my life on that!
    I am an old retired member of Taupo!
    Boom, cough,cough,cough

  12. #12
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    15,076
    @veitnamcam I think head gaskets will fix it
    veitnamcam likes this.
    Boom, cough,cough,cough

  13. #13
    Member
    Join Date
    Jan 2012
    Posts
    230
    Look on ebay for cheap deals on OMC/bombadier outboard parts, probably be way cheaper than here. Also I would ask about this on the iboats forums, there are some outboard mechanics who hang out on there who know OMC/bombadier outboards inside out, if it is a common problem they will have seen it.
