Thread: Some advice on wiring etc on 4wd vehicle

  1. #1
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,207

    Some advice on wiring etc on 4wd vehicle

    A little while ago after feeling a it dejected not wanting to hurt my ute up the Avoca and Wilberforce rivers I decided it was time to purchase an older, but more capable rig for rattling up rivers and into hunting spots. I am now the proud(?) owner of a gen2 LWB pajero.
    Name:  IMG_20210208_192538.jpg
Views: 532
Size:  2.67 MB
    The previous owner had done a bit of 4wd'ing with it and had set it up not half bad so I thought it would make a good base for a hunting rig.
    I'm going through a few things and first up is the light bar. When I got the vehicle the wiring had been disconnected as I was told it wouldn't pass wof with the lightbar able to be used whilst low beam headlights were on, ie: it needs to be wired in such a way that it will only turn on whilst high beam is on and not blind someone off the road when headlights are dipped.
    Currently it's wired direct to the battery (it does have a fuse in the line) and has a switch on the dash.
    The truck has been converted to run two 12v battery's, one as a start only battery, and everything else runs off the "house" battery. The headlights have been rewired completely and run off replacement bosch relays.
    Name:  IMG_20210208_192401.jpg
Views: 558
Size:  2.52 MB
    Name:  IMG_20210208_192332.jpg
Views: 544
Size:  2.48 MB
    I'd like to run the lightbar through a relay and my very basic understanding has come up with the following plan:

    1. Switch on dash draws 12v from the 12v supply on high beam relay (this way the switch will only actually activate the light bar relay if high beam is on... If I'm correct?)

    2. Relay is wired up normally other than drawing switch power from the high beam relay.

    Is this going to work? (and hopefully be legal?) Maybe I'm not making sense but it seems to work in my head. I don't want to melt shit.

    I had also thought about moving the light bar to sit on the winch bar itself instead of up on the bull bar part. I'm thinking maybe it was mounted high like that for a reason? Plenty of light if crossing water and headlights are dipping below the surface? See over scrub etc?

    I've been in a few trucks with the lights mounted on the roof racks or roof basket and it's bloody horrible throws light onto the bonnet and is worse than not having the lights fullstop.
    270 is a harmonic divisor number[1]
    270 is the fourth number that is divisible by its average integer divisor[2]
    270 is a practical number, by the second definition
    The sum of the coprime counts for the first 29 integers is 270
    270 is a sparsely totient number, the largest integer with 72 as its totient
    Given 6 elements, there are 270 square permutations[3]
    10! has 270 divisors
    270 is the smallest positive integer that has divisors ending by digits 1, 2, …, 9.

  2. #2
    Gone................. mikee's Avatar
    Join Date
    Aug 2012
    Location
    Nelson, New Zealand
    Posts
    9,647
    I believe to get a wof your "worklight" must be independently switched and not conrtrolled by the headlights ie turns on on full beam and off on dip.
    Might pay to tripple check (i had to remove mine to get a warrent) gonna be replaced by 2 spotties eventually to avoid that discussion next time.
    Good Choice of truck, they are very very underated

  3. #3
    Rabbit Herder StrikerNZ's Avatar
    Join Date
    Mar 2012
    Location
    South Canterbury
    Posts
    1,768
    https://vehicleinspection.nzta.govt..../led-lightbars

    This might save you some trouble.

    Tl;dr - you can’t have a single lightbar wired up to being activated by your headlight switch. You can have a pair wired in to your high beam, but not a single, must be a pair.

    For just one light bar, it has to be on its own independent switch, meant for offroad use only (in theory anyway..) as a ‘work light’.
    Trout, mikee, Micky Duck and 2 others like this.

  4. #4
    Member BRADS's Avatar
    Join Date
    Oct 2012
    Location
    Central Hawkes Bay
    Posts
    9,228
    Quote Originally Posted by mikee View Post
    I believe to get a wof your "worklight" must be independently switched and not conrtrolled by the headlights ie turns on on full beam and off on dip.
    Might pay to tripple check (i had to remove mine to get a warrent) gonna be replaced by 2 spotties eventually to avoid that discussion next time.
    Good Choice of truck, they are very very underated
    I'd agree with that, very underrated and very stable, not much front end travel but a heap in the bum.
    Only selling mine as I'm sick of fixing the C.Vs.......

    Sent from my SM-G986B using Tapatalk

  5. #5
    Gone................. mikee's Avatar
    Join Date
    Aug 2012
    Location
    Nelson, New Zealand
    Posts
    9,647
    if it has 2 batteries then I am guessing its an import?? Manual or auto? does it have rear diff lock button?

    The easiest way to sort your light drama is 2 spotties

  6. #6
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    22,365
    find a tame auto sparky....pay him some of your hard earned $$$$ and then you KNOW it will be right. a lightbar on roof works IF you take it back far enough it wont light up bonnet...a spotlight on T Bar is far more useful.... the lightbar would be VERY useful if mounted on rear of roof rack facing backwards...reversing in dark shitty place would be a breeze...so would unpacking shit from rear into hut etc... towing cow from bog,hooking on trailer....
    Survy and Moa Hunter like this.

  7. #7
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,207
    Quote Originally Posted by mikee View Post
    if it has 2 batteries then I am guessing its an import?? Manual or auto? does it have rear diff lock button?

    The easiest way to sort your light drama is 2 spotties
    Yea it's auto and has diff lock, has the 4H, 4H centre diff lock, and 4L centre diff lock and then rear diff lock on a button. I was under the impression that it's been "converted" to run two batteries rather than factory as all the relays etc in the truck are aftermarket units so seems like someone's done quite a bit of work in that regard but could be wrong if it was an option on some of them. I had a short wheelbase one when I was a young fella and it only had one battery
    270 is a harmonic divisor number[1]
    270 is the fourth number that is divisible by its average integer divisor[2]
    270 is a practical number, by the second definition
    The sum of the coprime counts for the first 29 integers is 270
    270 is a sparsely totient number, the largest integer with 72 as its totient
    Given 6 elements, there are 270 square permutations[3]
    10! has 270 divisors
    270 is the smallest positive integer that has divisors ending by digits 1, 2, …, 9.

  8. #8
    northdude
    Guest
    to get a wof with my light bar it has to be switched independently from the headlights but after its been for its wof its a simple case of swapping a wire and it works off high beam again

  9. #9
    Member BRADS's Avatar
    Join Date
    Oct 2012
    Location
    Central Hawkes Bay
    Posts
    9,228
    Quote Originally Posted by Ryan_Songhurst View Post
    Yea it's auto and has diff lock, has the 4H, 4H centre diff lock, and 4L centre diff lock and then rear diff lock on a button. I was under the impression that it's been "converted" to run two batteries rather than factory as all the relays etc in the truck are aftermarket units so seems like someone's done quite a bit of work in that regard but could be wrong if it was an option on some of them. I had a short wheelbase one when I was a young fella and it only had one battery
    Yeah I reckon your right probably put in to run the winch as that will drain one real quick.

    Sent from my SM-G986B using Tapatalk

  10. #10
    Gone................. mikee's Avatar
    Join Date
    Aug 2012
    Location
    Nelson, New Zealand
    Posts
    9,647
    Quote Originally Posted by Ryan_Songhurst View Post
    Yea it's auto and has diff lock, has the 4H, 4H centre diff lock, and 4L centre diff lock and then rear diff lock on a button. I was under the impression that it's been "converted" to run two batteries rather than factory as all the relays etc in the truck are aftermarket units so seems like someone's done quite a bit of work in that regard but could be wrong if it was an option on some of them. I had a short wheelbase one when I was a young fella and it only had one battery
    nz ones had one battery but every japper i have seen have 2. They are nearly unstoppable in Lo range with rear diff lock on and auto is even better. I have even seen them fitted with small tractor tyres (off road use only)
    Mine is SWB and the only fault I can find is dog has to sit on the deer on way home (I permanantly removed the rear seats in mine) I would buy another in a heartbeat
    Trout, Micky Duck and dannyb like this.

  11. #11
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,093
    where you based ryan ???

  12. #12
    Full of shit Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,207
    Quote Originally Posted by gonetropo View Post
    where you based ryan ???
    Waaaaay down south
    270 is a harmonic divisor number[1]
    270 is the fourth number that is divisible by its average integer divisor[2]
    270 is a practical number, by the second definition
    The sum of the coprime counts for the first 29 integers is 270
    270 is a sparsely totient number, the largest integer with 72 as its totient
    Given 6 elements, there are 270 square permutations[3]
    10! has 270 divisors
    270 is the smallest positive integer that has divisors ending by digits 1, 2, …, 9.

  13. #13
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,093
    bugga!! otherwise would have done it for you
    Micky Duck and Ryan_Songhurst like this.

  14. #14
    northdude
    Guest
    If i lived close id do it for you. If you get stuck i could talk you through it on the phone its prerty easy
    gonebush and Micky Duck like this.

  15. #15
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,093

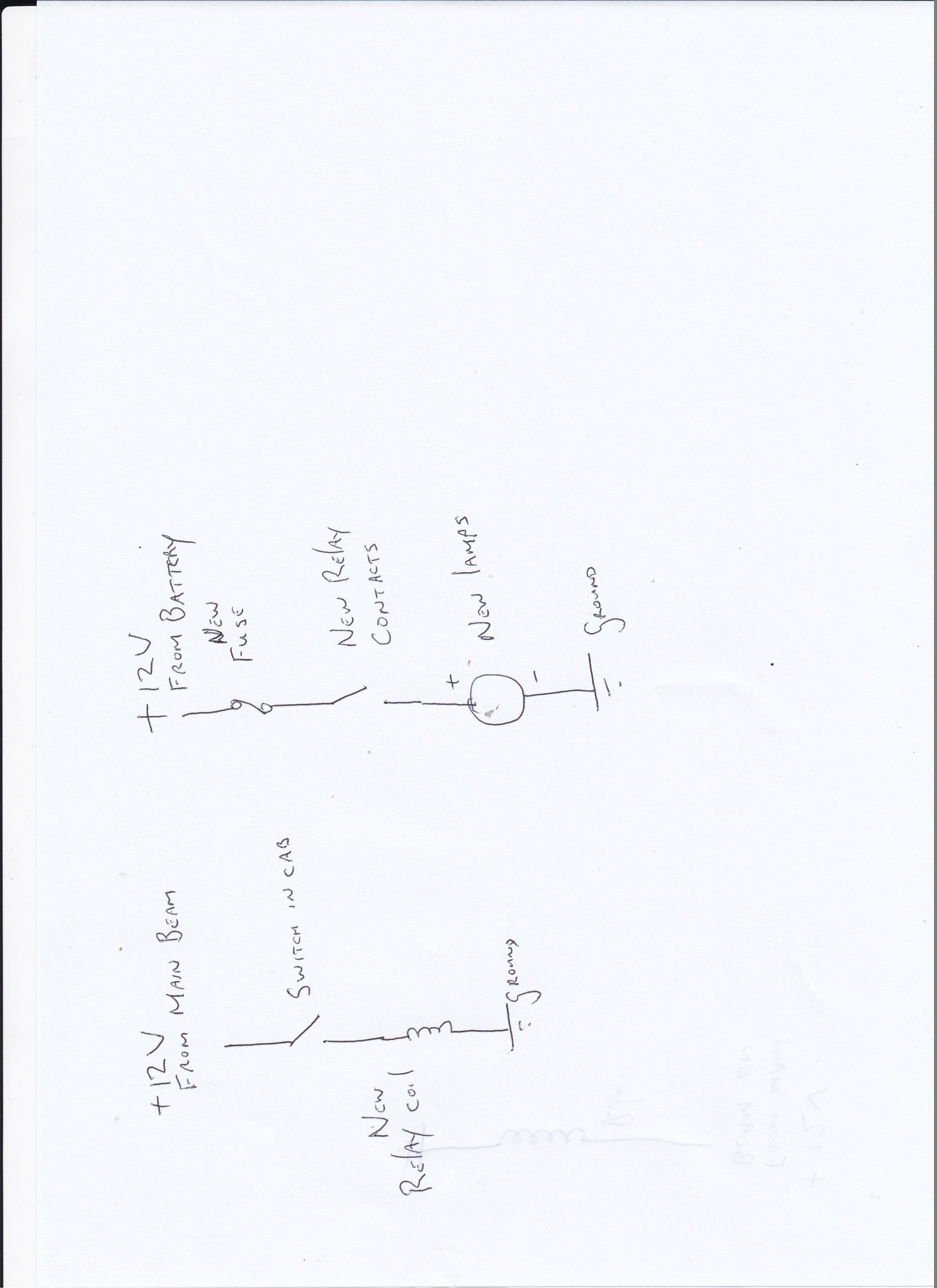

    Name:  IMG_20210209_0001.jpg
Views: 265
Size:  1.09 MB
    Sideshow and Ryan_Songhurst like this.
