Thread: Gun Case - A tip on cutting foam

  1. #1
    Member
    Join Date
    Mar 2016
    Location
    Arrowtown
    Posts
    616

    Gun Case - A tip on cutting foam

    I recently purchased yet another case for carrying a rifle. Being a fussy bugger I wasn't happy with the "pluck foam" insert but for the time being I figured it would do... at least until such time as I'd accumulated all the necessary items I wanted to put in the case. The long term plan is to go for closed-cell foam.

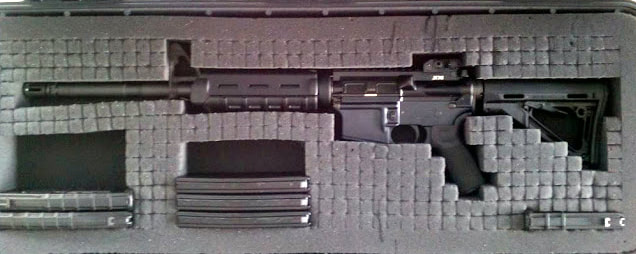

    This is a typical result (thanks to Google):

    Name:  picknpluck.jpg
Views: 193
Size:  44.6 KB

    Cutting foam nicely is always one of those difficult jobs to achieve. You have laser-like perfection in your minds eye, but the result looks like a 5 year old has taken to the foam with a blunt fork. All is not lost!! After mucking about with ideas on hot-wires (dumb idea), knives and electric knives (don't tell the wife), I think I have it sorted. Finally.

    Using a broken hacksaw blade with fine teeth (32 TPI) I ground the cutting edge like a knife but retained just the remnants of the teeth on the leading edge. I then filed out the shank to fit my jigsaw and trimmed off the length of the blade to suit the thickness of material I wanted to cut.

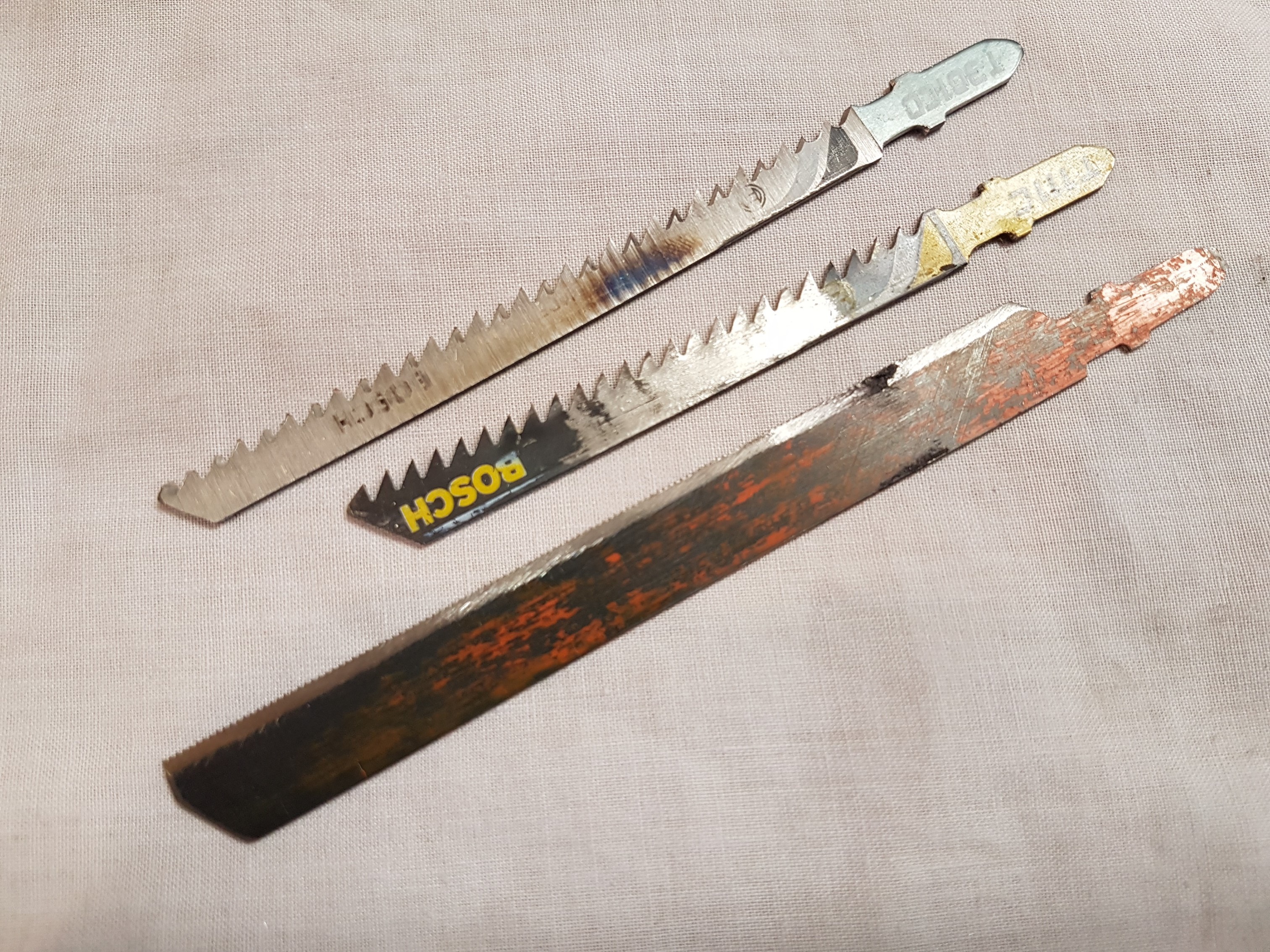

    Photo: A couple of normal jigsaw blades and my modified hacksaw blade.

    Name:  20190312_085936_resized.jpg
Views: 188
Size:  1.92 MB

    This worked a treat and when tested on pluck-foam and closed-cell foam provided a very clean, precise cut.

    Additional thoughts:

    1 Flip your foam over and lay everything out on the rear side before drawing around it with a marker. This way your pen markings will not be on the visible foam. Remember to lay things out in a "mirror image" so items are where you want them when you flip the foam upright.

    2. Where possible, align straight edges with the pluck foam layout.

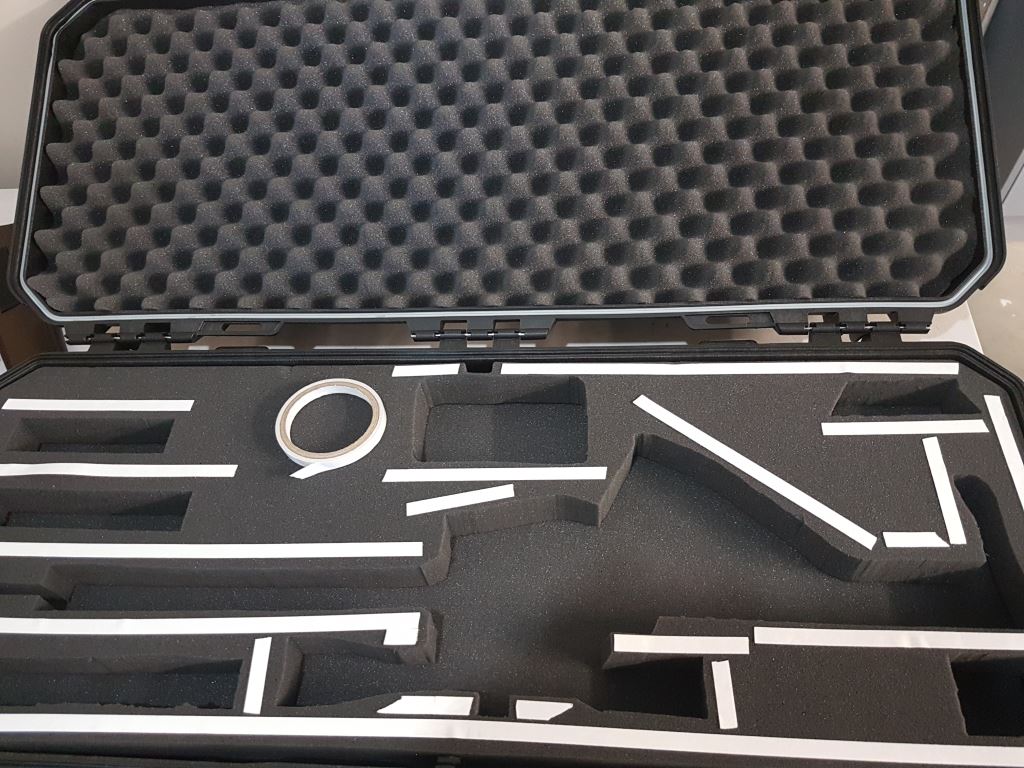

    3. Use double-sided tape to keep the cut foam pad from moving about on the lower foam pad. If you glue it from the start you won't be able to make easy adjustments later.

    Name:  2019-02-16 15.57.40.jpg
Views: 194
Size:  139.1 KB

    4. Once you have your cut-outs set in stone, use spray adhesive to glue the foams together. You'll do this the day before you realise you want to add something else!

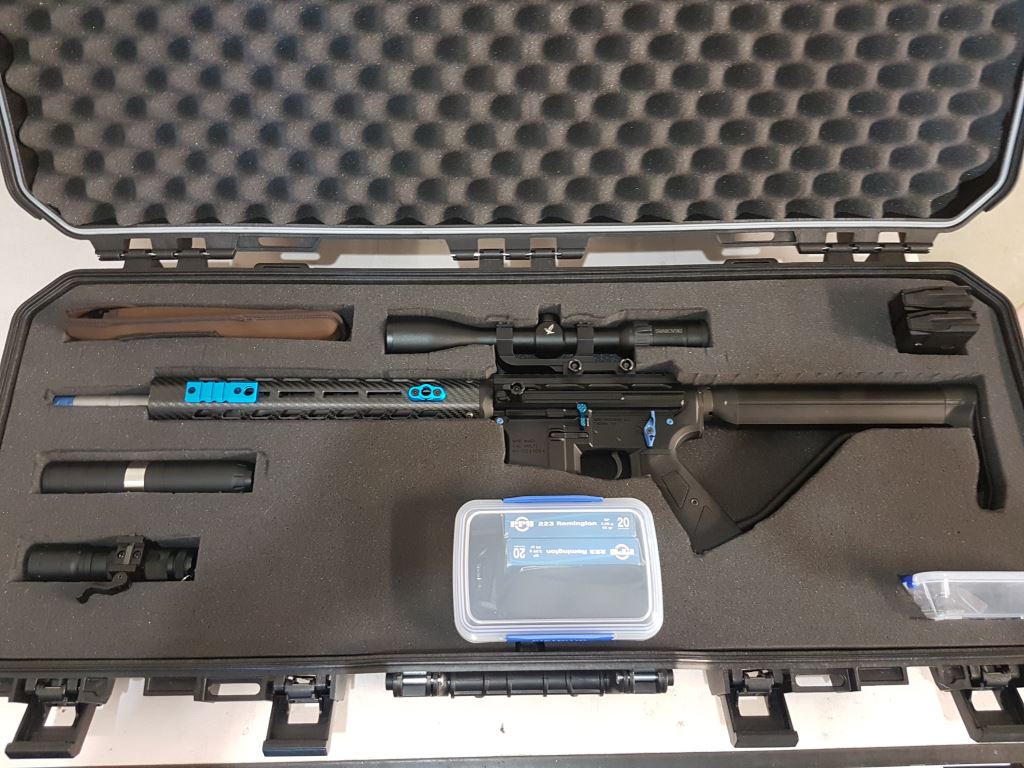

    This layout will do for now. I'll run this layout for a year and see how it goes then eventually I'll get some closed-cell foam and do it all up properly. A nice blue underlay will look sharp next time around.

    Name:  2019-02-16 16.09.56.jpg
Views: 193
Size:  127.2 KB
    223nut and Paddy79 like this.

  2. #2
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    6,879
    Where did you get the square 'pull bits out' foam in the first pic? Have some for my thermal in a hardcase but would be happy with the 5yr old version for my next project...

  3. #3
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    2,739
    The Toolpro cases at Supercheap had those pull out bits. But I would not know i they can get the replacement foam for them.

  4. #4
    LOC
    LOC is offline
    Member LOC's Avatar
    Join Date
    Jun 2015
    Location
    Auckland
    Posts
    903
    Looks good planenutz

    Iíve found a combination of electric knives and skinny craft knives (for the corners/ends still do a very neat job if you take it slowly

  5. #5
    Not just an internet expert... The Claw's Avatar
    Join Date
    Dec 2011
    Location
    Gore
    Posts
    1,537
    @Beetroot

    Sent from my SM-N950F using Tapatalk
    If it's not a first round hit you need to practice more

  6. #6
    Member Beetroot's Avatar
    Join Date
    Apr 2013
    Location
    Morrinsville
    Posts
    1,491
    Quote Originally Posted by The Claw View Post
    @Beetroot

    Sent from my SM-N950F using Tapatalk
    Thanks!
