Thread: Second and third attempt at a knife grind

  1. #1
    Member
    Join Date
    Aug 2012
    Location
    Auck
    Posts
    900

    Second and third attempt at a knife grind

    With the madness in the house being the weekend before Christmas, I retreated to the man cave for some one on one time with the voices in my head.
    Having completed my first knife grind a week or so ago, I decided to have another go at something different.

    I wanted to do a special 'salami cutter' in a mini clever format with a super thin slicing blade, and also wanted to try a hidden tang design.

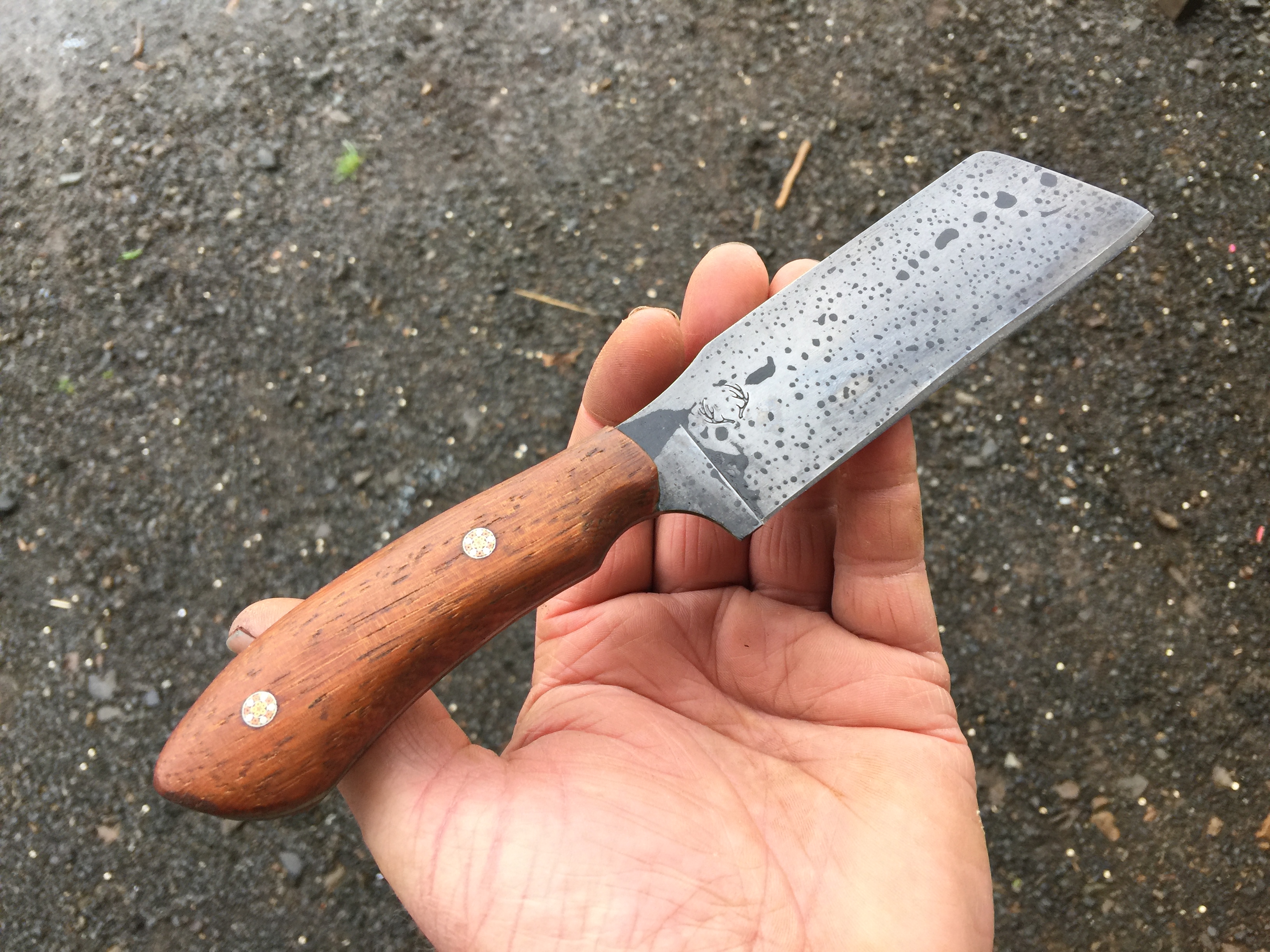

    I started with the salami cutter first using a piece of O1 steel. Ended up over grinding the plunge line with too causer grit grinding belt, so I broke new territory and turned it into a 'single bevel salami cutter'. It came out ok. The single bevel flat grind is a completely different beast to sharpen, and the edge is not clever flat, but it does cut salami well. The spots on the blade are where I didn't clean the quench oil off properly before tempering. According to the experts, with O1, you need to commence tempering before the blade cools to below 60 deg, so cleaning the canola oil off the blade properly was a low priority at the time (lesson learnt). The tempering definitely 'seasoned' the oil onto the blade. It would polish out, but I kind of like the leopard spots and it will bled into the natural patina over time.

    (note: photos are with the iPhone and with crap lighting because its Christmas eve and its RAINING in Auckland)

    Name:  2018-12-24 09.21.37.jpg
Views: 137
Size:  2.36 MB

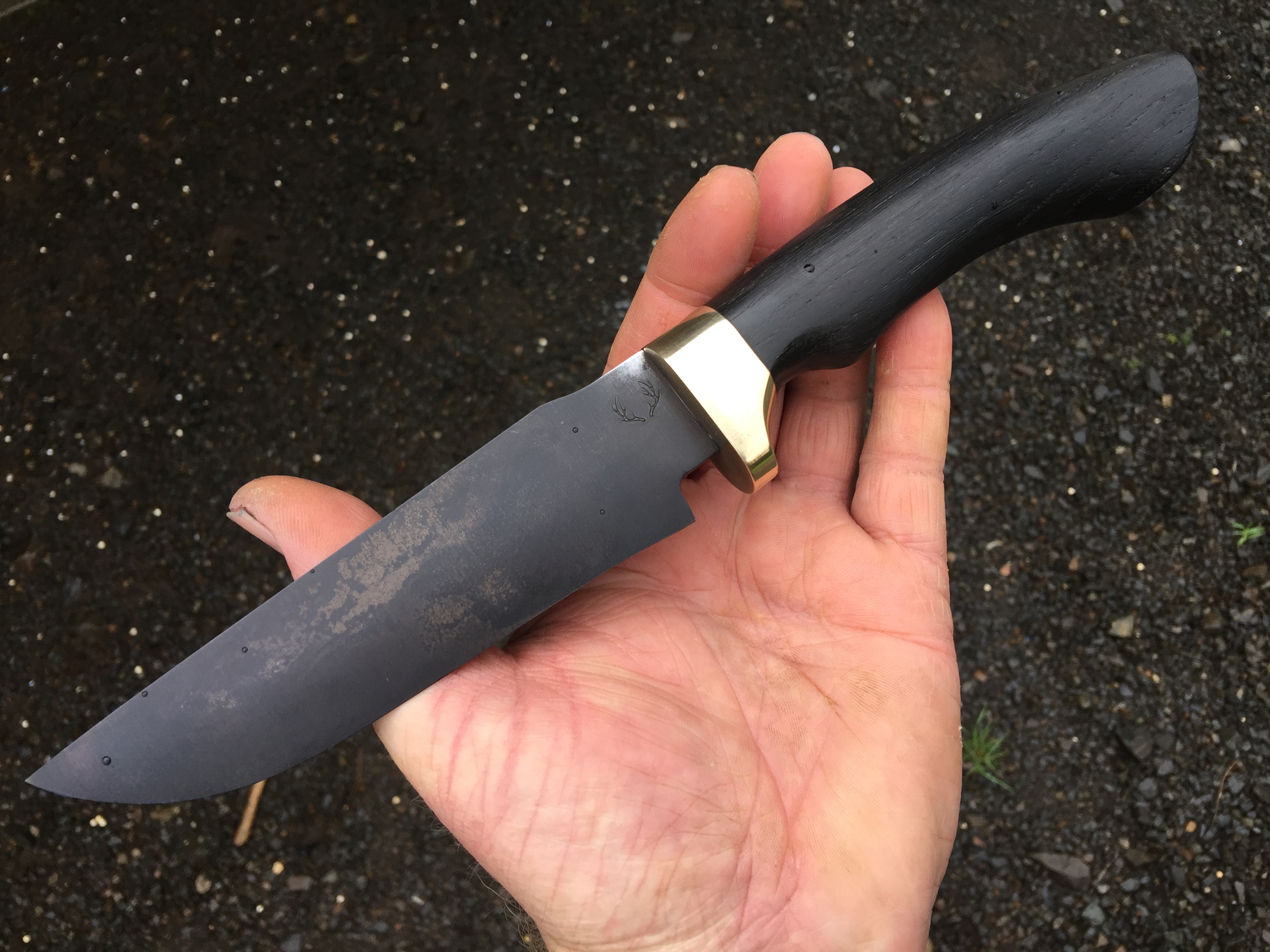

    The hidden tang was inspired by a Damascus knife I liked on the net.
    Its 1075 steel with a Russian swamp/bog black wood of some description that I got cheap off Etsy.
    Convex grind (yet to be sharpened) and surface finish untouched from heat treat.

    Name:  2018-12-24 09.20.14.jpg
Views: 134
Size:  1.93 MB



    Merry Christmas all!
    Last edited by hotbarrels; 24-12-2018 at 10:07 AM.

  2. #2
    Member
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    743
    Nice job on the Salami cutter. I have a Chinese mini cleaver with a very very thin blade and a hollow grind - slice a roast, prep vege, split a pumpkin, cut and serve a slice of cake.
    I have some good quality knives but the little cleaver is the most versatile by far

  3. #3
    Member
    Join Date
    Aug 2014
    Location
    Auckland
    Posts
    489
    Nice mosaic pins there.

  4. #4
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    2,557
    Quote Originally Posted by Moa Hunter View Post
    Nice job on the Salami cutter. I have a Chinese mini cleaver with a very very thin blade and a hollow grind - slice a roast, prep vege, split a pumpkin, cut and serve a slice of cake.
    I have some good quality knives but the little cleaver is the most versatile by far
    Will do for pizza too, at a pinch.
    Join COLFO - Be a represented firearms owner.

  5. #5
    Member
    Join Date
    May 2017
    Location
    southland
    Posts
    2,522
    nice skills.
