Thread: Sharpening a D2 knife blade: some photos, observations, and opinions

  1. #1
    Member Puffin's Avatar
    Join Date
    May 2012
    Location
    Porirua
    Posts
    657

    Sharpening a D2 knife blade: some photos, observations, and opinions

    Sharpening a D2 knife blade: some photos, observations, and opinions


    I ended up with a couple of small chips out of the edge of my re-handled Spyderco Junction after my post-lockdown trip. The PSF27 in that knife is a variant of D2 tool steel. The edge was snagging a little on paper although I couldnt by eye see the reason for this. I have a cheapie fixed magnification 100x microscope however - courtesy of AliExpress for $10 - that despite the price was sufficient to quickly identify the cause.

    Having decided to take these chips out as part of a re-sharpen, I thought Id also take a few photographs of the surface of the edge as I went along, linking them to the size of the abrasive being used, and then post them here for forum members who are interested in this sort of thing. The abrasives were all diamond water stones from Venev that I reviewed here a few months back.

    For starters, this is the front end of the blade being sharpened. The blade is a full flat grind, about 0.55mm behind the edge, and overall 25mm deep. I apply a 15 edge, so the bevel according to my calculations should average a little over 1mm in width. These dimensions will give a sense of scale to some of the photos. The close-up images of the scratch patterns show about 0.7mm of the bevel.

    Name:  101. overall showing apex width.jpg
Views: 317
Size:  127.3 KB

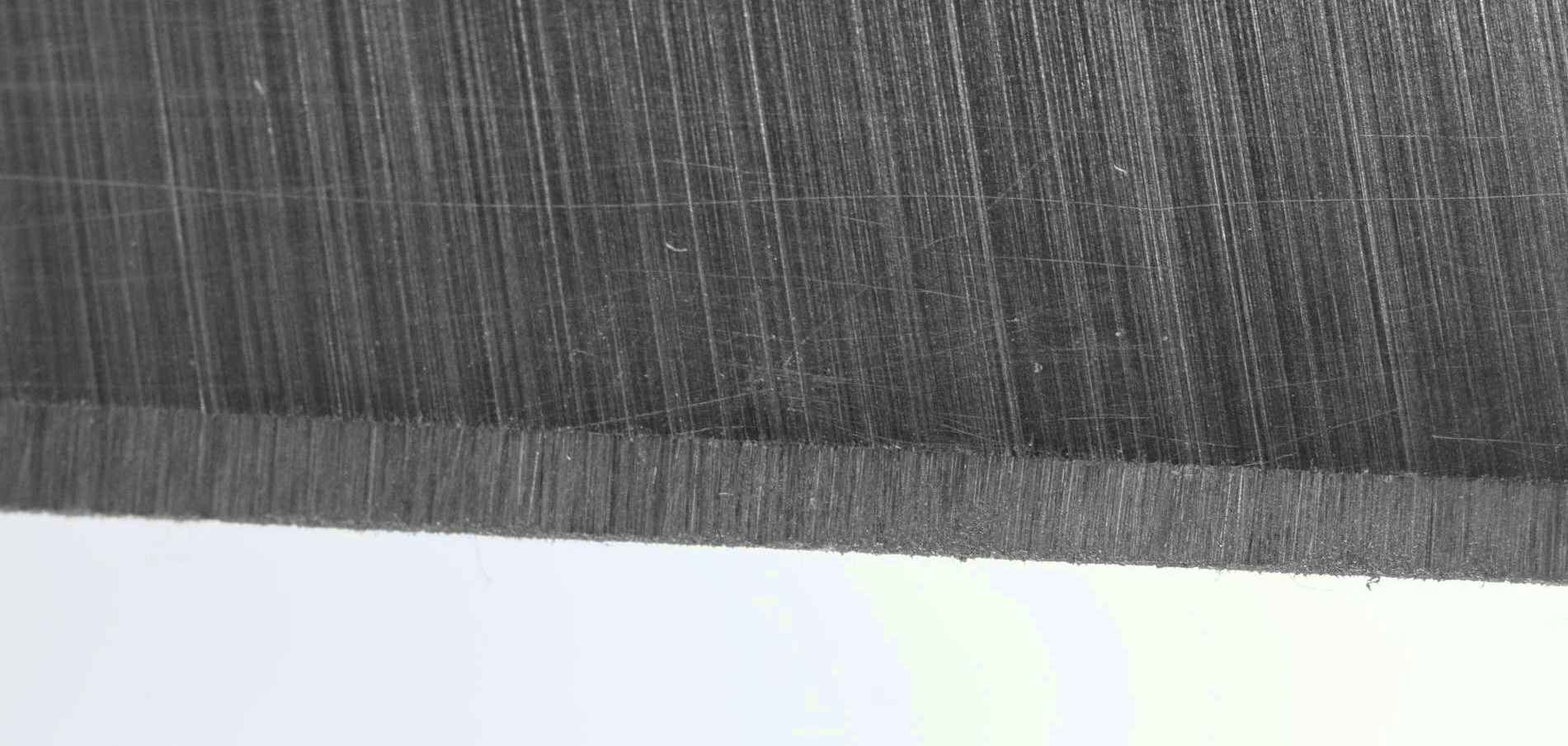

    Below is the edge following removal of the chipping with an 80-100 micron stone.
    I included this so that the edge finish may be compared to the brushed finish on the primary grind.

    Name:  102.  80-100um closer in.jpg
Views: 319
Size:  126.2 KB

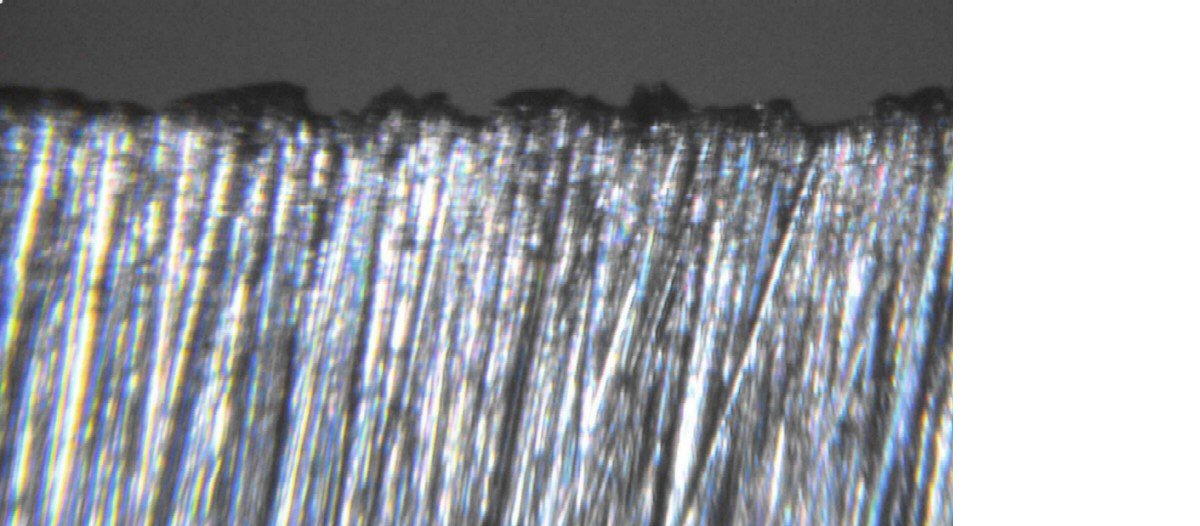

    This is a view through the microscope of the apex with the light source directed along the edge to maximise surface contrast. This is on the side where I had just finished with the 80-100m stone. The dark edges are the back of the burr. This unevenness is not easily seen by the unaided eye at least not by my eyes.

    Name:  103   80-100um microscope back of burr.jpg
Views: 316
Size:  111.4 KB

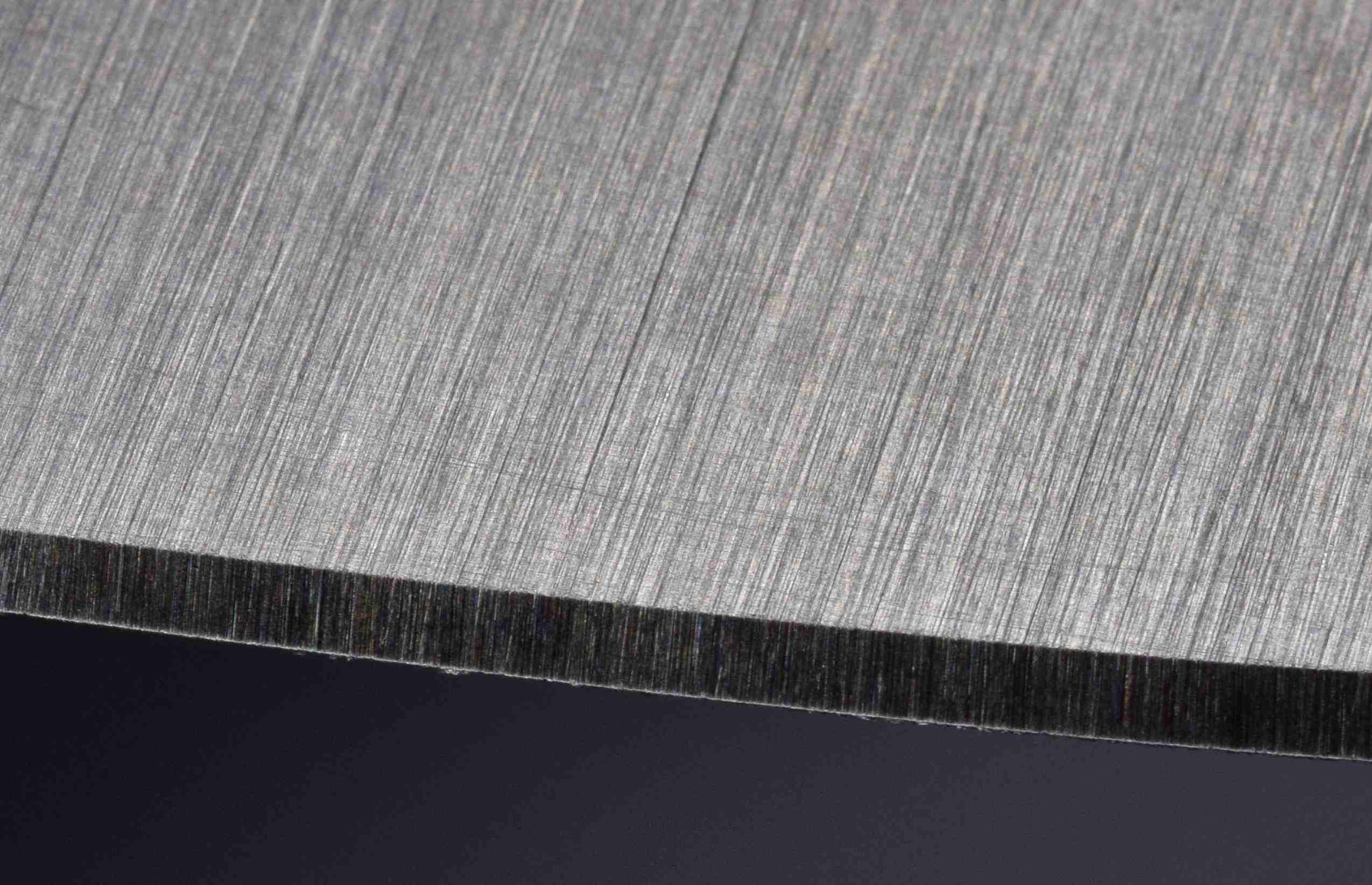

    By flipping the blade over to the reverse side, the burr can be best seen by getting it to catch the light with the angle just right. It can be more easily felt on a fingernail than seen.

    Name:  104 80-100um burr with macro lens.jpg
Views: 313
Size:  247.6 KB

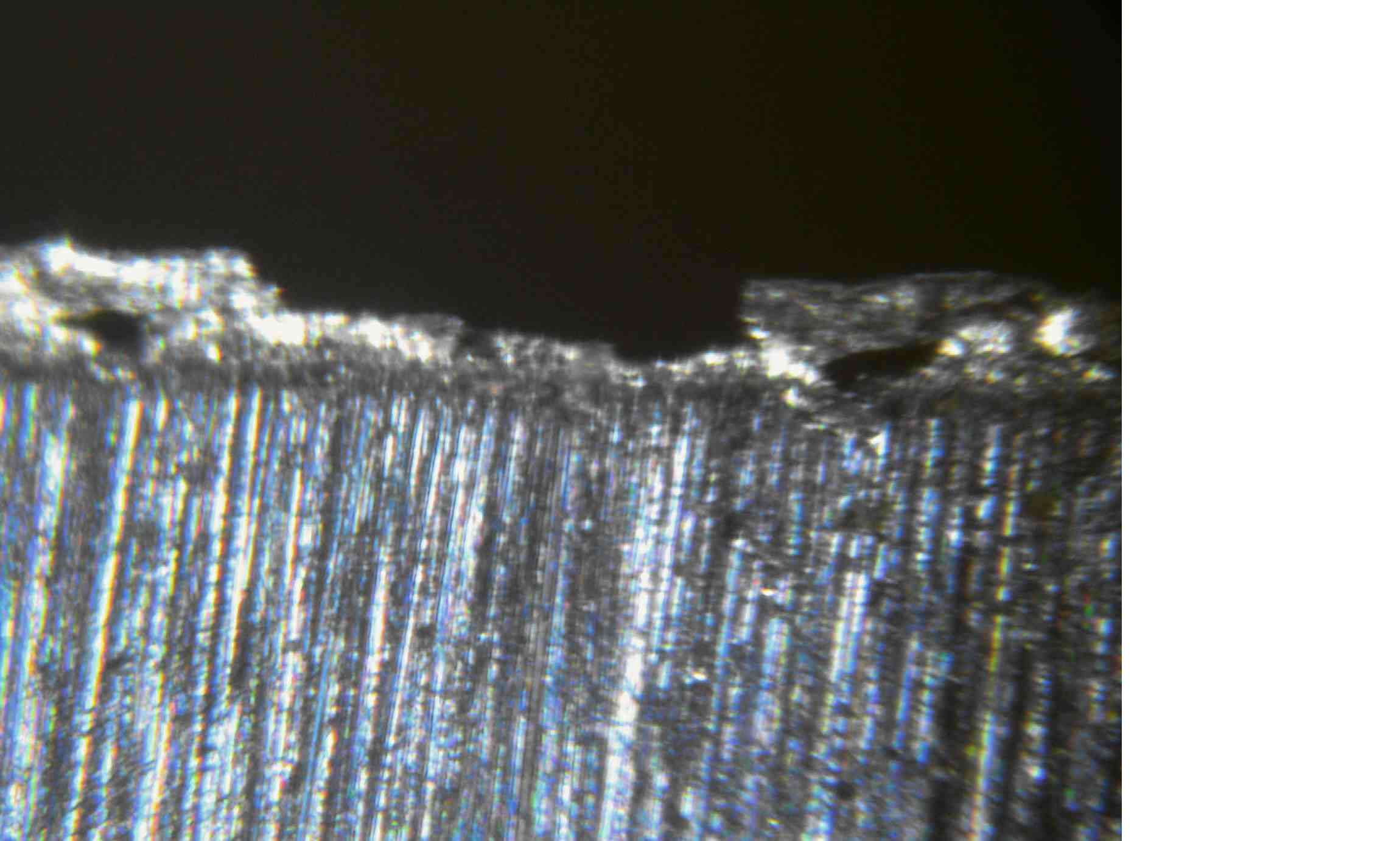

    Here is a look at part of that burr from the 80-100m stone on the reverse side through the microscope.

    Name:  105.  80-100um burr with microscope .jpg
Views: 314
Size:  209.3 KB

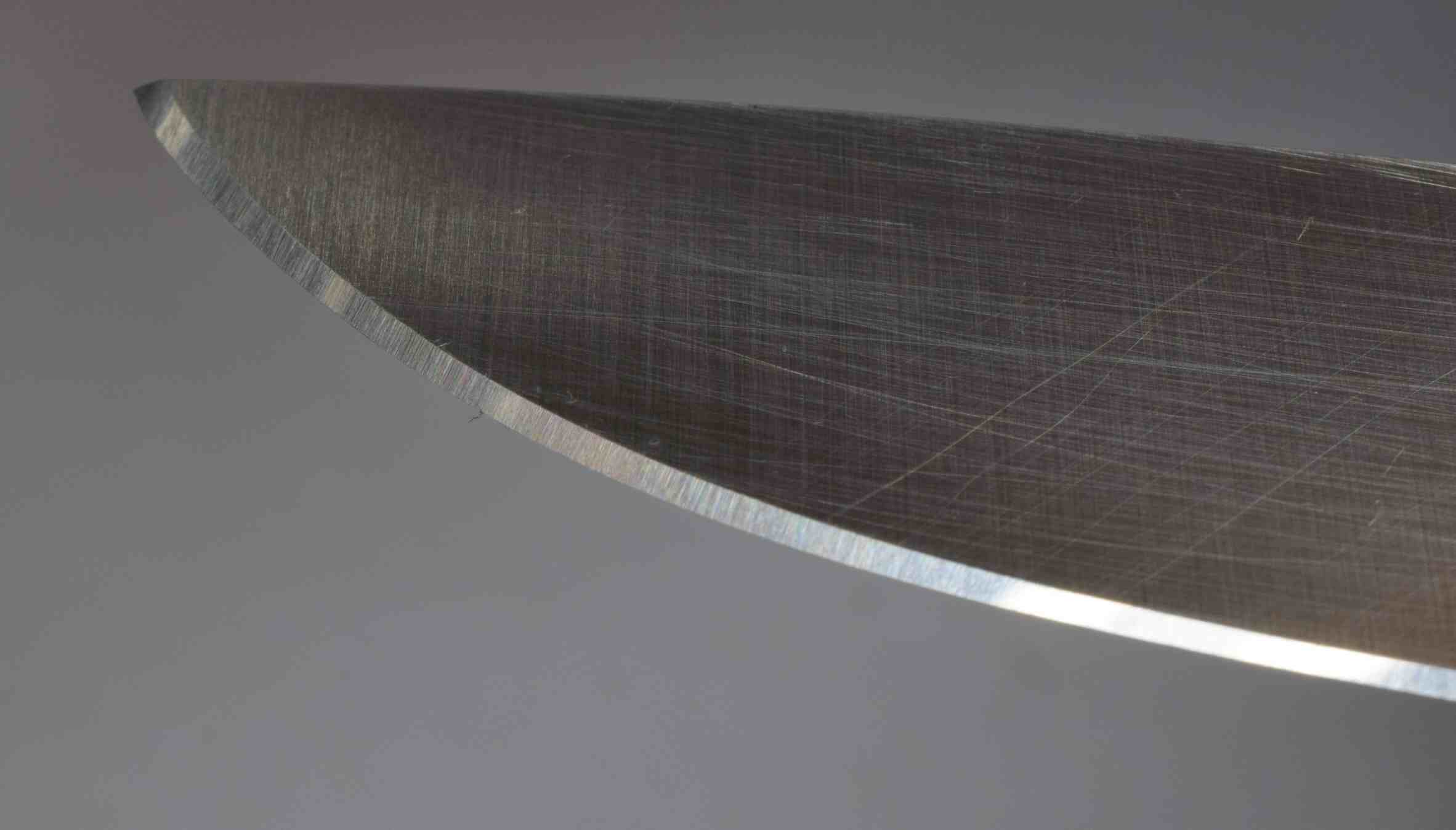

    I then took the edge through the 40-50m and 14-20m stones. 14-20m is where something approaching a reflection begins to be seen off the edge.

    Name:  106. 14-20um with macro reflections.jpg
Views: 314
Size:  87.2 KB

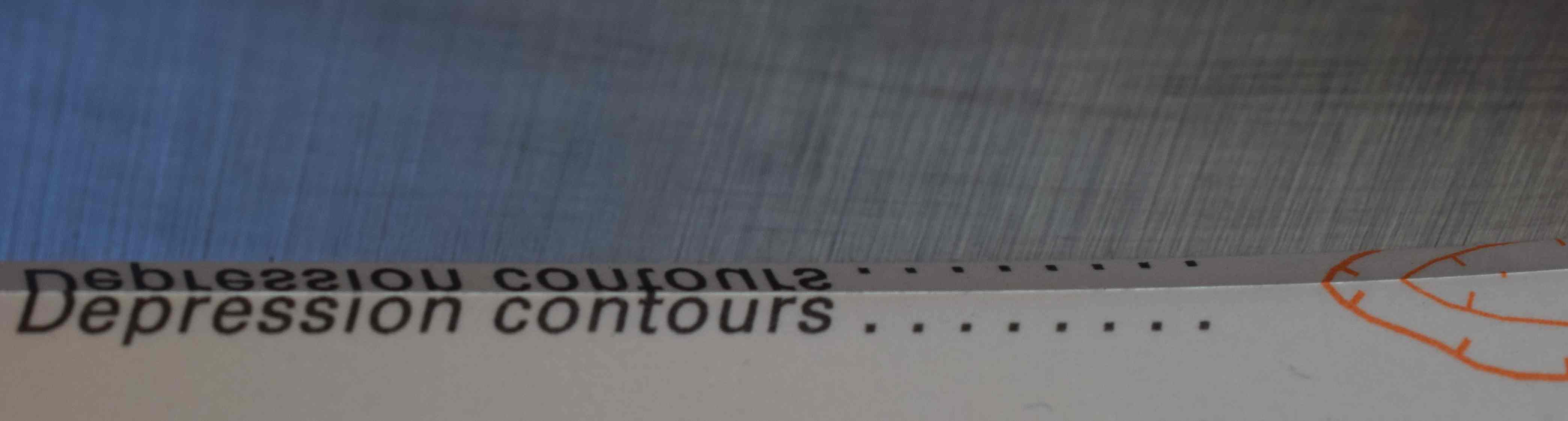

    The 5-7m abrasive is where the magic begins, as below

    Name:  107.  5-7um macro lens map reflection.jpg
Views: 309
Size:  106.3 KB


    I refined the edge further using the 2-3m stone. I might do a follow-up post showing any change to the finish from then using a 1 micron diamond stone followed by 1 and micron diamond emulsion on strops, but for now here are additional scratch patterns under the microscope for the different abrasive sizes, as before with the edge illumination at right-angles to the pattern unless otherwise mentioned.

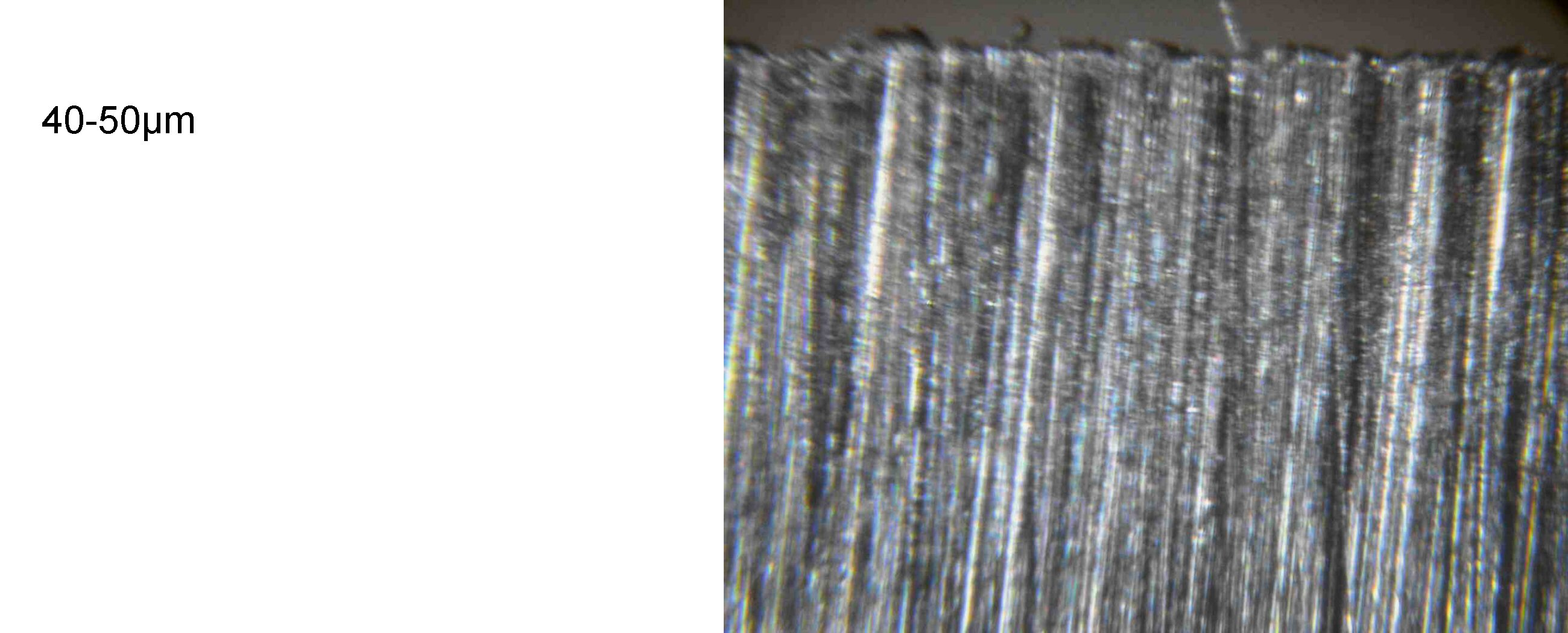

    Name:  108   40-50um  microscope.jpg
Views: 319
Size:  270.2 KB

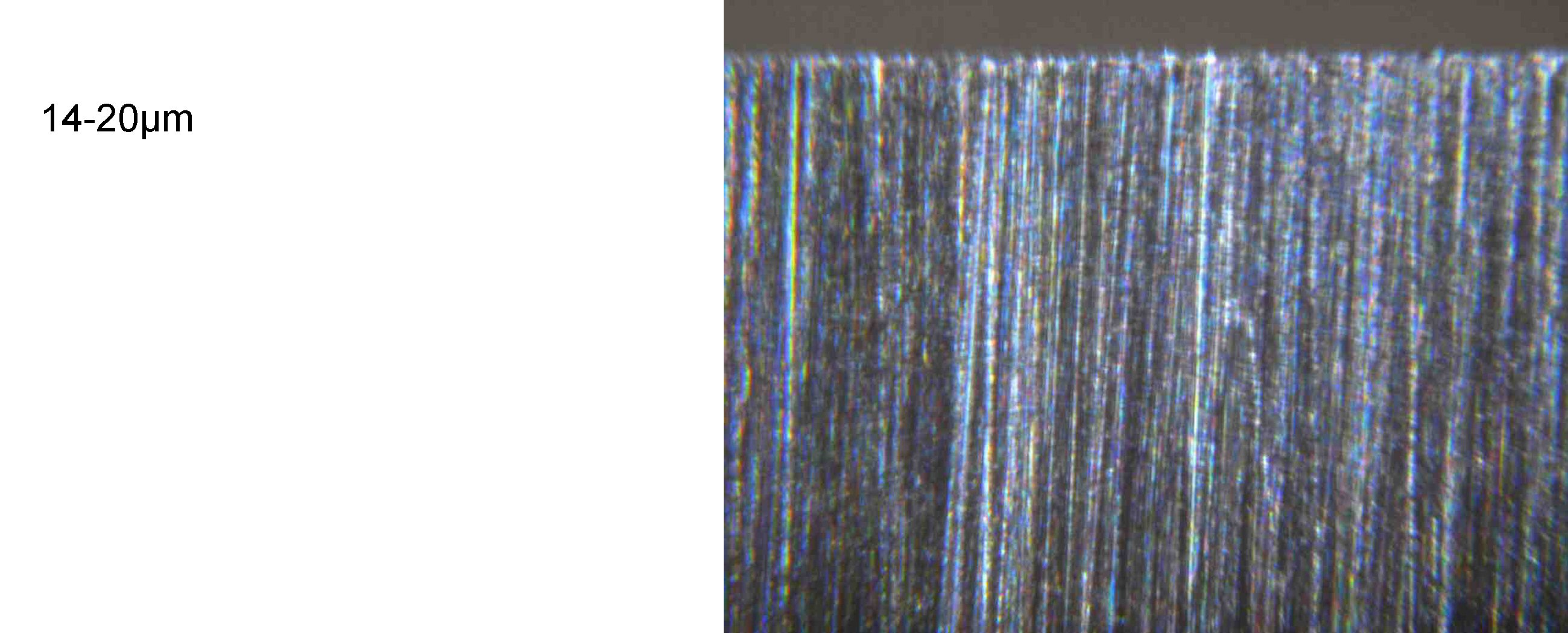

    Name:  109. 14-20um microscope.jpg
Views: 312
Size:  280.9 KB

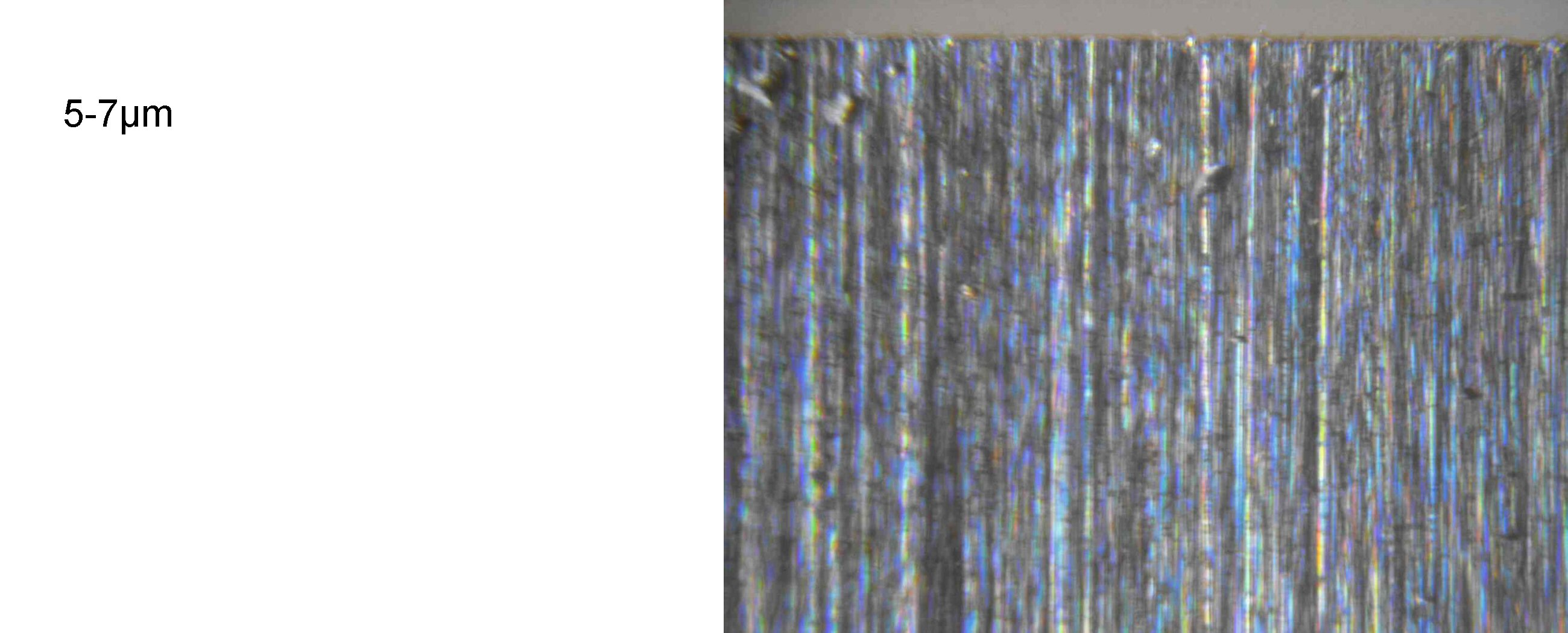

    Name:  110.  5-7um microscope.jpg
Views: 312
Size:  254.3 KB

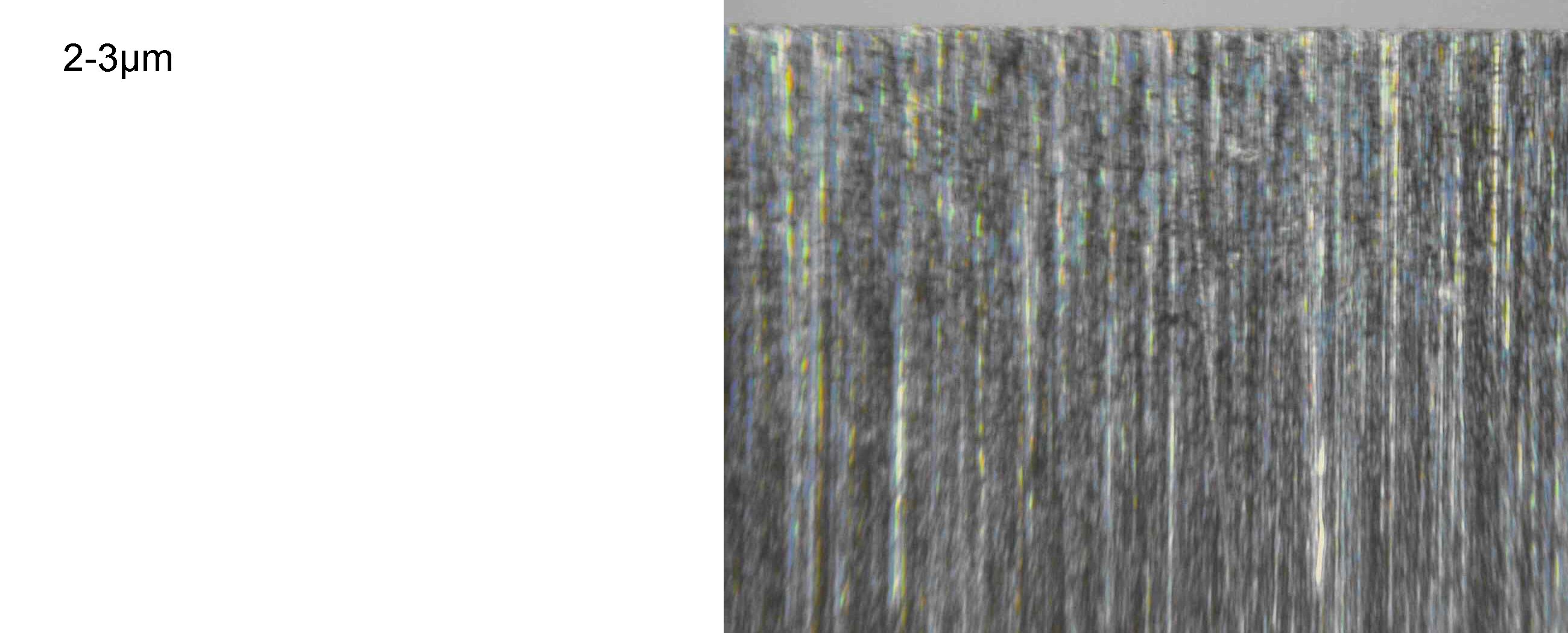

    Name:  111. 2-3um microscope I.jpg
Views: 312
Size:  239.6 KB

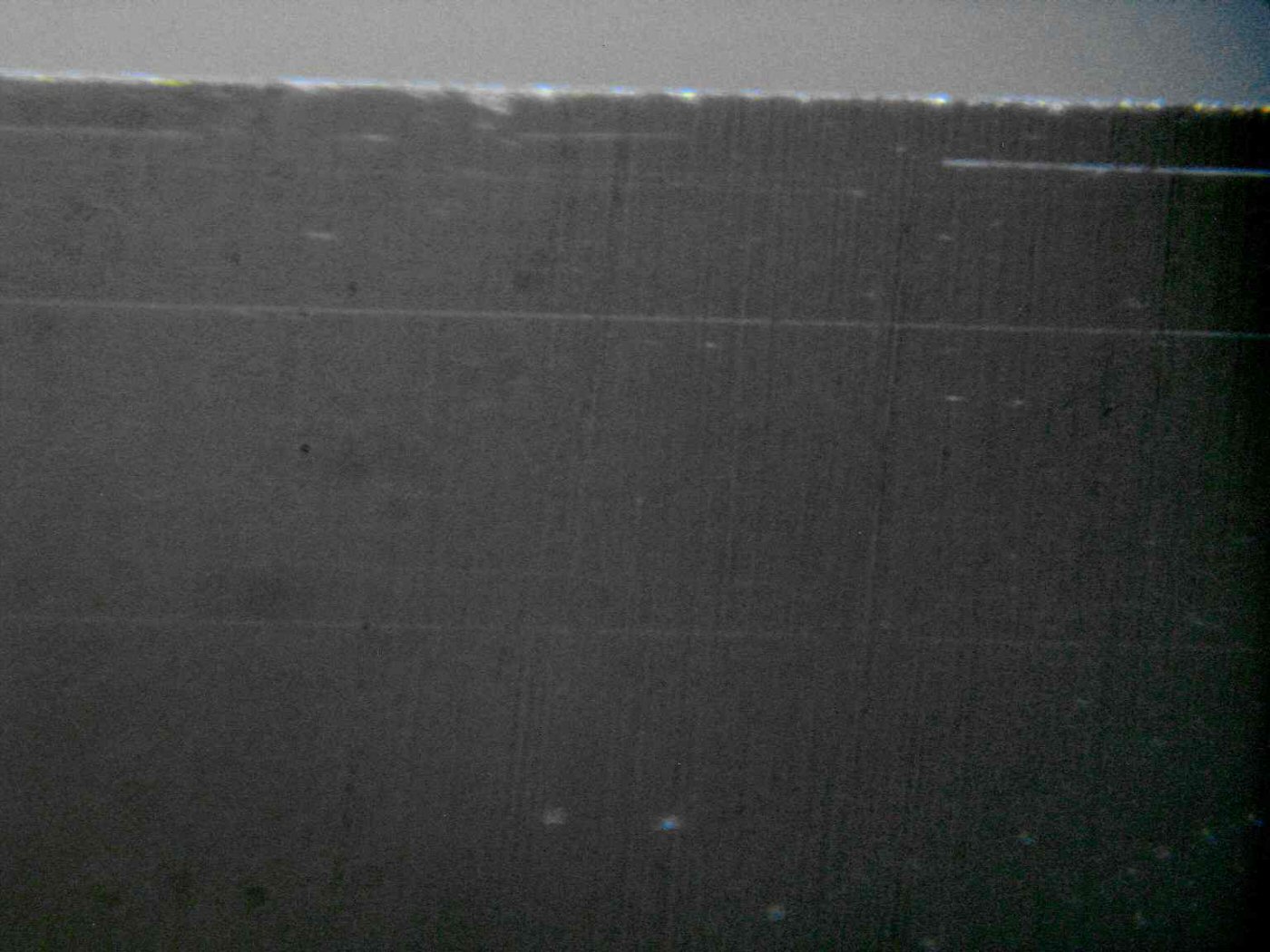

    Even with the finer finishes, there is nothing mirror-like to the surface when it is viewed with magnification. That said, the illumination angle used makes a big difference to how the surface appeared. Below is when the same 2-3m finish is viewed with the light shining straight onto the edge at right-angles rather than shone along the blade. Little sign of the scratch pattern shows up at all. Even with the edge being shaving sharp, the imperfections right at the apex may now be clearly seen. The horizontal lines I think have been added when wiping the edge clean, probably from the odd loose piece of abrasive picked up on the cloth. Diamond is still merciless on steel with a HRC hardness in the low sixties!

    Name:  112. 2-3um microscope, end lighting.jpg
Views: 309
Size:  207.5 KB



    Observations or opinion? Ive found a microscope to be very helpful for seeing what the effect has been of each abrasive. While an expert may be able to hand sharpen, and do this by feel, I need a guided system, and even with a guided system there are pitfalls that high magnification can identify that would otherwise go unnoticed by me.

    I have mentioned this in other posts, but I think it is worth noting again: it is essential in a guided system that every abrasive contacts the knife apex at EXACTLY the same angle as every other. Each successively finer stone is less able to remove sufficient material to correct for an error in applied angle than the previous. Any system where the knife is repeatedly flipped to progress through the grits must restore the blade to an absolutely identical position following each rotation. Even in systems like the Wicked Edge where the blade is held fixed through the entire process; any slop or flexing in the slide rods, or the different grades of stone being of an uneven thickness or wear, will change the angle of application. It is surprising how often I thought I had worked the edge fully with a particular stone only to see under the microscope areas where the scratch pattern of the previous abrasive remained untouched because of a slight angle difference. I would never see this by eye.
    rupert, Tikka7mm08, JoshC and 15 others like this.

  2. #2
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    689
    Very interesting post. I had no idea before of the changes with different grades of finish. Excellent photos.
    stevodog likes this.

  3. #3
    Member
    Join Date
    Sep 2016
    Location
    Waikato
    Posts
    113
    Very interesting. The view through the microscope looks remarkably good, mind sharing which aliexpress offering it was?

  4. #4
    Member
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    2,014
    To get rid of the Burr I always run the knife across a piece of hardwood between stoning and after the first steeling
    'Bother' said Pooh, as he chambered another round ... Wong Far King Way

  5. #5
    Member Puffin's Avatar
    Join Date
    May 2012
    Location
    Porirua
    Posts
    657
    Quote Originally Posted by PaulNZ View Post
    Very interesting. The view through the microscope looks remarkably good, mind sharing which aliexpress offering it was?
    https://www.aliexpress.com/item/4001...archweb201603_

    A product search for "Loupe" in combination with "100x" should bring up quite a few vendors of what appears to be the same item.

  6. #6
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    7,019
    I have never had much time for D2. Difficult to sharpen and chippy. But plenty of people seem to like it.

    CPMD2 however is quite a different steel and a very good one. But not very common - mainly because of the confusion between the 2 steels and the bad wraps ordinary D2 gets.

  7. #7
    Member Puffin's Avatar
    Join Date
    May 2012
    Location
    Porirua
    Posts
    657
    @Tahr. PSF27.

  8. #8
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    7,019
    Quote Originally Posted by Puffin View Post
    @Tahr. PSF27.
    Ah. Thats a powder steel not unlike CPMD2 and a different beast to D2.

    CTS XP is a goody too, and similar. I have a knife in that and am impressed.

  9. #9
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    7,019
    Sorry, CTS XHP

  10. #10
    Member
    Join Date
    Mar 2014
    Location
    Tauranga
    Posts
    2,246
    Quote Originally Posted by Tahr View Post
    I have never had much time for D2. Difficult to sharpen and chippy. But plenty of people seem to like it.

    CPMD2 however is quite a different steel and a very good one. But not very common - mainly because of the confusion between the 2 steels and the bad wraps ordinary D2 gets.
    D2 can make a fine knife. It has relatively large carbides and as such suit a toothier edge. For this reason they suit a hunting knife well, but less so a razor or fine work kitchen knife. The big carbides mean they aren't super tough, but do hold an edge really well. At higher hardness edge retention isn't far behind 3v or s30v.

    There are a few very well regarded makers using D2 to make excellent knives. Dozier is probably the most famous of them. I have a cbk in D2, is has one of the "stickiest" edges I've used. Fantastic on game.

    The steel can be batchy reportably, CPMD2 was created to try get a finer carbide solution.

    If you are finding it chippy puffin try lowering the edge geometry a couple of degrees, maybe 17 ish. The lack of refined edge under the fine stones will likely be due to the large carbides washing out right at the edge. Personally I would stop at the second finest stone. I only take my D2 to 1200.
    Moutere and Moa Hunter like this.

  11. #11
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    2,081
    Interesting post @Nick-D. I agree whole-heartly with your thoughts.

    I have a 40 year old custom by Robert Uddstrom that has been my everyday sheath knife for that entire period - I don't ever recall using another fixed blade knife outside for more than a few minutes. Has done a fair amount of game, and countless muttons, and many cattlebeasts. As I recall it was one of the first D2 knives available in NZ.

    The edge on this knife has never chipped (I am careful to only risk engaging bone with the heel of the blade - eg knuckling sheep's legs). For the first 10-15 years I owned it we "duelled" between me and it to get it really sharp. With the advent of diamond stones and a carbide blade shaper I've never looked back - it holds an edge like no other (and I've tried a lot of steels in folders, admittedly I favour softer steels in these).
    @viper is making me a new small knife in D2, it will be interesting to compare.
    Nick-D, Moa Hunter and Micky Duck like this.

  12. #12
    Member
    Join Date
    Mar 2014
    Location
    Tauranga
    Posts
    2,246
    Quote Originally Posted by Tentman View Post
    Interesting post @Nick-D. I agree whole-heartly with your thoughts.

    I have a 40 year old custom by Robert Uddstrom that has been my everyday sheath knife for that entire period - I don't ever recall using another fixed blade knife outside for more than a few minutes. Has done a fair amount of game, and countless muttons, and many cattlebeasts. As I recall it was one of the first D2 knives available in NZ.

    The edge on this knife has never chipped (I am careful to only risk engaging bone with the heel of the blade - eg knuckling sheep's legs). For the first 10-15 years I owned it we "duelled" between me and it to get it really sharp. With the advent of diamond stones and a carbide blade shaper I've never looked back - it holds an edge like no other (and I've tried a lot of steels in folders, admittedly I favour softer steels in these).
    @viper is making me a new small knife in D2, it will be interesting to compare.
    Yeah that is the unfortunate downside of large carbides and good edge retention, usually makes them a bear to sharpen.

    Sent from my CLT-L09 using Tapatalk

  13. #13
    Member
    Join Date
    Aug 2014
    Location
    Auckland
    Posts
    576
    D2 requires really good heat treatment, if you cool to slowly it won’t be happy.

  14. #14
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    7,019
    Large carbides = chippy.

    Yes, Dozier has mastered D2, but look what you have to pay.
    D2 might be OK when its viewed in isolation, but when compared to many alternatives at a similar price its pretty damn shit really.

  15. #15
    Member
    Join Date
    Feb 2013
    Location
    Mangakino
    Posts
    661
    I am finding this discussion interesting.
    My experience of using "good" (bit dearer) knives is limited.
    I have been able to sharpen and keep knives sharp though.
    Have used heaps of sheath knives over the years predominately doing sheep.
    Did try Victorinox skinners but found they chipped and broke 1 or 2 sitting on them getting back on the tractor.
    No idea what steel they were they were "stainless" the big new thing.
    I used to be reasonably good doing sheep a mate and I could do 20 lambs in an hour between us without to much effort.
    Not skiting heaps faster better than me,have a brother who is stronger faster just establishing a "benchmark of experience".
    Getting on a bit now but did 8 hoggets last weekend with helpers/watchers.
    Used my Jack knife I got of Nga which is D2 steel reading back on posts.
    We shot them I cut all 8 throats to bleed them and probably did 5-6 in total with assistance for the balance.
    I have found this knife to be pretty good using it with no steeling or anything.
    Still as good at the end as the start,so find the previous comments on D2 steel interesting.
    But as stated before have done enough and know enough to look after my knife when using them.
