Thread: Model 60 tube mod.

  1. #1
    Member
    Join Date
    Jun 2013
    Location
    Ashburton
    Posts
    132

    Model 60 tube mod.

    In light of my Marlin Model 60SS being restricted, because it has a 14 shot tube mag, I am seriously considering getting Gunworks to make it compliant. I know there is a slim hope of the unintended firearms, such as 15 shot lever .22s etc, being allowed, but do you guys think the same would apply to my semi, or shall I bite the bullet, and get it done?

  2. #2
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    4,166
    bite it and get it done......or do it yourself.

  3. #3
    Member
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    814
    I'm getting a mod done to my Marlin 60 right now with Greg Maniatis here in Christchurch - $80. Drops it from 14 to compliant 10 shot mag.
    Barefoot and Micky Duck like this.

  4. #4
    Member
    Join Date
    Jun 2013
    Location
    Ashburton
    Posts
    132
    Quote Originally Posted by mudgripz View Post
    I'm getting a mod done to my Marlin 60 right now with Greg Maniatis here in Christchurch - $80. Drops it from 14 to compliant 10 shot mag.
    That beats $210. Do you have contact details?

  5. #5
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    5,338
    Just wait.
    7mmwsm, 40mm, outlander and 1 others like this.
    Identify your target beyond all doubt

  6. #6
    Member 40mm's Avatar
    Join Date
    May 2017
    Location
    Jaffa
    Posts
    2,653
    And then wait some more. time is on our side.
    Use enough gun

  7. #7
    Member
    Join Date
    Mar 2012
    Location
    South Waikato
    Posts
    3,218
    Yep. I'm not doing diddly squat until I get a letter addressed to me stating the new requirements.
    mikee, 40mm, outlander and 1 others like this.
    Overkill is still dead.

  8. #8
    Member
    Join Date
    Dec 2011
    Location
    Taranaki
    Posts
    1,764
    If you are reasonably handy with tools and not a total ten-left-thumbed muppet you can do the mod yourself easily.

    If you arent handy then paying $80 is a good deal. Follow up on that guy and do it if you are concerned about remaining legal.
    Cats have nine lives-which makes them ideal for experimentation...

  9. #9
    Member
    Join Date
    Dec 2011
    Location
    Taranaki
    Posts
    1,764
    I should add that I have a couple of tube mag guns too , but wont be doing anything until I , too , get written confirmation of what is compliant.
    Cats have nine lives-which makes them ideal for experimentation...

  10. #10
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,552
    Quote Originally Posted by Growlybear View Post
    In light of my Marlin Model 60SS being restricted, because it has a 14 shot tube mag, I am seriously considering getting Gunworks to make it compliant. I know there is a slim hope of the unintended firearms, such as 15 shot lever .22s etc, being allowed, but do you guys think the same would apply to my semi, or shall I bite the bullet, and get it done?
    Shame you can't get it rechambered for .22WMR, would take the magazine down to 10-shot capacity.
    Tommy likes this.

  11. #11
    Member
    Join Date
    Jun 2013
    Location
    Ashburton
    Posts
    132
    Quote Originally Posted by Cordite View Post
    Shame you can't get it rechambered for .22WMR, would take the magazine down to 10-shot capacity.
    I'd do it in a heartbeat.

  12. #12
    Member Mr Browning's Avatar
    Join Date
    Dec 2018
    Location
    Christchurch
    Posts
    614
    As others here have already suggested, I wouldnt touch it until you know what the next law reforms are going to bring and there is a clear definition on what the requirements are. I wouldnt be totally surprised if they turned around and allowed tubes up to 15 and just limited removable mags to 10 on .22s now they have had time to actually look at them and know what the difference is and not just do a knee-jerk cross the board ban.
    GUN CONTROL IS A TIGHT 5-SHOT GROUP.

  13. #13
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,552
    Quote Originally Posted by Growlybear View Post
    I'd do it in a heartbeat.
    For a semi, it is a difficult thing to do. The lifter needs to be able to cope with the longer shells, then there is a need for a heavier bolt as just putting in a heavier spring is not sufficient. How does one make the bolt heavier?

    A web page giving an idea of the formula for bolt weight required: https://orions-hammer.com/blowback/ but I get a figure of twice as heavy a bolt being required (0.82lbs for .22WMR vs 0.4lbs for .22LR) for similar initial bolt movement rearwards. Not to be compromised on as it is a higher pressure cartridge, the poor way of doing it is with heavier return springs but that is hard work on the gun's innards.

    But alas, ten rounds of .22WMR is ... ten rounds of .22 WMR. A better outcome than what you had before... if it IS possible, that is.

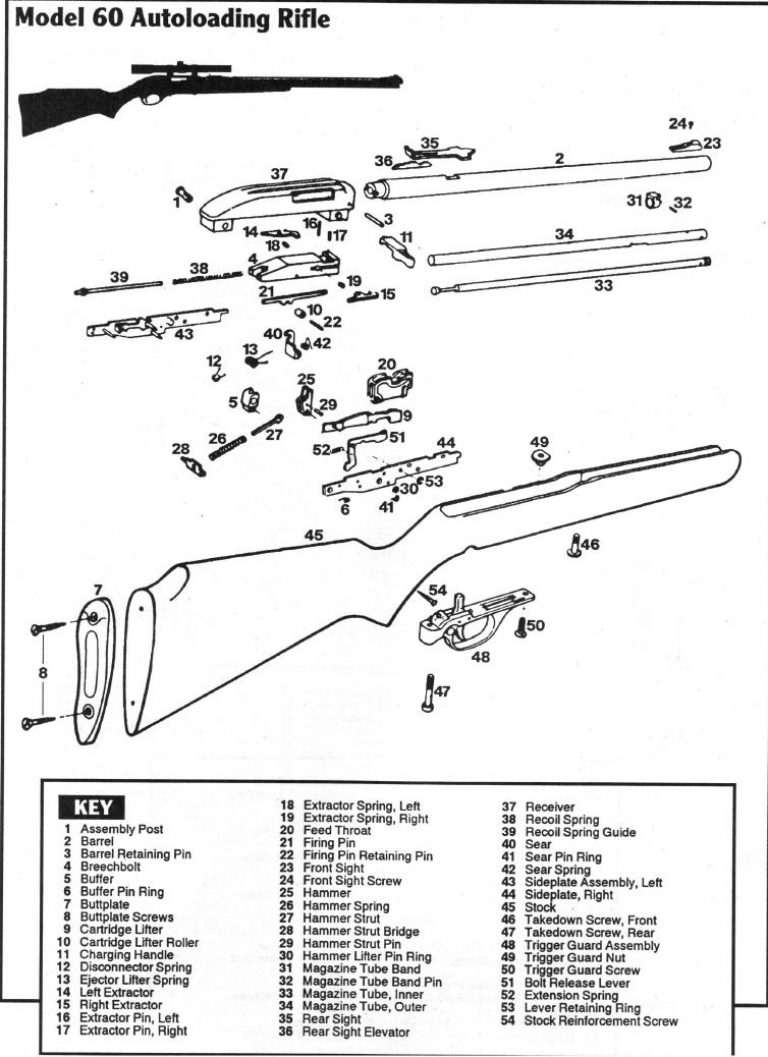

    Name:  looking-to-buy-a-22-lr-semi-auto-for-steel-challenge-page-2-in-marlin-model-60-parts-diagram-768.jpg
Views: 112
Size:  117.6 KB
    Last edited by Cordite; 27-05-2019 at 10:30 PM.
    Tommy likes this.

  14. #14
    Member
    Join Date
    Jun 2013
    Location
    Ashburton
    Posts
    132
    Quote Originally Posted by Cordite View Post
    For a semi, it is a difficult thing to do. The lifter needs to be able to cope with the longer shells, then there is a need for a heavier bolt as just putting in a heavier spring is not sufficient. How does one make the bolt heavier?

    A web page giving an idea of the formula for bolt weight required: https://orions-hammer.com/blowback/ but I get a figure of twice as heavy a bolt being required (0.82lbs for .22WMR vs 0.4lbs for .22LR) for similar initial bolt movement rearwards. Not to be compromised on as it is a higher pressure cartridge, the poor way of doing it is with heavier return springs but that is hard work on the gun's innards.

    But alas, ten rounds of .22WMR is ... ten rounds of .22 WMR. A better outcome than what you had before... if it IS possible, that is.

    Attachment 112213
    Just a dream Would love a model 60 in 22 magnum.

  15. #15
    Member
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    814
    Yes - I thought about the option to wait but didn't want a Police squad at my door one day enquiring and taking away my wee Marlin - plus other arms for non compliance! Some strange over-reactions happening these days. They may amend the new law - and should - but I doubt there is political climate for it at the moment.

    Decided to do the small alteration with Greg Maniatis. Makes it legal at 10 shot and no real loss with the rifle. 5 years ago we'd pop over 1000 bunnies a night in North Canterbury, but those days are gone. Now you'd be lucky to use one tube. 10 will do for me. Greg's number in Chch is 0274879611.

    Yep a 60 in 22WMR could be fun. Marlin did try a .17 cal semi but that didn't work well - a 17M2 model 717. Case splitting and other probs - wasn't round for long. I think??? Savage made a semi too in 17HMR and it also was not a success.
    Last edited by mudgripz; 28-05-2019 at 11:20 AM.
