Thread: DIY Bi Pod Spikes

  1. #1
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,872

    DIY Bi Pod Spikes

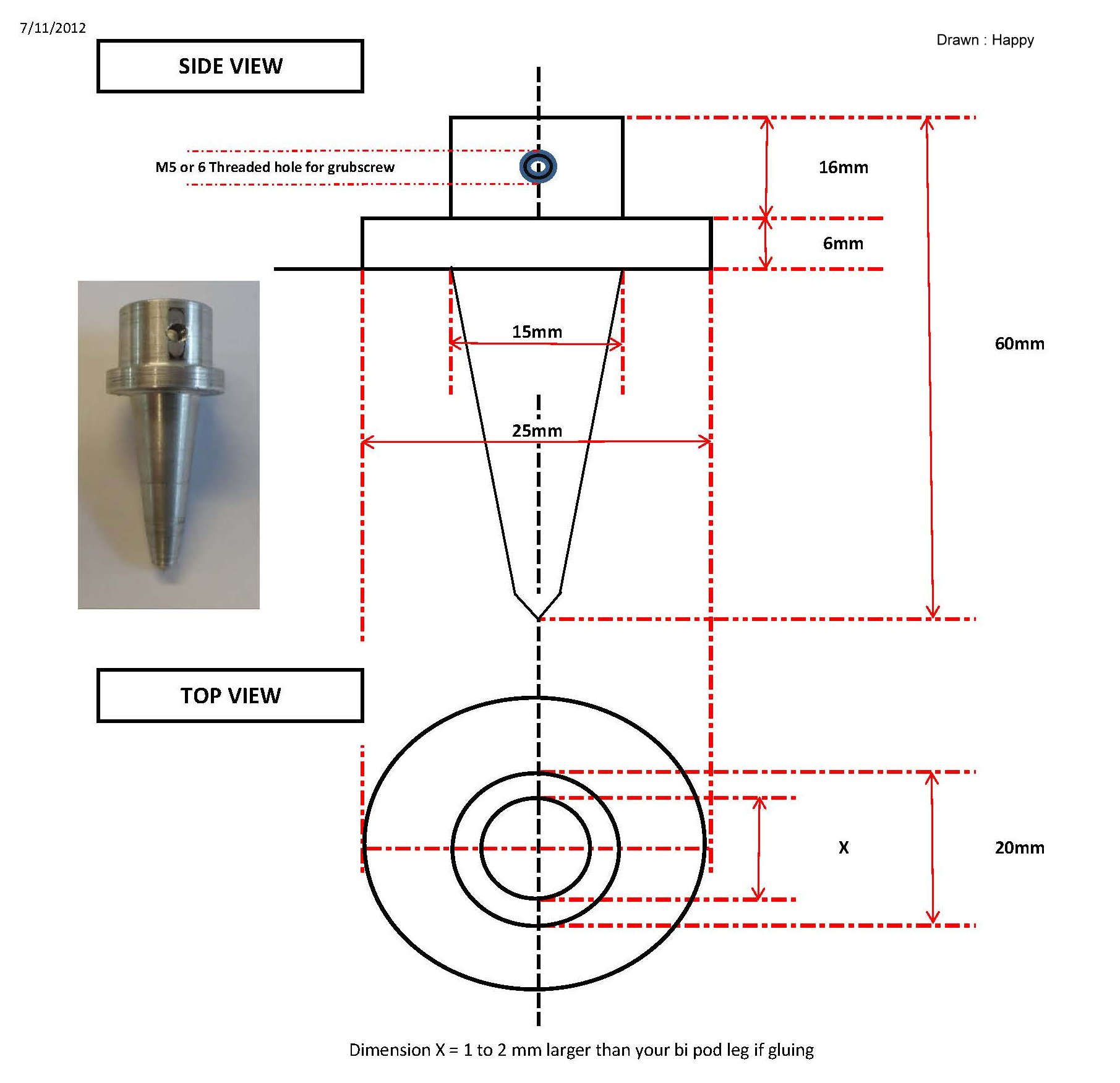

    Dimensional drawing I ve been using to make Pod Spikes to fit Harriss and other makes as you drill the leg hole to suit.

    Name:  Pod Spikes.jpg
Views: 757
Size:  244.9 KB

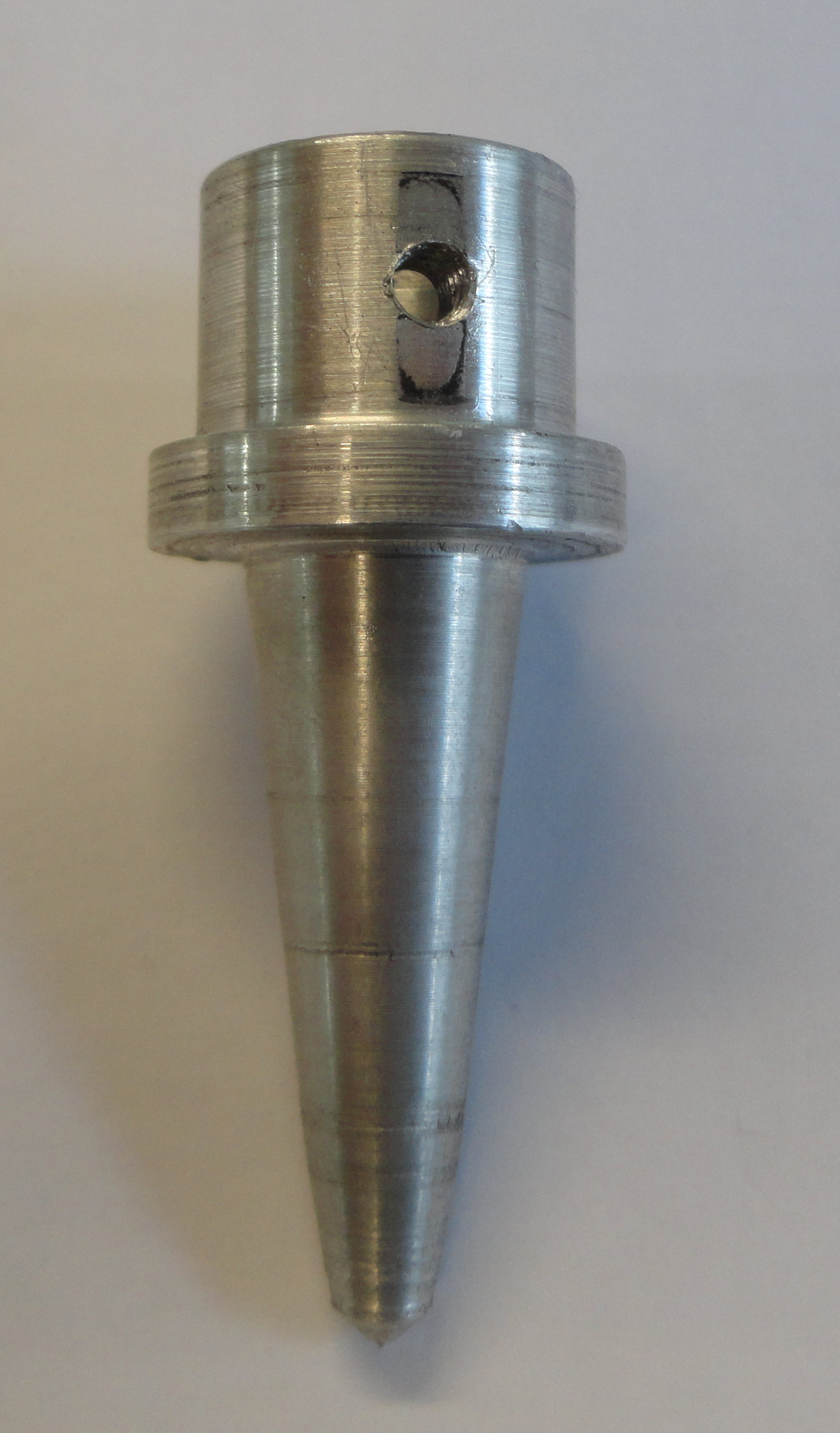

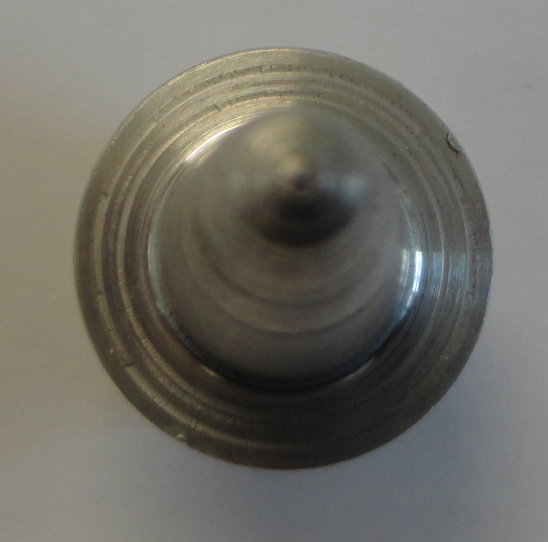

    In the flesh

    Name:  DSC01781.JPG
Views: 688
Size:  408.4 KB

    Name:  DSC01782.JPG
Views: 618
Size:  45.7 KB

    Fitting Instruction

    1. Cut the old rubbers off your Bi Pod Legs. (These go on to stay )
    2. Grind the roll pins down till they are just coming out of the side of the legs at least 1 mm each side.
    (You need this bit for a reason so dont over cook it.)
    Note: If you try to punch them out two things happen. On some Bipods they hold the pull
    springs so you have buggered that up , plus its real hard to do with out bending your legs then they will no longer retract.
    (Trust me on that one ha ha )
    3. Measure the leg diameter at the point where you have the pieces of roll pin sticking out and drill the leg hole in the spike
    to as close as that as you can get, not too much bigger
    4. Mix up two pot araldite and fill the spike hole nearly to the top.
    5.Fit the spike tighten the grubscrew (dont overdo it ) then position the Bipod somewhere safe till the glue goes off.

    I reckon thats about it ... Ive possibly missed something ...... I have done around 8 sets so far and none have come loose or failed.
    "This is my Flag... Ill only have the one ..

  2. #2
    A Good Keen Girl Dougie's Avatar
    Join Date
    Jun 2012
    Location
    Hawkes Bay
    Posts
    4,573
    Awesome stuff!
    She loves the free fresh wind in her hair; Life without care. She's broke but it's oke; that's why the lady is a tramp.

    Rule 4: Identify your target beyond all doubt

  3. #3
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,872
    Quote Originally Posted by Dougie View Post
    Awesome stuff!
    If you ever end up shooting with a Bi Pod let me know maybe send it up and Ill supply and fit some for you if you want..
    "This is my Flag... Ill only have the one ..

  4. #4
    Member
    Join Date
    Jan 2012
    Location
    CHCH
    Posts
    86
    These look like an exact copy of gunworks pod spikes.

  5. #5
    Member
    Join Date
    Jul 2012
    Location
    Galatea
    Posts
    1,099

    Re: DIY Bi Pod Spikes

    Maybe. But how else are they spost to look?

    Sent from my GT-I9300 using Tapatalk 2

  6. #6
    Member crzyman's Avatar
    Join Date
    Dec 2011
    Location
    Alexandra
    Posts
    1,152
    Quote Originally Posted by Titanium View Post
    These look like an exact copy of gunworks pod spikes.
    No they don't, these look like they have been machined with a cold chisel
    Steve338 likes this.
    If its guns, tits or tyres it's going to cost you lots of money

  7. #7
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    7,871
    Quote Originally Posted by Titanium View Post
    These look like an exact copy of gunworks pod spikes.
    Lol like its an original idea of theirs either


    Hint: it's not

  8. #8
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,872
    Quote Originally Posted by crzyman View Post
    No they don't, these look like they have been machined with a cold chisel
    Actually you order the product and ask for top quality fast machining alloy and there's f all you can do when they send u coal ha ha try it see what happens
    "This is my Flag... Ill only have the one ..

  9. #9
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,872
    Quote Originally Posted by gimp View Post
    Lol like its an original idea of theirs either


    Hint: it's not

    Roger that especially since my mate who drew the first set moved Orange California like 15 yrs ago ha ha
    "This is my Flag... Ill only have the one ..

  10. #10
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,872
    Quote Originally Posted by crzyman View Post
    No they don't, these look like they have been machined with a cold chisel
    Pre being filed and sanded you are quite right.
    "This is my Flag... Ill only have the one ..

  11. #11
    Member crzyman's Avatar
    Join Date
    Dec 2011
    Location
    Alexandra
    Posts
    1,152

    DIY Bi Pod Spikes

    I'm only taking the piss lol


    Sent from my iPhone using Tapatalk
    If its guns, tits or tyres it's going to cost you lots of money

  12. #12
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,872
    Quote Originally Posted by crzyman View Post
    I'm only taking the piss lol


    Sent from my iPhone using Tapatalk
    Knew that me too ....
    "This is my Flag... Ill only have the one ..

  13. #13
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    361
    Nice work, and yeah, I feel your pain with the material. Cutting an ultra fine thread into non free cutting alloy is nightmarish.
