Thread: Diy gong info wtd

  1. #1
    Member Blisters's Avatar
    Join Date
    Mar 2016
    Location
    Papakura
    Posts
    762

    Diy gong info wtd

    Hi guys, at work i have a bunch of steel plate 20mm thick a mag drill and a welder eho will work for beers I want to have a go at long range gonging on a mates farm.
    Anyone had a go at making them themselves and what sizes would you recommend? I'm thinking 300x300 two holes at the top small length of chain from holes to hanger. Any info would be helpful cheers

  2. #2
    MSL
    MSL is online now
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    3,124
    What type of plate? I use two warrahtahs and high tensile wire but 20mm might be a bit heavy for that
    Blisters likes this.

  3. #3
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    496
    What grade of steel plate have you managed to get your hands on? Just asking as this will determine how long it will last.
    My gong is a 250mm square with holes at the top corners. Chain attached with shackles. I have seen a better design where the chain is attached to the back of the plate about 80mm down from the top edge. This gives the plate a slight downward slant, so the bullet splatter heads down, and the chance of a bullet coming back are greatly reduced.
    P38, Beaker and Blisters like this.

  4. #4
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    2,996
    Mild steel no matter how thick will be cratered by most centrefires out to around 300 m, and close bits can come back at the shooter, so at a minimum bis 80 hardness is recommended (wear steel is a trade name as well i think). Your size is about right its 12 moa at 100, and 4 at 300 yds. Fire hose or conveyor belt makes the best hanger, and angle the attachment point so the plate hangs at about 10 deg over vertical so bullet splash is directed downwards, this also reduces damage to the plate surface.
    Beaker, sometimes and Blisters like this.

  5. #5
    GWH
    GWH is online now
    Member
    Join Date
    Jul 2012
    Location
    Napier, Hawkes Bay
    Posts
    2,778
    If you are just using mild steel, you are pretty much wasting your time mate, no matter the thickness. With mild steel you will destroy the gong first session.

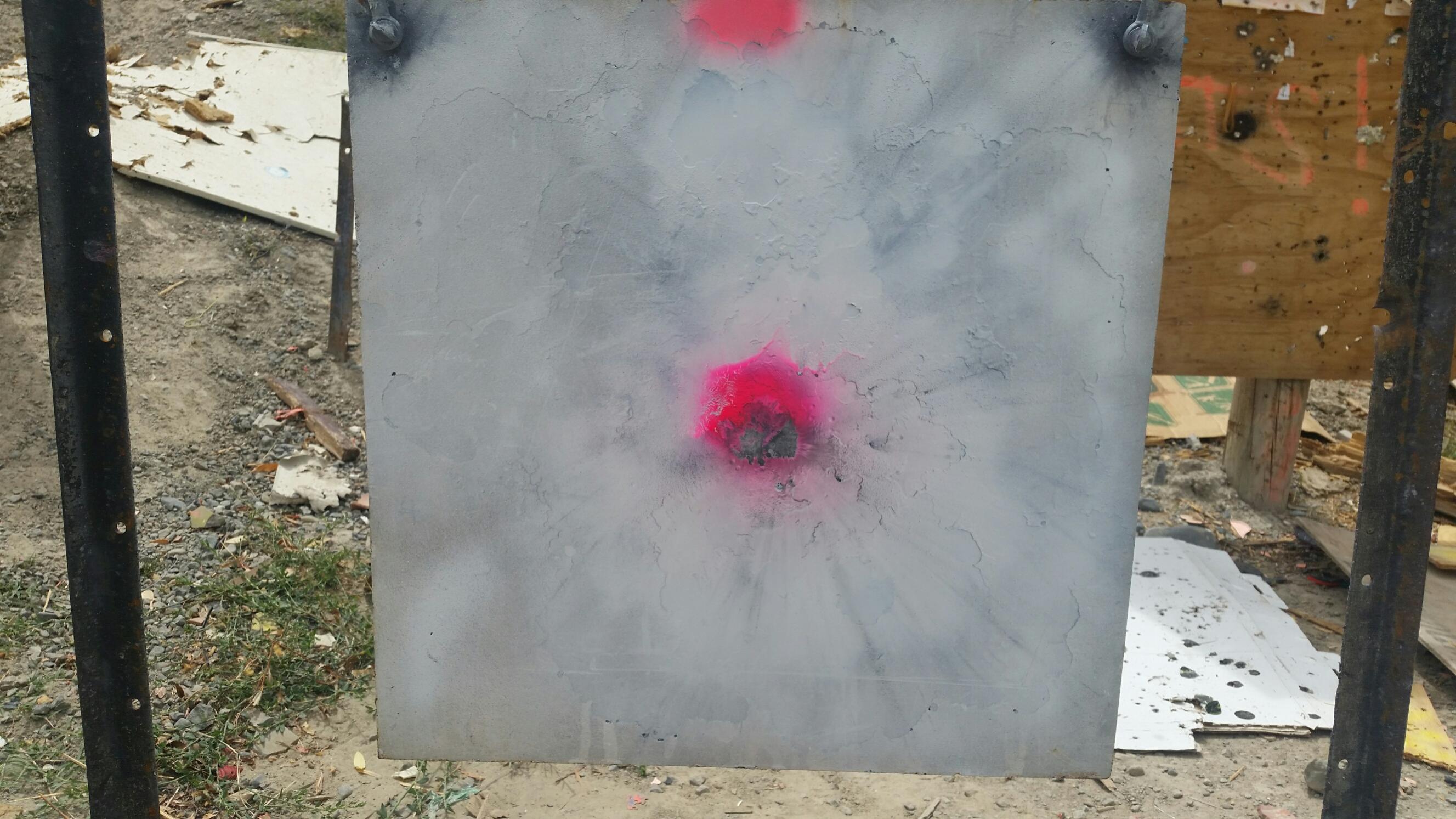

    Do yourself a big favor and get hold of some wearplate. Mine are Hardox 450 12mm, others use bizalloy, all just different brands of wearplate. The bullets just disintegrate on the surface and dont damage the plate at all. Will last forever.

    I have two plate sizes, a nice big 500x500 with a 2-3" bull painted in middle. (nothing worse than missing a small plate at range and not having a clue where you have missed. Much easier to get everything sorted if you have a bigger plate, so you can still see the splash from say 700 yards, then make adjustments and shoot again.

    Then i have an 8" plate for when you want to make it a bit more challenging.

    I hang a chain between two wharratahs and then hang the gong off the chain with D shackles and steel spring carribeaners

    Name:  20170201_125424_1485996447145_resized.jpg
Views: 319
Size:  423.8 KB

    Last edited by GWH; 26-06-2017 at 10:23 AM.
    P38, veitnamcam, Kiwi Greg and 2 others like this.

  6. #6
    Member
    Join Date
    Mar 2012
    Location
    Waikato
    Posts
    785
    I went for 200mm discfor portability . A lighter plate moves more on impact So abs0rbs less energy for craterng. As said its not so good When I miss! A big piece of paper on plastic corfUte is best for that.

    It needs to behung from something stretchy . I've used old Climbing rope, I use a tight figure 8 Knot fixed by mild steel bolt and big Washer on the back of the plate which gives a nice down angle.
    Blisters likes this.

  7. #7
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    19,968
    There is this thread mate.
    http://www.nzhuntingandshooting.co.n...ng-play-13813/

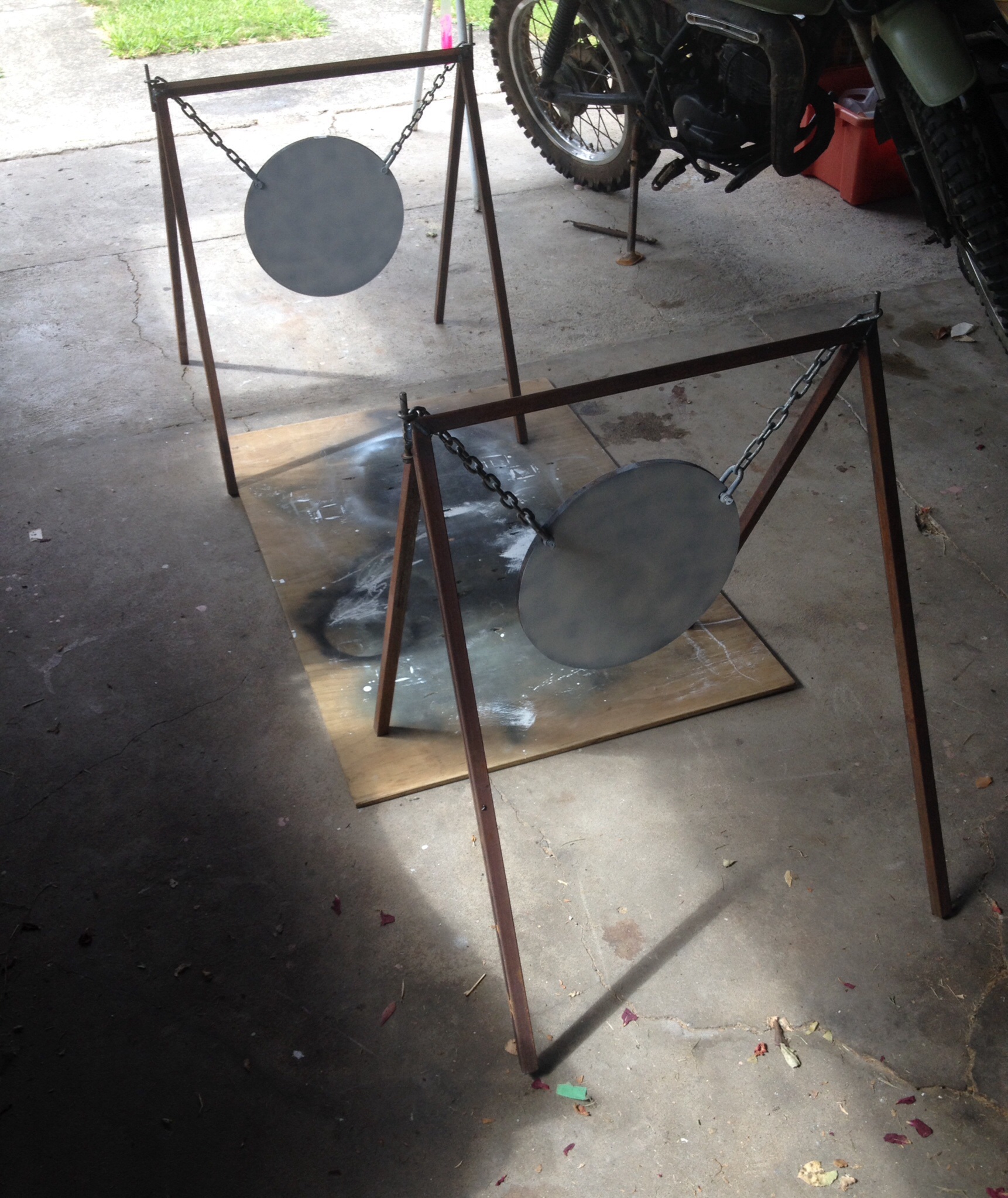

    I use a steel frame with a vertical pin that the chain loop just drops onto. I move mine around every time so needed a portable solution.
    12mm Bizalloy and the only thing to dent it was a few Barnes at 100 has had RUMs hitting them from 100 too and no issues
    Name:  Gongs.jpg
Views: 294
Size:  911.5 KB
    Dreamer, Huk, A330driver and 1 others like this.

  8. #8
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    19,968
    PS the frames don't look that pretty now
    Huk and Blisters like this.

  9. #9
    Member Blisters's Avatar
    Join Date
    Mar 2016
    Location
    Papakura
    Posts
    762
    Awesome info boys thanks for that! we have some 20mm 300x300 mild steel cleats that attach the steel beams to concrete spandrels kicking around site that i was hoping to use as they are going to get binned (wrong size etc) I'll ask the steelys for some wear plate now. I like the 10mm over vert for bullet splatter idea! Also @Gibo I don't know how I missed that thread when searching, my bad ill have a good read now cheers
    Gibo likes this.

  10. #10
    MSL
    MSL is online now
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    3,124
    10mm Hardplate is perfect

  11. #11
    P38
    P38 is offline
    Member P38's Avatar
    Join Date
    Dec 2011
    Location
    Hastings
    Posts
    5,717
    @Blisters

    The 20mm Mild plate will easily last for hundreds of rounds

    It will crater, but you won't shoot holes in it.

    The down side is if you want to move them then it will be heavy

    I'd use it without hesitation.

    Cheers
    Pete
    BRADS and Blisters like this.
    Arguing with an Engineer is like Wrestling a Pig in Mud.

    After awhile you realise the Pig loves it.

  12. #12
    If your not fast your last Shootm's Avatar
    Join Date
    Dec 2011
    Location
    Mighty Manawatu
    Posts
    2,564

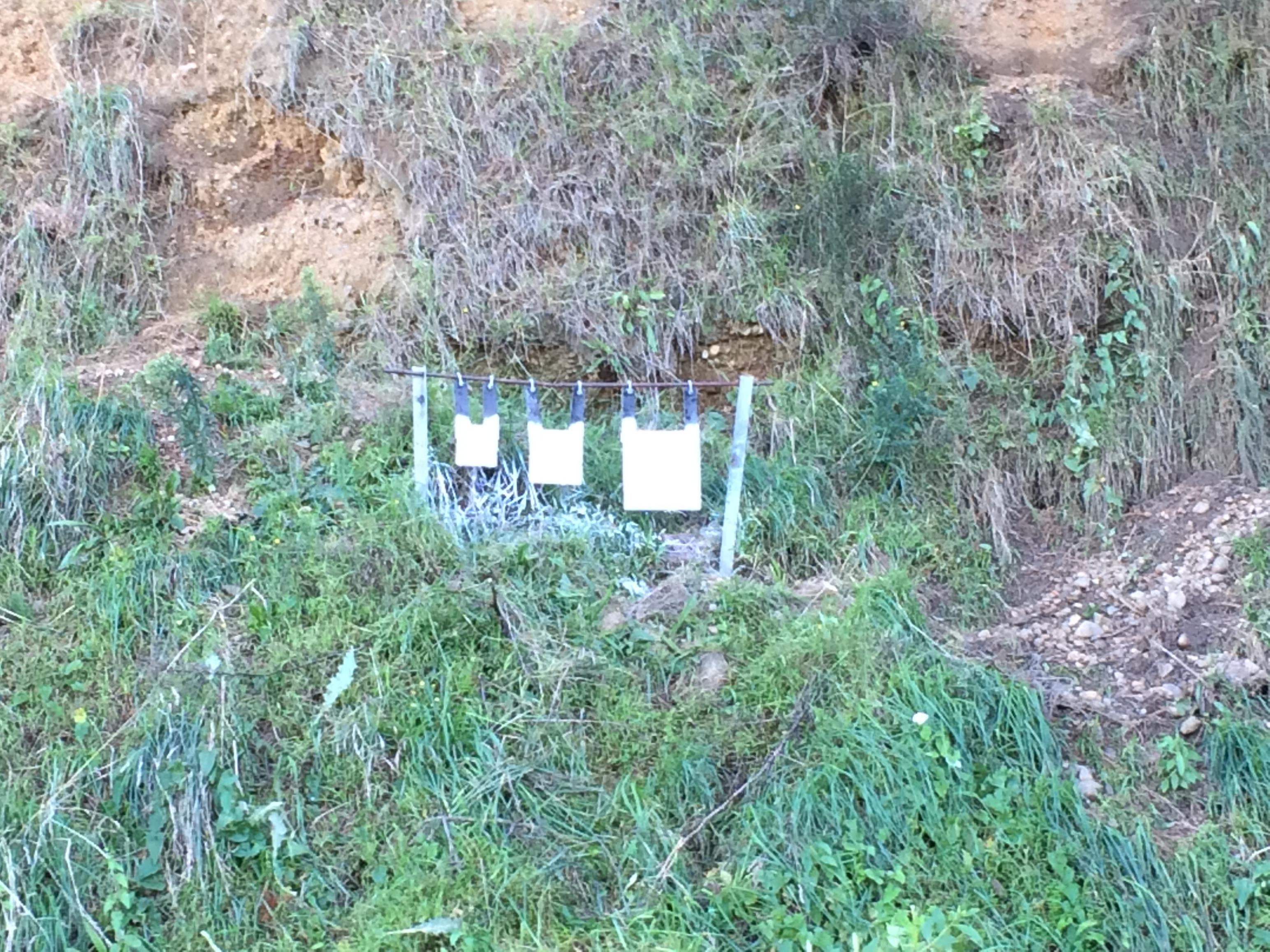

    This is ours 16mm Biz 400. Conveyor belt straps.

    Name:  IMG_0099.jpg
Views: 227
Size:  1,011.5 KB
    Name:  IMG_0100.jpg
Views: 227
Size:  1.02 MB
    GWH and A330driver like this.

    I Have Sexdaily. I mean Dyslexia! Fcuk!

  13. #13
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    4,957
    Quote Originally Posted by Blisters View Post
    ........... and a welder eho will work for beers .....
    All welders work for beersies
    veitnamcam, clickbang and Blisters like this.
    Identify your target beyond all doubt

  14. #14
    Member clickbang's Avatar
    Join Date
    Apr 2015
    Location
    South
    Posts
    299
    Quote Originally Posted by Tommy View Post
    All welders work for beersies
    Universal currency

    Sent from my SM-A510Y using Tapatalk

  15. #15
    Member
    Join Date
    Jul 2013
    Location
    Methven
    Posts
    447
    Use whatever you have available if its free. 20mm mild will last a while, will last longer beyond 300. Conveyer belting is the best by far, bolt it down the back face as suggested to give the plate a bit of a lean, and we use a piece about 150 wide, no need for fancy 2 straps or narrow pieces, bullet goes straight through it, whereas chain blows apart with a decent hit.
    P38, muzr257 and Blisters like this.
