Thread: Tire stands for steel targets.

  1. #1
    Member
    Join Date
    Oct 2019
    Location
    Owaka
    Posts
    69

    Tire stands for steel targets.

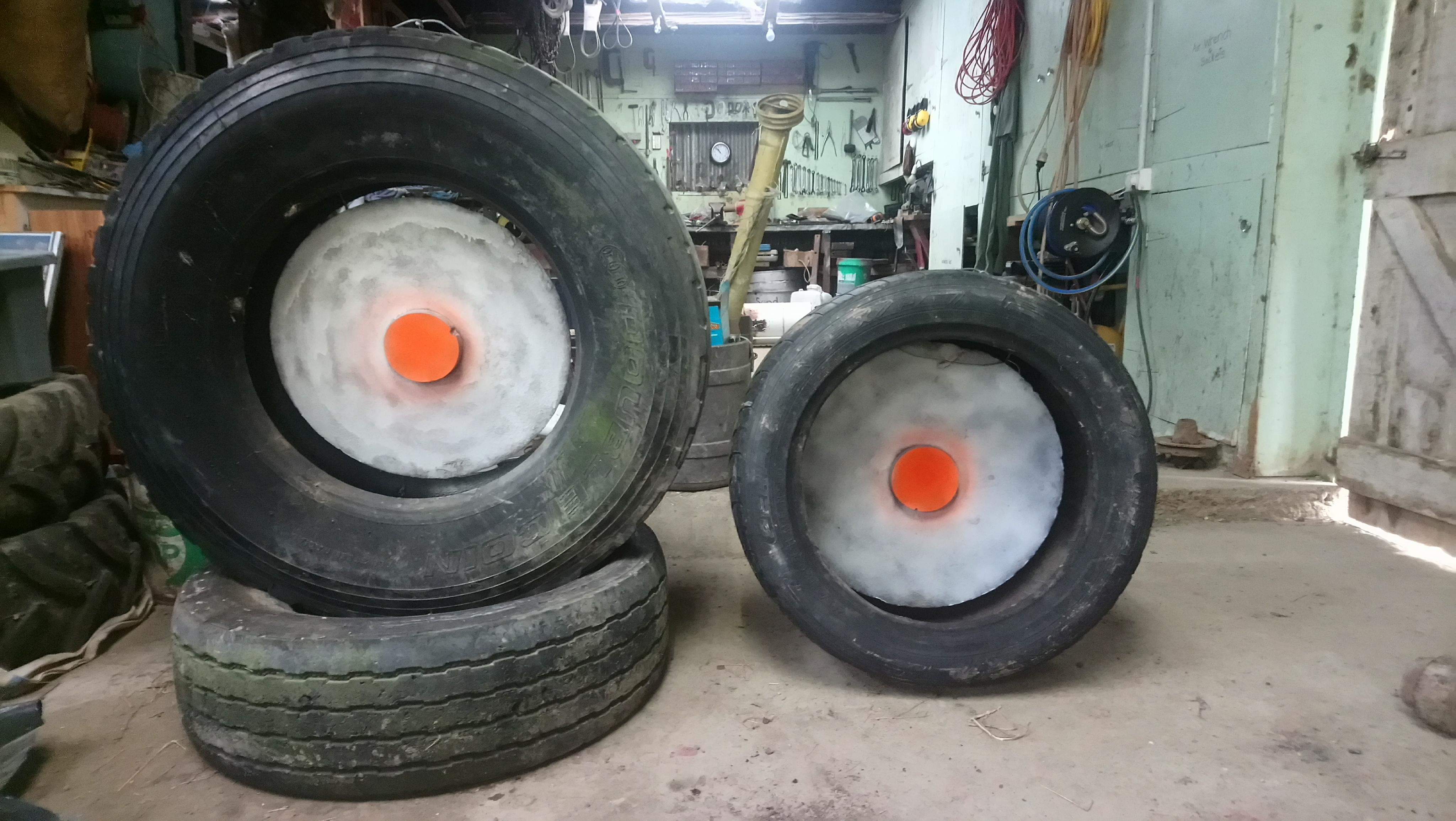

    Don't know if this is maybe already a thing but thought I'd share as its working really well for me. I have hung my steel gongs inside large tires. Gives an easy way to stand them up and if you place them ontop of another used tire you can stand them on almost any contour. The tire also catches alot of the splatter on impact.
    If this helps you, Enjoy.
    Name:  received_10155647821316925.jpeg
Views: 518
Size:  728.1 KB
    Barefoot, Brian, McNotty and 17 others like this.

  2. #2
    Member
    Join Date
    Jul 2014
    Location
    BOP
    Posts
    2,657
    Take a while to destroy those holders, unlike the metal ones that can take a hammering.
    Steve123 and Cordite like this.

  3. #3
    Member Brian's Avatar
    Join Date
    Dec 2011
    Location
    Upper Hutt
    Posts
    886
    Could move them easily when the cattle are going into that paddock too. Good idea.

  4. #4
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    2,110
    Hey @Brian, they'd roll down your hills great - moving targets!! probly a bit fast for old @nor-west to hit but maybe @Tahr would get them . . . .
    nor-west, madjon_, 40mm and 2 others like this.

  5. #5
    Member Brian's Avatar
    Join Date
    Dec 2011
    Location
    Upper Hutt
    Posts
    886
    yeah he'd be more likely to hit them than me.
    Seems silly sitting at a bench shooting when you should really be practicing standing shots.

  6. #6
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    4,355
    I like how the tyres give a wider, black aiming circle. Thanks for sharing.
    Hot, erosive, double-base, spaghetti sticks

  7. #7
    Member
    Join Date
    May 2015
    Location
    Carterton, New Zealand
    Posts
    1,232
    Very clever idea.
    Will pass it on to a club I belong to.

  8. #8
    Member
    Join Date
    Oct 2019
    Location
    Owaka
    Posts
    69
    The best tires that I have found are low profile SUV ones. Plenty deep enough, heaps of room in the center and not so much rubber in them that the weight becomes hard to handle.

  9. #9
    Member Max Headroom's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    4,019
    @LMcNab, could you post a photo of the rear of the tire please, how you mounted the gong and what material the white area is ?
    RIP Harry F. 29/04/20

  10. #10
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    5,883
    Hey now there is an idea
    Identify your target beyond all doubt

  11. #11
    Member
    Join Date
    Oct 2019
    Location
    Owaka
    Posts
    69
    Quote Originally Posted by Max Headroom View Post
    @LMcNab, could you post a photo of the rear of the tire please, how you mounted the gong and what material the white area is ?
    The whole gong is actually an old used Plough colter with an offcut piece of Bisalloy welded over the hole in the center. The white area is the colter, which is not as thick as you would generally like for a shooting target but has held up to a fair old beating so far, mostly with my 223. They don't like magnums however and have a few holes from a couple of friends of mine. They are also getting a bit roughed up by my 308 and will need to be retired to 223 only soon and I will get some thicker ones made at the local engineers.
    To mount the gongs I welded a great big bolt onto the back of the bisalloy and bolted a piece of mild steel to it which just goes through a hole I cut in the tire (that part is harder than it sounds, a grinder and a firm grip is needed), once it is through the hole I just bent it over and the job was done. It's not elegant but is very effective. With the new gongs I will probably get holes in them for hanging with either bent rod or chains as my welding has a habit of falling apart!
    I will chuck up some more detailed photos tomorrow. Not sure I could get away with sneaking off to do that today!!!
    Max Headroom likes this.

  12. #12
    Member
    Join Date
    Oct 2019
    Location
    Owaka
    Posts
    69
    Name:  20191225_170104.jpg
Views: 313
Size:  5.28 MB
    Name:  20191225_165854.jpg
Views: 292
Size:  3.78 MB
    Name:  20191225_165849.jpg
Views: 292
Size:  4.79 MB
    Name:  20191225_165858.jpg
Views: 290
Size:  6.12 MB
    Name:  20191225_170041.jpg
Views: 287
Size:  4.78 MB
    Tertle and G.I_Joel like this.

  13. #13
    Member
    Join Date
    Oct 2019
    Location
    Owaka
    Posts
    69
    Tire stands Mk 2 with new gongs. All R14 tires except for the quad tire which I think might be more temporary without the steel belting.

    Attachment 135095

  14. #14
    Member
    Join Date
    Jul 2014
    Location
    Upper Hutt
    Posts
    446
    Other tweak that i've found helpful is putting a small section of large diameter steel pipe just behind the gong for it to swing into when hit, then it really rings like the dinner bell when you get a hit - useful if it's real windy or a fair way away

  15. #15
    Member
    Join Date
    Jan 2019
    Location
    Auckland
    Posts
    173
    We had a large number of tires around our pistol club acting as dividers between lanes or as a base for mounds of soil to act as barriers.

    All had to be totally covered with deep dirt or taken away before the range certification guy would re-certify our ranges. Apparently too higher a risk of ricochet.
