Thread: 3D print extended Tikka T3 Magazine

  1. #1
    Member
    Join Date
    Nov 2016
    Location
    The peoples democratic republic of Jacindastad
    Posts
    65

    3D print extended Tikka T3 Magazine

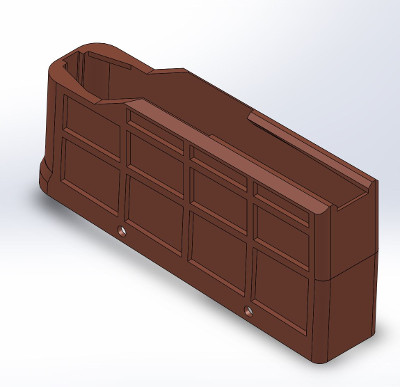

    I needed 50 thou more mag length for my 300WM - managed to get my hands on a 3D model of the std Long Tikka mag body and thinned out the end walls.

    This should hold rounds up to ~3.46" COAL - vs ~3.35 out of the factory mag.

    Just 3D print the new body and transfer the std internals over.. That's the theory anyway - will see next week how it went.

    Link to the STL file if anyone wants to print one too. Tikka T3 Magazine.STL

    Name:  tikka mag.JPG
Views: 657
Size:  33.5 KB

  2. #2
    Member Willus's Avatar
    Join Date
    Jan 2014
    Location
    Middle of nowhere, Centre of Everywhere
    Posts
    478
    Been doing something similar just. modification is needed for rigidity. Just need to get me a 3d printer.
    Keep it up!

  3. #3
    Member
    Join Date
    Nov 2016
    Location
    The peoples democratic republic of Jacindastad
    Posts
    65

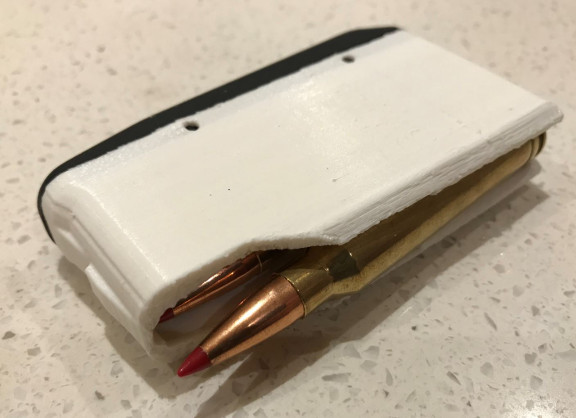

    First print came out OK. needs a bit of refining, but the magazine functions.

    Name:  Print1.JPG
Views: 549
Size:  51.3 KB
    wsm junkie, stug, Bernie and 2 others like this.

  4. #4
    Member sometimes's Avatar
    Join Date
    Dec 2013
    Location
    BOP
    Posts
    495
    please please make a wsm one
    wsm junkie likes this.

  5. #5
    Member wsm junkie's Avatar
    Join Date
    Dec 2011
    Location
    Northern Rangitikei
    Posts
    730
    Quote Originally Posted by sometimes View Post
    please please make a wsm one
    + 1 to that.
    3.2inch internal length

  6. #6
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    363
    When you get your model sorted have a look at getting them printed in glass filled nylon (SLS) it is much stronger than the FDM type prints
    Beetroot and MGNZ like this.

  7. #7
    Member Beetroot's Avatar
    Join Date
    Apr 2013
    Location
    Morrinsville
    Posts
    1,574
    Quote Originally Posted by Chilli_Dog View Post
    When you get your model sorted have a look at getting them printed in glass filled nylon (SLS) it is much stronger than the FDM type prints
    Also will have a much nicer finish.
    If you don't know anyone with an SLS printer you can submit the .STL file to this (see below) website and you can find someone in the world who will print it for you, have done it lots of times and other than a long wait due to shipping was great.

    https://www.3dhubs.com/

  8. #8
    Member
    Join Date
    Nov 2016
    Location
    The peoples democratic republic of Jacindastad
    Posts
    65
    Quote Originally Posted by sometimes
    please please make a wsm one
    Quote Originally Posted by wsm junkie View Post
    + 1 to that.
    3.2inch internal length
    @wsm junkie, @sometimes
    What is different about the WSM magazine? is the main body different to the std short,med, long mags?

  9. #9
    Member sometimes's Avatar
    Join Date
    Dec 2013
    Location
    BOP
    Posts
    495
    Because its such a fat short round the feed lips are different to the rest of the tikka mags

  10. #10
    Member wsm junkie's Avatar
    Join Date
    Dec 2011
    Location
    Northern Rangitikei
    Posts
    730
    @MGNZ i measured the side walls of a wsm mag and a long action one and the wsm mag were a few thousandths of an inch thinner allowing for the fatter cases.
    I could get the wsm cases into the LA mag but it would only feed the top round, the other was wedged in.
