  1. #1
    Member
    Join Date
    Sep 2014
    Location
    Dunedin
    Posts
    1,059

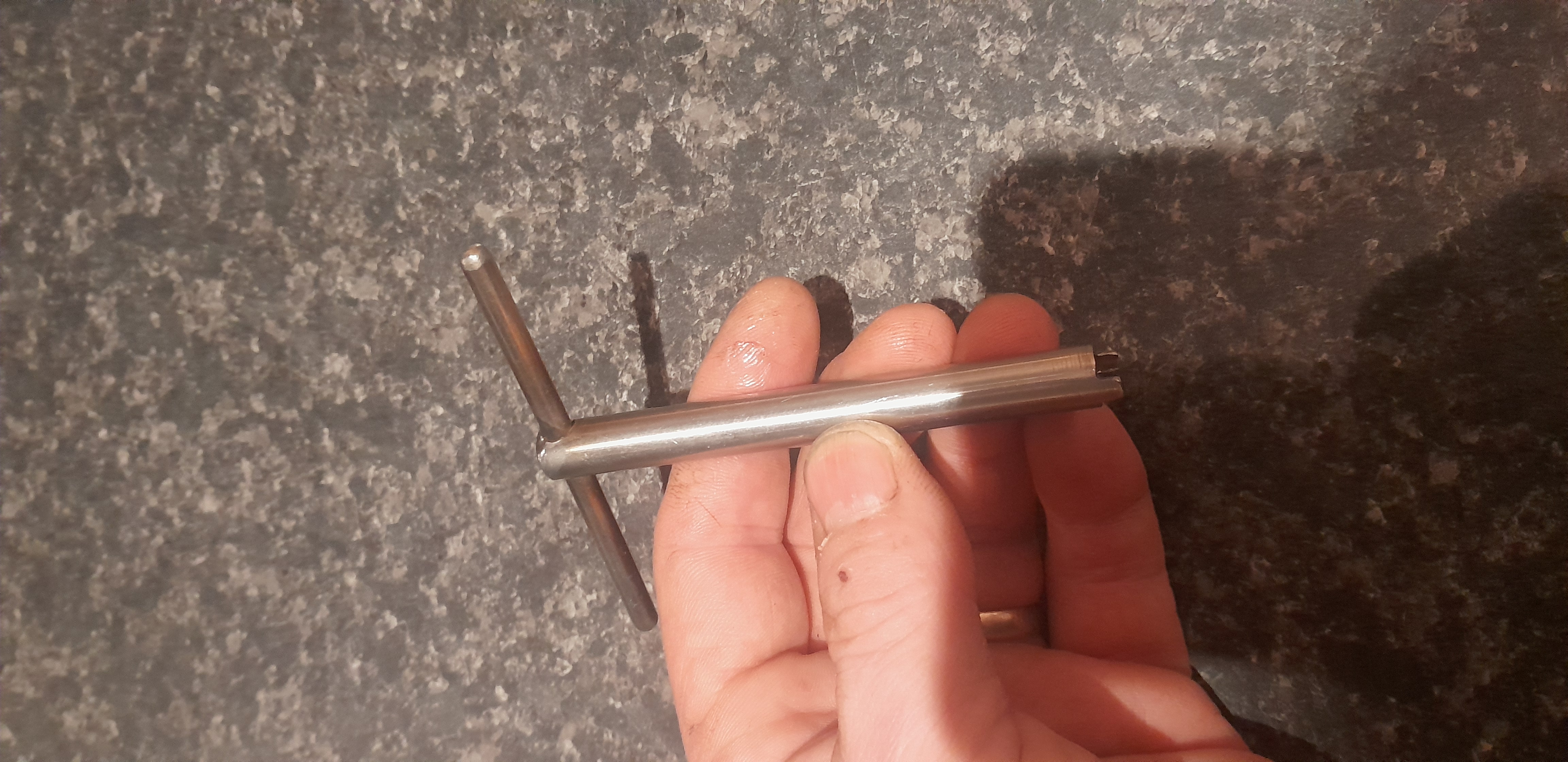

    Anyone got a Lee Enfield bolt disassembly tool they can measure for me?

    AKA the firing pin removal tool. Looking to make a few, as A: I don't have one myself, and: B I could use the machining practice.
    Not sure if the same tool does the SMLE and Number 4, ideally I'd like to be able to take both types apart. Mainly need the measurements around the teeth that lock into the firing pin and do the "unscrewing", as well as the internal diameter.
    Cheers
    Name:  download.jpg
Views: 128
Size:  7.0 KB

  2. #2
    Member
    Join Date
    Oct 2013
    Location
    Western BoP
    Posts
    5,020

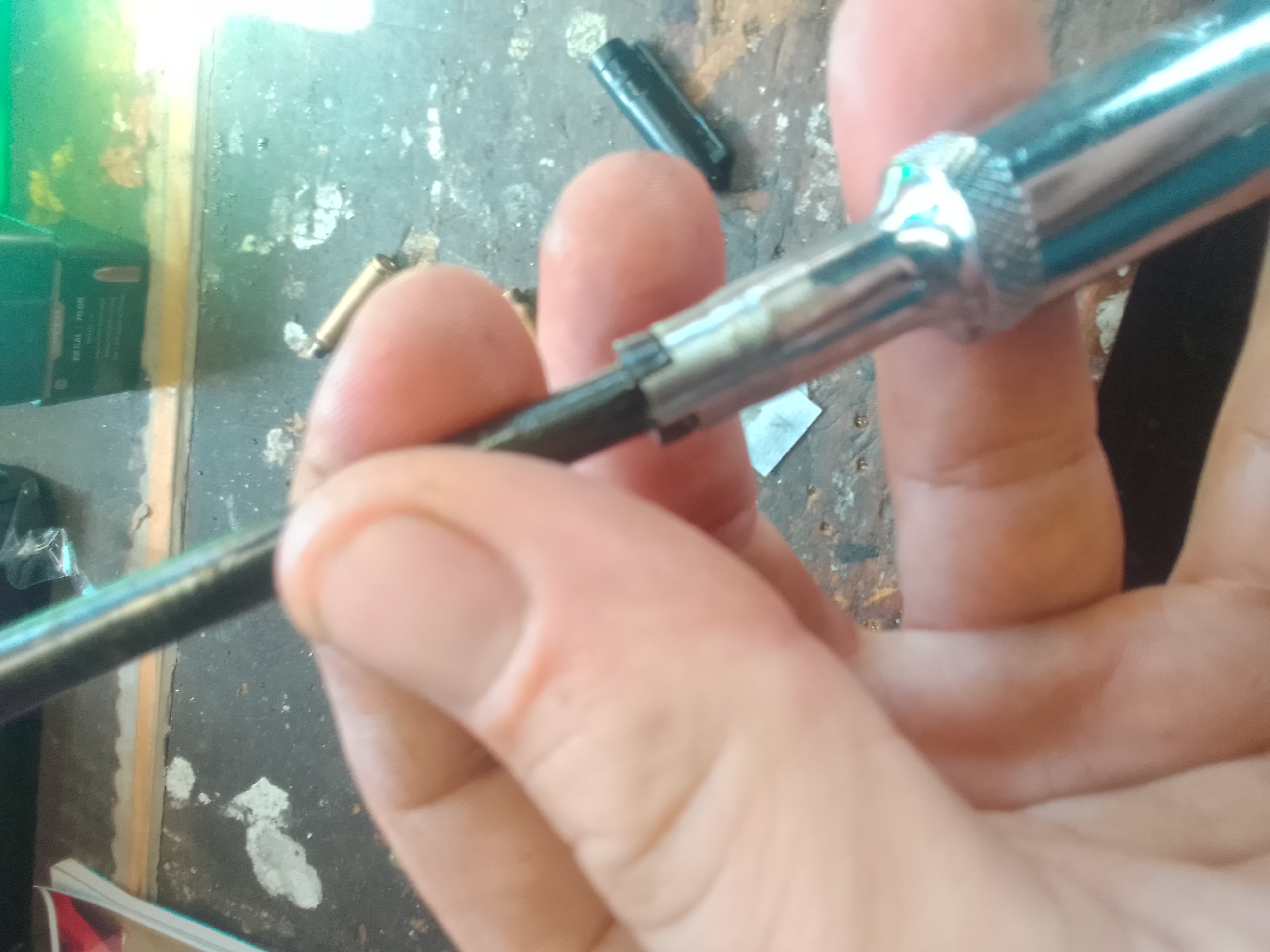

    I have a piece of tube that fits into the bolt body, find something like it, file it to fit and unscrew your first. Measure the firing pin cutouts and viola.

    There is an earlier type that rather than the two cutouts, has a single protruding lug - this was meant to come apart with the bolt head as the tool but invariably it's too much of a prick so really needs a tool... This type was obsoleted prior to WW1 though so it's rare.

  3. #3
    Resident Curmudgeon Kiwi Sapper's Avatar
    Join Date
    Feb 2013
    Location
    Wanganui without an "H".
    Posts
    2,519

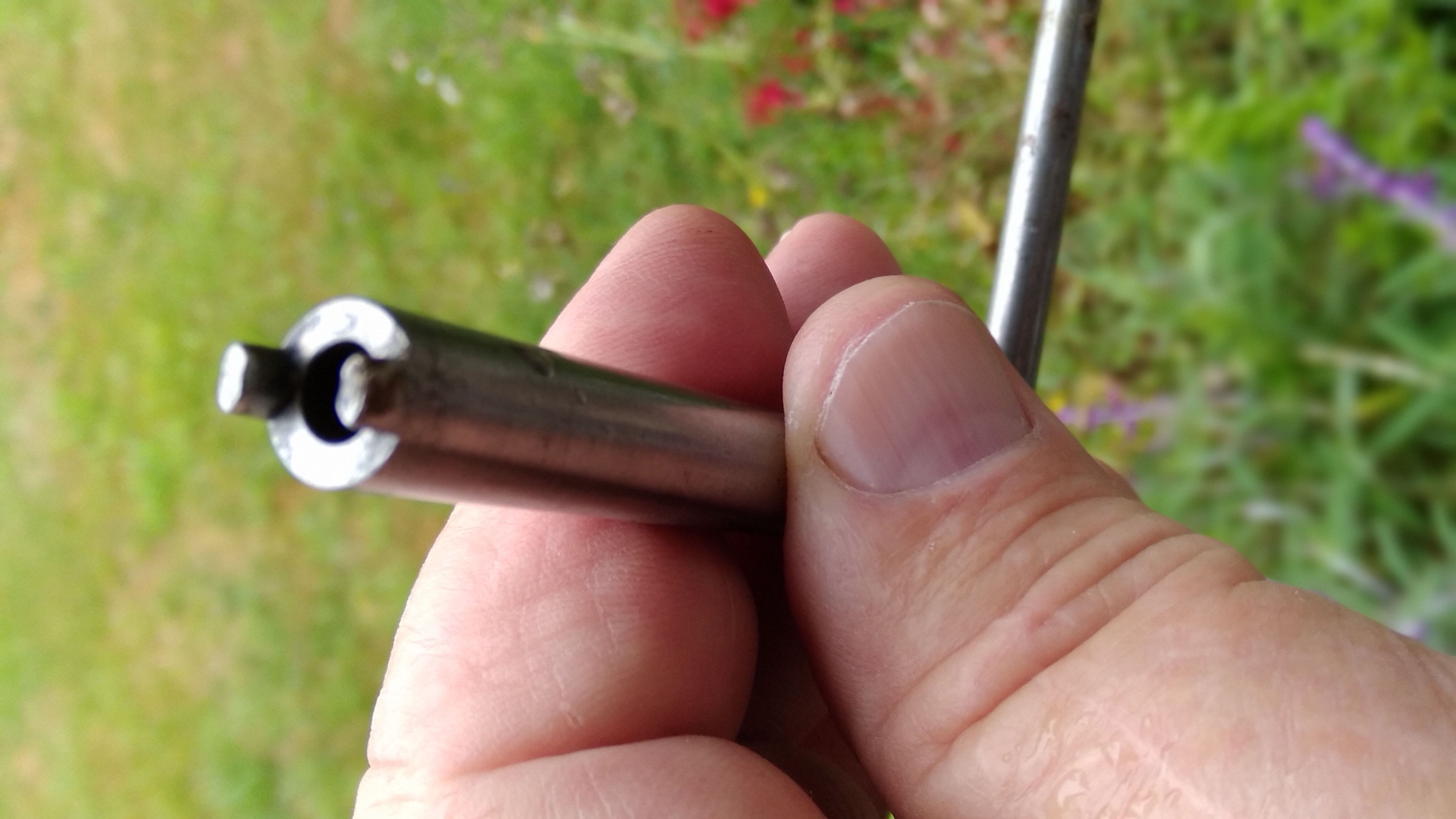

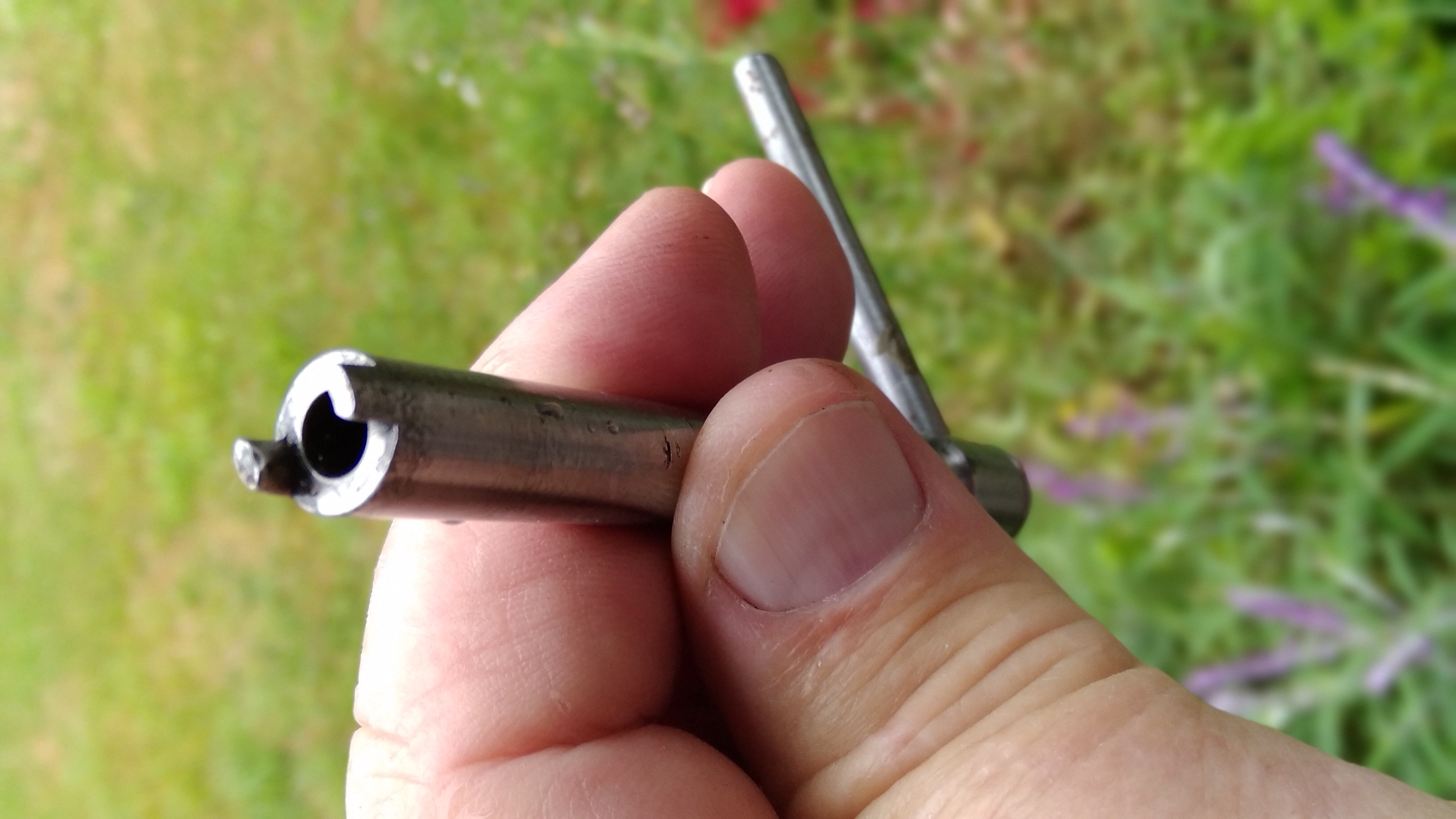

    0.229 inch internal gap between the pins............The pins are 0.144 wide ....... Shaft dia 0.366.
    NOtE well.the pins are not :square" shaped, They appear to be curved like a crscent moon on the inside edges.

    Name:  20210215_103240[1].jpg
Views: 109
Size:  5.78 MB

    Name:  20210215_103256.jpg
Views: 111
Size:  5.73 MB

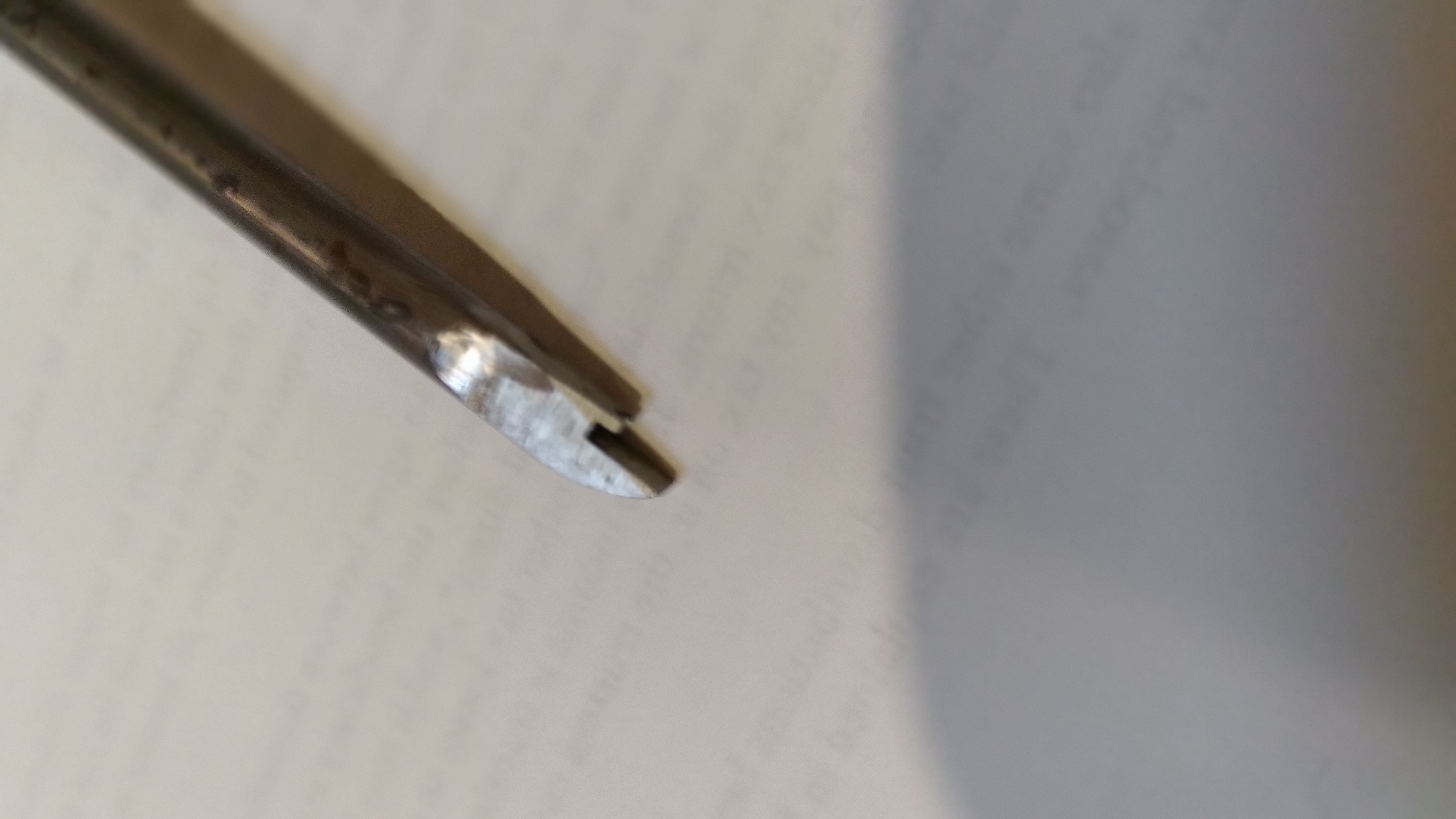

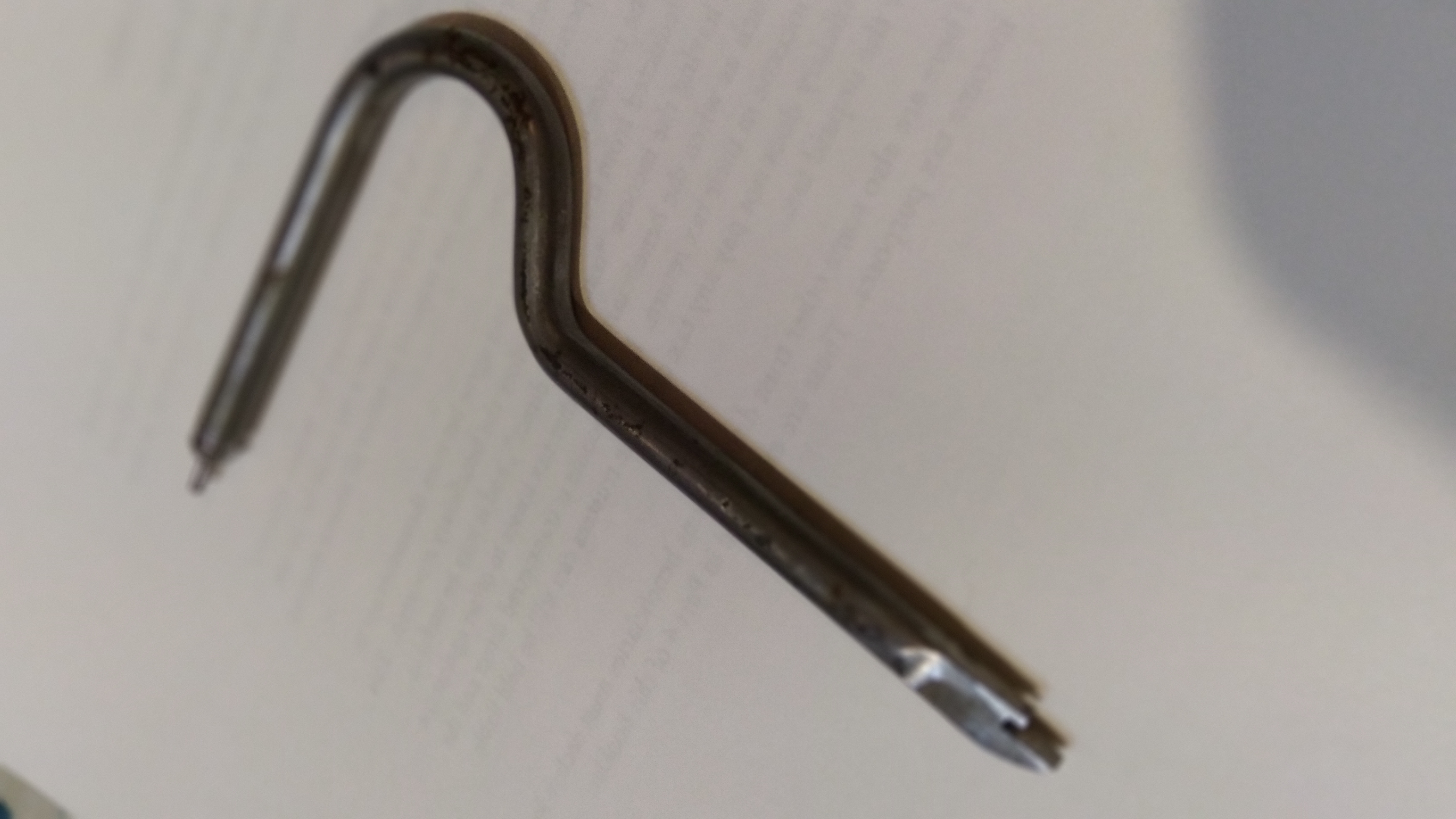

    While you are on the job, consider making some of these......

    Name:  20210215_105146.jpg
Views: 108
Size:  5.27 MB

    Name:  20210215_105153.jpg
Views: 108
Size:  5.34 MB
    “There was a moment's suspense while Conscience and Sheer Wickedness fought the matter out inside him, and then Conscience, which had started on the encounter without enthusiasm, being obviously flabby and out of condition, threw up the sponge.”

  4. #4
    Member
    Join Date
    Dec 2019
    Location
    Cambridge
    Posts
    72
    I would be interested in buying one once you have perfected them. I have looked at getting on from liberty tree but after postage it came to $50 so am hesitant.

  5. #5
    Member
    Join Date
    Sep 2014
    Location
    Dunedin
    Posts
    1,059
    Quote Originally Posted by Kiwi Sapper View Post
    0.229 inch internal gap between the pins............The pins are 0.144 wide ....... Shaft dia 0.366.
    NOtE well.the pins are not :square" shaped, They appear to be curved like a crscent moon on the inside edges.

    Attachment 160479

    Attachment 160480

    While you are on the job, consider making some of these......

    Attachment 160483

    Attachment 160484
    Thanks for doing that, I appreciate it

  6. #6
    Member
    Join Date
    Sep 2014
    Location
    Dunedin
    Posts
    1,059
    Quote Originally Posted by AWBates View Post
    I would be interested in buying one once you have perfected them. I have looked at getting on from liberty tree but after postage it came to $50 so am hesitant.
    I'll bear that in mind

  7. #7
    Member
    Join Date
    Feb 2021
    Location
    Masterton
    Posts
    6
    Also interested if you master it and want to sell one.
