Ar-15 Dedicated 22lr upper, using CMMG bolt
Hi everyone, this is a project I recently finished.
The plan was to build a dedicated 22lr upper using a standard ar15 upper, a modified CMMG conversion bolt and a used Anschutz 520 barrel.
It started when I bought a stripped upper at the shot show for the great price of $100.
I then bought a CMMG 22lr conversion bolt with a couple of mags.
I already had the barrel, I had bought it a few years earlier for use on another project that never happened.

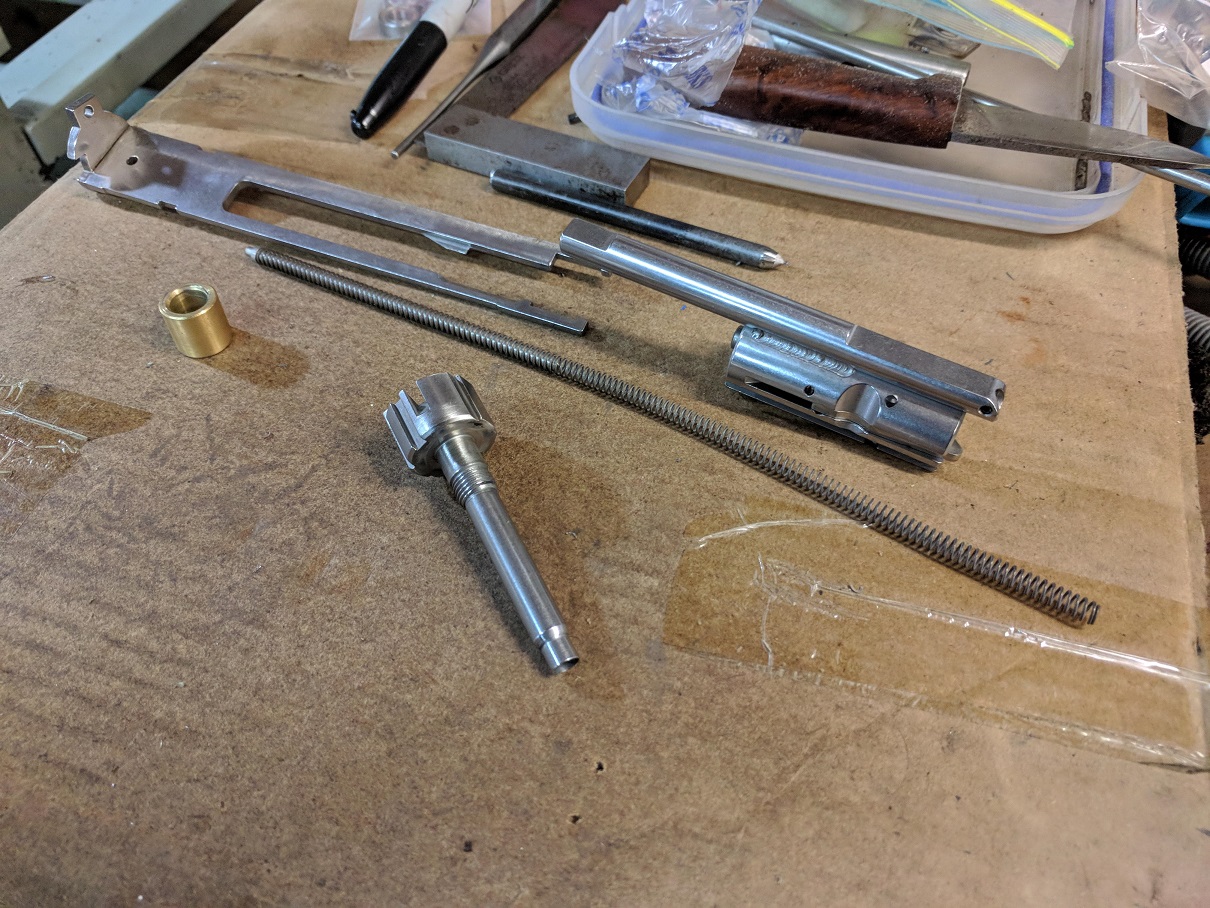

The first job was to strip down the bolt and hacksaw off the chamber adapter. (You can buy these without a chamber adapter but I could not find these in NZ)
Attachment 94136

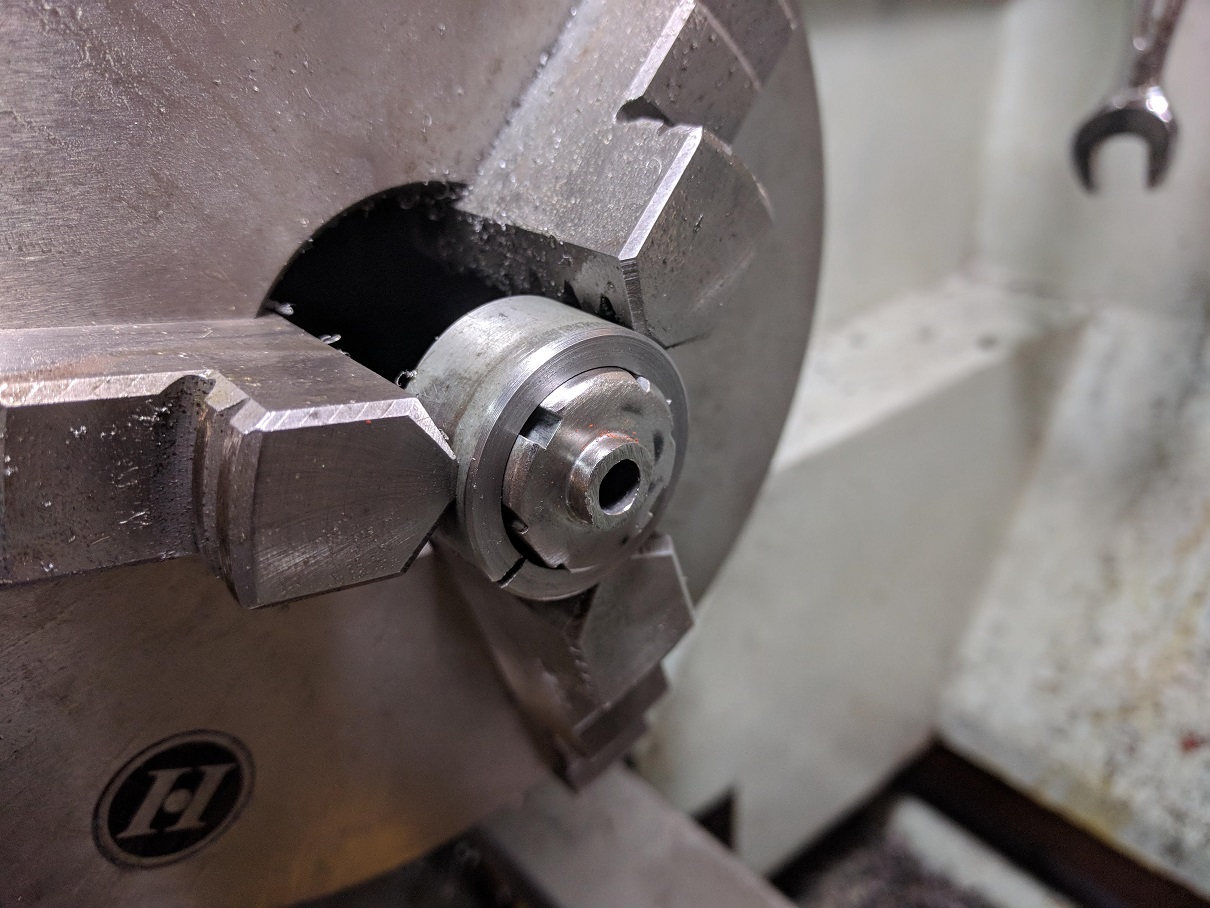

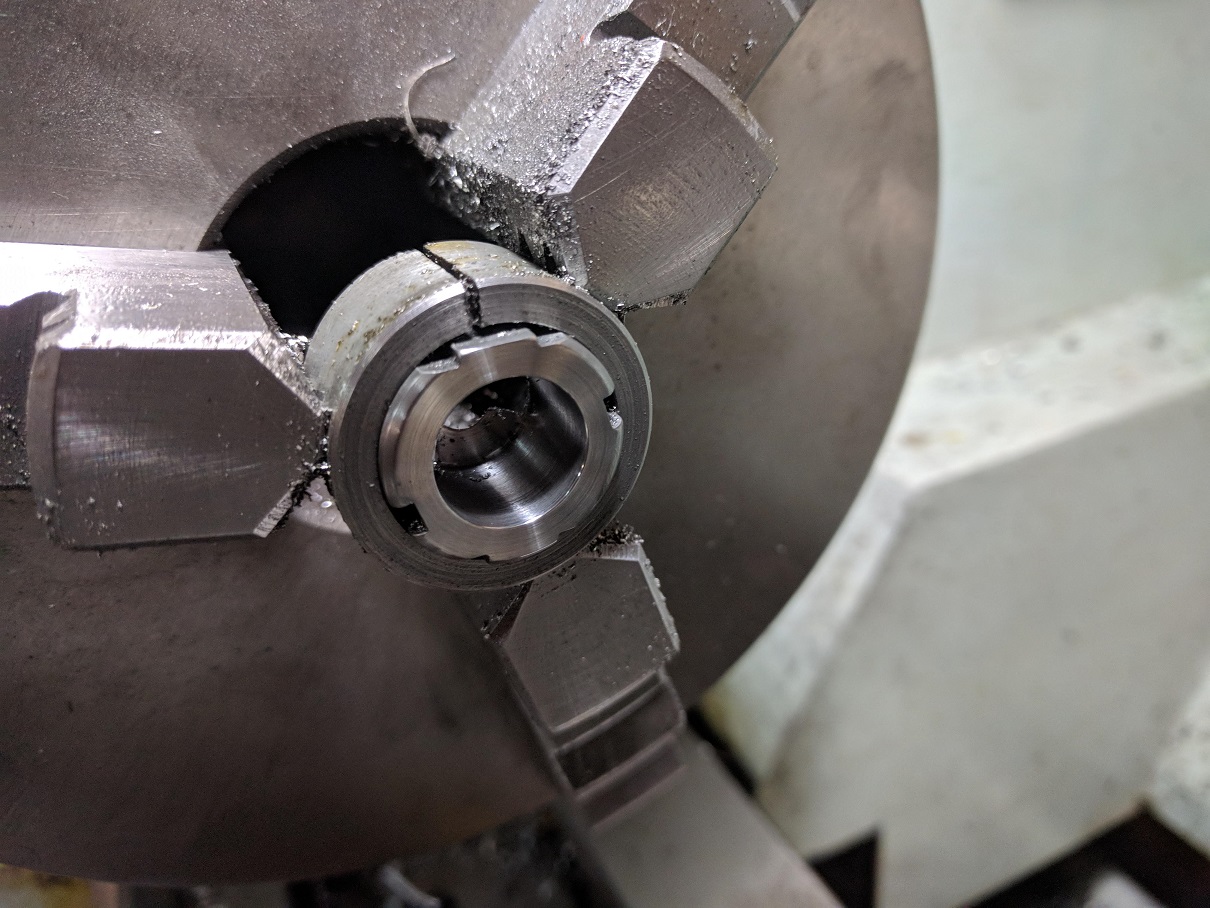

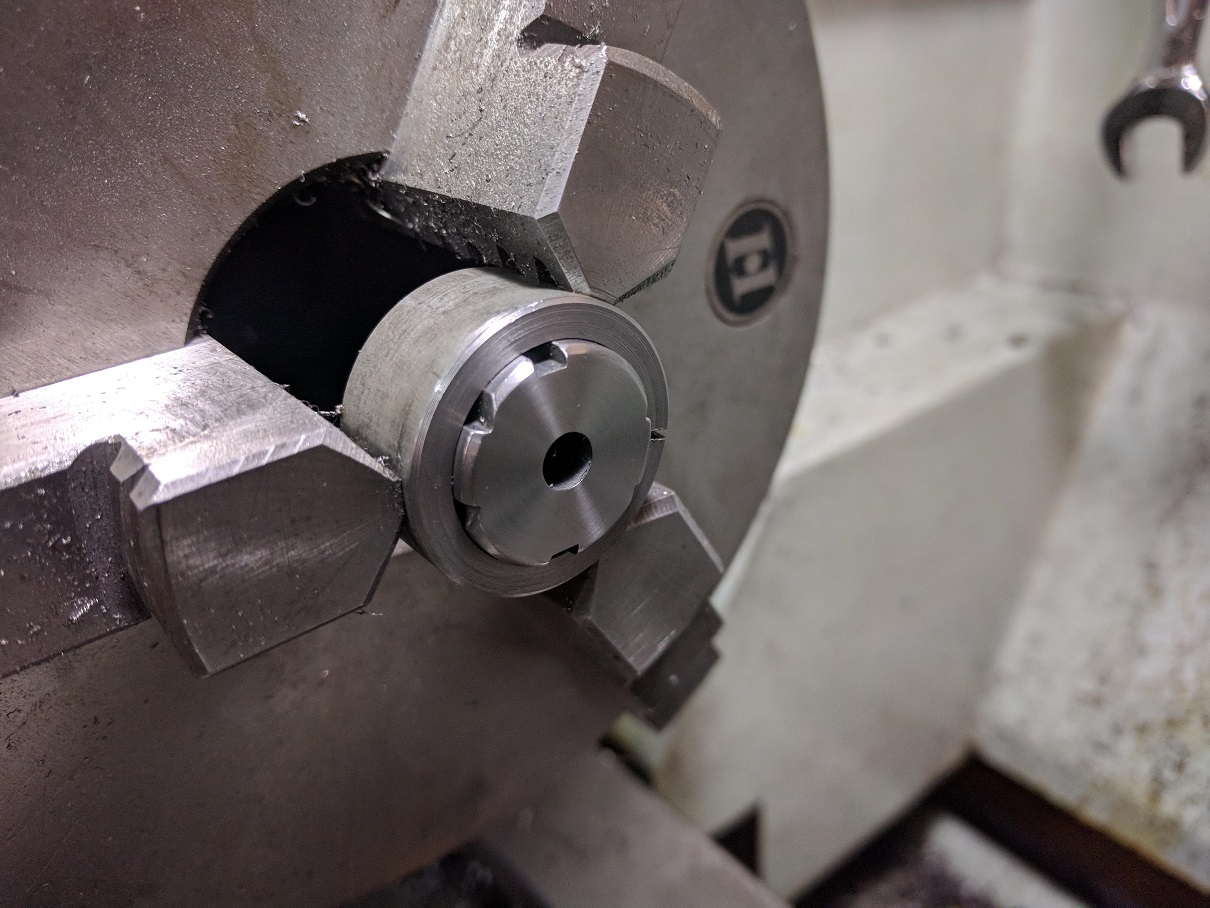

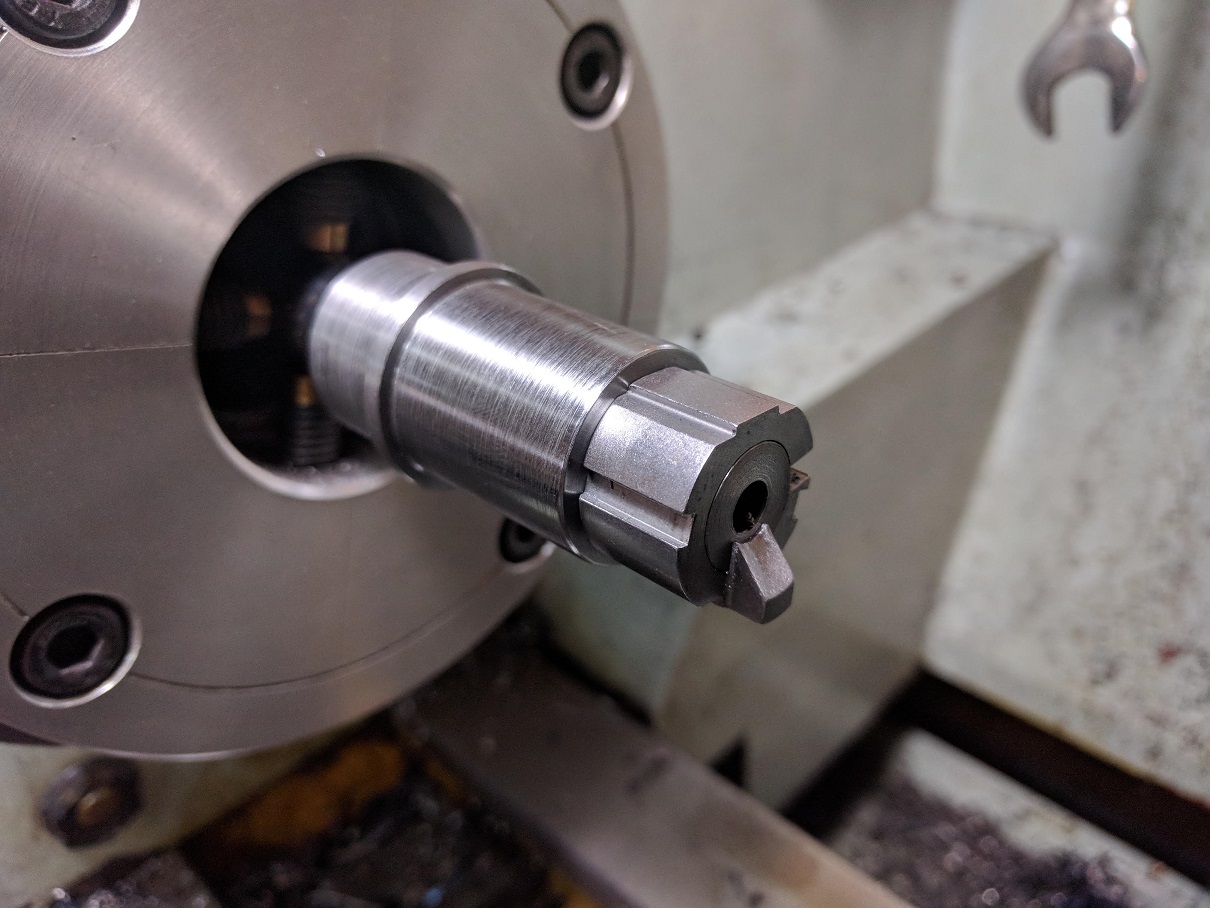

Next, I mounted it in the lathe using a small bushing I made for the job and bored it out to 14mm. I bored deep enough that it just skimmed the back face of the feed ramp.
Attachment 94138
Attachment 94139
Attachment 94140

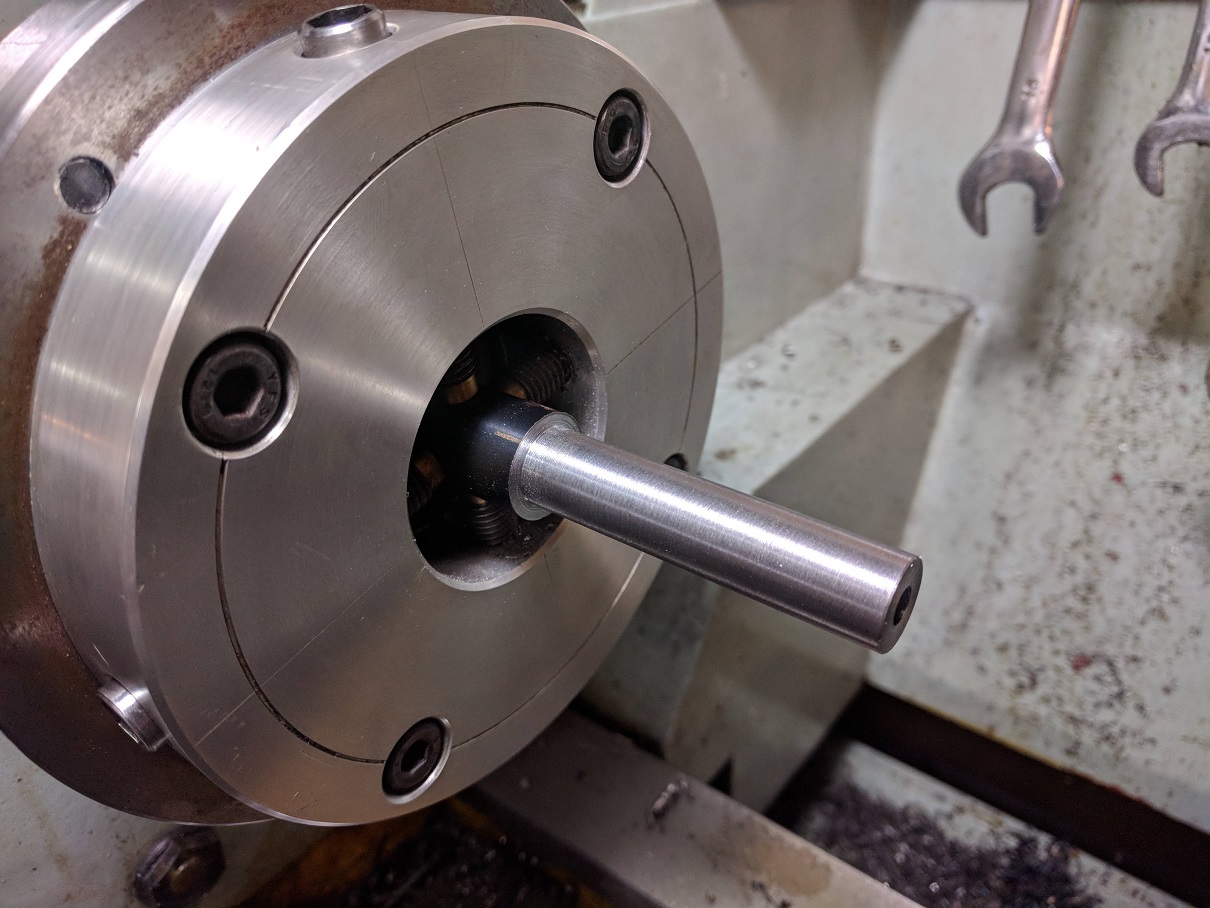

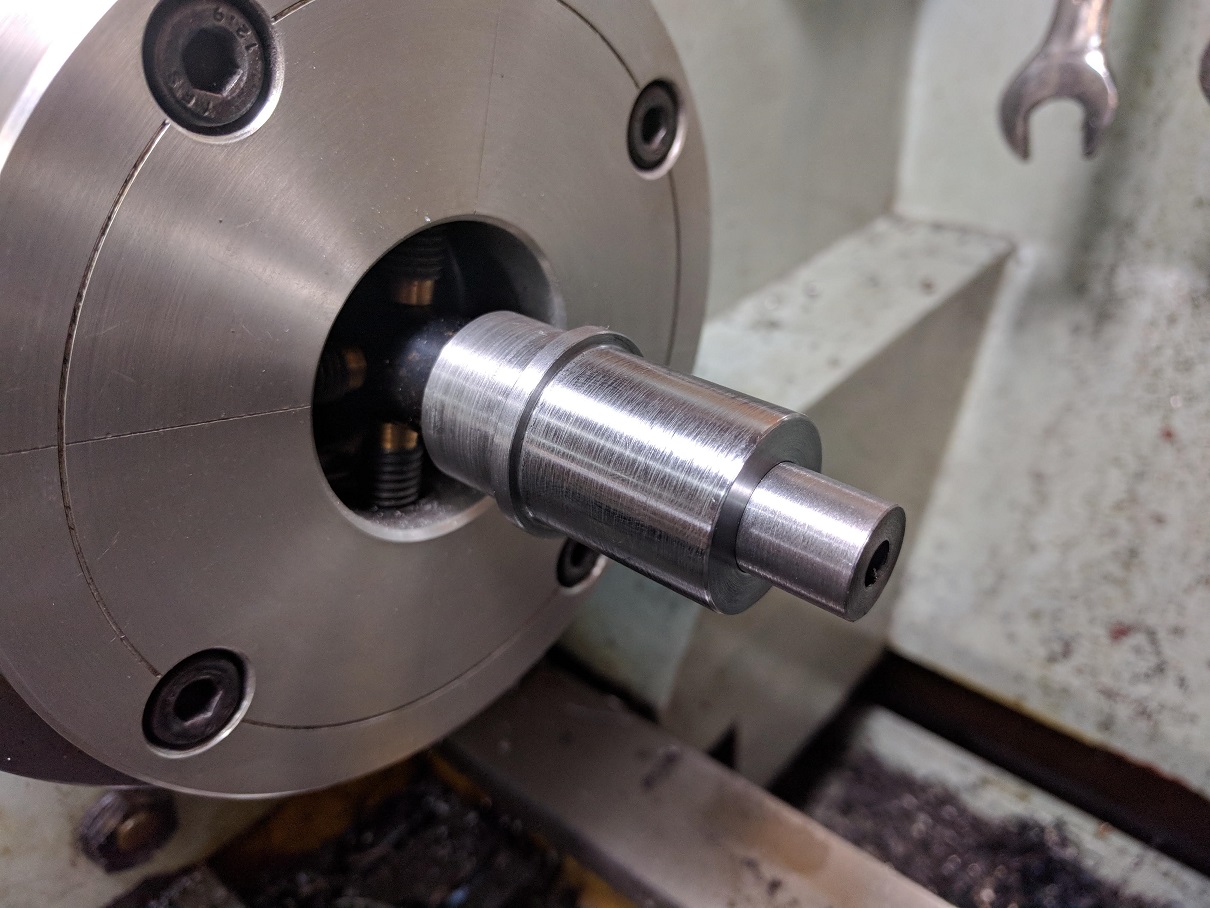

Next was to turn down the shank of the barrel to fit both the receiver adapter and bolt adapter
Attachment 94141

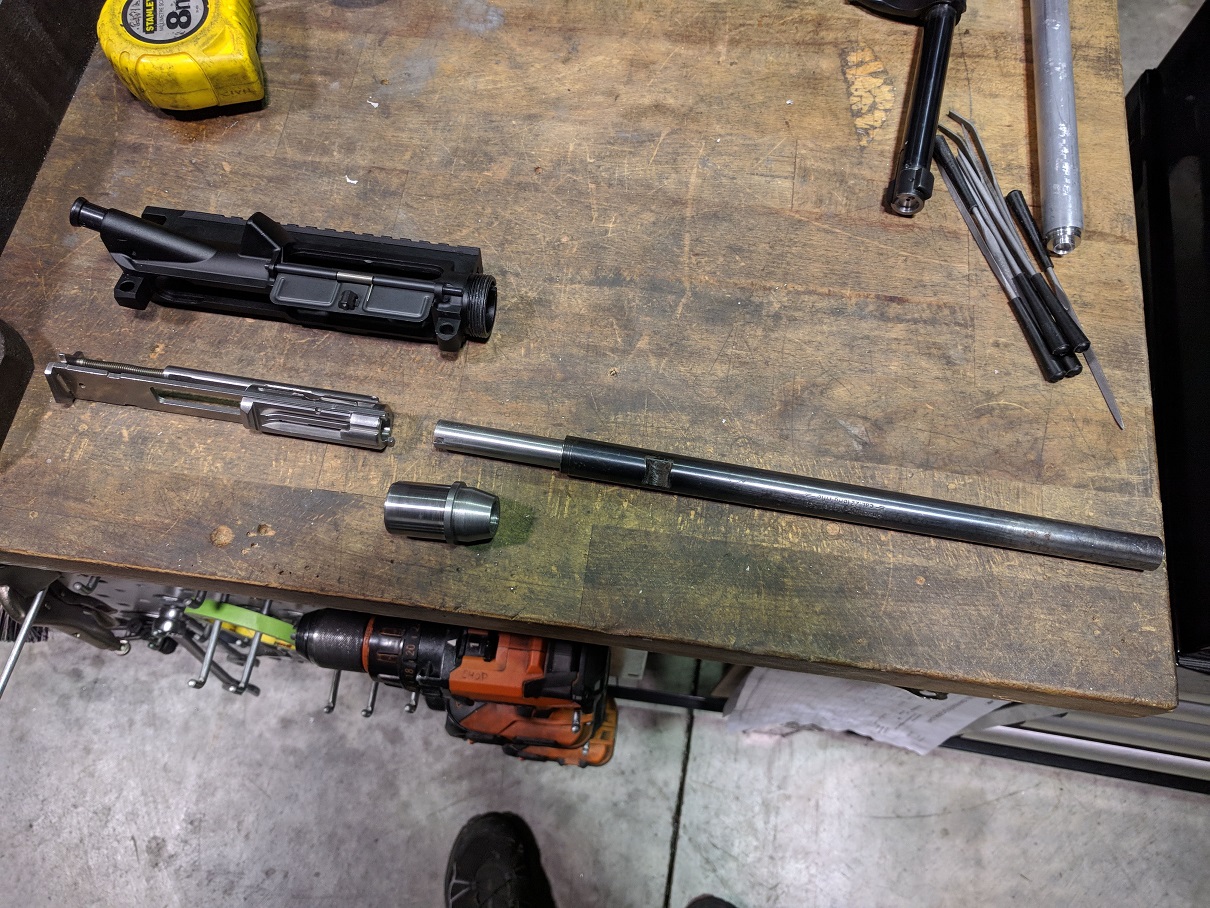

I made a collar for the barrel to adapt it to an AR-15 upper. This is to be glued in place and allows the barrel to be permanently mounted using a standard barrel nut.
Attachment 94142
Attachment 94143
Attachment 94144
Attachment 94145
Attachment 94146

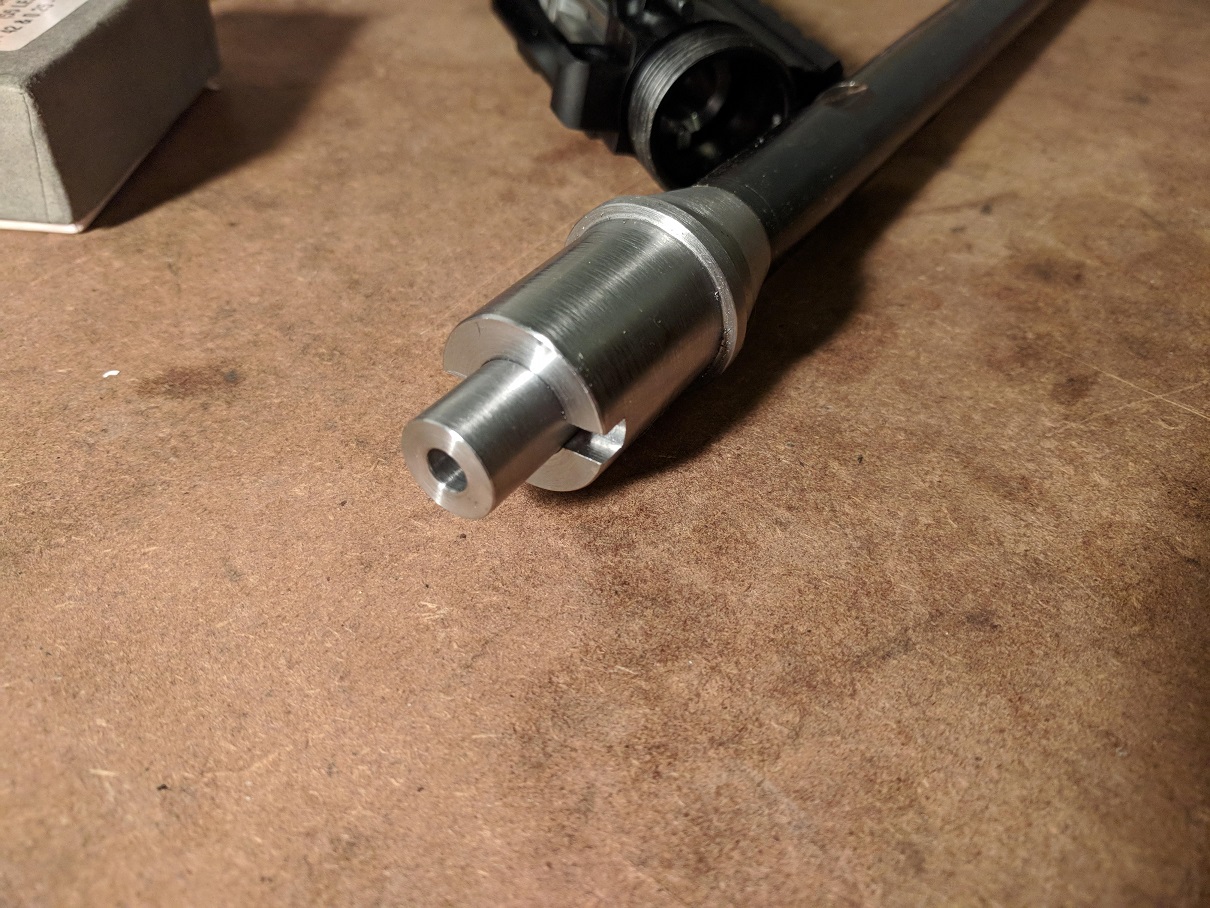

The collar needed 2 cuts to allow for clearance of the bolt rails, this was a simple case of clamp it in the mill vice and run an endmill across it.

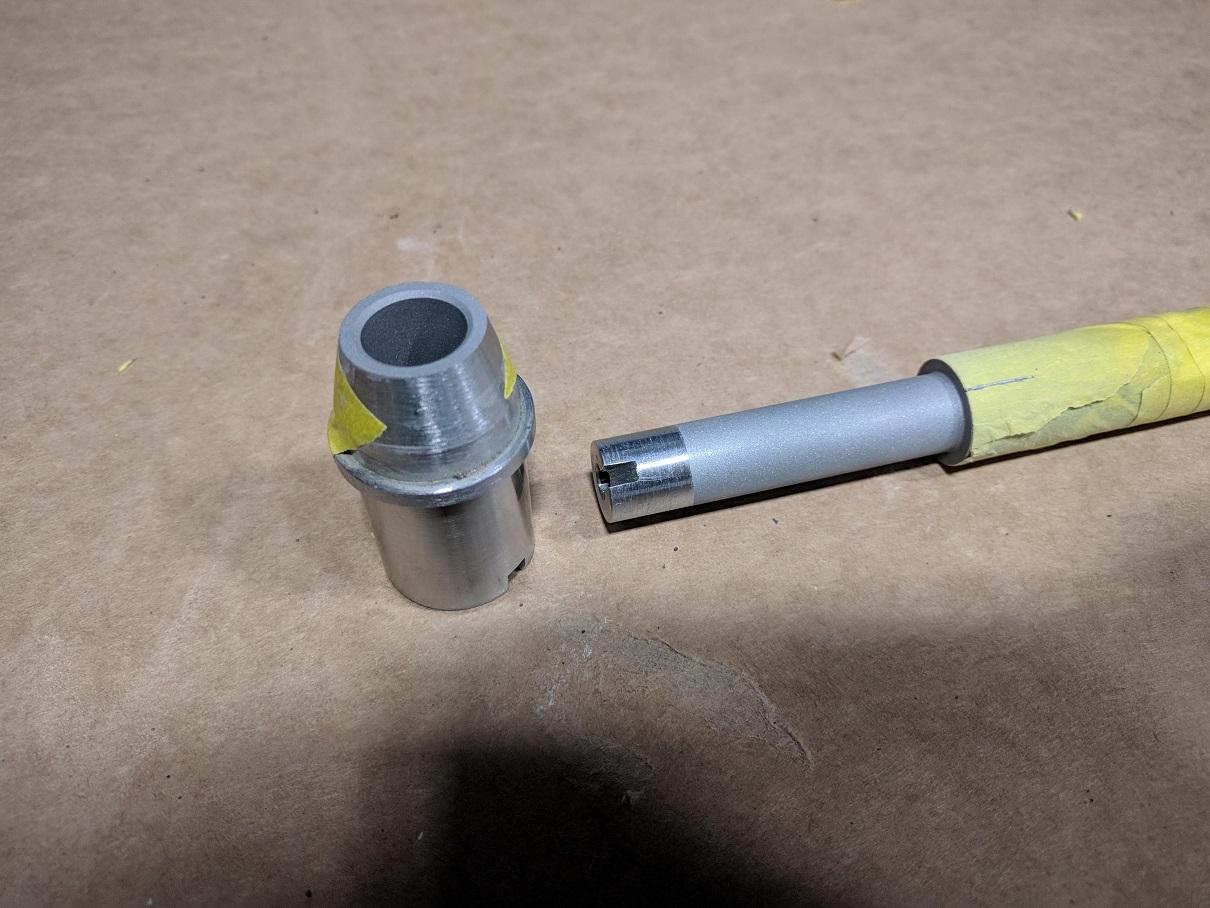

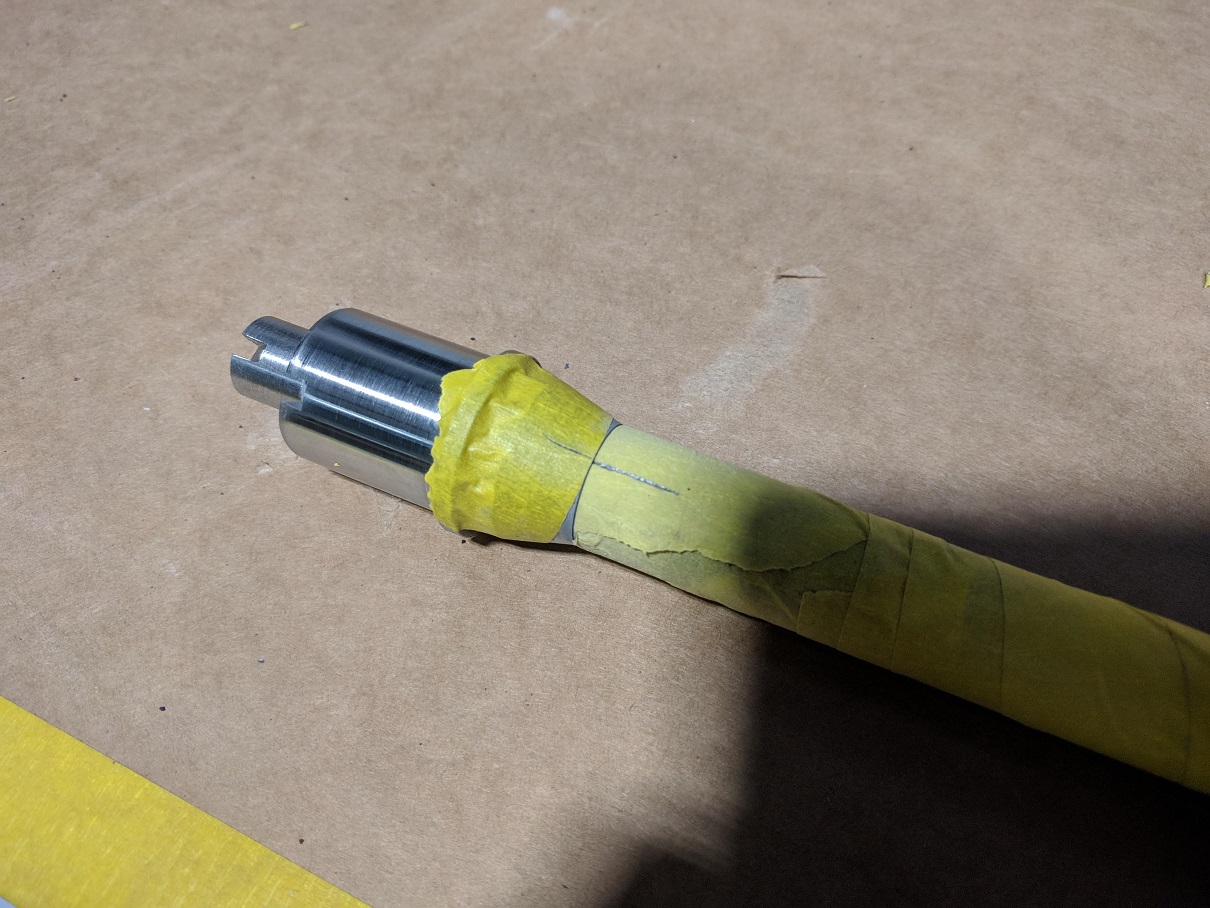

I then masked and sandblasted the collar and barrel shank and glued the two together using a thin epoxy.
Attachment 94147
Attachment 94148

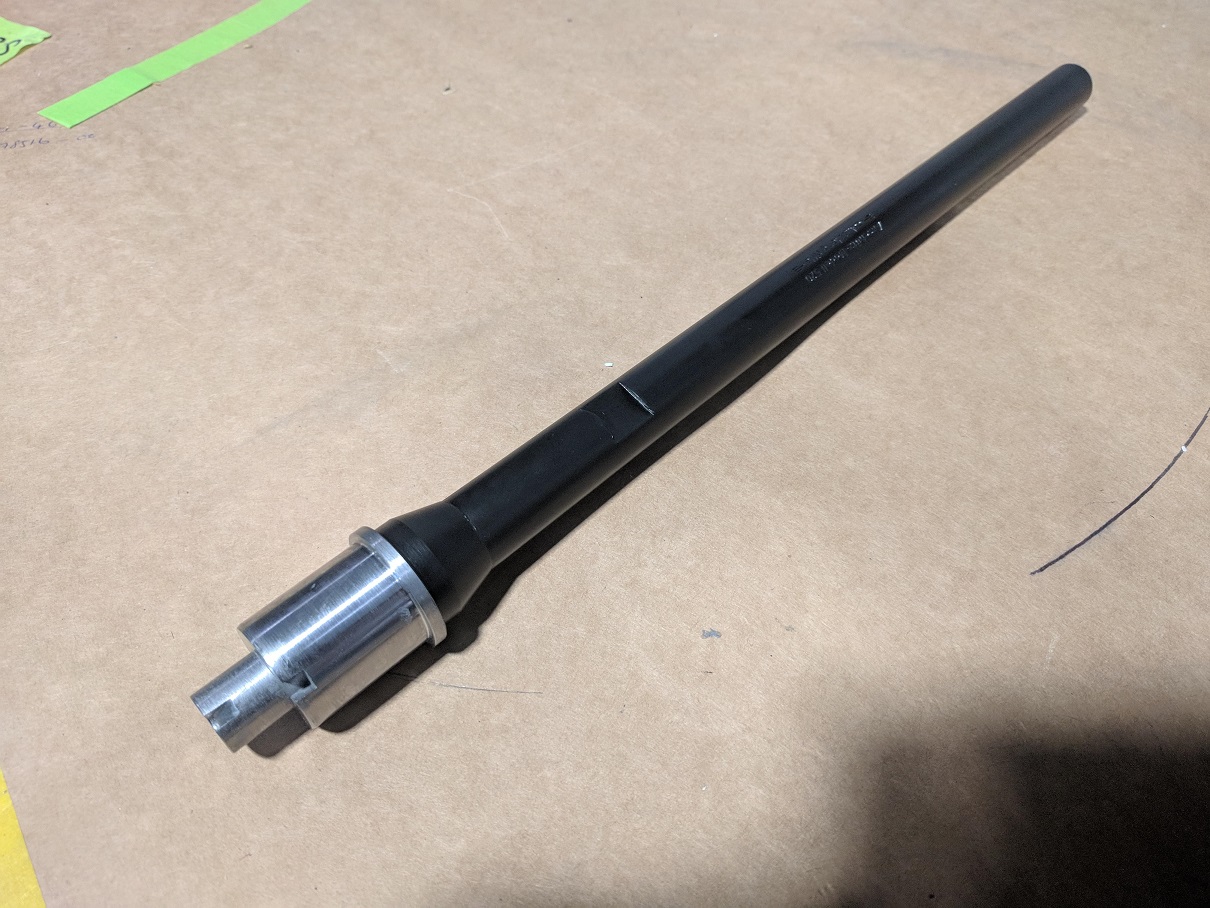

Once cured I sandblasted the assembly and gave it a quick coat of black paint
Attachment 94149
Next was to make the handguard. I used a section of carbon tube that I picked up from work, cut it to length and sanded it back to 400grit. I will add vents and some textured grip at some point.
Attachment 94150
Attachment 94151

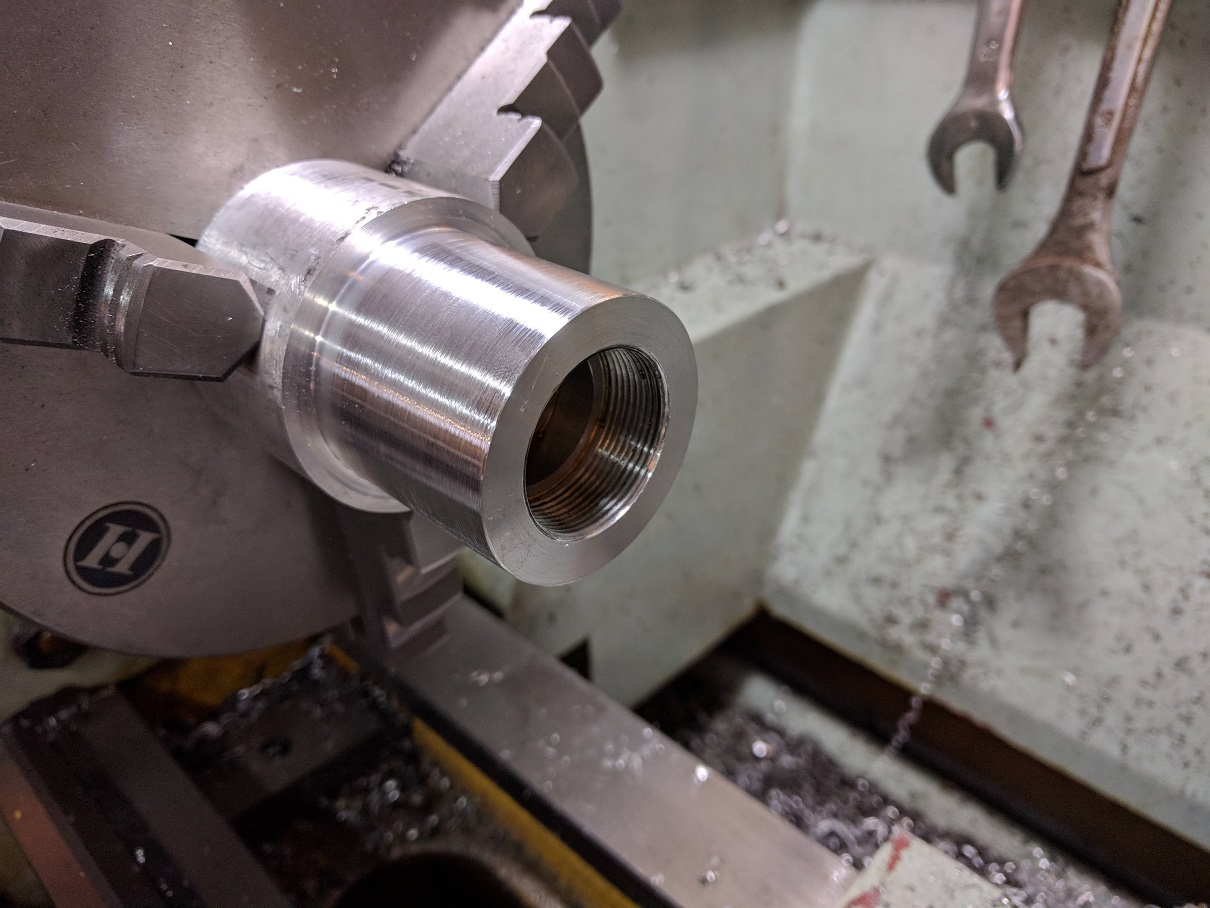

Once I had the handguard I could make a barrel nut to suit. A simple job on the lathe.
Attachment 94152
Attachment 94153

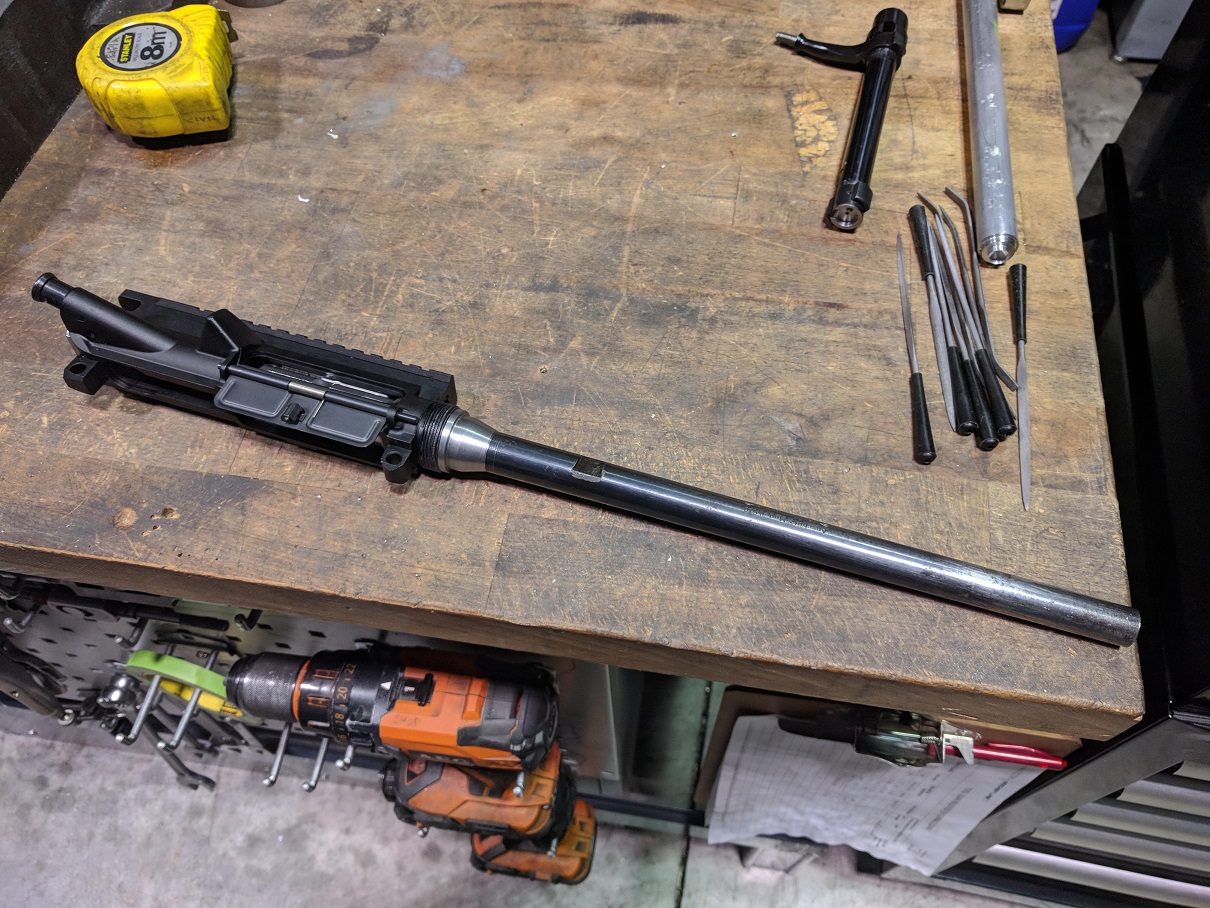

At this point I assembled the rifle and took it out the range for a test run. I was expecting a shit fight to get it running nicely but I put about 200 rounds through it without a single issue. Very impressed with CMMG bolts and mags.
I decided I wanted to thread the barrel and suppress it as it is just a touch too loud with subsonic ammo to shoot without hearing protection. Though I suspect most of the noise is likely the action cycling, I will suppress it anyway.

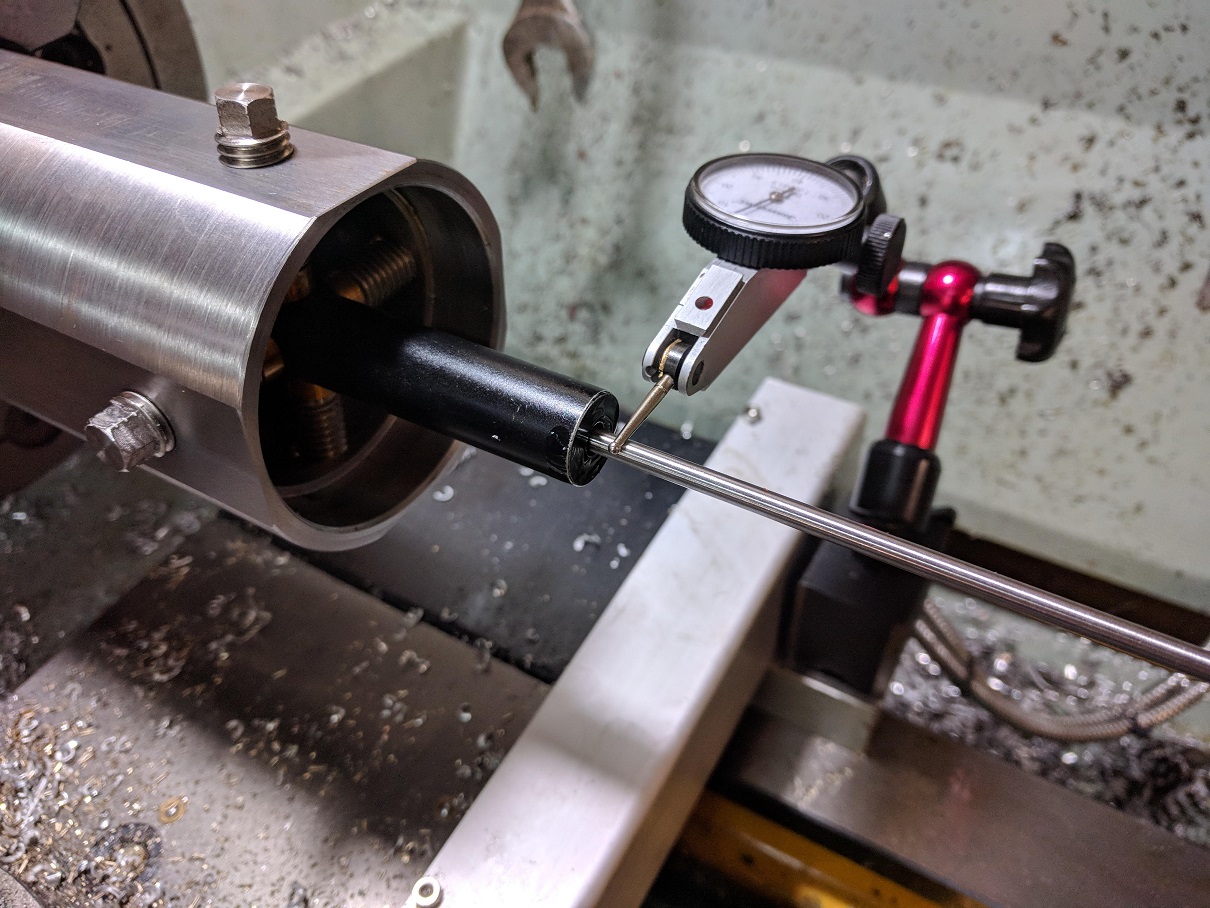

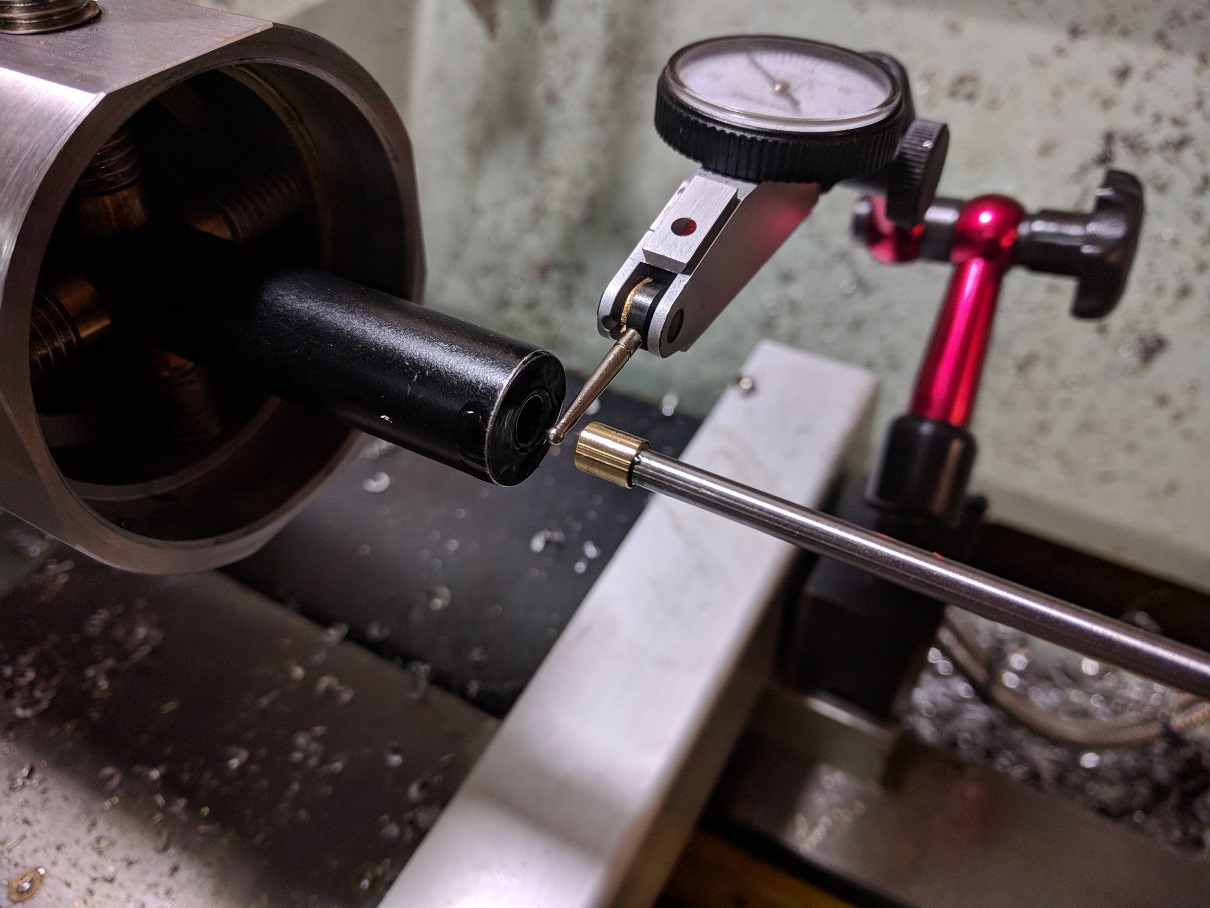

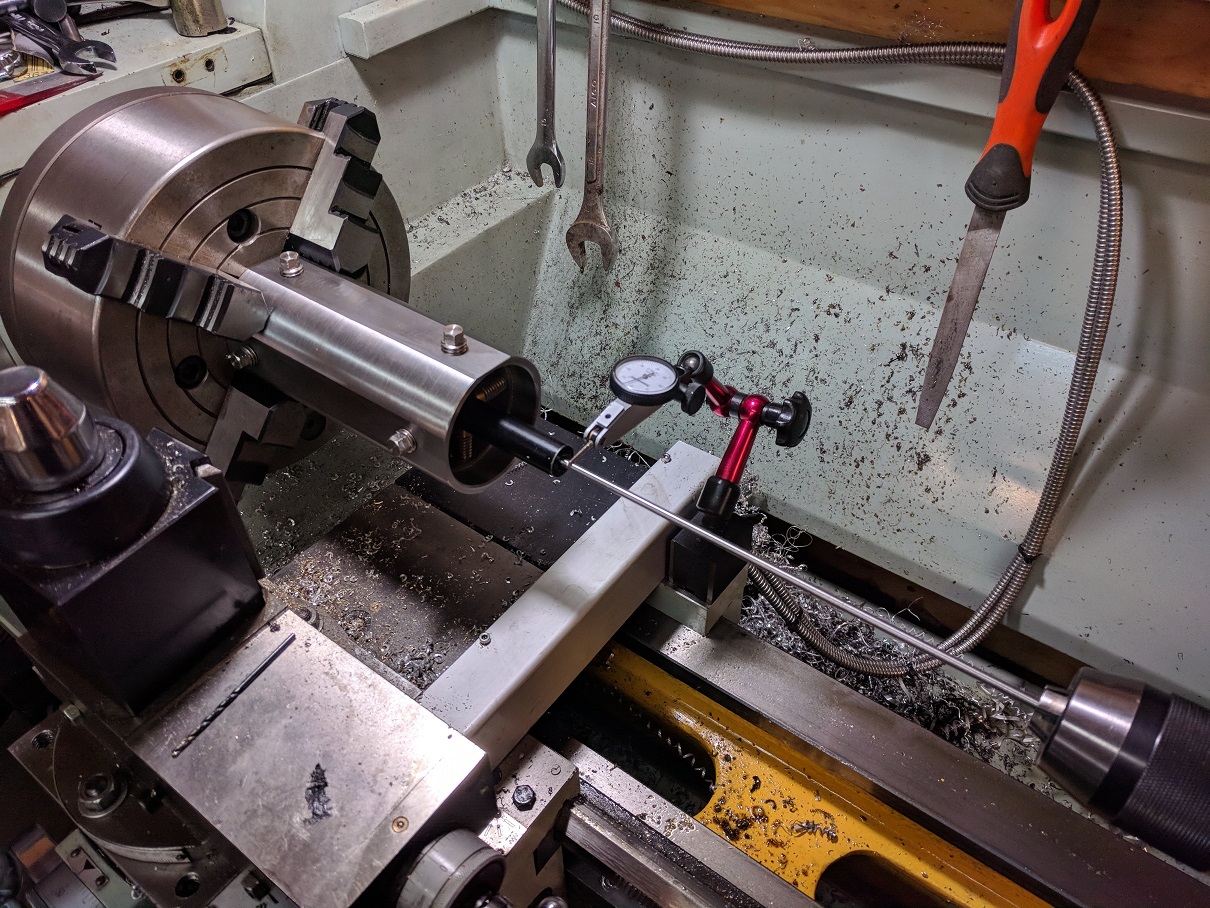

I set the barrel up on the lathe using my action truing jig as it is too short to put through the headstock. I dialed it in using a length of rod with a brass bushing, which would be just inserted into the bore, adjusted until running true and then advancing the rod about 100mm further into the bore and indicate again. Once both of these positions are showing no movement on the indicator, the bore is running true to the lathe.

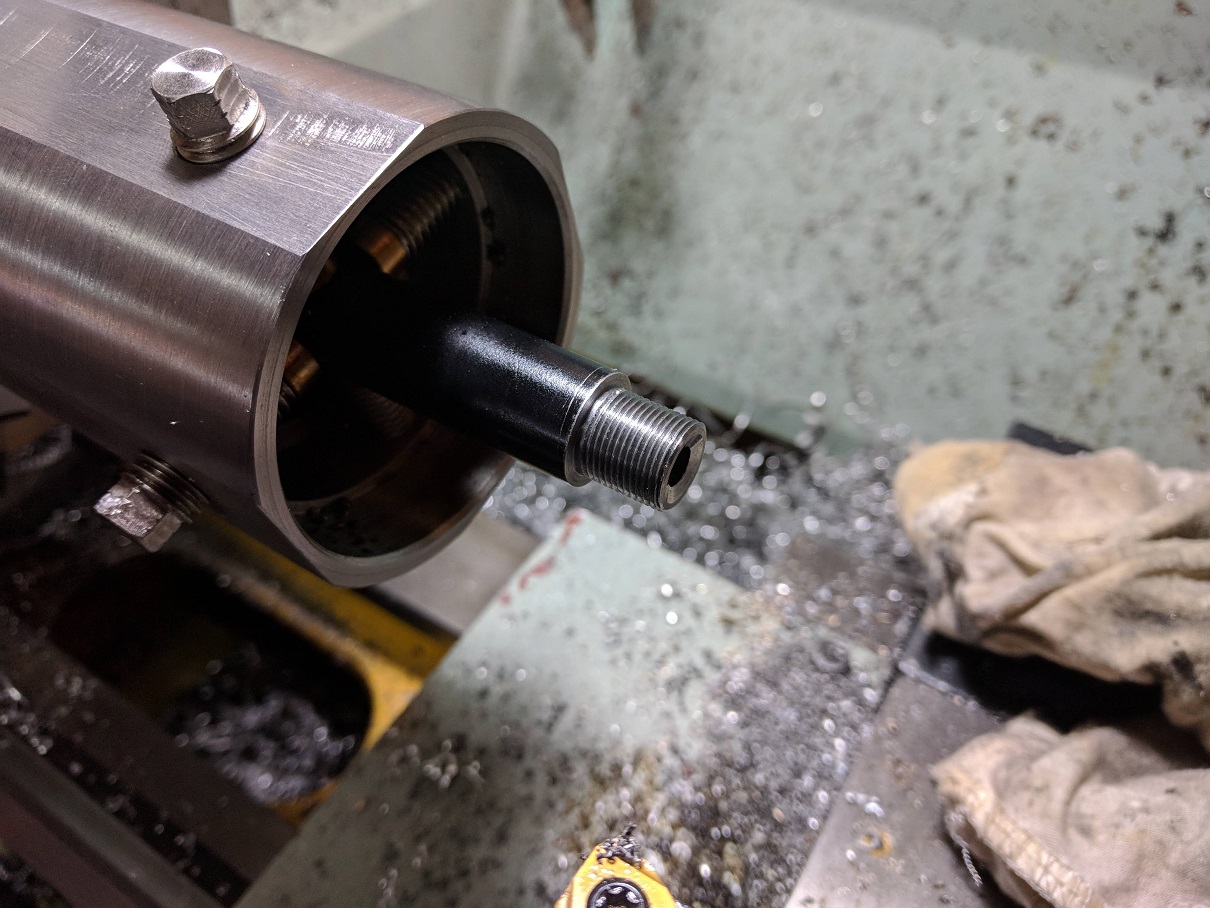

I threaded it for 1/2-28
Attachment 94156
Attachment 94155
Attachment 94157
Attachment 94158

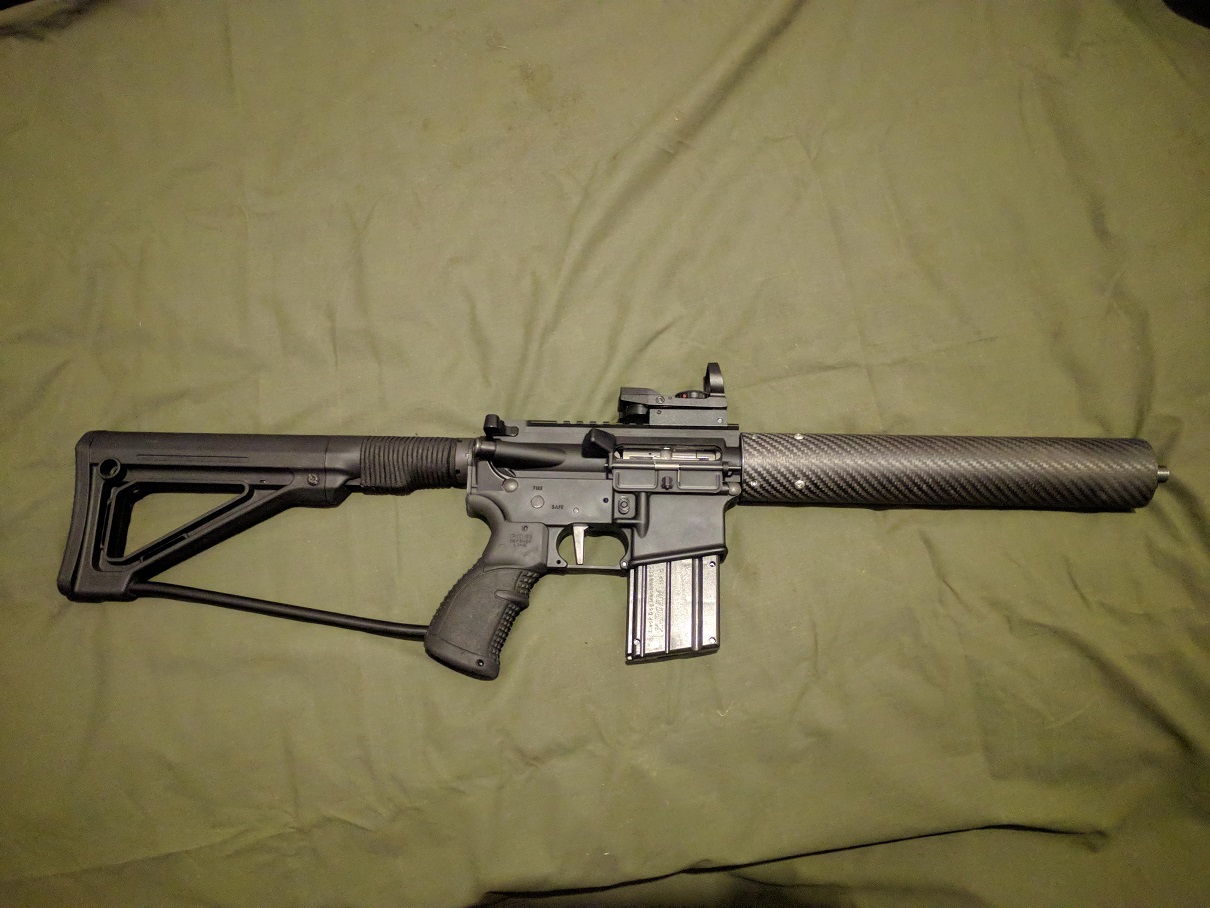

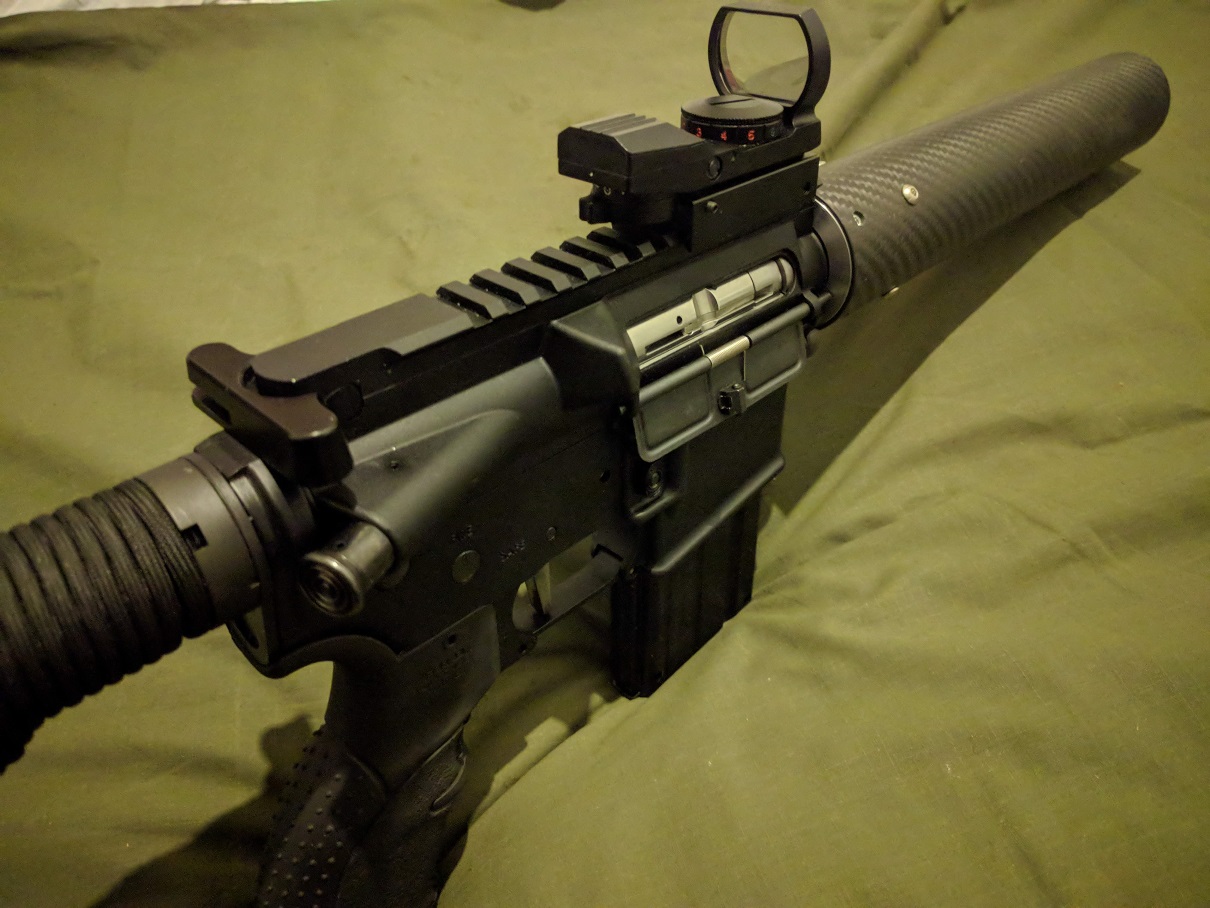

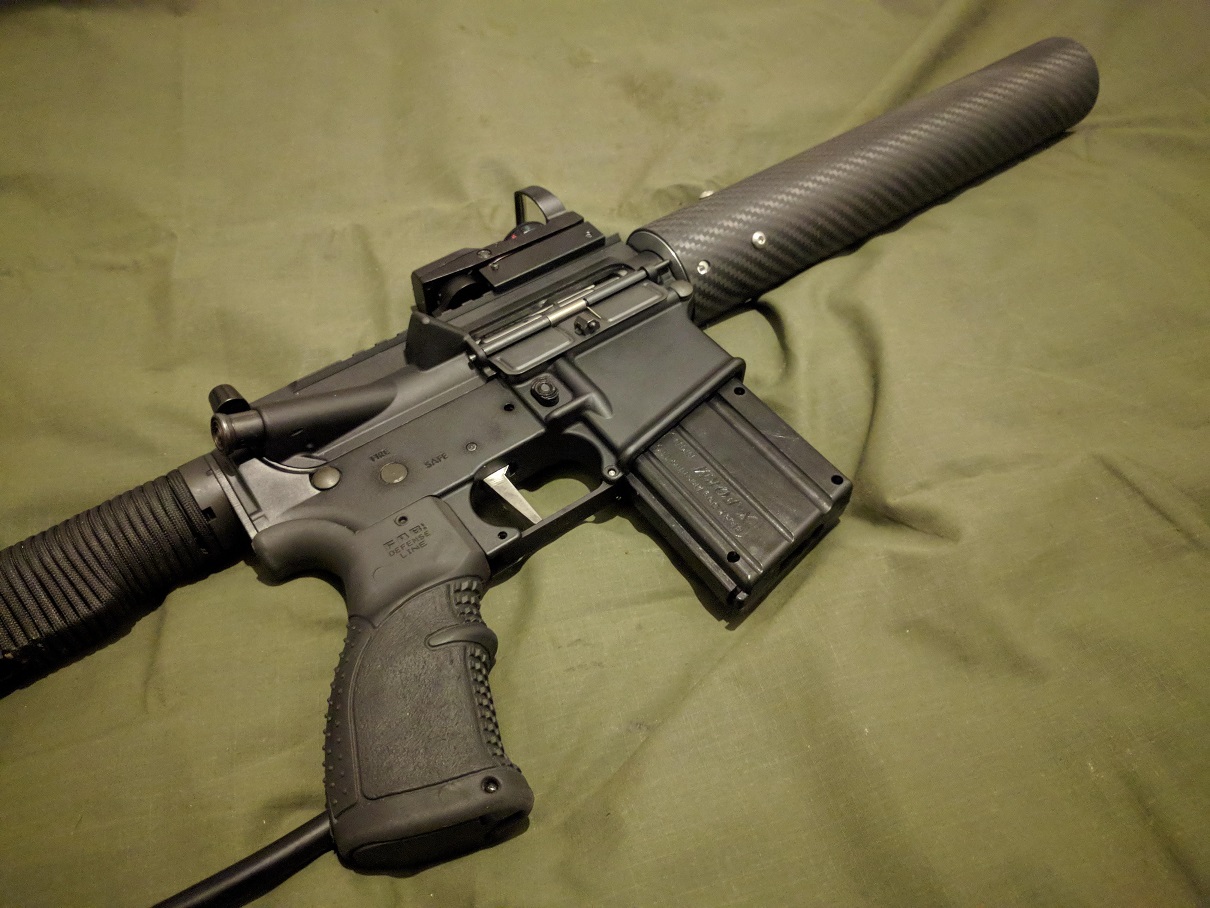

And here it is assembled. Not absolutely complete but very shootable right now. I have mounted a super expensive chinese red dot ($20, Ebay) and I am actually very happy with how it preforms. Perfect for a 22.
I intend to use it for Mini IPSC and Speed steel shooting. If it proves to be accurate enough, it may be used for long range 22 as well. I have checked the velocity with CCI Std and get about 1030fps
Attachment 94159
Attachment 94160
Attachment 94161
Thanks for looking.
