Thread: Boar Freakarator 2000

  1. #1
    Member Boar Freak's Avatar
    Join Date
    Jul 2012
    Location
    Above the Hutt
    Posts
    859

    Boar Freakarator 2000

    I meant to share my latest creation with you guys for a while now.

    I have my son with me basically 24/7 since he was 6 months old so where before I got around on the 4 wheeler now I have to use the Zuki. He comes with me to work and mid week goat culling missions too (just the easy spots). He just sits in the babypack with his earmuffs on and tries he's best to to slow me down by grabbing all the branches of trees we walk past or singing twinkle-twinkle just to make shooting a bit more challenging . One day we shot 16 dog tucker goats on a neighbors farm which was good news for the mutts bad for me as I had to take all the carcasses off the pasture. So had to load them in the truck making a bloody mess of the inside. It was stinking for weeks.
    Than I decided to make a rear carrier, my mate used to have one on his old UAZ and it was really useful.
    So pulled out all the use full bits from the scrap metal pile and started cutting and welding.

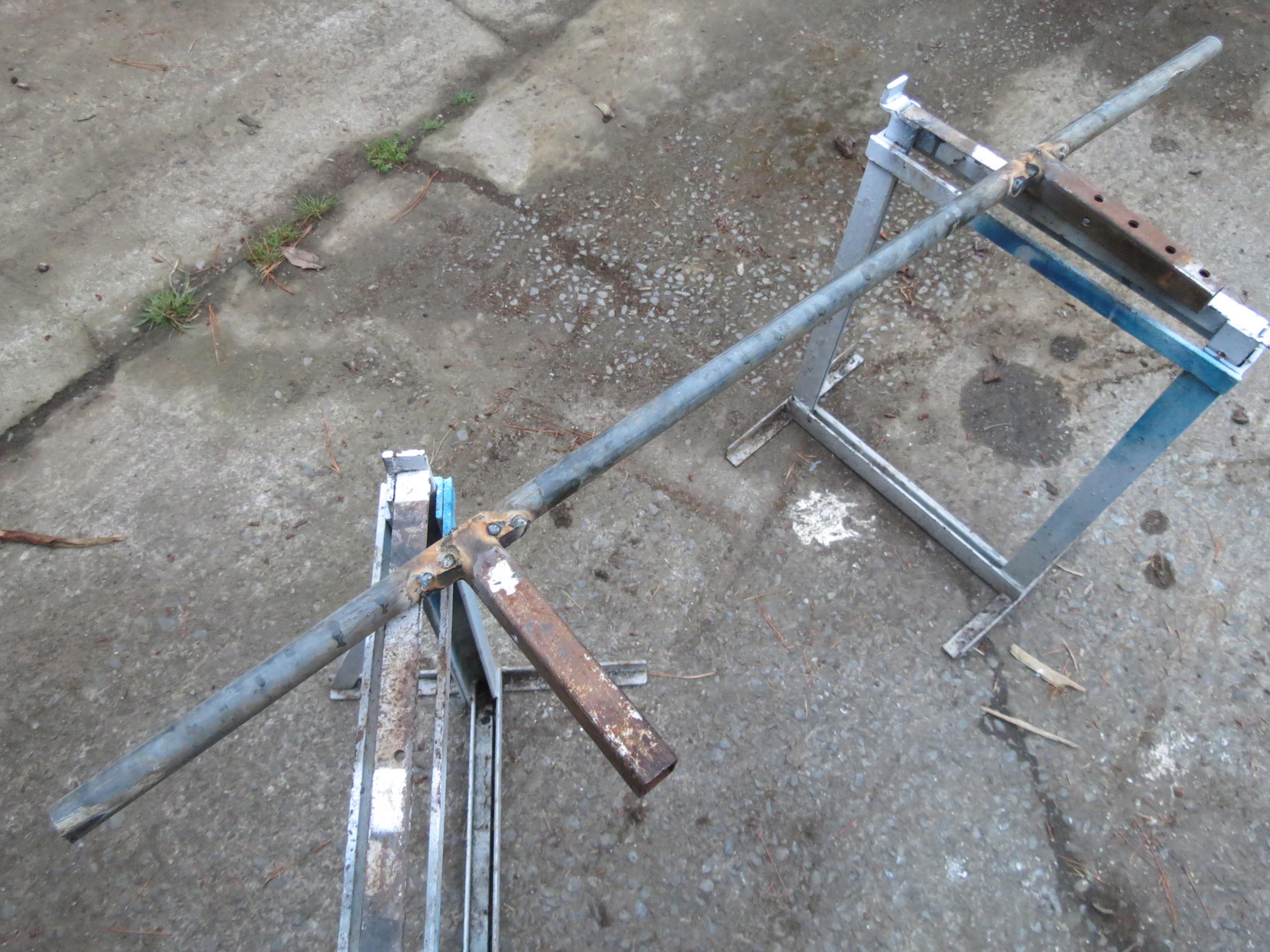

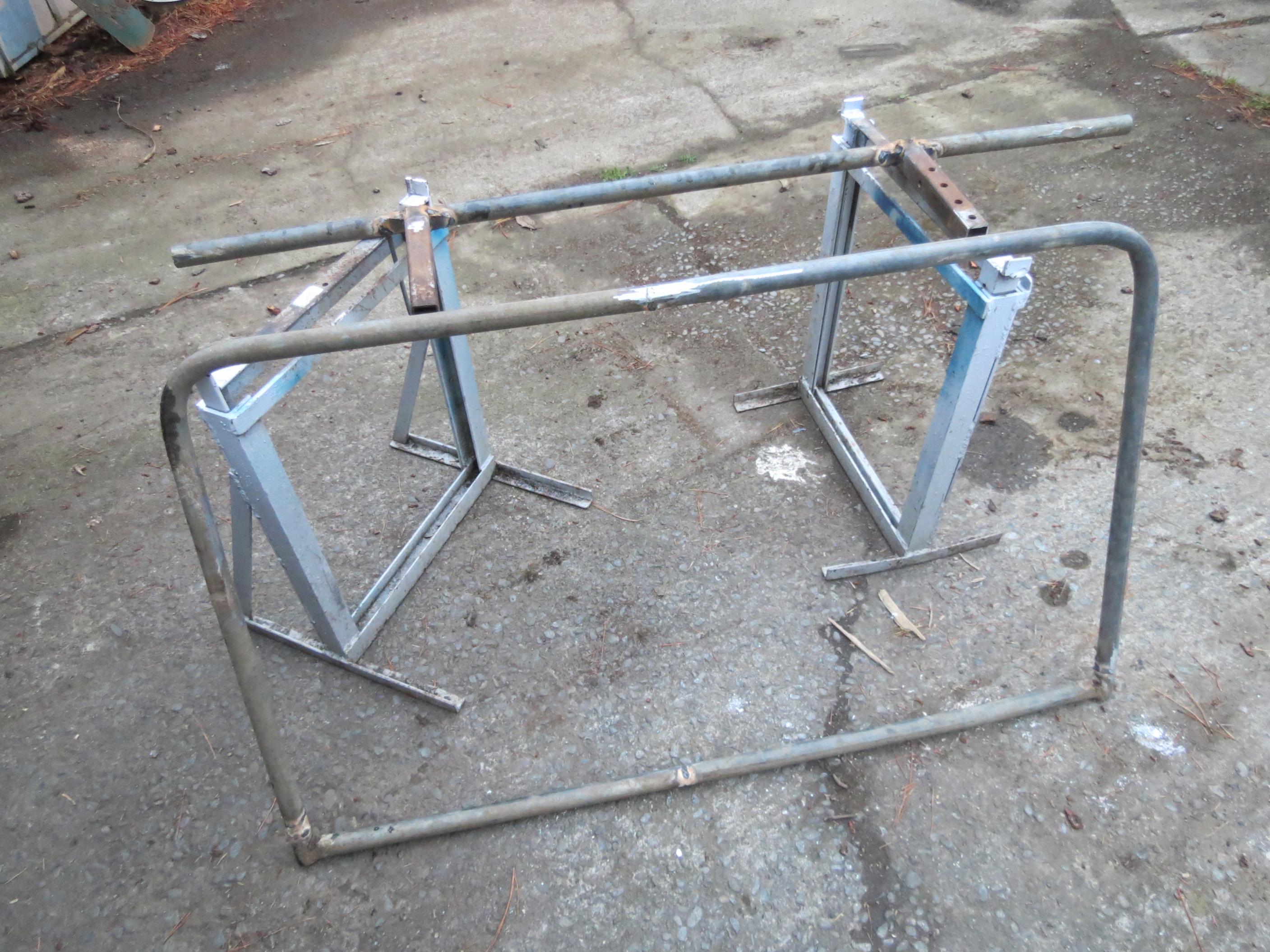

    Made a frame and the bottom bit its going to swing on:
    Name:  a.jpg
Views: 245
Size:  639.6 KB
    Name:  b.jpg
Views: 257
Size:  718.3 KB

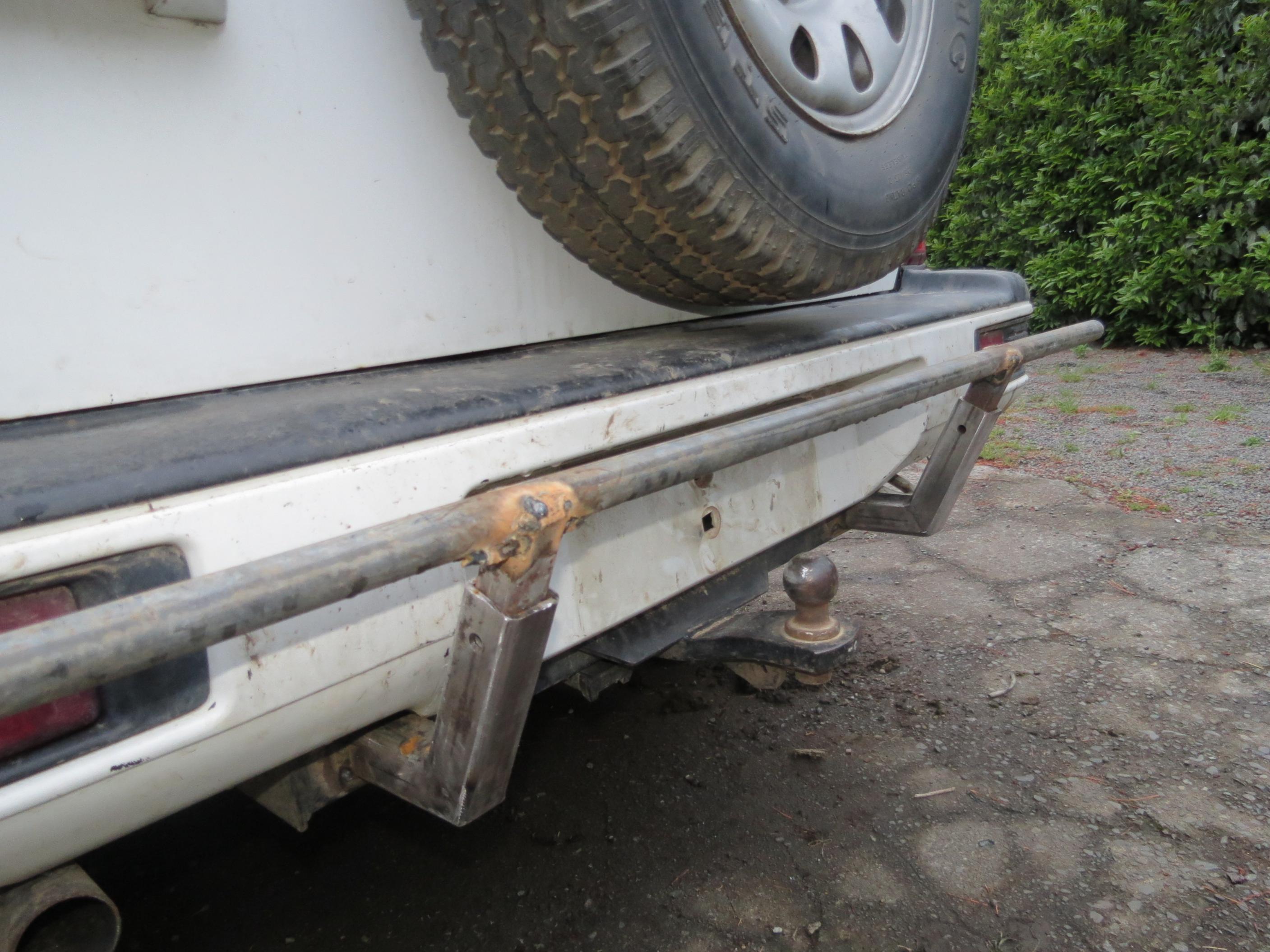

    Than glued the mount to the tow bar which is bolted on the chassis so its Warrant of fitnessy
    This is where the bottom bit slides in and held there by 2 bolts, pull the bolts out and the whole thing comes of if not needed.
    Name:  c.jpg
Views: 240
Size:  543.9 KB

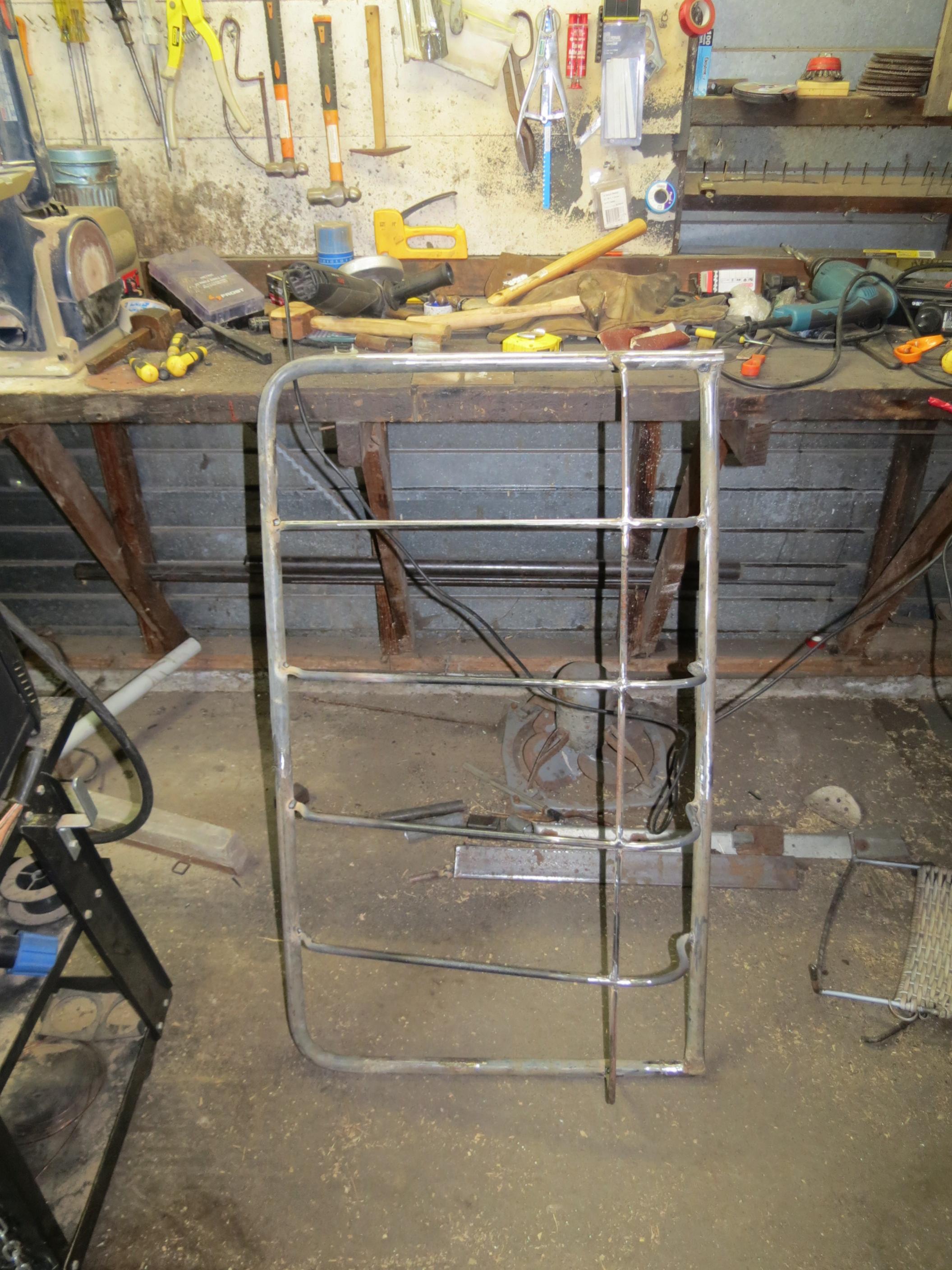

    Heated up 4 10mm bars in the forge and bent them so the bottom will have a belly and welded on 2 lines of cross bars and made a set of hinges.
    Name:  d.jpg
Views: 244
Size:  625.0 KB

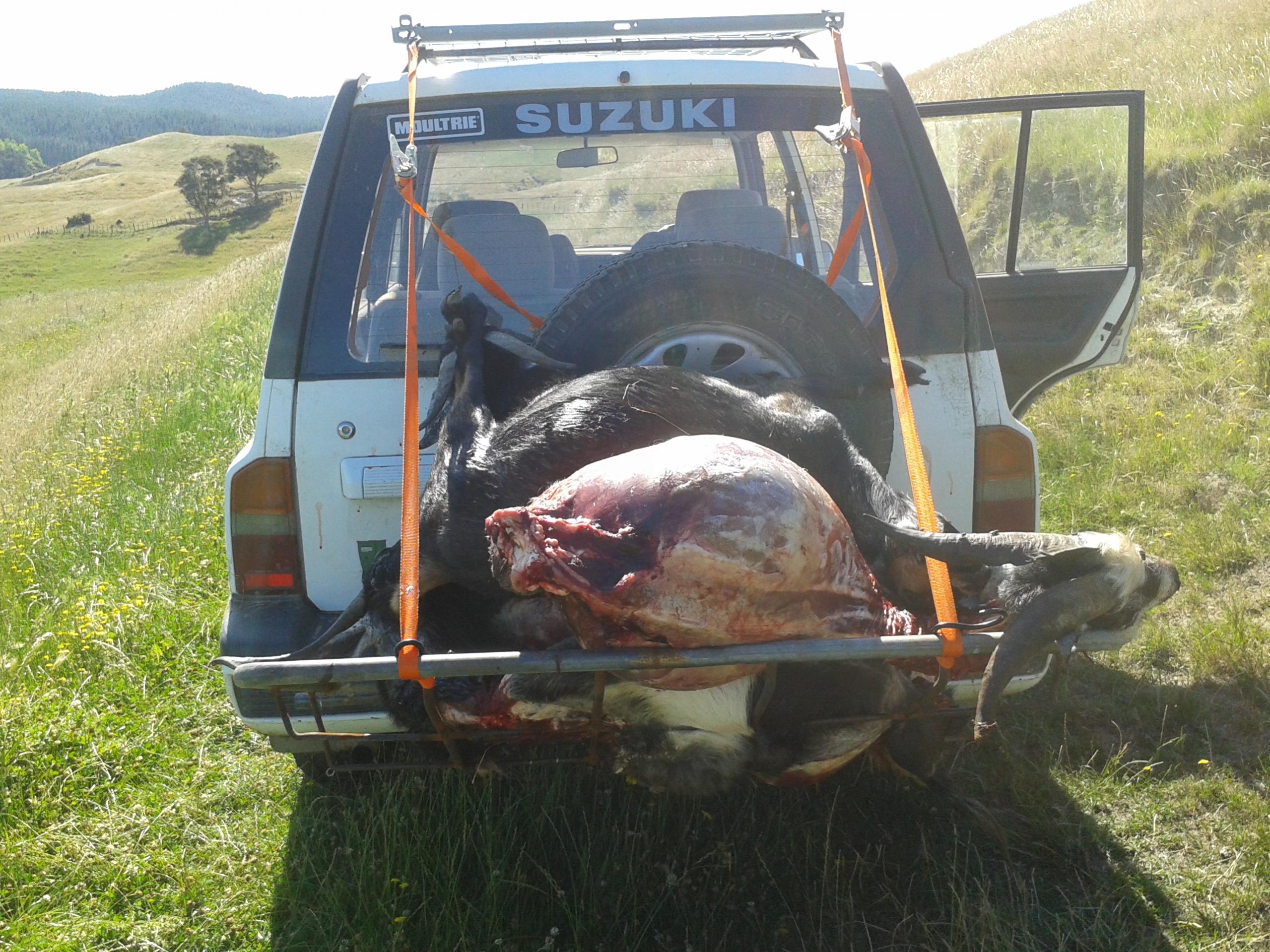

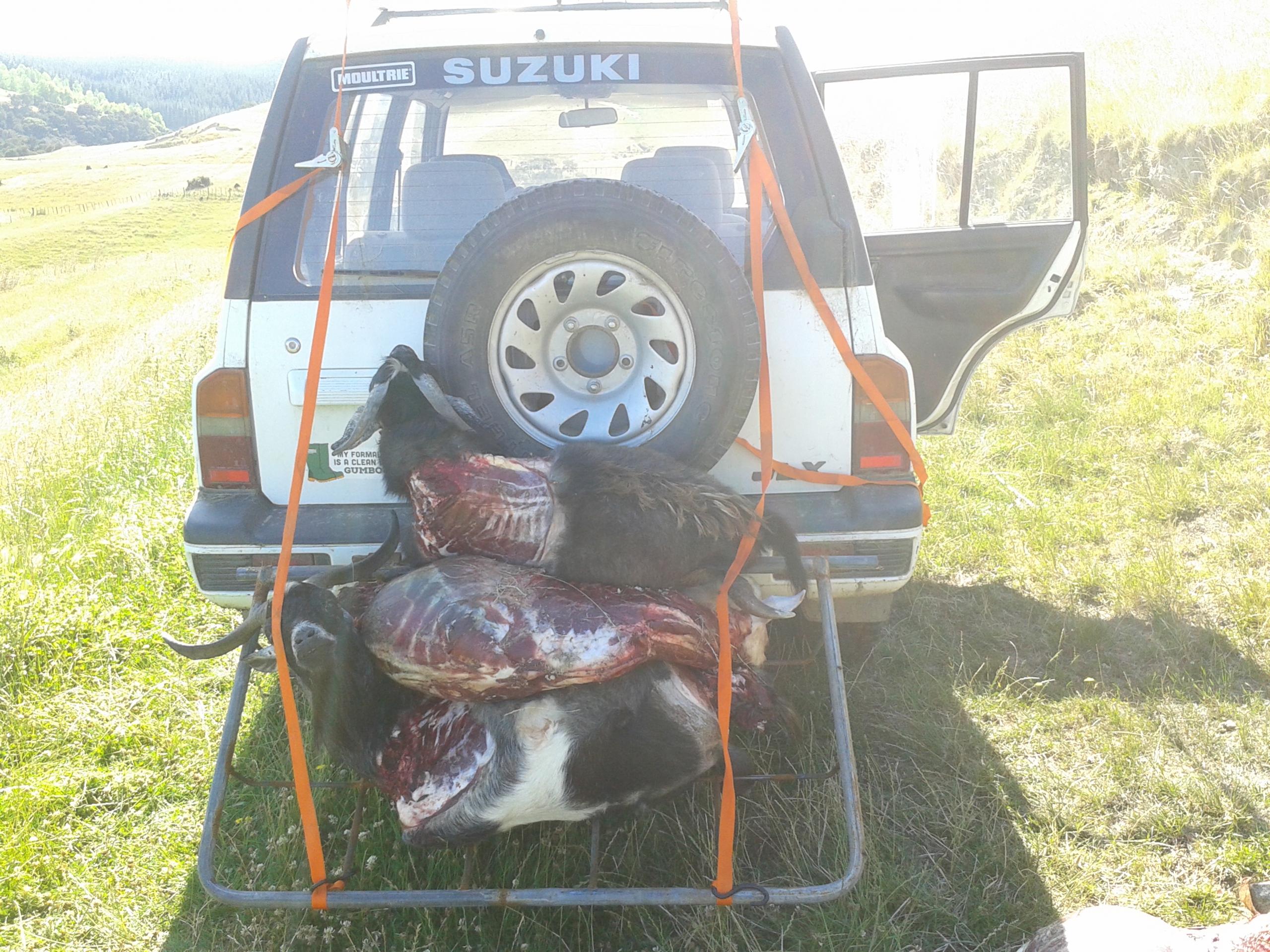

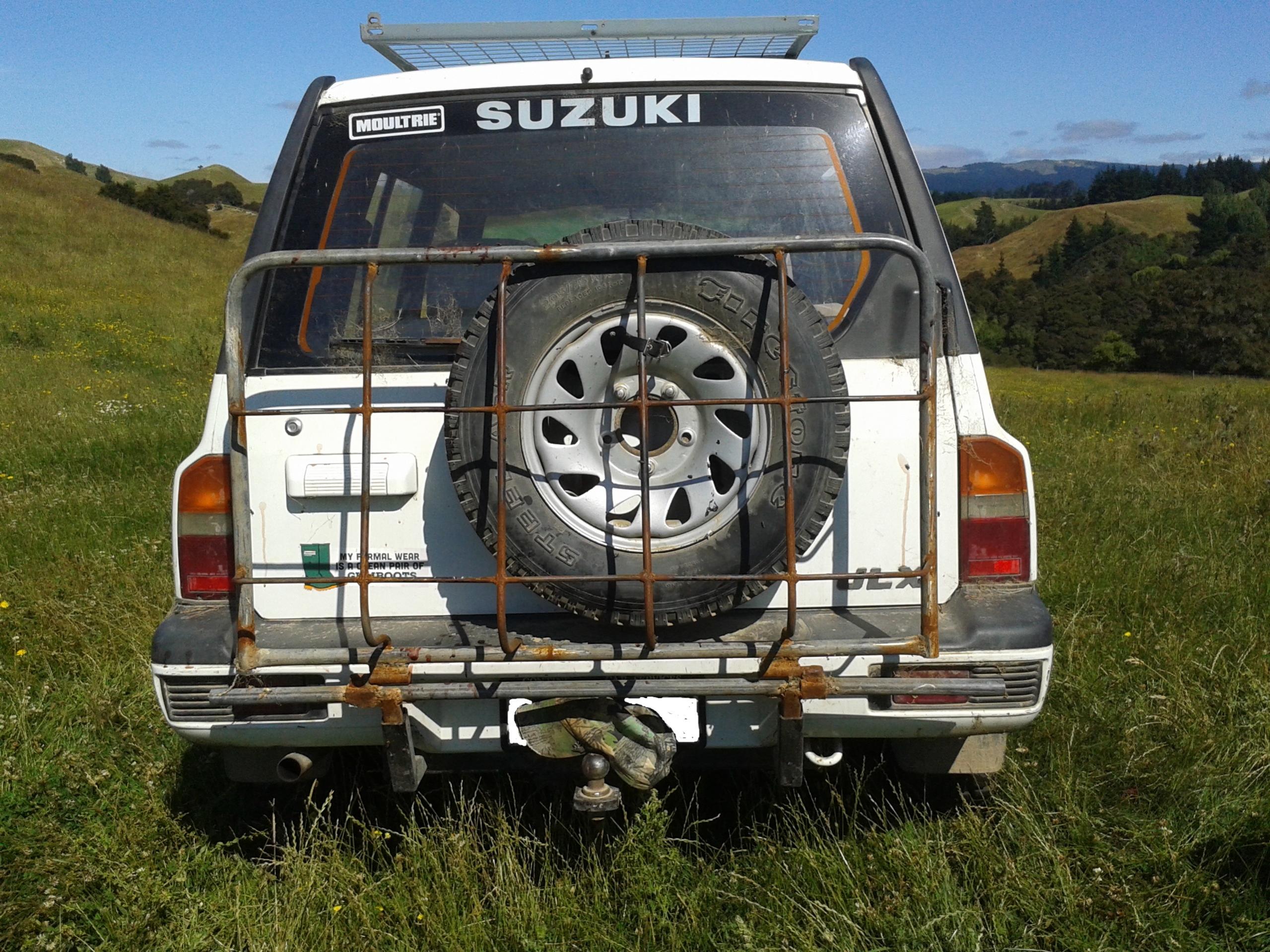

    Its certified up to 5.2 goats carrying capacity. Still working on a better way of anchoring the straps.
    Patent pending .

    Name:  1.jpg
Views: 251
Size:  727.9 KB
    Name:  2.jpg
Views: 246
Size:  711.4 KB
    Name:  3.jpg
Views: 237
Size:  684.8 KB
    Name:  4.jpg
Views: 240
Size:  566.4 KB
    Nothing is tough about having a 70 lb bow and looking like an uncoordinated praying mantis while trying to draw it back.

  2. #2
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wgtn
    Posts
    1,909
    Fookin marvellous

  3. #3
    Member deepsouthaussie's Avatar
    Join Date
    Jun 2013
    Location
    Invercargill
    Posts
    1,234
    Bit of do it yourself kiwi ingenuity there. Well done.. The welds look pretty special 😀

    Sent from my GT-P5210 using Tapatalk

  4. #4
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    20,355
    Goat Freak!!

  5. #5
    Member Boar Freak's Avatar
    Join Date
    Jul 2012
    Location
    Above the Hutt
    Posts
    859
    Don't know if they are special or not am not a fabricator just an ex game keeper. It held up to everything so far. Had 2 of my mates (around 160 kg together) jumping up and down on it and it survived.

  6. #6
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,535
    looks good mate
    thats my trick too, turn the mig up instead of grinding off the galvinising, haha
    Tommy likes this.

  7. #7
    Member Shearer's Avatar
    Join Date
    Sep 2013
    Location
    Tasman
    Posts
    2,943
    Looks like the Suzuki should wheel stand ok now?
    veitnamcam and 223nut like this.
    Experience. What you get just after you needed it.

  8. #8
    Ejected
    Join Date
    Dec 2012
    Location
    HBC, NORTH of Auckland
    Posts
    5,250
    Quote Originally Posted by Shearer View Post
    Looks like the Suzuki should wheel stand ok now?
    Haha yeah should bolt some little wheels on at the back of the frame to double as a wheelie bar
    Ryan_Songhurst likes this.

  9. #9
    Member
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    287
    Brilliant idea - thanks - I'm now going to do something similar.

    @

  10. #10
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    Good skills

  11. #11
    OPCz Rushy's Avatar
    Join Date
    Jun 2012
    Location
    Nor West of Auckland on the true right of the Kaipara River
    Posts
    27,603
    Good stuff.
    It takes 43 muscle's to frown and 17 to smile, but only 3 for proper trigger pull.
    What more do we need? If we are above ground and breathing the rest is up to us!
    Rule 1: Treat every firearm as loaded
    Rule 2: Always point firearms in a safe direction
    Rule 3: Load a firearm only when ready to fire
    Rule 4: Identify your target beyond all doubt
    Rule 5: Check your firing zone
    Rule 6: Store firearms and ammunition safely
    Rule 7: Avoid alcohol and drugs when handling firearms

  12. #12
    Member Boar Freak's Avatar
    Join Date
    Jul 2012
    Location
    Above the Hutt
    Posts
    859
    Quote Originally Posted by Bill999 View Post
    looks good mate
    thats my trick too, turn the mig up instead of grinding off the galvinising, haha
    I strip most of it from contact areas but the but the heat gets to the rest, using gasless wire now splatters like shit. If you see the next fire in HB on the news than its probably started from my garage
    Nothing is tough about having a 70 lb bow and looking like an uncoordinated praying mantis while trying to draw it back.

  13. #13
    Member Boar Freak's Avatar
    Join Date
    Jul 2012
    Location
    Above the Hutt
    Posts
    859
    Quote Originally Posted by thejavelin View Post
    Brilliant idea - thanks - I'm now going to do something similar.

    @
    Just don't weld to the chassis if its a licensed truck @thejavelin else you need a cert for your mods.
